ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-521
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

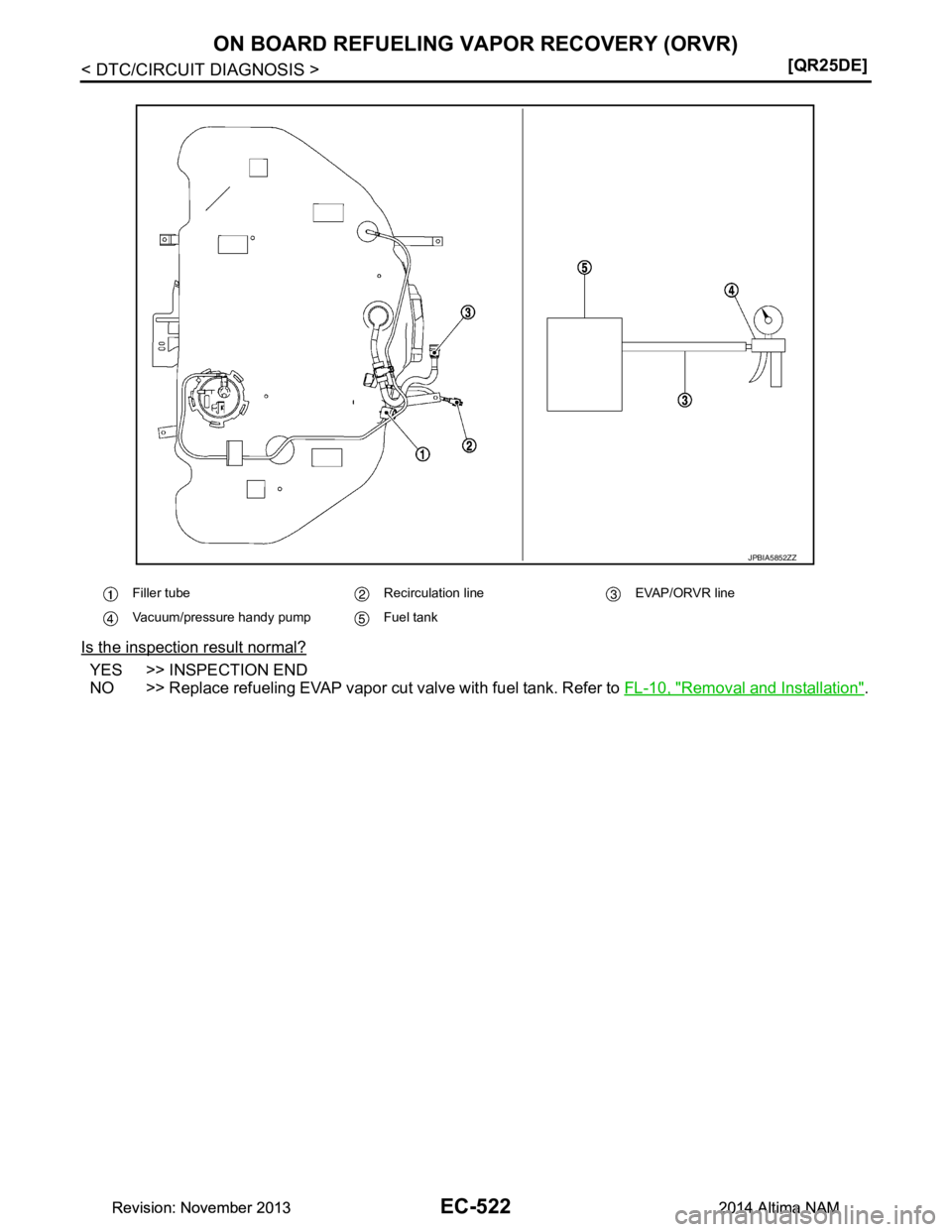

Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-10, "Removal and Installation"
.

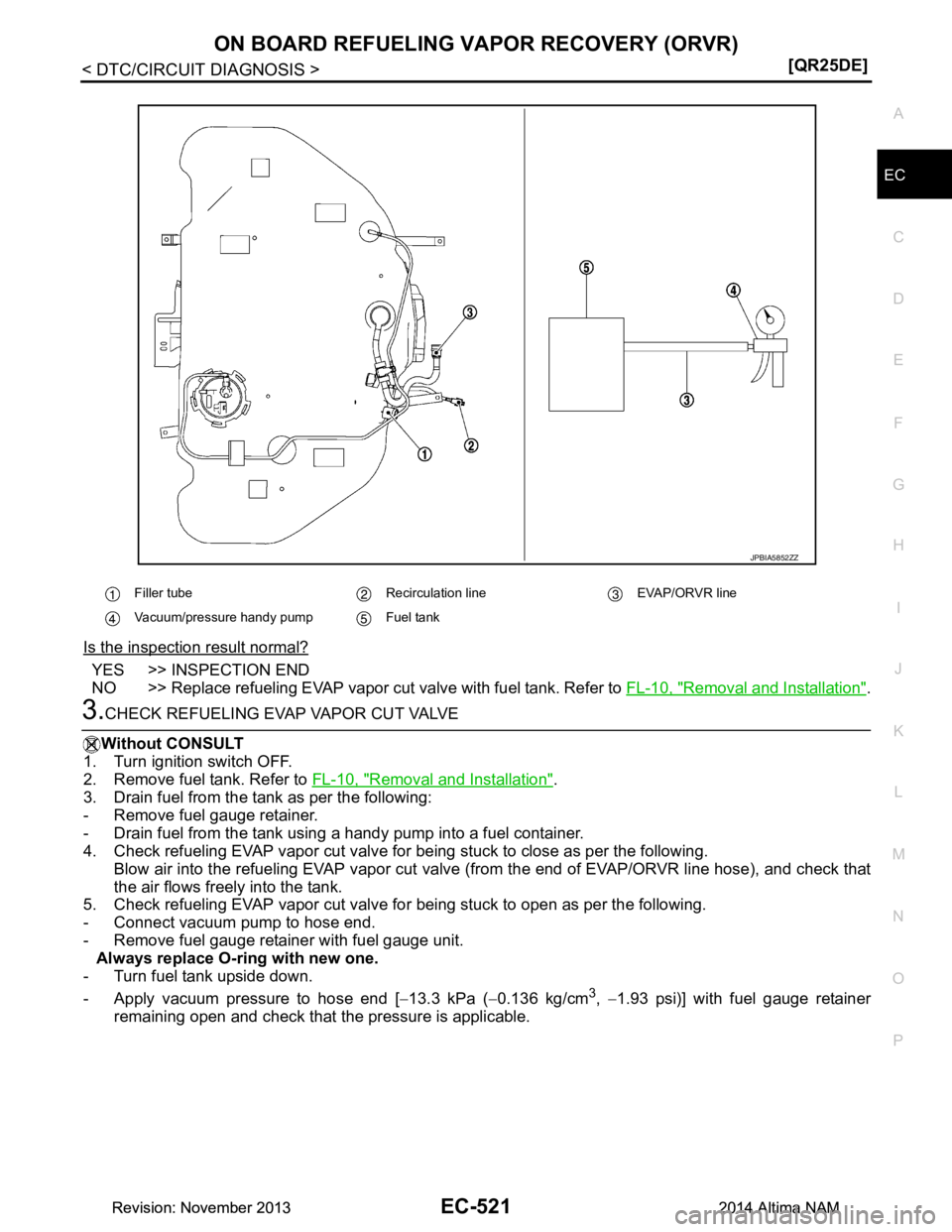

3.CHECK REFUELING EVAP VAPOR CUT VALVE
Without CONSULT
1. Turn ignition switch OFF.
2. Remove fuel tank. Refer to FL-10, "Removal and Installation"
.
3. Drain fuel from the tank as per the following:
- Remove fuel gauge retainer.
- Drain fuel from the tank using a handy pump into a fuel container.
4. Check refueling EVAP vapor cut valve for being stuck to close as per the following.
Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
5. Check refueling EVAP vapor cut valve for being stuck to open as per the following.
- Connect vacuum pump to hose end.
- Remove fuel gauge retainer with fuel gauge unit. Always replace O-ring with new one.
- Turn fuel tank upside down.
- Apply vacuum pressure to hose end [ −13.3 kPa ( −0.136 kg/cm
3, −1.93 psi)] with fuel gauge retainer
remaining open and check that the pressure is applicable.
Filler tube Recirculation line EVAP/ORVR line
Vacuum/pressure handy pump Fuel tank
JPBIA5852ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-522
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-10, "Removal and Installation"
.
Filler tube Recirculation line EVAP/ORVR line
Vacuum/pressure handy pump Fuel tank
JPBIA5852ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

REFRIGERANT PRESSURE SENSOREC-523
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
REFRIGERANT PRESSURE SENSOR
Component Function CheckINFOID:0000000009462456
1.CHECK REFRIGERANT PRE
SSURE SENSOR FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower fan switch ON.
3. Check the voltage between ECM harness connector terminals under the following conditions.
*1: Except for California
*2: For California
Is the inspection result normal?
YES >> INSPECTION END
NO >> Proceed to EC-523, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009462457
1.CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY
1. Disconnect refrigerant pressu re sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between refrigerant pr essure sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK REFRIGERANT PRESSURE SE NSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
*1: Except for California
*2: For California
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
ECM
Voltage (V)
Connector +–
Te r m i n a l
E10
*1
E31*2103 124 1.0 - 4.0
+ -Vo l ta g e
(Approx.)
Refrigerant pressure sensor
Connector Terminal E219 1 Ground 5 V
+- Continuity
Refrigerant pressure sensor ECM
Connector Terminal Connector Terminal
E219 1 E10
*1
E31*2104 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-524
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
REFRIGERANT PRESSURE SENSOR
3.CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
*1: Except for California
*2: For California
4. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK REFRIGERANT PRESSURE SE NSOR INPUT SIGNAL CIRCUIT
1. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
*1: Except for California
*2: For California
2. Also check harness for short to ground and to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to GI-43, "Intermittent Incident"
.
Is the inspection result normal?
YES >> Replace refrigerant pressure sensor. Refer to HAC-107, "Removal and Installation" (with auto-
matic air conditioner) or HAC-163, "Removal and Installation"
(with manual air conditioner).
NO >> Repair or replace error-detected parts.
+-
Continuity
Refrigerant pressure sensor ECM
Connector Terminal Connector Terminal
E219 3 E10
*1
E31*2124 Existed
+-
Continuity
Refrigerant pressure sensor ECM
Connector Terminal Connector Terminal
E219 2 E10
*1
E31*2103 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SENSOR POWER SUPPLY 2 CIRCUITEC-525
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SENSOR POWER SUPPLY 2 CIRCUIT
DescriptionINFOID:0000000009462458
ECM supplies a voltage of 5 V to some of the sensors systematically divided into 2 groups, respectively.
Accordingly, when a short circuit develops in a sensor power source, a malfunction may occur simultaneously
in the sensors belonging to the same group as the short-circuited sensor.
Sensor power supply 1
• APP sensor 1
• Battery current sensor
• CKP sensor (POS)
• Intake manifold runner control valve position sensor
• Refrigerant pressure sensor
• TP sensor
NOTE:
If sensor power supply 1 circuit is malfunctioning, DTC P0643 is displayed.
Sensor power supply 2
• APP sensor 2
• CMP sensor (PHASE)
• EVT control position sensor
• EOP sensor
• MAF sensor
Diagnosis ProcedureINFOID:0000000009462459
1.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-1
1. Turn ignition switch OFF.
2. Disconnect accelerator pedal position (APP) sensor harness connector.
3. Turn ignition switch ON.
4. Check the voltage between APP sensor harness connector and ground.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-2
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between APP sens or harness connector and ECM harness connector.
*1: Except for California
*2: For California
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit.
+
-Vo l ta g e
(Approx.)
APP sensor
Connector Terminal E40 5 Ground 5V
++ Continuity
APP sensor ECM
Connector Terminal Connector Terminal
E40 5 E10
*1
E31*2118 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-526
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
SENSOR POWER SUPPLY 2 CIRCUIT
3.CHECK SENSOR POWER SUPPLY 2 CIRCUIT
1. Disconnect following sensors harness connector.
2. Check harness for short to power and short to ground, between the following terminals.
*1: Except for California
*2: For California
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair short to ground or short to power in harness or connectors.
4.CHECK COMPONENTS
Check the following.
• APP sensor 2 (Refer to EC-486, "Component Inspection"
.)
• Camshaft position sensor (PHASE) (Refer to EC-331, "Component Inspection (Camshaft position sensor)"
.)
• EVT control position sensor (Refer to EC-415, "Component Inspection"
.)
• EOP sensor (Refer to EC-390, "Component Inspection"
.)
• MAF sensor (Refer to EC-230, "Component Inspection"
.)
Is the inspection result normal?
YES >> Refer to GI-43, "Intermittent Incident".
NO >> Replace malfunctioning component.
ECM Sensor
Connector Terminal Name Connector Terminal
F14
*1
F91*2
32 CMP sensor (PHASE) F55 1
36 MAF sensor F31 6
40 EOP sensor F9 3
44 EVT control position sensor F58 1
E10
*1
E31*2118 APP sensor 2 E40 5
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-527
< SYMPTOM DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SYMPTOM DIAGNOSIS
ENGINE CONTROL SYSTEM
Symptom TableINFOID:0000000009462460
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2 EC-508
Fuel pressure regulator system 334444444 4EC-182
Fuel injector circuit 11232 22 2EC-505
Fuel level sensor circuitEC-376,
EC-378
Fuel tank temperature sensor circuit EC-304,
EC-306
Evaporative emission system 334444444 4 EC-536
Air Positive crankcase ventilation sys-
tem 334444444 41
EC-539
Incorrect idle speed adjustment 1 1 1 1 1 EC-179
Electric throttle control actuator 112332222 2 2EC-475,
EC-480
IgnitionIncorrect ignition timing adjustment33111 11 1 EC-535
Ignition circuit 11222 22 2EC-511
Main power supply and ground circuit 22333 33 23 EC-203
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-528
< SYMPTOM DIAGNOSIS >[QR25DE]
ENGINE CONTROL SYSTEM
Mass air flow sensor circuit
1
12 2
222 2 EC-228,
EC-232
Intake air temperature sensor circuit EC-240,
EC-241
Engine coolant temperature sensor circuit
333
EC-245,
EC-251
Air fuel ratio (A/F) sensor 1 circuit EC-258
,
EC-262
,
EC-265
,
EC-289
,
EC-468
Throttle position sensor circuit
22EC-248
,
EC-315
,
EC-426
,
EC-427
,
EC-488
Accelerator pedal position sensor circuit 3 2 1 EC-482
,
EC-485
,
EC-491
Heated oxygen sensor 2 circuit 6 6 6 6 5 EC-268
,
EC-276
,
EC-284
Knock sensor circuit 2 3 EC-324
Engine oil temperature sensor circuit 4 2 3EC-311,
EC-312
Engine oil pressure sensor circuit 4 4 3 3 3 3 EC-388,
EC-392
Crankshaft position sensor (POS) circuit 2 2 EC-326
Camshaft position sensor (PHASE) circuit 3 2EC-329
Vehicle speed signal circuit 2 3 3 3EC-380
ECM 22333333333EC-400
,
EC-401
,
EC-402
,
EC-404
Intake valve timing control solenoid valve cir-
cuit 32 13223 3 EC-209,
EC-221
Intake valve timing intermediate lock control
solenoid valve circuit EC-394
SYMPTOM
Reference page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-529
< SYMPTOM DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
1 - 6: The numbers refer to the order of inspection.
(continued on next table)
SYSTEM — ENGINE MECHANICAL & OTHER
Exhaust valve timing control solenoid valve
circuit 32 13223 3
EC-225
PNP signal circuit 3 3 3 3 3 EC-410
Refrigerant pressure sensor circuit 2 3 3 4EC-523
Electrical load signal circuit 3EC-503
Intake manifold runner control valve motor cir-
cuit 44
EC-462
Intake manifold runner control valve position
sensor circuit 44
EC-465
Intake manifold tuning valve circuit 1 EC-456
Manifold absolute pressure sensor circuit 3EC-236
Air conditioner circuit 223333333 3 2HAC-46,
HAC-139
Battery current sensor circuit 4 5 5 3 EC-428
,
EC-431
,
EC-434
,
EC-438
Battery temperature sensor circuit 4 5 5 3 EC-440
ASCD steering switch circuitEC-442
ABS actuator and electric unit (control unit) 4BRC-55
SYMPTOM
Reference page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-530
< SYMPTOM DIAGNOSIS >[QR25DE]
ENGINE CONTROL SYSTEM
SYMPTOM
Reference page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code A AAB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank 5
5 FL-10
Fuel piping 5 5 5 5 5 5
EM-41
Va p o r l o c k —
Valve deposit 5 555 55 5 —
Poor fuel (Heavy weight gas-
oline, Low octane) —
Air Air duct
55555 5 EM-29
Air cleaner
Air leakage from air duct
(Mass air flow sensor — elec-
tric throttle control actuator)
555 5
Electric throttle control actua-
tor EM-30
Air leakage from intake mani-
fold/Collector/Gasket
Cranking Battery 111111
11
PG-73

Generator circuit CHG-9
Starter circuit 3STR-6
Signal plate 6EM-88
PNP signal 4TM-206
Engine Cylinder head
55555 55 5 EM-78
Cylinder head gasket 4 3
Cylinder block
66666 66 6 4
EM-88
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
