DIAGNOSIS SYSTEM (ECM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1s
t Trip Detection Logic and Two Trip Detection Logic
INFOID:0000000009462533
When a malfunction is detected for the first time, 1st tr ip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MIL will not illuminate at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MIL illuminates. The MIL illu minates at the same time when the DTC is stored.
<2nd trip> The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is per-
formed during vehicle operation. Specific on board diagnosti c items will cause the ECM to illuminate or blink
the MIL, and store DTC and Freeze Frame data, even in the 1st trip, as shown below.
×: Applicable —: Not applicable
DIAGNOSIS DESCRIPTION : DTC and Freeze Frame DataINFOID:0000000009462534
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DT C number) is displayed for the latest self-diagnostic
result obtained. If the ECM memory was cleared previously , and the 1st trip DTC did not recur, the 1st trip DTC
will not be displayed.
If a malfunction is detected during the 1st trip, the 1st trip DTC is saved in the ECM memory. The MIL will not
light up (two trip detection logic). If the same malfunc tion is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are saved in t he ECM memory and the MIL lights up. In other words,
the DTC is stored in the ECM memory and the MIL light s up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
trips, only the 1st trip DTC will continue to be stored. Fo r malfunctions that blink or light up the MIL during the
1st trip, the DTC and 1st trip DTC are stored in the ECM memory.
For malfunctions in which 1st trip DTCs are displayed, refer to EC-630, "DTC Index"
. These items are
required by legal regulations to c ontinuously monitor the system/component . In addition, the items monitored
non-continuously are also displayed on CONSULT.
1st trip DTC is specified in Service $07 of SAE J1979/ ISO 15031-5. 1st trip DTC detection occurs without illu-
minating the MIL and therefore does not warn the driver of a malfunction.
When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame
data as specified in Work Flow procedure Step 2, refer to EC-670, "Work Flow"
. Then perform DTC Confirma-
tion Procedure or Component Function Check to try to duplicate the malfunction. If the malfunction is dupli-
cated, the item requires repair.
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA
The ECM records the driving conditions such as fuel system status, calculated load value, engine coolant tem-
perature, short term fuel trim, long term fuel trim, engi ne speed, vehicle speed, absolute throttle position, base
fuel schedule and intake air temperature at the moment a malfunction is detected.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.
The data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT or
GST. The 1st trip freeze frame data c an only be displayed on the CONSULT screen.
Items MIL DTC 1st trip DTC
1st trip 2nd trip 1st trip
displaying 2nd trip
displaying 1st trip
displaying 2nd trip
display- ing
Blinking Illuminat-
ed Blinking Illuminat-
ed
Misfire (Possible three way catalyst
damage) — DTC: P0300 – P0308
is being detected ×
———— — ×—
Misfire (Possible three way catalyst
damage) — DTC: P0300 – P0308
is being detected ——
×—— ×——
One trip detection diagnoses (Re-
fer to EC-630, "DTC Index"
.) —
×—— ×———
Except above — — — ×— ×× —
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-592
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
Only one set of freeze frame data (either 1st trip freez
e frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM me mory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
For example, the EGR malfunction (Priority: 2) was detected and the freeze frame data was saved in the 2nd
trip. After that when the misfire (Priority: 1) is detected in another trip, the freeze frame data will be updated
from the EGR malfunction to the misfire. The 1st trip freeze frame data is updated each time a different mal-
function is detected. There is no priority for 1st trip freeze frame data. However, once freeze frame data is
stored in the ECM memory, 1st trip freeze data is no longer stored (because only one freeze frame data or 1st
trip freeze frame data can be stored in the ECM). If fr eeze frame data is stored in the ECM memory and freeze
frame data with the same priority occurs later, t he first (original) freeze frame data remains unchanged in the
ECM memory.
Both 1st trip freeze frame data and freeze frame dat a (along with the DTCs) are cleared when the ECM mem-
ory is erased.
DIAGNOSIS DESCRIPTION : Counter SystemINFOID:0000000009462535
RELATIONSHIP BETWEEN MIL, 1ST TRIP DTC, DTC, AND DETECTABLE ITEMS
• When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
• When the same malfunction is detected in two consec utive trips, the DTC and the freeze frame data are
stored in the ECM memory, and the MIL will come on.
• The MIL will turn OFF after the vehicle is driven 3 time s (driving pattern B) with no malfunction. The drive is
counted only when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs
while counting, the counter will reset.
• The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A) with-
out the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injec-
tion System, the DTC and freez e frame data will be stored until the vehicle is driven 80 times (driving pattern
C) without the same malfunction recurring. The “TIM E” in “SELF-DIAGNOSTIC RESULTS” mode of CON-
SULT will count the number of times the vehicle is driven.
• The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.
COUNTER SYSTEM CHART
For details about patterns B and C under “Fuel Inject ion System” and “Misfire”, see “EXPLANATION FOR
DRIVING PATTERNS FOR “MISFIRE ”, “FUEL INJECTION SYS-
TEM”.
For details about patterns A and B under Other, s ee “EXPLANATION FOR DRIVING PATTERNS FOR “MIS-
FIRE ”, “FUEL INJECTION SYSTEM”.
• *1: Clear timing is at the moment OK is detected.
• *2: Clear timing is when the same ma lfunction is detected in the 2nd trip.
Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns for “Misfire terioration>”, “Fuel Injection System”
Priority Items
1 Freeze frame data Misfire — DTC: P0300 – P0308
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175
2 Except the above items
3 1st trip freeze frame data
Items Fuel Injection System Misfire Other
MIL (turns OFF) 3 (pattern B) 3 (pattern B) 3 (pattern B)
DTC, Freeze Frame Data (no display) 80 (p attern C) 80 (pattern C) 40 (pattern A)
1st Trip DTC (clear) 1 (pattern C), *1 1 (pattern C), *1 1 (pattern B)
1st Trip Freeze Frame Data (clear) *1, *2 *1, *2 1 (pattern B)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (ECM)EC-593
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

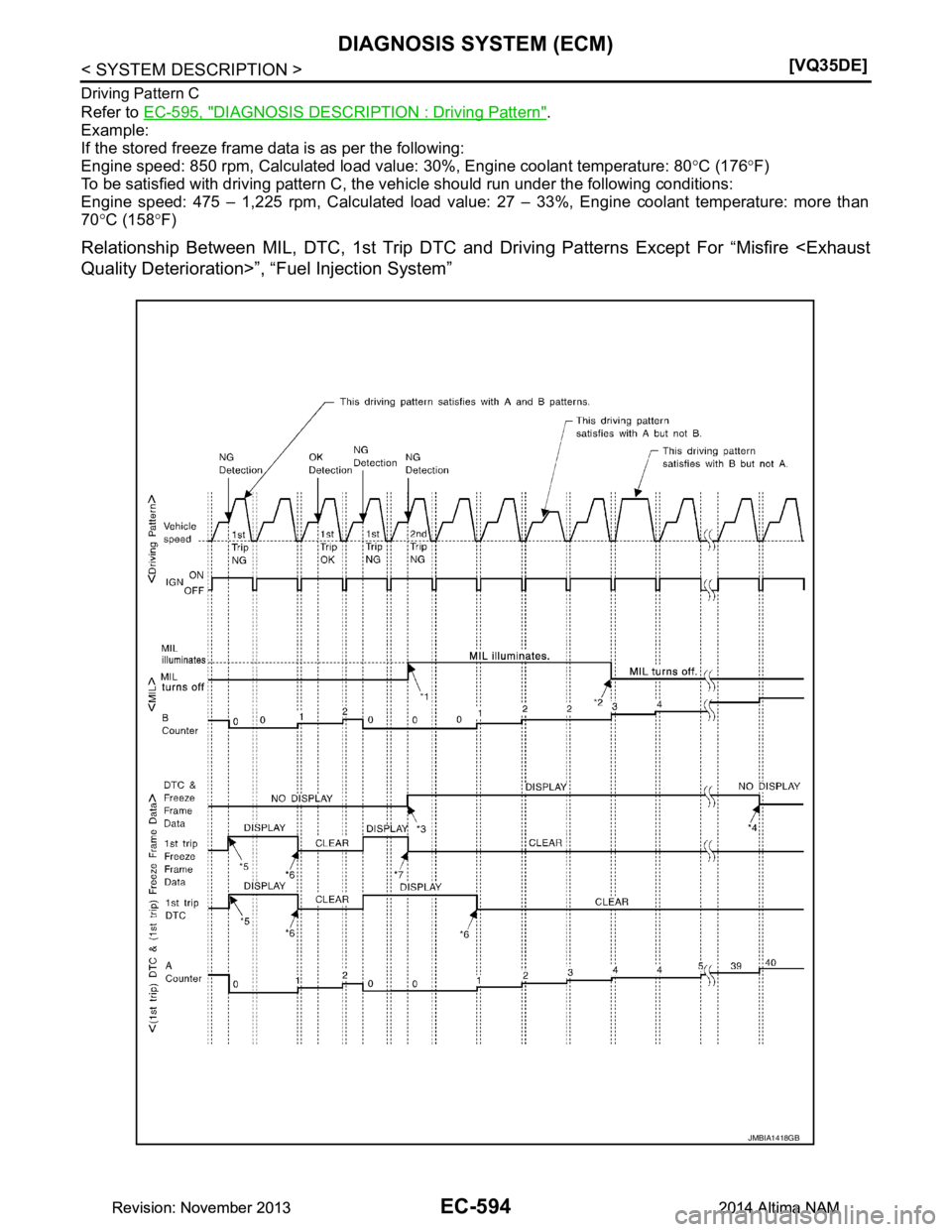

Explanation for Driving Patterns for “Misfire st Quality Deterioration>”, “Fuel Injection System”
Driving Pattern B
Refer to EC-595, "DIAGNOSIS DESCRIPTION : Driving Pattern".
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will turn OFF after vehicle is driv-
en 3 times (pattern B) without any
malfunctions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.) *5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: The 1st trip DTC and the 1st trip
freeze frame data will be cleared at
the moment OK is detected.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared. *8: 1st trip DTC will be cleared when ve-
hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.
JMBIA1417GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-594
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)

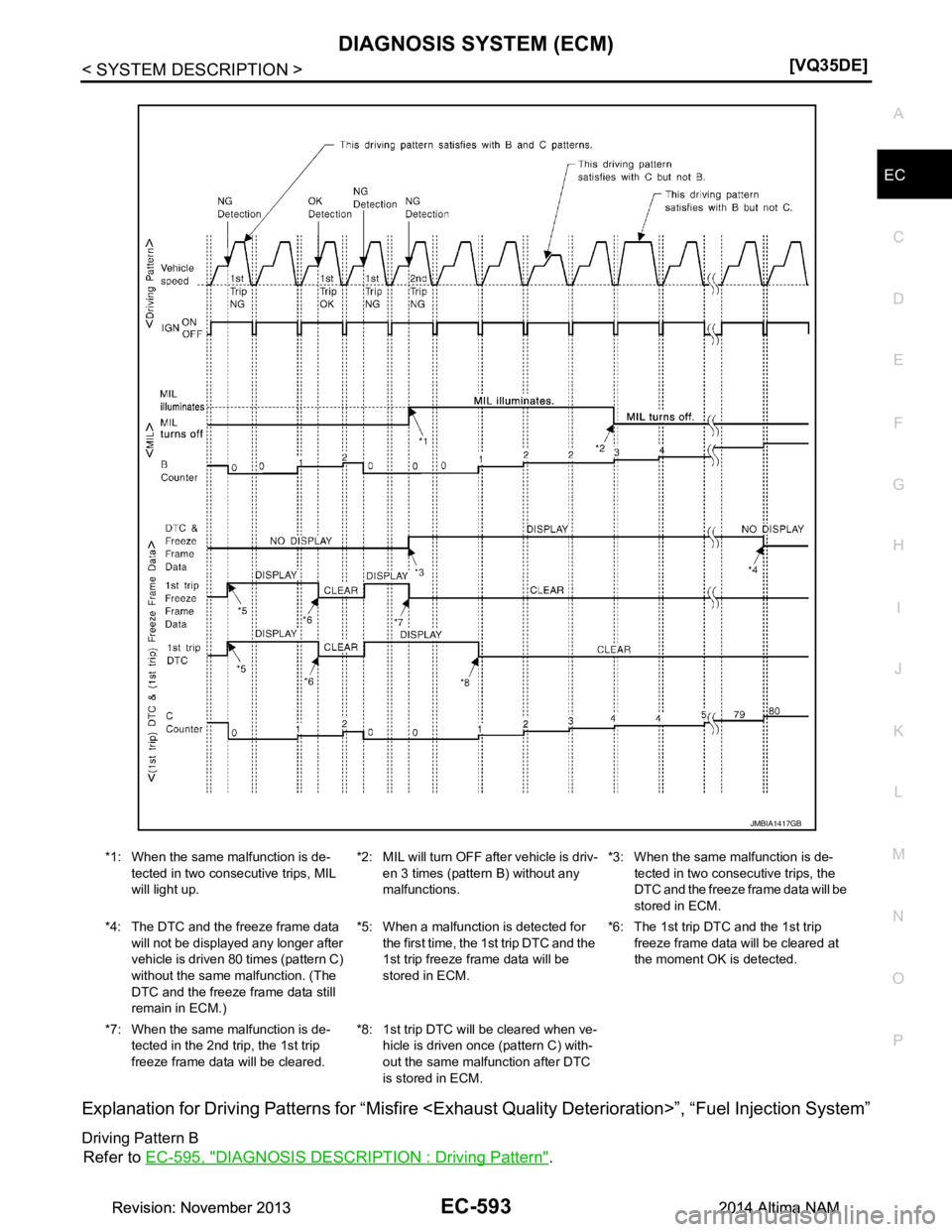

Driving Pattern C
Refer to
EC-595, "DIAGNOSIS DESCRIPTION : Driving Pattern".
Example:
If the stored freeze frame data is as per the following:
Engine speed: 850 rpm, Calculated load val ue: 30%, Engine coolant temperature: 80°C (176 °F)
To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 – 1,225 rpm, Calculated load value: 27 – 33%, Engine coolant temperature: more than
70 °C (158 °F)
Relationship Between MIL, DTC, 1st Trip DTC an d Driving Patterns Except For “Misfire Quality Deterioration>”, “Fuel Injection System”
JMBIA1418GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (ECM)EC-595
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Explanation for Driving Patterns Except for “Misfire ”, “Fuel Injection
System”
Driving Pattern A
Refer to EC-595, "DIAGNOSIS DESCRIPTION : Driving Pattern".
Driving Pattern B
Refer to EC-595, "DIAGNOSIS DESCRIPTION : Driving Pattern".
DIAGNOSIS DESCRIPTION : Driving PatternINFOID:0000000009462536
CAUTION:
Always drive at a safe speed.
DRIVING PATTERN A
Driving pattern A means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature rises by 20 °C (36 °F) or more after starting the engine.
• Engine coolant temperature reaches 70 °C (158 °F) or more.
• The ignition switch is turned from ON to OFF.
NOTE:
• When the same malfunction is detected regardless of driv ing conditions, reset the counter of driving pattern
A.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern A.
DRIVING PATTERN B
Driving pattern B means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature reaches 70 °C (158 °F) or more.
• Vehicle speed of 70 – 120 km/h (44 – 75 MPH) is maintained for 60 seconds or more under the control of closed loop.
• Vehicle speed of 30 – 60 km/h (19 – 37 MPH) is maintained for 10 seconds or more under the control of closed loop.
• Under the closed loop control condition, the following state reaches 12 seconds or more in total: Vehicle
speed of 4 km/h (2 MPH) or less with idling condition.
• The state of driving at 10 km/h (7 MPH) or more reaches 10 minutes or more in total.
• A lapse of 22 minutes or more after engine start.
NOTE:
• Drive the vehicle at a constant velocity.
• When the same malfunction is detected regardless of driv ing conditions, reset the counter of driving pattern
B.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern B.
DRIVING PATTERN C
Driving pattern C means operating vehicle as per the following:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data) ±375 rpm
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will turn OFF after vehicle is driv-
en 3 times (pattern B) without any
malfunctions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.) *5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: 1st trip DTC will be cleared after vehi-
cle is driven once (pattern B) without
the same malfunction.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-596
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
Calculated load value: (Calculated load value in the freeze frame data) x (1
±0.1) [%]
Engine coolant temperature condition:
• When the freeze frame data shows lower than 70 °C (158 °F), engine coolant temperature should be lower
than 70 °C (158 °F).
• When the freeze frame data shows higher than or equal to 70 °C (158 °F), engine coolant temperature should
be higher than or equal to 70 °C (158 °F).
NOTE:
• When the same malfunction is detected regardless of t he above vehicle conditions, reset the counter of driv-
ing pattern C.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern C.
• The 1st trip DTC will be cleared when C counter is c ounted once without the same malfunction after DTC is
stored in ECM.
DRIVING PATTERN D
Driving pattern D means a trip satisfying the following conditions.
• The state of driving at 40 km/h (25 MPH) reaches 300 seconds or more in total.
• Idle speed lasts 30 seconds or more.
• A lapse of 600 seconds or more after engine start.
NOTE:
• When the same malfunction is detected regardless of driv ing conditions, reset the counter of driving pattern
D.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern D.
DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) CodeINFOID:0000000009462537
System Readiness Test (SRT) code is spec ified in Service $01 of SAE J1979/ISO 15031-5.
As part of an enhanced emissions test for Inspection & Ma intenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has completed self-diagnosis of major emission systems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspec tion due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system . Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indica tes “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT indi cates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:
If permanent DTC is stored or MIL illuminates during t he state emissions inspection, the vehicle is alsore-
turned to the customer untested even though the SRT indicate s “CMPLT” for all test items. Therefore, it isim-
portant to check SRT (“CMPLT”), DTC (No DT Cs) and permanent DTC (NO permanent DTCs) before
theinspection.
SRT SET TIMING
SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. T he set timing is different between OK and NG results and
is shown in the table below.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (ECM)EC-597
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.
When all SRT related self-diagnoses show OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will
indicate “CMPLT”. → Case 1 above
When all SRT related self-diagnoses show OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective se lf-diagnoses have at least one OK result. → Case 2 above
If one or more SRT related self-diagnoses show NG resu lts in 2 consecutive cycles, the SRT will also indicate
“CMPLT”. → Case 3 above
The table above shows that the minimum number of cycles for setting SRT as “INCMP” is the number one (1)
for each self-diagnosis (Case 1 & 2) or the number two (2) for one of self-diagnoses (Case 3). However, in
preparation for the state emissions inspection, it is unnecessary for each self-diagnosis to be executed twice
(Case 3) for the following reasons:
• The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
• The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
• During SRT driving pattern, the 1st trip DTC (NG) is detected prior to “CMPLT” of SRT and the self-diagnosis
memory must be erased from the ECM after repair.
• If the 1st trip DTC is erased, all the SRT will indicate “INCMP”. NOTE:
SRT can be set as “CMPLT” together with the DTC(s) . Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.
DIAGNOSIS DESCRIPTION : Permanent Di agnostic Trouble Code (Permanent DTC)
INFOID:0000000009462538
Permanent DTC is defined in SAE J1979/ISO 15031-5 Service $0A.
ECM stores a DTC issuing a command of turning on MIL as a permanent DTC and keeps storing the DTC as
a permanent DTC until ECM judges that there is no presence of malfunction.
Permanent DTCs cannot be erased by using the Erase f unction of CONSULT or Generic Scan Tool (GST) and
by disconnecting the battery to shut of f power to ECM. This prevents a vehicle from passing the state emission
inspection without repairing a malfunctioning part.
When not passing the state emission inspection due to more than one permanent DTC, permanent DTCs
should be erased, referring to this manual.
NOTE:
• The important items in state emission inspection are t hat MIL is not ON, SRT test items are set, and perma-
nent DTCs are not included.
• Permanent DTCs do not apply for regions that permanent DTCs are not regulated by law.
Self-diagnosis result Example
Diagnosis Ignition cycle
← ON →OFF ← ON →OFF ← ON →OFF ← ON →
All OK Case 1 P0400 OK (1) — (1) OK (2) — (2) P0402 OK (1) — (1) — (1) OK (2)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “CMPLT” “CMPLT” “CMPLT” “CMPLT”
Case 2 P0400 OK (1) — (1) — (1) — (1) P0402 — (0) — (0) OK (1) — (1)
P1402 OK (1) OK (2) — (2) — (2)
SRT of EGR “INCMP” “INCMP” “CMPLT” “CMPLT”
NG exists Case 3 P0400 OK OK — — P0402 — — — —
P1402 NG — NG NG
(Consecutive
NG)
(1st trip) DTC 1st trip DTC — 1st trip DTC
DTC
(= MIL ON)
SRT of EGR “INCMP” “INCMP” “INCMP” “CMPLT”
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-598
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
PERMANENT DTC SET TIMING
The setting timing of permanent DTC is stored in EC
M with the lighting of MIL when a DTC is confirmed.
DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)INFOID:0000000009462539
• When detecting a DTC that affects exhaust gas, the exhaust emis-
sion-related control module transmits a malfunction indicator lamp
signal to ECM via CAN communication line.
ECM prioritizes (MIL: ON/blink) the signal received from the
exhaust emission-related control module and the ECM-stored DTC
that affects exhaust gas and transmits a malfunction indicator lamp
signal to the combination meter via CAN communication line.
The combination meter turns ON or blinks the MIL, according to
the signal transmitted from ECM, and alerts the driver of malfunc-
tion detection.
• Control modules that a DTC of MIL ON/Blink is stored (Control module varies among DTCs.):
-ECM
-TCM
1. The MIL illuminates when ignition switch is turned ON (engine is not running). NOTE:
Check the MIL circuit if MIL does not illuminate. Refer to EC-973, "Component Function Check"
.
2. When the engine is started, the MIL should go off. NOTE:
If MIL remains ON or continues blinking, a DTC(s) t hat affects exhaust gas is detected. In this case, Self
diagnosis is required for performing inspection and repair.
On Board Diagn osis FunctionINFOID:0000000009462540
ON BOARD DIAGNOSIS ITEM
The on board diagnostic system has the following functions.
BULB CHECK MODE
Description
This function allows damage inspection in the MIL bulb (blown, open circuit, etc.).
Operation Procedure
1. Turn ignition switch ON.
2. The MIL on the instrument panel should stay ON.
If it remains OFF, check MIL circuit. Refer to EC-973, "Diagnosis Procedure"
.
SRT STATUS MODE
Description
JSBIA1315ZZ
Diagnostic test mode Function
Bulb check MIL can be checked.
SRT status ECM can read if SRT codes are set.
Malfunction warning If ECM detects a malfunction, it illuminates or blinks MIL to inform the driver that a malfunction has been detected.
Self-diagnostic results DTCs or 1st trip DTCs stored in ECM can be read.
Accelerator pedal released po-
sition learning ECM can learn the accelerator pedal released position. Refer to
EC-681, "Description"
.
Throttle valve closed position
learning ECM can learn the throttle valve closed position. Refer to
EC-682, "Description"
.
Idle air volume learning ECM can learn the idle air volume. Refer to EC-683, "Description"
.
Mixture ratio self -learning value
clear Mixture ratio self-learning value can be erased. Refer to
EC-685, "Description"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (ECM)EC-599
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
This function allows to read if ECM has completed
the self-diagnoses of major emission control systems and
components. For SRT, refer to EC-596, "DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) Code"
.
Operation Procedure
1. Turn ignition switch ON and wait 20 seconds.

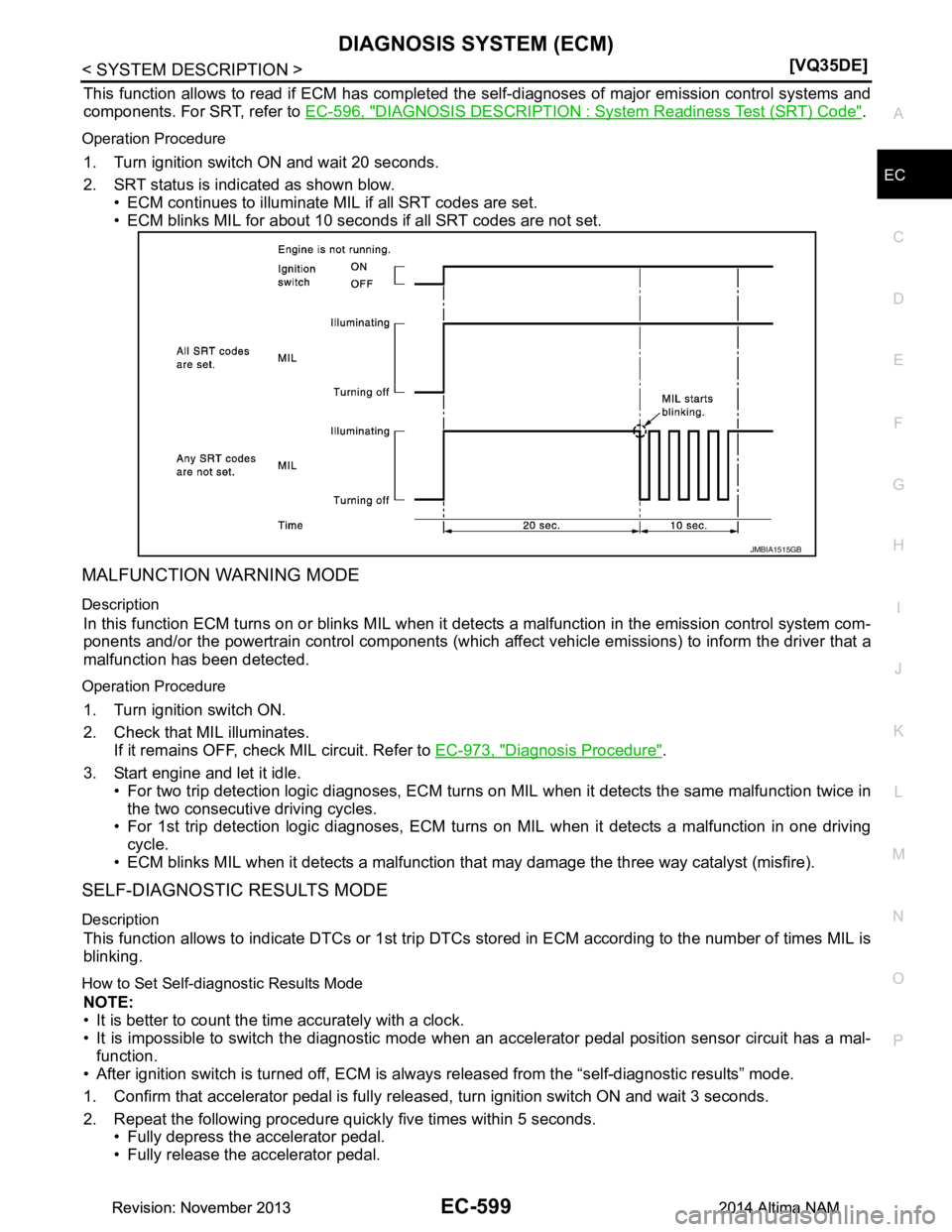

2. SRT status is indicated as shown blow. • ECM continues to illuminate MIL if all SRT codes are set.
• ECM blinks MIL for about 10 seconds if all SRT codes are not set.
MALFUNCTION WARNING MODE
Description
In this function ECM turns on or blinks MIL when it detects a malfunction in the emission control system com-
ponents and/or the powertrain control components (which affe ct vehicle emissions) to inform the driver that a
malfunction has been detected.
Operation Procedure
1. Turn ignition switch ON.
2. Check that MIL illuminates. If it remains OFF, check MIL circuit. Refer to EC-973, "Diagnosis Procedure"
.
3. Start engine and let it idle. • For two trip detection logic diagnoses, ECM turns on MIL when it detects the same malfunction twice in
the two consecutive driving cycles.
• For 1st trip detection logic diagnoses, ECM turns on MIL when it detects a malfunction in one driving
cycle.
• ECM blinks MIL when it detects a malfunction t hat may damage the three way catalyst (misfire).
SELF-DIAGNOSTIC RESULTS MODE
Description
This function allows to indicate DTCs or 1st trip DTCs stored in ECM according to the number of times MIL is
blinking.
How to Set Self-diagnostic Results Mode
NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a mal- function.
• After ignition switch is turned off, ECM is a lways released from the “self-diagnostic results” mode.
1. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quick ly five times within 5 seconds.
• Fully depress the accelerator pedal.
• Fully release the accelerator pedal.
JMBIA1515GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-600
< SYSTEM DESCRIPTION >[VQ35DE]
DIAGNOSIS SYSTEM (ECM)
3. Wait 7 seconds, fully depress the accelerator pedal and keep it depressed for approx. 10 seconds until the
MIL starts blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MIL starts blinking during this period. This blinking
is displaying SRT status and is continued for another 10 seconds.
4. Fully release the accelerator pedal. ECM has entered to “Self-diagnostic results” mode.
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to completely confirm all DTCs.
How to Read Self-diagnostic Results
The DTC and 1st trip DTC are indicated by the number of blinks of the MIL as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MIL does not illuminate in diagnostic test
mode I (Malfunction warning), all displayed items are 1s t trip DTCs. If only one code is displayed when the MIL
illuminates in “malfunction warning” mode, it is a DTC; if two or more codes are displayed, they may be either
DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These unidentified codes can be identified by
using the CONSULT or GST. A DTC will be used as an example for how to read a code.

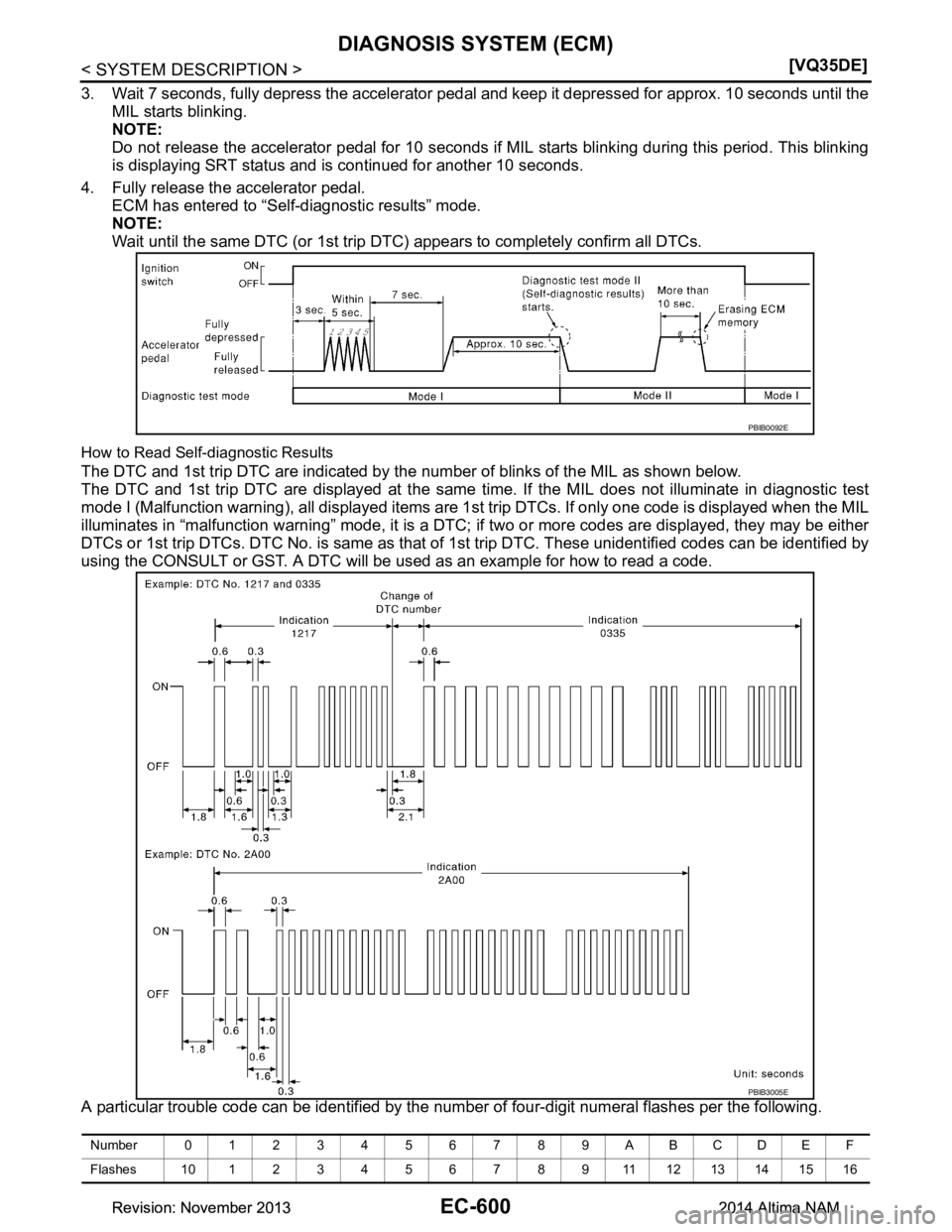

A particular trouble code can be identified by the number of four-digit numeral flashes per the following.
PBIB0092E
PBIB3005E
Number 0123456789ABCDEF
Flashes 10123456789111213141516
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
