SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydr
ocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accompli shed by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into t he EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not oper ating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve al so shuts off the vapor purge line during decelerating and
idling.
THROTTLE CONTROL
THROTTLE CONTROL : System DescriptionINFOID:0000000009462522
SYSTEM DIAGRAM
Automatic Air Conditioning System
PBIB1631E
JSBIA2394GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-582
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
Manual Air Conditioning System
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status
by the signals of engine speed and battery voltage.
*2: Automatic air conditioning system
*3: Manual air conditioning system
SYSTEM DESCRIPTION
ECM calculates the value of signal transmitted from t he accelerator pedal and activates the throttle valve by
transmitting a control signal to the electric throttle c ontrol actuator. This allows the optimum throttle angle and
improves drivability and fuel consumption. In addition, ECM learns the fully closed position every time when
the ignition switch is turned OFF to improv e the accuracy in throttle valve position.
When a malfunction occurs in the throttle control system , the throttle valve is closed by the return spring and
maintains the minimum engine speed by holding a slightly opened condition which is close to the fully opened
condition. This allows the securing of brake syste m, power steering system, and electric system and the
ensuring of the safety.
INTAKE VALVE TIMING CONTROL
JSBIA1917GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS) Engine speed
*1
Throttle controlElectric throttle control
actuator
Engine coolant temperature sensor Engine coolant temperature
Mass air flow sensor Amount of intake air
Intake air temperature sensor Intake air temperature
Accelerator pedal position sensor Accelerator pedal position
Ignition switch Start signal and ignition OFF
Combination meter CAN communi-
cation Vehicle speed signal
A/C auto amp.
*2CAN communi-
cation • A/C ON signal
• Blower fan ON signal
BCM
*3
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMEC-583
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
INTAKE VALVE TIMING CONT
ROL : System DescriptionINFOID:0000000009462523
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases c ontinuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft posit ion, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty si gnals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it po ssible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE
ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System De-
JPBIA4760GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS) Engine speed and piston position
Intake valve
timing control Intake valve timing control
solenoid valve
Camshaft position sensor (PHASE)
Engine oil temperature sensor Engine oil temperature
Engine coolant temperature sensor Engine coolant temperature
Combination meter Vehicle speed signal*
JMBIA0060GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-584
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
scription
INFOID:0000000009462524
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
• The engine protection control at low engine oil pressure warns the driver of a decrease in engine oil pres-
sure by the oil pressure warning lamp before the engine becomes damaged.
• When detecting a decrease in engine oil pressure at an engine speed less than 1,000 rpm, ECM transmits
an oil pressure warning lamp signal to the combination meter.The combination meter turns ON the oil pres-
sure warning lamp, according to the signal.
• When detecting a decrease in engine oil pressure at an engine speed 1,000 rpm or more, ECM transmits an
oil pressure warning lamp signal to the combination meter.
The combination meter turns ON the oil pressure warning lamp, according to the signals. When detecting a
decrease in engine oil pressure, ECM cuts fuel if the engine speed exceeds the specified value.
*: When detecting a normal engine oil pressure, ECM turns OFF the oil pressure warning lamp.
FUEL FILLER CAP WARNING SYSTEM
JSBIA1588GB
Sensor Input signal to ECM ECM function Actuator
Engine oil pressure sensor Engine oil pressure Engine protection control
• Oil pressure warning lamp
signal
• Fuel cut control Combination meter
(Oil pressure warning lamp)
Crankshaft position sensor
(POS) Engine speed
Engine oil temperature sensor Engine oil temperature
Decrease in engine oil pressure Engine speed Combination meter
Fuel cut
Oil pressure warning lamp
Detection Less than 1,000 rpm ON* NO
1,000 rpm or more ON YES
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMEC-585
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
FUEL FILLER CAP WARNING SY
STEM : System DescriptionINFOID:0000000009462525
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
Input
*: This signal is sent to the ECM via the CAN communication line.
Output
*: This signal is sent to the combination meter via the CAN communication line.
SYSTEM DESCRIPTION
The fuel filler cap warning system alerts the driver to the prevention of the fuel filler being left uncapped and
malfunction occurrences after refueling, by turning ON the fuel filler cap warning display on the combination
meter.
ECM judges a refueled state, based on a fuel leve l signal transmitted from the combination meter.
When a very small leak is detected through the EVAP leak diagnosis performed after judging the refueled
state, ECM transmits a fuel filler cap warning display signal (request for display ON) to the combination meter
via CAN communication.
When receiving the signal, the combination meter tu rns ON the fuel filler cap warning display.
CAUTION:
Check fuel filler cap installation condition when the fuel filler cap warning display turns ON.
Reset Operation
The fuel filler cap warning lamp tunes OFF, according to any condition listed below:
• Reset operation is performed by operating the me ter control switch on the combination meter.
- When the reset operation is performed, the combination me ter transmits a fuel filler cap warning reset signal
to ECM via CAN communication. ECM transmits a fuel filler cap warning display signal (request for display
OFF) to the combination meter via CAN communication. When receiving the signal, the combination meter
turns OFF the fuel filler cap warning display.
• EVAP leak diagnosis result is normal.
• Fuel refilled.
• DTC erased by using CONSULT.
NOTE:
Unit/Sensor Input signal to ECM ECM function
EVAP control system pressure sensor Pressure in purge line
Fuel filler cap warning control
Combination meter Fuel level sensor signal
*
Fuel filler cap warning reset signal*
JSBIA1456GB
Unit Output signal Actuator
ECM Fuel filler cap warning display signal
*Combination meter
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-586
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
MIL turns ON if a malfunction is detected in leak diagnosis
results again at the trip after the fuel filler cap warn-
ing display turns ON/OFF.
VARIABLE INDUCTION AIR SYSTEM
VARIABLE INDUCTION AIR SYSTEM : System DescriptionINFOID:0000000009462526
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
SYSTEM DESCRIPTION
JMBIA1831GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
VIAS controlVIAS control solenoid valve 1
VIAS control solenoid valve 2
Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
JMBIA0181GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMEC-587
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
In the medium speed range, the ECM sends the ON si
gnal to the VIAS control solenoid valve. This signal
introduces the intake manifold vacuum into the power valve actuator and therefore closes the power valve.
Under this condition, the pressure waves of the exhaust stroke do not disturb the pressure waves of the intake
stroke of each opposite bank. Therefore, charging efficiency is increased together with the effect of the long
intake passage.
However, in the high speed range, the ECM sends the OF F signal to the VIAS control solenoid valve and the
power valve is opened. Under this condition, the pressure waves of intake stroke are resonant with those of
each opposite bank exhaust stroke. Therefore, charging efficiency is also increased.
In addition, both valves 1 and 2 are opened or closed in other ranges mentioned above. Thus maximum
charging efficiency is obtained for the various driving conditions.
VACUUM HOSE DRAWING
INTEGRATED CONTROL OF ENGINE, CVT, AND ABS
1. Power valve actuator 1 2. VIAS control solenoid valve 1 3. VIAS control solenoid valve 2
4. Power valve actuator 2 5. Intake manifold collector
JMBIA0172ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-588
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
INTEGRATED CONTROL OF ENGINE, CV T, AND ABS : System Description
INFOID:0000000009462527
Real time communications (signal exchange) among cont rol units (e.g. ECM, CVT, ABS, and combination
meter) via CAN communication optimizes engine torque and lock-up during gear shift and prevents engine
speed from decreasing during deceleration.
ALTERNATOR POWER GENERATION VOLTAGE VARIABLE CONTROL SYS-
TEM
ALTERNATOR POWER GENERATION VOLT AGE VARIABLE CONTROL SYSTEM :
System Description
INFOID:0000000009462528
The alternator power generation voltage variable contro l system controls the amount of power generation,
according to a battery loaded condition. ECM judges a battery condition, according to a signal received from
the battery current sensor which det ects a charge/discharge current. ECM then transmits a signal to IPDM E/
R to command power generation via CAN communication. IPDM E/R transmits a power generation control sig-
nal to the alternator so that the system can contro l the amount of power generation. The voltage of power gen-
eration is lowered during battery low-load conditions and boosted under heavy load conditions. In this way, the
system reduces the engine load thr ough the adequate power generation control.
For details, refer to CHG-10, "System Description"
.
CAN COMMUNICATION
CAN COMMUNICATION : System DescriptionINFOID:0000000009462529
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication s peed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CA N communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to LAN-32, "CAN COMMUNICA TION SYSTEM : CAN Communication Signal Chart"
, about CAN com-
munication for detail.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

OPERATIONEC-589
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
OPERATION
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED CONTROL DEVICE (
ASCD) : Switch Name and Function
INFOID:0000000009462530

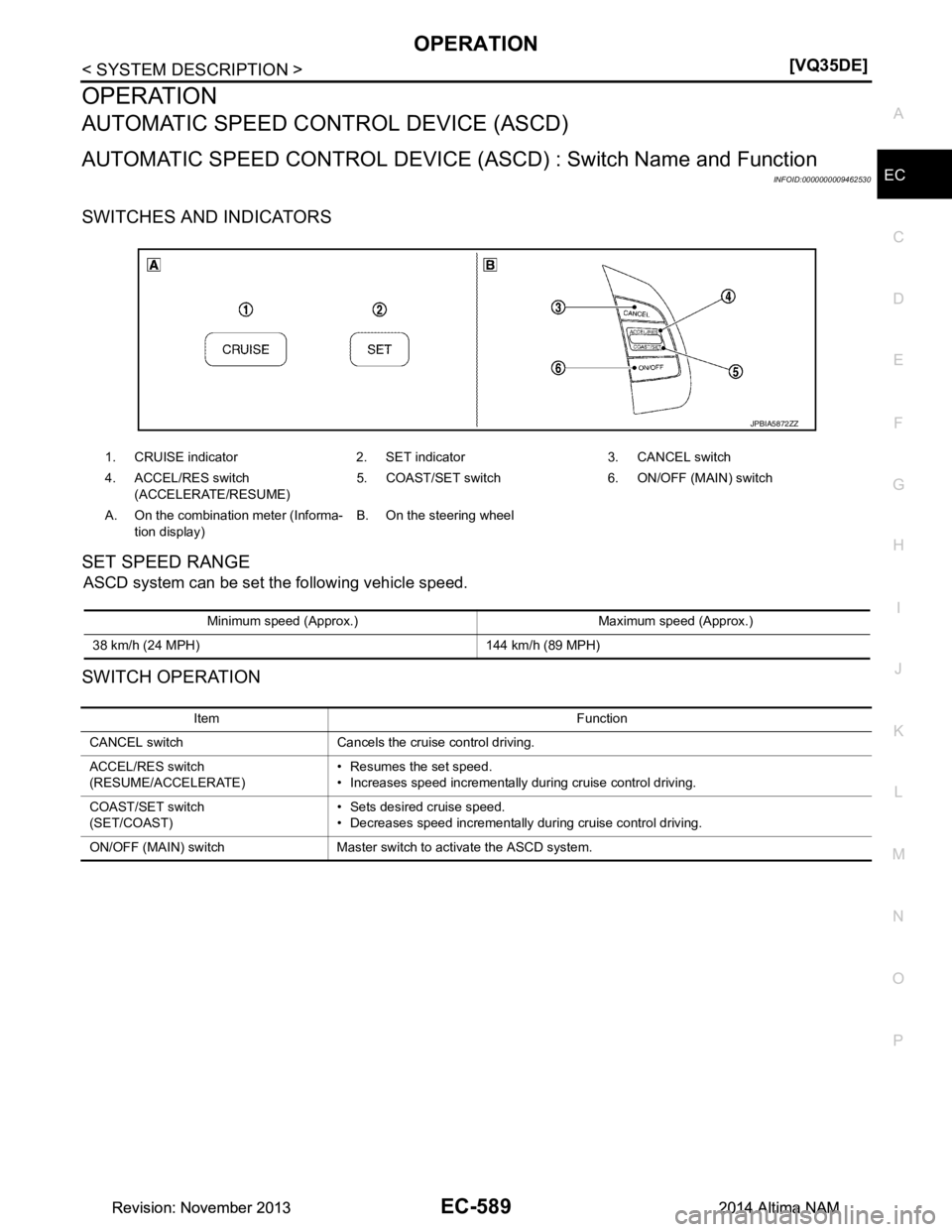

SWITCHES AND INDICATORS
SET SPEED RANGE
ASCD system can be set the following vehicle speed.
SWITCH OPERATION
1. CRUISE indicator 2. SET indicator 3. CANCEL switch
4. ACCEL/RES switch (ACCELERATE/RESUME) 5. COAST/SET switch 6. ON/OFF (MAIN) switch
A. On the combination meter (Informa- tion display) B. On the steering wheel
JPBIA5872ZZ
Minimum speed (Approx.) Maximum speed (Approx.)
38 km/h (24 MPH) 144 km/h (89 MPH)
Item Function
CANCEL switch Cancels the cruise control driving.
ACCEL/RES switch
(RESUME/ACCELERATE) • Resumes the set speed.
• Increases speed incrementally during cruise control driving.
COAST/SET switch
(SET/COAST) • Sets desired cruise speed.
• Decreases speed incrementally during cruise control driving.
ON/OFF (MAIN) switch Master switch to activate the ASCD system.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-590
< SYSTEM DESCRIPTION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOST
IC (OBD) SYSTEM
Diagnosis DescriptionINFOID:0000000009462531
This system is an on board diagnostic system that re cords exhaust emission-related diagnostic information
and detects a sensors/actuator-related malfunction. A ma lfunction is indicated by the malfunction indicator
lamp (MIL) and stored in ECU memory as a DTC. The diagnostic information can be obtained with the diag-
nostic tool (GST: Generic Scan Tool).
GST (Generic Scan Tool)INFOID:0000000009462532
When GST is connected with a data link connector equipped on the vehicle side, it will communicate with the
control unit equipped in the vehicle and then enable va rious kinds of diagnostic tests. Refer to EC-590, "Diag-
nosis Description".
NOTE:
Service $0A is not applied for regions where it is not mandated.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
