MISFIRE A2H No. 1 cylinder misfire
P0301 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0301 0CH 24H Misfire counts for last/current driving
cycles
A3H No. 2 cylinder misfire P0302 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0302 0CH 24H Misfire counts for last/current driving
cycles
A4H No. 3 cylinder misfire P0303 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0303 0CH 24H Misfire counts for last/current driving
cycles
A5H No. 4 cylinder misfire P0304 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0304 0CH 24H Misfire counts for last/current driving
cycles
A6H No. 5 cylinder misfire P0305 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0305 0CH 24H Misfire counts for last/current driving
cycles
A7H No. 6 cylinder misfire P0306 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0306 0CH 24H Misfire counts for last/current driving
cycles
A8H No. 7 cylinder misfire P0307 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0307 0CH 24H Misfire counts for last/current driving
cycles
A9H No. 8 cylinder misfire P0308 0BH 24H
EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles
P0308 0CH 24H Misfire counts for last/current driving
cycles
Item
OBD-
MID Self-diagnostic test item DTC Test value and Test
limit
(GST display) Description
TID Unit and
Scaling ID
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-642
< WIRING DIAGRAM >[VQ35DE]
ENGINE CONTROL SYSTEM
WIRING DIAGRAM
ENGINE CONTROL SYSTEM
Wiring DiagramINFOID:0000000009462547

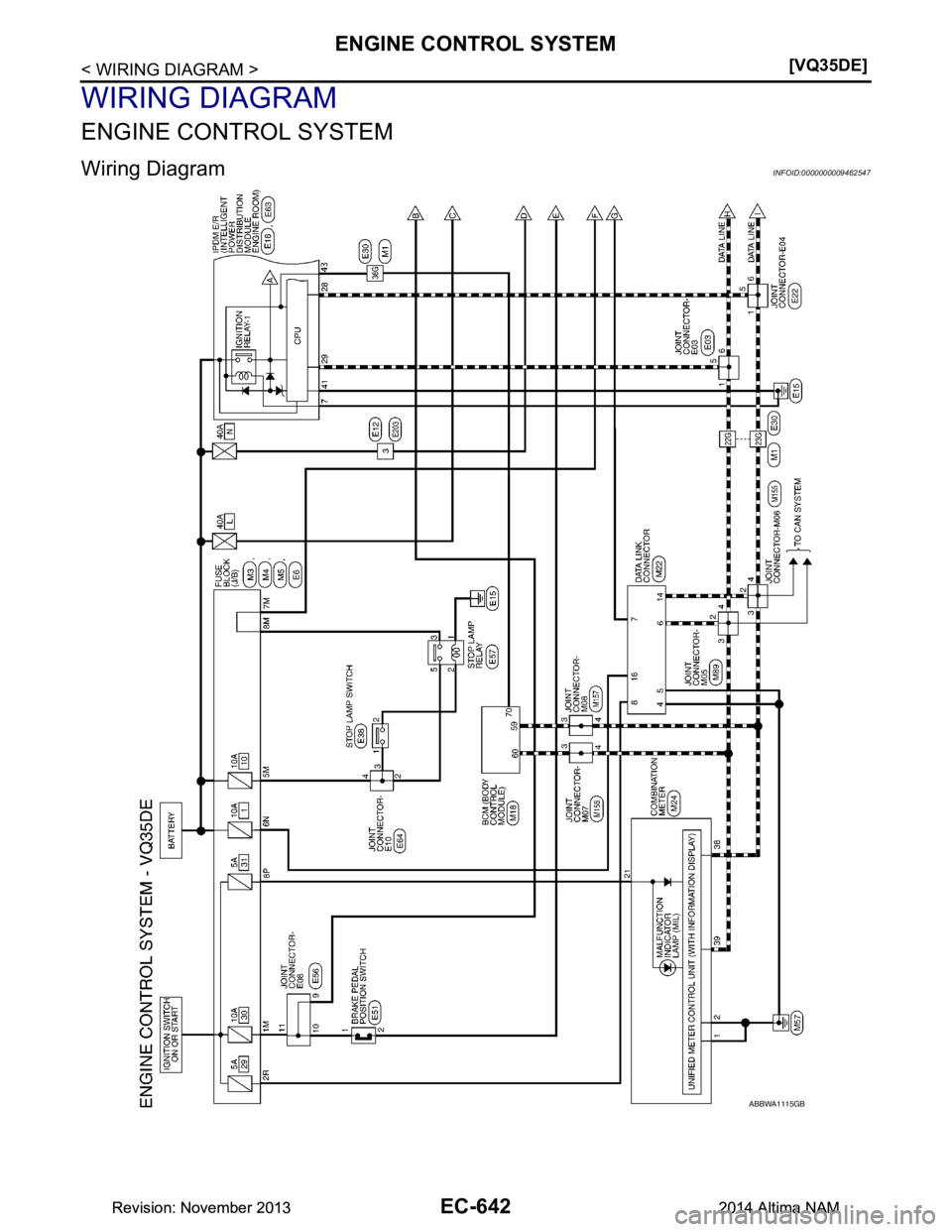

ABBWA1115GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-643
< WIRING DIAGRAM > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

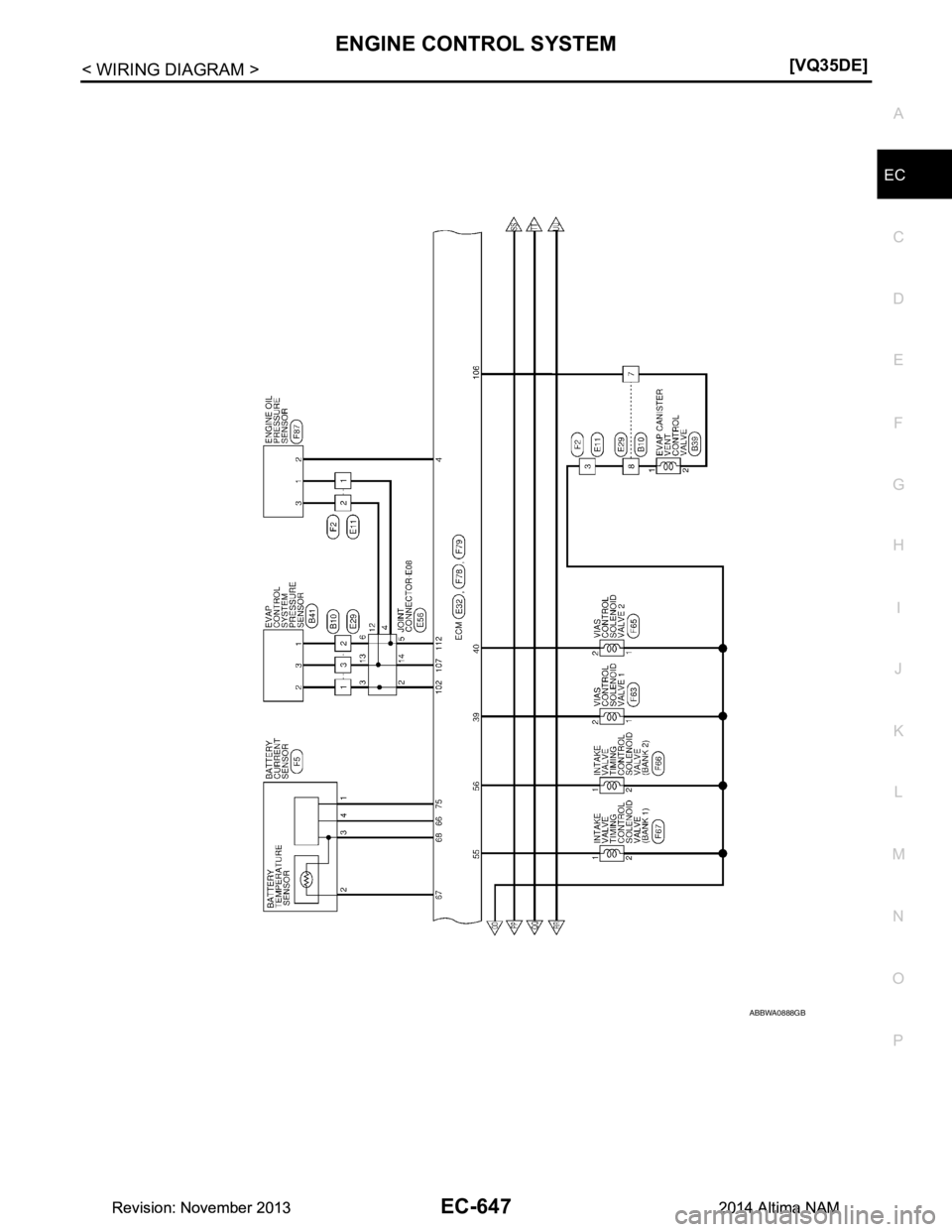

ABBWA1127GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-644
< WIRING DIAGRAM >[VQ35DE]
ENGINE CONTROL SYSTEM

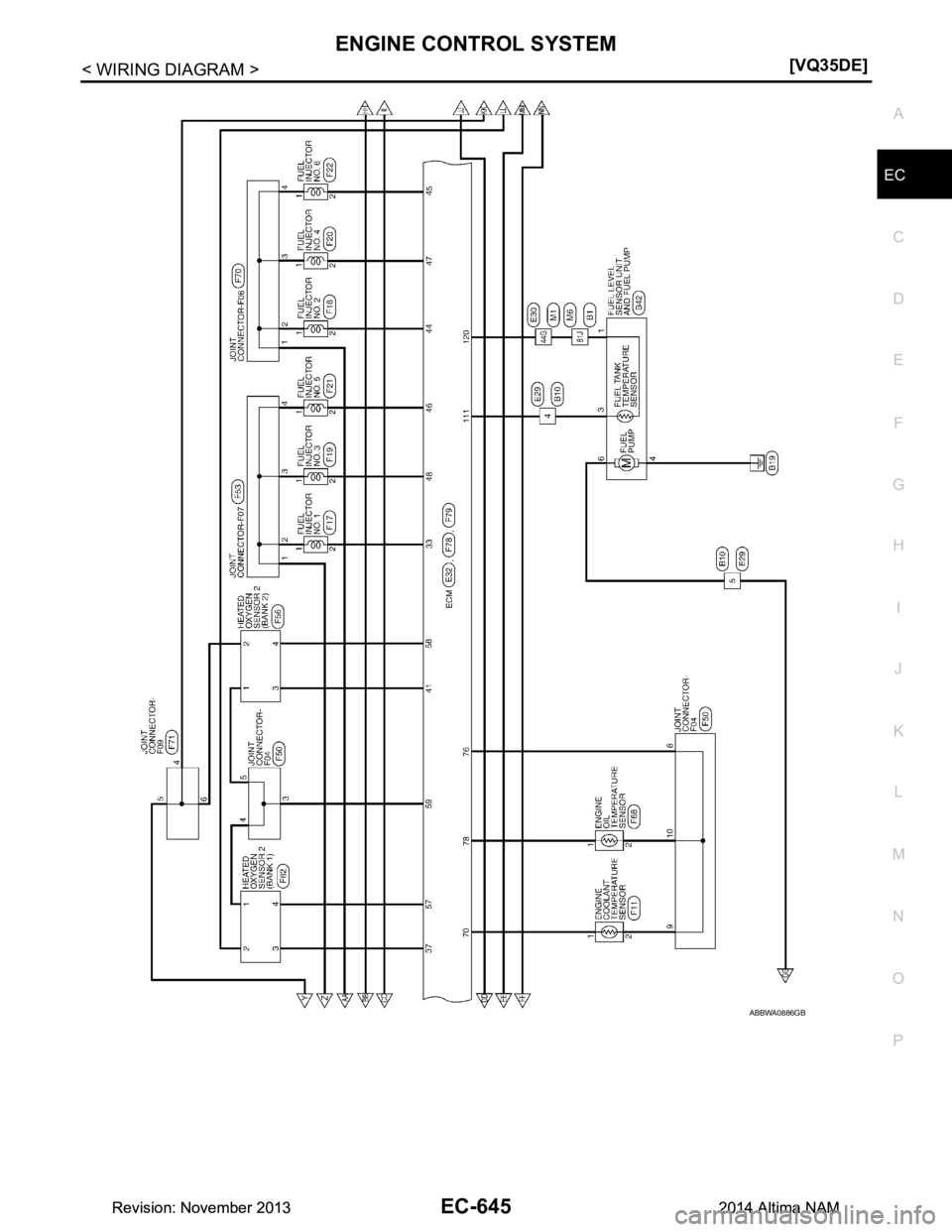

ABBWA0885GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-645
< WIRING DIAGRAM > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

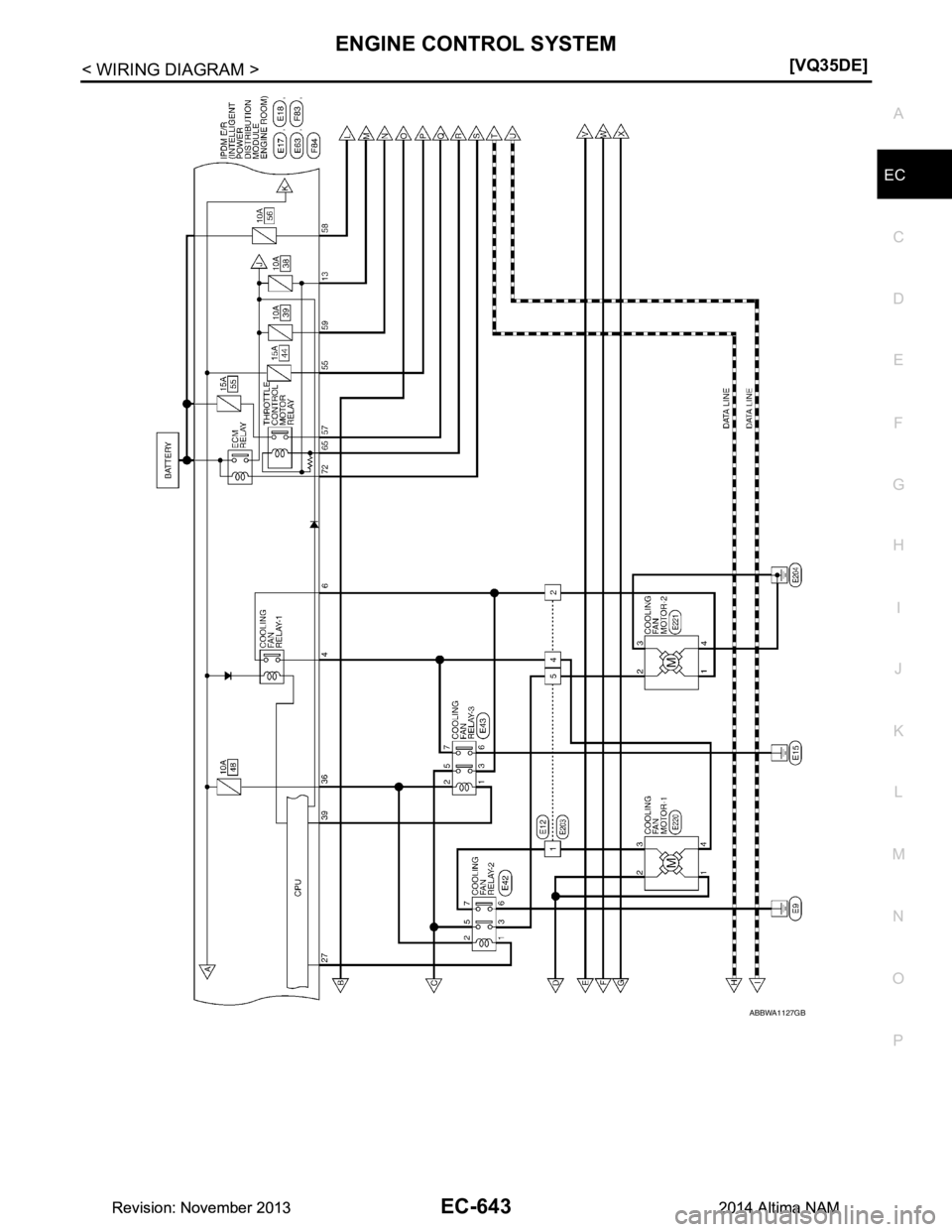

ABBWA0886GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-646
< WIRING DIAGRAM >[VQ35DE]
ENGINE CONTROL SYSTEM

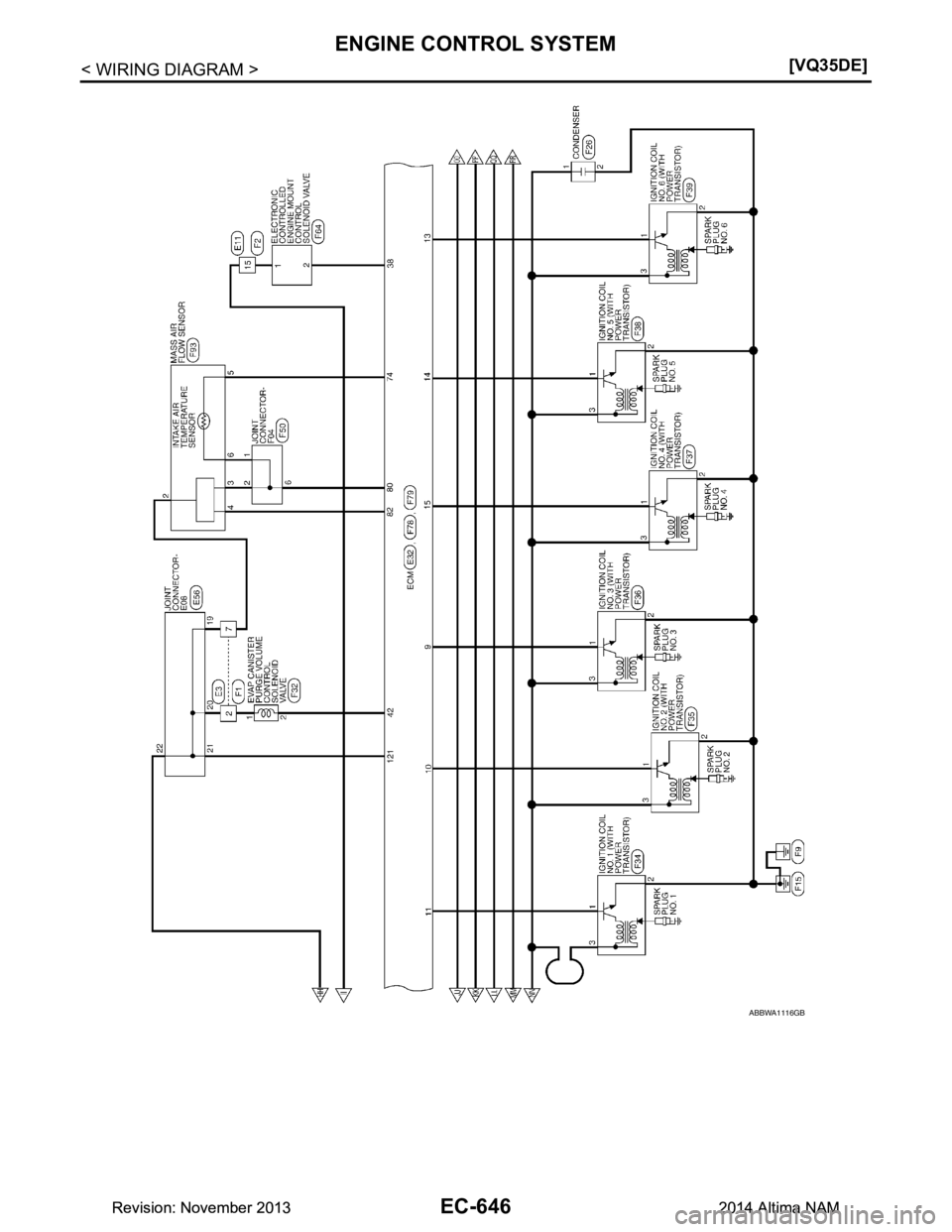

ABBWA1116GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-647
< WIRING DIAGRAM > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
ABBWA0888GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-648
< WIRING DIAGRAM >[VQ35DE]
ENGINE CONTROL SYSTEM

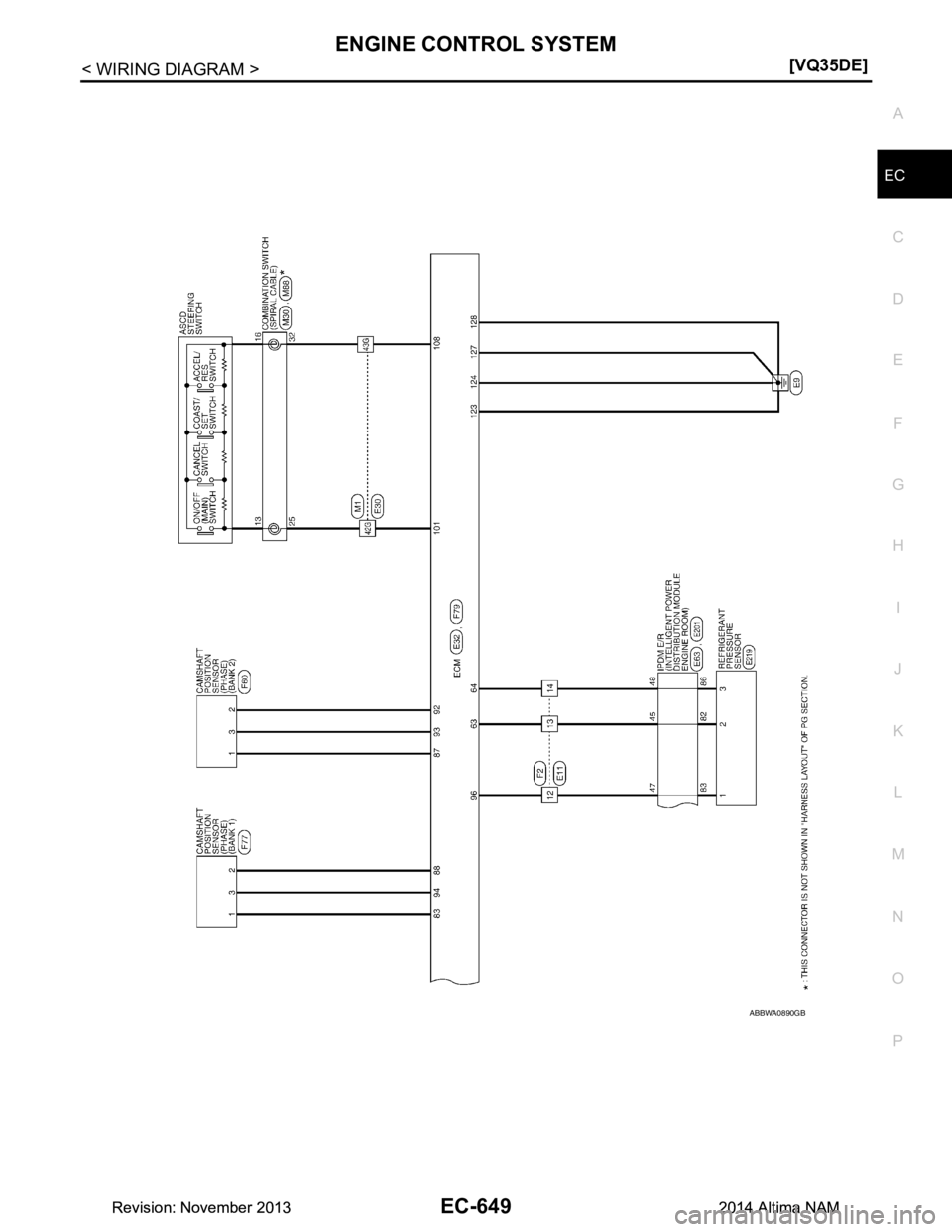

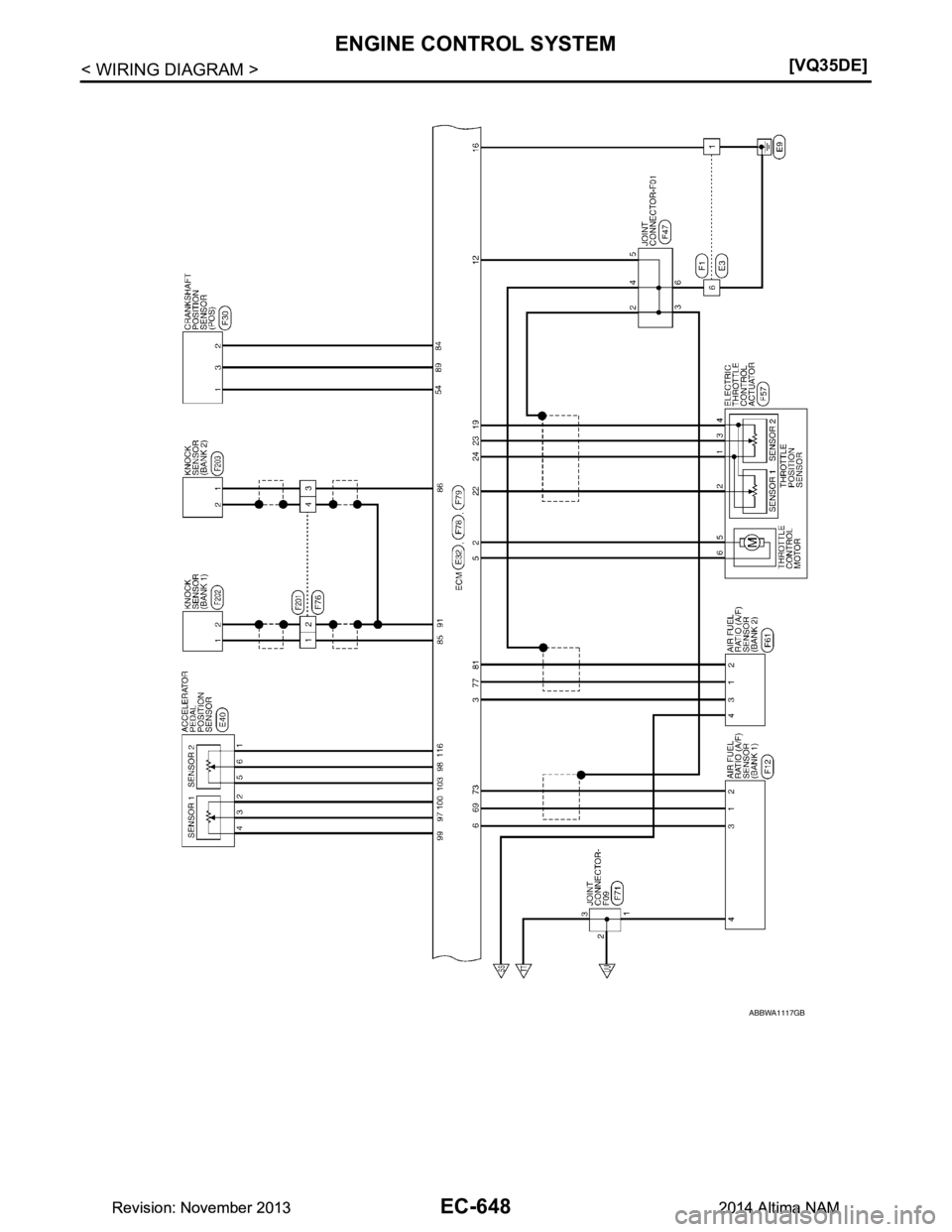

ABBWA1117GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-649
< WIRING DIAGRAM > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
ABBWA0890GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-650
< WIRING DIAGRAM >[VQ35DE]
ENGINE CONTROL SYSTEM

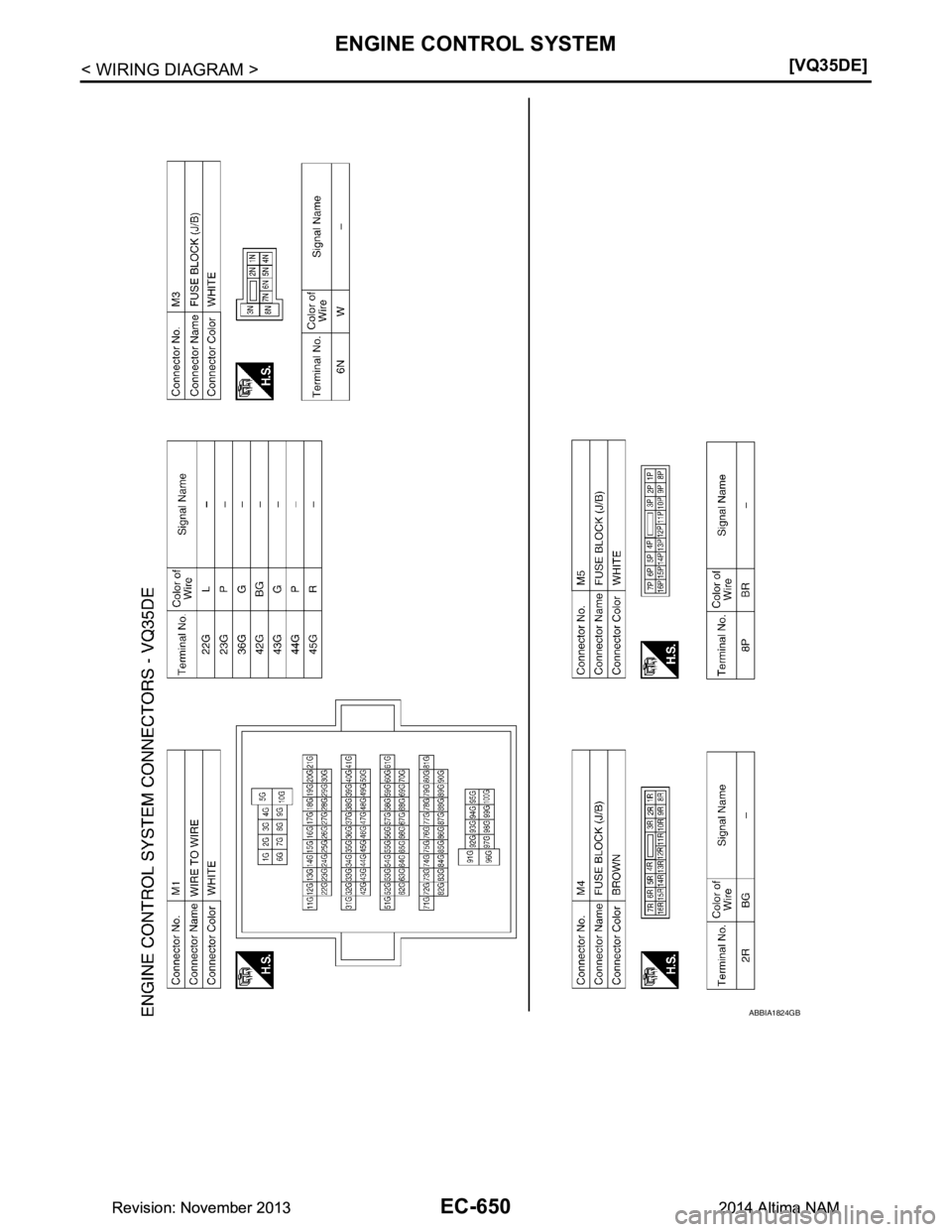

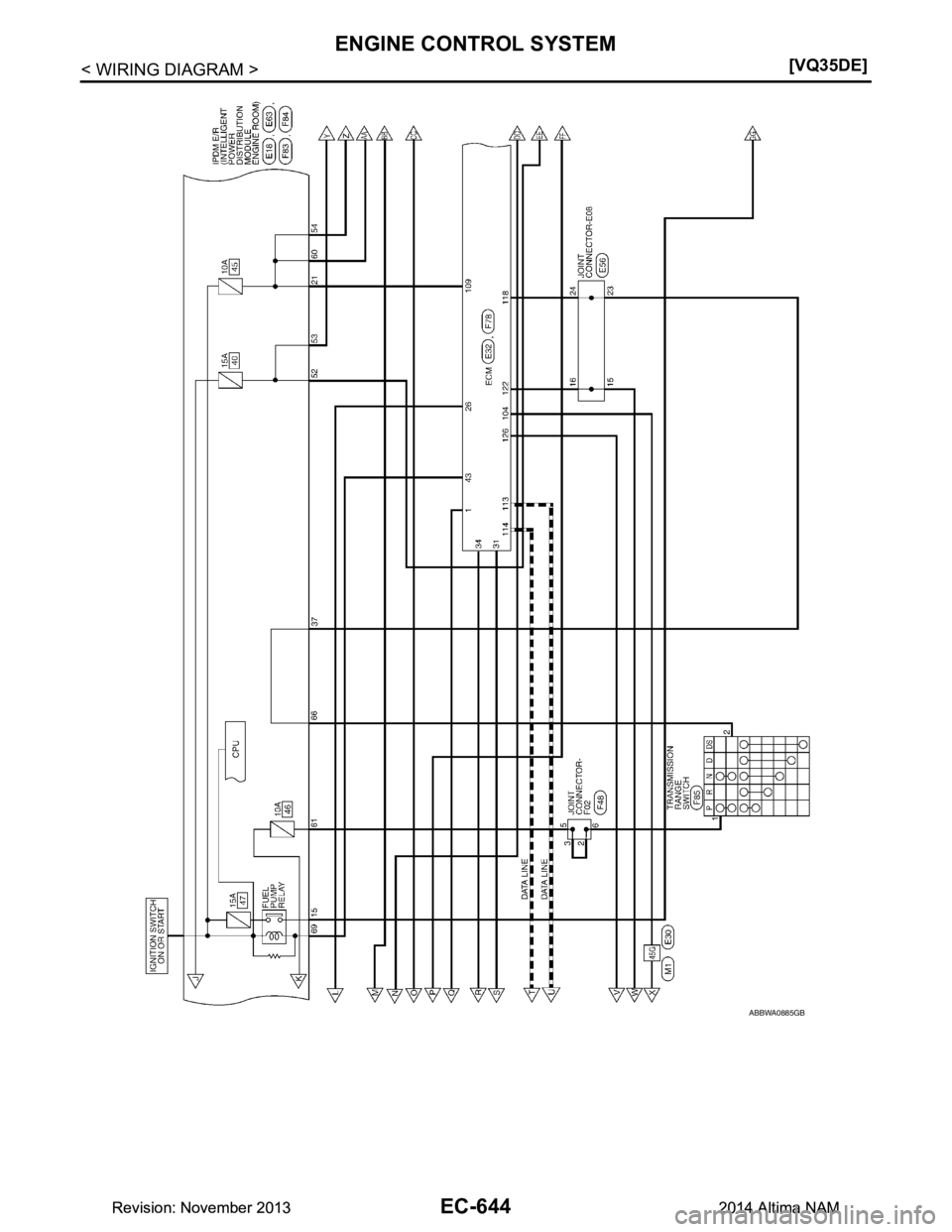

ABBIA1824GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
