NISSAN TEANA 2014 Service Manual

PWC-74
< SYSTEM DESCRIPTION >[LH & RH FRONT ANTI-PINCH]
SYSTEM
• Hold door key cylinder to LOCK position for more
than 1 second to perform CLOSE operation of the door
glass.
• Hold door key cylinder to UNLOCK position for more than 1 second to perform OPEN operation of the door
glass.
KEYLESS POWER WINDOW DOWN OPERATION (FRONT LH & RH)
Front power windows open when the unlock button on Intelligent Key is activated and kept pressed for more
than 3
(NOTE) seconds with the ignition switch OFF. The wi ndows keep opening if the unlock button is continu-
ously pressed.
The power window opening stops when the following operations are performed:
• When the unlock button is kept pressed more than 15 seconds.
• When the ignition switch is turned ON while the power window opening is operated.
• When the unlock button is released.
While retained power operation activate, keyless power window down function cannot be operated.
Fail-safeINFOID:0000000009460898
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is det ected in encoder signal that detects UP/DOWN speed and
direction of door glass. Switches to fail-safe cont rol when an error beyond the regulation value is detected
between the fully closed position and the actual position of the glass.
It changes to condition before initialization and the fo llowing functions do not operate when switched to fail-
safe control:
• Auto-up operation
• Anti-pinch function
• Retained power function
Perform initial operation to recover when switched to fa il-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window switch or in motor.
Malfunction Malfunction condition
Pulse sensor malfunction When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function When both pulse signals have not been detected for more than the specified value during glass
open/close operation.
Pulse direction malfunc-
tion When the pulse signal that is detected during glass open/close operation detects the opposite con-
dition of power window motor operating direction.
Glass recognition position
malfunction 1 When it detects the error between glass fully closed position in power window switch memory and
actual fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2 When it detects pulse count more that the value of glass full stroke during glass open/close opera-
tion.
Malfunction of not yet up-
dated closed position of
glass When glass open/close operation is continuously performed without fully closing more that the spec-
ified value (approximately 10 strokes).
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (BCM)PWC-75
< SYSTEM DESCRIPTION > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000009955266
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentiall y causing a discharged battery and a no-start condition.
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode Description
Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
Ecu Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN Diag Su pport Mntr
Door lock DOOR LOCK ××××
Rear window defogger REAR DEFOGGER ×××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ×××
Exterior lamp HEADLAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM × × ×××
Immobilizer IMMU ×××
Interior room lamp battery saver BATTERY SAVER ××
Trunk open TRUNK ×
Vehicle security system THEFT ALM ×××
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PWC-76
< SYSTEM DESCRIPTION >[LH & RH FRONT ANTI-PINCH]
DIAGNOSIS SYSTEM (BCM)
RETAINED PWR
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)INFOID:0000000009955267
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentially causing a di scharged battery and a no-start condition.
DATA MONITOR
RAP system RETAINED PWR ×
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
System Sub System
Direct Diagnostic Mode
Ecu Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN Diag Support Mntr
Monitor Item [Unit] Description
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCM (BODY CONTROL MODULE)PWC-77
< ECU DIAGNOSIS INFORMATION > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
ECU DIAGNOSIS INFORMATION
BCM (BODY CONTROL MODULE)
List of ECU ReferenceINFOID:0000000009460901
ECU Reference
BCM BCS-31, "Reference Value"
BCS-50, "Fail Safe"
BCS-50, "DTC Inspection Priority Chart"
BCS-52, "DTC Index"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PWC-78
< ECU DIAGNOSIS INFORMATION >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH
Reference Value INFOID:0000000009460902
TERMINAL LAYOUT
PHYSICAL VALUES
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH
AWKIA2368ZZ

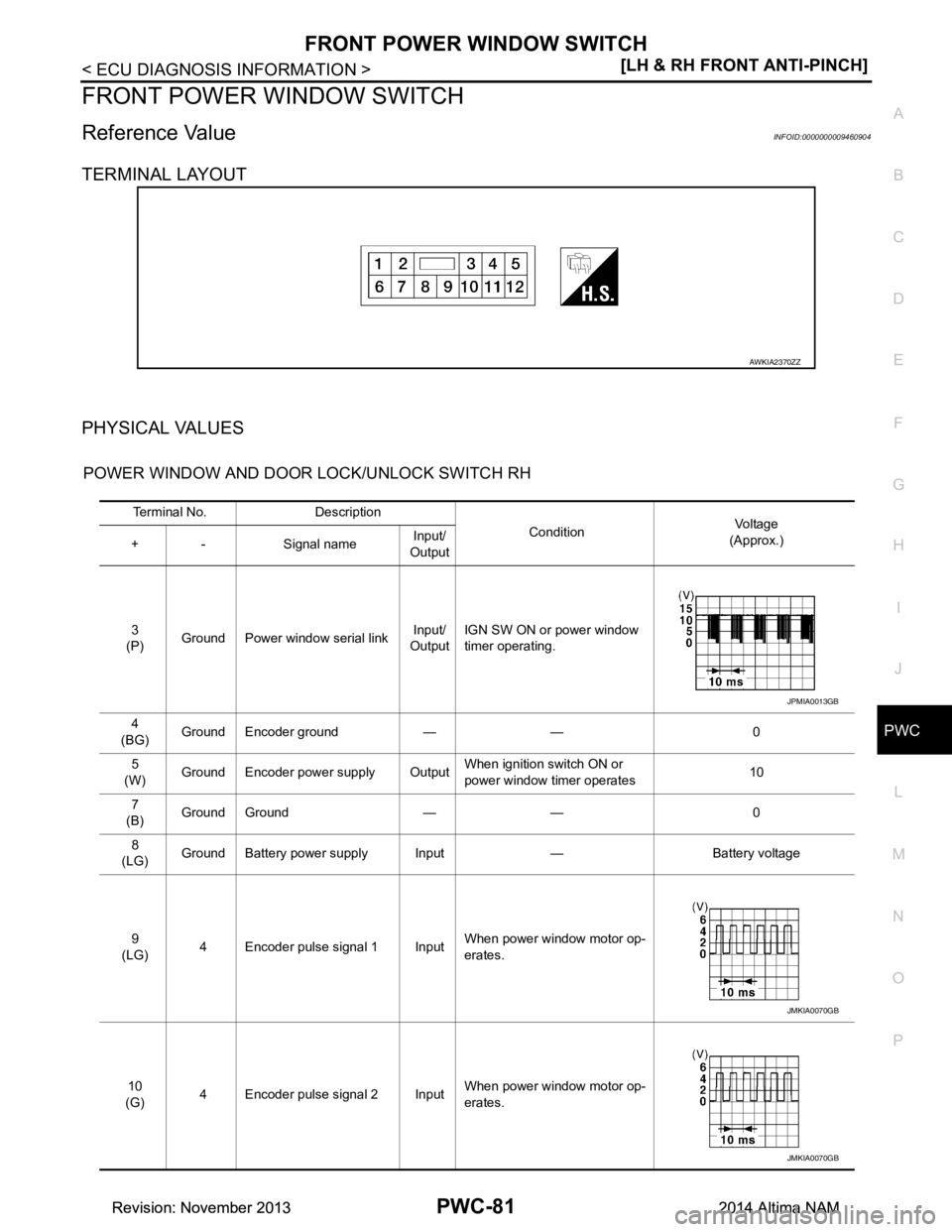

Terminal No. Description ConditionVo l ta g e
(Approx.)
+ - Signal name Input/
Output
1
(B) Ground Ground — — 0
3
(P) Ground Door key cylinder switch LH
LOCK signal InputKey position
(Neutral/Unlocked →
Locked) 5
→ 0
4
(BG) 12 Encoder pulse signal 2 Input
When power window mo-
tor operates.
5
(R) 12 Encoder pulse signal 1 Input When power window mo-
tor operates.
6
(SB) GroundRear power window motor RH
DOWN signal OutputWhen rear RH switch in
power window main switch
is operated DOWN. Battery voltage
7
(V) Ground Rear power window motor RH
UP signal OutputWhen rear RH switch in
power window main switch
is operated UP. Battery voltage
8
(L) Ground Rear power window motor LH
DOWN signal OutputWhen rear LH switch in
power window main switch
is operated DOWN. Battery voltage
9
(Y) Ground Rear power window motor LH
UP signal OutputWhen rear LH switch in
power window main switch
is operated UP. Battery voltage
JMKIA0070GB
JMKIA0070GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

POWER WINDOW MAIN SWITCHPWC-79
< ECU DIAGNOSIS INFORMATION > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
Fail SafeINFOID:0000000009460903
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe cont rol when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.
10
(BR) Ground RAP signal Input IGN SW ON Battery voltage
Within 45 second after ig-
nition switch is turned to
OFF. Battery voltage
When front LH or RH door
is opened during retained
power operation. 0
11
(P) Ground Power window serial link
Input/
Output IGN SW ON or power win-
dow timer operating.
12
(P) Ground Encoder ground — — 0
14
(LG) Ground Encoder power supply Output When ignition switch ON or
power window timer oper-
ates. 10
15
(G) Ground Door key cylinder switch LH
UNLOCK signal InputKey position
(Neutral/Locked → Un-
locked) 5
→ 0
17
(W) 19
Front door power window mo-
tor LH UP signal OutputWhen front LH switch in
power window main switch
is operated UP. Battery voltage
18
(LG) Battery power supply Input — Battery voltage
19
(R) 17Front door power window mo-
tor LH DOWN signal OutputWhen front LH switch in
power window main switch
is operated DOWN. Battery voltage
Terminal No. Description
ConditionVo l ta g e
(Approx.)
+ - Signal name Input/
Output
JPMIA0013GB
Error Error condition
Pulse sensor malfunction When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function When both pulse signals have not been detected for more than the specified value during glass open/
close operation.
Pulse direction malfunction When the pulse signal that is detected during glass open/close operation detects the opposite condition
of power window motor operating direction.
Glass recognition position
malfunction 1 When it detects the error between glass fully closed position in power window switch memory and actual
fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2 When it detects pulse count more than the value of glass full stroke during glass open/close operation.
Malfunction of not yet up-
dated closed position of
glass When glass open/close operation is continuously performed without fully closing more than the specified
value (approximate ly 10 strokes).
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PWC-80
< ECU DIAGNOSIS INFORMATION >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW MAIN SWITCH
It changes to condition before initialization and the fo
llowing functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function
• Retained power function
Perform initial operation to recover when switched to fa il-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window switch or in motor.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

FRONT POWER WINDOW SWITCHPWC-81
< ECU DIAGNOSIS INFORMATION > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
FRONT POWER WINDOW SWITCH
Reference Value INFOID:0000000009460904
TERMINAL LAYOUT
PHYSICAL VALUES
POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH
AWKIA2370ZZ
Terminal No. Description ConditionVo l ta g e
(Approx.)
+ - Signal name Input/
Output
3
(P) Ground Power window serial link Input/
Output IGN SW ON or power window
timer operating.
4
(BG) Ground Encoder ground — — 0
5
(W) Ground Encoder power supply Output
When ignition switch ON or
power window timer operates 10
7
(B) Ground Ground — — 0
8
(LG) Ground Battery power supply Input — Battery voltage
9
(LG) 4 Encoder pulse signal 1 Input
When power window motor op-
erates.
10
(G) 4 Encoder pulse signal 2 Input When power window motor op-
erates.
JPMIA0013GB
JMKIA0070GB
JMKIA0070GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PWC-82
< ECU DIAGNOSIS INFORMATION >[LH & RH FRONT ANTI-PINCH]
FRONT POWER WINDOW SWITCH

Fail SafeINFOID:0000000009460905
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is
detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe cont rol when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.
It changes to condition before initialization and the fo llowing functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function
• Retained power function
Perform initial operation to recover when switched to fa il-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window switch or in motor.
11
(R) 12Power window motor
UP signal OutputWhen power window motor is
UP at operated. Battery voltage
12
(P) 11
Power window motor
DOWN signal Output
When power window motor is
DOWN at operated. Battery voltage
Terminal No. Description
ConditionVoltag e
(Approx.)
+ - Signal name Input/
Output
Error Error condition
Pulse sensor malfunction When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function When both pulse signals have not been detected for more than the specified value during glass open/
close operation.
Pulse direction malfunction When the pulse signal that is detected during glass open/close operation detects the opposite condition
of power window motor operating direction.
Glass recognition position
malfunction 1 When it detects the error between glass fully closed position in power window switch memory and actual
fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2 When it detects pulse count more than the value of glass full stroke during glass open/close operation.
Malfunction of not yet up-
dated closed position of
glass When glass open/close operation is continuously performed without fully closing more than the specified
value (approximately 10 strokes).
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

POWER WINDOW SYSTEMPWC-83
< WIRING DIAGRAM > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
WIRING DIAGRAM
POWER WINDOW SYSTEM
Wiring Diagram - With Left And Rig ht Front Power Window Anti-PinchINFOID:0000000009460906
ABKWA2190GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
