NISSAN TEANA 2014 Service Manual

ST-18
< BASIC INSPECTION >
STEERING COLUMN
STEERING COLUMN
InspectionINFOID:0000000009461253
HOLE COVER SEAL, HOLE COVER AND LOWER SHAFT ASSEMBLY
Check each part of hole cover seal, hole cover and steering column and lower shaft assembly for damage or
other malfunctions. Replace if necessary.
STEERING COLUMN ASSEMBLY
• Check each part of steering column assembly for dam age or other malfunctions. Replace entire steering col-
umn assembly if any parts are damaged.
• Measure the length (L) as shown if vehicle has been involved in a
minor collision. Replace steering column assembly if outside the
specifications.
• Measure steering column rotating torque using Tool. Replace steering column assembly if outside the stan- dard.
• Check tilt and telescopic mechanism operating range (L
1), (L2) as
shown. Steering column length (L) : Refer to
ST-46, "Steering
Column".
ALGIA0135ZZ
Tool number : ST3127S000 (J-25765-A)
Rotating torque : Refer to ST-46, "Steering Column"
.
Tilt operating range (L
1) : Refer to
ST-46, "Steering Column".
Telescopic operating range
(L
2) : Refer to
ST-46, "Steering Column".
ALGIA0136ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

POWER STEERING OIL PUMPST-19
< BASIC INSPECTION >
C
D E
F
H I
J
K L
M A
B
ST
N
O P

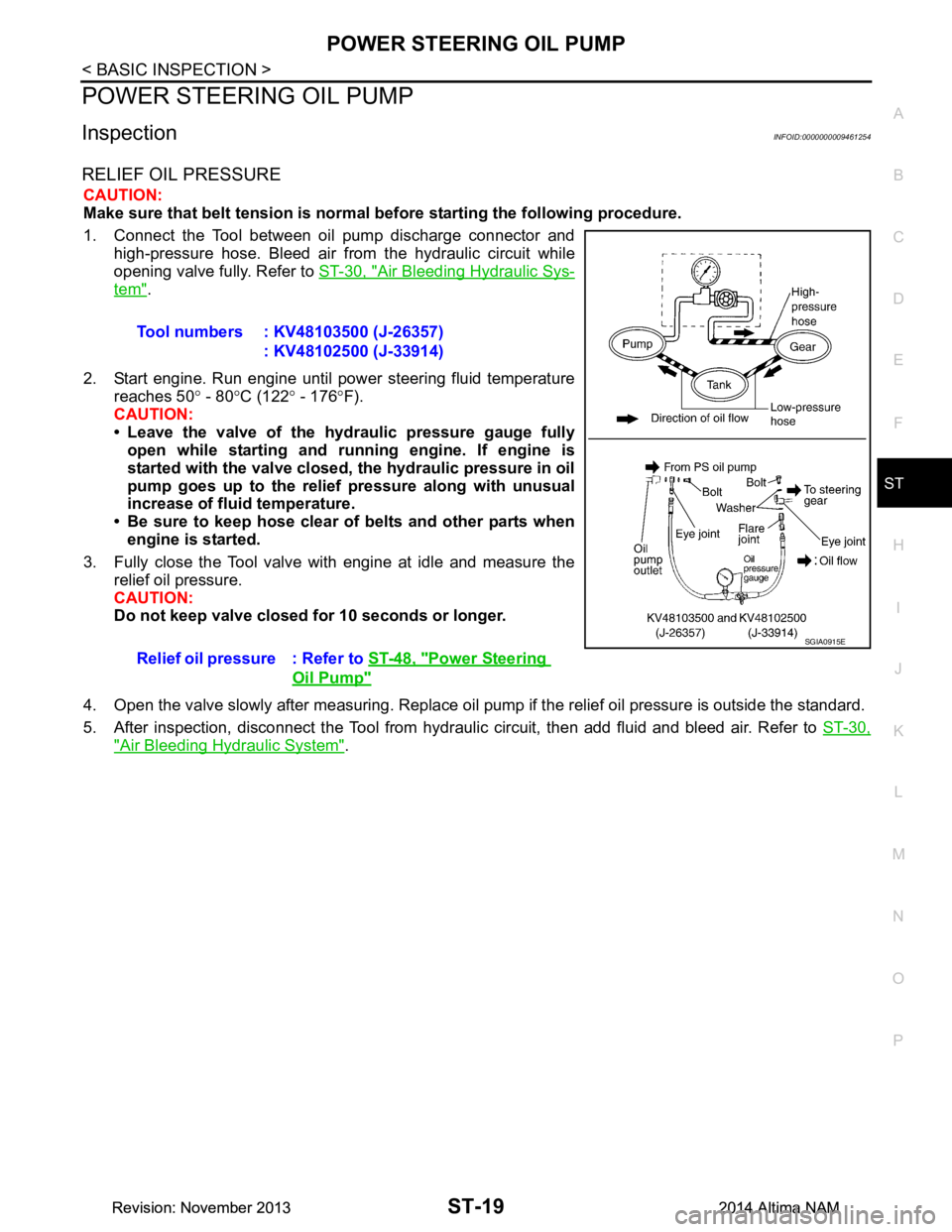

POWER STEERING OIL PUMP
InspectionINFOID:0000000009461254
RELIEF OIL PRESSURE
CAUTION:
Make sure that belt tension is normal be fore starting the following procedure.
1. Connect the Tool between oil pump discharge connector and high-pressure hose. Bleed air from the hydraulic circuit while
opening valve fully. Refer to ST-30, "Air Bleeding Hydraulic Sys-
tem".
2. Start engine. Run engine until power steering fluid temperature reaches 50 ° - 80 °C (122 ° - 176 °F).
CAUTION:
• Leave the valve of the hydraulic pressure gauge fully open while starting and ru nning engine. If engine is
started with the valve closed, th e hydraulic pressure in oil
pump goes up to the relief pressure along with unusual
increase of fluid temperature.
• Be sure to keep hose clear of belts and other parts when engine is started.
3. Fully close the Tool valve with engine at idle and measure the relief oil pressure.
CAUTION:
Do not keep valve closed for 10 seconds or longer.
4. Open the valve slowly after measuring. Replace oil pump if the relief oil pressure is outside the standard.
5. After inspection, disconnect the Tool from hydraul ic circuit, then add fluid and bleed air. Refer to ST-30,
"Air Bleeding Hydraulic System".
Tool numbers : KV48103500 (J-26357)
: KV48102500 (J-33914)
Relief oil pressure : Refer to ST-48, "Power Steering
Oil Pump"
SGIA0915E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ST-20
< BASIC INSPECTION >

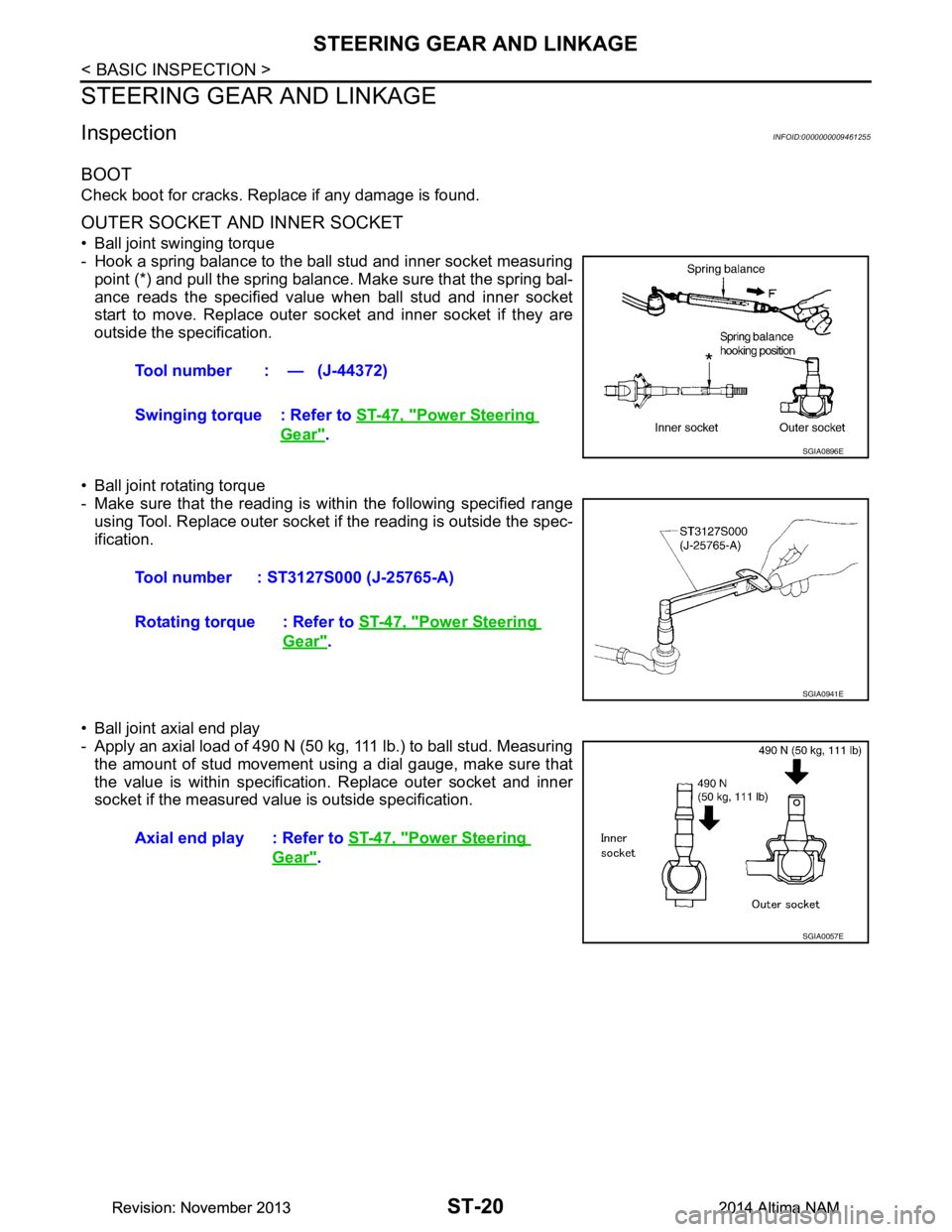

STEERING GEAR AND LINKAGE
STEERING GEAR AND LINKAGE
InspectionINFOID:0000000009461255
BOOT
Check boot for cracks. Replace if any damage is found.
OUTER SOCKET AND INNER SOCKET
• Ball joint swinging torque
- Hook a spring balance to the ball stud and inner socket measuring point (*) and pull the spring balance. Make sure that the spring bal-
ance reads the specified value when ball stud and inner socket
start to move. Replace outer socket and inner socket if they are
outside the specification.
• Ball joint rotating torque
- Make sure that the reading is within the following specified range
using Tool. Replace outer socket if the reading is outside the spec-
ification.
• Ball joint axial end play
- Apply an axial load of 490 N (50 kg, 111 lb.) to ball stud. Measuring
the amount of stud movement using a dial gauge, make sure that
the value is within specificati on. Replace outer socket and inner
socket if the measured value is outside specification. Tool number : — (J-44372)
Swinging torque : Refer to ST-47, "Power Steering
Gear".SGIA0896E
Tool number : ST3127S000 (J-25765-A)
Rotating torque : Refer to ST-47, "Power Steering
Gear".
SGIA0941E
Axial end play : Refer to ST-47, "Power Steering
Gear".
SGIA0057E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

POWER SUPPLY AND GROUND CIRCUITST-21
< DTC/CIRCUIT DIAGNOSIS >
C
D E
F
H I
J
K L
M A
B
ST
N
O P
DTC/CIRCUIT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
A/C AUTO AMP.
A/C AUTO AMP. : Diagnosis ProcedureINFOID:0000000009952472
Regarding Wiring Diagram information, refer to HAC-34, "Wiring Diagram".
1.CHECK FUSE
Check fuses [No. 14, 25 and 30, loca ted in the fuse block (J/B)].
NOTE:
Refer to PG-70, "Terminal Arrangement"
.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace the blown fuse after repairing the affected circuit.
2.CHECK A/C AUTO AMP. POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check voltage between A/C auto amp. harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connector between A/C auto amp. and fuse block (J/B).
3.CHECK A/C AUTO AMP. GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between A/C aut o amp. harness connector and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair harness or connector.
+
− Voltag e
A/C auto amp. Ignition switch position
Connector Terminal OFF ACC ON
M152 3
GroundBattery voltage Battery voltage Battery voltage
13 Approx. 0 V Battery voltage Battery voltage
23 Approx. 0 V Approx. 0 V Battery voltage
40 Approx. 0 V Approx. 0 V Battery voltage
A/C auto amp. — Continuity
Connector Terminal
M152 2
Ground Yes
22
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ST-22
< DTC/CIRCUIT DIAGNOSIS >
HEATED STEERING WHEEL SYSTEM
HEATED STEERING WHEEL SYSTEM
Component Function CheckINFOID:0000000009461257
1.CHECK HEATED STEERING WHEEL SYSTEM
Check operation of heated steering wheel system. Refer to ST-8, "HEATED STEERING WHEEL SYSTEM :
System Description".
Is the inspection result normal?
YES >> Inspection End.
NO >> Go to ST-22, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009461258
Regarding Wiring Diagram information, refer to ST-10, "Wiring Diagram".
1.CHECK POWER CIRCUIT
1. Turn ignition switch OFF.
2. Remove the steering wheel. Refer to ST-31, "Removal and Installation"
.
3. Turn ignition switch ON.
4. Turn heated steering wheel switch ON.
5. Check voltage between heated steering wheel harness connector M114.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK HEATED STEERING WHEEL
Check heated steering wheel. Refer to ST-25, "Component Inspection (Heated Steering Wheel)"
.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace heated steering wheel. Refer to ST-31, "Removal and Installation"
.
3.CHECK GROUND CIRCUIT
Check continuity between heated steering wheel harness connector terminal M114 and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace the harness or connector.
4.CHECK HARNESS BETWEEN HEATED STEERING WHEEL RELAY AND HEATED STEERING WHEEL
1. Turn ignition switch OFF.
2. Disconnect heated steering wheel relay connector.
3. Check continuity between heated steering wheel relay harness connector terminal M90 and steering
wheel harness connector terminal M114.
Connector Te r m i n a l
Voltage (Approx.)
+-
M114 2 1 Battery voltage
Connector Terminal GroundContinuity
M114 1 Yes
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HEATED STEERING WHEEL SYSTEMST-23
< DTC/CIRCUIT DIAGNOSIS >
C
D E
F
H I
J
K L
M A
B
ST
N
O P
4. Check continuity between heated steering wheel relay harness connector terminal M90 and ground.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace the harness or connector.
5.CHECK HEATED STEERING RELAY
Check heated steering relay. Refer to ST-24, "Component Inspection (Heated Steering Relay)"
.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Replace heated steering relay.
6.CHECK POWER TO HEATED STEERING RELAY
Check the following.
•Battery
• Harness for open or short between battery and 10A fuse (No. 2)
• 10A fuse (No. 2)
• Harness for open or short between 10A fuse (No. 2) and heated steering relay
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace damaged parts.
7.CHECK GROUND CIRCUIT
1. Disconnect heated steering wheel switch.
2. Check continuity between heated steering wheel switch harness connector terminal M51 and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair or replace the harness or connector.
8.CHECK HARNESS BETWEEN HEATED STEE RING RELAY AND A/C AUTO AMP.
1. Disconnect A/C auto amp.
2. Check continuity between heated steering wheel relay harness connector terminal M90 and A/C auto
amp. harness connector terminal M152.
3. Check continuity between heated steering re lay harness connector terminal M90 and ground.
Is the inspection result normal?
YES >> GO TO 9.
Heated steering wheel relay Heated steering wheel Continuity
Connector Terminal Connector Terminal
M90 5 M114 2 Yes
Heated steering wheel relay GroundContinuity
Connector Terminal
M90 5 No
Connector Terminal GroundContinuity
M51 2 Yes
Heated steering relay A/C Auto amp. Continuity
Connector Terminal Connector Terminal
M90 2 M152 20 Yes
Heated steering relay GroundContinuity
Connector Terminal
M90 2 No
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ST-24
< DTC/CIRCUIT DIAGNOSIS >
HEATED STEERING WHEEL SYSTEM
NO >> Repair or replace harness or connector.
9.CHECK HARNESS BETWEEN A/C AUTO AMP. AND HEATED STEERING WHEEL SWITCH
1. Check continuity between A/C auto amp. har ness connector terminal M152 and heated steering wheel
switch harness connector M51.
2. Check continuity between A/C auto amp. harness connector M152 and ground.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair or replace the harness or connector.
10.CHECK HEATED STEERING WHEEL SWITCH
Check heated steering wheel switch. Refer to ST-24, "Component Inspection (Heated Steering Wheel
Switch)".
Is the inspection result normal?
YES >> Replace A/C Auto amp. Refer to HAC-102, "Removal and Installation".
NO >> Replace heated steering wheel switch.
Component Inspection (Heat ed Steering Wheel Switch)INFOID:0000000009461259
1.CHECK HEATED STEERING WHEEL SWITCH
1. Turn ignition switch OFF.
2. Remove the heated steering wheel switch connector M51.
3. Check continuity between heated st eering wheel switch terminals.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace heated steering wheel switch.
2.CHECK HEATED STEERING WH EEL SWITCH INDICATOR LAMP
Apply 12V direct current between heated steering wheel switch terminals and check that the indicator lamp
turns ON.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace heated steering wheel switch.
Component Inspection (Heated Steering Relay)INFOID:0000000009461260
1.CHECK HEATED STEERING RELAY CONTINUITY
A/C Auto amp. Heated steering wheel switch
Continuity
Connector Terminal Connector Terminal
M152 8 M51 1 Yes
A/C Auto amp. GroundContinuity
Connector Terminal
M152 8 No
Terminal Condition Continuity
12 Switch pressed Yes
Switch released No
Te r m i n a l s Condition Indicator lamp status
+–
56 Apply 12V direct current be-
tween terminals ON
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HEATED STEERING WHEEL SYSTEMST-25
< DTC/CIRCUIT DIAGNOSIS >
C
D E
F
H I
J
K L
M A
B
ST
N
O P
1. Turn ignition switch OFF.
2. Remove heated steering relay. Refer to ST-7, "HEATED STEERING WHEEL SYSTEM : Component
Parts Location".
3. Apply 12V direct current between heated steering relay terminals and check continuity.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace heated steering wheel relay.
Component Inspection (H eated Steering Wheel)INFOID:0000000009461261
1.CHECK HEATED STEERING WHEEL CONTINUITY
1. Turn ignition switch OFF.
2. Remove the steering wheel. Refer to ST-31, "Removal and Installation"
.
3. Check continuity between steering wheel connector terminals.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace heated steering wheel.
2.CHECK HEATED STEERING WHEEL RESISTANCE
Check resistance between heated steering wheel connector terminals.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace heated steering wheel. Refer to ST-31, "Removal and Installation"
.
Terminal Condition Continuity
3 − 5 12V direct current applied between termi-
nals 1 and 2. Ye s
No current applied. No
Terminals Condition Continuity
1 − 2 Surface temperature of less than 30
°C
(86 °F) Ye s
Surface temperature of 30 °C (86 °F) or
more No
Terminals Condition Resistance
1 − 2 Surface temperature of 20 °C (68 °F) 1.7 – 2.17 Ω
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ST-26
< DTC/CIRCUIT DIAGNOSIS >
HEATED STEERING WHEEL SWITCH INDICATOR LAMP
HEATED STEERING WHEEL SWITCH INDICATOR LAMP
Component Function CheckINFOID:0000000009461262
1.CHECK HEATED STEERING WHEEL SWITCH INDICATOR LAMP
1. Turn ignition switch ON.
2. Turn heated steering wheel switch ON. Observe indicator.
3. Turn heated steering wheel switch OFF. Observe indicator.
Does heated steering wheel switch indicator lamp turn ON and then OFF?
YES >> Inspection End.
NO >> Go to ST-26, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009461263
1.CHECK POWER CIRCUIT
1. Turn ignition switch OFF.
2. Remove the heated steering wheel switch.
3. Turn ignition switch ON.
4. Check voltage between heated steering wheel switch harness connector M51.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect heated steering wheel switch connector.
3. Check continuity between heated steering wheel switch harness connector terminal M51 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace the harness or connectors.
3.CHECK HARNESS BETWEEN HEATED STEERING RELAY AND HEATED STEERING WHEEL SWITCH
1. Disconnect heated steering relay connector.
2. Check continuity between heated steering rela y harness connector terminal M90 and heated steering
wheel switch harness connector M51.
3. Check continuity between heated steer ing relay harness connector M90 and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harness or connectors.
Connector Te r m i n a l
Voltage (Approx.)
+-
M51 1 2 Battery voltage
Connector Terminal GroundContinuity
M51 6 Yes
Heated steering relay Heated steering wheel switch Continuity
Connector Terminal Connector Terminal
M90 5 M51 5 Yes
Connector Terminal GroundContinuity
M90 5 No
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HEATED STEERING WHEEL SWITCH INDICATOR LAMPST-27
< DTC/CIRCUIT DIAGNOSIS >
C
D E
F
H I
J
K L
M A
B
ST
N
O P
4.CHECK HEATED STEERING RELAY
Check heated steering relay. Refer to ST-24, "Component Inspection (Heated Steering Relay)"
.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace heated steering relay.
5.CHECK BATTERY POWER
Check the following:
•Battery
• Harness for open or short between battery and 10A fuse (No. 2)
• 10A fuse (No. 2)
• Harness for open or short between 10A fuse (No. 2) and heated steering wheel relay
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair harness or connector.
6.CHECK HARNESS BETWEEN A/C AUTO AMP. AND HEATED STEERING WHEEL SWITCH
1. Check continuity between A/C Auto amp. harne ss connector M152 and heated steering wheel switch har-
ness connector M51.
2. Check continuity between A/C Auto amp. harness connector M152 and ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace the harness or connectors.
7.CHECK HEATED STEERING WHEEL SWITCH
Check heated steering wheel switch. Refer to ST-24, "Component Inspection (Heated Steering Wheel
Switch)".
Is the inspection result normal?
YES >> Replace A/C Auto amp. Refer to HAC-102, "Removal and Installation".
NO >> Replace heated steering wheel switch.
A/C Auto amp. Heated steering wheel switch Continuity
Connector Terminal Connector Terminal
M152 8 M51 1 Yes
A/C auto amp. GroundContinuity
Connector Terminal
M152 8 No
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
