NISSAN TEANA 2014 Service Manual

TM-406
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
PLUG
PLUG
DescriptionINFOID:0000000009464368
Replace the O-ring if oil leakage or exudes from the plug.
Exploded ViewINFOID:0000000009464369
Removal and InstallationINFOID:0000000009464370
REMOVAL
1. Remove fender protector side cover (LH). Refer to
EXT-26, "FENDER PROTECTOR : Removal and
Installation".
2. Remove the plug and O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to O-ring.
Inspection and AdjustmentINFOID:0000000009464371
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-286, "Adjustment".
Transaxle assembly O-ring Plug
: Always replace after every disassembly.
: N·m (kg-m, ft-lb)
: Apply CVT Fluid
JSDIA3622GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TRANSAXLE ASSEMBLYTM-407
< UNIT REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
UNIT REMOVAL AND INSTALLATION
TRANSAXLE ASSEMBLY

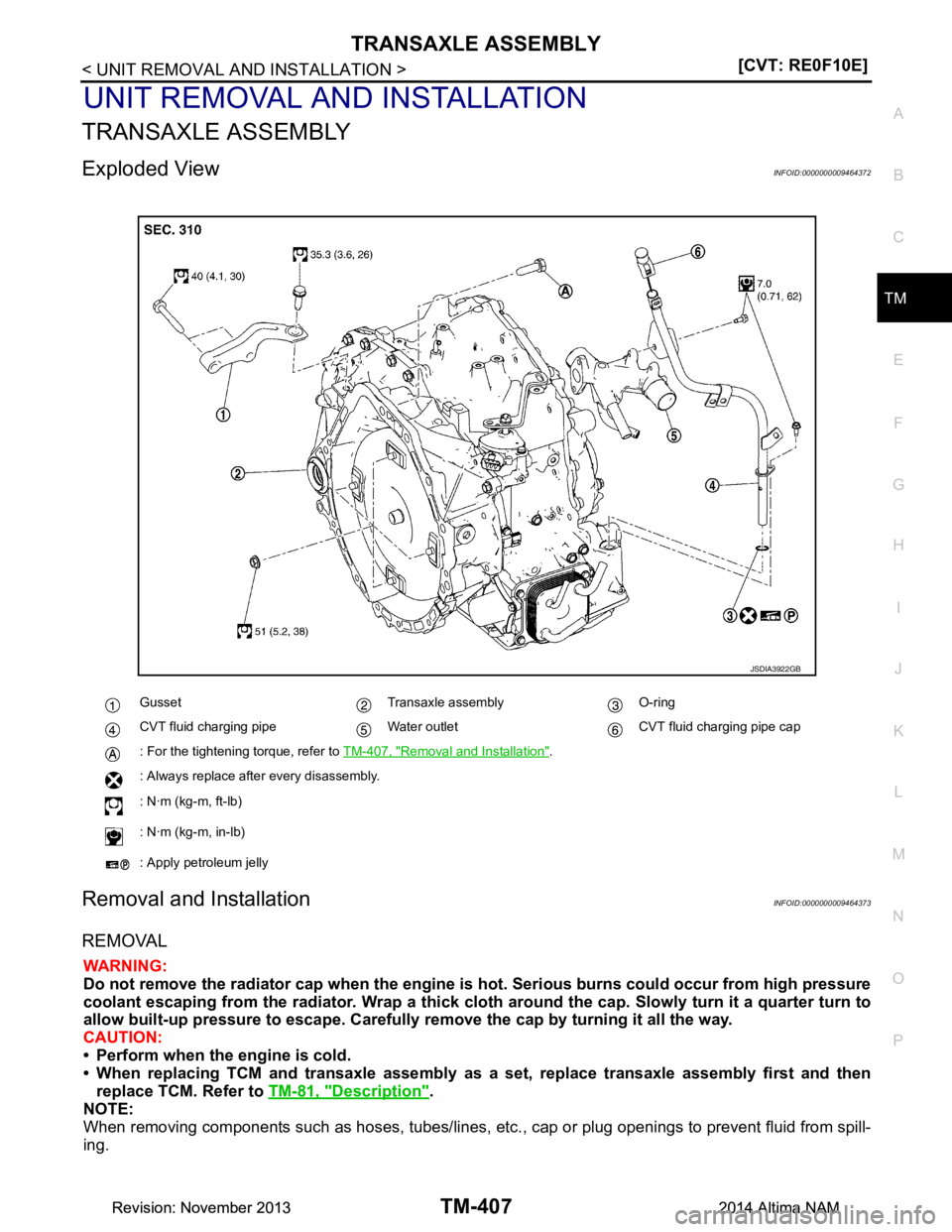

Exploded ViewINFOID:0000000009464372
Removal and InstallationINFOID:0000000009464373
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escap e. Carefully remove the cap by turning it all the way.
CAUTION:
• Perform when the engine is cold.
• When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then
replace TCM. Refer to TM-81, "Description"
.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
Gusset Transaxle assembly O-ring
CVT fluid charging pipe Water outlet CVT fluid charging pipe cap
: For the tightening torque, refer to TM-407, "Removal and Installation"
.
: Always replace after every disassembly.
: N·m (kg-m, ft-lb)
: N·m (kg-m, in-lb)
: Apply petroleum jelly
JSDIA3922GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-408
< UNIT REMOVAL AND INSTALLATION >[CVT: RE0F10E]
TRANSAXLE ASSEMBLY
1. Remove the engine and transaxle with the front suspension member as a unit. Refer to
EM-220,
"Removal and Installation".
2. Disconnect the transaxle harness connectors.
3. Disconnect the CVT oil warmer water hoses from engine side. Refer to TM-400, "WATER HOSE :
Removal and Installation".
4. Remove the CVT fluid charging pipe.
5. Remove the transaxle to engine and engine to transaxle bolts.
6. Separate the engine from the transaxle and remove the engine from the front suspension member. Refer to EM-220, "Removal and Installation"
.
NOTE:
Using paint, put matching marks on the drive plat e and torque converter when removing the torque con-
verter to drive plate nuts.
7. Remove transmission bracket.
8. Lift the transaxle from the front suspension member.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:

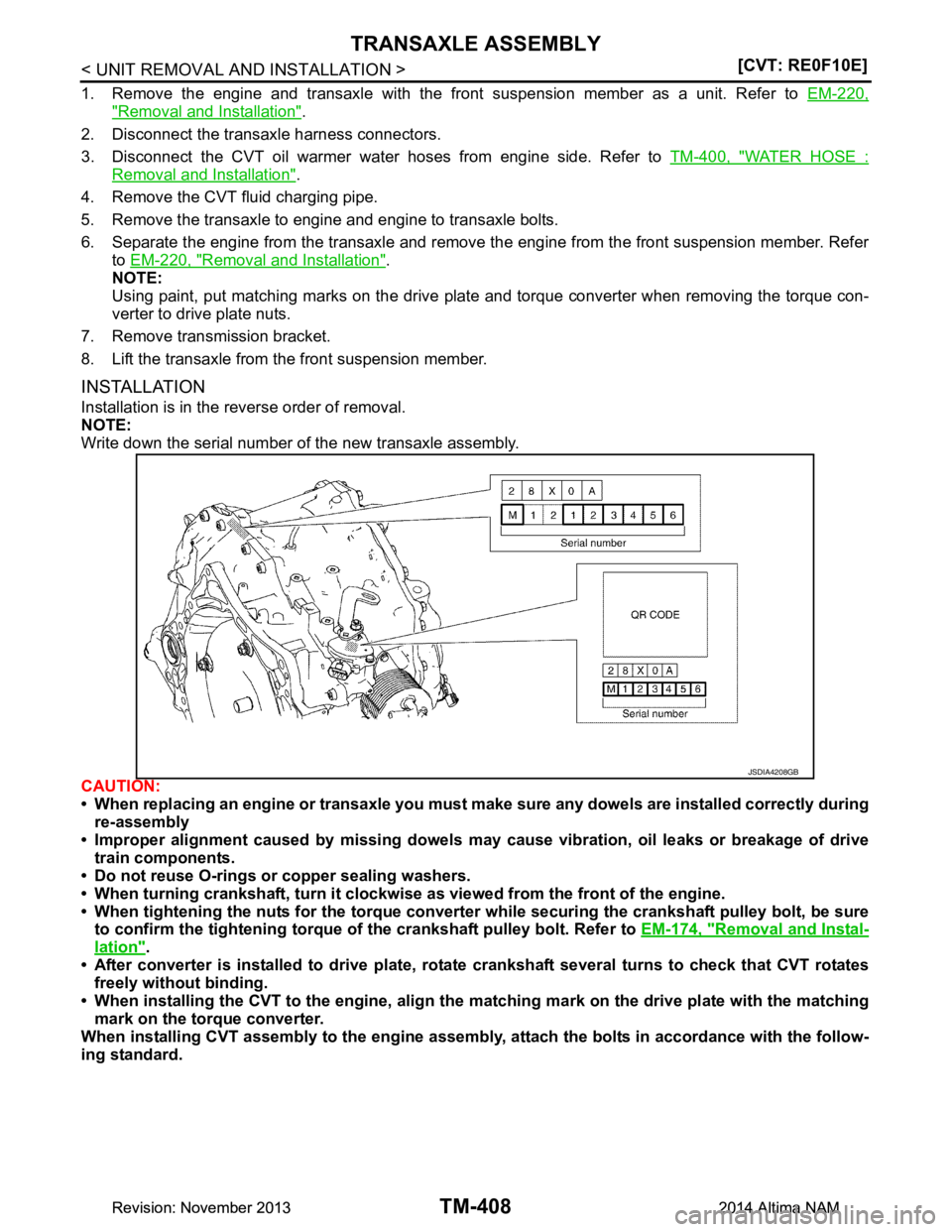

Write down the serial number of the new transaxle assembly.
CAUTION:
• When replacing an engine or transaxle you must m ake sure any dowels are installed correctly during
re-assembly
• Improper alignment caused by missing dowels m ay cause vibration, oil leaks or breakage of drive
train components.
• Do not reuse O-rings or copper sealing washers.
• When turning crankshaft, turn it clockwi se as viewed from the front of the engine.
• When tightening the nuts for the torque converte r while securing the crankshaft pulley bolt, be sure
to confirm the tightening torque of the crankshaft pulley bolt. Refer to EM-174, "Removal and Instal-
lation".
• After converter is installed to drive plate, rota te crankshaft several turns to check that CVT rotates
freely without binding.
• When installing the CVT to the en gine, align the matching mark on the drive plate with the matching
mark on the torque converter.
When installing CVT assembly to th e engine assembly, attach the bolts in accordance with the follow-
ing standard.
JSDIA4208GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TRANSAXLE ASSEMBLYTM-409
< UNIT REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
•
• When installing the drive plate to torque converter nuts, tighten them temporarily. then tighten the nuts to the
specified torque.
Inspection and AdjustmentINFOID:0000000009464374
INSPECTION BEFORE INSTALLATION
After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.
INSPECTION AFTER INSTALLATION
Check the following items:
• CVT fluid leakage, refer to TM-377, "Inspection"
.
• For CVT position, refer to TM-289, "Inspection"
.
• Start the engine and check for coolant leakage from the parts which are removed and reinstalled.
ADJUSTMENT AFTER INSTALLATION
• Adjust the CVT fluid level. Refer to TM-286, "Adjustment".
• Perform "ADDITIONAL SERVICE WHEN REPLACE TRANSAXLE ASSEMBLY". Refer to TM-283, "Descrip-
tion".

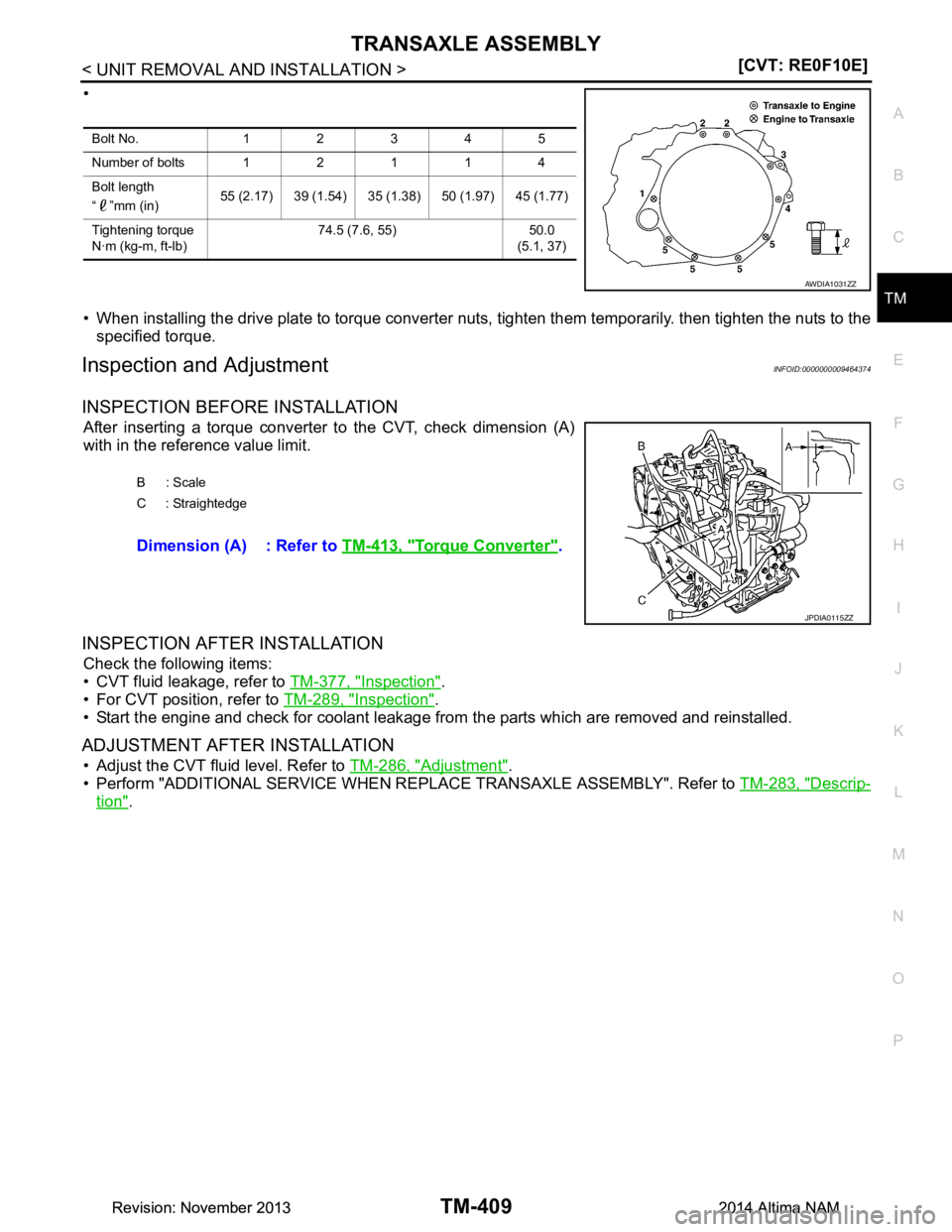

Bolt No. 12345
Number of bolts12114
Bolt length
“”mm (in) 55 (2.17) 39 (1.54) 35 (1.38) 50 (1.97) 45 (1.77)
Tightening torque
N·m (kg-m, ft-lb) 74.5 (7.6, 55) 50.0
(5.1, 37)
AWDIA1031ZZ
B: Scale
C : Straightedge
Dimension (A) : Refer to TM-413, "Torque Converter".
JPDIA0115ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-410
< UNIT DISASSEMBLY AND ASSEMBLY >[CVT: RE0F10E]
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL
UNIT DISASSEMBLY AND ASSEMBLY
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

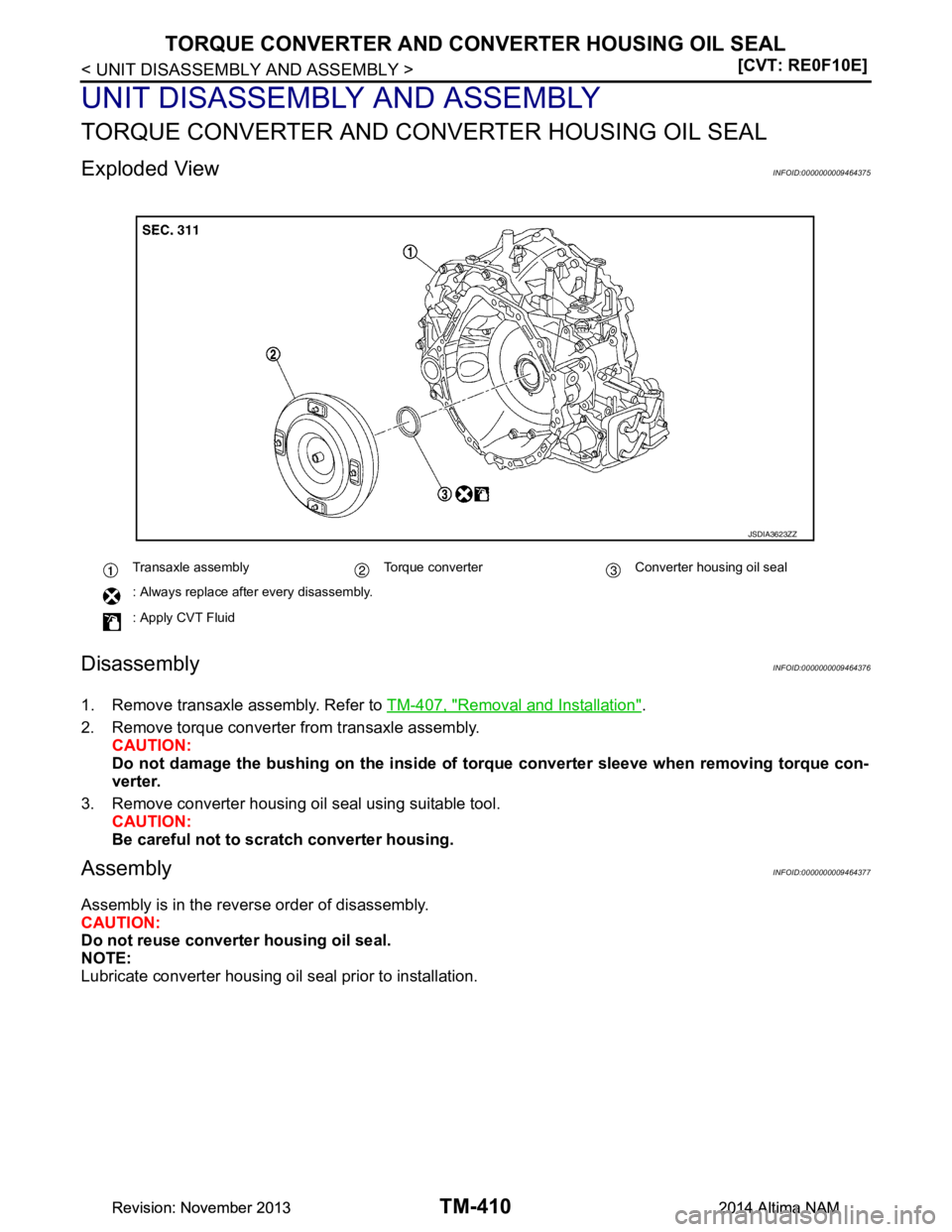

Exploded ViewINFOID:0000000009464375
DisassemblyINFOID:0000000009464376
1. Remove transaxle assembly. Refer to
TM-407, "Removal and Installation".
2. Remove torque converter from transaxle assembly. CAUTION:
Do not damage the bushing on th e inside of torque converter sleeve when removing torque con-
verter.
3. Remove converter housing oil seal using suitable tool. CAUTION:
Be careful not to scratch converter housing.
AssemblyINFOID:0000000009464377
Assembly is in the reverse order of disassembly.
CAUTION:
Do not reuse converter housing oil seal.
NOTE:
Lubricate converter housing oil seal prior to installation.
Transaxle assembly Torque converter Converter housing oil seal
: Always replace after every disassembly.
: Apply CVT Fluid
JSDIA3623ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEALTM-411
< UNIT DISASSEMBLY AND ASSEMBLY > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

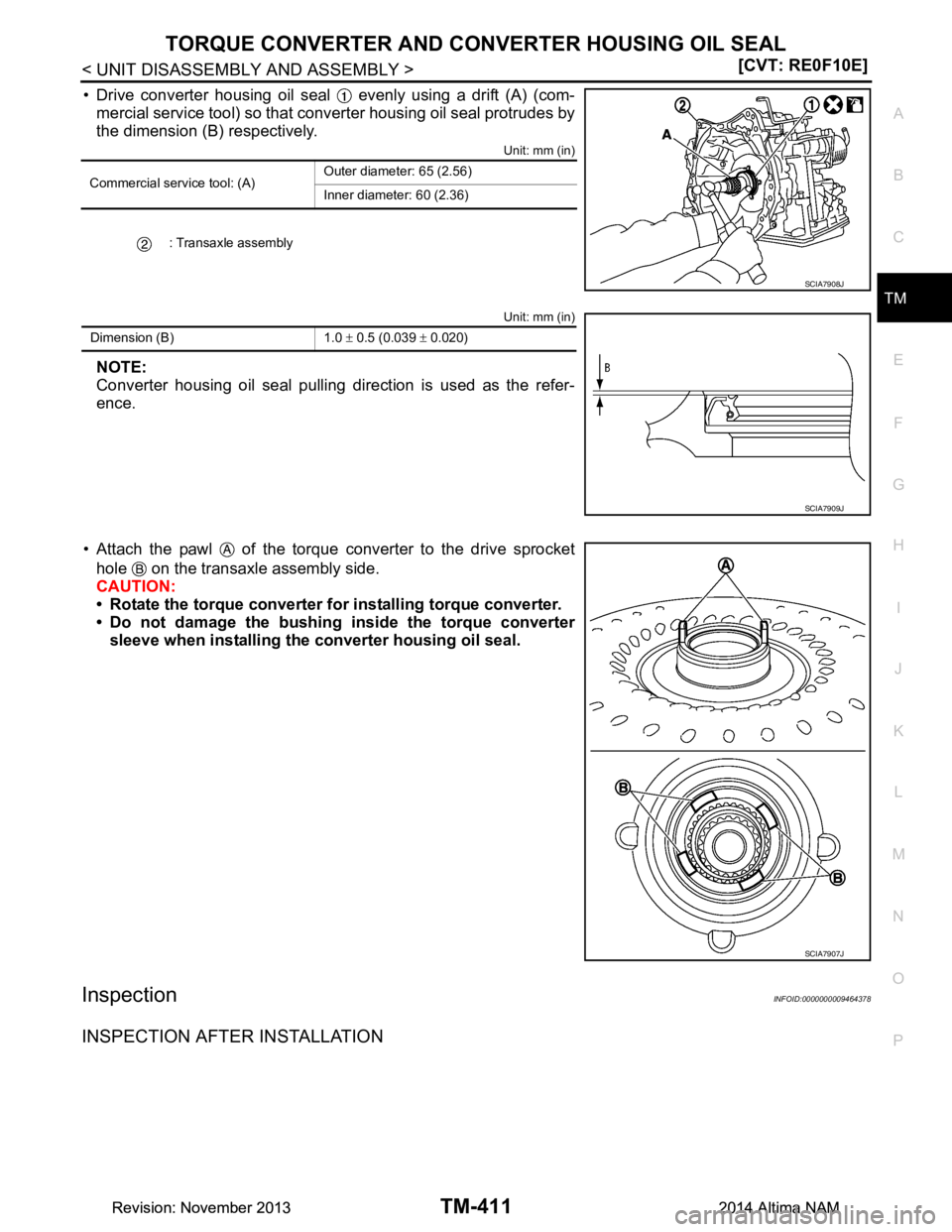

• Drive converter housing oil seal evenly using a drift (A) (com- mercial service tool) so that converter housing oil seal protrudes by
the dimension (B) respectively.
Unit: mm (in)
Unit: mm (in)
NOTE:
Converter housing oil seal pulling direction is used as the refer-
ence.
• Attach the pawl of the torque converter to the drive sprocket hole on the transaxle assembly side.
CAUTION:
• Rotate the torque converter fo r installing torque converter.
• Do not damage the bushing inside the torque converter
sleeve when installing the converter housing oil seal.
InspectionINFOID:0000000009464378
INSPECTION AFTER INSTALLATION
Commercial service tool: (A) Outer diameter: 65 (2.56)
Inner diameter: 60 (2.36)
: Transaxle assembly
SCIA7908J
Dimension (B) 1.0 ± 0.5 (0.039 ± 0.020)
SCIA7909J
SCIA7907J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-412
< UNIT DISASSEMBLY AND ASSEMBLY >[CVT: RE0F10E]
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL
• After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.
B: Scale
C : Straightedge
Dimension (A) : Refer to TM-413, "Torque Converter".
JPDIA0115ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SERVICE DATA AND SPECIFICATIONS (SDS)TM-413
< SERVICE DATA AND SPECIFICATIONS (SDS) [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000009464379
*1: Refer to MA-11, "FOR USA AND CANADA : Fluids and Lubricants".
*2: The CVT fluid capacity is the reference value.
Shift CharacteristicsINFOID:0000000009464380
Unit: rpm
CAUTION:
Lock-up is engaged at the vehicle speed of approximately 18 km/h (12 MPH) to 40 km/h (24 MPH).
Stall SpeedINFOID:0000000009464381
Torque ConverterINFOID:0000000009464382
Unit: mm (in)
Heater ThermostatINFOID:0000000009464383
Standard
Reference value
Applied model Engine VQ35DE
Axle 2WD
Transaxle model RE0F10E
Transaxle gear ratio D position 2.436 – 0.384
R position 0.745
Final drive 4.677
Recommended fluid Genuine NISSAN CVT Fluid NS-3
*1
Fluid capacity liter (US qt, Imp qt) Approx. 8.2 (8-5/8, 7-1/4)*2
CAUTION:
• Use only Genuine NISSAN CVT Fluid NS-3. Never mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-3 will deteriorate in driveability and CVT durability, and may dam-
age the CVT, which is not covered by the NISSAN new vehicle limited warranty.
Throttle position Shift pattern Engine speed
At 40 km/h (25 MPH) At 60 km/h (37 MPH)
2/8 “D” position 1,410 – 1,550 1,550 – 1,710
8/8 “D” position 3,610 – 3,990 4,560 – 5,040
Stall speed 2,400 – 2,700 rpm
Distance “A” between the converter housing and torque converter 14.0 (0.55)
Va l v e l i f tMore than 5.0 mm (0.197 in)
Valve opening temperature 71 °C (160 °F)
Minimum valve lift 5.0 mm/85 °C (0.197 in/203 °F)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

VTL-1
VENTILATION, HEATER & AIR CONDITIONER
C
D E
F
G H
J
K L
M
SECTION VTL
A
B
VTL
N
O P
CONTENTS
VENTILATION SYSTEM
PRECAUTION ................ ...............................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for Work ..................................................2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tool ........................................... ......3
Commercial Service Tool ..........................................3
PERIODIC MAINTENANCE ..........................4
IN-CABIN MICROFILTER .............................. .....4
Removal and Installation ...........................................4
SYSTEM DESCRIPTION . .............................5
IN-CABIN MICROFILTER .............................. .....5
Description .......................................................... ......5
REMOVAL AND INSTALLATION ................6
DUCTS AND GRILLES .................................. .....6
Exploded View .................................................... ......6
DEFROSTER NOZZLE .......................................... ......7
DEFROSTER NOZZLE : Removal and Installation
......
7
CENTER VENTILATOR DUCT .............................. ......7
CENTER VENTILATOR DUCT : Removal and In-
stallation .............................................................. ......
7
SIDE DEFROSTER DUCT ..................................... ......7
SIDE DEFROSTER DUCT : Removal and Instal-
lation .................................................................... ......
7
FRONT FLOOR DUCT .......................................... ......8
FRONT FLOOR DUCT : Removal and Installation
- Front Floor Duct ................................................ .....
8
FRONT FLOOR DUCT : Removal and Installation
- Front Floor Connecting Duct ............................. .....
8
FRONT FLOOR DUCT : Removal and Installation
- Front Floor Duct Nozzle .................................... .....
8
ADAPTOR DUCT ................................................... .....8
ADAPTOR DUCT : Removal and Installation -
Adaptor Duct ........................................................ .....
8
ADAPTOR DUCT : Removal and Installation -
Adaptor Extension Duct ....................................... .....
9
REAR CENTER VENTILATOR DUCT ................... .....9
REAR CENTER VENTILATOR DUCT : Removal
and Installation .................................................... .....
9
Exploded View .........................................................10
CENTER VENTILATOR GRILLE ........................... ....10
CENTER VENTILATOR GRILLE : Removal and
Installation ........................................................... ....
11
SIDE VENTILATOR GRILLE ................................. ....11
SIDE VENTILATOR GRILLE : Removal and In-
stallation .............................................................. ....
11
SIDE DEFROSTER GRILLE .................................. ....11
SIDE DEFROSTER GRILLE : Removal and In-
stallation .............................................................. ....
11
REAR CENTER VENTILATOR GRILLE ............... ....12
REAR CENTER VENTILATOR GRILLE : Remov-
al and Installation ................................................. ....
12
BLOWER UNIT .................................................13
BLOWER UNIT ...................................................... ....13
BLOWER UNIT : Exploded View .............................13
BLOWER UNIT : Removal and Installation .............13
BLOWER MOTOR ................................................. ....13
BLOWER MOTOR : Removal and Installation ........13
Revision: November 20132014 Altima NAM

VTL-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951791
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000009461571
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a s hop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: November 20132014 Altima NAM
