BLOWER UNITVTL-13
< REMOVAL AND INSTALLATION >
C
D E
F
G H
J
K L
M A
B
VTL
N
O P
BLOWER UNIT
BLOWER UNIT
BLOWER UNIT : Exploded ViewINFOID:0000000009461591
BLOWER UNIT : Removal and InstallationINFOID:0000000009461592
REMOVAL
1. Remove the heating and cooling unit assembly. Refer to HA-41, "HEATING AND COOLING UNIT
ASSEMBLY : Removal and Installation".
2. Disconnect the harness connector (B) from the blower motor.
3. Remove the screws from the blower unit, then remove the blower unit from the heating and cooling unit assembly.
4. Remove the three blower motor screws (A), then remove the blower motor from the blower unit (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
BLOWER MOTOR
BLOWER MOTOR : Removal and InstallationINFOID:0000000009461593
REMOVAL
1. Remove the glove box assembly. Refer to IP-22, "Removal and Installation".
2. Disconnect the harness connector from the blower motor.
1. Blower unit 2. Heating and cooling unit Front
ALIIA0611ZZ
AWIIA1596ZZ
Revision: November 20132014 Altima NAM

VTL-14
< REMOVAL AND INSTALLATION >
BLOWER UNIT
3. Remove the blower motor screws (A), and the blower motorfrom the blower unit.
NOTE:
Do not disassemble the blower motor to replace individual com-
ponents, replace as an assembly.
INSTALLATION
Installation is in the reverse order of removal.
ALIIA0617ZZ
Revision: November 20132014 Altima NAM

WCS
WCS-1
DRIVER INFORMATION & MULTIMEDIA
C
D E
F
G H
I
J
K L
M B
SECTION WCS
A
O P
CONTENTS
WARNING CHIME SYSTEM
PRECAUTION ................ ...............................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
SYSTEM DESCRIPTION ..............................4
COMPONENT PARTS ................................... .....4
Component Parts Location .................................. ......4
Component Description .............................................4
SYSTEM ..............................................................6
WARNING CHIME SYSTEM .......................................6
WARNING CHIME SYSTEM : System Diagram . ......6
WARNING CHIME SYSTEM : System Description
......
6
LIGHT REMINDER WARNING CHIME ................. ......6
LIGHT REMINDER WARNING CHIME : System
Diagram ............................................................... ......
6
LIGHT REMINDER WARNING CHIME : System
Description .......................................................... ......
6
SEAT BELT WARNING CHIME ............................ ......7
SEAT BELT WARNING CHIME : System Diagram
......
7
SEAT BELT WARNING CHIME : System Descrip-
tion ...................................................................... ......
7
PARKING BRAKE RELEASE WARNING CHIME ......7
PARKING BRAKE RELEASE WARNING CHIME
: System Diagram ................................................ ......
7
PARKING BRAKE RELEASE WARNING CHIME
: System Description ........................................... ......
7
DIAGNOSIS SYSTEM (METER) .........................9
Description .......................................................... ......9
CONSULT Function (METER/M&A) .........................9
DIAGNOSIS SYSTEM (BCM) ............................13
COMMON ITEM ..................................................... ....13
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) ................................................. ....
13
BUZZER ................................................................. ....14
BUZZER : CONSULT Function (BCM - BUZZER) ....14
ECU DIAGNOSIS INFORMATION ..............15
BCM, COMBINATION METER .........................15
List of ECU Reference ......................................... ....15
WIRING DIAGRAM ......................................16
WARNING CHIME SYSTEM .............................16
Wiring Diagram .................................................... ....16
BASIC INSPECTION ...................................23
DIAGNOSIS AND REPAIR WORKFLOW ........23
Work Flow ............................................................ ....23
DTC/CIRCUIT DIAGNOSIS .........................25
POWER SUPPLY AND GROUND CIRCUIT ....25
COMBINATION METER ........................................ ....25
COMBINATION METER : Diagnosis Procedure .....25
BCM (BODY CONTROL MODULE) ...................... ....25
BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ............................................................ ....
26
METER BUZZER CIRCUIT ...............................27
Description ...............................................................27
Component Function Check ....................................27
Diagnosis Procedure ..............................................27
SEAT BELT BUCKLE SWITCH SIGNAL CIR-
CUIT ..................................................................
28
Description ........................................................... ....28
Component Function Check ..................................28
Diagnosis Procedure ..............................................28
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WCS-2
Component Inspection ............................................29
SYMPTOM DIAGNOSIS .............................30
WARNING CHIME SYST EM SYMPTOMS ........30
Symptom Table ................................................... ...30
THE PARKING BRAKE RELEASE WARNING
CONTINUES SOUNDING, OR DOES NOT
SOUND ........................ ......................................
31
Description ........................................................... ...31
Diagnosis Procedure ............................................ ...31
THE LIGHT REMINDER WARNING DOES
NOT SOUND ................................................... ...
32
Description ........................................................... ...32
Diagnosis Procedure ...............................................32
THE SEAT BELT WARNING CONTINUES
SOUNDING, OR DOES NOT SOUND ............ ...
33
Description ........................................................... ...33
Diagnosis Procedure ...............................................33
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WCS
PRECAUTIONSWCS-3
< PRECAUTION >
C
D E
F
G H
I
J
K L
M B
A
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009955588
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WCS-4
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000009462877
Component DescriptionINFOID:0000000009462878
1. Combination switch (lighting and turn signal switch) 2. Combination meter 3. Seat belt buckle switch LH
4. Front door switch LH 5. BCM (view with combination meter removed)6. Parking brake switch
(view with lower in strument panel LH
removed)
7. ABS actuator and electric unit (control unit)
AWNIA2649ZZ
Unit Description
Combination switch (lighting
and turn signal switch) Transmits the lighting switch signal to the BCM.
Combination meter • Receives a buzzer output signal from the BCM with CAN communication and sounds the buzz-
er.
• Receives the seat belt buckle switch signal from the seat belt buckle switch LH (driver seat) and transmits it to the BCM via CAN communication.
• Judges whether the parking brake is released using the vehicle speed signal and the parking brake switch signal, and sounds the buzzer if necessary.
BCM Based on the signals received from various units and switches, transmits the buzzer output signal
to the combination meter via CAN communication.
Front door switch LH Transmits the front door switch LH signal to the BCM.
Seat belt buckle switch LH
(driver seat) Transmits the seat belt buckle switch LH (driver seat) signal to the combination meter.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WCS
COMPONENT PARTSWCS-5
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K L
M B
A
O P
Parking brake switch Transmits the parking brake switch signal to the combination meter.
ABS actuator and electric unit
(control unit) Transmits the vehicle speed signal to the combination meter via CAN communication.
Unit Description
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WCS-6
< SYSTEM DESCRIPTION >
SYSTEM
SYSTEM
WARNING CHIME SYSTEM
WARNING CHIME SYSTEM : System DiagramINFOID:0000000009462879
WARNING CHIME SYSTEM : System DescriptionINFOID:0000000009462880
DESCRIPTION
• The buzzer for the warning chime system is installed in the combination meter.
• The buzzer sounds when the combination meter receives a buzzer output signal from the BCM.
• The BCM receives signals from various units and transmi ts a buzzer output signal to the combination meter
with CAN communication line if it judges that the warning buzzer should be activated.
LIGHT REMINDER WARNING CHIME

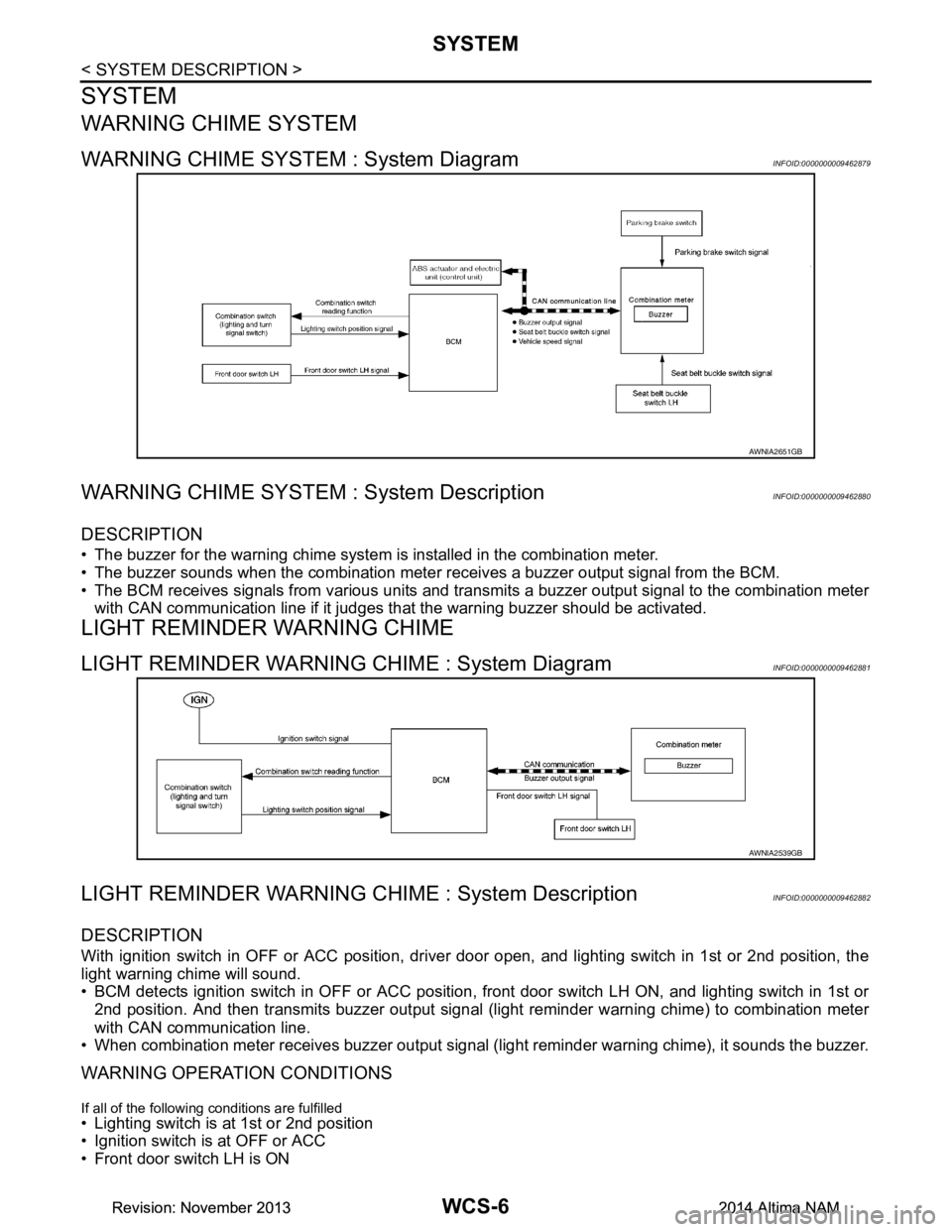

LIGHT REMINDER WARNING CHIME : System DiagramINFOID:0000000009462881
LIGHT REMINDER WARNING CHIME : System DescriptionINFOID:0000000009462882
DESCRIPTION
With ignition switch in OFF or ACC position, driver door open, and lighting switch in 1st or 2nd position, the
light warning chime will sound.
• BCM detects ignition switch in OFF or ACC position, front door switch LH ON, and lighting switch in 1st or
2nd position. And then transmits buzzer output signal (li ght reminder warning chime) to combination meter
with CAN communication line.
• When combination meter receives buzzer output signal ( light reminder warning chime), it sounds the buzzer.
WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled• Lighting switch is at 1st or 2nd position
• Ignition switch is at OFF or ACC
• Front door switch LH is ON
AWNIA2651GB
AWNIA2539GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WCS
SYSTEMWCS-7
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K L
M B
A
O P
WARNING CANCEL CONDITIONS
Warning is canceled if any of the following conditions is fulfilled.• Lighting switch OFF
• Ignition switch ON
• Front door switch LH is OFF
SEAT BELT WARNING CHIME
SEAT BELT WARNING CHIME : System DiagramINFOID:0000000009462883
SEAT BELT WARNING CHIME : System DescriptionINFOID:0000000009462884
DESCRIPTION
With ignition switch turned ON and driver seat belt unfastened, seat belt warning chime will sound for approxi-
mately 6 seconds.
• BCM receives seat belt buckle switch LH (driver seat) signal from combination meter via CAN communica- tion.
• BCM detects ignition switch turned ON and seat belt buckle switch LH (driver seat) is ON, and then transmits
buzzer output signal (seat belt warning chime) to combination meter via CAN communication.
• When combination meter receives buzzer output signal (seat belt warning chime), it sounds the buzzer.
WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled• Ignition switch OFF→ON
• Seat buckle switch LH (driver seat) is ON (driver seat belt not fastened)
WARNING CANCEL CONDITIONS
Cancels the warning if any of the following conditions is fulfilled.• Ignition switch OFF
• Seat buckle switch LH (driver seat) is OFF (driver seat belt fastened)
• 90 seconds have passed since the start of the warning
PARKING BRAKE RELEASE WARNING CHIME
PARKING BRAKE RELEASE WARNING CHIME : System DiagramINFOID:0000000009462885
PARKING BRAKE RELEASE WARNING CHIME : System DescriptionINFOID:0000000009462886
DESCRIPTION
AWNIA2652GB
AWNIA2578GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WCS-8
< SYSTEM DESCRIPTION >
SYSTEM
• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control
unit) via CAN communication line.
• The combination meter judges whether the parking brak e is released using the parking brake switch signal
from the parking brake switch, and s ounds the warning buzzer if necessary.
WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled• Vehicle speed is approximately 4.3 MPH (7 km/h) or higher
• Parking brake switch ON
WARNING CANCEL CONDITIONS
Warning is canceled if any of the following conditions is fulfilled.
• Vehicle speed is approximately 1.9 MPH (3 km/h) or less
• Parking brake switch OFF
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
