PRIMARY SPEED SENSOR
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to
TM-286, "Adjustment".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

OUTPUT SPEED SENSORTM-397
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464353
Removal and InstallationINFOID:0000000009464354
REMOVAL
1. Disconnect the battery negative terminal. Refer to PG-73, "Removal and Installation (Battery)".
2. Disconnect the harness connector fr om output speed sensor (1).
3. Remove the output speed sensor bolt, then the output speed sensor (1).
4. Remove the O-ring (2) from the output speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464355
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-286, "Adjustment".
Transaxle assembly Output speed sensor O-ring
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA4209GB
ALDIA0363ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-398
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
DIFFERENTIAL SIDE OIL SEAL
DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000009464356
Removal and InstallationINFOID:0000000009464357
REMOVAL
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove front drive shaft. Refer to FAX-10, "Removal and Installation (LH)"
(LH) or FAX-12, "Removal and
Installation (RH)" (RH).
2. Remove differential oil side seal (1) using suitable tool (A). CAUTION:
Be careful not to scratch transaxle case and converter
housing.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse differe ntial side oil seal.
• Apply Genuine NISSAN CVT Fluid NS -3 to differential side oil seals.
• When inserting the drive shaf t, be sure to use Tool.
Transaxle assembly Differential side oil seal (left side) Differential side oil seal (right side)
: Always replace after every disassembly.
: Apply CVT Fluid
JSDIA3729GB
JPDIA0118ZZ
Tool number : KV38107900
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIFFERENTIAL SIDE OIL SEALTM-399
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Install each differential side oil seal evenly using Tool so that differ-
ential side oil seal protrudes by the dimension (C) and (D) respect-
fully.
NOTE:
The reference is the installation direction of the differential side oil seal.
Drift to be used:
Inspection and AdjustmentINFOID:0000000009464358
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-286, "Adjustment".
(A) : Differential side oil seal (LH)
(B) : Differential side oil seal (RH)
JSDIA1836ZZ
Dimension (C) :Height difference from case end surface is within 0 ± 0.5 mm (0.0 ± 0.020
in).
Dimension (D) :Height difference from case end surface is within 0 ± 0.5 mm (0.0 ± 0.020
in).
Location Commercial Service Tools
Transaxle case side Commercial service tool with outer dia. 56 mm (2.20 in) and in-
ner dia. 50 mm (1.97 in)
Converter housing side
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-400
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CVT OIL WARMER SYSTEM
CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000009464359
WATER HOSE : Removal and InstallationINFOID:0000000009464360
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick clot h around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
CAUTION:
Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove front under cover. Refer to EXT-28, "Removal and Installation"
.
Hose clamp CVT water hose A CVT oil warmer
CVT water hose B Heater thermostat CVT water hose C
Transaxle assembly
Water outlet
: Always replace after every disassembly.
: N·m (kg-m, ft-lb)
JSDIA3630GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

CVT OIL WARMER SYSTEMTM-401
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
2. Remove engine room cover. Refer to EM-28, "Removal and Installation".
3. Remove front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
4. Release clip (A) and release hose clamps and remove CVT water hose A from water outlet.
CAUTION:
Do not reuse hose clamps.
5. Remove CVT heater thermostat bolt, release hose clamps then remove CVT heater thermostat and CVT
water hose C from water outlet.
CAUTION:
Do not reuse hose clamps.
6. Remove CVT water hose inlet and CVT water hose outlet from CVT oil warmer.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Do not reuse hose clamps.
• Insert CVT water hose according to dimension (A) described below.
• Install hose clamps (1) at the both ends of CVT water hose (2) with dimension (A) from the hose end.
• Hose clamp should not interfere with the bulge.
: Front
ALDIA0365ZZ
CVT water hose (1) Insert side tube (2) Dimension (A)
CVT water hose A Water outlet
End reaches the spool portion (B)
CVT oil warmer
CVT water hose B CVT oil warmer
Heater thermostat
CVT water hose C Heater thermostat
Water outlet
JSDIA1291ZZ
Dimension (A) : 5 – 7 mm (0.20 – 0.28 in)
SCIA8123E
CVT water hose Hose end Paint mark
Position of hose clamp*
CVT water hose AWater outlet side Facing to the front of the vehicle A
CVT oil warmer side Facing to the front of the vehicle C
CVT water hose B CVT oil warmer side Facing to the front of the vehicle B
Heater thermostat side N/A A
CVT water hose C Heater thermostat side N/A A
Water outlet side Facing upward C
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-402
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CVT OIL WARMER SYSTEM

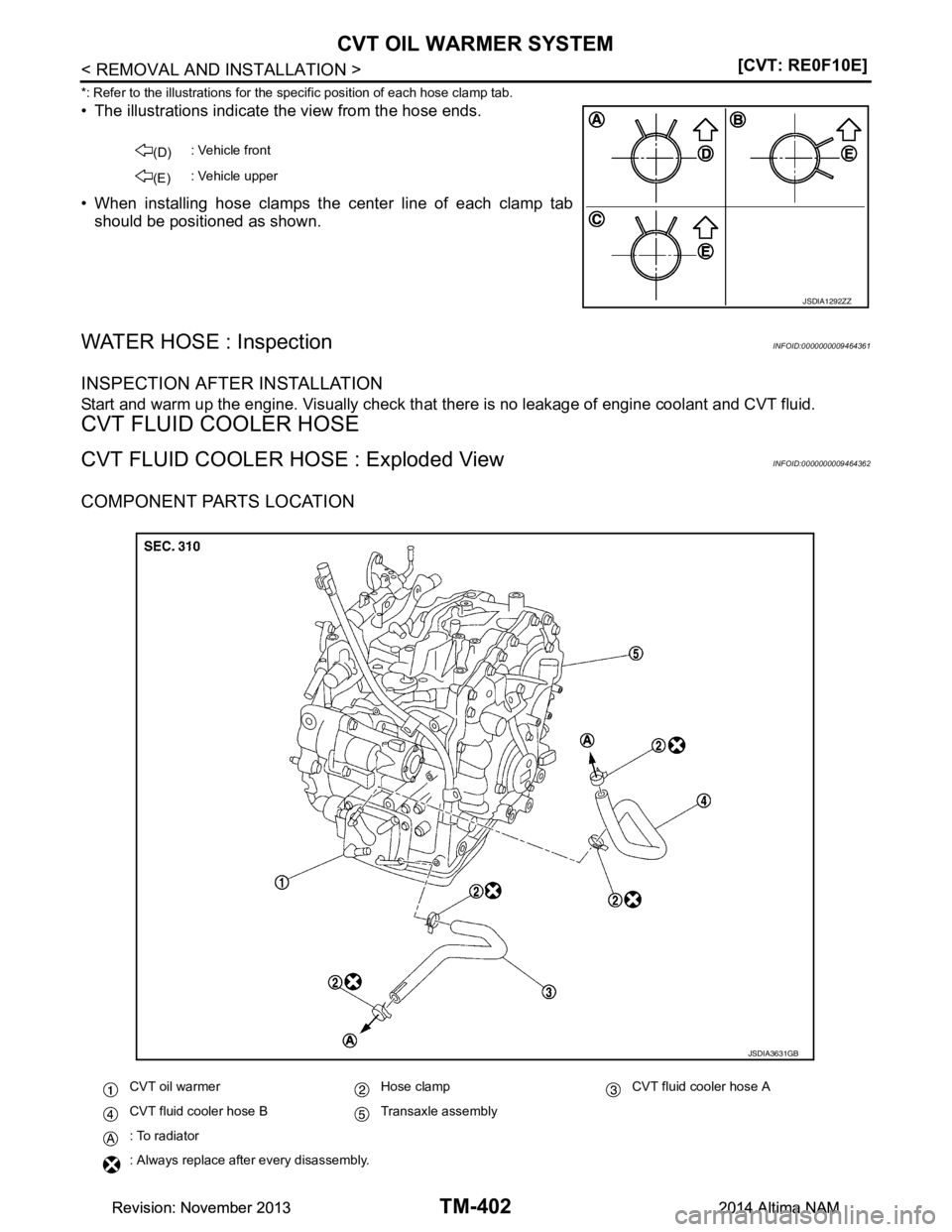

*: Refer to the illustrations for the specific position of each hose clamp tab.
• The illustrations indicate the view from the hose ends.
• When installing hose clamps the center line of each clamp tab
should be positioned as shown.
WATER HOSE : InspectionINFOID:0000000009464361
INSPECTION AFTER INSTALLATION
Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.
CVT FLUID COOLER HOSE

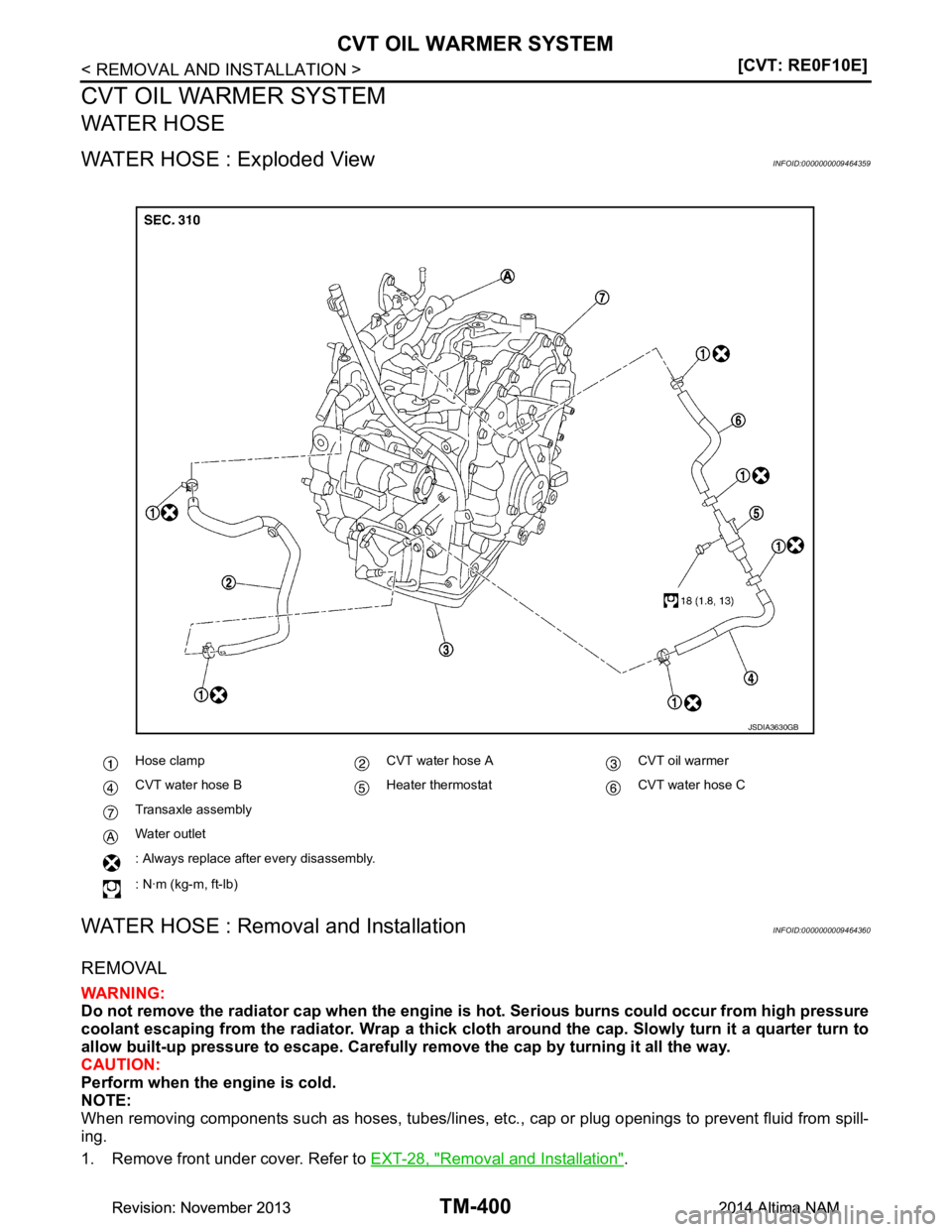

CVT FLUID COOLER HOSE : Exploded ViewINFOID:0000000009464362
COMPONENT PARTS LOCATION
(D): Vehicle front
(E) : Vehicle upper
JSDIA1292ZZ
CVT oil warmer Hose clamp CVT fluid cooler hose A
CVT fluid cooler hose B Transaxle assembly
: To radiator
: Always replace after every disassembly.
JSDIA3631GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

CVT OIL WARMER SYSTEMTM-403
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT FLUID COOLER HOSE : Removal and InstallationINFOID:0000000009464363
REMOVAL
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove front under cover. Refer to EXT-28, "Removal and Installation"
.
2. Remove engine room cover. Refer to EM-28, "Removal and Installation"
.
3. Remove the front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
4. Release hose clamp, then remove CVT fluid cool er hose A and B from CVT oil warmer and radiator.
CAUTION:
Do not reuse hose clamps.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse hose clamps.

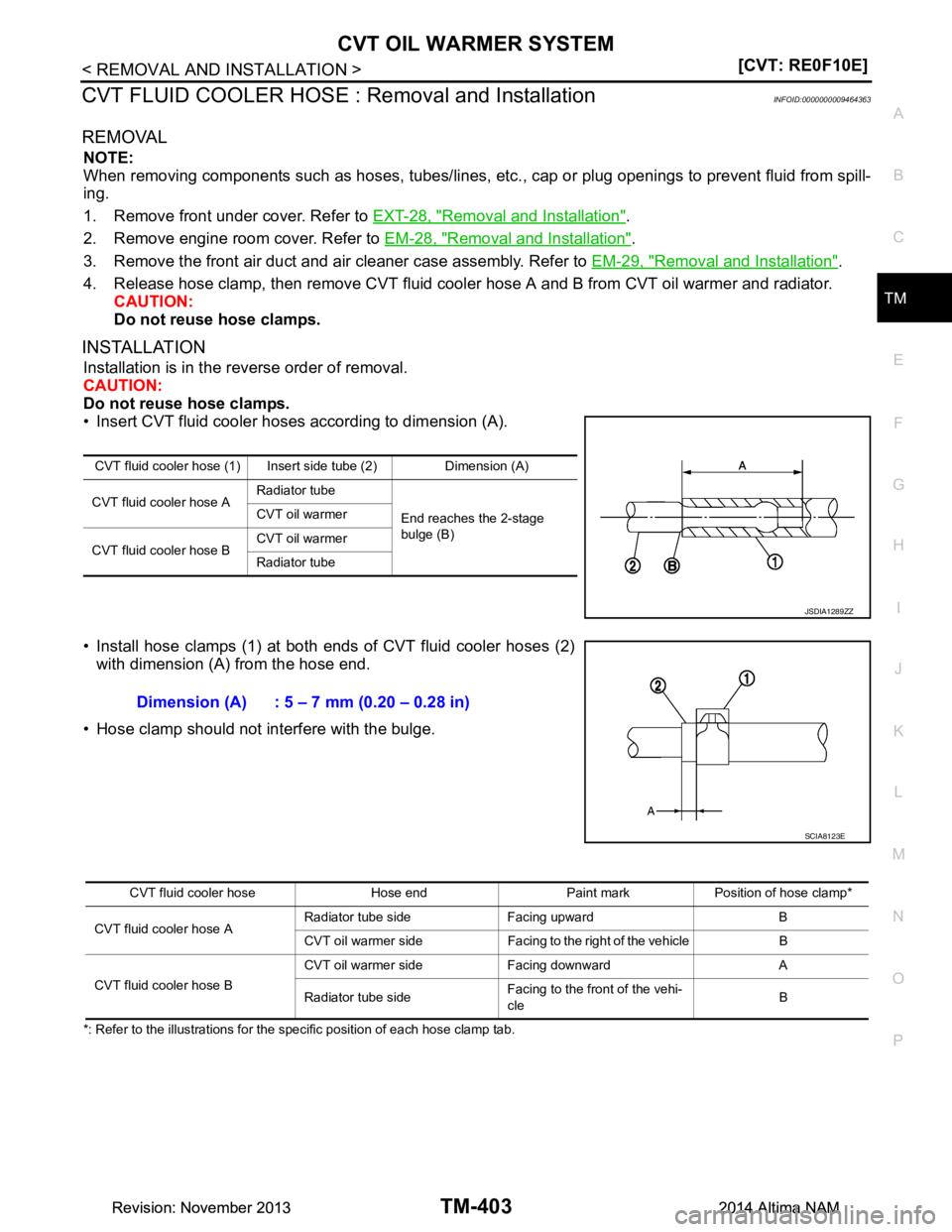

• Insert CVT fluid cooler hoses according to dimension (A).
• Install hose clamps (1) at both ends of CVT fluid cooler hoses (2) with dimension (A) from the hose end.
• Hose clamp should not interfere with the bulge.
*: Refer to the illustrations for the specific position of each hose clamp tab. CVT fluid cooler hose (1) Insert side tube (2) Dimension (A)
CVT fluid cooler hose A Radiator tube
End reaches the 2-stage
bulge (B)
CVT oil warmer
CVT fluid cooler hose B CVT oil warmer
Radiator tube
JSDIA1289ZZ
Dimension (A) : 5 – 7 mm (0.20 – 0.28 in)
SCIA8123E
CVT fluid cooler hose Hose end Paint mark Position of hose clamp*
CVT fluid cooler hose A Radiator tube side Facing upward B
CVT oil warmer side Facing to the right of the vehicle B
CVT fluid cooler hose B CVT oil warmer side Facing downward A
Radiator tube side Facing to the front of the vehi-
cle B
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-404
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CVT OIL WARMER SYSTEM
• The illustrations indicate the view from the hose ends.
• When installing hose clamps, the center line of each clamp tab should be positioned as shown.
CVT FLUID COOLER HOSE : InspectionINFOID:0000000009464364
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage and check CVT fluid level. Refer to TM-377, "Inspection".
CVT OIL WARMER

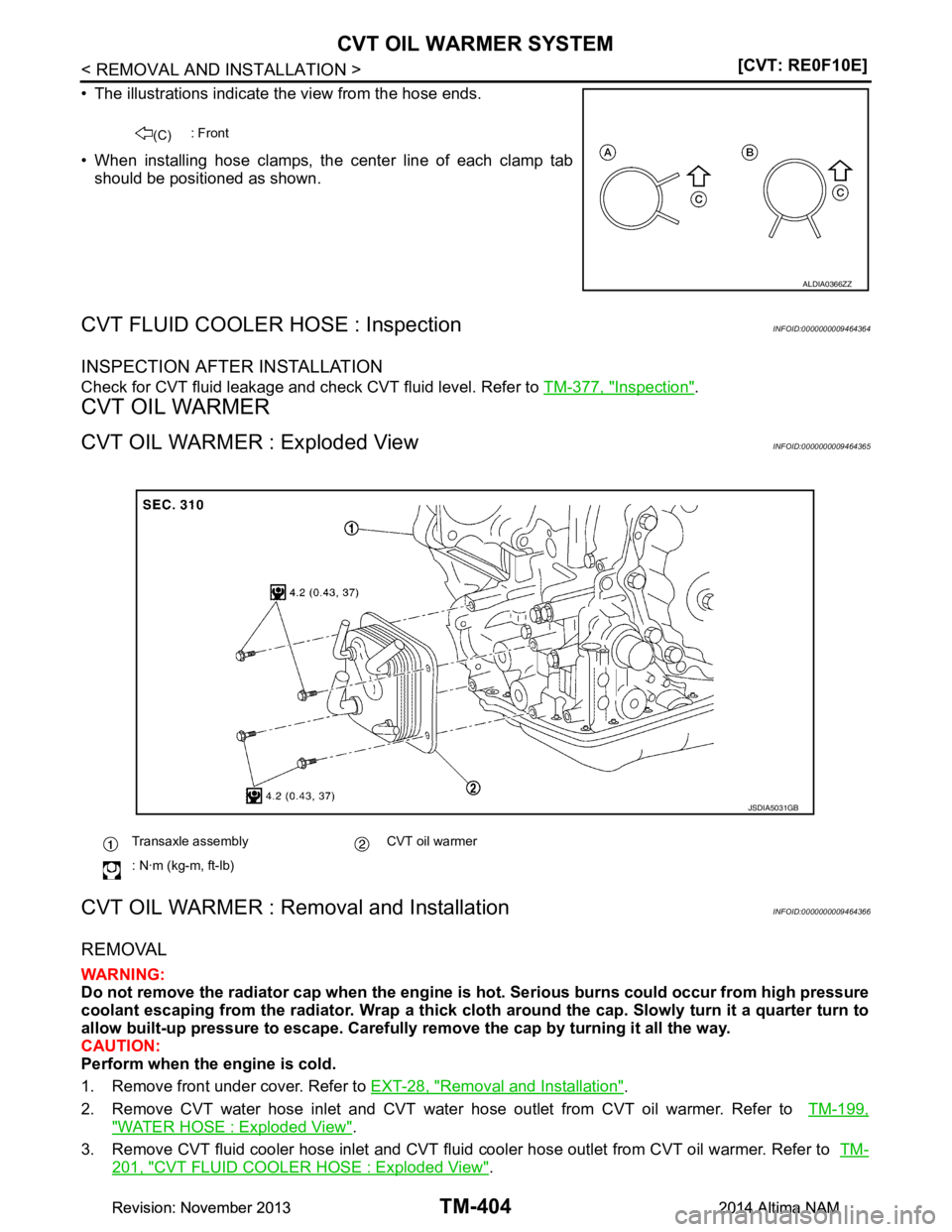

CVT OIL WARMER : Exploded ViewINFOID:0000000009464365
CVT OIL WARMER : Removal and InstallationINFOID:0000000009464366
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick clot h around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
CAUTION:
Perform when the engine is cold.
1. Remove front under cover. Refer to EXT-28, "Removal and Installation"
.
2. Remove CVT water hose inlet and CVT water hose outlet from CVT oil warmer. Refer to TM-199,
"WATER HOSE : Exploded View".
3. Remove CVT fluid cooler hose inlet and CVT fluid cooler hose outlet from CVT oil warmer. Refer to TM-
201, "CVT FLUID COOLER HOSE : Exploded View".
(C): Front
ALDIA0366ZZ
Transaxle assembly CVT oil warmer
: N·m (kg-m, ft-lb)
JSDIA5031GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

CVT OIL WARMER SYSTEMTM-405
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
4. Remove CVT oil warmer bolts, then remove CVT oil warmer from vehicle.
INSTALLATION
Installation is in the reverse order of removal.
CVT OIL WARMER : InspectionINFOID:0000000009464367
INSPECTION AFTER INSTALLATION
• Check for CVT fluid leakage and check CVT fluid level. Refer to TM-377, "Inspection".
• Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
