NISSAN TEANA 2014 Service Manual

PREPARATIONVTL-3
< PREPARATION >
C
D E
F
G H
J
K L
M A
B
VTL
N
O P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009461572
The actual shapes of the tools may differ from those illustrated here.
Commercial Service ToolINFOID:0000000009461573
Tool number
(TechMate No.)
Tool name Description
—
(J-46534)
Trim Tool Set Removing trim components
AWJIA0483ZZ
Tool name
Description
Power tool Loosening nuts, screws and bolts
PIIB1407E
Revision: November 20132014 Altima NAM

VTL-4
< PERIODIC MAINTENANCE >
IN-CABIN MICROFILTER
PERIODIC MAINTENANCE
IN-CABIN MICROFILTER
Removal and InstallationINFOID:0000000009461574
REMOVAL
1. Disengage the filter cover tab (1) to remove the filter cover.CAUTION:
Use care when lifting up on th e tab to avoid damaging it.
2. Remove the in-cabin microfilter from the blower unit.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• When installing, handle the filter with extreme care to avoid deforming or damaging the filter.
• If the filter is deformed/damaged when removing , replace it with a new one. A deformed or damaged
filter may affect the du st collecting performance.
ALIIA0636ZZ
Revision: November 20132014 Altima NAM

IN-CABIN MICROFILTERVTL-5
< SYSTEM DESCRIPTION >
C
D E
F
G H
J
K L
M A
B
VTL
N
O P
SYSTEM DESCRIPTION
IN-CABIN MICROFILTER
DescriptionINFOID:0000000009461575
FUNCTION
The fresh air (A) and the recirculated air (B) drawn inside the pas-
senger compartment by the blower fan (1) is kept clean (C) on either
mode by the in-cabin microfilter (2 ), which is located before the
evaporator (3), in the heating and cooling unit assembly.
WJIA2253E
Revision: November 20132014 Altima NAM

VTL-6
< REMOVAL AND INSTALLATION >
DUCTS AND GRILLES
REMOVAL AND INSTALLATION
DUCTS AND GRILLES

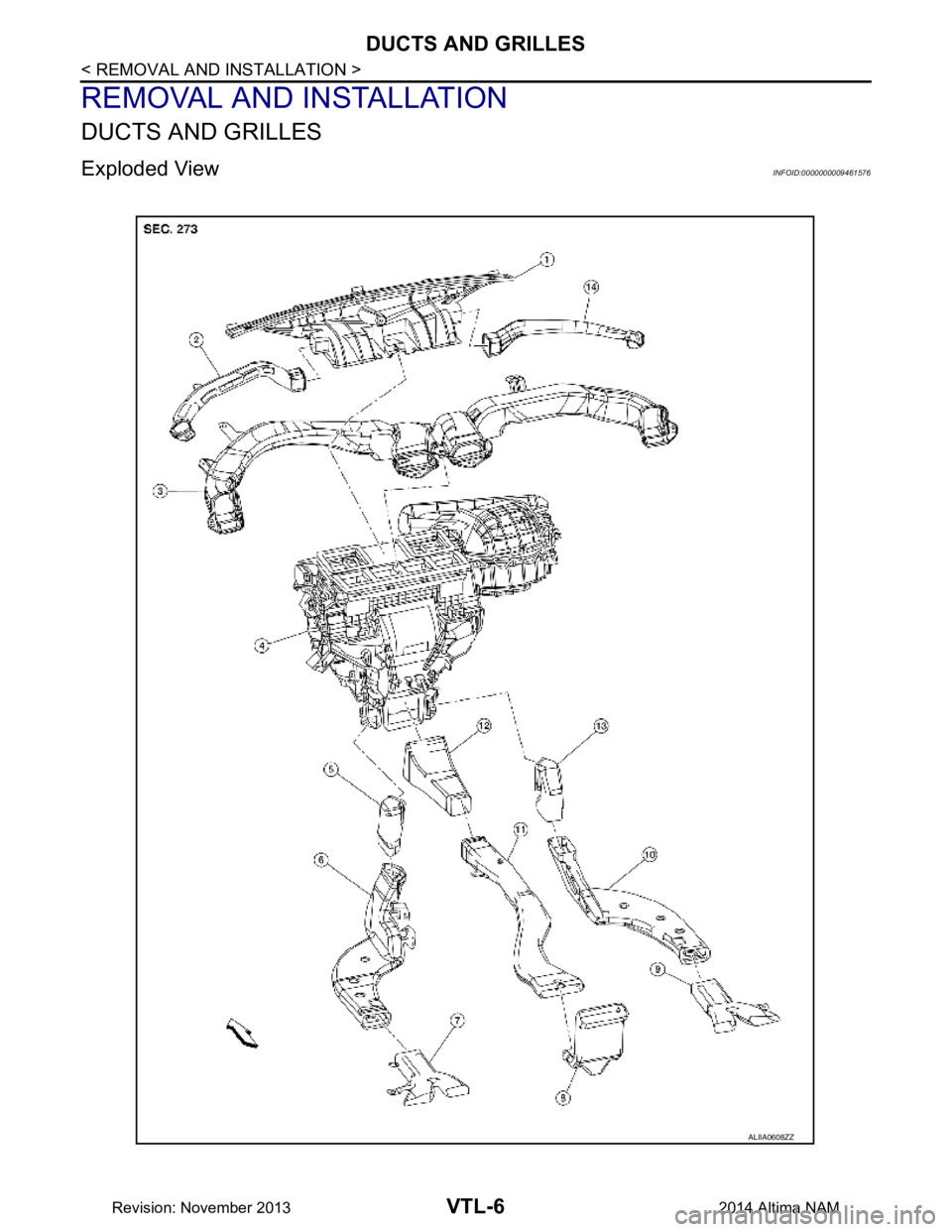

Exploded ViewINFOID:0000000009461576
ALIIA0608ZZ
Revision: November 20132014 Altima NAM

DUCTS AND GRILLESVTL-7
< REMOVAL AND INSTALLATION >
C
D E
F
G H
J
K L
M A
B
VTL
N
O P
DEFROSTER NOZZLE

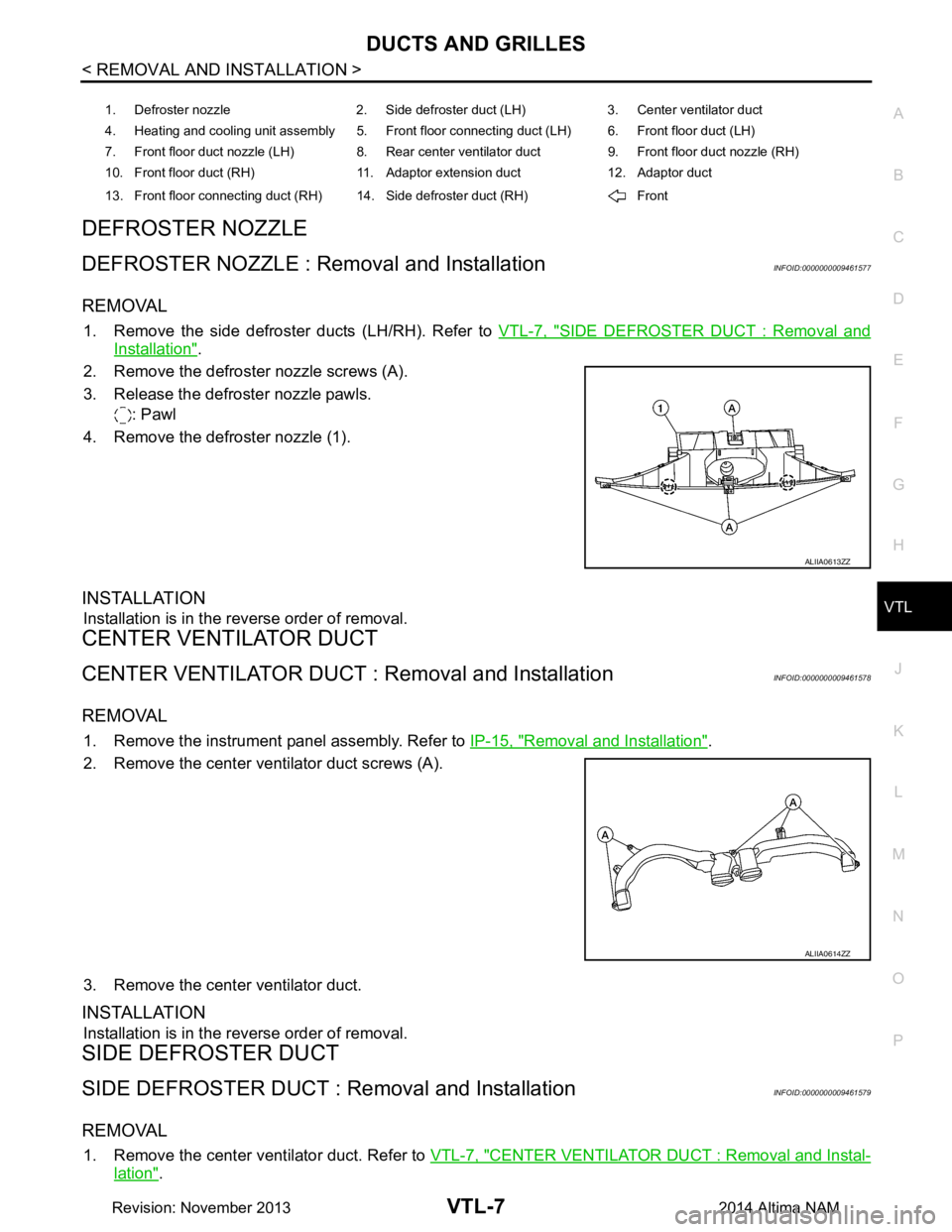

DEFROSTER NOZZLE : Removal and InstallationINFOID:0000000009461577
REMOVAL
1. Remove the side defroster ducts (LH/RH). Refer to VTL-7, "SIDE DEFROSTER DUCT : Removal and
Installation".
2. Remove the defroster nozzle screws (A).
3. Release the defroster nozzle pawls. : Pawl
4. Remove the defroster nozzle (1).
INSTALLATION
Installation is in the reverse order of removal.
CENTER VENTILATOR DUCT
CENTER VENTILATOR DUCT : Removal and InstallationINFOID:0000000009461578
REMOVAL
1. Remove the instrument panel assembly. Refer to IP-15, "Removal and Installation".
2. Remove the center ventilator duct screws (A).
3. Remove the center ventilator duct.
INSTALLATION
Installation is in the reverse order of removal.
SIDE DEFROSTER DUCT
SIDE DEFROSTER DUCT : Re moval and InstallationINFOID:0000000009461579
REMOVAL
1. Remove the center ventilator duct. Refer to VTL-7, "CENTER VENTILATOR DUCT : Removal and Instal-
lation".
1. Defroster nozzle 2. Side defroster duct (LH) 3. Center ventilator duct
4. Heating and cooling unit assembly 5. Front floor connecting duct (LH) 6. Front floor duct (LH)
7. Front floor duct nozzle (LH) 8. Rear center ventilator duct 9. Front floor duct nozzle (RH)
10. Front floor duct (RH) 11. Adaptor extension duct 12. Adaptor duct
13. Front floor connecting duct (RH) 14. Side defroster duct (RH) Front
ALIIA0613ZZ
ALIIA0614ZZ
Revision: November 20132014 Altima NAM

VTL-8
< REMOVAL AND INSTALLATION >
DUCTS AND GRILLES

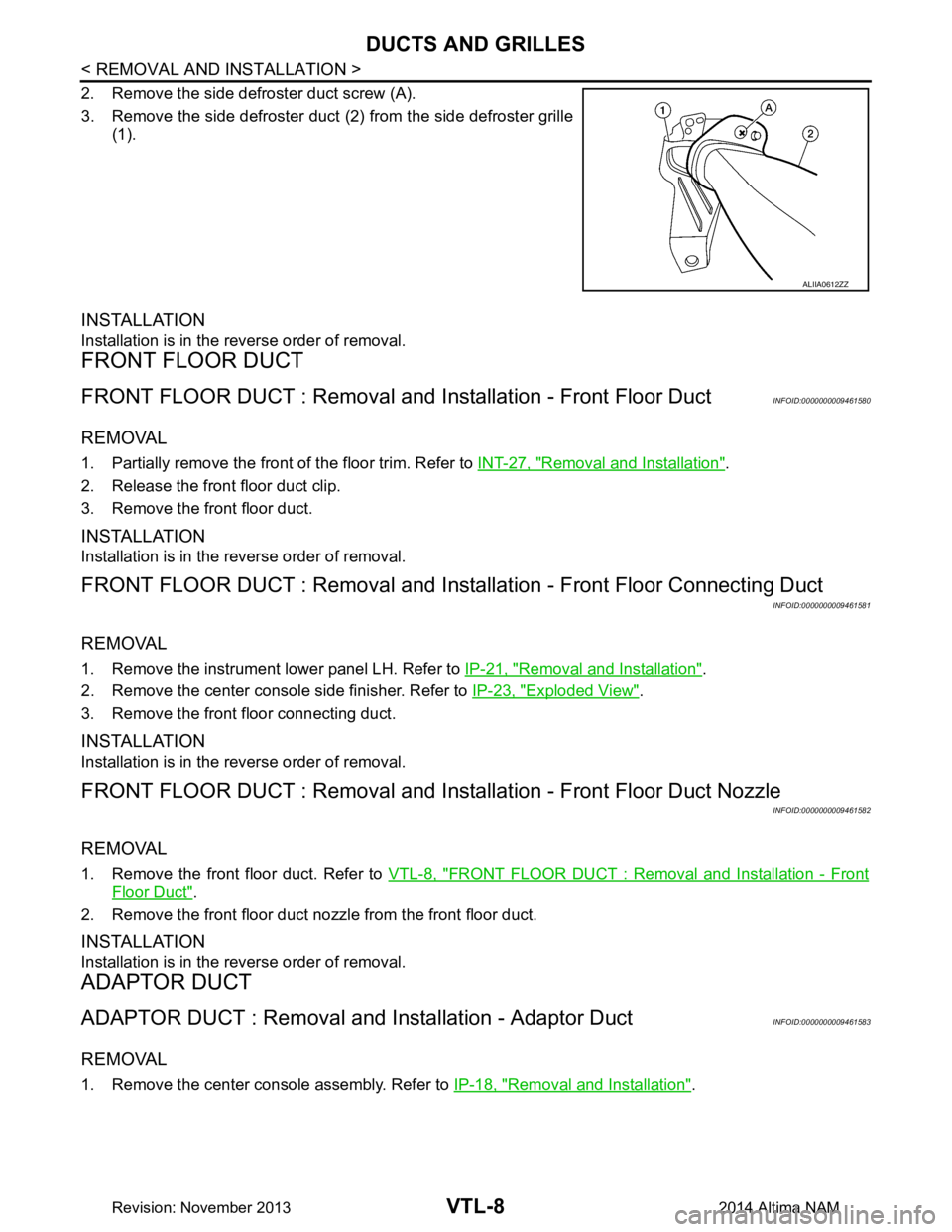

2. Remove the side defroster duct screw (A).
3. Remove the side defroster duct (2) from the side defroster grille
(1).
INSTALLATION
Installation is in the reverse order of removal.
FRONT FLOOR DUCT
FRONT FLOOR DUCT : Removal and In stallation - Front Floor DuctINFOID:0000000009461580
REMOVAL
1. Partially remove the front of the floor trim. Refer to INT-27, "Removal and Installation".
2. Release the front floor duct clip.
3. Remove the front floor duct.
INSTALLATION
Installation is in the reverse order of removal.
FRONT FLOOR DUCT : Removal and Installa tion - Front Floor Connecting Duct
INFOID:0000000009461581
REMOVAL
1. Remove the instrument lower panel LH. Refer to IP-21, "Removal and Installation".
2. Remove the center console side finisher. Refer to IP-23, "Exploded View"
.
3. Remove the front floor connecting duct.
INSTALLATION
Installation is in the reverse order of removal.
FRONT FLOOR DUCT : Removal and Insta llation - Front Floor Duct Nozzle
INFOID:0000000009461582
REMOVAL
1. Remove the front floor duct. Refer to VTL-8, "FRONT FLOOR DUCT : Removal and Installation - Front
Floor Duct".
2. Remove the front floor duct nozzle from the front floor duct.
INSTALLATION
Installation is in the reverse order of removal.
ADAPTOR DUCT
ADAPTOR DUCT : Removal and Installation - Adaptor DuctINFOID:0000000009461583
REMOVAL
1. Remove the center console assembly. Refer to IP-18, "Removal and Installation".
ALIIA0612ZZ
Revision: November 20132014 Altima NAM

DUCTS AND GRILLESVTL-9
< REMOVAL AND INSTALLATION >
C
D E
F
G H
J
K L
M A
B
VTL
N
O P

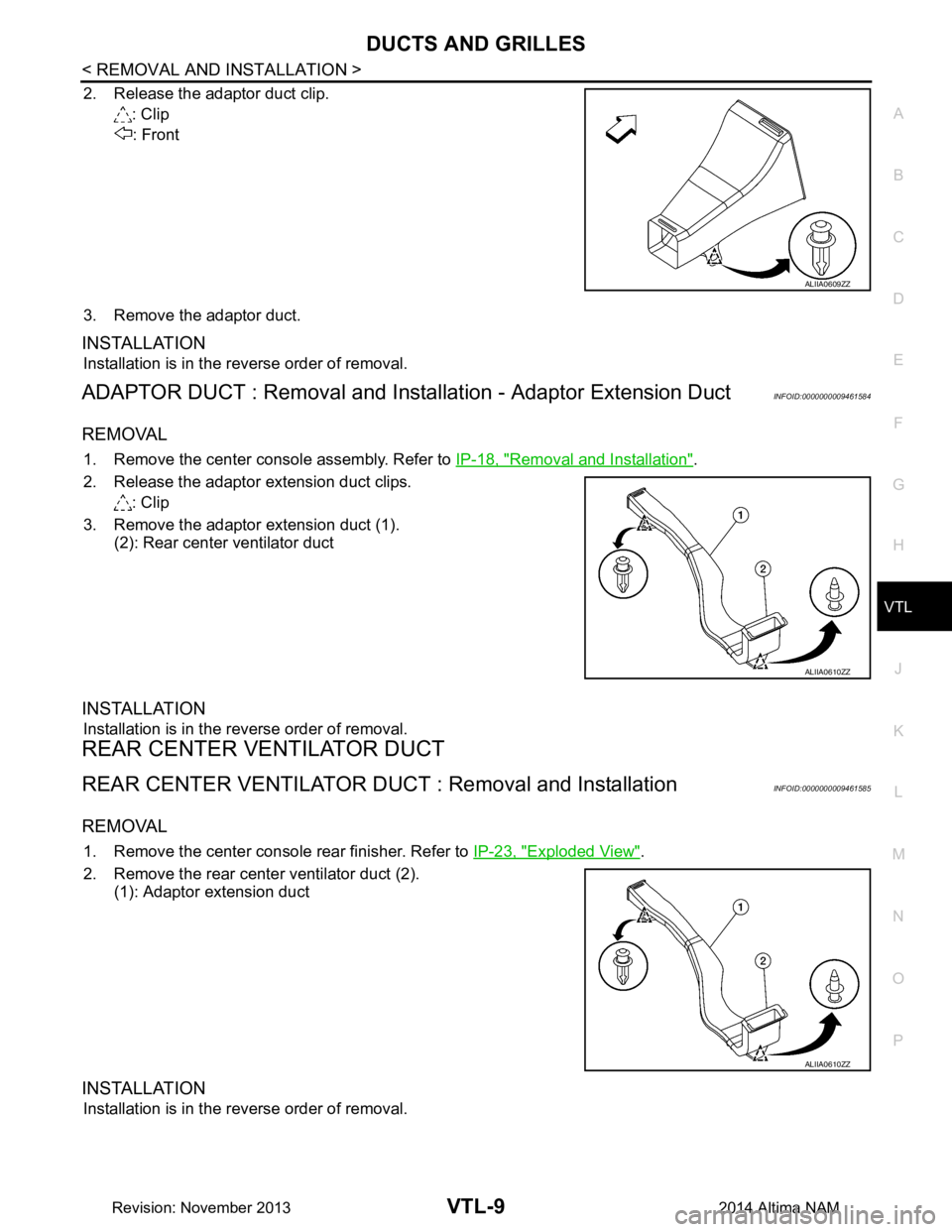

2. Release the adaptor duct clip. : Clip
: Front
3. Remove the adaptor duct.
INSTALLATION
Installation is in the reverse order of removal.
ADAPTOR DUCT : Removal and Insta llation - Adaptor Extension DuctINFOID:0000000009461584
REMOVAL
1. Remove the center console assembly. Refer to IP-18, "Removal and Installation".
2. Release the adaptor extension duct clips. : Clip
3. Remove the adaptor extension duct (1). (2): Rear center ventilator duct
INSTALLATION
Installation is in the reverse order of removal.
REAR CENTER VENTILATOR DUCT
REAR CENTER VENTILATOR DUCT : Removal and InstallationINFOID:0000000009461585
REMOVAL
1. Remove the center console rear finisher. Refer to IP-23, "Exploded View".
2. Remove the rear center ventilator duct (2). (1): Adaptor extension duct
INSTALLATION
Installation is in the reverse order of removal.
ALIIA0609ZZ
ALIIA0610ZZ
ALIIA0610ZZ
Revision: November 20132014 Altima NAM

VTL-10
< REMOVAL AND INSTALLATION >
DUCTS AND GRILLES

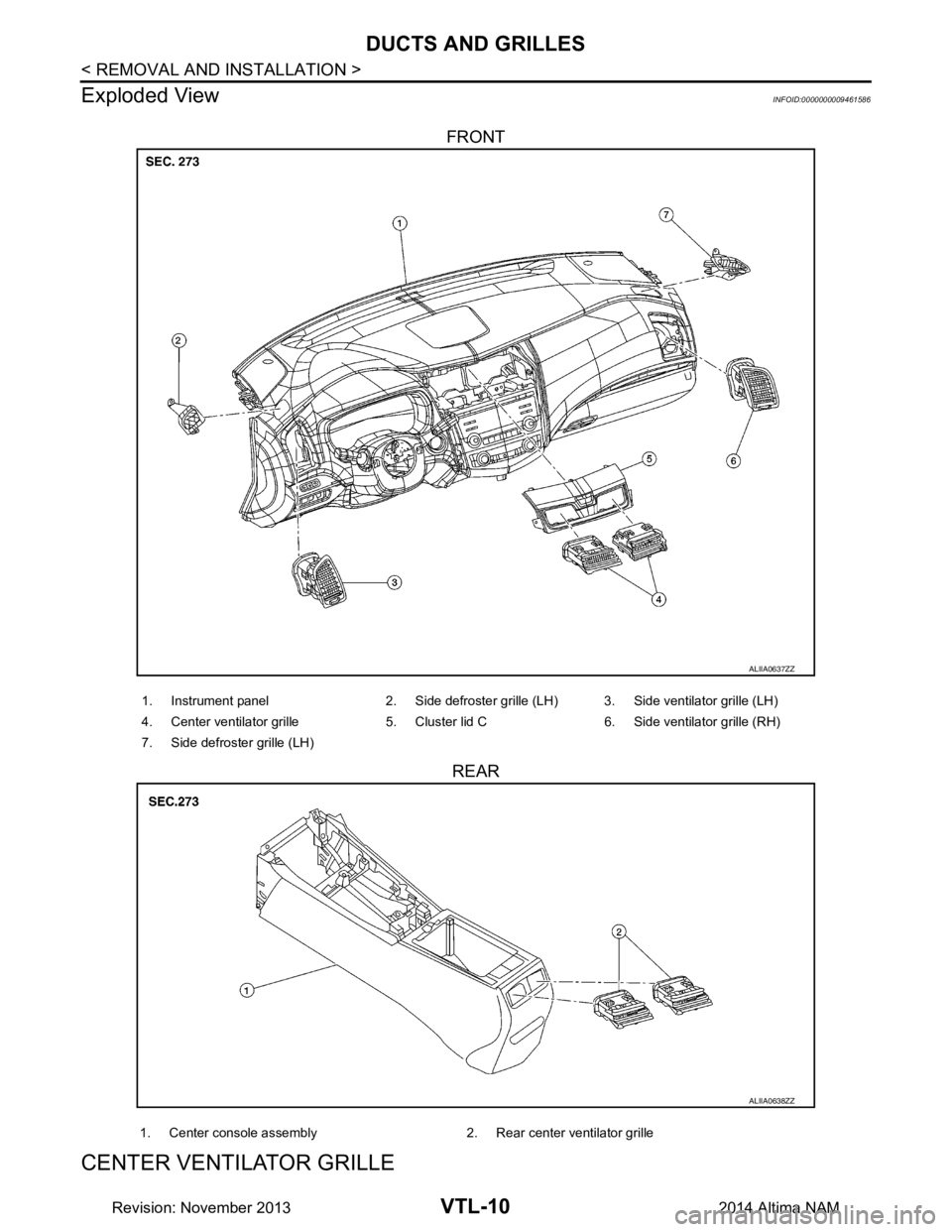

Exploded View
INFOID:0000000009461586
FRONT
REAR
CENTER VENTIL AT O R G R I L L E
ALIIA0637ZZ
1. Instrument panel 2. Side defroster grille (LH) 3. Side ventilator grille (LH)
4. Center ventilator grille 5. Cluster lid C 6. Side ventilator grille (RH)
7. Side defroster grille (LH)
ALIIA0638ZZ
1. Center console assembly 2. Rear center ventilator grille
Revision: November 20132014 Altima NAM

DUCTS AND GRILLESVTL-11
< REMOVAL AND INSTALLATION >
C
D E
F
G H
J
K L
M A
B
VTL
N
O P

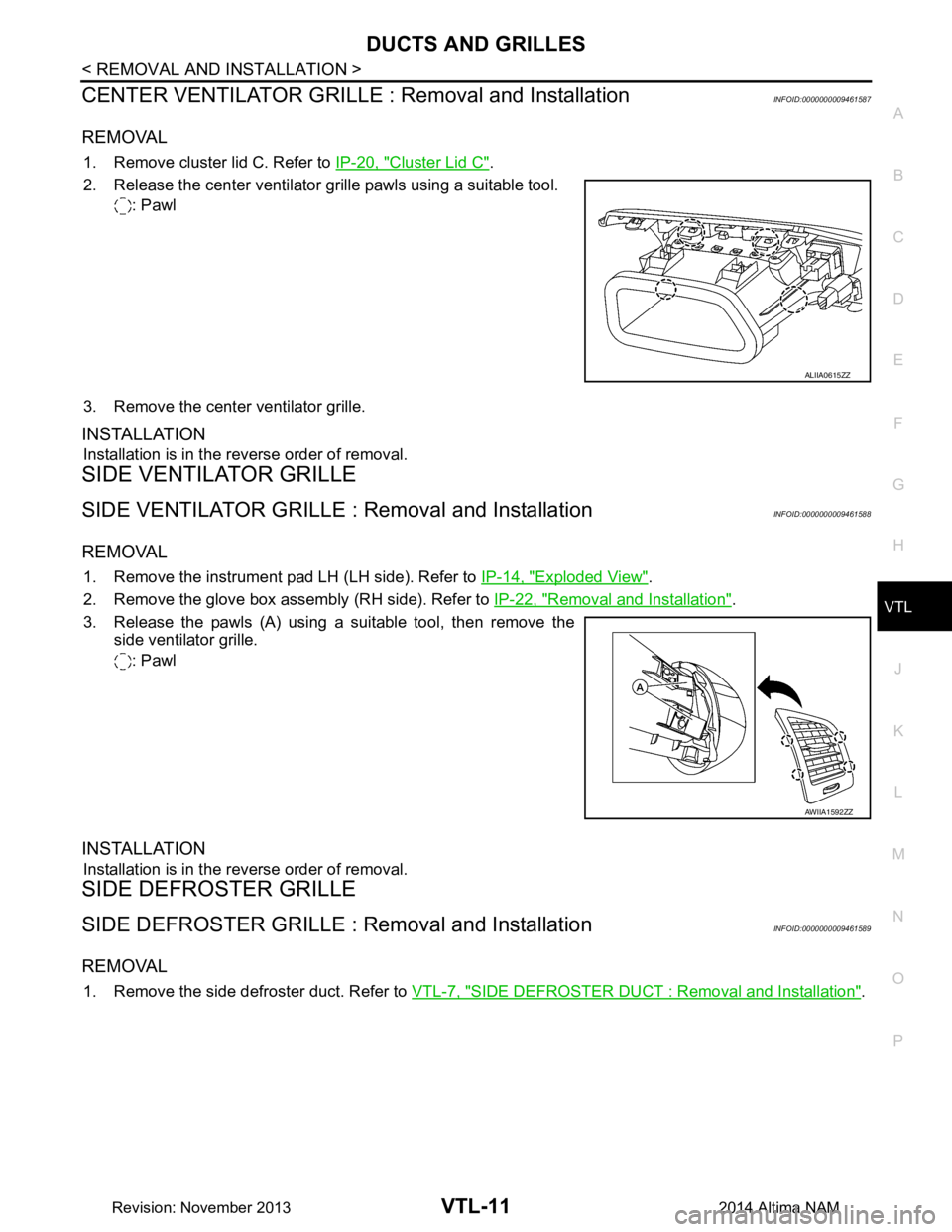

CENTER VENTILATOR GRILLE : Removal and InstallationINFOID:0000000009461587
REMOVAL
1. Remove cluster lid C. Refer to IP-20, "Cluster Lid C".
2. Release the center ventilator grille pawls using a suitable tool. : Pawl
3. Remove the center ventilator grille.
INSTALLATION
Installation is in the reverse order of removal.
SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and InstallationINFOID:0000000009461588
REMOVAL
1. Remove the instrument pad LH (LH side). Refer to IP-14, "Exploded View".
2. Remove the glove box assembly (RH side). Refer to IP-22, "Removal and Installation"
.
3. Release the pawls (A) using a suitable tool, then remove the side ventilator grille.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
SIDE DEFROSTER GRILLE
SIDE DEFROSTER GRILLE : Removal and InstallationINFOID:0000000009461589
REMOVAL
1. Remove the side defroster duct. Refer to VTL-7, "SIDE DEFROSTER DUCT : Removal and Installation".
ALIIA0615ZZ
AWIIA1592ZZ
Revision: November 20132014 Altima NAM

VTL-12
< REMOVAL AND INSTALLATION >
DUCTS AND GRILLES

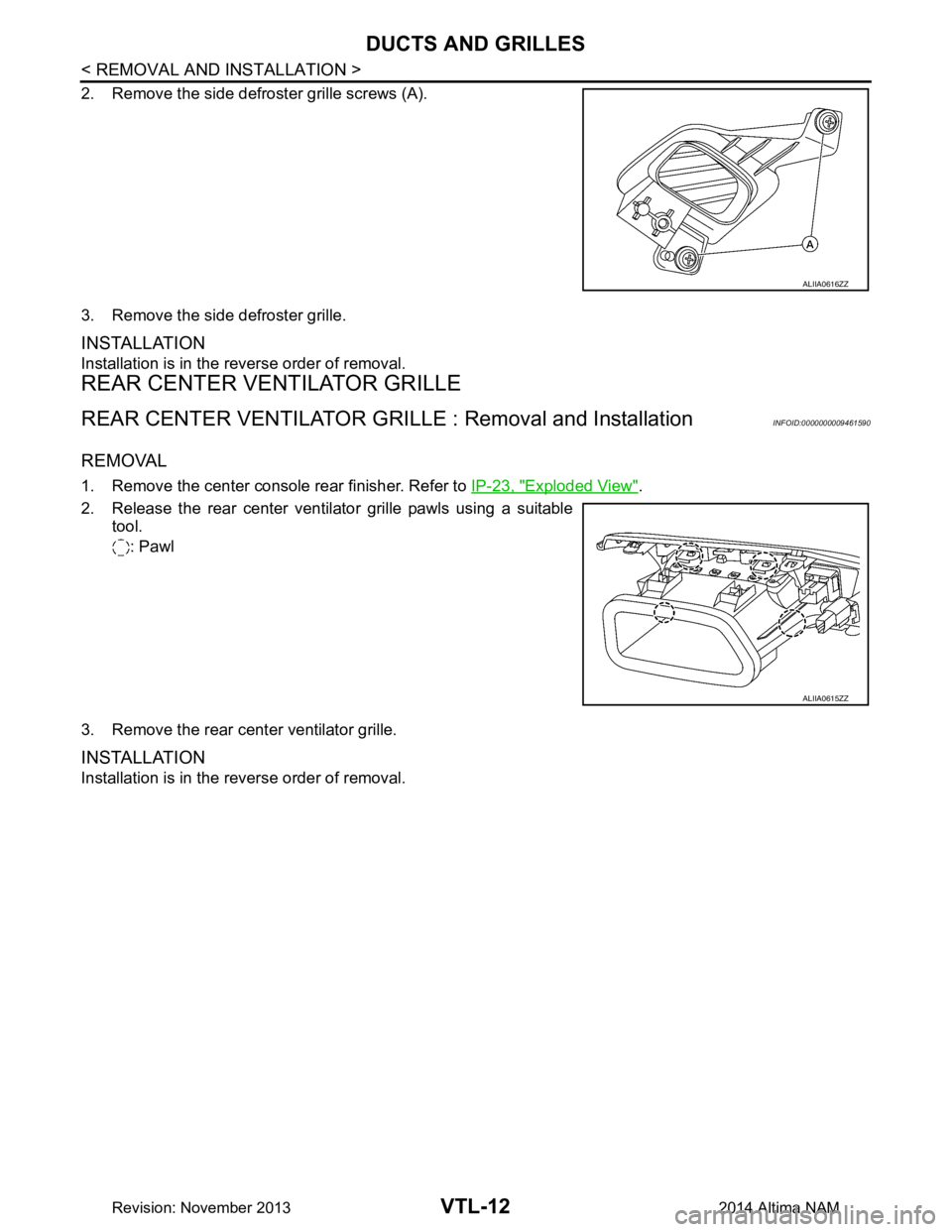

2. Remove the side defroster grille screws (A).
3. Remove the side defroster grille.
INSTALLATION
Installation is in the reverse order of removal.
REAR CENTER VENTILATOR GRILLE
REAR CENTER VENTILATOR GRI LLE : Removal and InstallationINFOID:0000000009461590
REMOVAL
1. Remove the center console rear finisher. Refer to IP-23, "Exploded View".
2. Release the rear center ventilator grille pawls using a suitable tool.
: Pawl
3. Remove the rear center ventilator grille.
INSTALLATION
Installation is in the reverse order of removal.
ALIIA0616ZZ
ALIIA0615ZZ
Revision: November 20132014 Altima NAM
