DAS-158
< SYSTEM DESCRIPTION >[BSW]
DIAGNOSIS SYSTEM (ITS CONTROL UNIT)
DIAGNOSIS SYSTEM (ITS CONTROL UNIT)
CONSULT Function (AVM)INFOID:0000000009951646
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentially causing a di scharged battery and no-start condition.
APPLICATION ITEMS
CONSULT performs the following functions via CAN communication using ITS control unit.
SELF DIAGNOSTIC RESULT
Refer to DAS-164, "DTC Index".
DATA MONITOR
Diagnosis mode Description
Self Diagnostic Result Displays the name of a malfunctioning system stored in the ITS control unit
Data Monitor Displays ITS control unit input/output data in real time
Work support Displays causes of automatic system cancellation occurred during system control
Active Test Enables an operational check of a load by transmitting a driving signal from the ITS control unit to
the load
ECU identification Displays ITS control unit part number
Configuration The vehicle specification can be written when replacing the ITS control unit
Monitored item [Unit] Description
ST ANGLE SENSOR SIGNAL
[On/Off] Indicates [On/Off] status as judged from ITS control unit (Angle sensor transmits angle signal
through CAN communication)
REVERSE SIGNAL
[On/Off] Indicates [On/Off] status as judged from ITS control unit (TCM transmits reverse signal
through CAN communication)
VEHICLE SPEED SIGNAL
[On/Off] Indicates vehicle speed
calculated from ITS control unit through CAN communication [ABS ac-
tuator and electric unit (control unit) transmits vehicle speed signal (wheel speed) through
CAN communication]
CAMERA SWITCH SIGNAL
[On/Off] Indicates [On/Off] status of camera switch signal as judged from ITS control unit
CAMERA OFF SIGNAL
[On/Off] Indicates [On/Off] status of camera OFF signal as judged from ITS control unit
ST ANGLE SENSOR TYPE
[Absolute/Not] Indicates whether steering angle sensor type is absolute or not (ON means “controlling”)
STEERING GEAR RATIO TYPE
[Type 0/1] Indicates the type of the steering gear ratio (type 1 or 2)
STEERING POSITION
[LHD/RHD] Indicates the steering position (LHD or RHD)
REAR CAMERA IMAGE SIGNAL
[OK/Not] Indicates the status of the rear camera image as read from ITS control unit through dedicated
ITS communication lines
WASH SW
[ON/OFF] Indicates the state of the wash switch indicator output
R-CAMERA COMM STATUS
[OK/Not] Indicates the status of the rear camera communication status as read from ITS control unit
through dedicated ITS communication lines
R-CAMERA COMM LINE
[OK/Not] Indicates the condition of the rear camera communication line whether transmitting properly
through dedicated ITS communication lines
PUMP COMM STATUS
[OK/NG] Indicates the state of the communication signal from pump control unit
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
DIAGNOSIS SYSTEM (ITS CONTROL UNIT)DAS-159
< SYSTEM DESCRIPTION > [BSW]
C
D E
F
G H
I
J
K L
M B
N P
A
WORK SUPPORT
ACTIVE TEST
CAUTION:
• Never perform “Active Test” while driving the vehicle.
• The “Active Test” cannot be performed when th e following systems warning indicators are illumi-
nated:
- Lane Departure Warning indicator
- Blind Spot Warning indicator
• Place the shift selector to P (park) position, and then perform the test.
BSW ON INDICATOR
ILL
[On/Off] Indicates [On/Off] status of the illumination signal
ITS SW 1
[On/Off] Indicates the state of the warning system switch as seen by the ITS control unit
ITS SW 1 IND
[On/Off] Indicates the state of the warning system switch indicator output
TURN SIGNAL
[Left/N/Right] Indicates [Left/N/Right] status of the turn signal output
ITS SW 2
[ON/OFF/No setting] Indicates the state of the warning system secondary switch as seen by the ITS control unit
ITS SW 2 IND
[ON/OFF/No setting] Indicates the state of the warning system secondary switch indicator output
Monitored item
[Unit] Description
Work support items Description
PREDICTIVE COURSE LINE
DISPLAY Setting whether predictive guide line displays or not
INITIALIZE CAMERA IMAGE
CALIBRATION Start the initialization process of the rear camera
STEERING ANGLE SENSOR
ADJUSTMENT Execute register neutral point of steering angle sensor
CALIBRATING CAMERA IM-
AGE (REAR CAMERA) Displays the various values of the rear camera during the calibration process
REAR WIDE-VIEW FIXED
GUIDE LINE CORRECTION Adjustment the position of fixed guide line on rear wide view
REAR CAMERA ITS Displays and sets camera image calibration values
CAUSE OF LDW CANCEL Displays the information about reason of LDW cancellation
CAUSE OF BSW CANCEL Displays the information about reason of BSW cancellation
Te s t i t e m D e s c r i p t i o n
WASH ACTIVE ON
Activates the washer to clean the lens of rear camera
OFF
LED LH INDICATOR ON
Flashes the left side LED light for ITS system
OFF
LED RH INDICATOR ON
Flashes the right side LED light for ITS system
OFF
AIR ACTIVE ON
Activates the air pump to clean the lens of rear camera
OFF
AIR & WASH ACTIVE ON
Activates the air pump and washer to clean the lens of rear camera
OFF
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-160
< SYSTEM DESCRIPTION >[BSW]
DIAGNOSIS SYSTEM (ITS CONTROL UNIT)
ECU IDENTIFICATION
ITS control unit part number is displayed.
CONFIGURATION
The specifications of the vehicle can be writ
ten and read in the ITS control unit when replaced.
Te s t i t e mOper-
ation Description
Blind Spot Warning ON indicator lamp
(Yellow)
BSW ON INDICATOR Off
Stops transmitting the Blind Spot Warning ON indicator
signal below to end the test Off
On Transmits the Blind Spot Warning ON indicator signal to
the warning lamp on the door ON
Washer Off
Stops transmitting activate signal to washer below to
end the test Off
On Transmits activate signal to washer ON
Air pump Off
Stops transmitting activate signal to air pump below to
end the test Off
On Transmits activate signal to air pump ON
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
ITS CONTROL UNITDAS-161
< ECU DIAGNOSIS INFORMATION > [BSW]
C
D E
F
G H
I
J
K L
M B
N P
A
ECU DIAGNOSIS INFORMATION
ITS CONTROL UNIT
Reference ValueINFOID:0000000009951648
VALUES ON THE DIAGNOSIS TOOL
Monitor item Condition Value/Status
ST ANGLE SENSOR
SIGNAL Ignition switch ON Steering angle signal is received On
Steering angle signal is not received Off
REVERSE SIGNAL Ignition switch ON Shift selector in R (reverse) On
Shift selector is not in R (reverse) Off
VEHICLE SPEED
SIGNAL While driving Vehicle speed signal is received On
Vehicle speed signal is not received Off
CAMERA SWITCH
SIGNAL Ignition switch ON Camera switch is pressed On
Camera switch is not pressed Off
CAMERA OFF SIG-
NAL Ignition switch ON Purpose switch is pressed On
Purpose switch is not pressed Off
ST ANGLE SENSOR
TYPE Ignition switch ON Steering angle sensor type is displayed Absolute
Steering angle sensor type is not received Not
STEERING GEAR
RATIO TYPE Ignition switch ON Pattern 1 type of steering gear ratio displayed Pattern 1
Pattern 2 type of steering gear ratio displayed Pattern 2
STEERING POSI-
TION Ignition switch ON It recognizes steering position is left LHD
It recognizes steering position is right RHD
R-CAMERA COMM
STATUS Ignition switch ON Rear camera serial status is OK OK
Rear camera serial status is not OK NG
R-CAMERA COMM
LINE Ignition switch ON Rear camera serial communication signal is received OK
Rear camera serial communication signal is not received NG
ILL Ignition switch ON Illumination is ON On
Illumination is OFF Off
ITS SW 1 Ignition switch ON ITS switch is pressed On
ITS switch is not pressed Off
ITS SW 1 IND Ignition switch ON Indicator of ITS switch 1 is lighting On
Indicator of ITS switch 1 is not lighting Off
TURN SIGNAL Ignition switch ON Turn signal left is received Left
Turn signal neutral is received N
Turn signal right is received Right
REAR CAMERA IM-
AGE SIGNAL Ignition switch ON Camera image signal is received On
Camera image signal is not received Off
ITS SW 2 Ignition switch ON For this vehicle, the displaying is fixed No setting
ITS SW 2 IND Ignition switch ON For this vehicle, the displaying is fixed No setting
WASH SW Ignition switch ON Wash switch signal is pressed On
Wash switch signal is not pressed Off
PUMP COMM STA-
TUS Ignition switch ON Pump communication signal is received On
Pump communication signal is not received Off
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-162
< ECU DIAGNOSIS INFORMATION >[BSW]
ITS CONTROL UNIT
TERMINAL LAYOUT
PHYSICAL VALUES
ALOIA0156ZZ
Te r m i n a l N o . (Wire color) Description
Condition Va l u e
(Approx.)
+ − Signal name Input/
Output
1
(BR) Ground Washer level switch Input Ignition
switch ON When washer fluid is low
(switch closed) 0 V
When washer fluid is not
low (switch open) 12 V
2
(G) Ground Washer signal pump to
camera Input Ignition switch ON 5 V
3
(W) Ground
Washer signal camera
to pump Output Ignition switch ON 5 V
7
(P) Ground CAN -L — — — —
17
(G) Ground SOW LED signal R Output
While
driving LDW/BSW detected 12 V
LDW/BSW is not detected 0 V
20
(G) Ground Battery supply Input — — 12 V
22
(P) Ground Serial ground Output — — 0 V
27
(L) Ground CAN -H — — — —
28
(R) Ground Reverse Input
Ignition
switch ON Shift selector in R (re-
verse) 12 V
Shift selector not in R (re-
verse) 0 V
32
(P) Ground Cancel SW output Input Ignition
switch ON Cancel switch pressed 0 V
Cancel switch not pressed 12 V
33
(BG) Ground LED input Output Ignition
switch ON Warning system is ON 12 V
Warning system is OFF 0 V
37
(W) Ground SOW LED signal L Output While
driving LDW/BSW detected 12 V
LDW/BSW is not detected 0 V
39
(BG) Ground Ignition power supply Input Ignition switch ON Battery Voltage
40
(B) Ground Ground — — — 0 V
50, 53 Ground Shield — — — 0 V
51
(R) Ground RR CAM GND Output
Ignition
switch ON —0 V
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
ITS CONTROL UNITDAS-163
< ECU DIAGNOSIS INFORMATION > [BSW]
C
D E
F
G H
I
J
K L
M B
N P
A
Fail-safeINFOID:0000000009951649
If a malfunction occurs in each system, ITS contro l unit cancels each control, sounds a beep, and turns ON
the warning lamp or indicator lamp.
DTC Inspection Priority ChartINFOID:0000000009951650
If multiple DTCs are detected simultaneously, che ck them one by one depending on the following DTC inspec-
tion priority chart.
52
(W) Ground RR CAM ON Output Ignition switch ON 6 V
66
(B) Ground RR CAM COMP + Input Ignition switch ON
68
(G) Ground RR CAM CONT Input Ignition switch ON 5 V
69
(B) Ground RR CAM COMP + Input Ignition switch ON
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
+ − Signal name Input/
Output
ALOIA0179ZZ
ALOIA0179ZZ
System Buzzer Warning Indicator lamp Description
Lane Departure Warning (LDW) Low-pitched
tone Lane Departure Warning lamp Cancel
Blind Spot Warning (BSW) High-pitched
tone Blind Spot Warning lamp Cancel
Moving Object Detection (MOD) Low-pitched
tone Warning lamp MOD icon
(on camera screen) Cancel
Priority Detected items (DTC)
1 • U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)
2 • U1305: CAMERA IMAGE CALIB
• U1308: CAMERA CONFIG
3 • C1A39: STRG SEN CIR
• U0428: STRG SEN CAN CIR 2
• U111A: REAR CAMERA IMAGE SIGNAL
• U1232: ST ANGLE SEN CALIB
• U1309: PUMP UNIT CURRENT
• U130B: REAR CAMERA COMM ERROR
• U1310: PUMP UNIT CIRCUIT
4 • C1A03: VHCL SPEED SE CIRC
• C1A04: VDC FAIL
• U0122: VDC P-RUN DIAG
• U0416: VDC CHECKSUM DIAG
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-164
< ECU DIAGNOSIS INFORMATION >[BSW]
ITS CONTROL UNIT
DTC Index
INFOID:0000000009951651
NOTE:
• The details of time display are as follows:
- CRNT: A malfunction is detected now
- PAST: A malfunction was detected in the past
• IGN counter is displayed on FFD (Freeze Frame Data).
- 0: The malfunctions that are detected now
CAN communication system (U1000, U1010)
- 1 - 39: It increases like 0 → 1 → 2 ··· 38 → 39 after returning to the normal condition whenever the ignition
switch OFF → ON. It returns to 0 when a malfunction is detected again in the process.
- If it is over 39, it is fixed to 39 until the self-diagnosis results are erased. Other than CAN communication sy stem (Other than U1000, U1010)
- 1 - 49: It increases like 0 → 1 → 2 ··· 38 → 49 after returning to the normal condition whenever the ignition
switch OFF → ON. It returns to 0 when a malfunction is detected again in the process.
- If it is over 49, it is fixed to 49 until the self-diagnosis results are erased.
NOTE:
With the detection of “U1000” some systems do not perform the fail-safe operation.
Systems for fail-safe
• A: Lane Departure Warning (LDW)
• B: Blind Spot Warning (BSW)
• C: Moving Object Detection (MOD)
DTC
CONSULT display Warning lamp Fail-safe
Reference
CONSULT
Lane Departure Warning
Blind Spot Warning
Moving Object Detection
System
C1A03 VHCL SPEED SE CIRC ON ON ON A, B, C DAS-186
C1A04 VDC FAIL ON ON ON A, B, CDAS-187
C1A39 STRG SEN CIR ON ON ON A, B, CDAS-188
NO DTC IS
DETECTED. FURTHER
TESTING
MAY BE RE- QUIRED NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED ——— — —
U0122 VDC P-RUN DIAG ON ON ON A, B, C DAS-189
U0416 VDC CHECKSUM DIAG ON ON ON A, B, CDAS-190
U0428 STRG SEN CAN CIR 2 ON ON ON A, B, CDAS-191
U1000NOTECAN COMM CIRCUIT ON ON ON A, B, CDAS-192
U1010 CONTROL UNIT (CAN) ON ON ON A, B, C DAS-193
U 111 AREAR CAMERA IMAGE
SIGNAL ON ON ON A, B, C
DAS-194
U1232 ST ANGLE SEN CALIB ON ON ON A, B, C DAS-196
U1305 CAMERA IMAGE CALIB ON ON ON A, B, CDAS-197
U1308 CAMERA CONFIG ON ON ON A, B, CDAS-198
U1309 PUMP UNIT CURRENT ON ON ON A, B, CDAS-199
U130BREAR CAMERA COMM
ERROR ON ON ON A, B, C
DAS-202
U1310 PUMP UNIT CIRCUIT ON ON ON A, B, C DAS-203
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
ITS CONTROL UNITDAS-165
< ECU DIAGNOSIS INFORMATION > [BSW]
C
D E
F
G H
I
J
K L
M B
N P
A
A system controlling based on a signal received from the control unit performs fail-safe operation when the
communication with the ITS control unit becomes inoperable.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-166
< WIRING DIAGRAM >[BSW]
DRIVER ASSISTANCE SYSTEMS

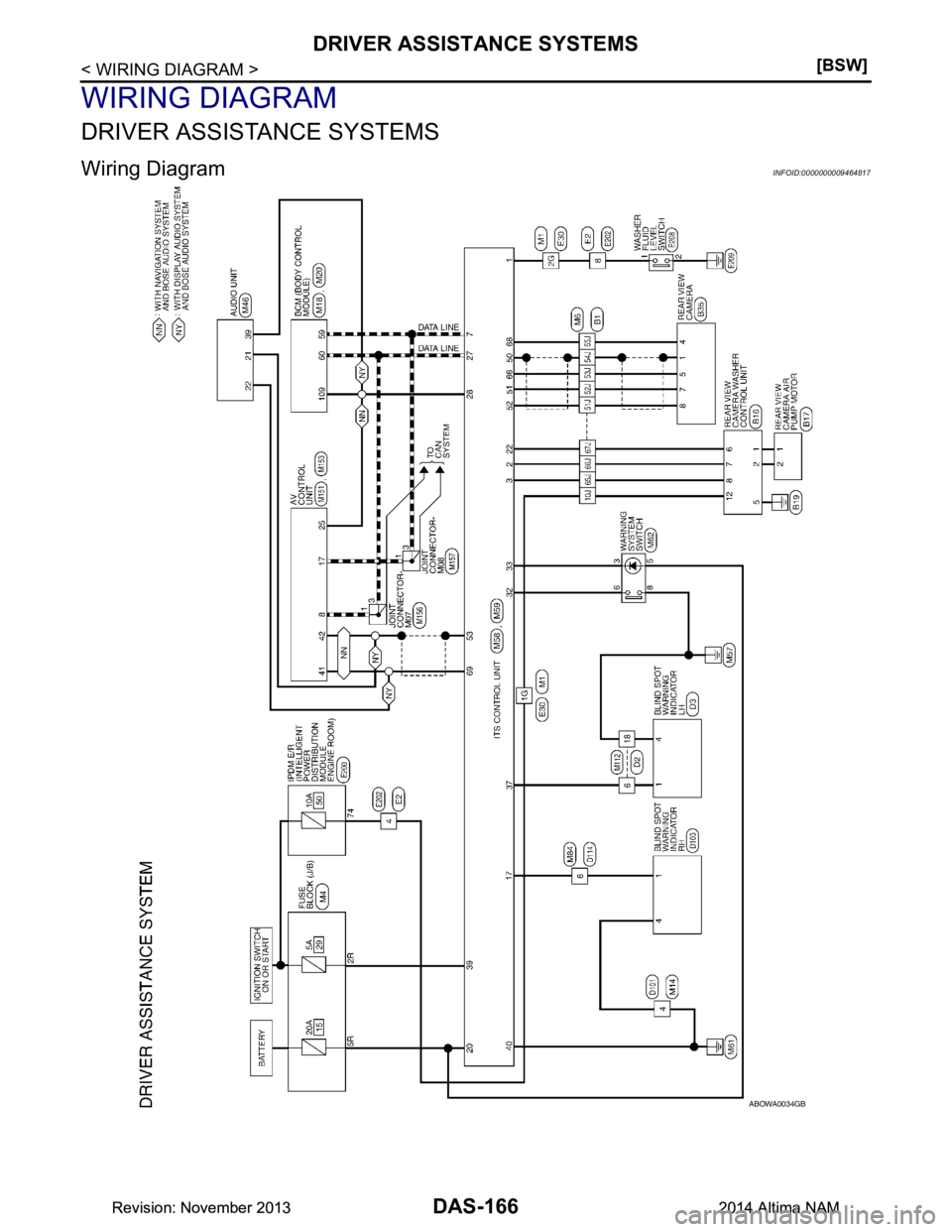

WIRING DIAGRAM
DRIVER ASSISTANCE SYSTEMS
Wiring DiagramINFOID:0000000009464817
ABOWA0034GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
DRIVER ASSISTANCE SYSTEMSDAS-167
< WIRING DIAGRAM > [BSW]
C
D E
F
G H
I
J
K L
M B
N P
A

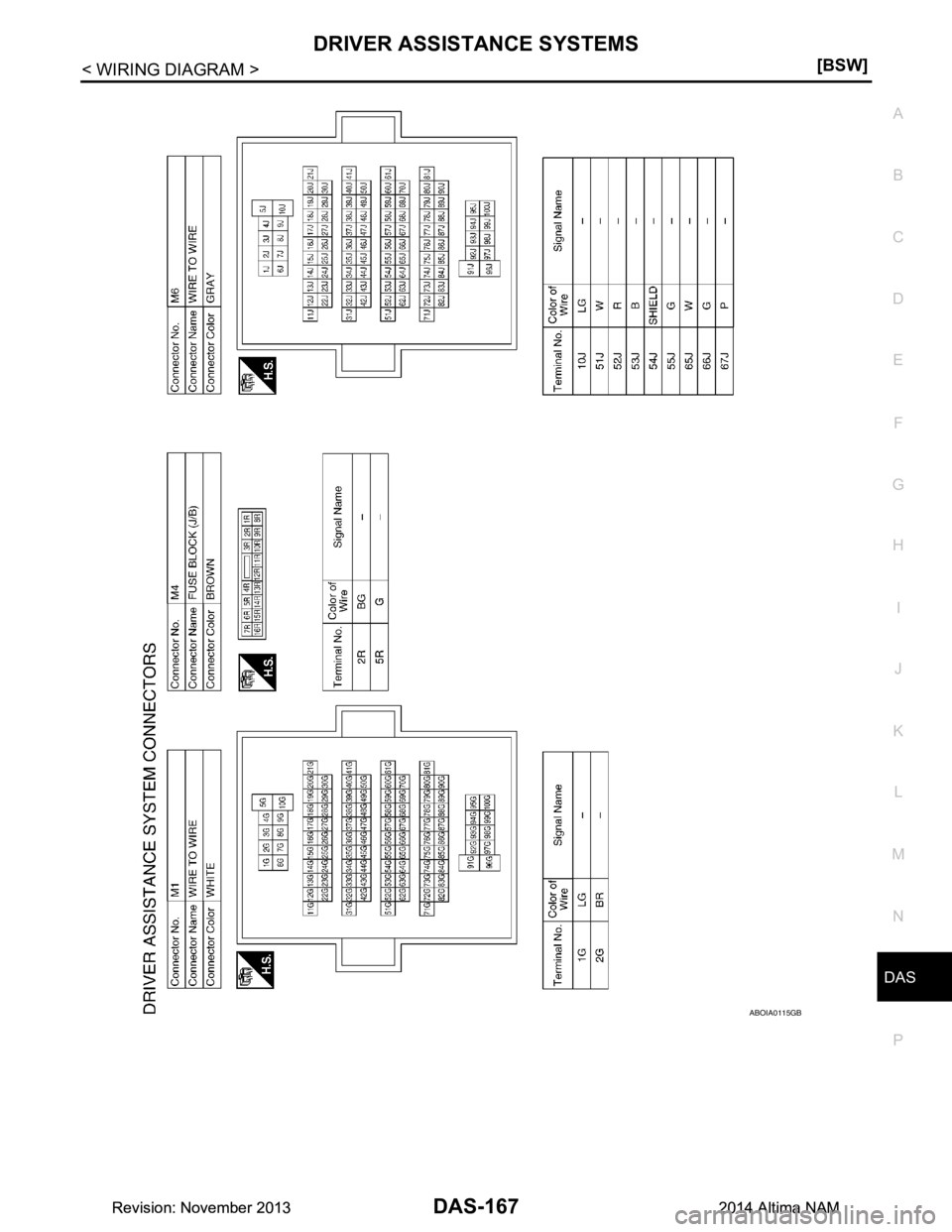

ABOIA0115GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
