BCS-56

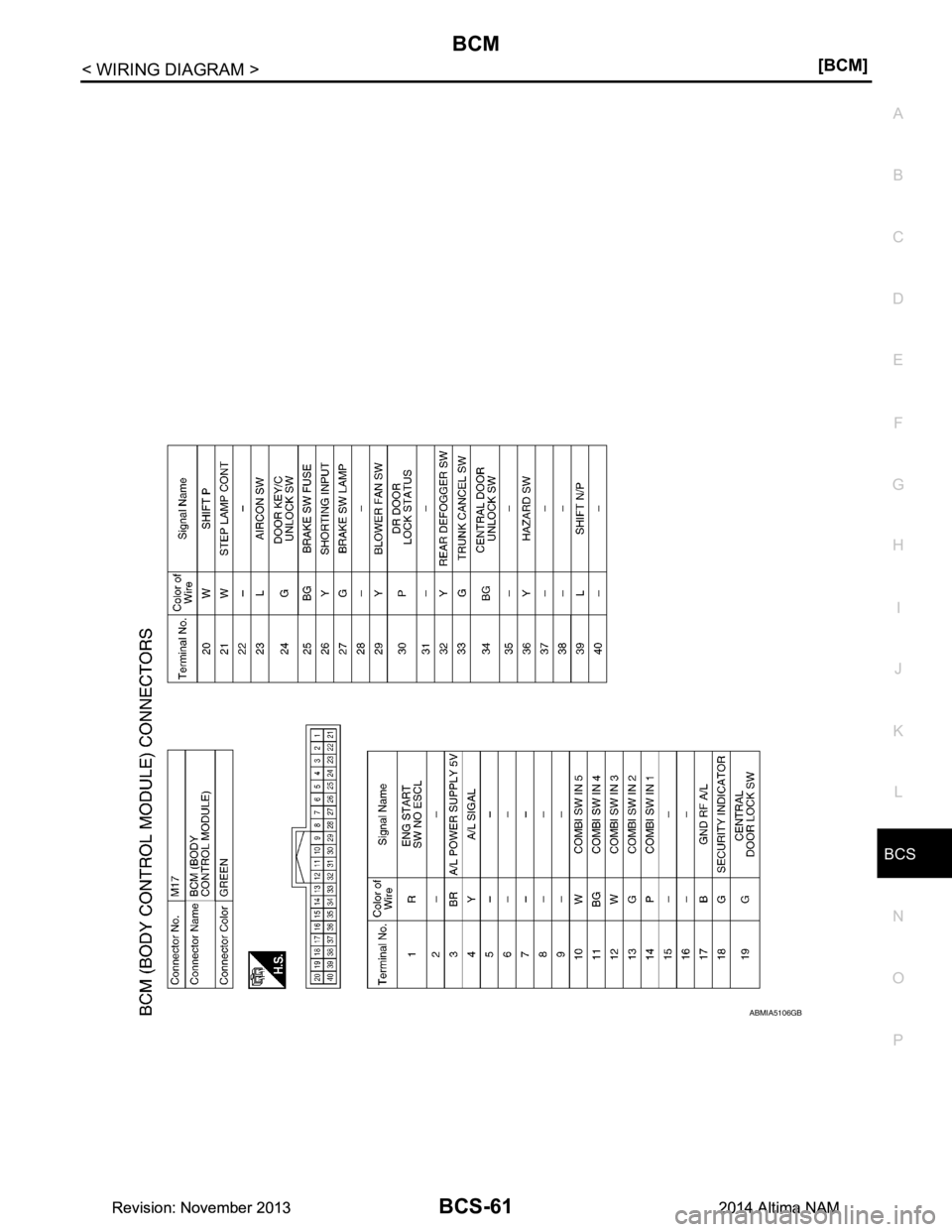

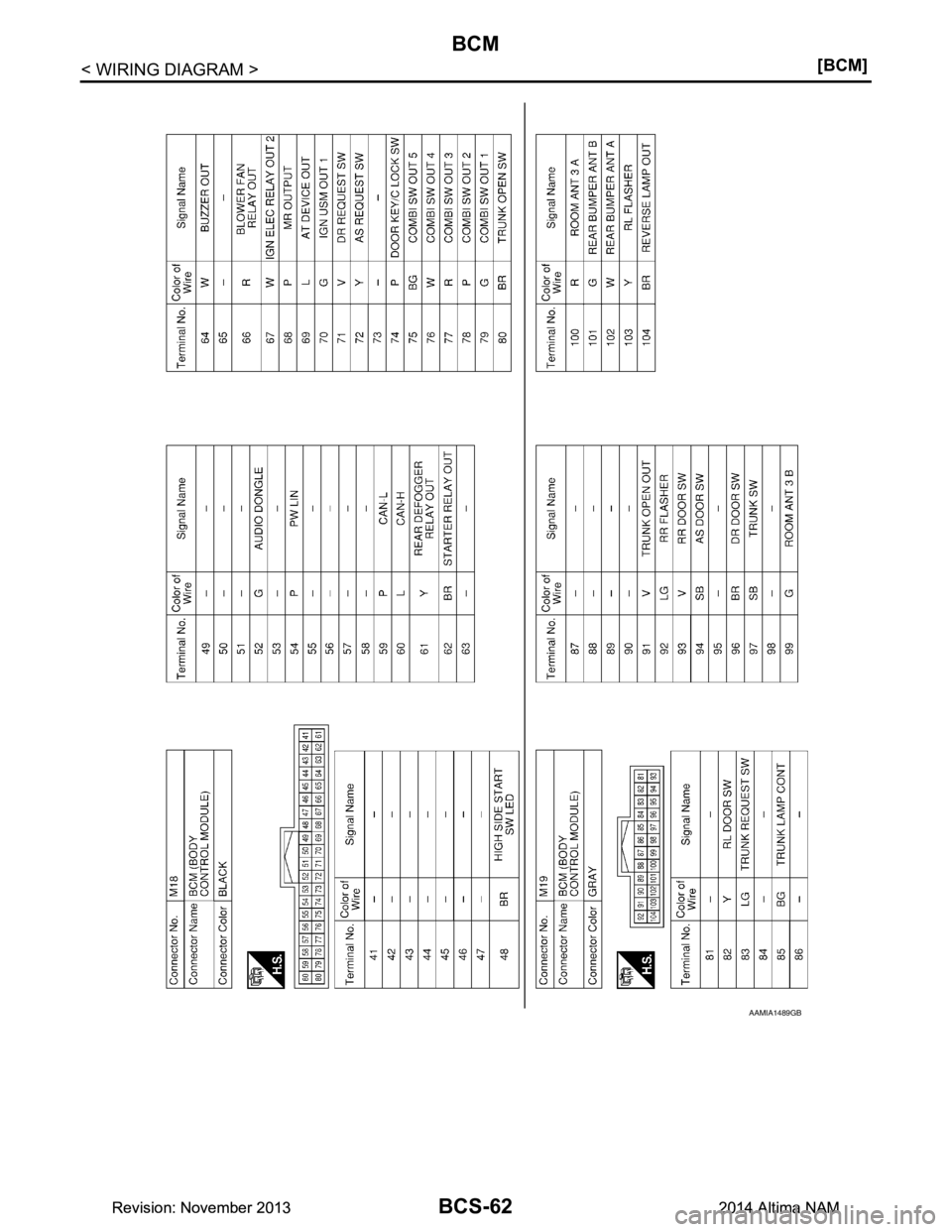

< WIRING DIAGRAM >[BCM]
BCM
ABMWA2164GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS
BCM
BCS-57

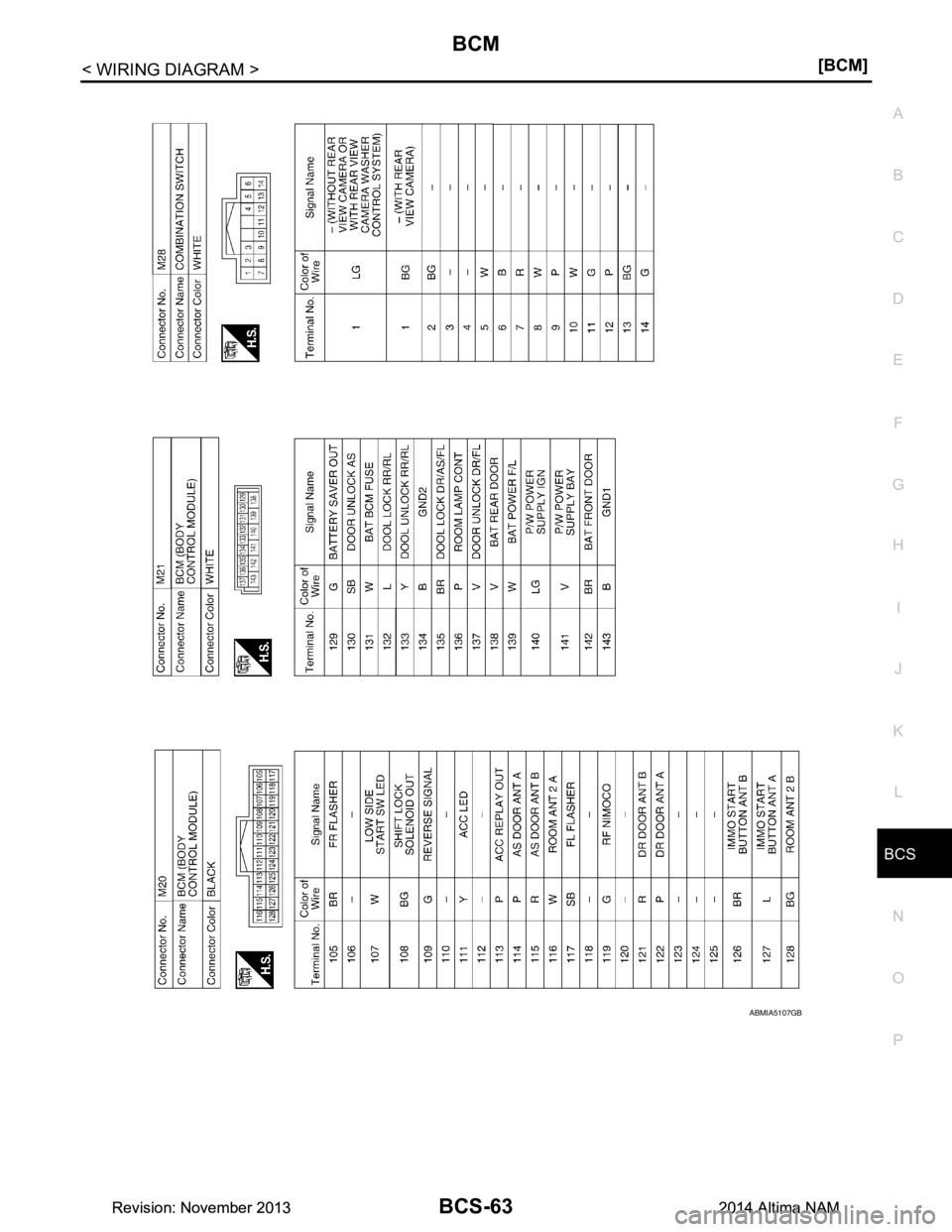

< WIRING DIAGRAM > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
ABMWA2165GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS-58

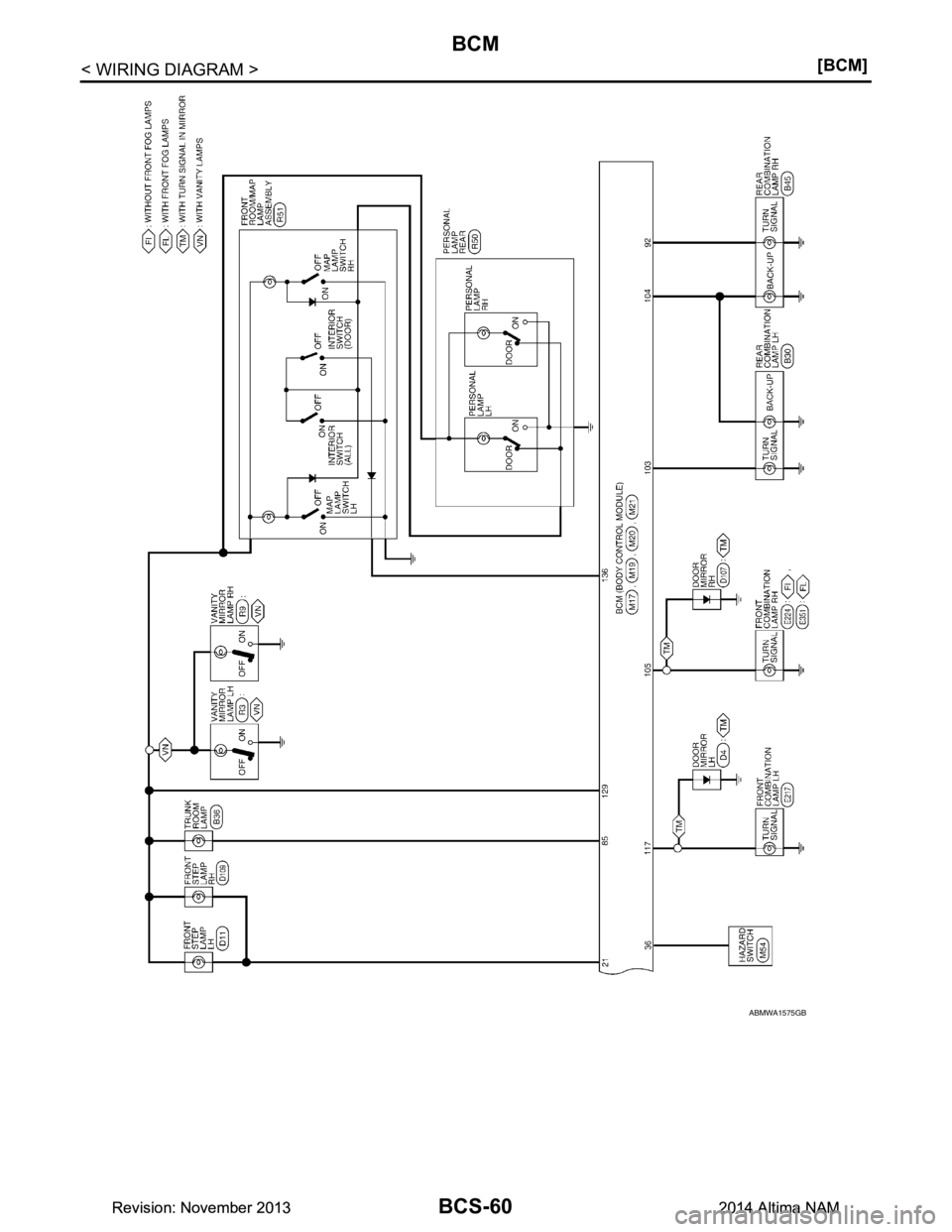

< WIRING DIAGRAM >[BCM]
BCM
ABMWA2170GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS
BCM
BCS-59
< WIRING DIAGRAM > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
ABMWA2166GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS-60
< WIRING DIAGRAM >[BCM]
BCM
ABMWA1575GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS
BCM
BCS-61
< WIRING DIAGRAM > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
ABMIA5106GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS-62
< WIRING DIAGRAM >[BCM]
BCM
AAMIA1489GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS
BCM
BCS-63
< WIRING DIAGRAM > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
ABMIA5107GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS-64
< BASIC INSPECTION >[BCM]
INSPECTION AND ADJUSTMENT
BASIC INSPECTION
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN
REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPL ACING CONTROL UNIT : Description
INFOID:0000000009462021
BEFORE REPLACEMENT
When replacing BCM, save or print current vehicle s pecification with CONSULT configuration before replace-
ment.
NOTE:
If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-
ing BCM.
AFTER REPLACEMENT
CAUTION:
• When replacing BCM, you must perfo rm “After Replace ECU” with CONSULT.
- Complete the procedure of “After Replace ECU” in order.
- If you set incorrect “After Replace ECU”, incidents might occur.
- Configuration is different for each vehicle mode l. Confirm configuration of each vehicle model.
• When replacing BCM, perform the system initialization (NATS).
ADDITIONAL SERVICE WHEN REPLAC ING CONTROL UNIT : Work Procedure
INFOID:0000000009462022
1.SAVING VEHICLE SPECIFICATION
CONSULT
Enter "Re/Programming, Configuration" and perform “Before Replace ECU” to save or print current vehicle
specification.
NOTE:
If “Before Replace ECU” cannot be used, use the "After Replace ECU" or "Manual Configuration" after replac-
ing BCM.
>> GO TO 2.
2.REPLACE BCM
Replace BCM. Refer to BCS-80, "Removal and Installation"
.
>> GO TO 3.
3.WRITING VEHICLE SPECIFICATION
CONSULT
1. Enter "Re/Programming, Configuration".
2. If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will
be displayed. Select the applicable file from the "S aved Data List" and press “Confirm” to write vehicle
specification. Refer to BCS-65, "CONFIGURATION (BCM) : Work Procedure"
.
3. If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-
tion" to write vehicle specification. Refer to BCS-65, "CONFIGURATION (BCM) : Work Procedure"
.
>> GO TO 4.
4.INITIALIZE BCM (NATS)
Perform BCM initialization. (NATS)
>> Work End.
CONFIGURATION (BCM)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS
INSPECTION AND ADJUSTMENTBCS-65
< BASIC INSPECTION > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
CONFIGURATION (BCM) : DescriptionINFOID:0000000009462023
Vehicle specification needs to be written with CONSUL
T because it is not written after replacing BCM.
Configuration has three functions as follows:
CAUTION:
• When replacing BCM, you must perform “Select Saved Data List” or "After Replace ECU" with CON-
SULT.
• Complete the procedure of “Select Saved Da ta List” or "After Replace ECU" in order.
• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.
• Configuration is different for each vehicle model. Confirm conf iguration of each vehicle model.
• Never perform “Select Saved Data List” or "After Replace ECU" except for new BCM.
CONFIGURATION (BCM) : Work ProcedureINFOID:0000000009462024
1.WRITING MODE SELECTION
CONSULT
Select “Reprogramming, Configuration” of BCM.
When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.
2.PERFORM “SAVED DATA LIST”
CONSULT
Automatically “Operation Log Selection” window will disp lay if “Before Replace ECU” was performed. Select
applicable file from the “Save Data List” and press “Confirm”.
>> Work End.
3.PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”
CONSULT
1. Select “After Replace ECU” or “Manual Configuration”.
2. Identify the correct model and configuration list. Refer to BCS-66, "CONFIGURATION (BCM) : Configura-
tion list".
3. Confirm and/or change setting value for each item. CAUTION:
Thoroughly read and understand the vehicle speci fication. ECU control may not operate normally
if the setting is not correct.
4. Select “Next”. CAUTION:
Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-
figuration of brand new BCM is same as the desirabl e configuration. If not, configuration which is
set automatically by selecting veh icle model cannot be memorized.
5. When "Completed", select "End".
>> GO TO 4.
4.OPERATION CHECK
Confirm that each function cont rolled by BCM operates normally.
>> Work End.
Function Description
"Before Replace ECU" • Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.
"After Replace ECU" Writes the vehicle configuration with manual selection.
"Select Saved Data List" Writes the vehicle configuration with saved data.
