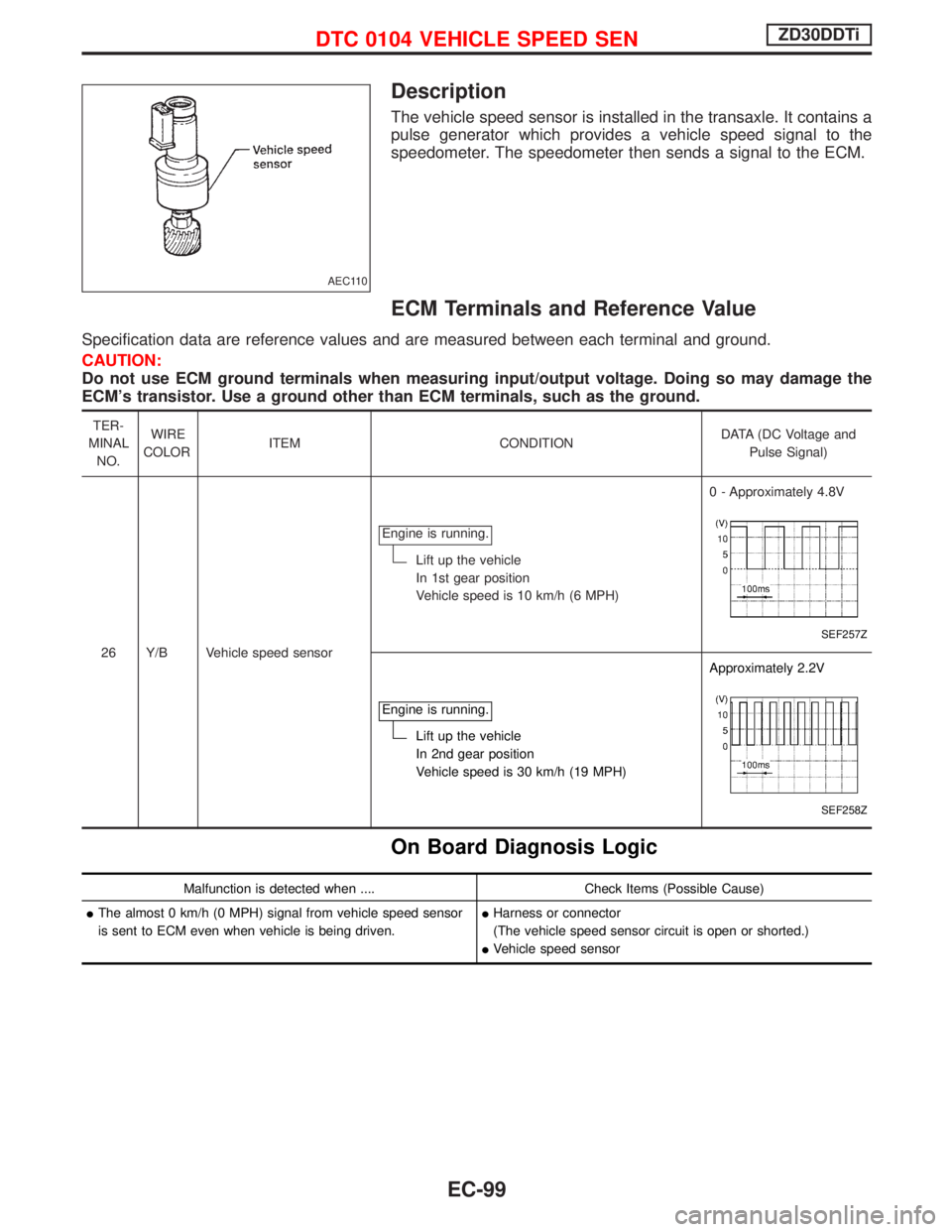

Description
The vehicle speed sensor is installed in the transaxle. It contains a
pulse generator which provides a vehicle speed signal to the
speedometer. The speedometer then sends a signal to the ECM.
ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITIONDATA (DC Voltage and
Pulse Signal)
26 Y/B Vehicle speed sensorEngine is running.
Lift up the vehicle
In 1st gear position
Vehicle speed is 10 km/h (6 MPH)0 - Approximately 4.8V
SEF257Z
Engine is running.
Lift up the vehicle
In 2nd gear position
Vehicle speed is 30 km/h (19 MPH)Approximately 2.2V
SEF258Z
On Board Diagnosis Logic
Malfunction is detected when .... Check Items (Possible Cause)
IThe almost 0 km/h (0 MPH) signal from vehicle speed sensor
is sent to ECM even when vehicle is being driven.IHarness or connector
(The vehicle speed sensor circuit is open or shorted.)
IVehicle speed sensor
AEC110
DTC 0104 VEHICLE SPEED SENZD30DDTi
EC-99

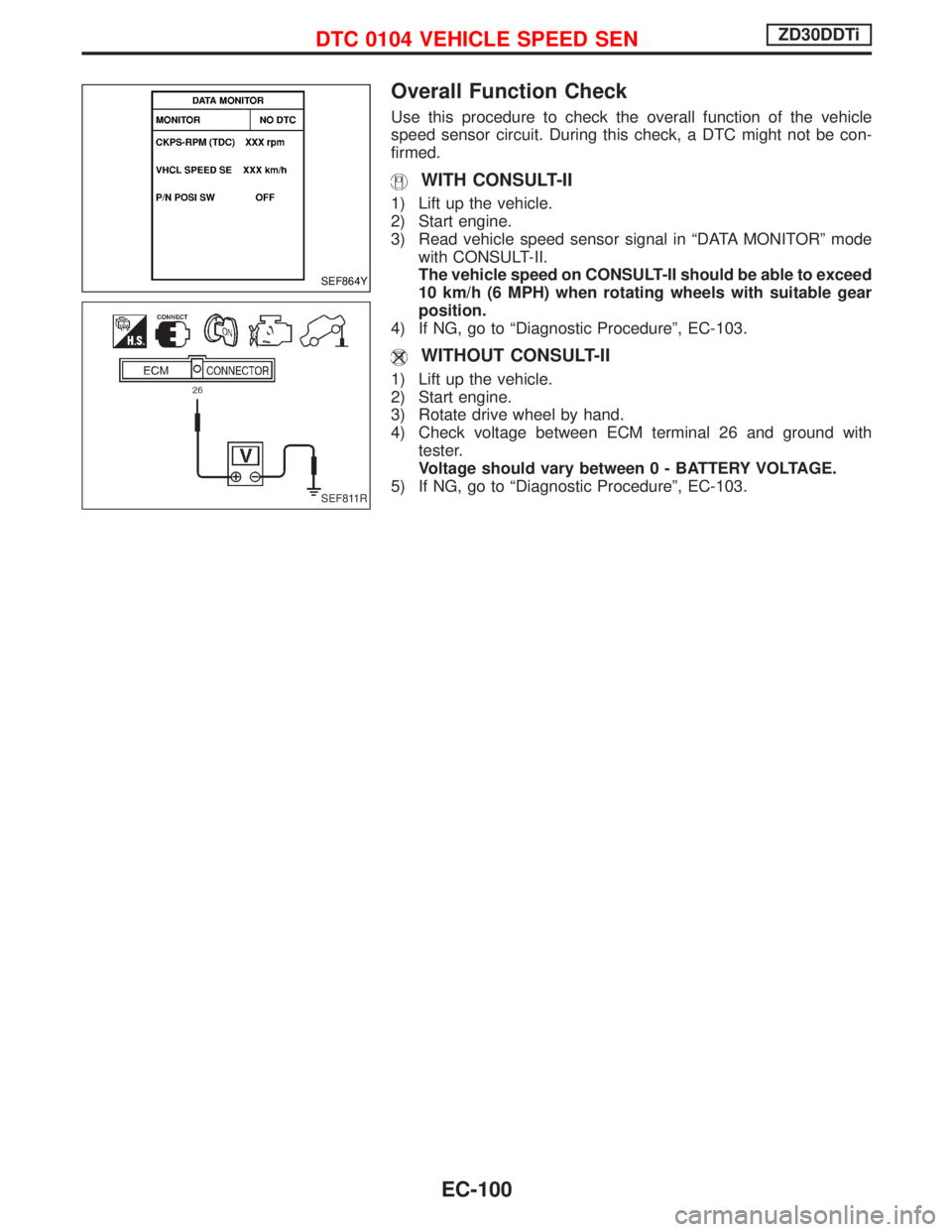

Overall Function Check
Use this procedure to check the overall function of the vehicle
speed sensor circuit. During this check, a DTC might not be con-
firmed.
WITH CONSULT-II
1) Lift up the vehicle.
2) Start engine.
3) Read vehicle speed sensor signal in ªDATA MONITORº mode
with CONSULT-II.
The vehicle speed on CONSULT-II should be able to exceed
10 km/h (6 MPH) when rotating wheels with suitable gear
position.
4) If NG, go to ªDiagnostic Procedureº, EC-103.
WITHOUT CONSULT-II
1) Lift up the vehicle.
2) Start engine.
3) Rotate drive wheel by hand.
4) Check voltage between ECM terminal 26 and ground with
tester.
Voltage should vary between0-BATTERY VOLTAGE.
5) If NG, go to ªDiagnostic Procedureº, EC-103.
SEF864Y
SEF811R
DTC 0104 VEHICLE SPEED SENZD30DDTi
EC-100

Wiring Diagram
LHD MODELS
YEC176A
DTC 0104 VEHICLE SPEED SENZD30DDTi
EC-101

RHD MODELS
YEC177A
DTC 0104 VEHICLE SPEED SENZD30DDTi
Wiring Diagram (Cont'd)
EC-102

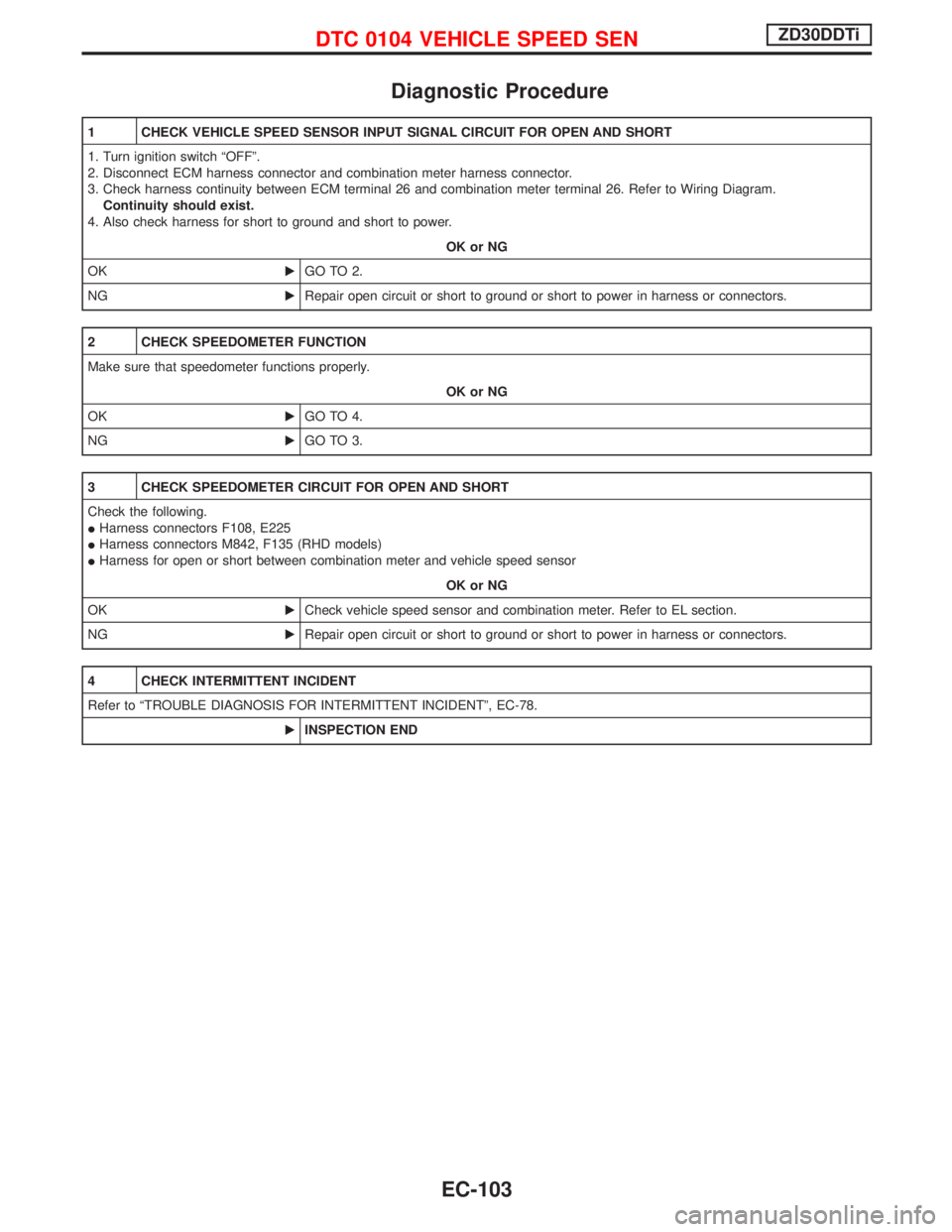

Diagnostic Procedure
1 CHECK VEHICLE SPEED SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector and combination meter harness connector.
3. Check harness continuity between ECM terminal 26 and combination meter terminal 26. Refer to Wiring Diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OKEGO TO 2.
NGERepair open circuit or short to ground or short to power in harness or connectors.
2 CHECK SPEEDOMETER FUNCTION
Make sure that speedometer functions properly.
OK or NG
OKEGO TO 4.
NGEGO TO 3.
3 CHECK SPEEDOMETER CIRCUIT FOR OPEN AND SHORT
Check the following.
IHarness connectors F108, E225
IHarness connectors M842, F135 (RHD models)
IHarness for open or short between combination meter and vehicle speed sensor
OK or NG
OKECheck vehicle speed sensor and combination meter. Refer to EL section.
NGERepair open circuit or short to ground or short to power in harness or connectors.
4 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-78.
EINSPECTION END
DTC 0104 VEHICLE SPEED SENZD30DDTi
EC-103

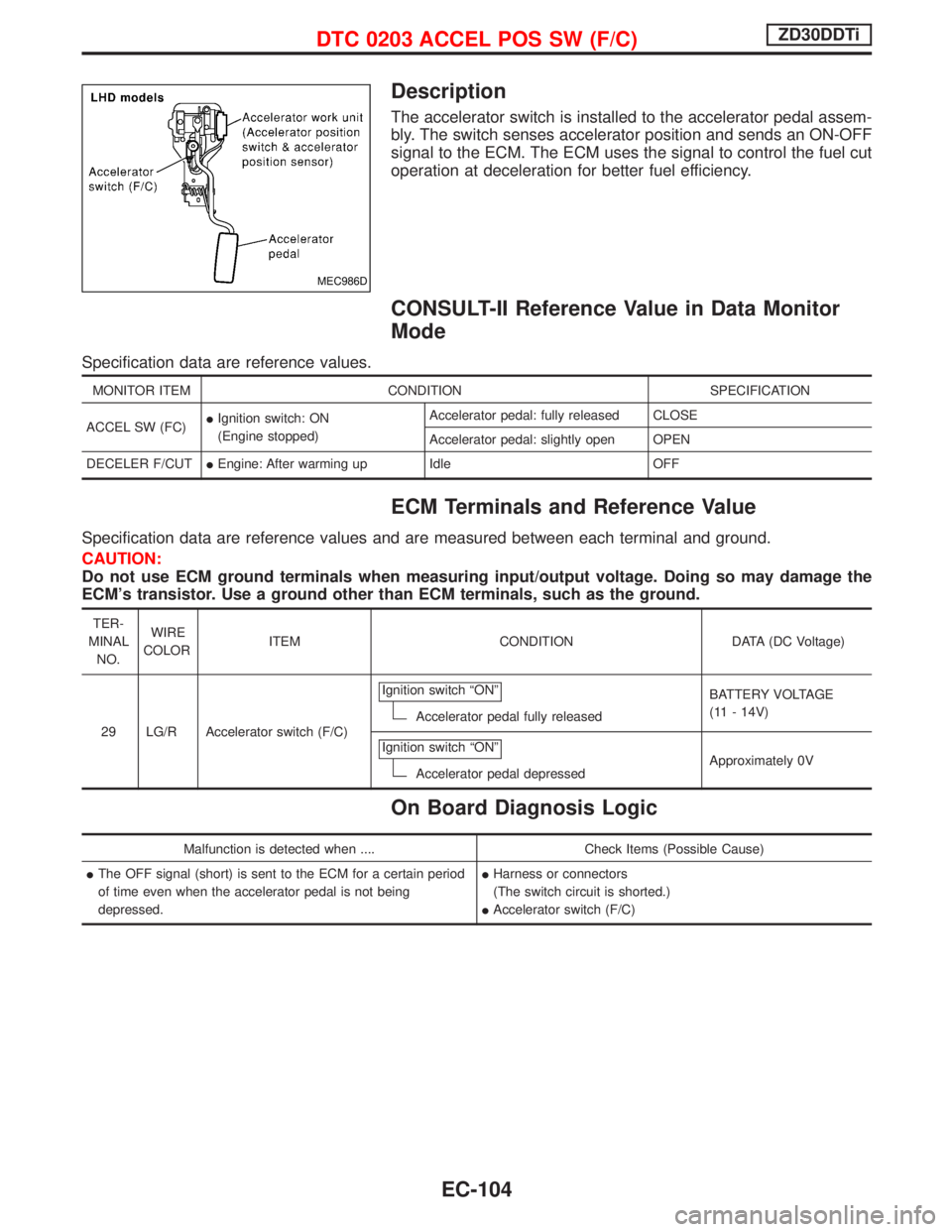

Description
The accelerator switch is installed to the accelerator pedal assem-
bly. The switch senses accelerator position and sends an ON-OFF
signal to the ECM. The ECM uses the signal to control the fuel cut
operation at deceleration for better fuel efficiency.
CONSULT-II Reference Value in Data Monitor
Mode
Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SW (FC)IIgnition switch: ON
(Engine stopped)Accelerator pedal: fully released CLOSE
Accelerator pedal: slightly open OPEN
DECELER F/CUTIEngine: After warming up Idle OFF
ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
29 LG/R Accelerator switch (F/C)Ignition switch ªONº
Accelerator pedal fully releasedBATTERY VOLTAGE
(11 - 14V)
Ignition switch ªONº
Accelerator pedal depressedApproximately 0V
On Board Diagnosis Logic
Malfunction is detected when .... Check Items (Possible Cause)
IThe OFF signal (short) is sent to the ECM for a certain period
of time even when the accelerator pedal is not being
depressed.IHarness or connectors
(The switch circuit is shorted.)
IAccelerator switch (F/C)
MEC986D
DTC 0203 ACCEL POS SW (F/C)ZD30DDTi
EC-104

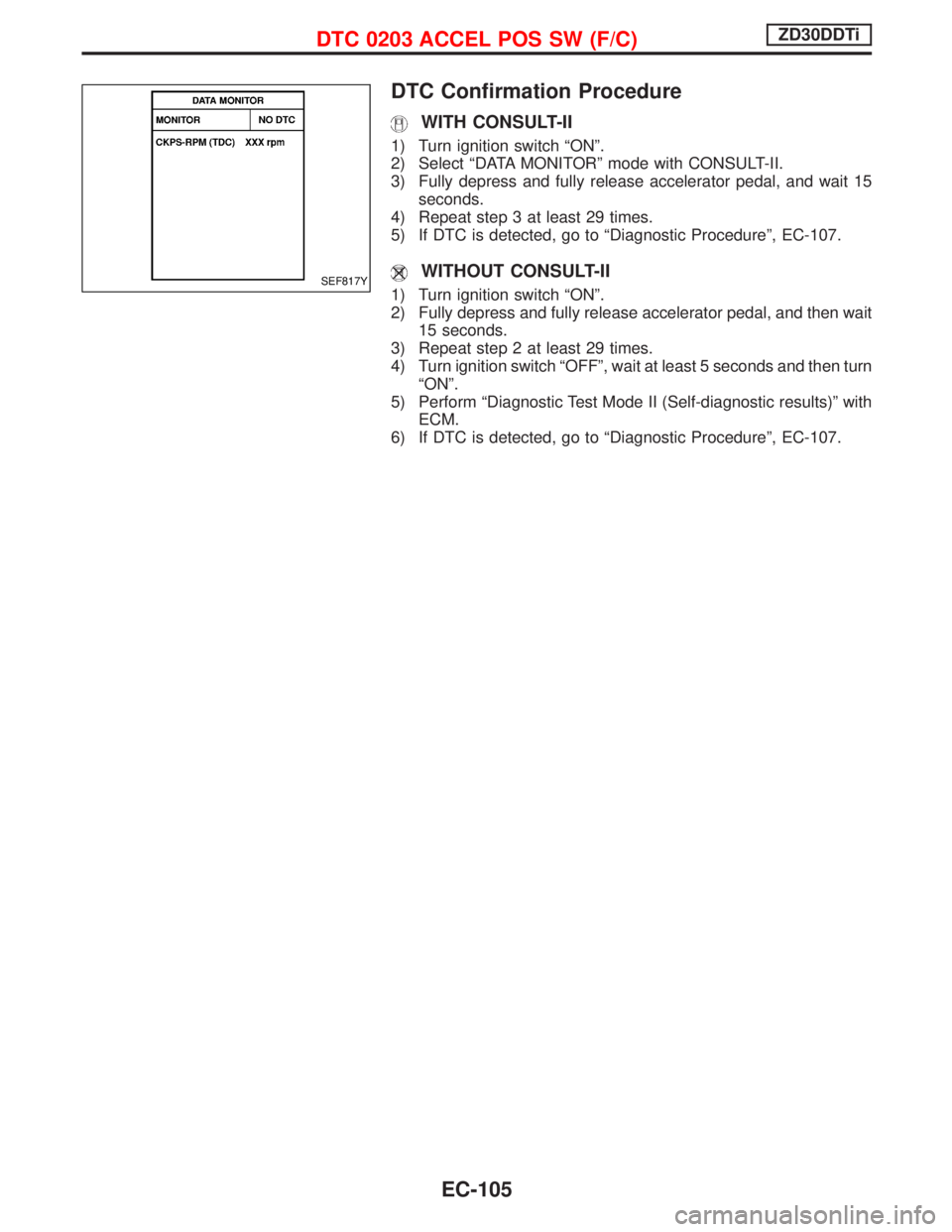

DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Fully depress and fully release accelerator pedal, and wait 15
seconds.
4) Repeat step 3 at least 29 times.
5) If DTC is detected, go to ªDiagnostic Procedureº, EC-107.
WITHOUT CONSULT-II
1) Turn ignition switch ªONº.
2) Fully depress and fully release accelerator pedal, and then wait
15 seconds.
3) Repeat step 2 at least 29 times.
4) Turn ignition switch ªOFFº, wait at least 5 seconds and then turn
ªONº.
5) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with
ECM.
6) If DTC is detected, go to ªDiagnostic Procedureº, EC-107.SEF817Y
DTC 0203 ACCEL POS SW (F/C)ZD30DDTi
EC-105

Wiring Diagram
YEC178A
DTC 0203 ACCEL POS SW (F/C)ZD30DDTi
EC-106

Diagnostic Procedure
1 CHECK ACCELERATOR SWITCH (F/C) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Loosen and retighten engine ground screws.
3. Disconnect accelerator switch (F/C) harness connector.
MEC995D
4. Check harness continuity between accelerator switch (F/C) terminal 3 and engine ground. Refer to Wiring Diagram.
Continuity should exist.
5. Also check harness for short to ground and short to power.
OK or NG
OKEGO TO 3.
NGEGO TO 2.
2 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors F108, E225
IHarness connectors M842, F135 (RHD models)
IHarness for open or short between accelerator switch (F/C) and engine ground
ERepair open circuit or short to ground or short to power in harness or connectors.
3 CHECK ACCELERATOR SWITCH (F/C) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 29 and accelerator switch (F/C) terminal 1. Refer to Wiring Diagram.
Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
OKEGO TO 4.
NGERepair open circuit or short to ground or short to power in harness or connectors.
DTC 0203 ACCEL POS SW (F/C)ZD30DDTi
EC-107

4 CHECK ACCELERATOR SWITCH (F/C)
1. Disconnect accelerator switch harness connector.
2. Check continuity between accelerator switch (F/C) connector terminals 1 and 3 under the following conditions.
MEC997D
MTBL1323
OK or NG
OKEGO TO 5.
NGEReplace accelerator pedal assembly.
5 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-78.
EINSPECTION END
DTC 0203 ACCEL POS SW (F/C)ZD30DDTi
Diagnostic Procedure (Cont'd)
