NISSAN TIIDA 2007 Service Repair Manual

LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa CONSULT-II Function (IPDM E/R) ......................... 81
Parking, License Plate and Tail Lamps Do Not Illu-
minate .................................................................... 81
Parking, License Plate and Tail Lamps Do Not Turn
OFF (After Approx. 10 Minutes) ............................. 85
Bulb Replacement .................................................. 86
PARKING LAMP ................................................. 86
LICENSE PLATE LAMP ...................................... 86
TAIL LAMP .......................................................... 86
Removal and Installation ........................................ 86
PARKING LAMP ................................................. 86
LICENSE PLATE LAMP ...................................... 86
TAIL LAMP .......................................................... 86
REAR COMBINATION LAMP .................................. 87
Components ........................................................... 87
Bulb Replacement .................................................. 87
Removal and Installation ........................................ 87
REMOVAL ........................................................... 87
INSTALLATION ................................................... 87
Disaassembly and Assembly ................................. 87
DISSASEMBLY ................................................... 87
ASSEMBLY ......................................................... 88
INTERIOR LAMP ...................................................... 89
Map lamp ............................................................... 89
BULB REPLACEMENT ....................................... 89
REMOVAL AND INSTALLATION ........................ 89
DISASSEMBLY AND ASSEMBLY ...................... 89
Luggage Compartment Lamp ................................ 90
BULB REPLACEMENT ....................................... 90
REMOVAL AND INSTALLATION ........................ 90
INTERIOR ROOM LAMP .......................................... 91
Component Parts and Harness Connector Location ... 91
System Description ................................................ 91
POWER SUPPLY AND GROUND ...................... 91
SWITCH OPERATION ........................................ 92
INTERIOR ROOM LAMP TIMER OPERATION ... 93
INTERIOR LAMP BATTERY SAVER CONTROL ... 94Schematic ............................................................... 95
Wiring Diagram — INT/L — .................................... 96
Terminals and Reference Values for BCM ............101
How to Proceed With Trouble Diagnosis ..............101
Preliminary Check ................................................101
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM ................................................101
CONSULT-II Function (BCM) ...............................101
CONSULT-II START PROCEDURE ..................101
WORK SUPPORT .............................................101
DATA MONITOR ...............................................101
ACTIVE TEST ...................................................102
WORK SUPPORT .............................................102
DATA MONITOR ...............................................102
Interior Room Lamp Control Does Not Operate
(With Map Lamp) ..................................................103
Interior Room Lamp Control Does Not Operate
(Without Map Lamp) .............................................105
Bulb Replacement ................................................107
ROOM LAMP ....................................................107
Removal and Installation ......................................107
ROOM LAMP ....................................................107
ILLUMINATION .......................................................108
System Description ...............................................108
ILLUMINATION OPERATION BY LIGHTING
SWITCH ............................................................108
EXTERIOR LAMP BATTERY SAVER CONTROL .109
CAN Communication System Description ............109
Schematic .............................................................110
Wiring Diagram — ILL — .......................................111
Bulb Replacement ................................................115
GLOVE BOX LAMP ...........................................115
BULB SPECIFICATIONS ........................................116
Headlamp .............................................................116
Exterior Lamp .......................................................116
Interior Lamp/Illumination .....................................116

LT-4
PRECAUTIONS
Revision: June 20062007 Versa
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00IM8
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NIN G:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

HEADLAMP (FOR USA)
LT-5
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
HEADLAMP (FOR USA)PFP:26010
Component Parts and Harness Connector LocationEKS00HVB
System DescriptionEKS00HVC
Headlamp operation is controlled by the BCM (body control module) based on inputs from the combination
switch (lighting switch). When the lighting switch is placed in the 2ND position, the BCM receives an input sig-
nal requesting the headlamps (and tail lamps) illuminate. The BCM sends a signal, via the CAN communica-
tion lines, to the IPDM E/R (intelligent power distribution module engine room) requesting the headlamps be
turned ON. The CPU (central processing unit) located in the IPDM E/R controls ground for the headlamp high
and headlamp low relay coils. These relays direct power to the respective headlamps, which then illuminate.
OUTLINE
Power is supplied at all times

to headlamp high relay RH and LH (located in IPDM E/R),

to headlamp low relay (located in IPDM E/R),

to ignition relay (located in IPDM E/R),

through 15A fuse (No. 52, located in IPDM E/R) and

through 20A fuse (No. 53, located in IPDM E/R)

to CPU located in IPDM E/R,

through 40A fusible link (letter g , located in fuse and fusible link block)

to BCM terminal 70,

through 10A fuse [No. 8, located in fuse block (J/B)]

to BCM terminal 57, and

through 10A fuse [No. 13, located in fuse block (J/B)]

to combination meter terminal 27.
With the ignition switch in the ON or START position, power is supplied

to the ignition relay (located in IPDM E/R),

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 3, located in fuse block (J/B)]

to combination meter terminal 28.
1. IPDM E/R E46, E47 and E48 2. BCM M18 and M20 (view with glove
box removed)3. Combination switch (lighting switch)
M28
4. Combination meter M24
WKIA5469E

LT-6
HEADLAMP (FOR USA)
Revision: June 20062007 Versa
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 20, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 67

to combination meter terminals 21, 22 and 23

through grounds M57 and M61, and

to IPDM E/R terminals 39 and 59

through grounds E15 and E24.
HEADLAMP OPERATION
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives an input signal requesting the headlamps to illumi-
nate. The BCM then sends a signal, via the CAN communication lines, to the IPDM E/R requesting the low
beam headlamps be turned ON. The CPU located in the IPDM E/R controls ground to the headlamp low relay
coil, which when energized, directs power

through 15A fuse (No. 41, located in IPDM E/R)

through IPDM E/R terminal 54

to headlamp RH terminal 3, and

through 15A fuse (No. 40, located in IPDM E/R)

through IPDM E/R terminal 52

to headlamp LH terminal 3.
Ground is supplied

to headlamp RH and LH terminals 2

through grounds E15 and E24.
With power and ground supplied, low beam headlamps illuminate.
High Beam Operation/Flash-to-Pass Operation
With the lighting switch in 2ND position and high beam switch in the HIGH position, the BCM receives an input
signal requesting the headlamp high beams to illuminate. The flash to pass feature can be used any time and
also sends a signal to the BCM. This input signal is then communicated to the IPDM E/R and the combination
meter via the CAN communication. The CPU located in the IPDM E/R controls the headlamp high relays (LH
and RH), which when energized, directs power

through 10A fuse (No. 34, located in IPDM E/R)

through IPDM E/R terminal 56

to headlamp RH terminal 1, and

through 10A fuse (No. 35, located in IPDM E/R)

through IPDM E/R terminal 55

to headlamp LH terminal 1.
Ground is supplied

to headlamp RH and LH terminal 2

through grounds E15 and E24.
With power and ground supplied, the high beam headlamps illuminate.
The BCM sends a signal, via the CAN communication lines, to the combination meter requesting the high
beam indicator lamp be turned ON.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
Refer to LT- 7 6 , "EXTERIOR LAMP BATTERY SAVER CONTROL" .
CAN COMMUNICATION SYSTEM DESCRIPTIONEKS00HVD
Refer to LAN-4, "SYSTEM DESCRIPTION" .

HEADLAMP (FOR USA)
LT-7
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
SchematicEKS00ICC
WKWA4971E

LT-8
HEADLAMP (FOR USA)
Revision: June 20062007 Versa

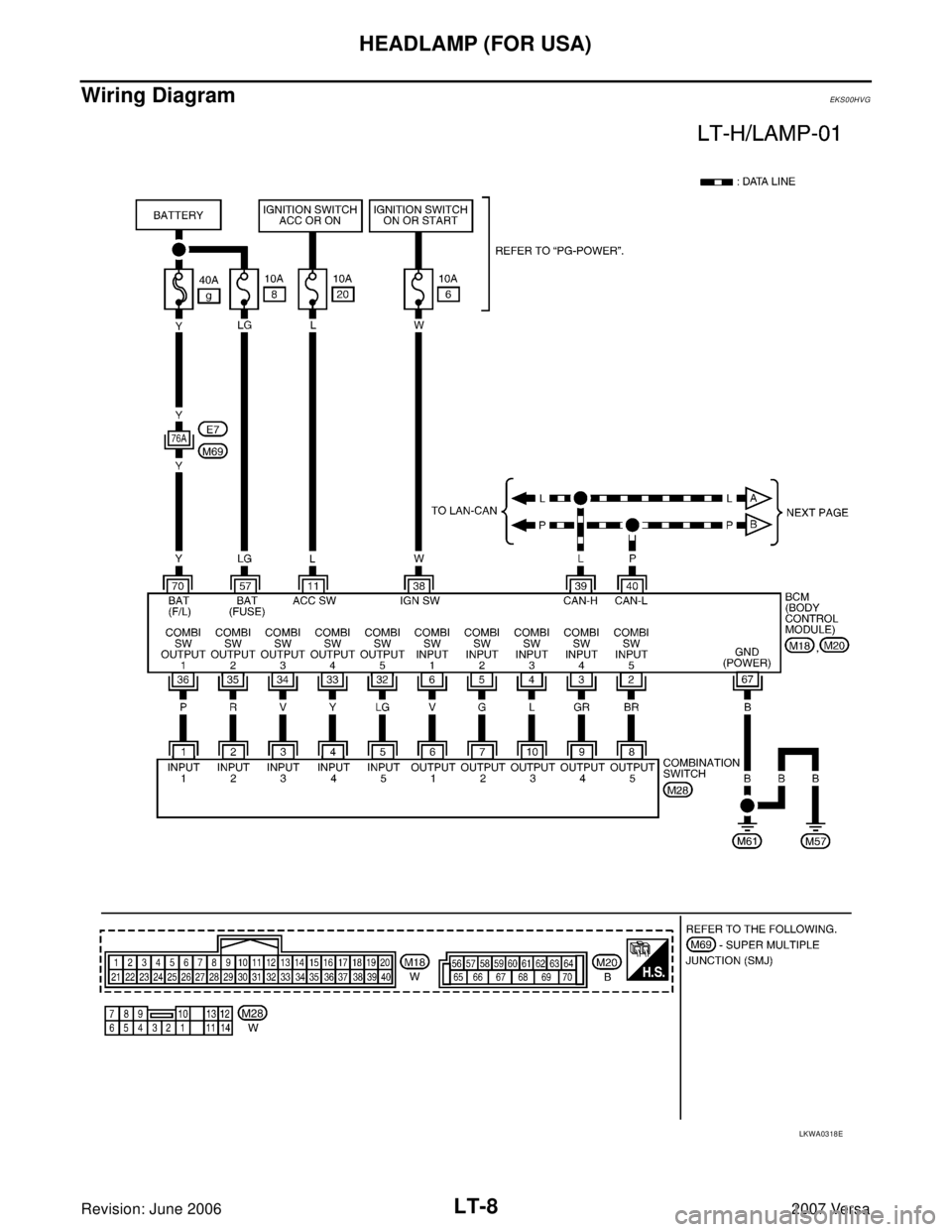

Wiring Diagram EKS00HVG
LKWA0318E

HEADLAMP (FOR USA)
LT-9
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

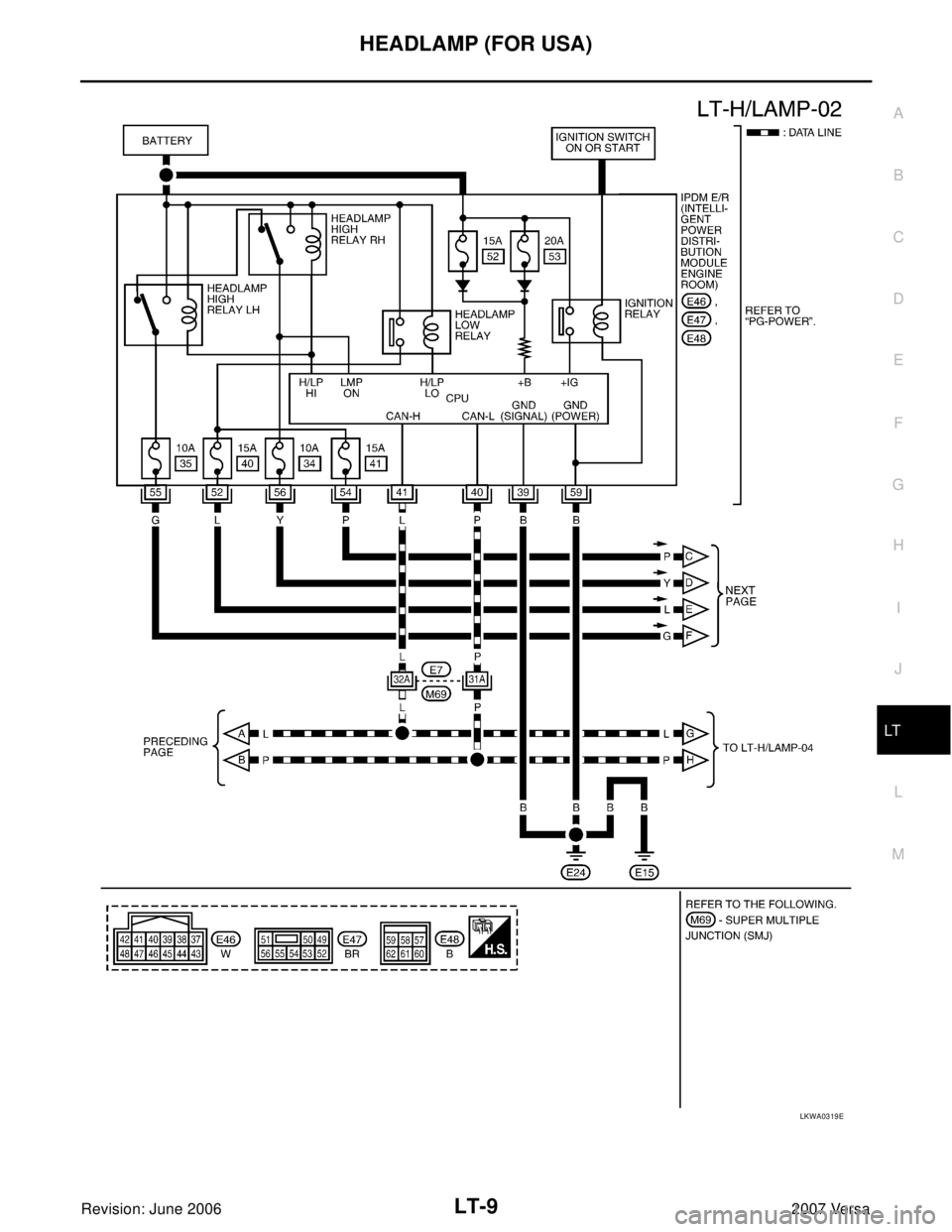

LKWA0319E

LT-10
HEADLAMP (FOR USA)
Revision: June 20062007 Versa

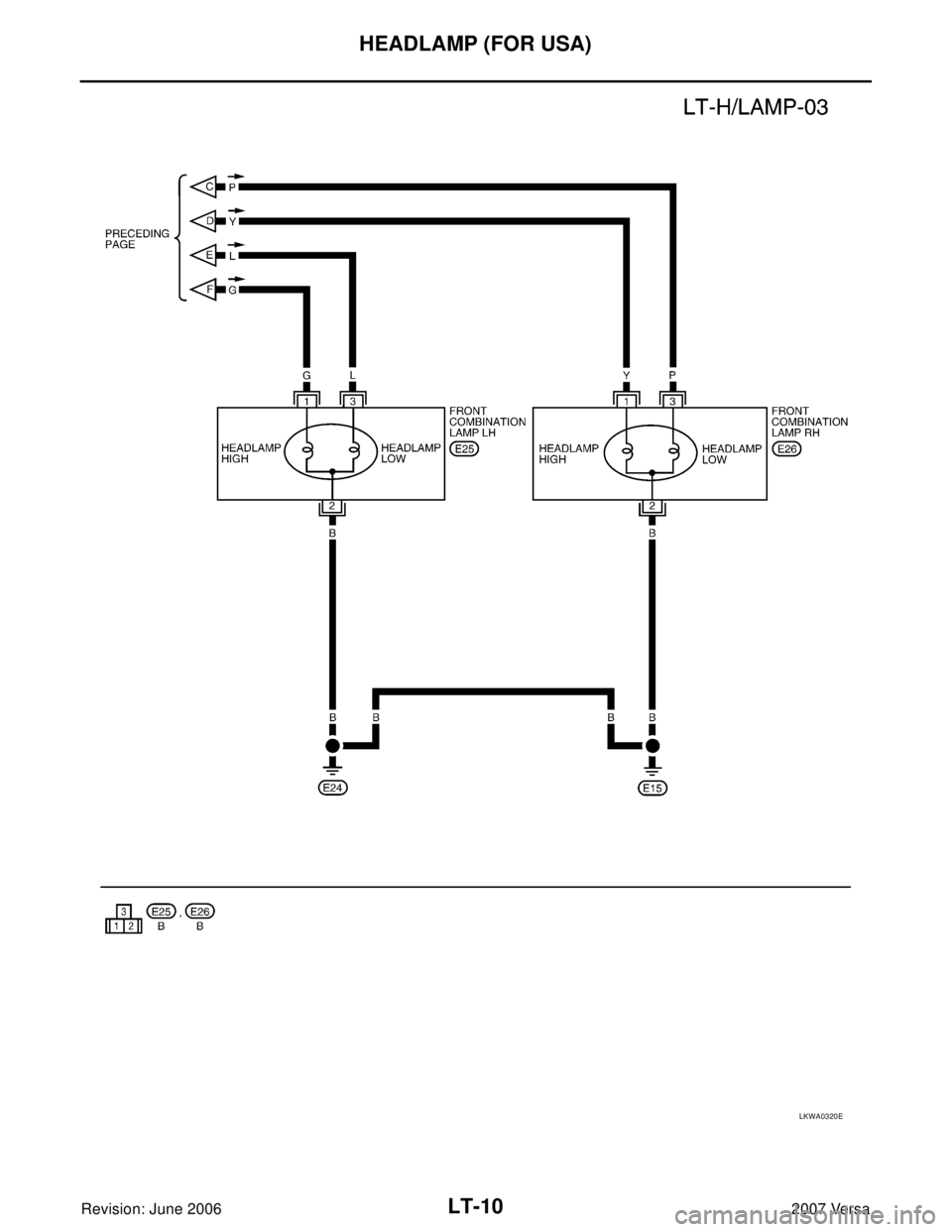

LKWA0320E

HEADLAMP (FOR USA)
LT-11
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

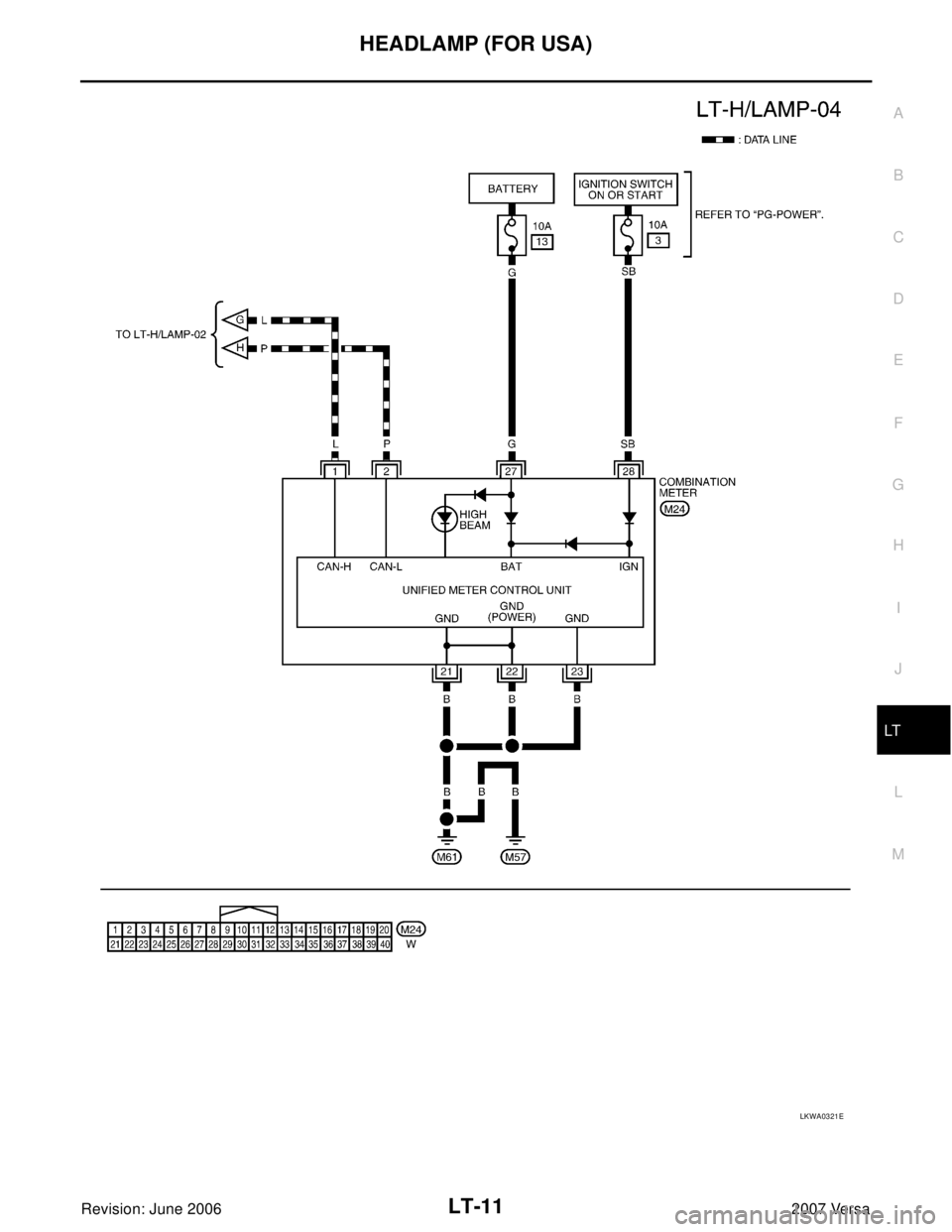

LKWA0321E

LT-12
HEADLAMP (FOR USA)
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEKS00HVH
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Terminals and Reference Values for IPDM E/REKS00HVI
Refer to PG-25, "Terminals and Reference Values for IPDM E/R" .
How to Perform Trouble DiagnosesEKS00HVJ
1. Confirm the symptom or customer complaint.
2. Understand operation, description and function description. Refer to LT- 5 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT-12, "
Preliminary Check" .
4. Check symptom and repair or replace the component.
5. Do the headlamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckEKS00HVK
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Check" .
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR IPDM E/R
Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .
CONSULT-II Function (BCM)EKS00IM9
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to BCS-17, "CONSULT-II START PROCEDURE" .
WORK SUPPORT
Display Item List
DATA MONITOR
Display Item List
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Item Description CONSULT-II Factory setting
BATTERY SAVER SETExterior lamp battery saver control mode can be changed
in this mode. Selects exterior lamp battery saver control
mode between ON/OFF.ON×
OFF —
Monitor item Contents
IGN ON SW "ON/OFF" Displays "IGN position (ON)/OFF, ACC position (OFF)" judged from the ignition switch signal.
ACC ON SW "ON/OFF" Displays "ACC (ON)/OFF, Ignition OFF (OFF)" status judged from ignition switch signal.
HI BEAM SW "ON/OFF"Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
