INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa

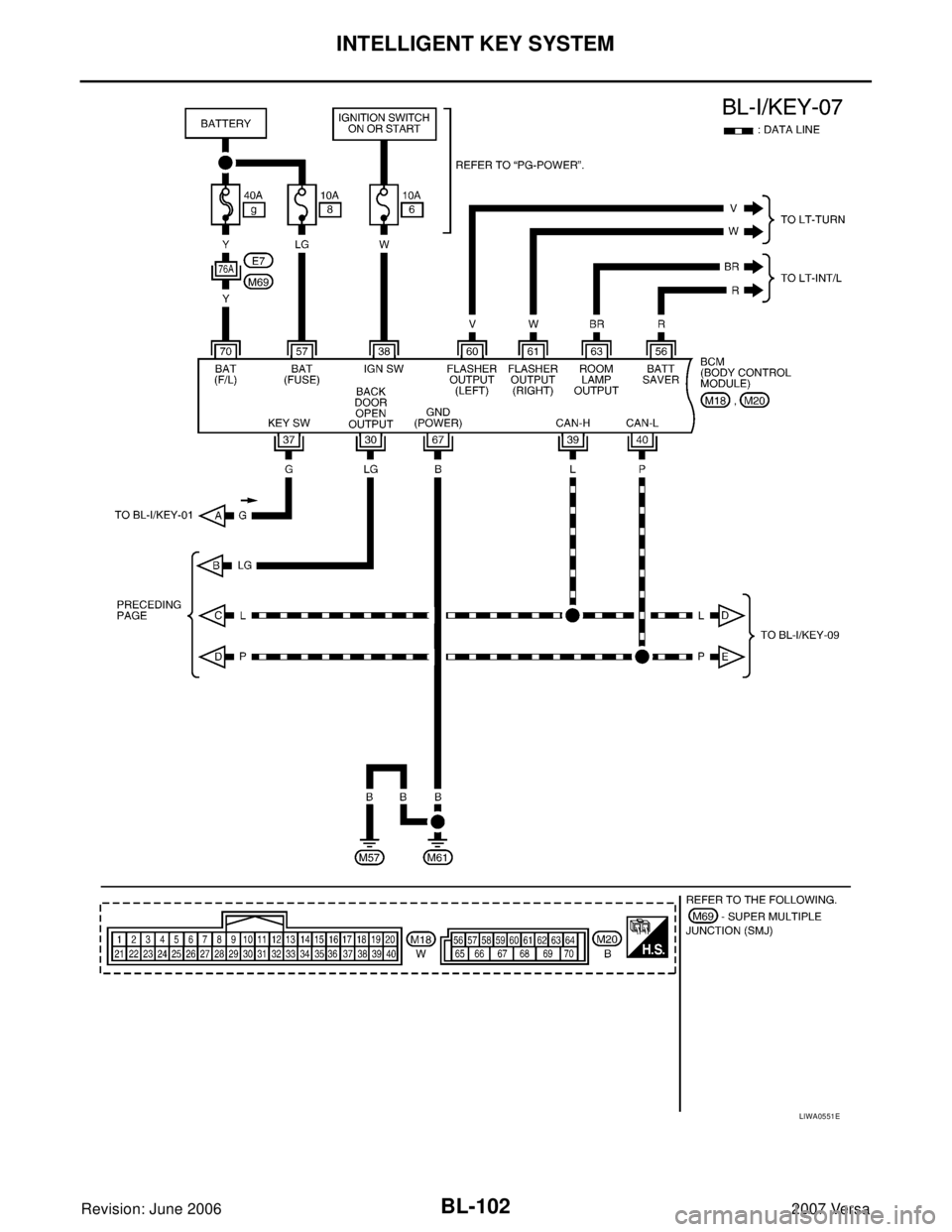

LIWA0551E

INTELLIGENT KEY SYSTEM
BL-103
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

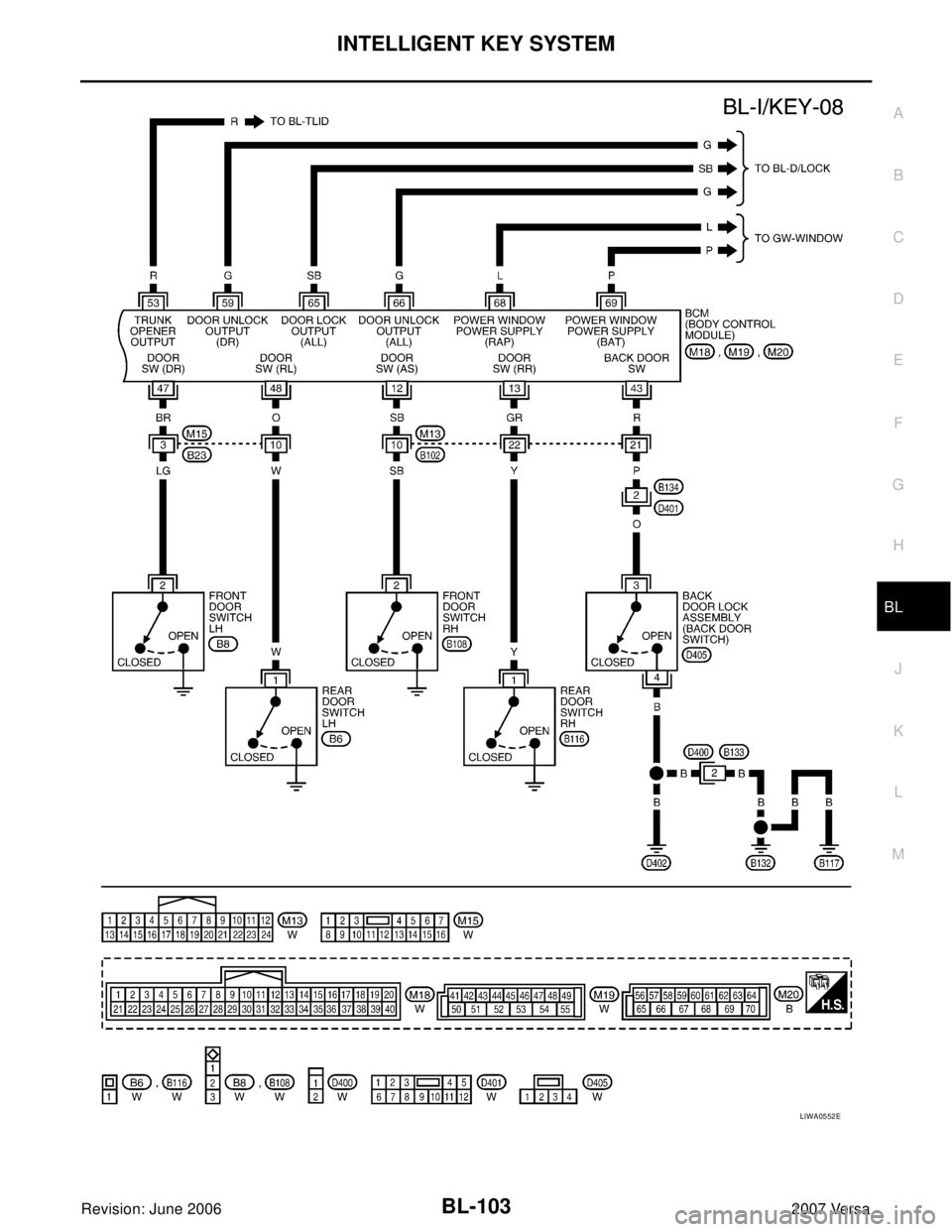

LIWA0552E

BL-104
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa

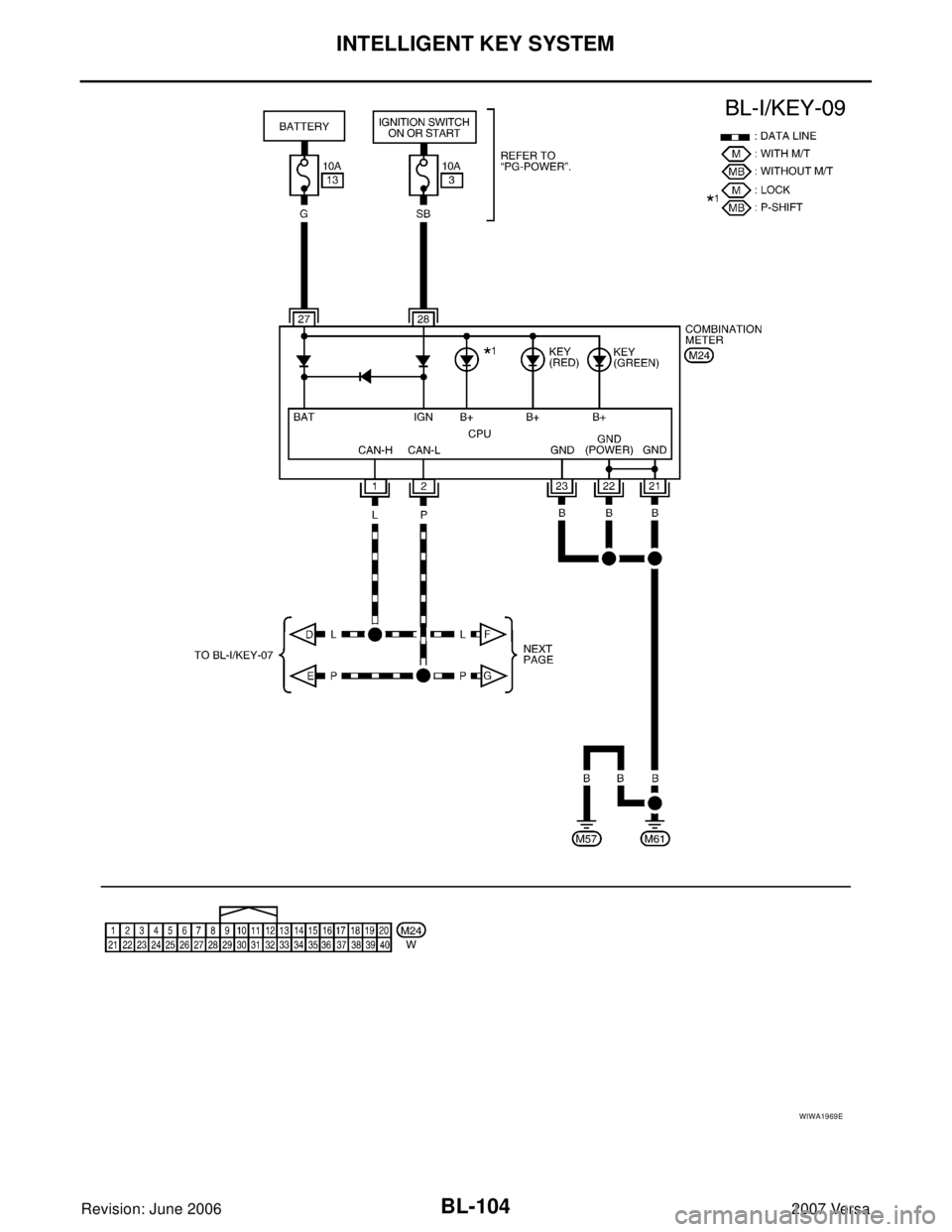

WIWA1969E

INTELLIGENT KEY SYSTEM
BL-105
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

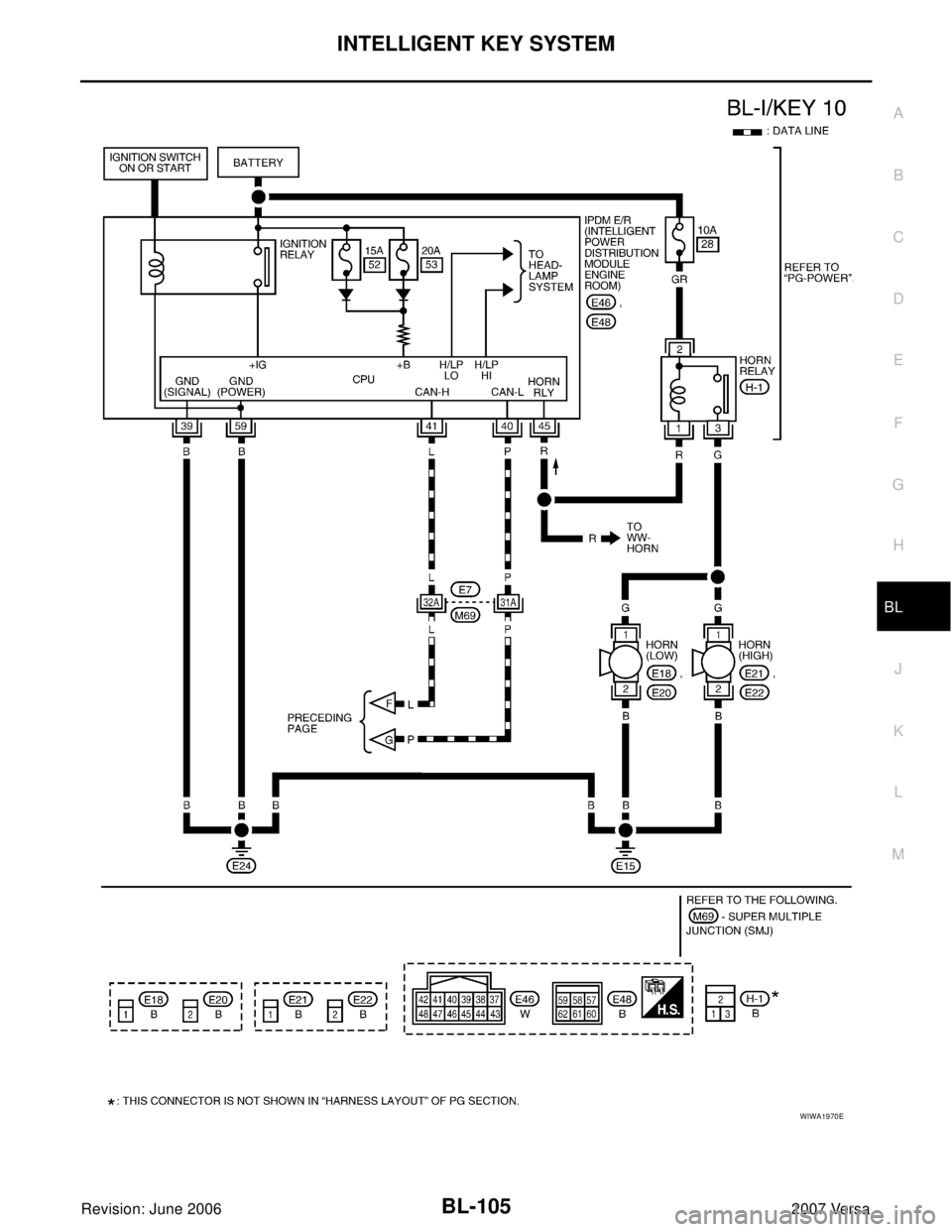

WIWA1970E

BL-106
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
Intelligent Key Unit Harness Connector Terminal LayoutEIS0 09 D4
Terminals and Reference Values for Intelligent Key UnitEIS00921
WIIA1168E
Te r m i n a lWire
ColorItemCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
1RSteering lock solenoid
power supplyLOCK — 5
2 L CAN-H — — —
3 P CAN-L — — —
4OIntelligent Key warning
buzzerLOCKOperate door request
switch.Buzzer OFF Battery voltage
Sound buzzer 0
5GFront door request
switch LH—Press door request switch (driver side). 0
Other than above 5
6 Y Ignition switch (ON) ON — Battery voltage
7 LG Key switch LOCKInsert mechanical key into ignition switch. Battery voltage
Remove mechanical key from ignition
switch.0
10
*1WCVT device (park posi-
tion switch)ONShift lever in park position. 0
Other than above Battery voltage
11 SB Power source (Fuse) — — Battery voltage
12 B Ground — — 0
13 VInstrument panel
antenna (+) signal
LOCK

Any door open → all door close

Press ignition knob switch: ON (Ignition
knob switch)
14 LGInstrument panel
antenna (-) signal
15 LFront console antenna
(+) signal
LOCK

Any door open → all door close

Press ignition knob switch: ON (Ignition
knob switch)
16 PFront console antenna
(-) signal
PIIB5502J
PIIB5502J

INTELLIGENT KEY SYSTEM
BL-107
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
17 WRear bumper antenna
(+) signal
LOCK Press back door request switch.
18 BRear bumper antenna
(-) signal
19 VFront outside antenna
LH (+) signal
LOCK Press door request switch LH.
20 PFront outside antenna
LH (-) signal
22
*2BR Key interlock solenoid —With Intelligent Key present or mechani-
cal key in ignition cylinder, press "PUSH"
button on ignition cylinder.Battery voltage
Other than above 0
23 Back door open output —Back door open (switch closed) 0
Back door closed (switch open) 5
24 VBack door opener
switch—Press and hold back door switch. 0
Other than above 5
25 LFront door request
switch RH—Press front door request switch RH. 0
Other than above 5
26 SB Stop lamp switch —Depress brake pedal Battery voltage
Other than above 0
27 W Ignition knob switch —Press ignition switch. Battery voltage
Release ignition switch. 0
28 YUnlock sensor
(driver side)—Door (driver side) is locked. 5
Door (driver side) is unlocked. 0
29 VBack door request
switch—Press back door request switch. 0
Other than above 5
31 BRSteering lock solenoid
ground—— 0
32 GRSteering lock solenoid
communication signalLOCKWhen Intelligent Key is inside vehicle,
press ignition knob switch.
Other than above 5 Te r m i n a lWire
ColorItemCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
SIIA1910J
SIIA1910J
SIIA1911J

BL-108
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
*1: With continuously variable transmission (CVT).
*2: With manual transmission (M/T).
Steering Lock Solenoid Harness Connector Terminal LayoutEIS0 09 D5
Terminals and Reference Values for Steering Lock SolenoidEIS00922
Terminals and Reference Values for BCMEIS00923
Refer to BCS-12, "Terminals and Reference Values for BCM" .
33 RRear floor antenna (+)
signal
LOCK

Any door open → all door close

Press ignition knob switch: ON (Ignition
knob switch)
34 GRear floor antenna (-)
signal
37 BRFront outside antenna
RH (+) signal
LOCK Press door request switch RH.
38 YFront outside antenna
RH (-) signal Te r m i n a lWire
ColorItemCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
PIIB5502J
SIIA1910J
WIIA1283E
Te r m i -
nalWire
ColorSignal DesignationCondition
Voltage (V)
Approx. Ignition
Switch Posi-
tionOperation or Conditions
1 P Battery power supply LOCK — Battery voltage
2RSteering lock solenoid
power supplyLOCK — 5
3GRSteering lock solenoid
communication signalLOCKWhen Intelligent Key is inside
vehicle, press ignition knob
switch.
Other than the above 5
4BRSteering lock solenoid
ground—— 0
SIIA1911J

INTELLIGENT KEY SYSTEM
BL-109
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Trouble Diagnosis ProcedureEIS00924
PRELIMINARY CHECK
1. GET SYMPTOMS
Listen to customer concerns. (Get symptoms)
NOTE:
If customer reports a “No start” condition, request all Intelligent Keys to be brought to the dealer in case of
Intelligent Key system malfunction.
Intelligent Key or mechanical key service request>>For further information, refer to CONSULT-II operation
manual.
Malfunctions>>GO TO 2.
2. CHECK BCM CONFIGURATION
Confirm BCM configuration for "I-KEY" is set to "WITH". Refer to BCS-19, "
READ CONFIGURATION PROCE-
DURE" .
OK or NG
OK >> GO TO 3.
NG >> Change BCM configuration for "I-KEY" to "WITH". Refer to BCS-21, "
WRITE CONFIGURATION
PROCEDURE" .
3. START ENGINE WITH INTELLIGENT KEY
Check if the engine could be started by all registered Intelligent Keys.
The engine cannot be started by some Intelligent Keys>>Intelligent Key is low battery or malfunction. Refer
to BL-159, "
INTELLIGENT KEY BATTERY INSPECTION" .
The engine cannot be started by all Intelligent Keys>>GO TO 4.
The engine can be started by all Intelligent Keys>>GO TO 5.
4. CHECK “KEY” WARNING LAMP ILLUMINATION
When pushing the ignition switch, check if “KEY” warning lamp in combination meter illuminates.
KEY warning lamp illuminates green>>GO TO BL-114, "
KEY WARNING LAMP (GREEN) ILLUMINATES" .
KEY warning lamp illuminates red>>GO TO BL-114, "
KEY WARNING LAMP (RED) ILLUMINATES" .
Does not illuminate>>GO TO BL-115, "
KEY WARNING LAMP DOES NOT ILLUMINATE" .
5. START ENGINE WITH MECHANICAL KEY
Check if the engine could be started by all registered mechanical keys.
No start by some mechanical keys>>Register mechanical key. Refer to CONSULT-II operation manual.
Engine starts by mechanical or Intelligent Key>>GO TO BL-116, "
ENGINE START CONDITION CHECK" .
No start by mechanical key or Intelligent Key>>GO TO NATS BL-220, "
WORK FLOW" .
Engine starts with Intelligent Key or mechanical key>>GO TO BL-110, "
WORK FLOW" .
The engine can be started by all mechanical keys>>GO TO 6.
6. PERFORM SELF-DIAGNOSIS
1. Turn ignition switch to ON by carrying the Intelligent Key.
2. Perform self-diagnosis of Intelligent Key system with CONSULT-II.
DTC is displayed>>GO TO B L - 111 , "
SELF-DIAGNOSTIC RESULTS" .
DTC is not displayed>>GO TO BL-115, "
NON DTC ITEM" .

BL-110
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
WORK FLOW
Before performing the work flow, carry out preliminary check. Refer to BL-109, "PRELIMINARY CHECK" .
1. CHECK FUNCTION OF INTELLIGENT KEY SYSTEM
Check if the function related to Intelligent Key system operates normally.
All functions of Intelligent Key system do not operate>>GO TO BL-116, "
ALL FUNCTIONS OF INTELLI-
GENT KEY SYSTEM DO NOT OPERATE" .
Specific function of Intelligent Key system does not operate>>GO TO 2.
2. CHECK POWER DOOR LOCK OPERATION
Check if door lock/unlock function operates with door lock and unlock switch.
OK or NG
OK >> GO TO 3.
NG >> GO TO BL-23, "
POWER DOOR LOCK SYSTEM" .
3. CHECK DOOR REQUEST SWITCH OPERATION
Check if door lock/unlock function operates with request switch.
OK or NG
OK >> GO TO 4.
NG >> GO TO BL-116, "
DOOR LOCK/UNLOCK FUNCTION MALFUNCTION" .
4. CHECK REMOTE KEYLESS FUNCTION
Check if the following function responds with Intelligent Key button.

Door lock/unlock function

Panic alarm function
OK or NG
OK >> GO TO 5.
NG >> GO TO BL-118, "
REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION" .
5. CHECK HAZARD AND BUZZER REMINDER FUNCTION
Check if hazard and buzzer reminder function responds with the following switches.

Door request switch

Intelligent Key button
OK or NG
OK >> GO TO 6.
NG >> GO TO BL-119, "
HAZARD AND BUZZER REMINDER FUNCTION MALFUNCTION" .
6. CHECK WARNING CHIME FUNCTION
Check if warning chime function operates normally according to system description. Refer to BL-90, "
WARN-
ING CHIME/BUZZER/LAMPS FUNCTION" .
OK or NG
OK >> GO TO 7.
NG >> GO TO BL-120, "
WARNING CHIME/BUZZER FUNCTION MALFUNCTION" .
7. CHECK WARNING LAMP FUNCTION
Check if warning lamp could be turn on normally according to system description. Refer to BL-90, "
WARNING
CHIME/BUZZER/LAMPS FUNCTION" .
OK or NG
OK >> End of inspection.
NG >> GO TO BL-122, "
WARNING LAMP FUNCTION MALFUNCTION" .

INTELLIGENT KEY SYSTEM
BL-111
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
CONSULT-II Functions (INTELLIGENT KEY)EIS00925
CONSULT-II can display each diagnostic item using the diagnostic test modes as shown below.
CONSULT-II Start ProcedureEIS00926
BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
CONSULT-II Application ItemsEIS00927
SELF-DIAGNOSTIC RESULTS
DATA MONITOR
*: Select “SELECTION FROM MENU”.Part to be diagnosed Test item, Diagnosis mode Description
Intelligent KeyWORK SUPPORT Changes settings for each function.
SELF-DIAG RESULTS Intelligent Key unit performs CAN communication diagnosis.
DATA MONITOR Displays Intelligent Key unit input data in real time.
CAN DIAGNOSTIC SUPPORT
MONITORThe results of transmit/receive diagnosis of CAN Communication can
be read.
ACTIVE TESTOperation of electrical loads can be checked by sending driving signal
to them.
ECU PART NUMBER Displays Intelligent Key unit part No.
Self-diag results Description Diagnosis procedure Reference page
CAN COMM Malfunction is detected in CAN communication. Check CAN communication system.BL-122
CAN COMM2 Intelligent Key unit internal malfunction Check CAN communication system.BL-122
STRG COMMMalfunction is detected in communication of Intelli-
gent Key unit and steering lock solenoid.Check steering lock solenoid.BL-144
I-KEY C/U Intelligent Key unit internal malfunction Replace Intelligent Key unit.BL-160
IMMU NATS malfunction Check NATS.BL-212
Monitor item Content
PUSH SW Indicates [ON/OFF] condition of ignition knob switch.
KEY SW Indicates [ON/OFF] condition of key switch.
DR REQ SW Indicates [ON/OFF] condition of door request switch (driver side).
AS REQ SW Indicates [ON/OFF] condition of door request switch (passenger side).
BD/TR REQ SW Indicates [ON/OFF] condition of back door request switch.
IGN SW Indicates [ON/OFF] condition of ignition switch in ON position.
ACC SW Indicates [ON/OFF] condition of ignition switch in ACC position.
STOP LAMP SW Indicates [ON/OFF] condition of stop lamp switch.
P RANGE SW Indicates [ON/OFF] condition of shift lever park position.
BD OPEN SW Indicates [ON/OFF] condition of back door open switch.
DOOR LOCK SIG* Indicates [ON/OFF] condition of door lock signal from Intelligent Key button.
DOOR UNLOCK SIG* Indicates [ON/OFF] condition of door unlock signal from Intelligent Key button
DOOR SW DR*Indicates [OPEN/CLOSE] condition of front door switch driver side from BCM via CAN communica-
tion line.
DOOR SW AS*Indicates [OPEN/CLOSE] condition of front door switch passenger side from BCM via CAN commu-
nication line.
DOOR SW RR* Indicates [OPEN/CLOSE] condition of rear door switch RH from BCM via CAN communication line.
DOOR SW RL* Indicates [OPEN/CLOSE] condition of rear door switch LH from BCM via CAN communication line.
TRUNK SW* This is displayed even when it is not equipped.
VEHICLE SPEED* Indicates [km/h] condition of vehicle speed.
