NISSAN TIIDA 2008 Service Repair Manual

INTELLIGENT KEY SYSTEM
BL-87
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

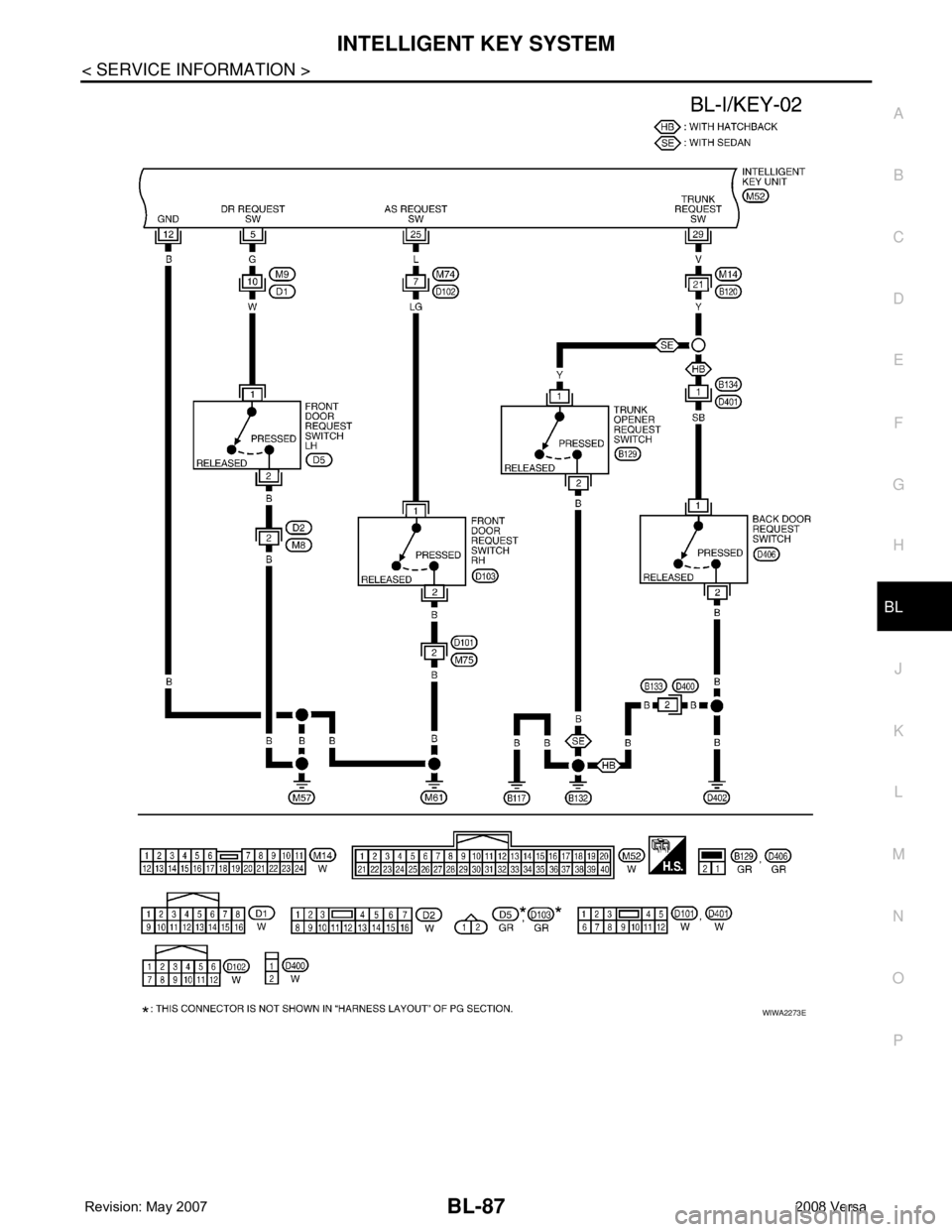

WIWA2273E

BL-88
< SERVICE INFORMATION >
INTELLIGENT KEY SYSTEM

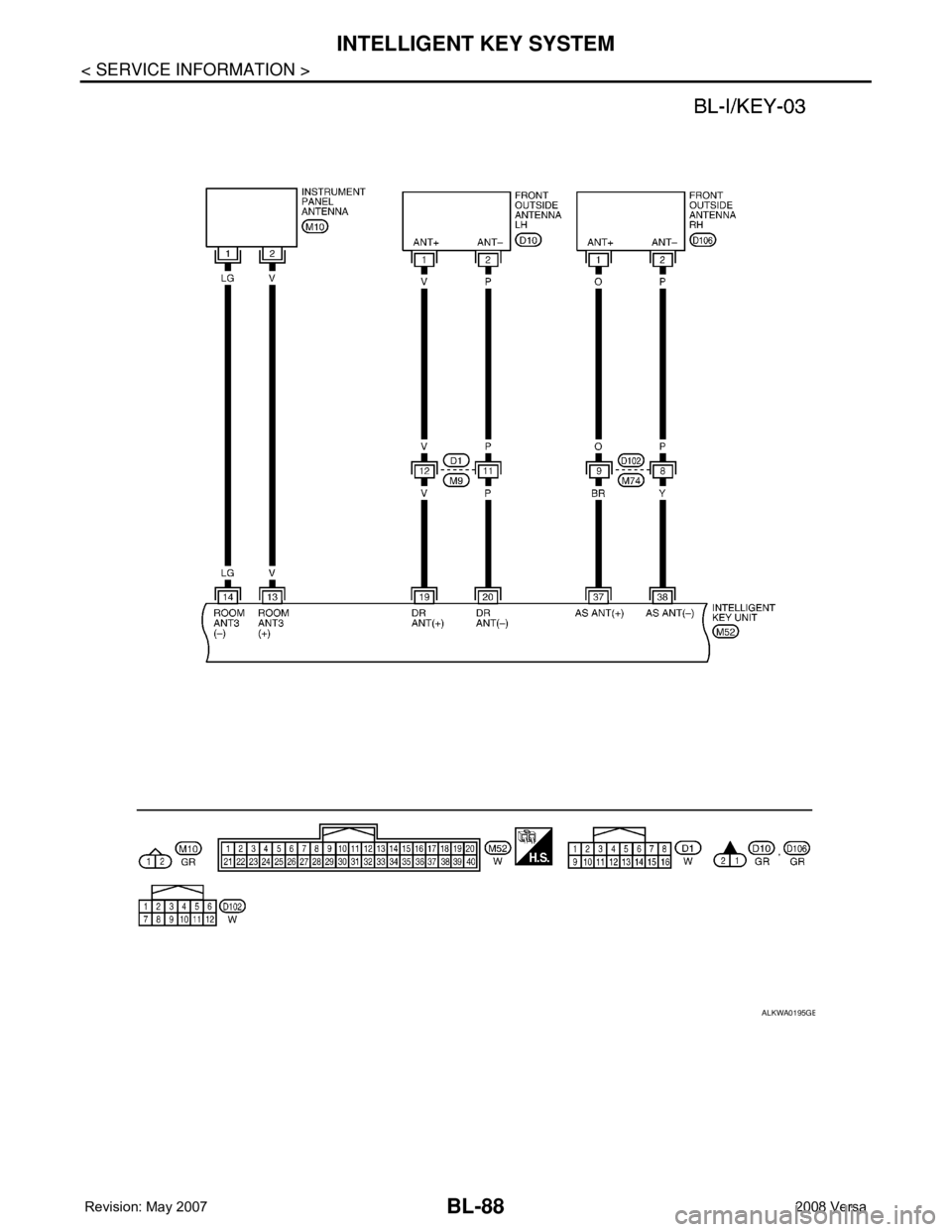

ALKWA0195GB

INTELLIGENT KEY SYSTEM
BL-89
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

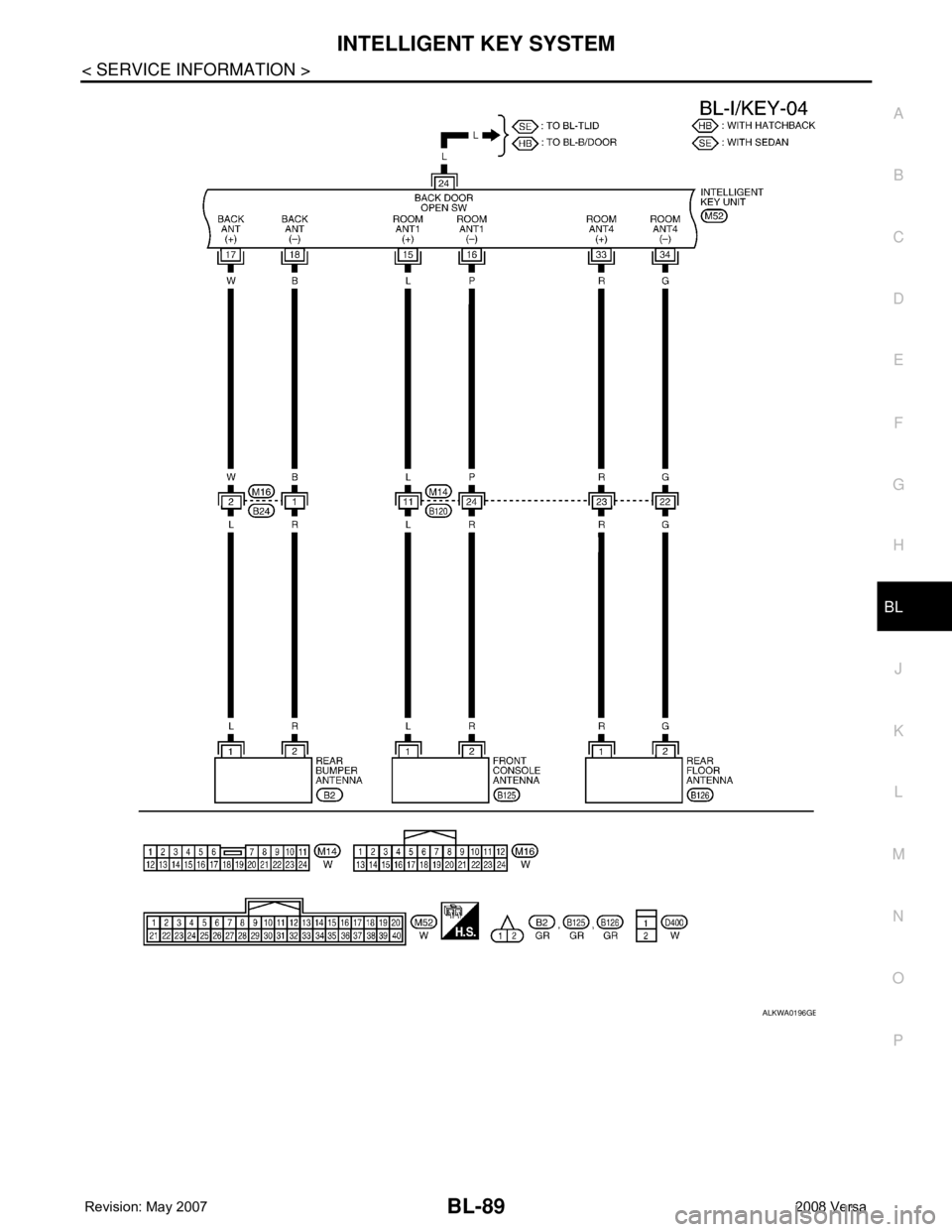

ALKWA0196GB

BL-90
< SERVICE INFORMATION >
INTELLIGENT KEY SYSTEM

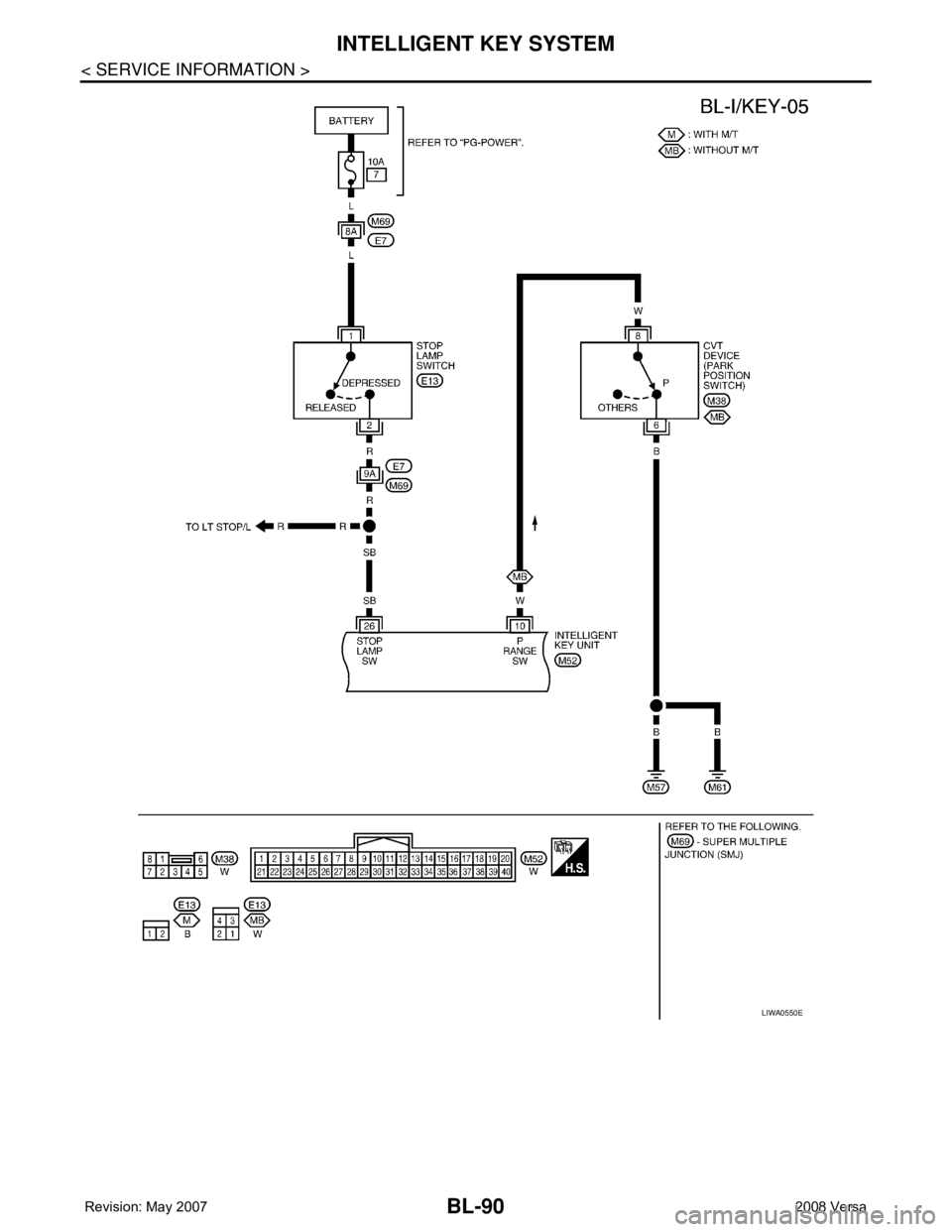

LIWA0550E

INTELLIGENT KEY SYSTEM
BL-91
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

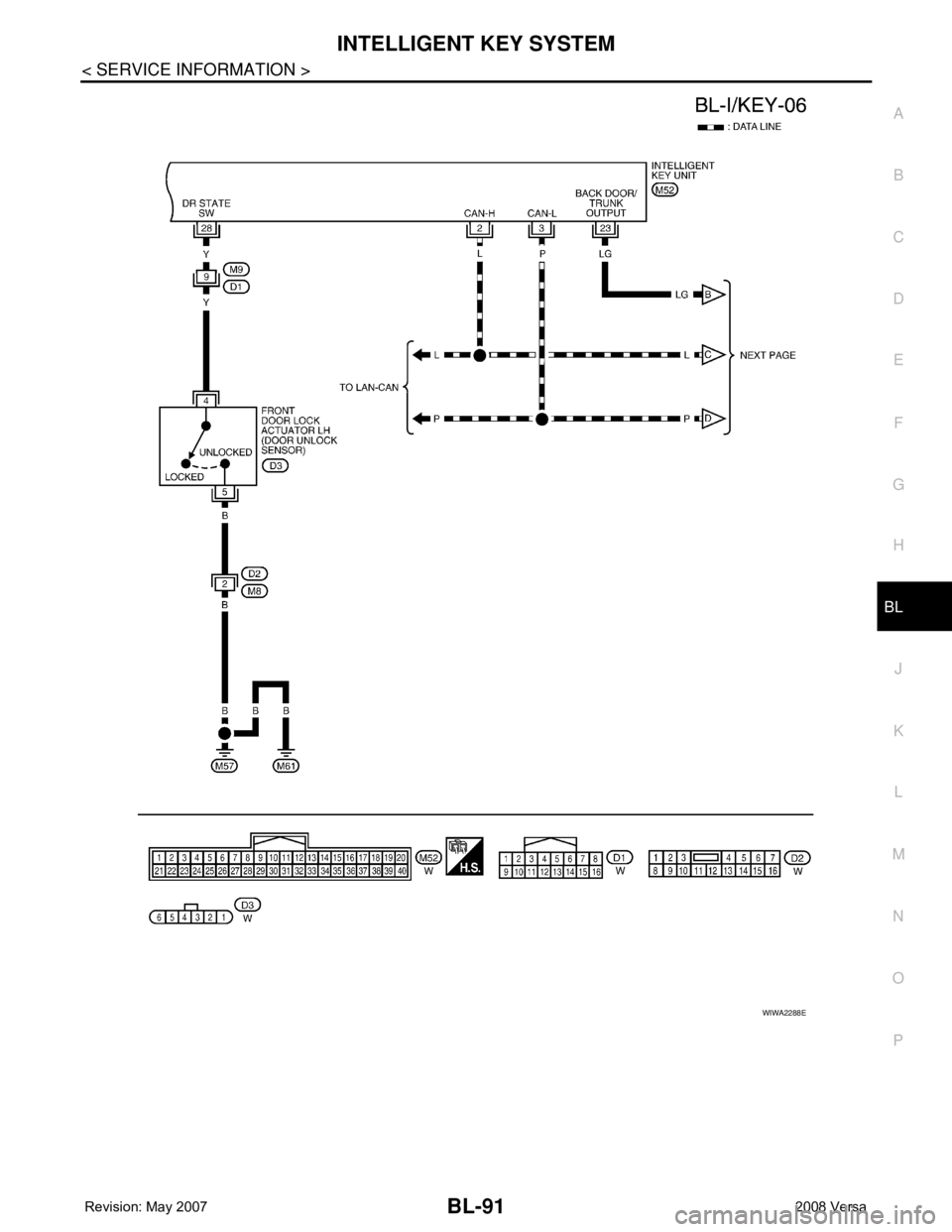

WIWA2288E

BL-92
< SERVICE INFORMATION >
INTELLIGENT KEY SYSTEM
WIWA2276E

INTELLIGENT KEY SYSTEM
BL-93
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

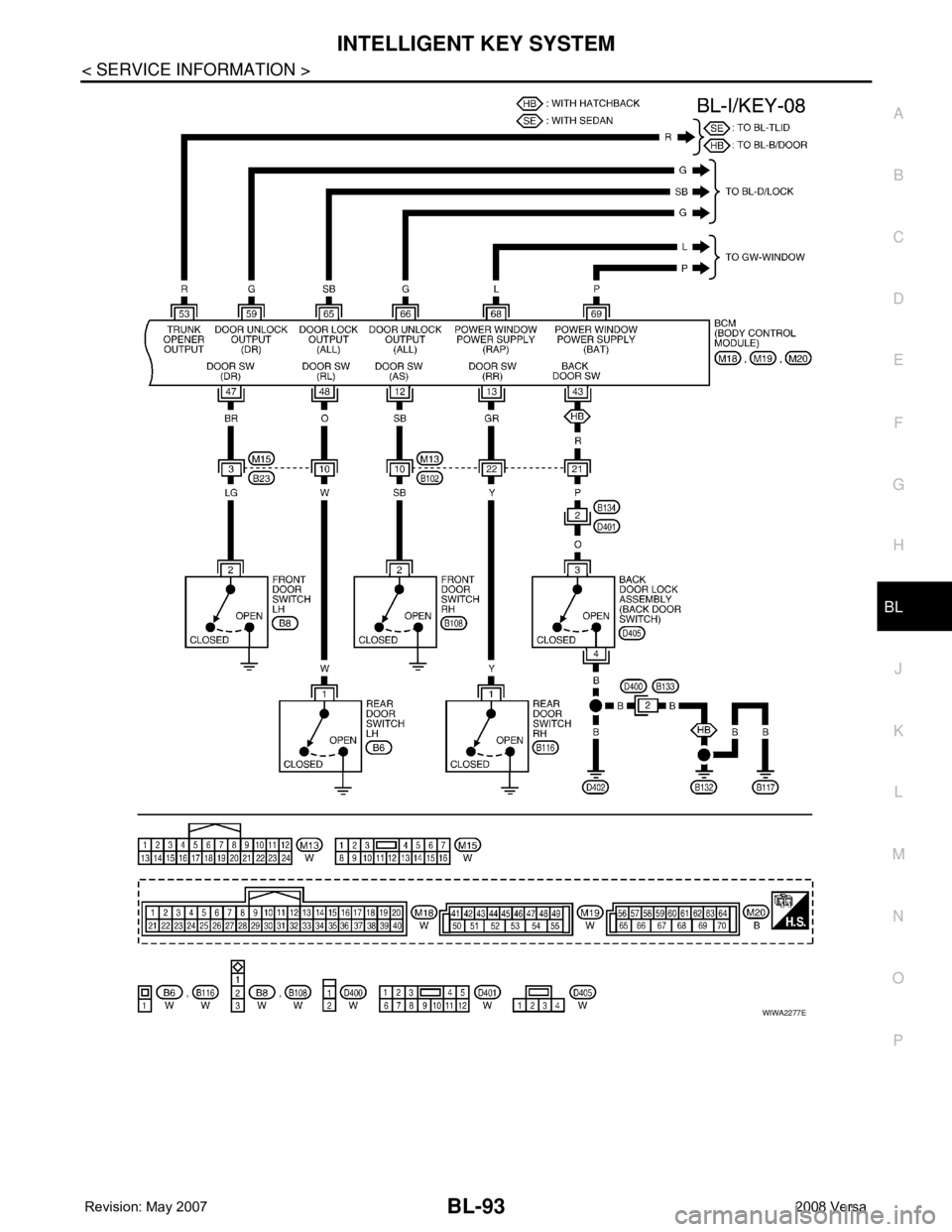

WIWA2277E

BL-94
< SERVICE INFORMATION >
INTELLIGENT KEY SYSTEM

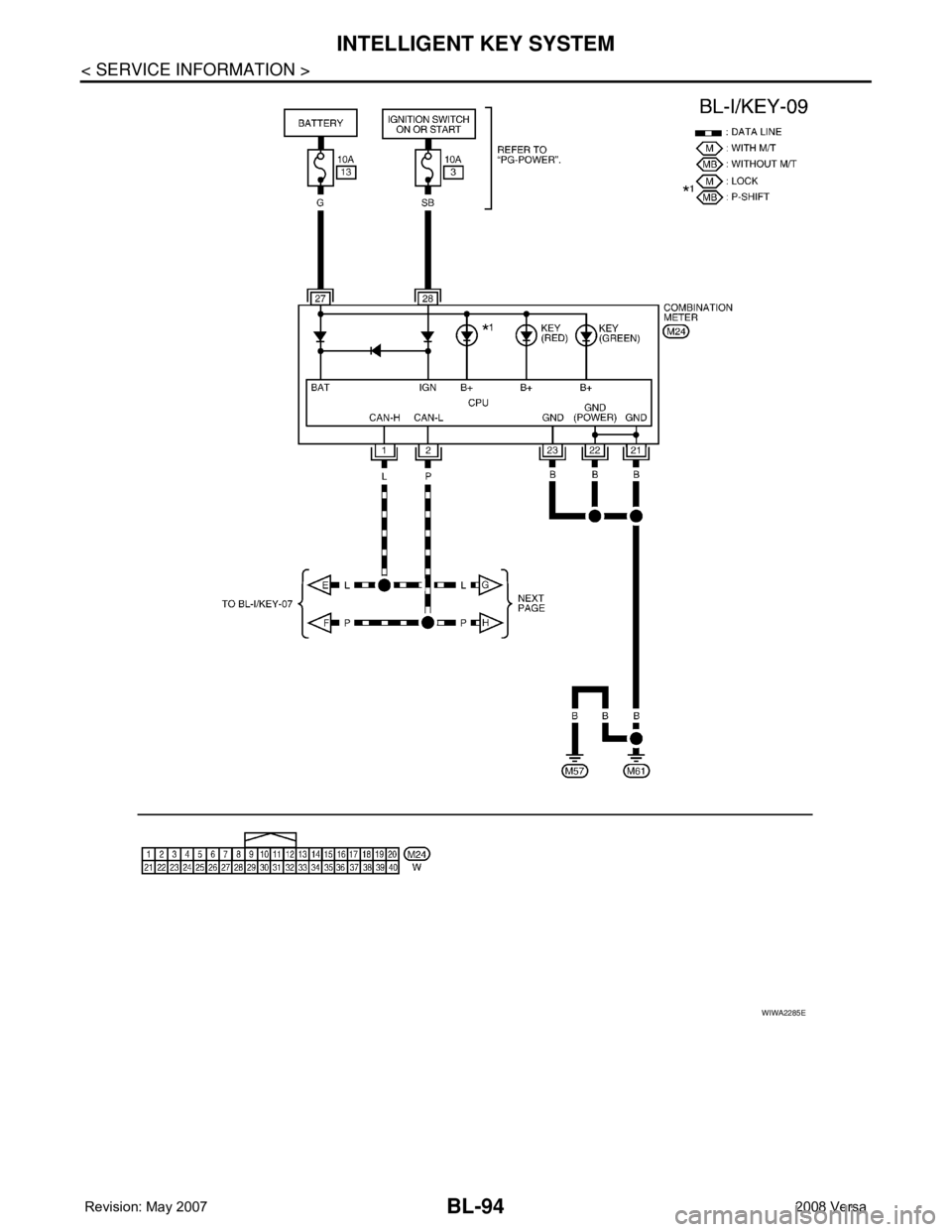

WIWA2285E

INTELLIGENT KEY SYSTEM
BL-95
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

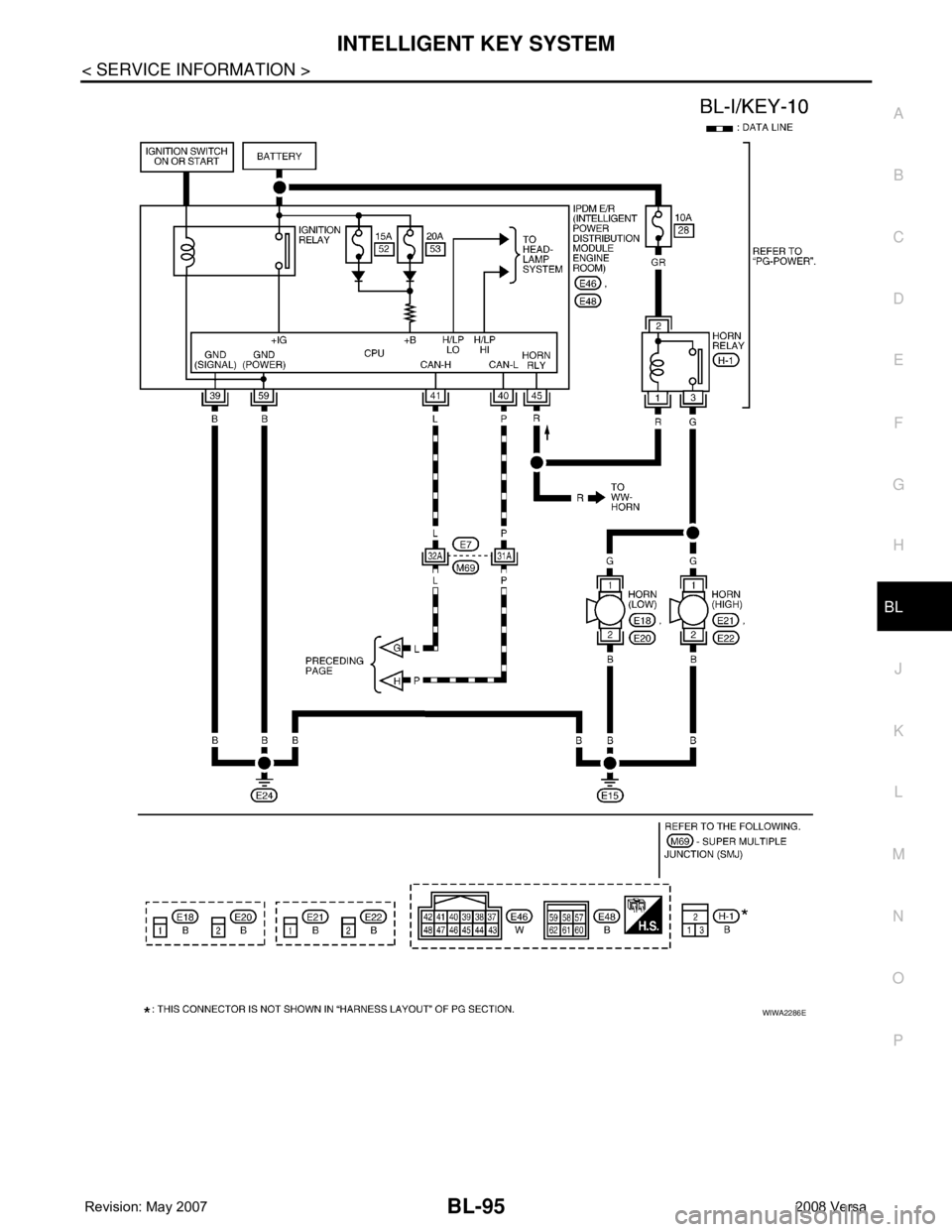

WIWA2286E

BL-96
< SERVICE INFORMATION >
INTELLIGENT KEY SYSTEM
Intelligent Key Unit Harness Connector Terminal Layout
INFOID:0000000001704003
Terminal and Reference Value for Intelligent Key UnitINFOID:0000000001704004
WIIA1168E
Te r m i n a lWire
ColorItemCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
1RSteering lock solenoid
power supplyLOCK — 5
2 L CAN-H — — —
3 P CAN-L — — —
4OIntelligent Key warning
buzzerLOCKOperate door request
switch.Buzzer OFF Battery voltage
Sound buzzer 0
5GFront door request
switch LH—Press door request switch (driver side). 0
Other than above 5
6 Y Ignition switch (ON) ON — Battery voltage
7 LG Key switch LOCKInsert mechanical key into ignition switch. Battery voltage
Remove mechanical key from ignition
switch.0
10
*1WCVT device (park posi-
tion switch)ONShift lever in park position. 0
Other than above Battery voltage
11 SB Power source (Fuse) — — Battery voltage
12 B Ground — — 0
13 VInstrument panel an-
tenna (+) signal
LOCK• Any door open → all door close
• Press ignition knob switch: ON (Ignition
knob switch)
14 LGInstrument panel an-
tenna (-) signal
15 LFront console antenna
(+) signal
LOCK• Any door open → all door close
• Press ignition knob switch: ON (Ignition
knob switch)
16 PFront console antenna
(-) signal
PIIB5502J
PIIB5502J
