NISSAN TIIDA 2008 Service Repair Manual

BODY REPAIR
BL-247
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O

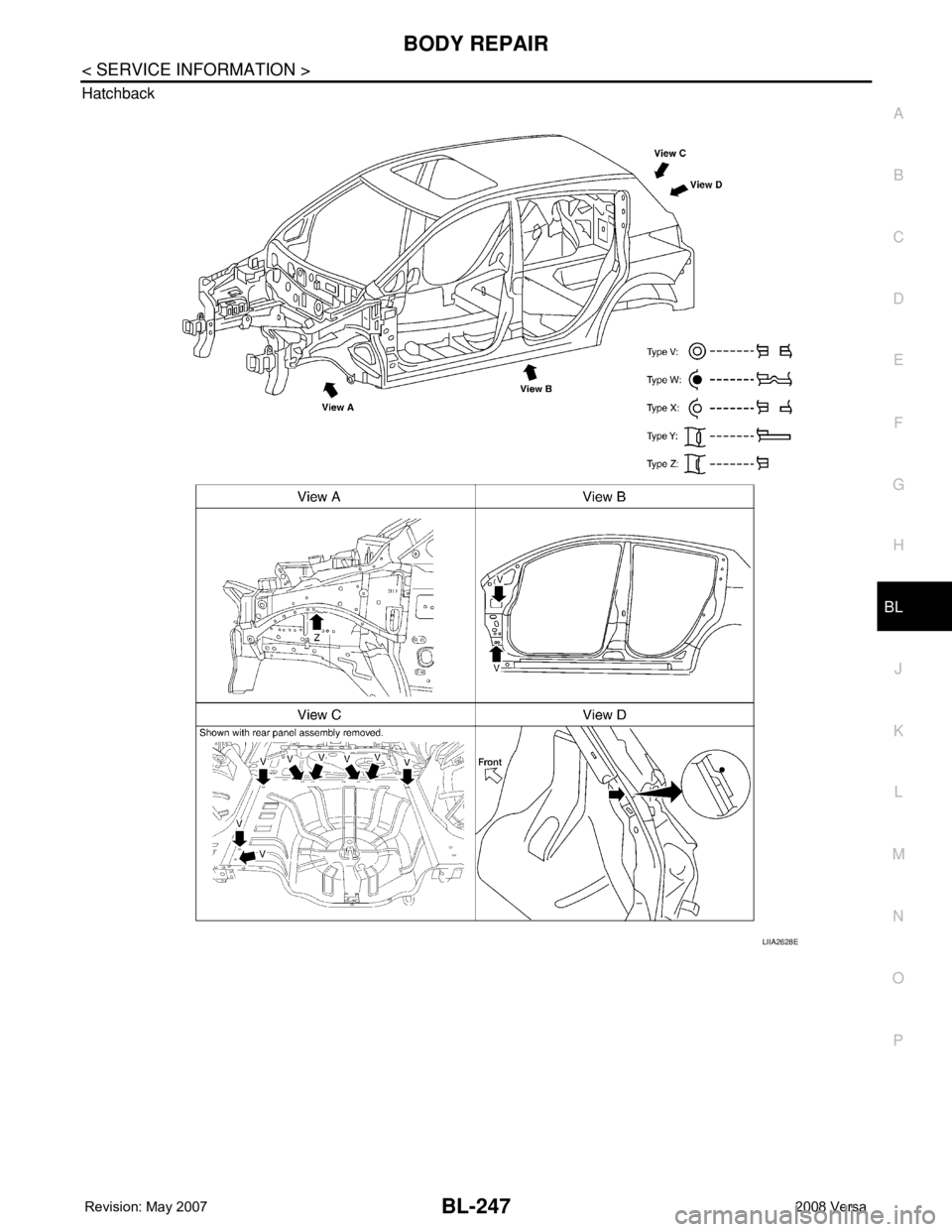

P Hatchback
LIIA2628E

BL-248
< SERVICE INFORMATION >
BODY REPAIR
Sedan
DESCRIPTION
• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself
to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side
is symmetrically the same value.
• The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″
and ″Z″.

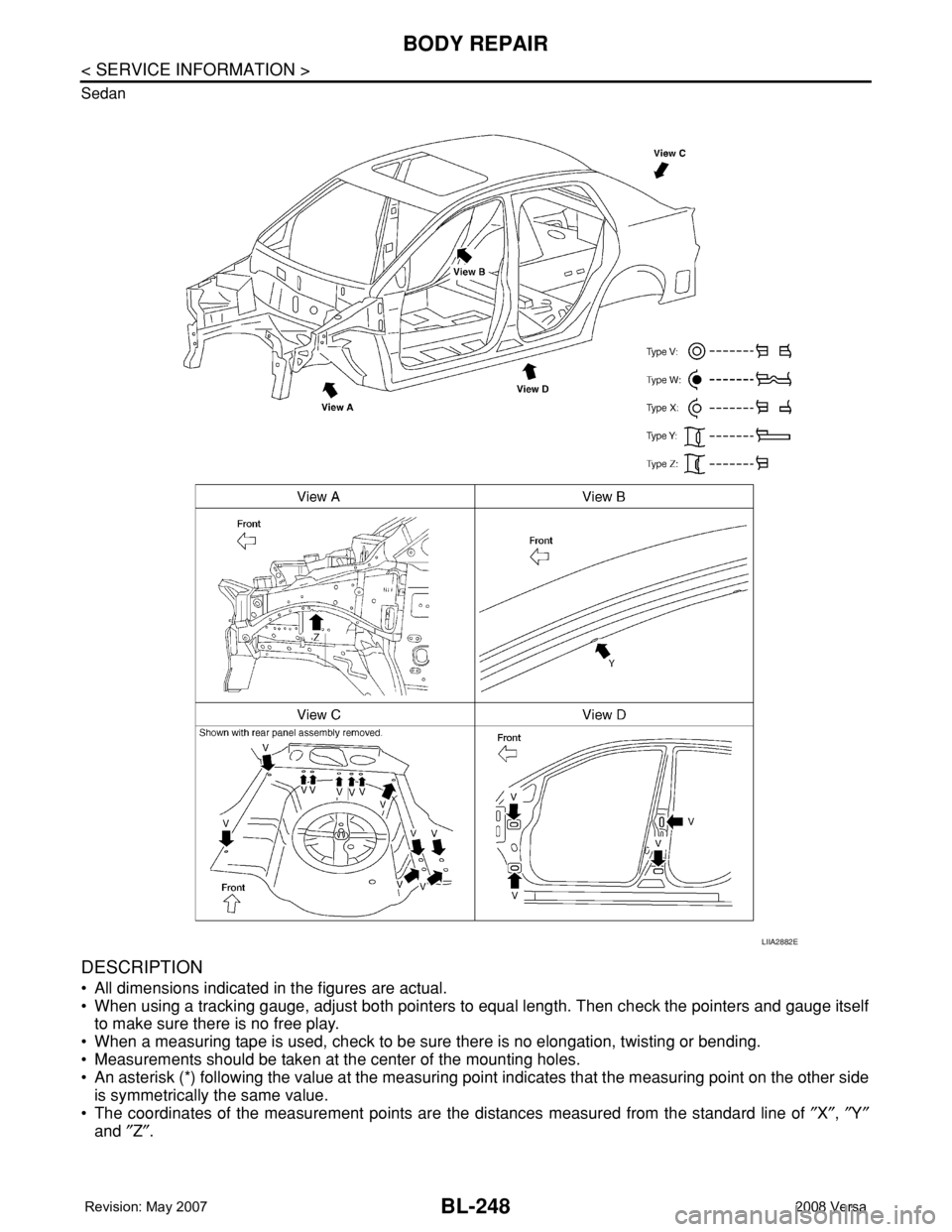

LIIA2882E

BODY REPAIR
BL-249
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

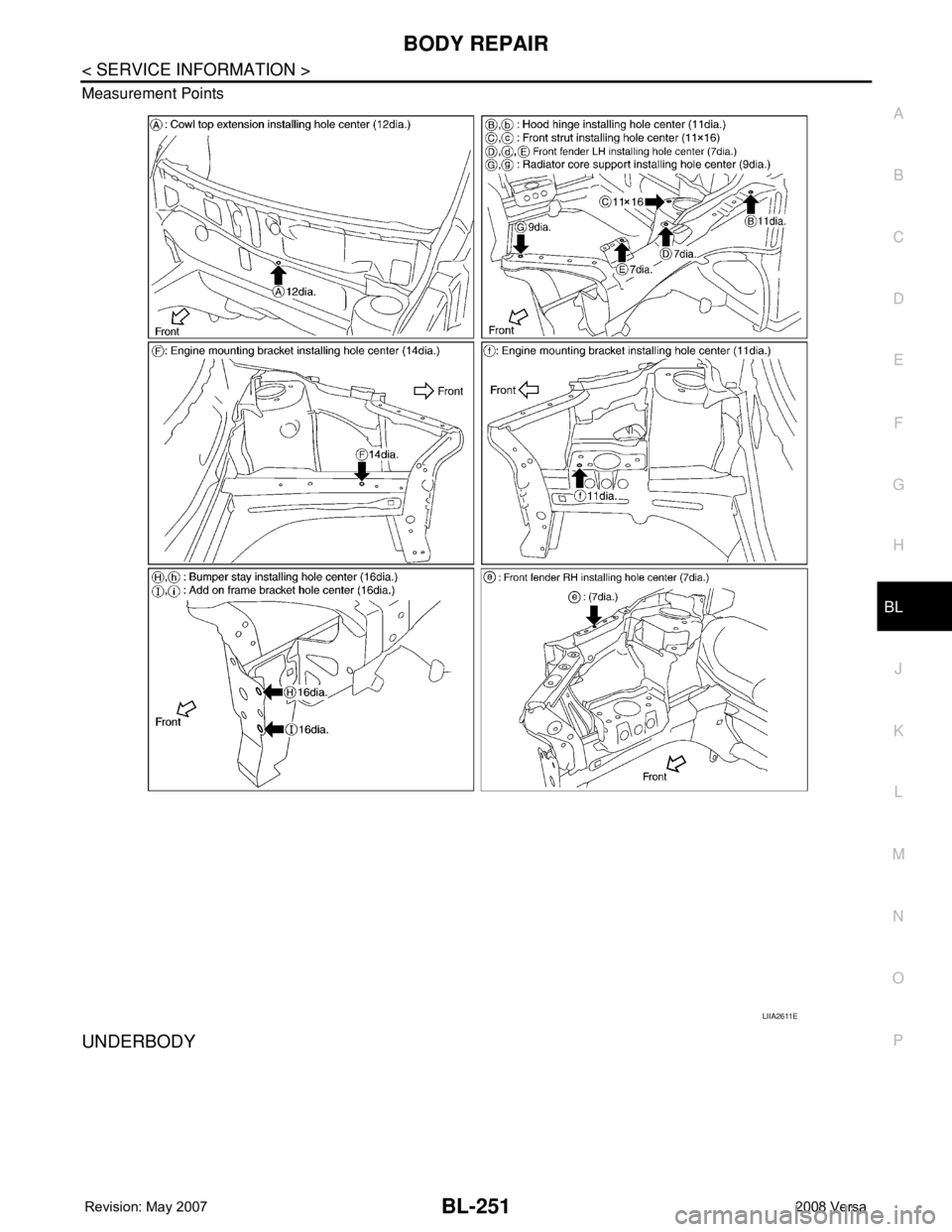

ENGINE COMPARTMENT
PIIA0104E

BL-250
< SERVICE INFORMATION >
BODY REPAIR

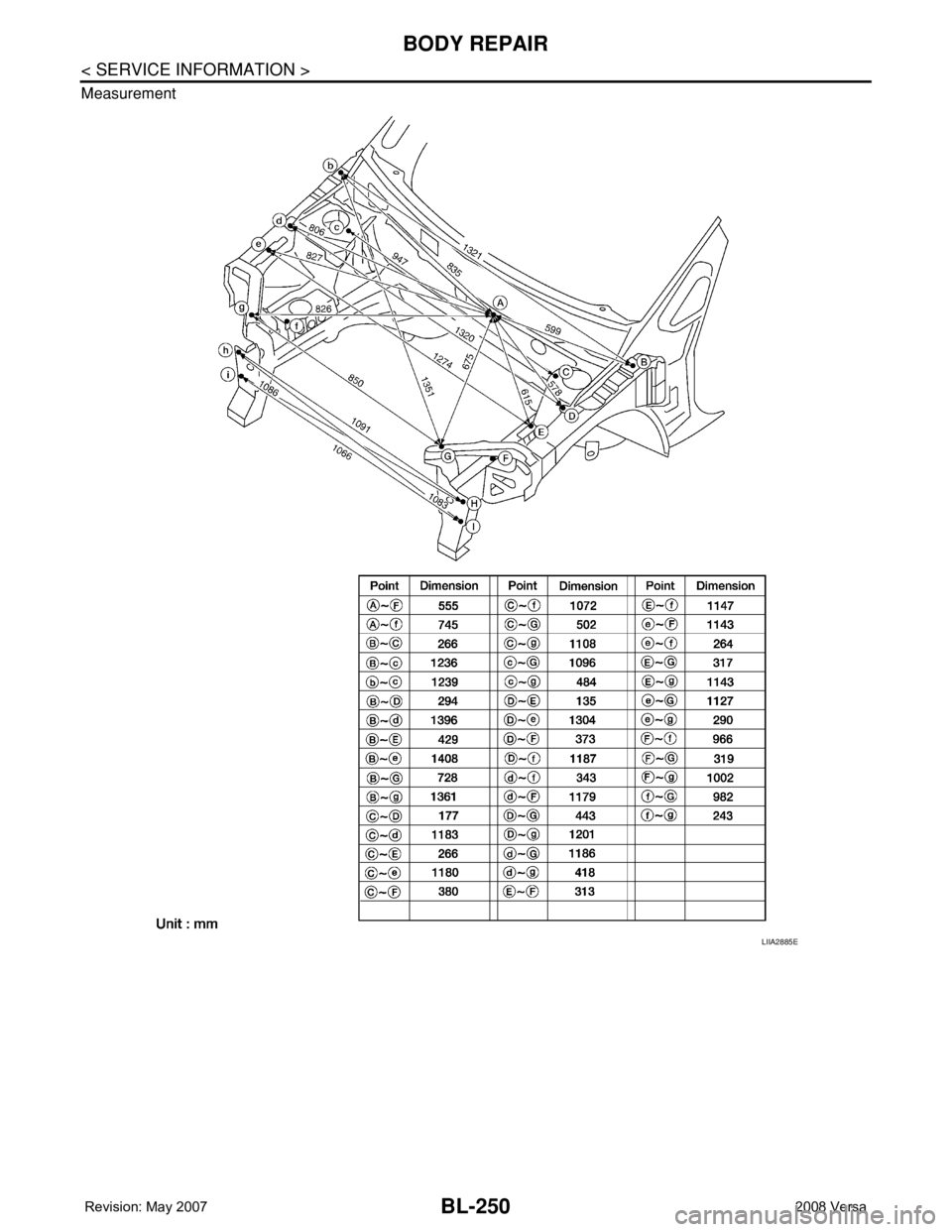

Measurement
LIIA2885E

BODY REPAIR
BL-251
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P Measurement Points

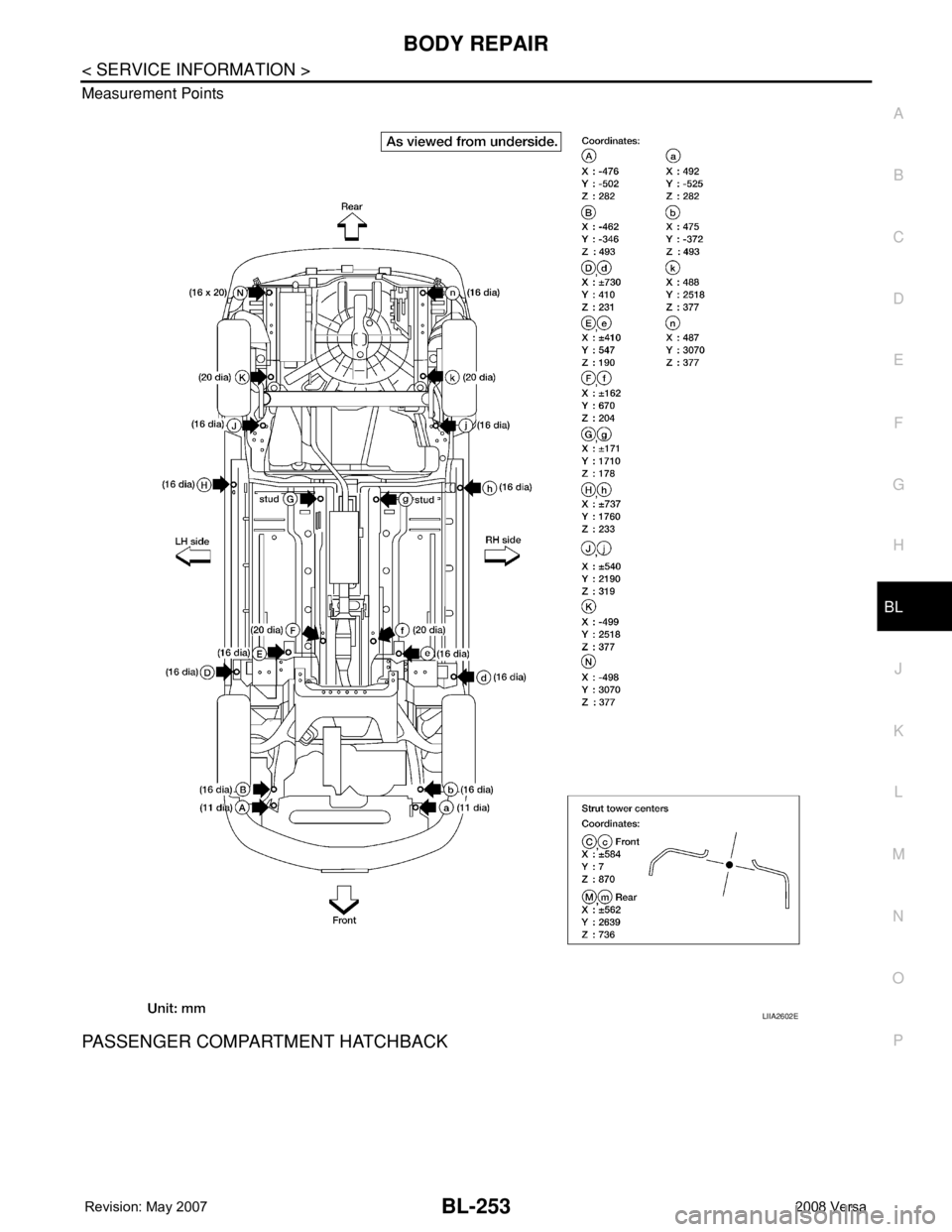

UNDERBODY
LIIA2611E

BL-252
< SERVICE INFORMATION >
BODY REPAIR

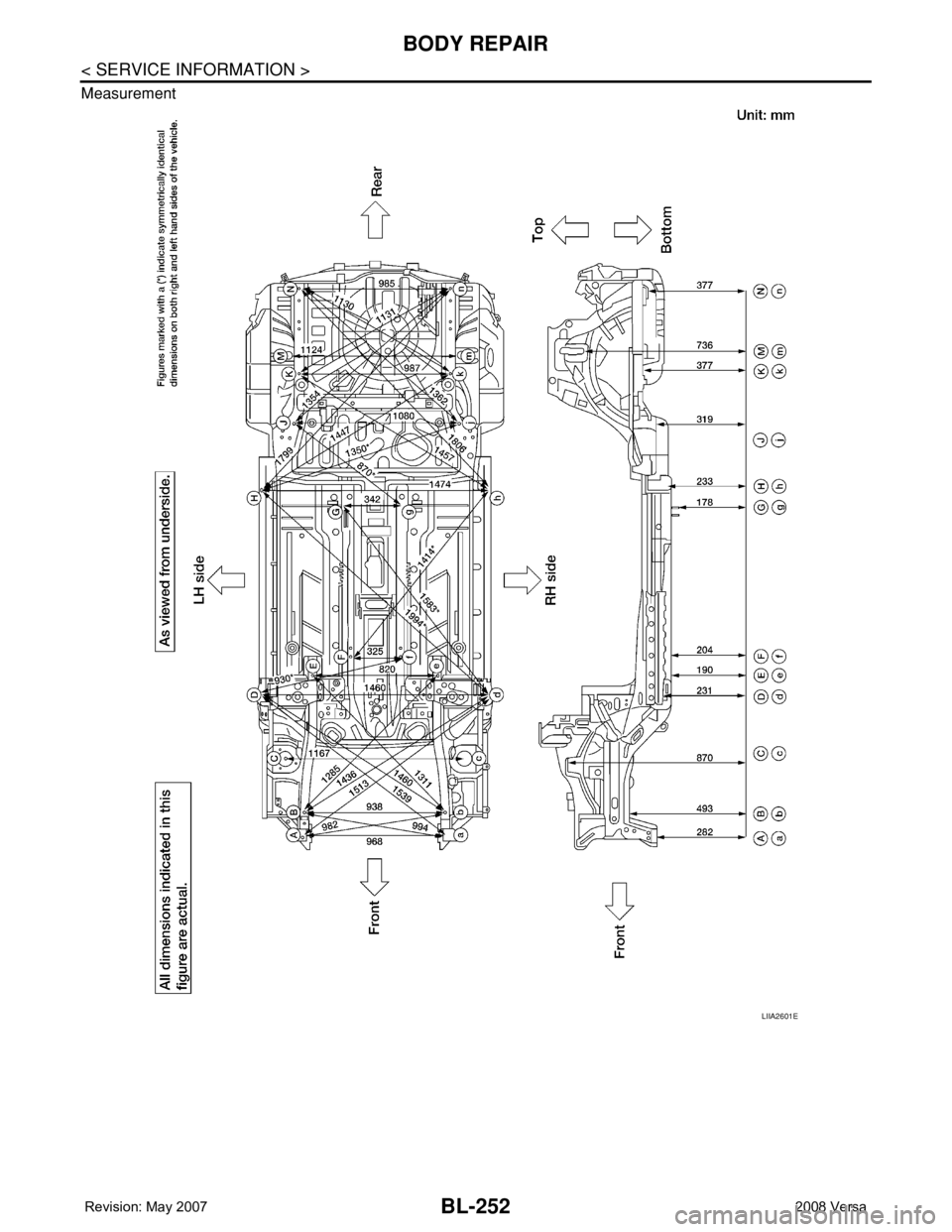

Measurement
LIIA2601E

BODY REPAIR
BL-253
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P Measurement Points

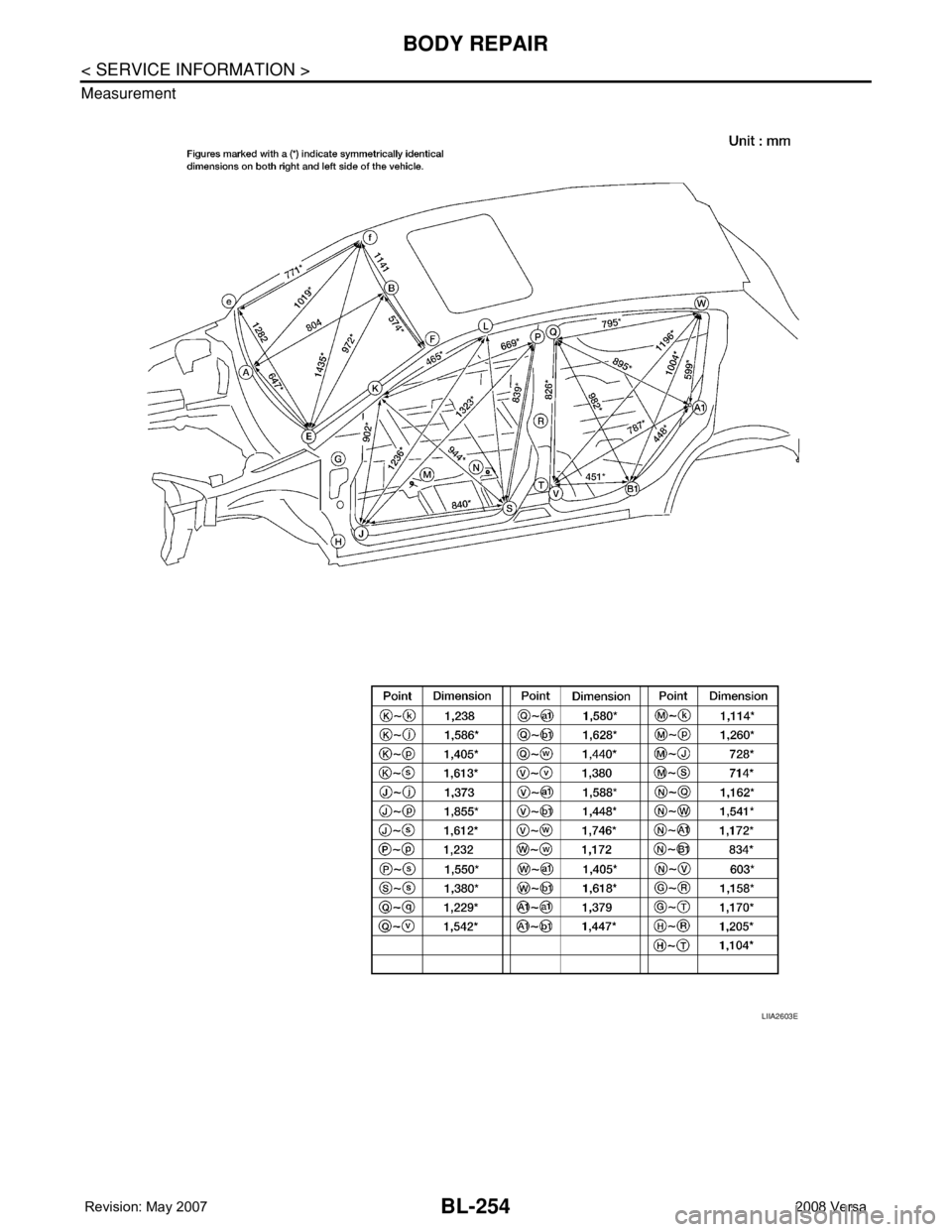

PASSENGER COMPARTMENT HATCHBACK
LIIA2602E

BL-254
< SERVICE INFORMATION >
BODY REPAIR
Measurement
LIIA2603E

BODY REPAIR
BL-255
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P Measurement Points

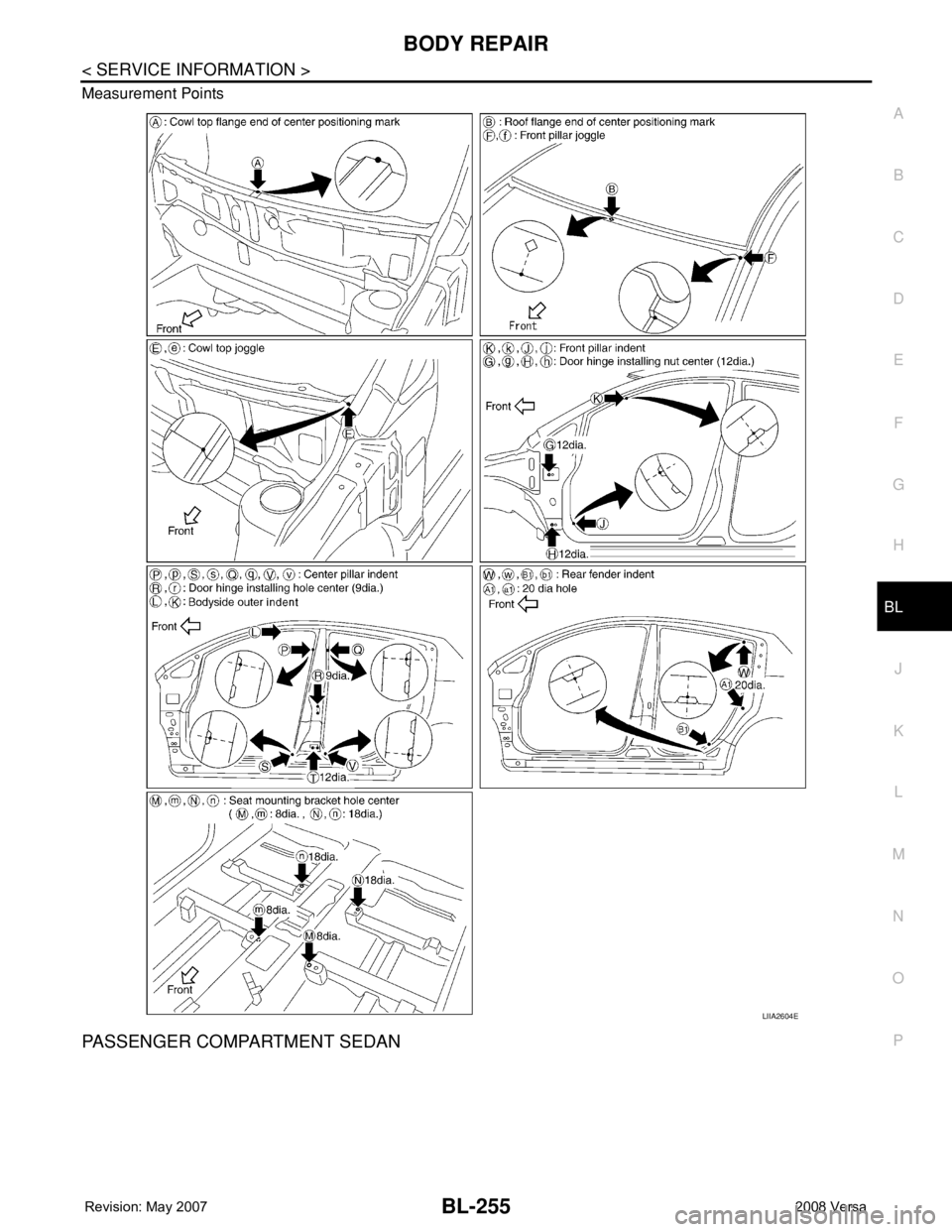

PASSENGER COMPARTMENT SEDAN
LIIA2604E

BL-256
< SERVICE INFORMATION >
BODY REPAIR

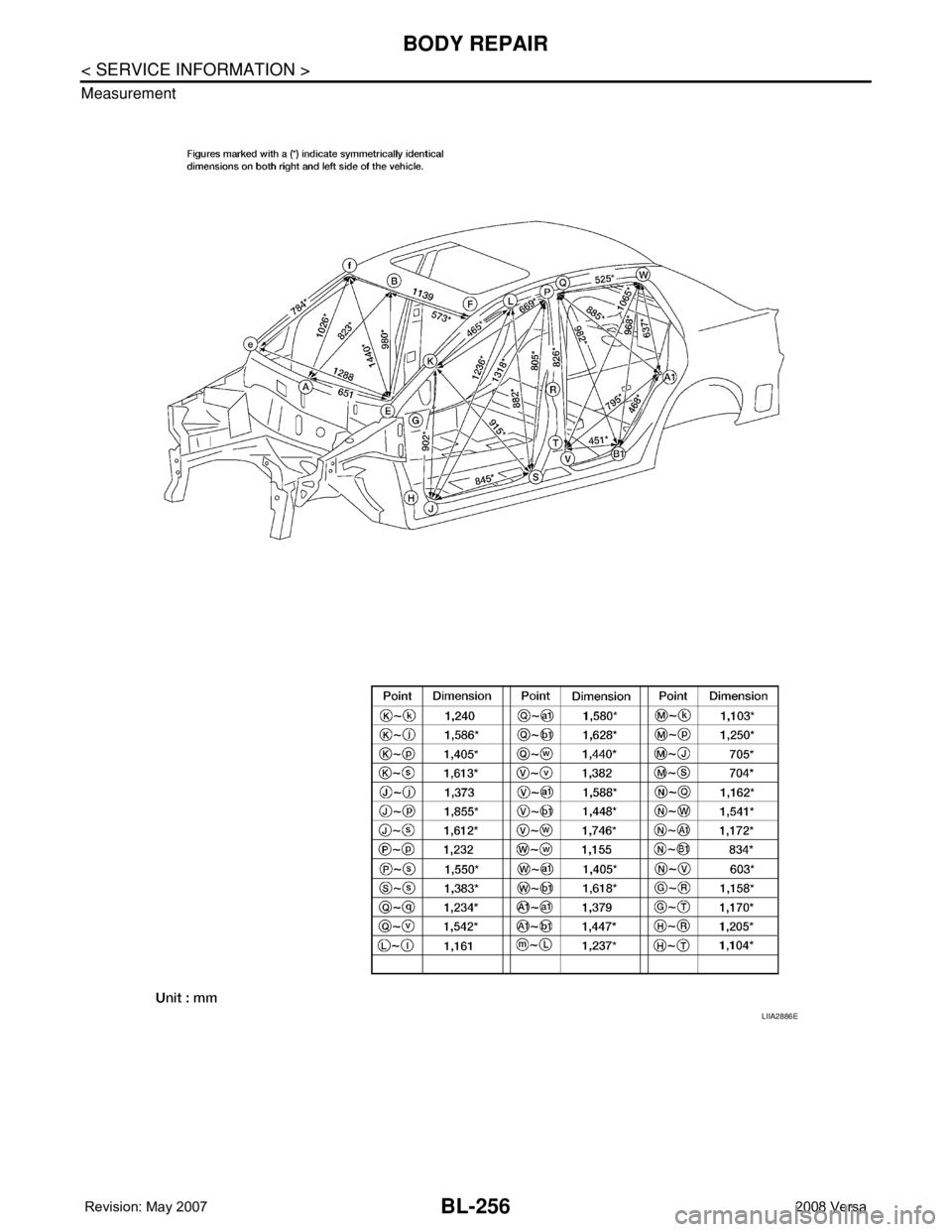

Measurement
LIIA2886E
