NISSAN TIIDA 2008 Service Repair Manual

BODY REPAIR
BL-287
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

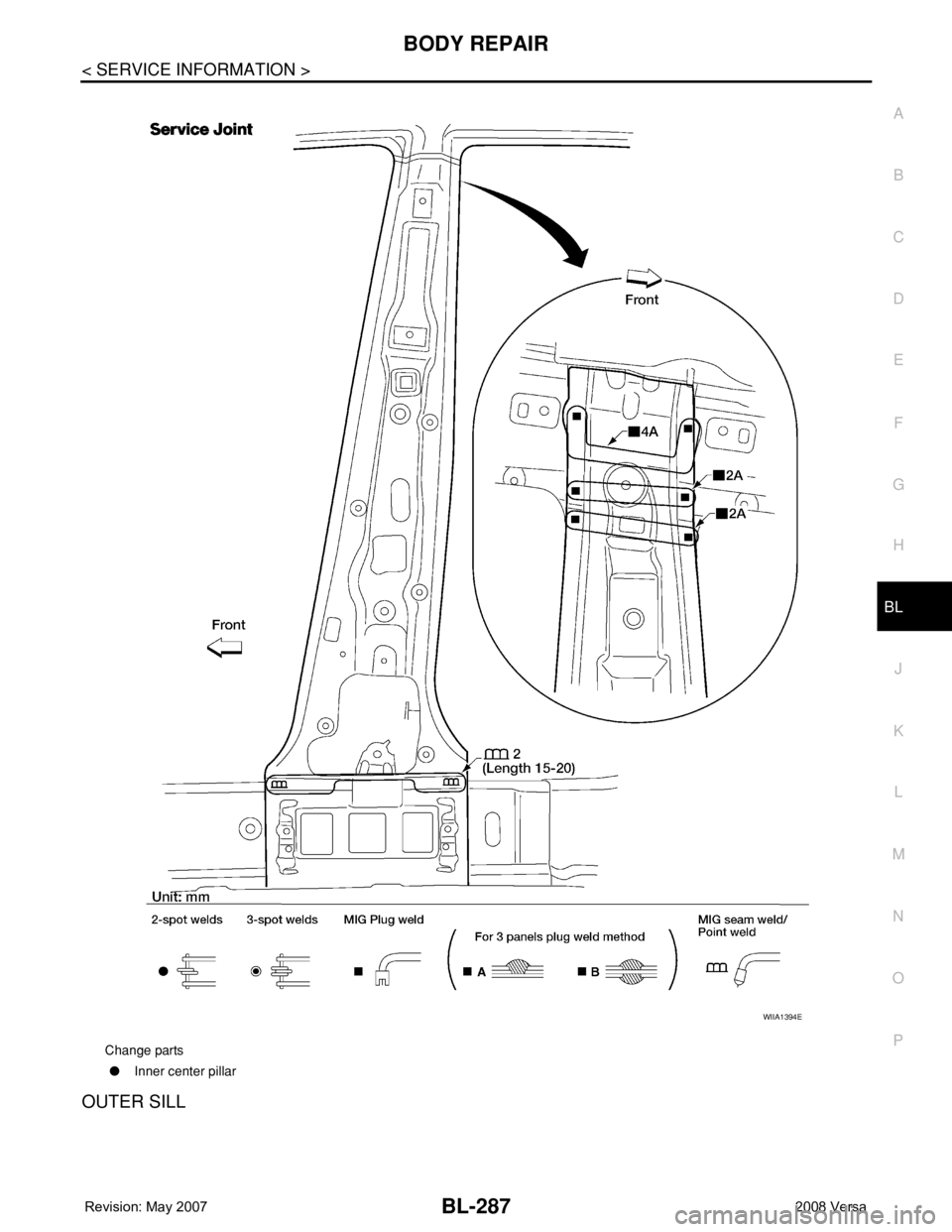

OUTER SILL
Change parts
●Inner center pillar
WIIA1394E

BL-288
< SERVICE INFORMATION >
BODY REPAIR

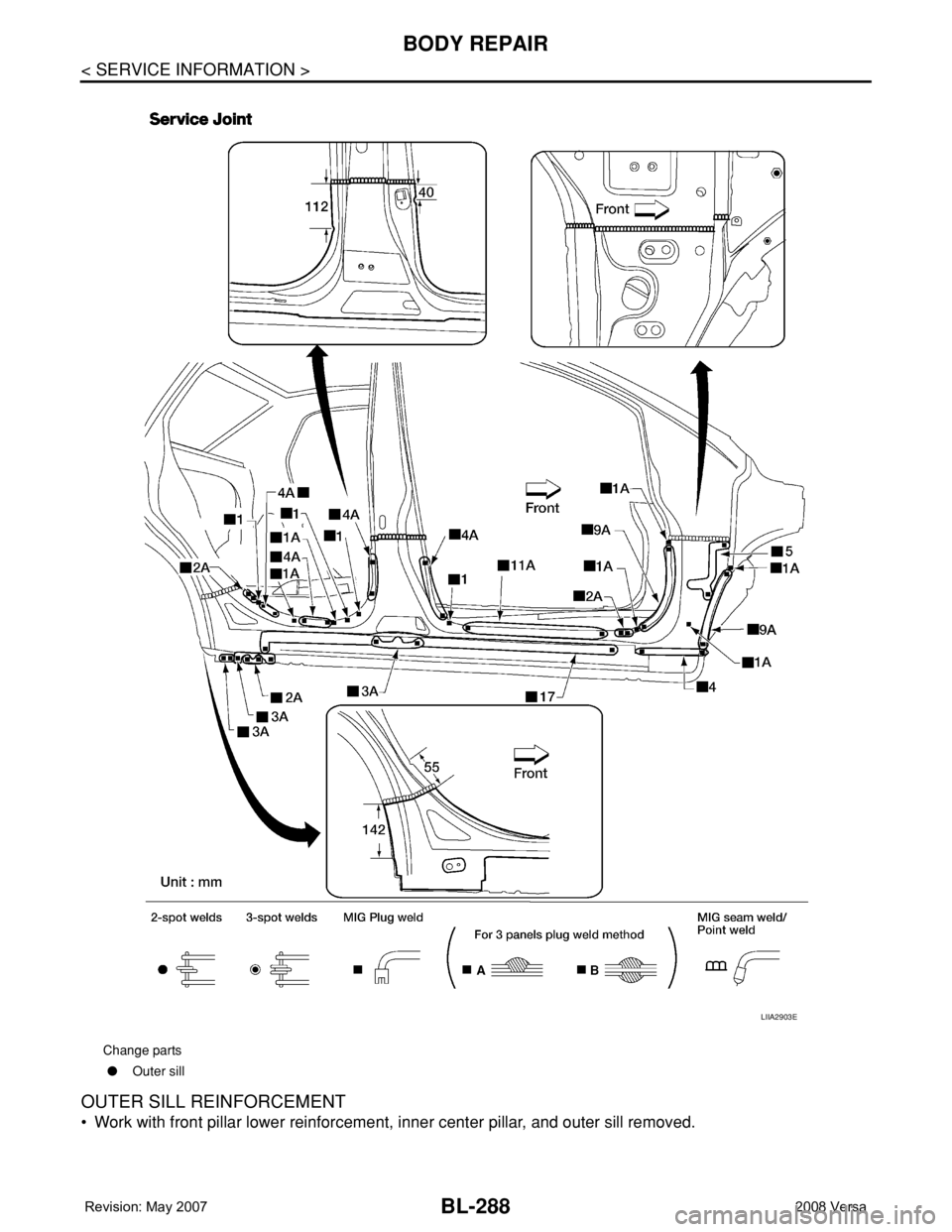

OUTER SILL REINFORCEMENT
• Work with front pillar lower reinforcement, inner center pillar, and outer sill removed.
Change parts
●Outer sill
LIIA2903E

BODY REPAIR
BL-289
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

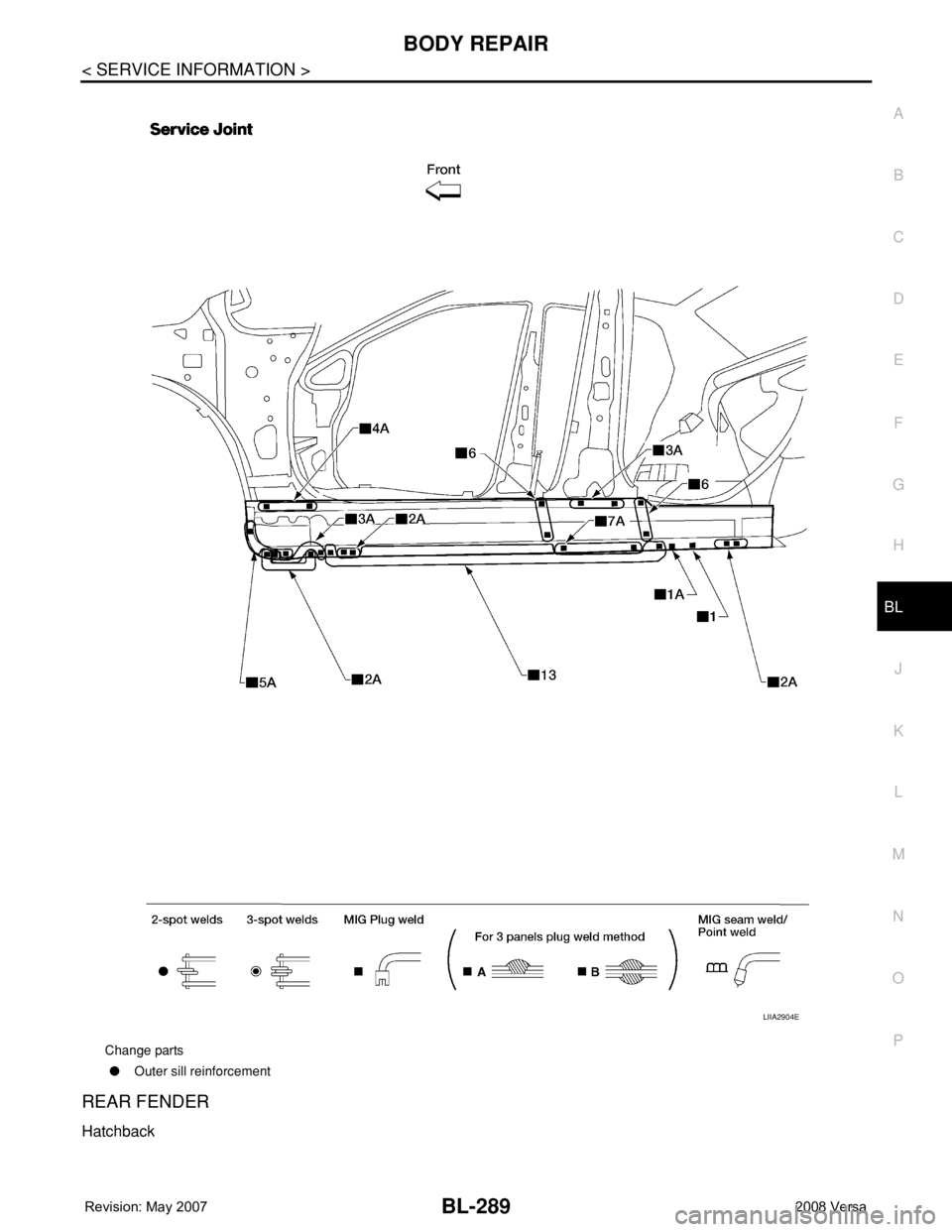

REAR FENDER
Hatchback
Change parts
●Outer sill reinforcement
LIIA2904E

BL-290
< SERVICE INFORMATION >
BODY REPAIR

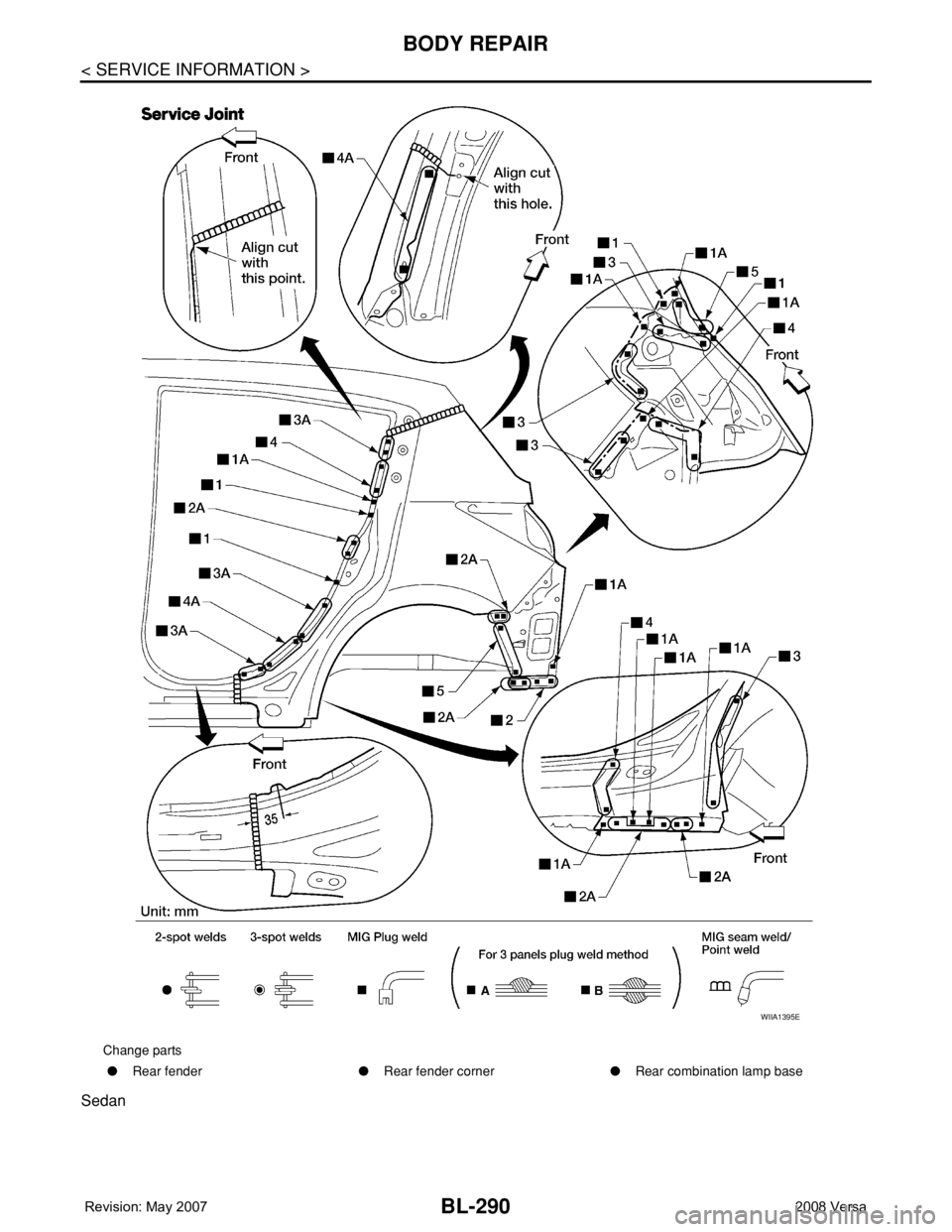

Sedan
Change parts
●Rear fender ●Rear fender corner ●Rear combination lamp base
WIIA1395E

BODY REPAIR
BL-291
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
REAR PANEL
Hatchback
Change parts
●Rear fender ●Rear fender corner ●Rear combination lamp base
LIIA2905E

BL-292
< SERVICE INFORMATION >
BODY REPAIR

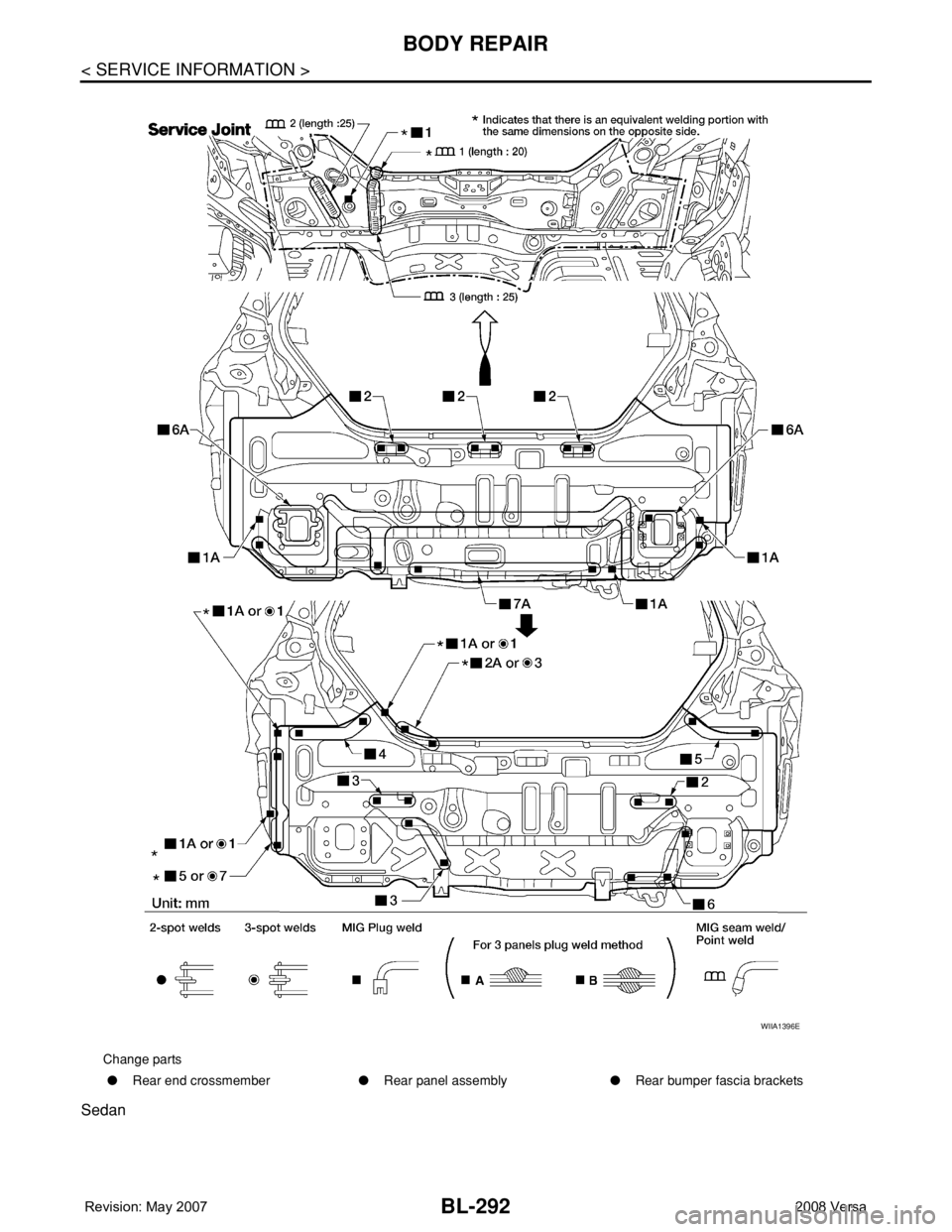

Sedan
Change parts
●Rear end crossmember●Rear panel assembly●Rear bumper fascia brackets
WIIA1396E

BODY REPAIR
BL-293
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
REAR FLOOR REAR
• Work after rear panel assembly has been removed.
Hatchback
Change parts
●Rear end crossmember●Rear panel assembly●Rear bumper fascia brackets
LIIA2906E

BL-294
< SERVICE INFORMATION >
BODY REPAIR
Sedan
Change parts

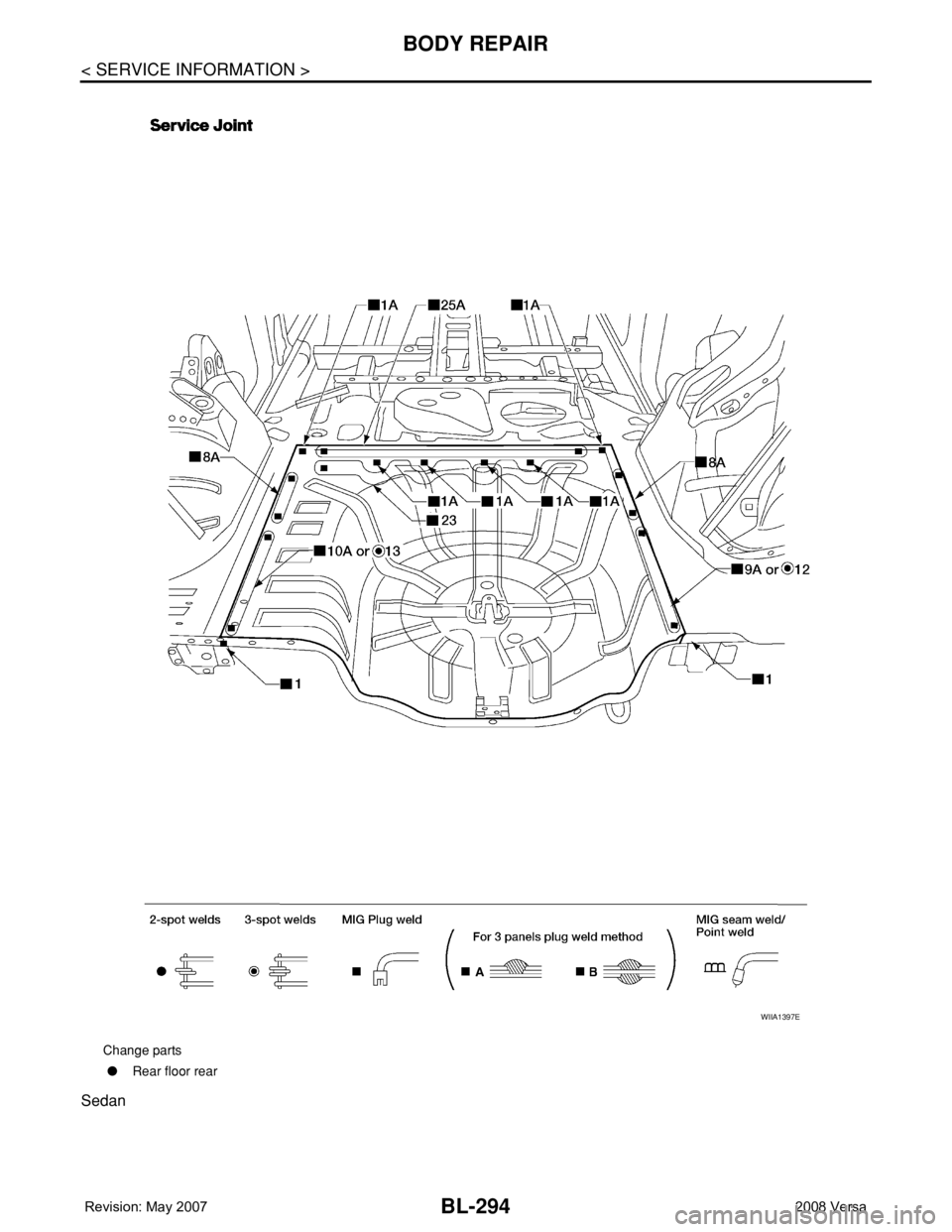

●Rear floor rear
WIIA1397E

BODY REPAIR
BL-295
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
REAR SIDE MEMBER EXTENSION
Hatchback
• Work after rear panel assembly and rear floor rear have been removed.
Change parts
●Rear floor rear
LIIA2907E

BL-296
< SERVICE INFORMATION >
BODY REPAIR

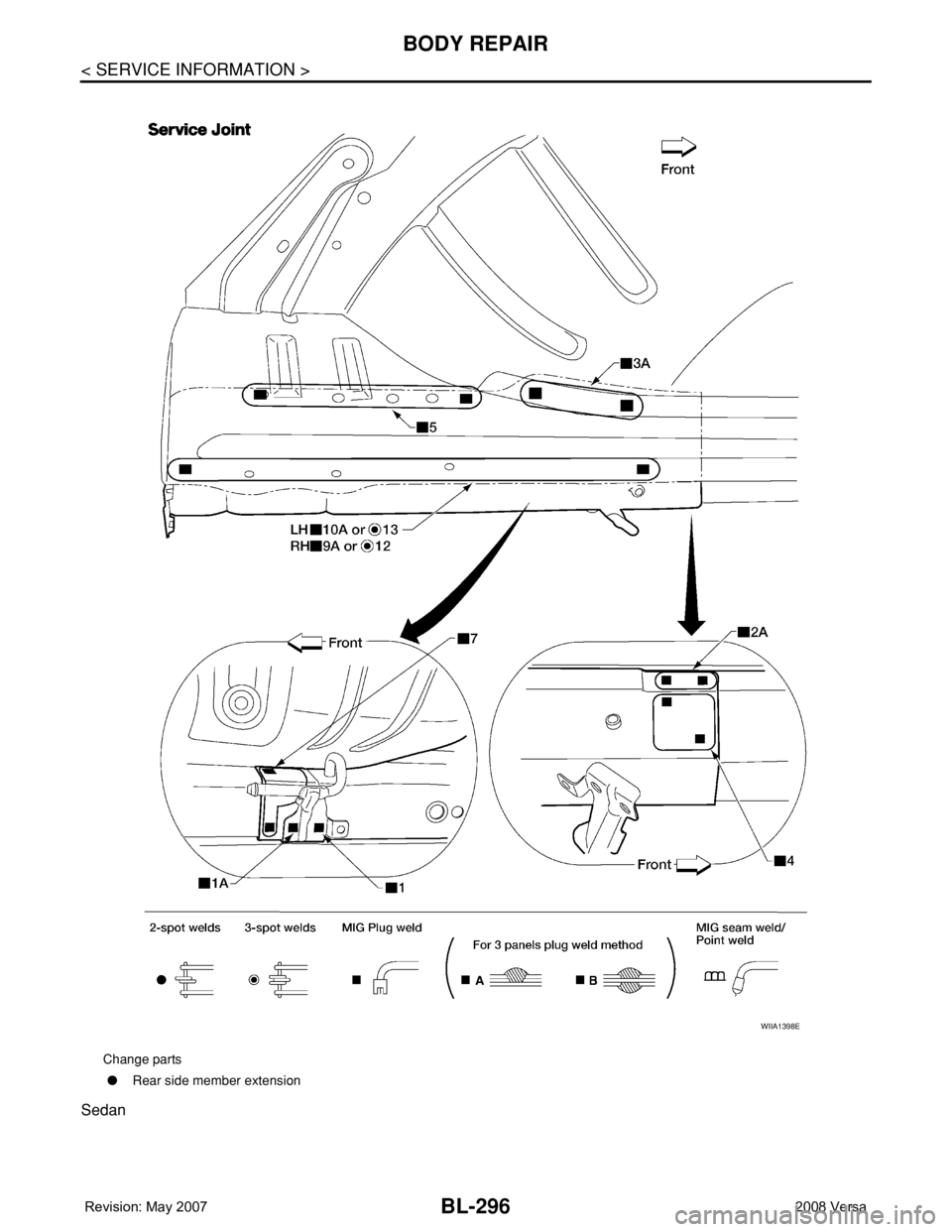

Sedan
Change parts
●Rear side member extension
WIIA1398E
