Page 711 of 2771

NISSAN TIIDA 2008 Service Repair Manual BODY REPAIR BL-277 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P FRONT SIDE MEMBER • Work after hoodledge and radiator core support have been removed. Change Parts ●Hoodledge reinforceme

Page 712 of 2771

NISSAN TIIDA 2008 Service Repair Manual BL-278 < SERVICE INFORMATION > BODY REPAIR FRONT SIDE MEMBER PARTIAL LH • Work after radiator core support and hoodledge connector have been removed. Change parts ●Front side member●Front side m

Page 713 of 2771

NISSAN TIIDA 2008 Service Repair Manual BODY REPAIR BL-279 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P RH • Work after radiator core support and hoodledge connector have been removed. Change parts ●Front side member partial

Page 714 of 2771

NISSAN TIIDA 2008 Service Repair Manual BL-280 < SERVICE INFORMATION > BODY REPAIR OUTRIGGER Change parts ●Front side member partial●Front side member closing plate par- tial●Frame bracket outer ●Frame bracket LIIA2896E

Page 715 of 2771

NISSAN TIIDA 2008 Service Repair Manual BODY REPAIR BL-281 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P FRONT PILLAR • Work after the rear hoodledge reinforcement and the outer sill reinforcement have been removed. Change parts

Page 716 of 2771

NISSAN TIIDA 2008 Service Repair Manual BL-282 < SERVICE INFORMATION > BODY REPAIR Change parts ●Front pillar section of side body LIIA2898E

Page 717 of 2771

NISSAN TIIDA 2008 Service Repair Manual BODY REPAIR BL-283 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P Change parts ●Front pillar upper reinforcement●Front pillar lower reinforcement LIIA2899E

Page 718 of 2771

NISSAN TIIDA 2008 Service Repair Manual BL-284 < SERVICE INFORMATION > BODY REPAIR DASH SIDE Work after front pillar and outer sill reinforcement have been removed. Change parts ●Front pillar inner reinforcement LIIA2900E

Page 719 of 2771

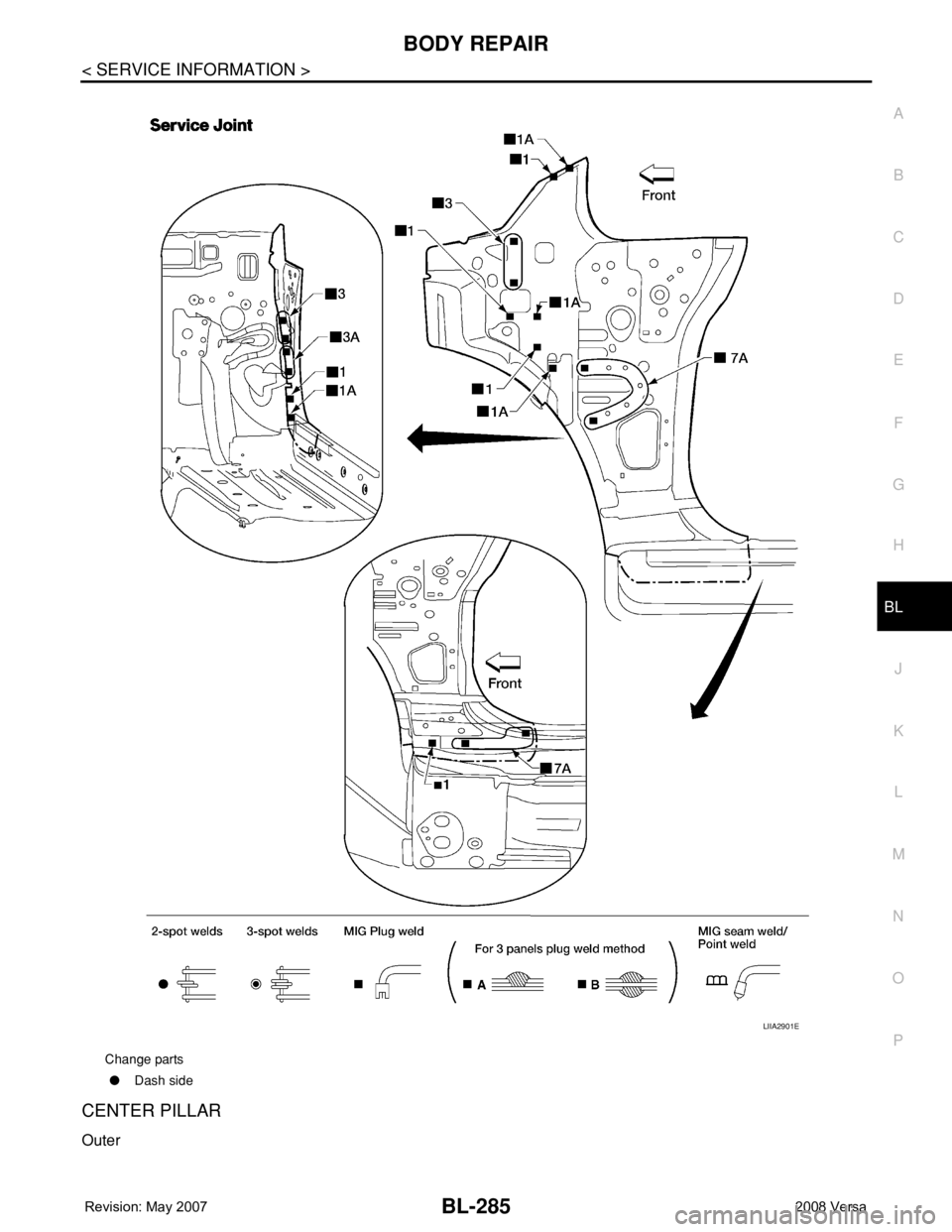

NISSAN TIIDA 2008 Service Repair Manual BODY REPAIR BL-285 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P CENTER PILLAR Outer Change parts ●Dash side LIIA2901E

Page 720 of 2771

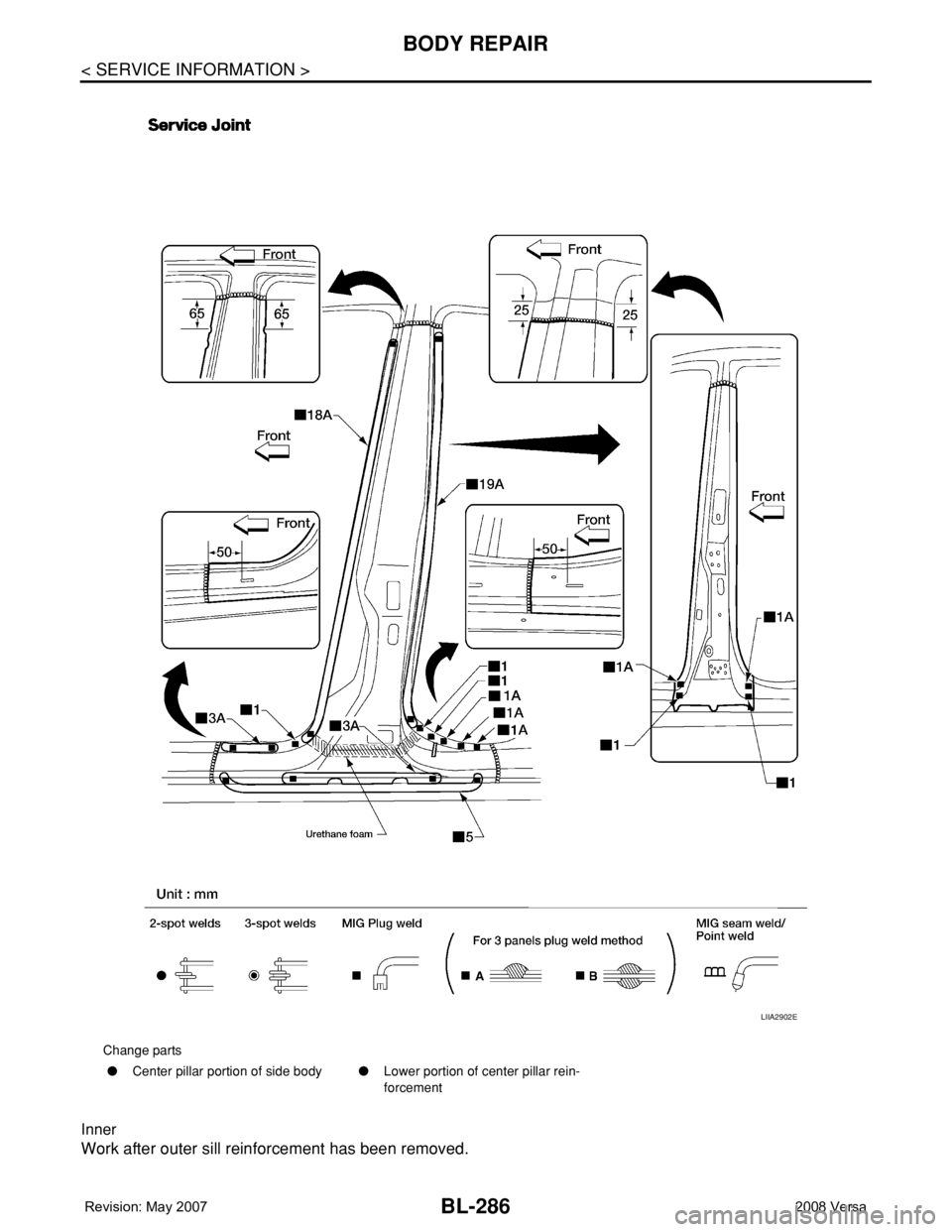

NISSAN TIIDA 2008 Service Repair Manual BL-286 < SERVICE INFORMATION > BODY REPAIR Inner Work after outer sill reinforcement has been removed. Change parts ●Center pillar portion of side body●Lower portion of center pillar rein- forceme
