NISSAN TIIDA 2010 Service Repair Manual

PREPARATIONMT-47
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P

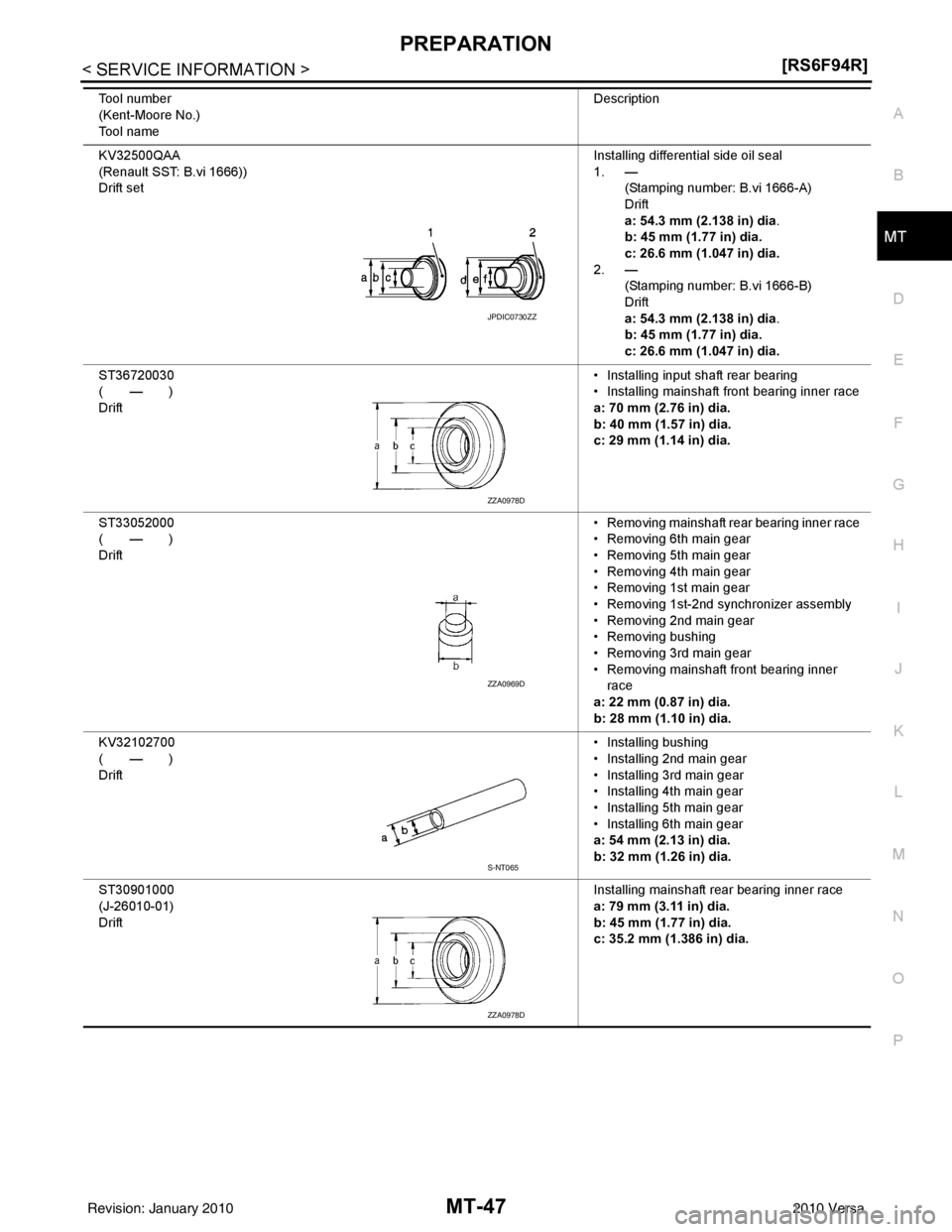

KV32500QAA
(Renault SST: B.vi 1666))
Drift set Installing differential side oil seal
1. —
(Stamping number: B.vi 1666-A)
Drift
a: 54.3 mm (2.138 in) dia.
b: 45 mm (1.77 in) dia.
c: 26.6 mm (1.047 in) dia.
2. — (Stamping number: B.vi 1666-B)
Drift
a: 54.3 mm (2.138 in) dia.
b: 45 mm (1.77 in) dia.
c: 26.6 mm (1.047 in) dia.
ST36720030
(—)
Drift • Installing input shaft rear bearing
• Installing mainshaft front bearing inner race
a: 70 mm (2.76 in) dia.
b: 40 mm (1.57 in) dia.
c: 29 mm (1.14 in) dia.
ST33052000
(—)
Drift • Removing mainshaft rear bearing inner race
• Removing 6th main gear
• Removing 5th main gear
• Removing 4th main gear
• Removing 1st main gear
• Removing 1st-2nd synchronizer assembly
• Removing 2nd main gear
• Removing bushing
• Removing 3rd main gear
• Removing mainshaft front bearing inner
race
a: 22 mm (0.87 in) dia.
b: 28 mm (1.10 in) dia.
KV32102700
(—)
Drift • Installing bushing
• Installing 2nd main gear
• Installing 3rd main gear
• Installing 4th main gear
• Installing 5th main gear
• Installing 6th main gear
a: 54 mm (2.13 in) dia.
b: 32 mm (1.26 in) dia.
ST30901000
(J-26010-01)
Drift Installing mainshaft rear bearing inner race
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.
Tool number
(Kent-Moore No.)
Tool name
Description
JPDIC0730ZZ
ZZA0978D
ZZA0969D
S-NT065
ZZA0978D
Revision: January 20102010 Versa

MT-48
< SERVICE INFORMATION >[RS6F94R]
PREPARATION
Commercial Service Tool
INFOID:0000000005397188

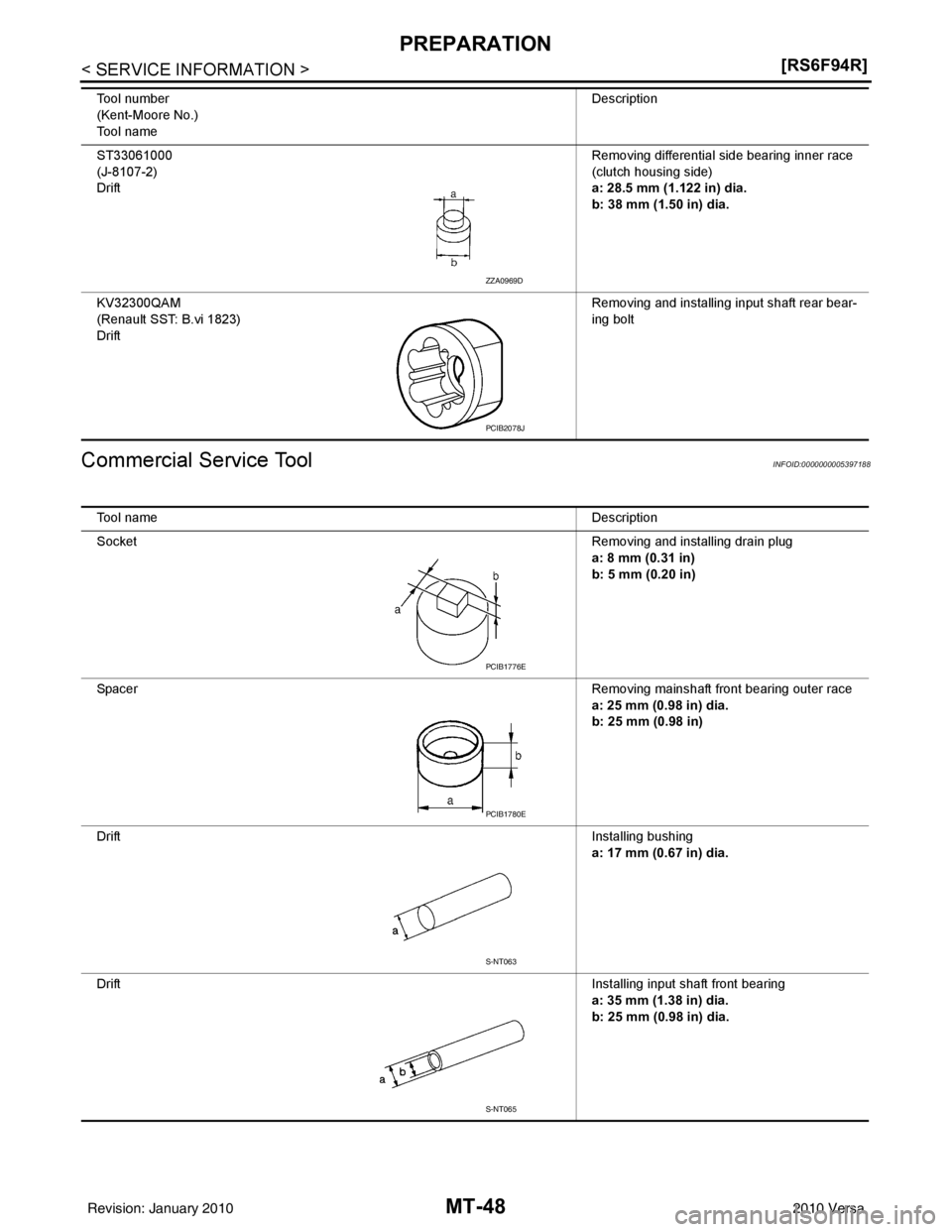

ST33061000
(J-8107-2)
Drift Removing differential side bearing inner race
(clutch housing side)
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.
KV32300QAM
(Renault SST: B.vi 1823)
Drift Removing and installing input shaft rear bear-
ing bolt
Tool number
(Kent-Moore No.)
Tool name
Description
ZZA0969D
PCIB2078J
Tool name
Description
Socket Removing and installing drain plug
a: 8 mm (0.31 in)
b: 5 mm (0.20 in)
Spacer Removing mainshaft front bearing outer race
a: 25 mm (0.98 in) dia.
b: 25 mm (0.98 in)
Drift Installing bushing
a: 17 mm (0.67 in) dia.
Drift Installing input shaft front bearing
a: 35 mm (1.38 in) dia.
b: 25 mm (0.98 in) dia.
PCIB1776E
PCIB1780E
S-NT063
S-NT065
Revision: January 20102010 Versa

PREPARATIONMT-49
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P

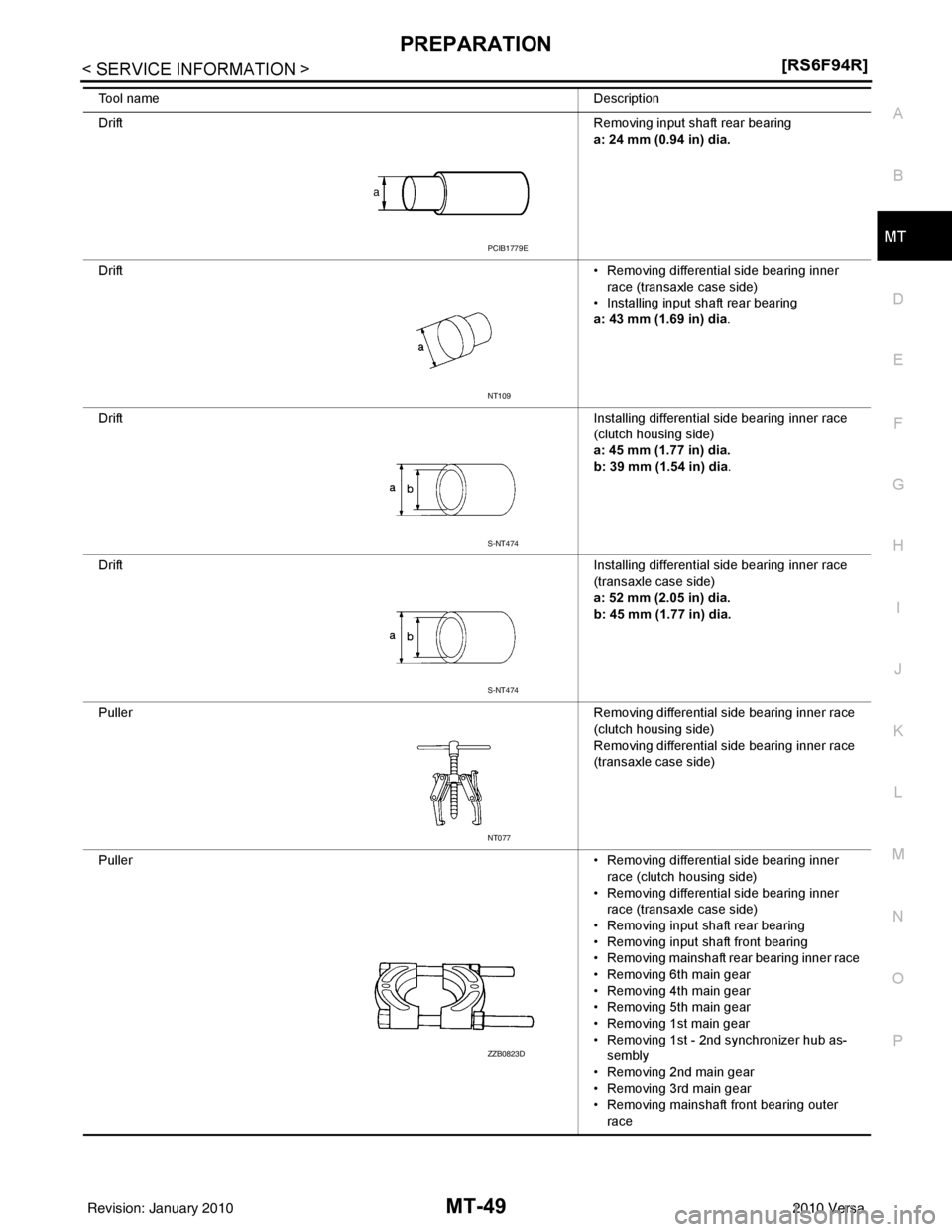

Drift Removing input shaft rear bearing
a: 24 mm (0.94 in) dia.
Drift • Removing differential side bearing inner
race (transaxle case side)
• Installing input shaft rear bearing
a: 43 mm (1.69 in) dia.
Drift Installing differential side bearing inner race
(clutch housing side)
a: 45 mm (1.77 in) dia.
b: 39 mm (1.54 in) dia.
Drift Installing differential side bearing inner race
(transaxle case side)
a: 52 mm (2.05 in) dia.
b: 45 mm (1.77 in) dia.
Puller Removing differential side bearing inner race
(clutch housing side)
Removing differential side bearing inner race
(transaxle case side)
Puller • Removing differential side bearing inner
race (clutch housing side)
• Removing differential side bearing inner race (transaxle case side)
• Removing input shaft rear bearing
• Removing input shaft front bearing
• Removing mainshaft rear bearing inner race
• Removing 6th main gear
• Removing 4th main gear
• Removing 5th main gear
• Removing 1st main gear
• Removing 1st - 2nd synchronizer hub as- sembly
• Removing 2nd main gear
• Removing 3rd main gear
• Removing mainshaft front bearing outer race
Tool name
Description
PCIB1779E
NT109
S-NT474
S-NT474
NT077
ZZB0823D
Revision: January 20102010 Versa

MT-50
< SERVICE INFORMATION >[RS6F94R]
PREPARATION
Remover
• Removing bushing
• Removing mainshaft rear bearing outer
race
Power tool • Loosening bolts and nuts
Tool name
Description
S-NT134
PBIC0190E
Revision: January 20102010 Versa

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGMT-51
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
NOISE, VIBRATION AND HARSHN ESS (NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000005397189
Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.
Reference pageMT-54MT-61MT-61MT-58MT-94MT-61
SUSPECTED PARTS
(Possible cause)
OIL (Oil level is low.)
OIL (Wrong oil.)
OIL (Oil level is high.)
GASKET (Damaged)
OIL SEAL (Worn or damaged)
O-RING (Worn or damaged)
SHIFT CONTROL LINKAGE (Worn)
SHIFT FORK (Worn)
GEAR (Worn or damaged)
BEARING (Worn or damaged)
BAULK RING (Worn or damaged)
INSERT SPRING (Damaged)
Symptoms Noise
1 2 3 3
Oil leakage 31222
Hard to shift or will not shift 1 123 3
Jumps out of gear 1 3 3
Revision: January 20102010 Versa

MT-52
< SERVICE INFORMATION >[RS6F94R]
DESCRIPTION
DESCRIPTION
Cross-Sectional ViewINFOID:0000000005397190
TRIPLE-CONE SYNCHRONIZER
1. 3rd input gear
2. 3rd-4th synchronizer assembly 3. 4th input gear
4. 5th input gear 5. 5th-6th synchronizer assembly 6. 6th input gear
7. Transaxle case 8. 6th main gear9. 5th main gear
10. 4th main gear 11. 3rd main gear12. 2nd main gear
13. 1st-2nd synchronizer assembly 14. 1st main gear 15. Differential
16. Final gear 17. Mainshaft18. Input shaft
19. Clutch housing 20. Reverse idler shaft21. Reverse input gear
22. Reverse output gear
JPDIC0631ZZ
Revision: January 20102010 Versa

DESCRIPTIONMT-53
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
Triple-cone synchronizer is used for the 1st and the 2nd gears to
reduce operating force of the shift lever.
• 1st main gear (1)
• 1st-2nd coupling sleeve (2)
• Insert key (3)
• Outer baulk ring (4)
• 2nd main gear (5)
• Synchronizer cone (6)
• Inner baulk ring (7)
• 1st-2nd synchronizer hub (8)
REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)
Reverse gear assembly consists of reverse input gear, return spring,
reverse baulk ring and reverse output gear. When the shift lever is
shifted to the reverse position, the construction allows smooth shift
operation by stopping the reverse idler shaft rotation by frictional
force of synchronizer.
• Reverse fork rod (1)
• Reverse output gear (2)
• Return spring (3)
• Reverse baulk ring (4)
• Reverse input gear (5)
SCIA7636E
SCIA7621E
Revision: January 20102010 Versa

MT-54
< SERVICE INFORMATION >[RS6F94R]
M/T OIL
M/T OIL
Changing M/T OilINFOID:0000000005397191
DRAINING
1. Start engine and let it run to warm up transaxle.
2. Stop engine. Remove drain plug (1) and drain oil.
3. Install a new gasket onto drain plug (1) and install it into tran-
saxle. Tighten drain plug to specification. Refer to MT-61, "
Com-
ponent".
CAUTION:
Do not reuse gasket.
FILLING
1. Remove filler plug (1). Fill with new oil until oil level reaches the specified limit at filler plug hole as shown.
2. After refilling oil, check oil level. Install a new gasket on filler plug (1), then install it into transaxle. Tighten filler plug to specifica-
tion. Refer to MT-61, "
Component".
CAUTION:
Do not reuse gasket.
Checking M/T OilINFOID:0000000005397192
OIL LEAKAGE AND OIL LEVEL
1. Make sure that oil is not leaking from transaxle or around it.
2. Remove filler plug (1) and check oil level at filler plug hole as shown.
CAUTION:
Do not start engine wh ile checking oil level.
3. Install a new gasket onto filler plug (1) and install it into tran-
saxle. Tighten filler plug to specification. Refer to MT-61, "
Com-
ponent".
CAUTION:
Do not reuse gasket.
SCIA7622E
Oil grade and capacity
: Refer to MA-14, "
Fluids and Lubricants"
SCIA7623E
SCIA7623E
Revision: January 20102010 Versa

VEHICLE SPEED SENSORMT-55
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
VEHICLE SPEED SENSOR
Removal and InstallationINFOID:0000000005403290
REMOVAL
1. Disconnect vehicle speed sensor.
2. Remove vehicle speed sensor.
INSTALLATION
Installation is in the reverse order of removal.
Revision: January 20102010 Versa

MT-56
< SERVICE INFORMATION >[RS6F94R]
SIDE OIL SEAL
SIDE OIL SEAL
Removal and InstallationINFOID:0000000005716040
REMOVAL
1. Remove front drive shafts from transaxle assembly. Refer to
FAX-9, "Removal and Installation (Left Side)"
and FAX-10, "Removal and Installation (Right Side)".
2. Remove differential side oil seal (1) using a suitable tool. CAUTION:
Be careful not to damage transaxle case and clutch hous-
ing.
INSTALLATION
Installation is in the reverse order of removal.
• Install differential side oil seal (1) to clutch housing and transaxlecase using Tool.
CAUTION:
Do not reuse oil seal.
- A: Transaxle case side
- B: Clutch housing side
CAUTION:
• Never reuse differential oil seal
• Never incline differential oil seal.
• Never damage clutch housing and transaxle case.
• Check oil level after installation. Refer to MT-54, "
Checking M/T Oil".
SCIA7625E
Tool number : KV32500QAA (B.vi 1666-B)
Dimension (L1) : 1.2 - 1.8 mm (0.047 - 0.071 in)
Dimension (L2) : 2.7 - 3.3 mm (0.106 - 0.130 in)
JPDIC0454ZZ
