NISSAN TIIDA 2010 Service Repair Manual

POSITION SWITCHMT-57
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
POSITION SWITCH
CheckingINFOID:0000000005397194
NOTE:
For removal and installation of the switches, refer to MT-62, "
Disassembly and Assembly"
BACK-UP LAMP SWITCH
• Check continuity between terminals 1 and 2.
PARK/NEUTRAL POSITION SWITCH
• Check continuity between terminals 2 and 3.
Gear positionContinuity
Reverse Yes
Except reverse No
PCIB1781E
Gear positionContinuity
Neutral Yes
Except neutral No
Revision: January 20102010 Versa

MT-58
< SERVICE INFORMATION >[RS6F94R]
CONTROL LINKAGE
CONTROL LINKAGE
Component of Contro
l Device and CableINFOID:0000000005397195
Removal and InstallationINFOID:0000000005397196
REMOVAL
1. Remove battery. Refer to SC-7, "Removal and Installation".
2. Remove air duct (front), air duct (Inlet) and air cleaner case. Refer to EM-135, "
Removal and Installation".
3. Remove shift cable from control shaft shift lever.
4. Remove select cable according to the following.
a. Move stopper (1) to the unlocked position.
1. Shift lever handle 2. Shift lever3. M/T shift selector assembly
4. Select cable 5. Shift cable6. Lock plate
7. Clutch housing 8. Cable bracket9. Tapping bolt
10. Cable support bracket 11. Adapter plate
WCIA0626E
SCIA7842E
Revision: January 20102010 Versa

CONTROL LINKAGEMT-59
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P

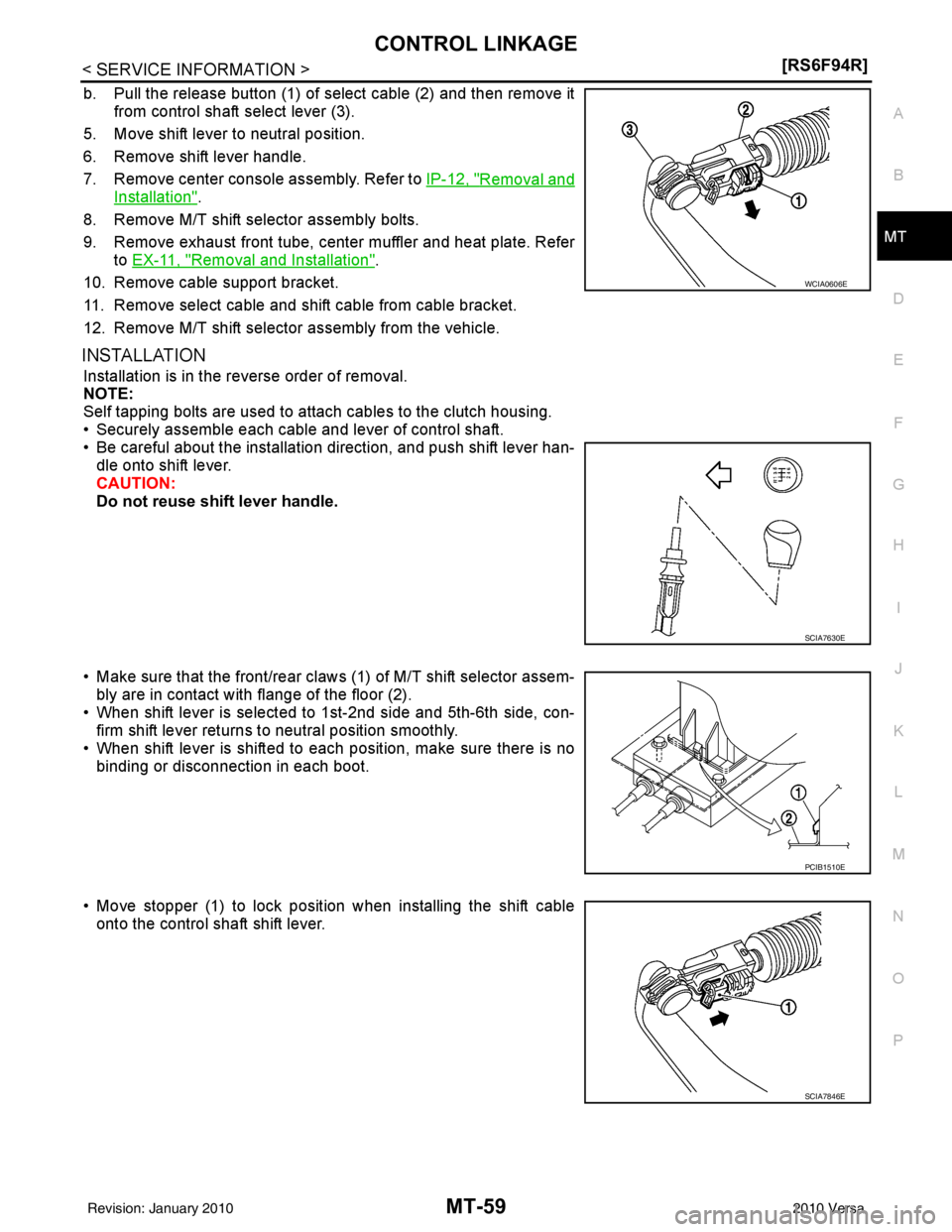

b. Pull the release button (1) of select cable (2) and then remove it from control shaft select lever (3).
5. Move shift lever to neutral position.
6. Remove shift lever handle.
7. Remove center console assembly. Refer to IP-12, "
Removal and
Installation".
8. Remove M/T shift selector assembly bolts.
9. Remove exhaust front tube, cent er muffler and heat plate. Refer
to EX-11, "
Removal and Installation".
10. Remove cable support bracket.
11. Remove select cable and shif t cable from cable bracket.
12. Remove M/T shift selector assembly from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Self tapping bolts are used to attach cables to the clutch housing.
• Securely assemble each cable and lever of control shaft.
• Be careful about the installation direction, and push shift lever han- dle onto shift lever.
CAUTION:
Do not reuse shift lever handle.
• Make sure that the front/rear claws (1) of M/T shift selector assem- bly are in contact with flange of the floor (2).
• When shift lever is selected to 1st-2nd side and 5th-6th side, con- firm shift lever returns to neutral position smoothly.
• When shift lever is shifted to each position, make sure there is no
binding or disconnection in each boot.
• Move stopper (1) to lock position when installing the shift cable onto the control shaft shift lever.
WCIA0606E
SCIA7630E
PCIB1510E
SCIA7846E
Revision: January 20102010 Versa

MT-60
< SERVICE INFORMATION >[RS6F94R]
AIR BREATHER HOSE
AIR BREATHER HOSE
Removal and InstallationINFOID:0000000005397197

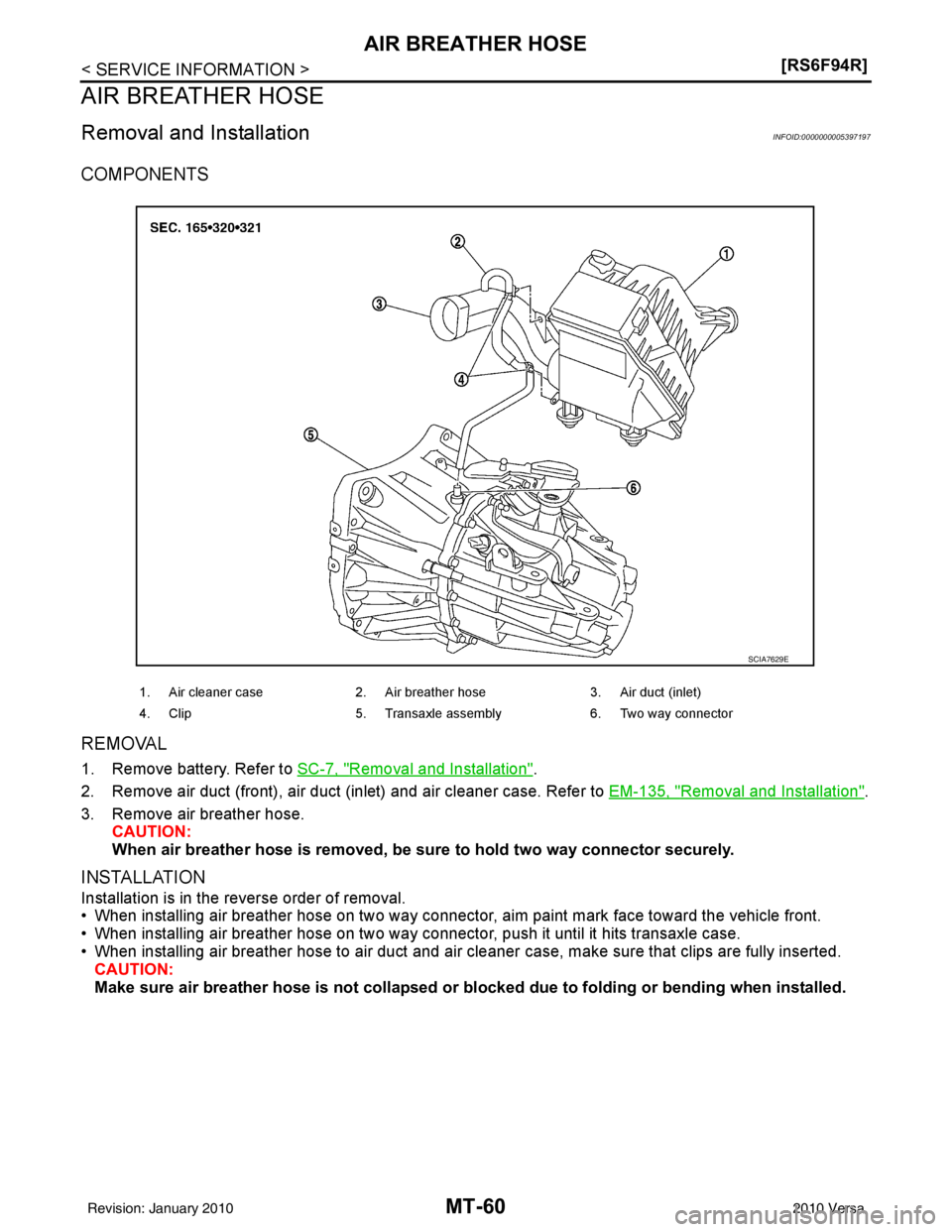

COMPONENTS
REMOVAL
1. Remove battery. Refer to SC-7, "Removal and Installation".
2. Remove air duct (front), air duct (inlet) and air cleaner case. Refer to EM-135, "
Removal and Installation".
3. Remove air breather hose. CAUTION:
When air breather hose is removed, be sure to hold two way connector securely.
INSTALLATION
Installation is in the reverse order of removal.
• When installing air breather hose on two way connector, aim paint mark face toward the vehicle front.
• When installing air breather hose on two way connector, push it until it hits transaxle case.
• When installing air breather hose to air duct and air cleaner case, make sure that clips are fully inserted.
CAUTION:
Make sure air breather hose is not collapsed or blocked due to folding or bending when installed.
1. Air cleaner case 2. Air breather hose 3. Air duct (inlet)
4. Clip 5. Transaxle assembly 6. Two way connector
SCIA7629E
Revision: January 20102010 Versa

TRANSAXLE ASSEMBLYMT-61
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
TRANSAXLE ASSEMBLY
ComponentINFOID:0000000005716041
Removal and InstallationINFOID:0000000005716042
CAUTION:
If transaxle assembly is removed from the vehicle , always replace CSC (Concentric Slave Cylinder).
Inserted CSC returns to the origin al position when removing transaxle assembly. Dust on clutch disc
sliding parts may damage CSC seal, and may cause clutch fluid leakage.
REMOVAL
1. Drain clutch fluid and remove clutch tube from CSC. Refer to CL-13, "Removal and Installation".
CAUTION:
Do not depress clutch pedal during removal procedure.
2. Remove engine and transaxle assembly. Refer to EM-191, "
Removal and Installation".
3. Remove starter motor. Refer to SC-20, "
Removal and Installation MR18DE".
4. Remove transaxle assembly to engine bolts.
5. Separate transaxle assembly from engine.
INSTALLATION
Installation is in the reverse order of removal.
• If transaxle is removed from the v ehicle, always replace CSC. Refer to CL-13, "
Removal and Installation" .
1. LH engine mount bracket (transaxle side) 2. Transaxle assembly 3. Rear engine mount bracket
4. Washer 5. Rear torque rod Front
: Refer to MT-61, "
Removal and Installation".
SCIA7631E
Revision: January 20102010 Versa

MT-62
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY

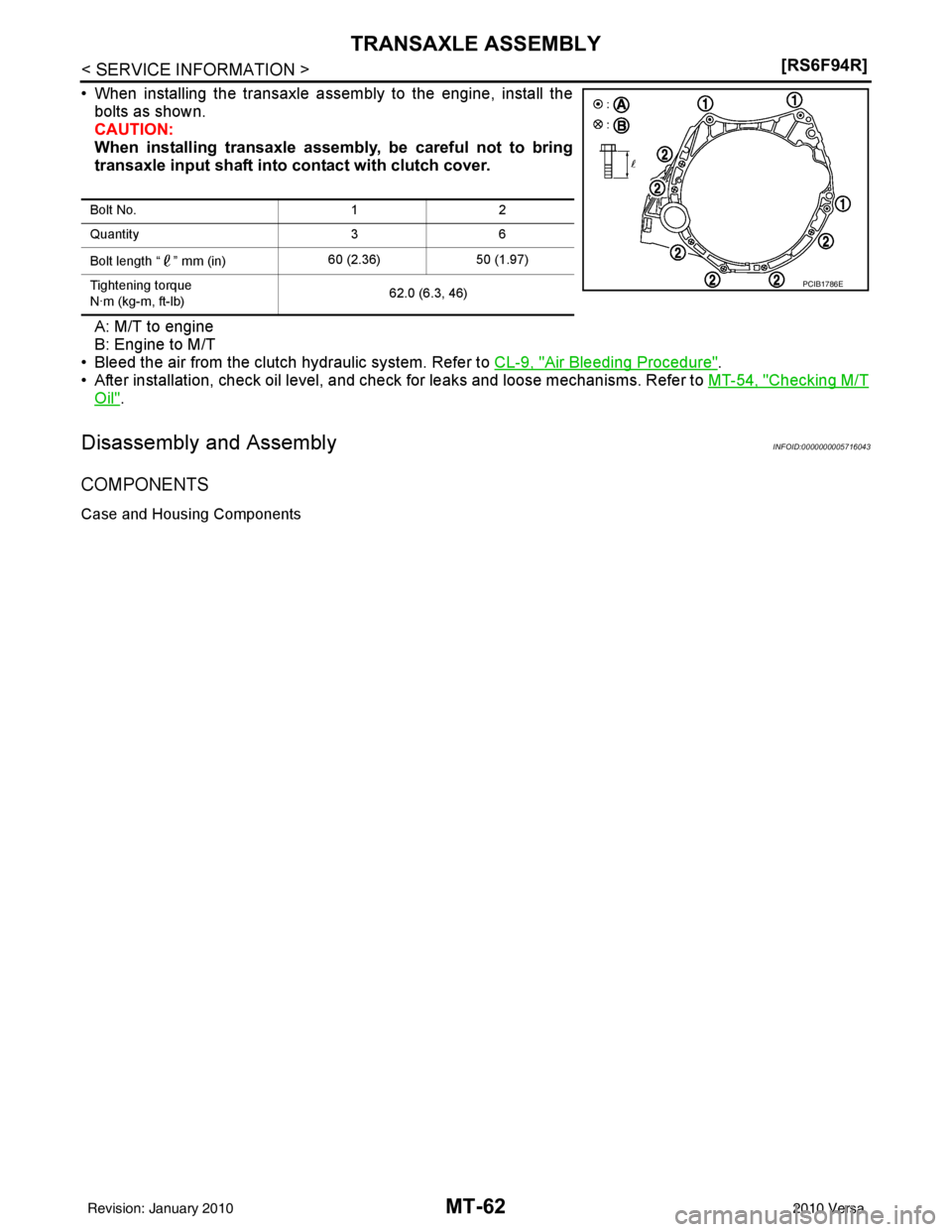

• When installing the transaxle assembly to the engine, install the
bolts as shown.
CAUTION:
When installing transaxle assembly, be careful not to bring
transaxle input shaft into co ntact with clutch cover.
A: M/T to engine
B: Engine to M/T
• Bleed the air from the clutch hydraulic system. Refer to CL-9, "
Air Bleeding Procedure".
• After installation, check oil level, and check for leaks and loose mechanisms. Refer to MT-54, "
Checking M/T
Oil".
Disassembly and AssemblyINFOID:0000000005716043
COMPONENTS
Case and Housing Components
Bolt No.12
Quantity 36
Bolt length “ ” mm (in) 60 (2.36)
50 (1.97)
Tightening torque
N·m (kg-m, ft-lb) 62.0 (6.3, 46)
PCIB1786E
Revision: January 20102010 Versa

TRANSAXLE ASSEMBLYMT-63
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
Gear Components
1. Filler plug 2. Gasket 3. Transaxle case
4. Bushing 5. Snap ring 6. Oil channel
7. Oil gutter 8. Position switch 9. Bracket
10. Differential side oil seal 11. Magnet 12. Drain plug
13. Input shaft oil seal 14. Clutch housing 15. Two way connector
16. Plug (With ABS models) 17. Vehi cle speed sensor (Without
ABS models) 18. Pinion shaft
19. Pinion gear Use specified transaxle fluid. Refer to MA-14, "
Fluids and Lubricants"
: Apply Genuine Liquid Gasket, Three Bond 1215 or an equivalent.
AWDIA0715ZZ
Revision: January 20102010 Versa

MT-64
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY
1. Input shaft front bearing 2. Input shaft
3. 3rd input gear
4. Spacer 5. Snap ring 6. 3rd baulk ring
7. 3rd-4th coupling sleeve 8. 3rd-4th synchronizer hub 9. Insert key
10. 4th baulk ring 11. 4th input gear 12. 5th input gear
13. 5th baulk ring 14. 5th-6th coupling sleeve 15. 5th-6th synchronizer hub
16. 6th baulk ring 17. Needle bearing 18. 6th input gear
19. Input shaft rear bearing
A: First step B: Final step
: Apply gear oil.
: Replace the parts as a set.
JPDIC0407GB
Revision: January 20102010 Versa

TRANSAXLE ASSEMBLYMT-65
< SERVICE INFORMATION > [RS6F94R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P

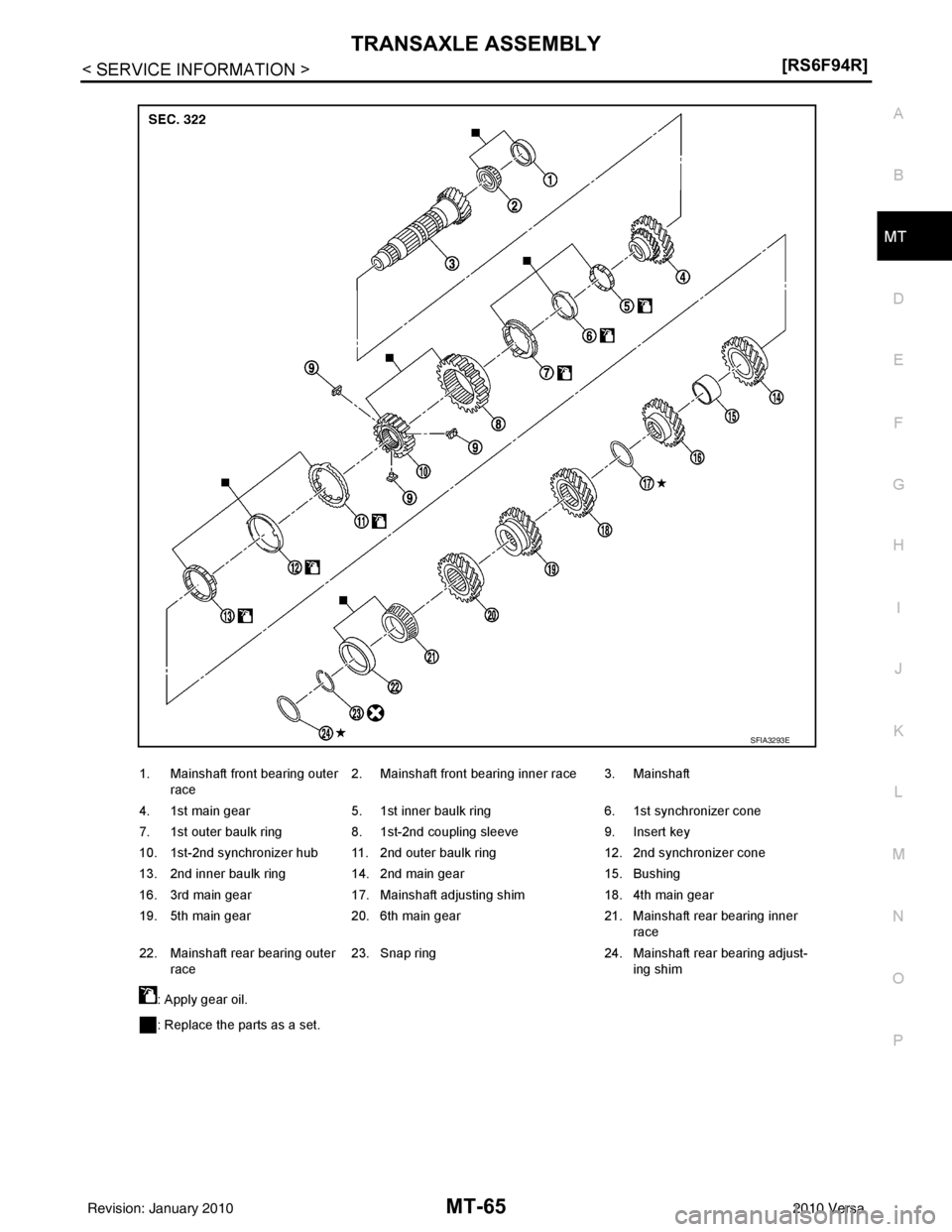

1. Mainshaft front bearing outer race 2. Mainshaft front bearing inner race 3. Mainshaft
4. 1st main gear 5. 1st inner baulk ring 6. 1st synchronizer cone
7. 1st outer baulk ring 8. 1st-2nd coupling sleeve 9. Insert key
10. 1st-2nd synchronizer hub 11. 2nd outer baulk ring 12. 2nd synchronizer cone
13. 2nd inner baulk ring 14. 2nd main gear 15. Bushing
16. 3rd main gear 17. Mainshaft adjusting shim 18. 4th main gear
19. 5th main gear 20. 6th main gear 21. Mainshaft rear bearing inner
race
22. Mainshaft rear bearing outer race 23. Snap ring
24. Mainshaft rear bearing adjust-
ing shim
: Apply gear oil.
: Replace the parts as a set.
SFIA3293E
Revision: January 20102010 Versa

MT-66
< SERVICE INFORMATION >[RS6F94R]
TRANSAXLE ASSEMBLY
Shift Control Components
1. Reverse output gear 2. Snap ring
3. Reverse baulk ring
4. Return spring 5. Needle bearing 6. Seal washer
7. Reverse idler shaft 8. Spacer 9. Reverse input gear
10. Lock washer 11. Spring washer
: Replace the parts as a set.
JPDIC0425GB
Revision: January 20102010 Versa
