NISSAN TIIDA 2010 Service Repair Manual

REAR SEATSE-15
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P
REAR SEAT

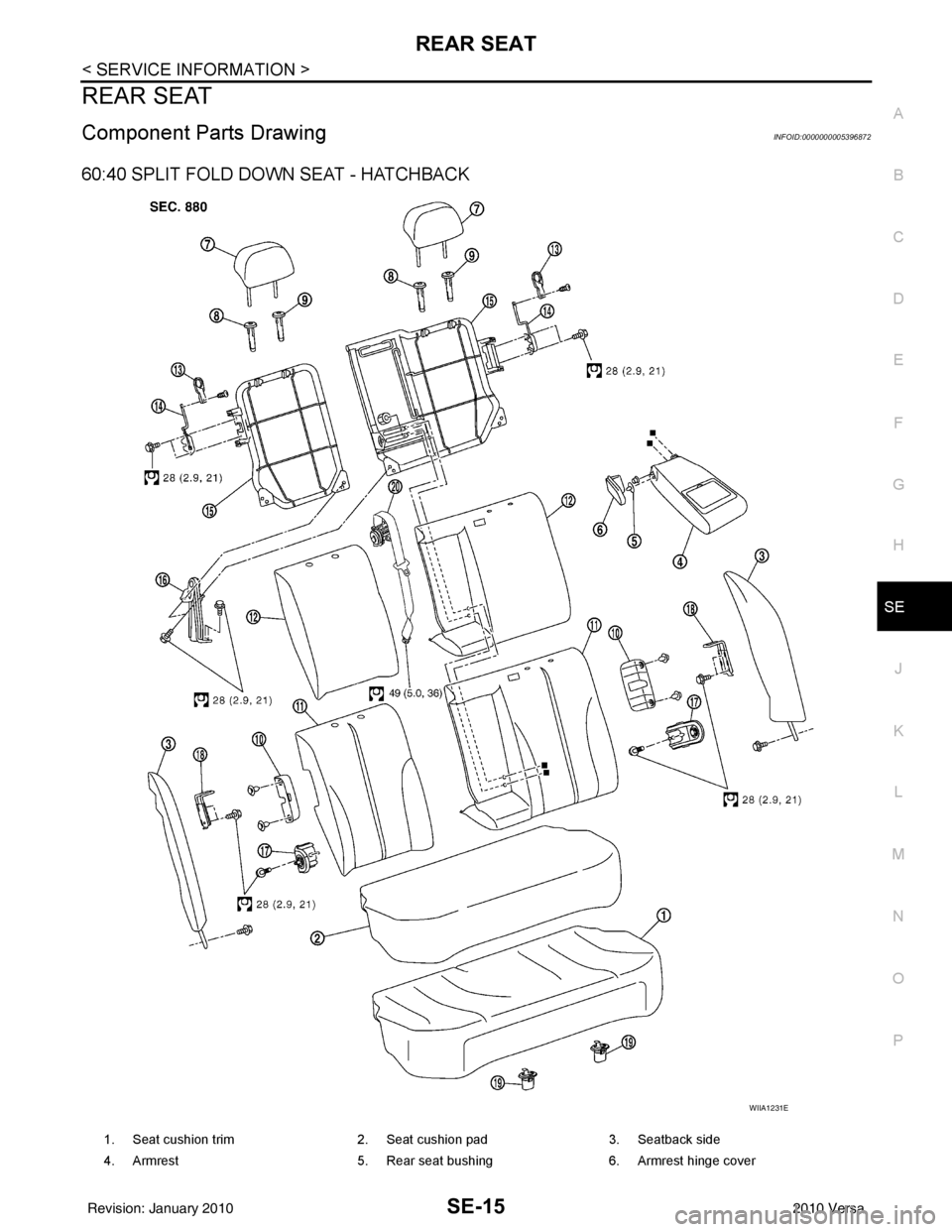

Component Parts DrawingINFOID:0000000005396872
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
WIIA1231E
1. Seat cushion trim 2. Seat cushion pad3. Seatback side
4. Armrest 5. Rear seat bushing6. Armrest hinge cover
Revision: January 20102010 Versa

SE-16
< SERVICE INFORMATION >
REAR SEAT
Removal and Installation
INFOID:0000000005396873
CAUTION:
When removing and in stalling, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
Removal
1. Pull seat cushion up, and then remove the seat cushion from the
seat cushion hook.
2. Remove the center seatbelt anchor bolt (A) from under the seat.
3. Remove the seatback mounting bolts from the right rear seat back brackets.
CAUTION:
Tighten seatback mounting bolts in the order as shown.
7. Headrest 8. Headrest holder (free)9. Headrest holder (locked)
10. Striker cover 11. Seatback trim12. Seatback pad
13. Rear seatback lock knob 14. Rear seat lock assembly15. Seatback frame
16. Rear seatback center bracket 17. Rear seatback side bracket 18. Rear seat striker
19. Seat cushion hook 20. Center seat belt assembly
PIIB4085J
WIIA1234E
WIIA1287E
Revision: January 20102010 Versa

REAR SEATSE-17
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P
4. Remove the seatback mounting bolts from the left rear seat back brackets.
CAUTION:
Tighten seatback mounting bolts in the order as shown.
5. Remove the seatback from the vehicle.
6. Remove the kicking plate rear inner. Refer to EI-40, "
Removal and Installation" .
7. Remove the bolt under the seatback side.
8. Pull seatback side up, and then remove seatback side.
9. Remove the bolts, and then remove rear seatback center bracket.
10. Remove the bolt, and then remove rear seatback side bracket from the vehicle.
11. Remove the rear seatback finisher. Refer to EI-54, "
Removal and Installation" .
12. Remove the bolts, and then remove the rear seat striker.
Installation
Installation is in the reverse order of removal. Be careful of the following point.
WIIA1288E
PIIB2482J
PIIB2483J
PIIB2484J
Revision: January 20102010 Versa

SE-18
< SERVICE INFORMATION >
REAR SEAT
• When installing the rear seatback side bracket perform the following procedure.
1. Install the rear seatback side bracket in the vehicle.
2. Temporarily tighten the seatback assembly and rear seatback side bracket.
3. Lift to fold up seatback assembly. Be sure to lock seatback assembly to rear seat striker.
4. Tighten the bolt. NOTE:
Confirm that side hinge bracket location pin is set to the hole on the seatback backside.
Disassembly and AssemblyINFOID:0000000005396874
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
Disassembly of Armrest
1. Fold up the backside of the seatback trim and then remove the
armrest nuts.
2. Push the armrest toward left side while pulling backward to remove.
3. Remove the rear seat bushing, and then remove the armrest hinge cover by pulling it backward.
PIIB2484J
PIIB2913J
PIIB2915J
PIIB6507E
Revision: January 20102010 Versa

REAR SEATSE-19
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P
Assembly of Armrest
Assembly is in the reverse order of disassembly.
Disassembly of Seatback Trim and Pad
1. Remove the headrest.
2. Remove the retainer under the back of seatback.
3. Remove the clips, and then remove the striker cover.
4. Remove the headrest holder.
5. To remove armrest, refer to "Disassembly of Armrest " .
6. Remove the seatback trim.
7. Remove the bolts, and then remove the rear seat lock assembly.
8. Remove the seatback pad from the seatback frame.
9. Remove the seatback center bracket
bolt and then remove the seatback frame.
PIIB2486J
PIIB2485J
PIIB4084J
PIIB2487J
Revision: January 20102010 Versa

SE-20
< SERVICE INFORMATION >
REAR SEAT
Assembly of Seatback Trim and Pad
Assembly is in the reverse order of disassembly.
• Before installing headrest holder, check its orientation (front/rear and right/left).
Disassembly of Seat Cushion Trim and Pad
Remove the rings to separate the trim and pad.
Assembly of Seat Cushion Trim and Pad
Assembly is in the reverse order of disassembly.
Revision: January 20102010 Versa

REAR SEATSE-21
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P

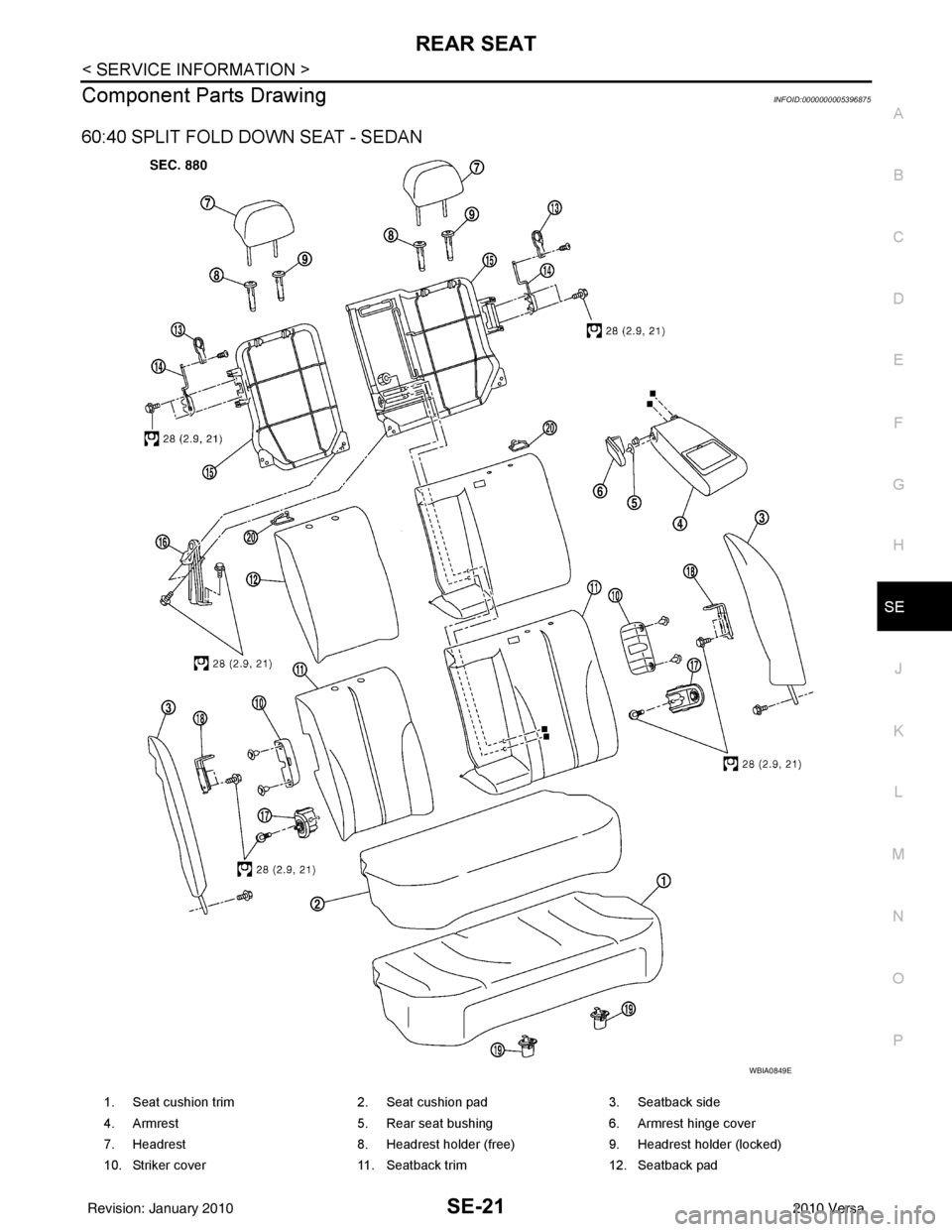

Component Parts DrawingINFOID:0000000005396875
60:40 SPLIT FOLD DOWN SEAT - SEDAN
WBIA0849E
1. Seat cushion trim 2. Seat cushion pad3. Seatback side
4. Armrest 5. Rear seat bushing6. Armrest hinge cover
7. Headrest 8. Headrest holder (free)9. Headrest holder (locked)
10. Striker cover 11. Seatback trim12. Seatback pad
Revision: January 20102010 Versa

SE-22
< SERVICE INFORMATION >
REAR SEAT
Removal and Installation
INFOID:0000000005396876
CAUTION:
When removing and in stalling, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN SEAT - SEDAN
Removal
1. Pull seat cushion up, and then remove the seat cushion from the
seat cushion hook. Slide the seat cushion forward.
2. Remove the center seatbelt anchor bolt (A) from under the seat and slide the seatbelt through the seat cushion trim cover (1).
3. Fold the right seatback and remove the seatback mounting bolts (A) from the left rear seat back brackets. Remove the seatback
from the vehicle.
4. Fold the left seatback and remove the seatback mounting bolts (A) from the left rear seat back brackets. Remove the seatback
from the vehicle.
13. Rear seatback lock knob 14. Rear seat lock assembly15. Seatback frame
16. Rear seatback center bracket 17. Rear seatback side bracket 18. Rear seat striker
19. Seat cushion hook 20. Seatbelt guide
PIIB4085J
WIIA1380E
WIIA1382E
WIIA1383E
Revision: January 20102010 Versa

REAR SEATSE-23
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P
5. Remove the kicking plate rear inner. Refer to EI-40, "Removal and Installation" .
6. Remove the bolt under the seatback side.
7. Pull seatback side up, and then remove seatback side.
8. Remove the bolts, and then remove rear seatback center bracket.
9. Remove the bolt, and then remove rear seatback side bracket from the vehicle.
10. Remove the rear seatback finisher. Refer to EI-54, "
Removal and Installation" .
11. Remove the bolts, and then remove the rear seat striker.
Installation
Installation is in the reverse order of removal. Be careful of the following point.
• When installing the rear seatback side bracket perform the following procedure.
1. Install the rear seatback side bracket in the vehicle.
2. Temporarily tighten the seatback asse mbly and rear seatback side bracket.
3. Lift to fold up seatback assembly. Be sure to lock seatback assembly to rear seat striker.
4. Tighten the bolt.
PIIB2482J
PIIB2483J
PIIB2484J
PIIB2484J
Revision: January 20102010 Versa

SE-24
< SERVICE INFORMATION >
REAR SEAT
NOTE:
Confirm that side hinge bracket location pin is set to the hole on the seatback backside.
Disassembly and AssemblyINFOID:0000000005396877
60:40 SPLIT FOLD DOWN SEAT - SEDAN
Disassembly of Armrest
1. Fold down the armrest and remove the armrest bolt cover (A).
2. Remove the armrest bolt (A).
3. Push the armrest toward left side while pulling backward toremove.
4. Remove the rear seat bushing, and then remove the armrest hinge cover by pulling it backward.
Assembly of Armrest
Assembly is in the reverse order of disassembly.
WIIA1384E
WIIA1385E
PIIB2915J
PIIB6507E
Revision: January 20102010 Versa
