NISSAN TIIDA 2011 Service Repair Manual

CVT-156
< SERVICE INFORMATION >[RE0F08B]
CVT SHIFT LOCK SYSTEM
•
Selector lever can be moved from “P” position with ignition key in ON position and brake pedal
released.
• Selector lever can be moved from “P” position when ignition switch is removed from key cylinder.
SYMPTOM 2:
• Ignition key cannot be removed when sel ector lever is set to “P” position.
• Ignition key can be removed when selector lever is set to any position except “P” position.
1.CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair key interlock cable. Refer to AT-219, "
Removal and Installation".
2.CHECK CVT POSITION
Check CVT position. Refer to CVT-164, "
Checking of CVT Position".
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to CVT-164, "
Adjustment of CVT Position".
3.CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Turn ignition switch ON. (Do not start engine.)
2. Selector lever is set in “P” position.
3. Check operation sound.
OK or NG
OK >> INSPECTION END
NG - 1 >> With intelligent key: GO TO 4.
NG - 2 >> Without intelligent key: GO TO 5.
4.CHECK POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between CVT shift selector harness connector terminal 5 and ground.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
5.CHECK POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
Condition Brake pedalOperation sound
When ignition switch is turned to ON position and selector lever is set in
“P” position. Depressed
Ye s
Released
Voltage:
Brake pedal depressed: Battery voltage
Brake pedal released: 0V
SCIA7934E
Revision: May 2010 2011 Versa

CVT SHIFT LOCK SYSTEMCVT-157
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
2. Check voltage between CVT shift selector harness connector terminal 5 and ground.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6.CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 3 and 4.
Check stop lamp switch after adjusting brake pedal. Refer to
BR-6
.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7.DETECT MALFUNCTIONING ITEM
Check the following. If any items are damaged, repair or replace damaged parts.
• Harness for short or open between ignition switch and stop lamp switch harness connector
• Harness for short or open between stop lamp switch harness connector and CVT shift selector harness con-
nector
• 10A fuse [No.3, located in the fuse block (J/B)]
• Ignition switch, Refer to PG-4
.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
8.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT shift selector harness connector.
3. Check continuity between CVT shift selector harness connector terminal 6 and ground.
4. Connect CVT shift selector harness connector.
OK or NG
OK >> Replace shift lock solenoid and park position switch assembly. Refer to CVT-163, "
CVT Shift Selector Disas-
sembly and Assembly".
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT shift selector harness connector. Voltage:
Brake pedal depressed: Battery voltage
Brake pedal released: 0V
SCIA7935E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
AWDIA0419ZZ
Continuity should exist.
SCIA7936E
Revision: May 2010 2011 Versa

CVT-158
< SERVICE INFORMATION >[RE0F08B]
CVT SHIFT LOCK SYSTEM
3. Check continuity between CVT shift selector harness connector
terminal 6 and ground.
4. Connect CVT shift selector harness connector.
OK or NG
OK >> Replace shift lock solenoid and park position switch assembly. Refer to CVT-163, "
CVT Shift Selector Disas-
sembly and Assembly".
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Continuity should exist.
SCIA7937E
Revision: May 2010
2011 Versa

TCM
CVT-159
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
TCM
Removal and InstallationINFOID:0000000005928961
COMPONENTS
REMOVAL
CAUTION:
When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then
replace TCM. Refer to CVT-8, "
Service After Replacing TCM and Transaxle Assembly".
1. Disconnect the battery negative terminal.
2. Disconnect the TCM harness connector (1) from the TCM (2). • Instrument lower finisher (3)
3. Remove the TCM (2).
INSTALLATION
Installation is in the reverse order of removal.
1. TCM
SCIA6963E
SCIA7167E
Revision: May 2010 2011 Versa

CVT-160
< SERVICE INFORMATION >[RE0F08B]
SHIFT CONTROL SYSTEM
SHIFT CONTROL SYSTEM
Removal and InstallationINFOID:0000000005928962
CVT SHIFT SELECTOR COMPONENTS
CONTROL CABLE COMPONENTS
Refer to the figure below for shift selector
control cable removal and installation procedure.
1. Shift selector handle2. Shift selector handle
cover 3. Shift selector handle clip
4. Overdrive control switch 5. Shift selector handle fin- isher6. Shift selector handle button
7. Shift selector button spring 8. Position indicator plate 9. Position lamp
10. Dust cover 11. Bracket12. Shift lock solenoid and park position
switch assembly
13. CVT shift selector harness con- nector 14. Plate
15. CVT shift selector assembly
WCIA0638E
Revision: May 2010 2011 Versa

SHIFT CONTROL SYSTEMCVT-161
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
REMOVAL
CAUTION:
Make sure that parking brake is applie d before removal and installation.
1. Place the shift selector in the “N” position.
2. Remove the center console assembly. Refer to IP-11
.
3. Disconnect the CVT shift selector harness connector (1).
4. Remove the key interlock cable from the CVT shift selector assembly. Refer to CVT-166, "
Removal and Installation".
5. Remove the bolts (A) from the CVT shift selector assembly (1).
6. Remove exhaust front tube, center muffler and heat plates. Refer to EM-141
.
1. Shift selector handle 2. CVT shift selector assembly 3. Lock plate
4. Bracket 5. Control cable6. Bracket
7. Lock plate 8. Bracket9. Transaxle assembly
A. Floor
WCIA0639E
SCIA6965E
WCIA0609E
Revision: May 2010 2011 Versa

CVT-162
< SERVICE INFORMATION >[RE0F08B]
SHIFT CONTROL SYSTEM
7. Remove the plate (1) from the CVT shift selector assembly.
: Vehicle front
8. Remove the lock plate (1) from the control cable (2). : Vehicle front
9. Remove the control cable (2) from the CVT shift selector assem- bly.
10. Insert suitable tool at points (A) and (B) as shown, and press both tabs (E) and (F) at the front (C) and rear (D) slightly toward
the center of the CVT shift selector assembly to remove the CVT
shift selector assembly from the underside of the vehicle.
: Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
SCIA6967E
SCIA6968E
SCIA6970E
Revision: May 2010 2011 Versa

SHIFT CONTROL SYSTEMCVT-163
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

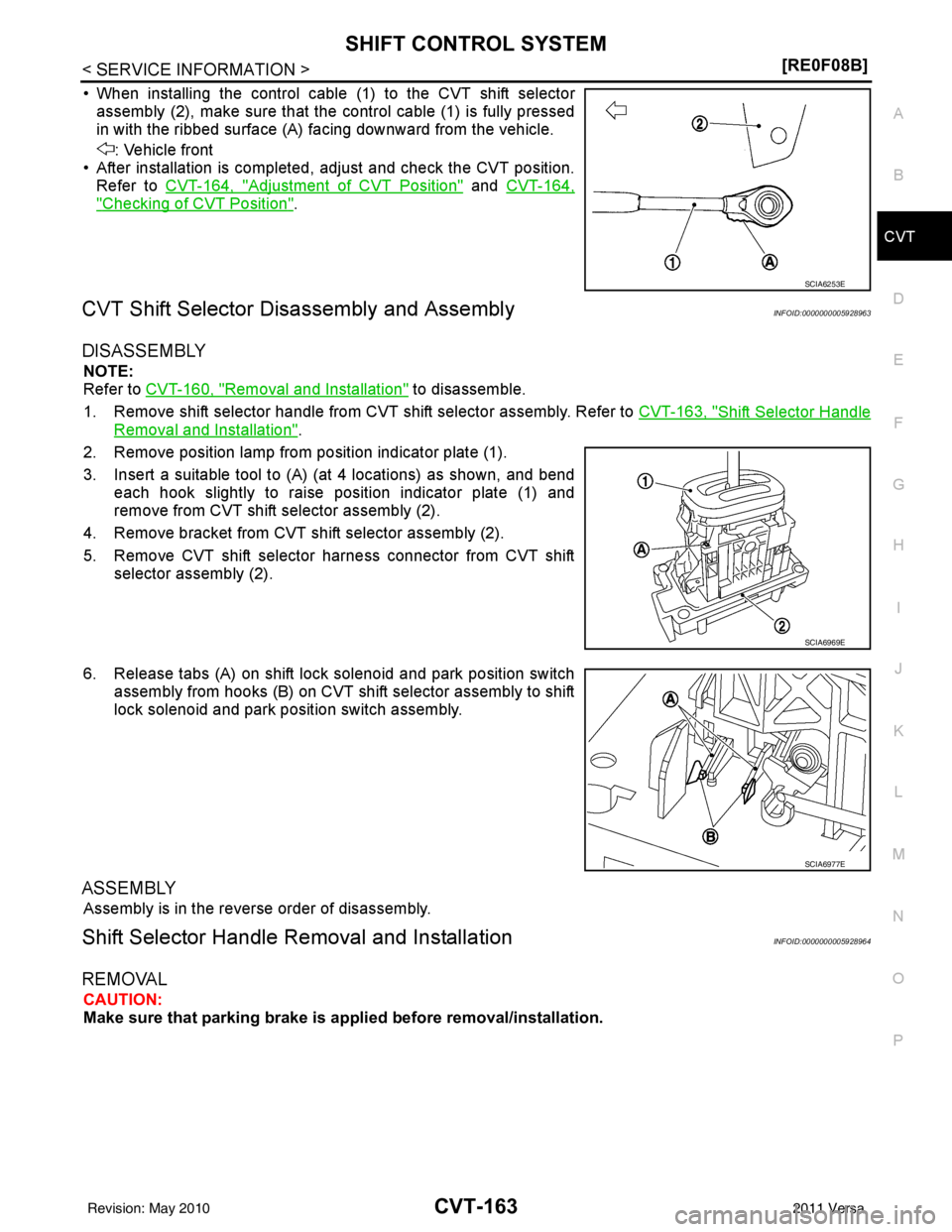

• When installing the control cable (1) to the CVT shift selector assembly (2), make sure that the control cable (1) is fully pressed
in with the ribbed surface (A) fa cing downward from the vehicle.
: Vehicle front
• After installation is completed, adjust and check the CVT position.
Refer to CVT-164, "
Adjustment of CVT Position" and CVT-164,
"Checking of CVT Position".
CVT Shift Selector Disassembly and AssemblyINFOID:0000000005928963
DISASSEMBLY
NOTE:
Refer to CVT-160, "
Removal and Installation" to disassemble.
1. Remove shift selector handle from CVT shift selector assembly. Refer to CVT-163, "
Shift Selector Handle
Removal and Installation".
2. Remove position lamp from position indicator plate (1).
3. Insert a suitable tool to (A) (at 4 locations) as shown, and bend each hook slightly to raise position indicator plate (1) and
remove from CVT shift selector assembly (2).
4. Remove bracket from CVT sh ift selector assembly (2).
5. Remove CVT shift selector harness connector from CVT shift selector assembly (2).
6. Release tabs (A) on shift lock solenoid and park position switch assembly from hooks (B) on CVT shift selector assembly to shift
lock solenoid and park position switch assembly.
ASSEMBLY
Assembly is in the reverse order of disassembly.
Shift Selector Handle Removal and InstallationINFOID:0000000005928964
REMOVAL
CAUTION:
Make sure that parking brake is a pplied before removal/installation.
SCIA6253E
SCIA6969E
SCIA6977E
Revision: May 2010 2011 Versa

CVT-164
< SERVICE INFORMATION >[RE0F08B]
SHIFT CONTROL SYSTEM

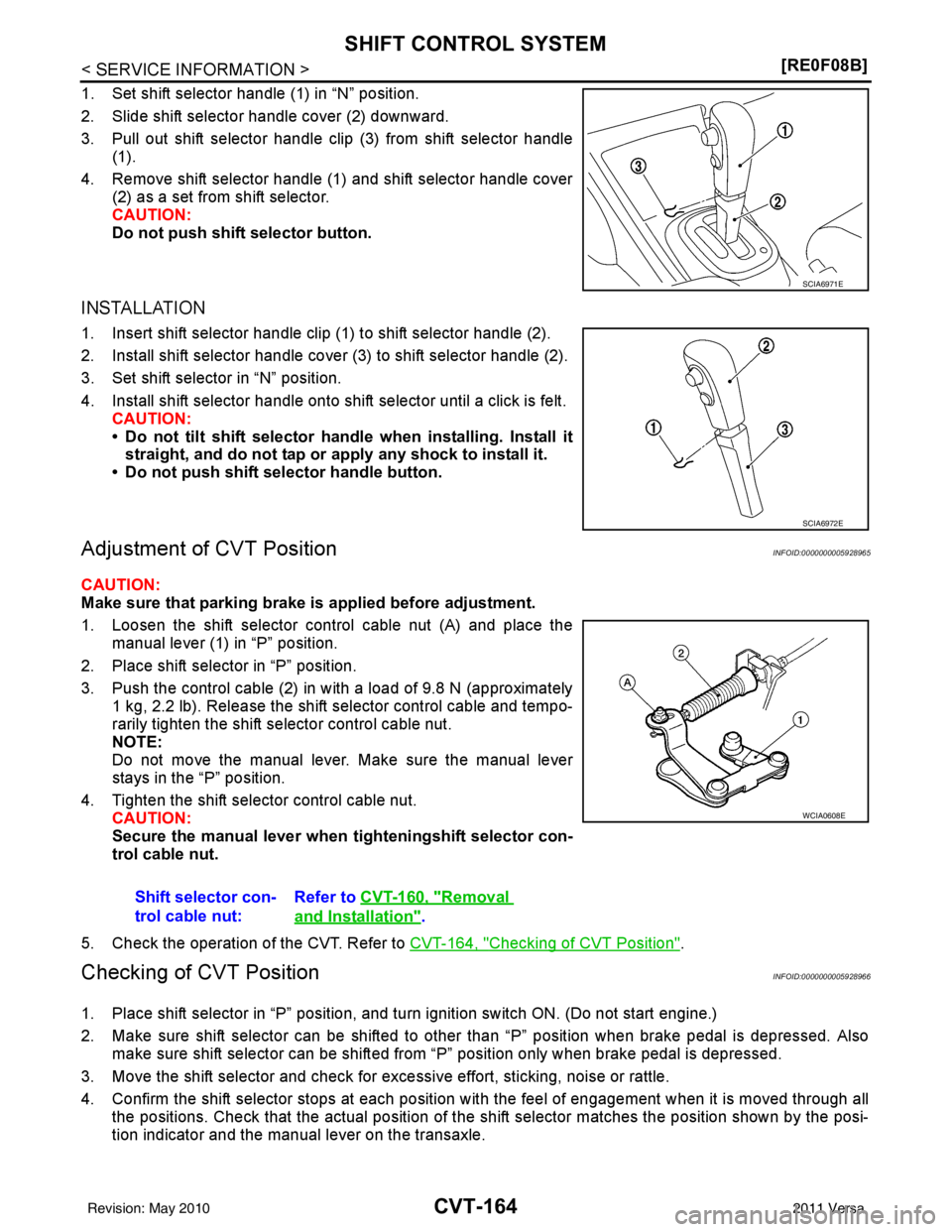

1. Set shift selector handle (1) in “N” position.
2. Slide shift selector handle cover (2) downward.
3. Pull out shift selector handle clip (3) from shift selector handle
(1).
4. Remove shift selector handle (1) and shift selector handle cover (2) as a set from shift selector.
CAUTION:
Do not push shift selector button.
INSTALLATION
1. Insert shift selector handle clip (1) to shift selector handle (2).
2. Install shift selector handle cover (3) to shift selector handle (2).
3. Set shift selector in “N” position.
4. Install shift selector handle onto shift selector until a click is felt.
CAUTION:
• Do not tilt shift selector hand le when installing. Install it
straight, and do not tap or apply any shock to install it.
• Do not push shift selector handle button.
Adjustment of CVT PositionINFOID:0000000005928965
CAUTION:
Make sure that parking brake is applied before adjustment.
1. Loosen the shift selector control cable nut (A) and place the manual lever (1) in “P” position.
2. Place shift selector in “P” position.
3. Push the control cable (2) in with a load of 9.8 N (approximately 1 kg, 2.2 lb). Release the shift selector control cable and tempo-
rarily tighten the shift selector control cable nut.
NOTE:
Do not move the manual lever. Make sure the manual lever
stays in the “P” position.
4. Tighten the shift selector control cable nut. CAUTION:
Secure the manual lever when tighteningshift selector con-
trol cable nut.
5. Check the operation of the CVT. Refer to CVT-164, "
Checking of CVT Position".
Checking of CVT PositionINFOID:0000000005928966
1. Place shift selector in “P” position, and turn ignition switch ON. (Do not start engine.)
2. Make sure shift selector can be shifted to other than “P” position when brake pedal is depressed. Also
make sure shift selector can be shifted from “P” position only when brake pedal is depressed.
3. Move the shift selector and check for excessive effort, sticking, noise or rattle.
4. Confirm the shift selector stops at each position with the feel of engagement when it is moved through all
the positions. Check that the actual position of the shift selector matches the position shown by the posi-
tion indicator and the manual lever on the transaxle.
SCIA6971E
SCIA6972E
Shift selector con-
trol cable nut: Refer to
CVT-160, "Removal
and Installation".
WCIA0608E
Revision: May 2010 2011 Versa

SHIFT CONTROL SYSTEMCVT-165
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
5. The method of operating the shift selector to individual positions correctly should be as shown.
• (A): Press shift selector handle button to operate shift selector,while depressing the brake pedal.
• (B): Press shift selector handle button to operate shift selector.
• (C): Shift selector can be operated without pressing shift selector handle button.
6. Confirm the back-up lamps illuminate only when shift selector is placed in the “R” position. Confirm the back-up lamps do not illu-
minate when the shift selector is pushed toward the “R” position
side with the gear position remained in the “P” or “N” position.
7. Confirm the engine can only be started with the shift selector in the “P” and “N” positions.
8. Make sure transaxle is locked completely in “P” position.
WCIA0620E
