NISSAN TIIDA 2011 Service Repair Manual

EVAPORATIVE EMISSION SYSTEMEC-87
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component DescriptionINFOID:0000000005929787

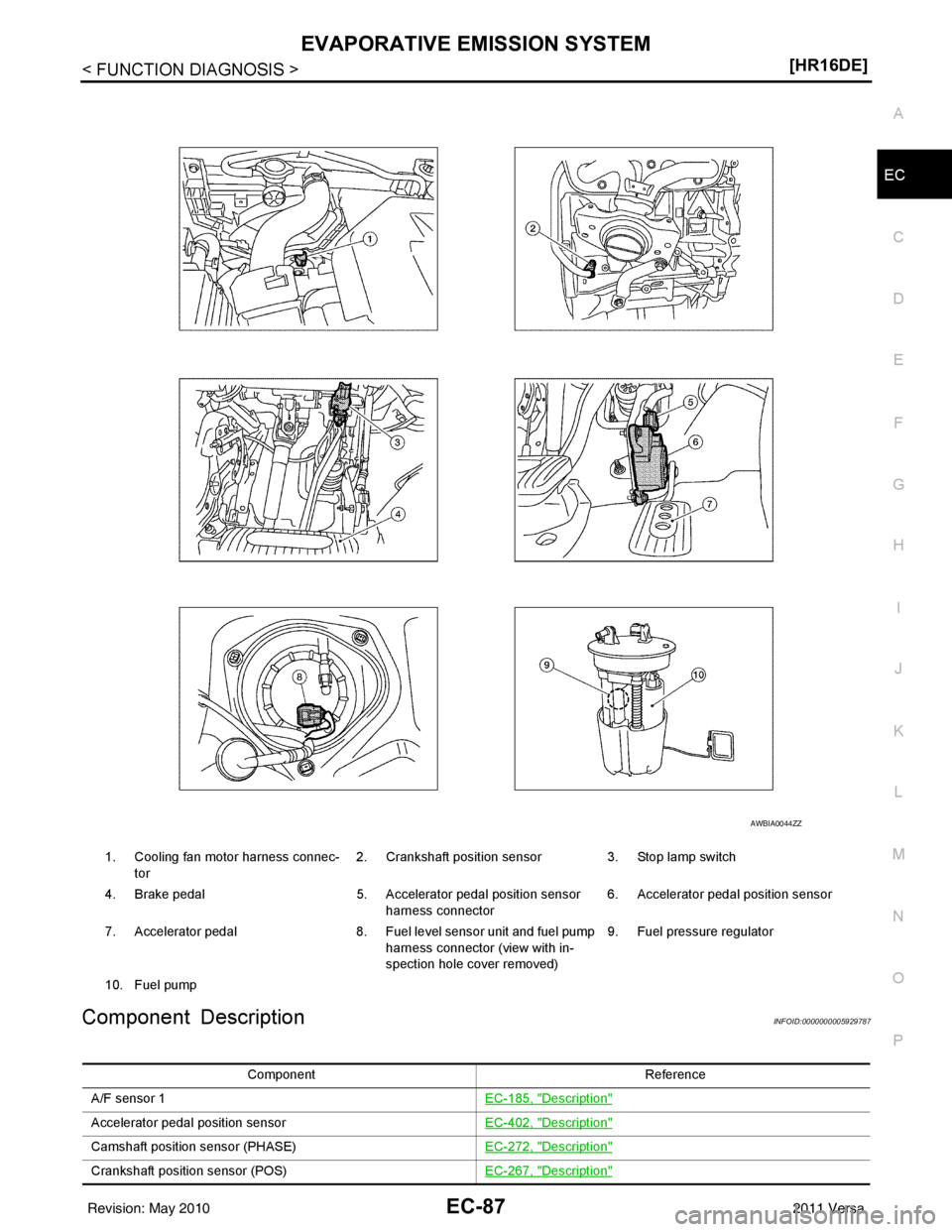

1. Cooling fan motor harness connec-
tor 2. Crankshaft position sensor 3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector 6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed) 9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ
Component Reference
A/F sensor 1 EC-185, "
Description"
Accelerator pedal position sensorEC-402, "Description"
Camshaft position sensor (PHASE)EC-272, "Description"
Crankshaft position sensor (POS)EC-267, "Description"
Revision: May 2010 2011 Versa

EC-88
< FUNCTION DIAGNOSIS >[HR16DE]
EVAPORATIVE EMISSION SYSTEM
Engine coolant temperature sensor
EC-168, "Description"
EVAP canister purge volume control solenoid valveEC-295, "Description"
EVAP control system pressure sensorEC-316, "Description"
Fuel tank temperature sensorEC-244, "Description"
Mass air flow sensorEC-150, "Description"
Throttle position sensorEC-174, "Description"
Component Reference
Revision: May 2010 2011 Versa

INTAKE VALVE TIMING CONTROLEC-89
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
INTAKE VALVE TIMING CONTROL

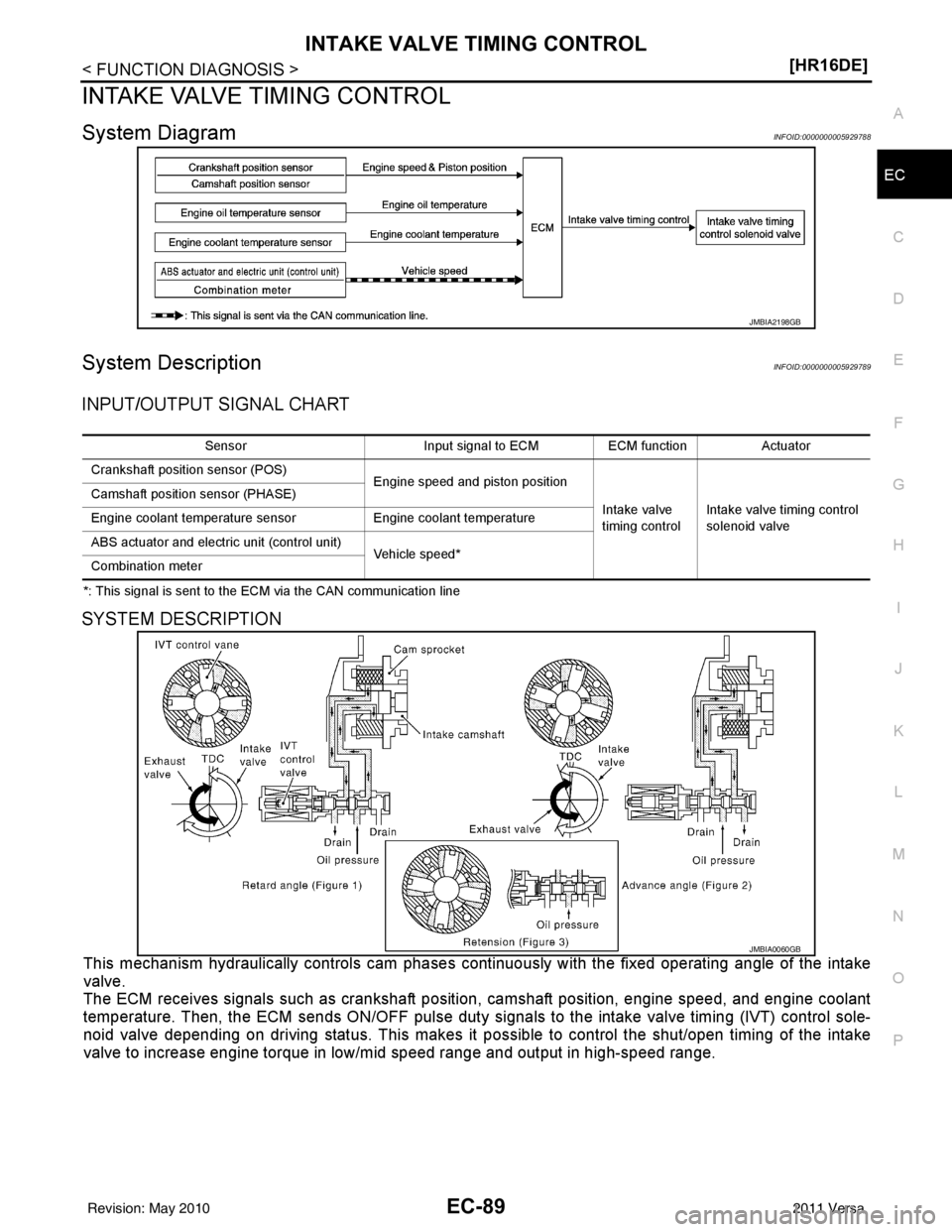

System DiagramINFOID:0000000005929788
System DescriptionINFOID:0000000005929789
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases c
ontinuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty si gnals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it po ssible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
JMBIA2198GB
Sensor Input signal to ECMECM functionActuator
Crankshaft position sensor (POS) Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve
Camshaft position sensor (PHASE)
Engine coolant temperature sensor
Engine coolant temperature
ABS actuator and electric unit (control unit)
Vehicle speed*
Combination meter
JMBIA0060GB
Revision: May 2010 2011 Versa

EC-90
< FUNCTION DIAGNOSIS >[HR16DE]
INTAKE VALVE TIMING CONTROL
Component Parts Location
INFOID:0000000006141214

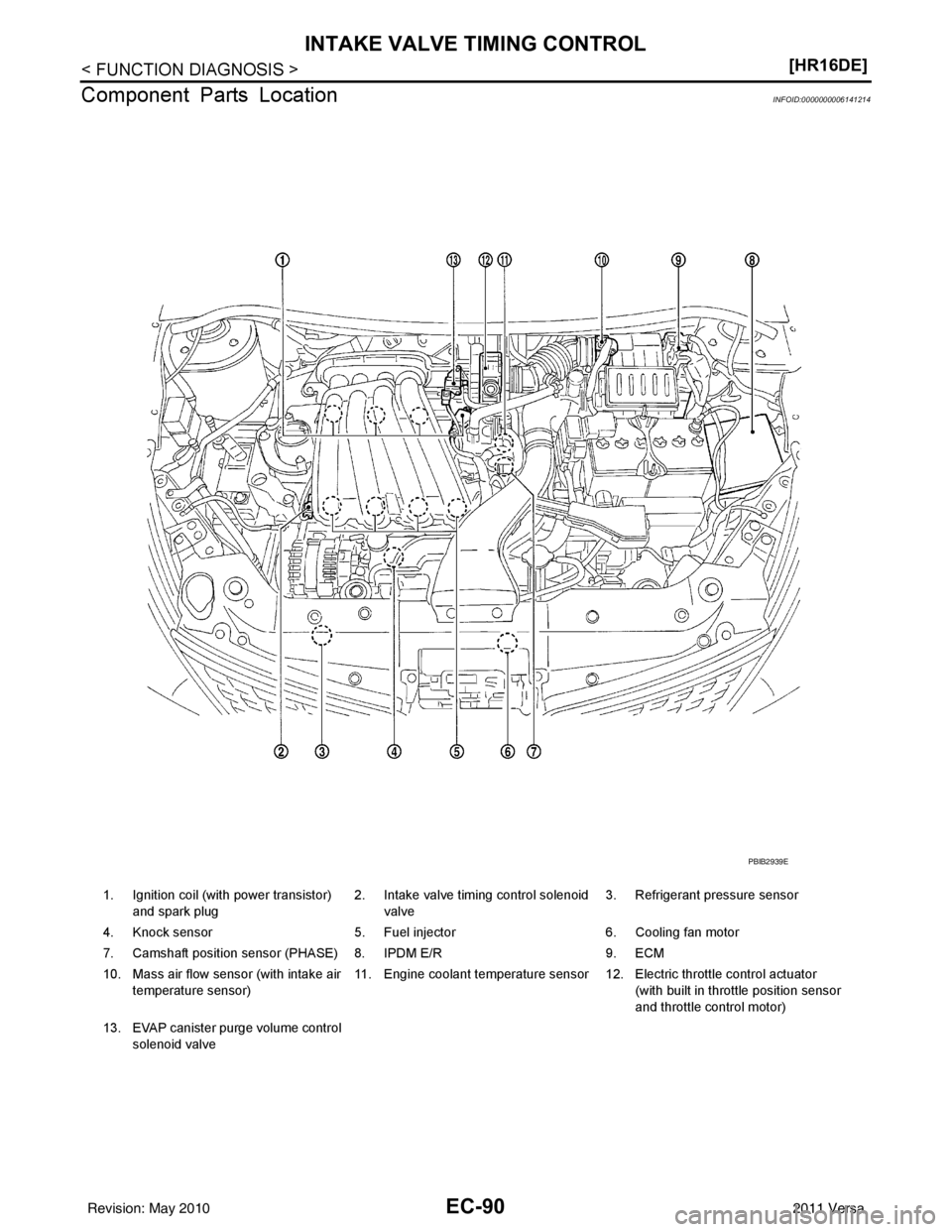

1. Ignition coil (with power transistor) and spark plug 2. Intake valve timing control solenoid
valve 3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air temperature sensor) 11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control solenoid valve
PBIB2939E
Revision: May 2010 2011 Versa

INTAKE VALVE TIMING CONTROLEC-91
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

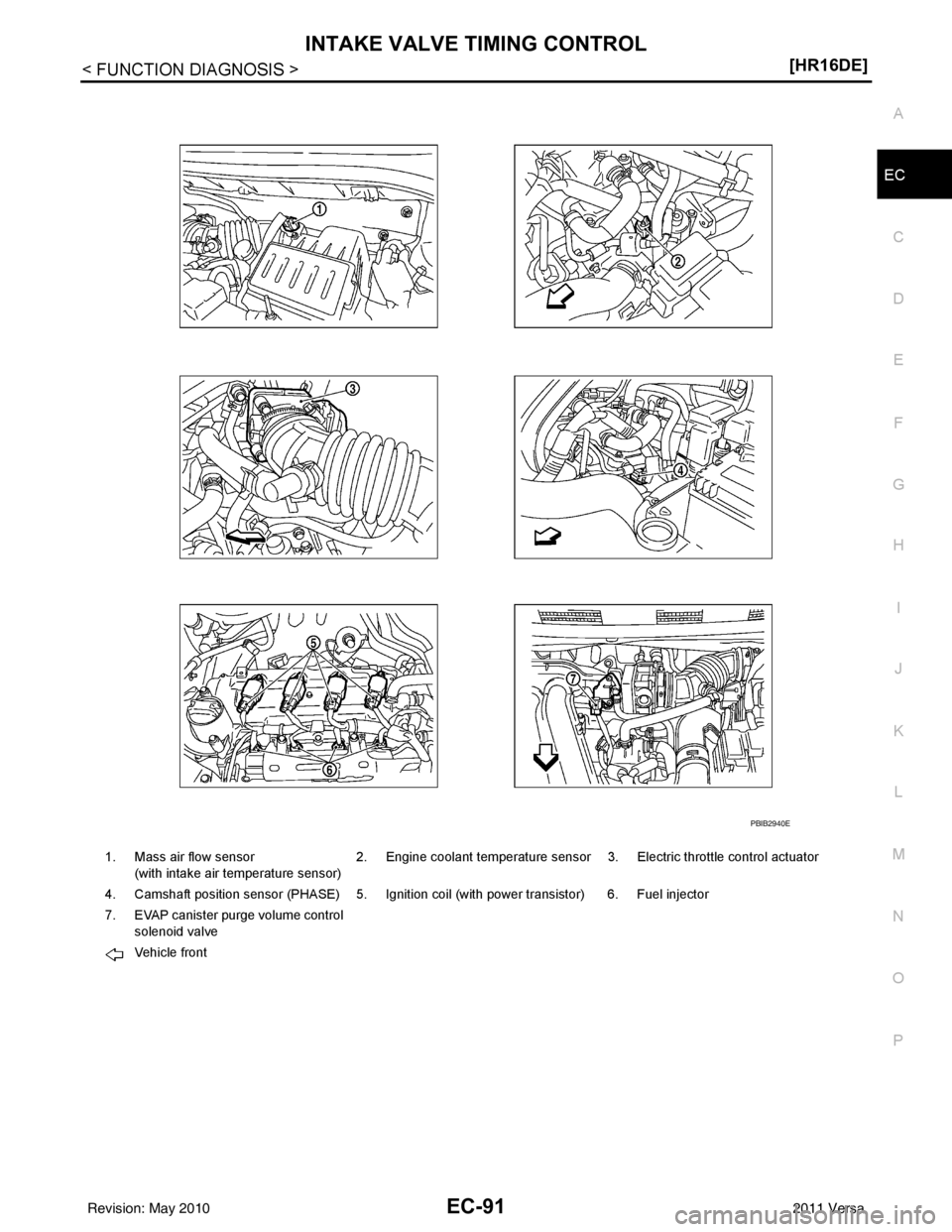

1. Mass air flow sensor
(with intake air temperature sensor) 2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control solenoid valve
Vehicle front
PBIB2940E
Revision: May 2010 2011 Versa

EC-92
< FUNCTION DIAGNOSIS >[HR16DE]
INTAKE VALVE TIMING CONTROL

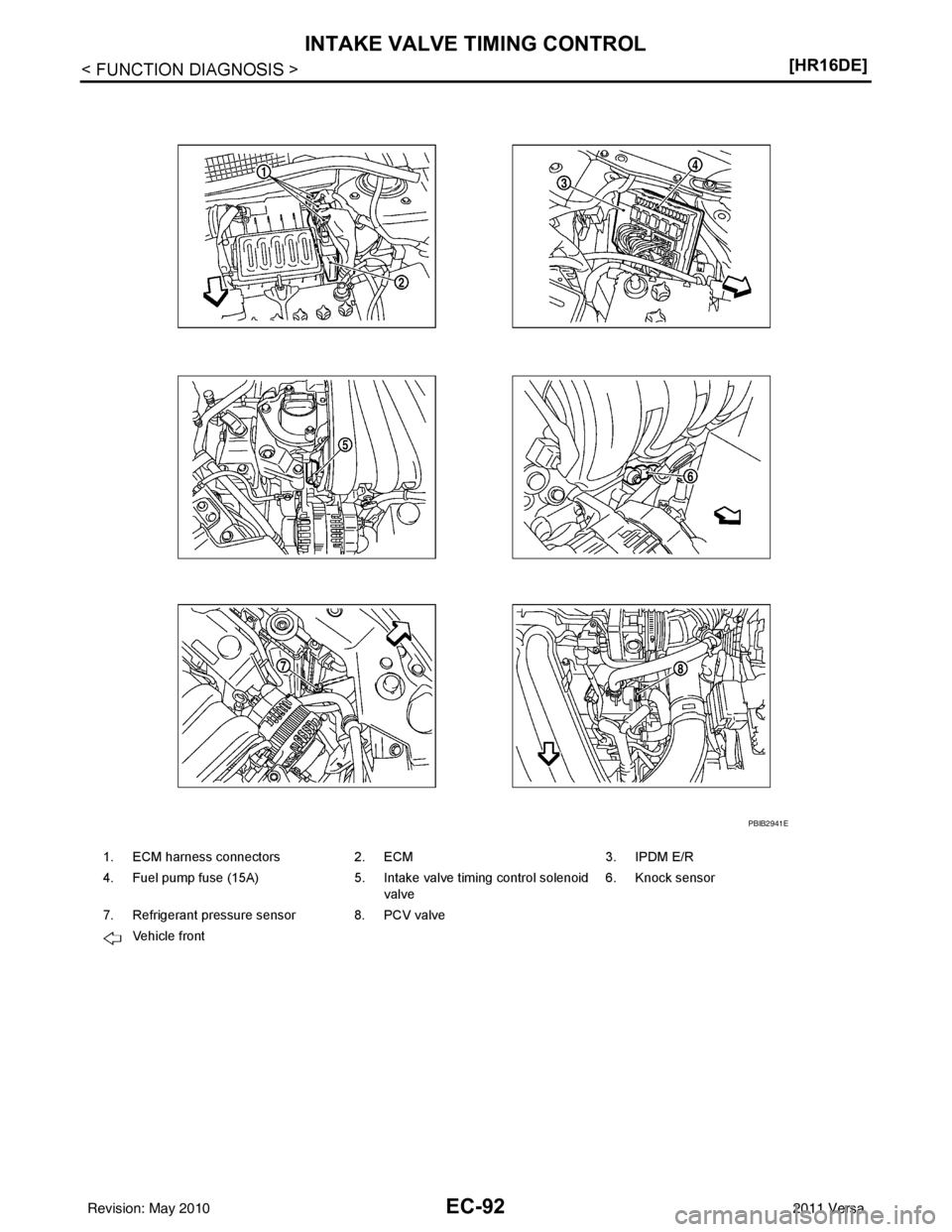

1. ECM harness connectors
2. ECM 3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve 6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve Vehicle front
PBIB2941E
Revision: May 2010 2011 Versa

INTAKE VALVE TIMING CONTROLEC-93
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

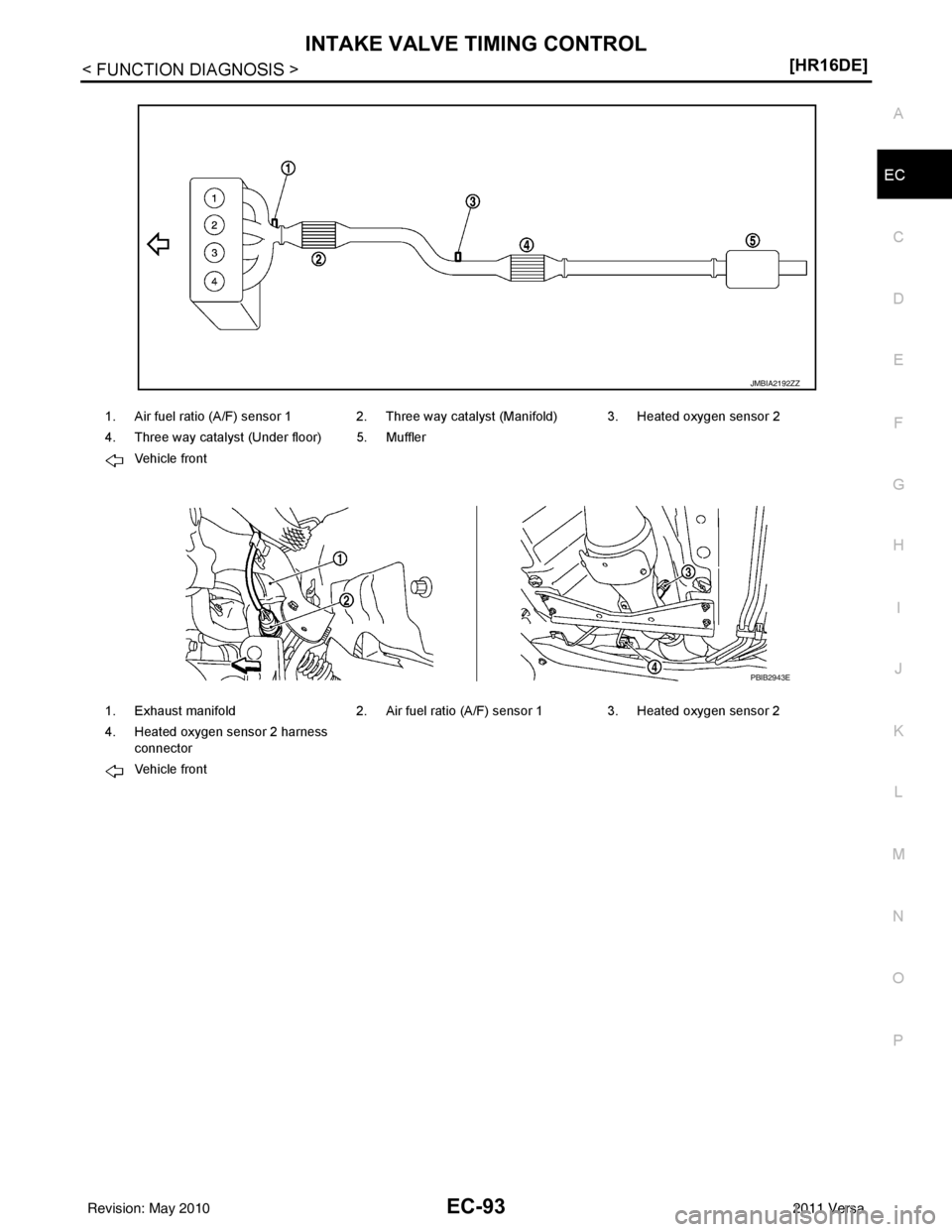

1. Air fuel ratio (A/F) sensor 1 2. Three way catalyst (Manifold) 3. Heated oxygen sensor 2
4. Three way catalyst (Under floor) 5. Muffler
Vehicle front
1. Exhaust manifold 2. Air fuel ratio (A/F) sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness connector
Vehicle front
JMBIA2192ZZ
PBIB2943E
Revision: May 2010 2011 Versa

EC-94
< FUNCTION DIAGNOSIS >[HR16DE]
INTAKE VALVE TIMING CONTROL

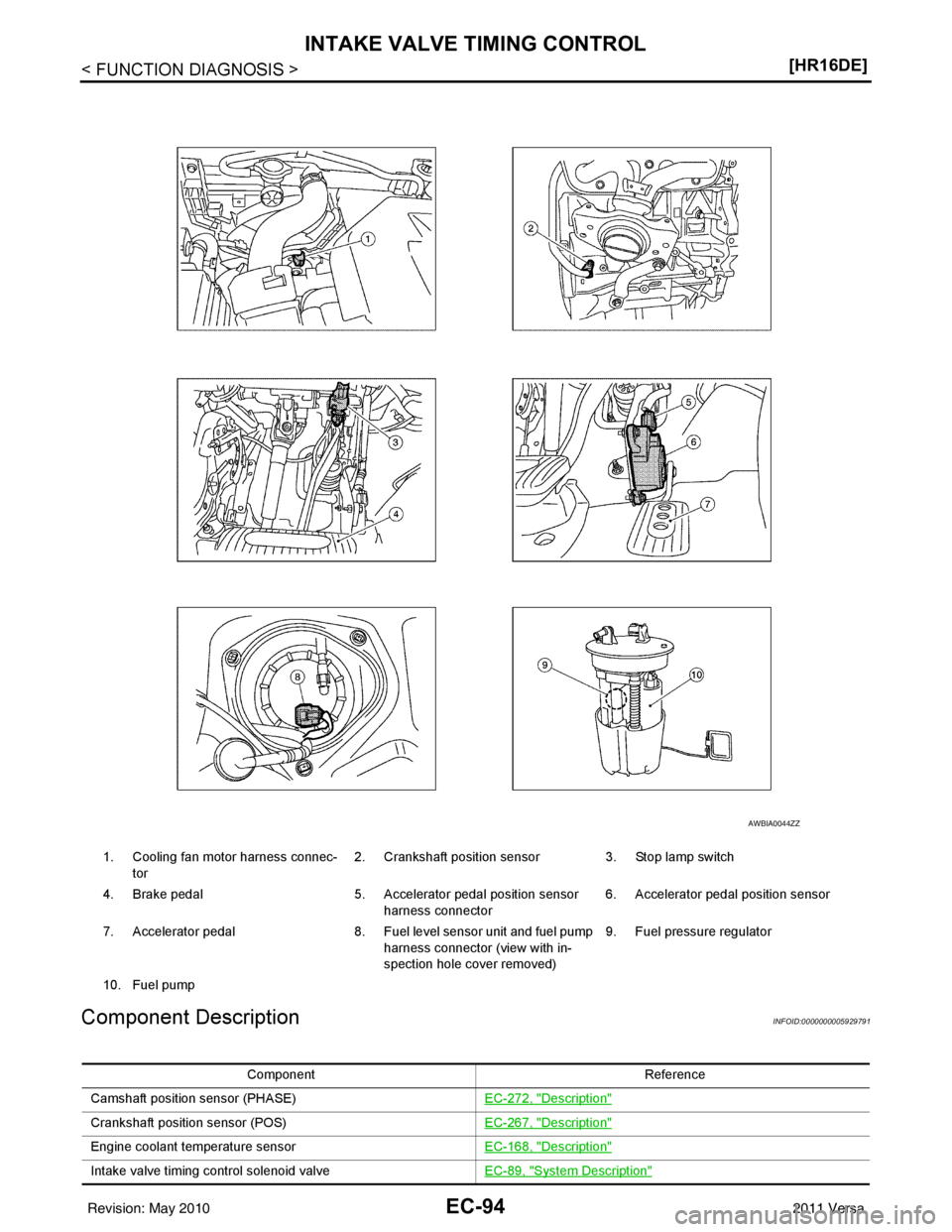

Component Description
INFOID:0000000005929791
1. Cooling fan motor harness connec- tor 2. Crankshaft position sensor
3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector 6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed) 9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ
Component Reference
Camshaft position sensor (PHASE) EC-272, "
Description"
Crankshaft position sensor (POS)EC-267, "Description"
Engine coolant temperature sensorEC-168, "Description"
Intake valve timing control solenoid valveEC-89, "System Description"
Revision: May 2010 2011 Versa

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-95
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Diagnosis DescriptionINFOID:0000000006314660
This system is an on board diagnostic system that re
cords exhaust emission-related diagnostic information
and detects a sensors/actuator-related malfunction. A ma lfunction is indicated by the malfunction indicator
lamp (MIL) and stored in ECU memory as a DTC. The diagnostic information can be obtained with the diag-
nostic tool (GST: Generic Scan Tool).
GST (Generic Scan Tool)INFOID:0000000006314661
When GST is connected with a data link connector equipped on the vehicle side, it will communicate with the
control unit equipped in the vehicle and then enable various kinds of diagnostic tests. Refer to EC-95, "
Diag-
nosis Description".
NOTE:
Service $0A is not applied for regions where it is not mandated.
Revision: May 2010 2011 Versa

EC-96
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
DIAGNOSIS SYSTEM (ECM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1st Trip Detect
ion Logic and Two Trip Detection Logic
INFOID:0000000006314663
When a malfunction is detected for the first time, 1st tr ip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MIL will not illuminate at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MIL illuminates. The MIL illuminates at the same time when the DTC is stored.
<2nd trip> The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is per-
formed during vehicle operation. Specific on board diagnos tic items will cause the ECM to illuminate or blink
the MIL, and store DTC and Freeze Frame data, even in the 1st trip, as shown below.
× : Applicable —: Not applicable
DIAGNOSIS DESCRIPTION : DT C and Freeze Frame DataINFOID:0000000006314664
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DT C number) is displayed for the latest self-diagnostic
result obtained. If the ECM memory was cleared previously , and the 1st trip DTC did not recur, the 1st trip DTC
will not be displayed.
If a malfunction is detected during the 1st trip, the 1st trip DTC is saved in the ECM memory. The MIL will not
light up (two trip detection logic). If the same malfunction is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are saved in the ECM memory and the MIL lights up. In other words,
the DTC is stored in the ECM memory and the MIL light s up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
trips, only the 1st trip DTC will continue to be stored. Fo r malfunctions that blink or light up the MIL during the
1st trip, the DTC and 1st trip DTC are stored in the ECM memory.
For malfunctions in which 1st trip DTCs are displayed, refer to EC-478, "
DTCIndex". These items are
required by legal regulations to continuously monito r the system/component. In addition, the items monitored
non-continuously are also displayed on CONSULT-III.
1st trip DTC is specified in Service $07 of SAE J1979/ ISO 15031-5. 1st trip DTC detection occurs without illu-
minating the MIL and therefore does not warn the driver of a malfunction.
When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame
data as specified in Work Flow procedure Step 2, refer to EC-15, "
Work Flow". Then perform DTC Confirma-
tion Procedure or Component Function Check to try to duplicate the malfunction. If the malfunction is dupli-
cated, the item requires repair.
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA
The ECM records the driving conditions such as fuel system status, calculated load value, engine coolant tem-
perature, short term fuel trim, long term fuel trim, engine speed, vehicle speed, absolute throttle position, base
fuel schedule and intake air temperature at the moment a malfunction is detected.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.
The data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-III or
GST. The 1st trip freeze frame data can only be displayed on the CONSULT-III screen.
Items MIL
DTC1st trip DTC
1st trip 2nd trip
1st trip
displaying 2nd trip
displaying 1st trip
displaying 2nd trip
display- ing
Blinking Illuminat-
ed Blinking Illuminat-
ed
Misfire (Possible three way catalyst
damage) — DTC: P0300 - P0304 is
being detected ×
———— — ×—
Misfire (Possible three way catalyst
damage) — DTC: P0300 - P0304 is
being detected ——
×—— ×——
One trip detection diagnoses (Re-
fer to EC-478, "
DTCIndex".) —
×—— ×———
Except above — — —×— ×× —
Revision: May 2010 2011 Versa
