NISSAN TIIDA 2011 Service Repair Manual

DIAGNOSIS SYSTEM (ECM)EC-107
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-478, "DTCIndex".
How to Read DTC and 1st Trip DTC
DTCs and 1st trip DTCs related to the malfunction are displayed in “self-diag results”.
• When ECM detects a 1st trip DTC, “1t” is displayed for “TIME”.
• When ECM has detected a current DTC,
“0” is displayed for “TIME”.
• If “TIME” is neither “0” nor “1t”, the DTC occurred in the past and ECM shows the number of times the vehi-
cle has been driven since the last detection of the DTC.
How to Erase DTC and 1st Trip DTC
NOTE:
• If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 seconds and then turn it ON (engine stopped) again.
• If the DTC is not for A/T related items (see EC-478, "
DTCIndex"), skip step 1.
1. Erase DTC in TCM. Refer to CVT-27, "
OBD-II Diagnostic Trouble Code (DTC)".
2. Select “ENGINE” with CONSULT-III.
3. Select “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (DTC in ECM will be erased.)
Freeze Frame Data and 1st Trip Freeze Frame Data
SELF-LEARNING CONT • THE COEFFICI ENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT. When clearing mixture ratio self-
learning value
EVAP SYSTEM CLOSE CLOSE THE EVAP CANISTER VENT CONTROL VALVE IN ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.
• IGN SW ON
• ENGINE NOT RUNNING
• AMBIENT TEMPERATURE IS ABOVE 0 °C (32 °F).
• NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS- TEM
• FUEL TANK TEMP. IS MORE THAN 0 °C (32 °F).
• WITHIN 10 MINUTES AFTER STARTING “EVAP SYS- TEM CLOSE”
• WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE”
UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
II WILL DISCONTINUE IT AND DISPLAY APPROPRIATE
INSTRUCTION.
NOTE:
WHEN STARTING ENGINE, CONSULT-III MAY DIS-
PLAY “BATTERY VOLTAGE IS LOW. CHARGE BAT-
TERY”, EVEN IN USING CHARGED BATTERY. When detecting EVAP vapor leak
point of EVAP system
VIN REGISTRATION • IN THIS MODE, VIN IS REGIST ERED IN ECM.When registering VIN in ECM
TARGET IDLE RPM ADJ* • IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ* • IDLE CONDITION When adjusting target ignition timing
WORK ITEM
CONDITION USAGE
Revision: May 2010 2011 Versa

EC-108
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
*: The items are the same as t
hose of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
Freeze frame data
item* Description
DIAG TROUBLE
CODE
[PXXXX] • The engine control co
mponent part/control system has a trouble code, it is displayed as PXXX X. (Refer to
EC-478, "
DTCIndex".)
FUEL SYS-B1 • “Fuel injection system status” at the moment a malfunction is detected is displayed.
• One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
CAL/LD VALUE [%] • The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP
[ ° C] or [ °F] • The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%] • “Long-term fuel trim” at the moment a malfunction is detected is displayed.
• The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than
short-term fuel trim.
S-FUEL TRM-B1 [%] • “Short-term fuel trim” at the moment a malfunction is detected is displayed.
• The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-
ule.
ENGINE SPEED [rpm] • The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph] • The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH·P/S [%] • The throttle valve opening angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec] • The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE
[ ° C] or [ °F] • The intake air temperature at the moment a malfunction is detected is displayed.
FUEL SYS-B2
• These items displayed but are not applicable to this model.
L-FUEL TRM-B2 [%]
S-FUEL TRM-B2 [%]
INT MANI PRES [kPa]
COMBUST CONDI-
TION
Monitored item Unit
DescriptionRemarks
ENG SPEED rpm• Indicates the engine speed computed from the signal
of the crankshaft position sensor (POS) and camshaft
position sensor (PHASE). • Accuracy becomes poor if engine
speed drops below the idle rpm.
• If the signal is interrupted while the engine is running, an abnormal value
may be indicated.
MAS A/F SE-B1 V • The signal voltage of the mass air flow sensor is dis-
played. • When the engine is stopped, a certain
value is indicated.
• When engine is running specification
range is indicated in “SPEC”.
B/FUEL SCHDL ms • “Base fuel schedule” indicates the fuel injection pulse
width programmed into ECM, prior to any learned on
board correction. • When engine is running specification
range is indicated in “SPEC”.
Revision: May 2010 2011 Versa

DIAGNOSIS SYSTEM (ECM)EC-109
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OA/F ALPHA-B1
%• The mean value of the air-fuel ratio feedback correc-
tion factor per cycle is indicated. • When the engine is stopped, a certain
value is indicated.
• This data also includes the data for the air-fuel ratio learning control.
• When engine is running specification
range is indicated in “SPEC”.
COOLAN TEMP/S °C or °F • The engine coolant temperature (determined by the
signal voltage of the engine coolant temperature sen-
sor) is displayed. • When the engine coolant temperature
sensor is open or short-circuited,
ECM enters fail-safe mode. The en-
gine coolant temperature determined
by the ECM is displayed.
A/F SEN1 (B1) V• The A/F signal computed from the input signal of the
air fuel ratio (A/F) se nsor 1 is displayed.
HO2S2 (B1) V• The signal voltage of the heated oxygen sensor 2 is
displayed.
HO2S2 MNTR(B1) RICH/
LEAN • Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three way
catalyst is relatively small.
LEAN: means the amount of oxygen after three way
catalyst is relatively large. • When the engine is stopped, a certain
value is indicated.
VHCL SPEED SE km/h or
mph • The vehicle speed computed from the vehicle speed
signal sent from combination meter is displayed.
BATTERY VOLT V • The power supply voltage of ECM is displayed.
ACCEL SEN 1 V• The accelerator pedal position sensor signal voltage is
displayed. • ACCEL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal.
ACCEL SEN 2
TP SEN 1-B1
V• The throttle position sensor signal voltage is dis-
played. • TP SEN 2-B1 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal.
TP SEN 2-B1
FUEL T/TMP SE
°C or °F • The fuel temperature (determined by the signal volt-
age of the fuel tank temperature sensor) is displayed.
INT/A TEMP SE °C or °F • The intake air temperature (determined by the signal
voltage of the intake air temperature sensor) is indicat-
ed.
EVAP SYS PRES V • The signal voltage of EVAP control system pressure
sensor is displayed.
FUEL LEVEL SE V • The signal voltage of the fuel level sensor is displayed.
START SIGNAL ON/OFF • Indicates start signal status [ON/OFF] computed by
the ECM according to the signals of engine speed and
battery voltage. • After starting the engine, [OFF] is dis-
played regardless of the starter sig-
nal.
CLSD THL POS ON/OFF • Indicates idle position [ON/OFF] computed by ECM
according to the accelerator pedal position sensor sig-
nal.
AIR COND SIG ON/OFF • Indicates [ON/OFF] condition of the air conditioner
switch determined by the air conditioner ON signal.
P/N POSI SW ON/OFF • Indicates [ON/OFF] condit
ion from the park/neutral
position (PNP) signal.
PW/ST SIGNAL ON/OFF • [ON/OFF] condition of the power steering system (de-
termined by the signal sent from EPS control unit) is
indicated.
LOAD SIGNAL ON/OFF • Indicates [ON/OFF] condition from the electrical load
signal.
ON: Rear window defogger switch is ON and/or light-
ing switch is in 2nd position.
OFF: Both rear window defogger switch and lighting
swi t
ch

are OFF.
Monitored item Unit
DescriptionRemarks
Revision: May 2010 2011 Versa

EC-110
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
IGNITION SW ON/OFF• Indicates [ON/OFF] condition from ignition switch sig-
nal.
HEATER FAN SW ON/OFF • Indicates [ON/OFF] condition from the heater fan
switch signal.
BRAKE SW ON/OFF• Indicates [ON/OFF] condition from the stop lamp
switch signal.
INJ PULSE-B1 msec • Indicates the actual fuel injection pulse width compen-
sated by ECM according to the input signals. • When the engine is stopped, a certain
computed value is indicated.
IGN TIMING BTDC• Indicates the ignition timing computed by ECM ac-
cording to the input signals. • When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE %• “Calculated load value” indicates the value of the cur-
rent air flow divided by peak air flow.
MASS AIRFLOW g/s • Indicates the mass air flow computed by ECM accord-
ing to the signal voltage of the mass air flow sensor.
PURG VOL C/V % • Indicates the EVAP canister purge volume control so-
lenoid valve control value computed by the ECM ac-
cording to the input signals.
• The opening becomes larger as the value increases.
INT/V TIM(B1) °CA • Indicates [ °CA] of intake camshaft advance angle.
INT/V SOL(B1) %• The control value of the intake valve timing control so-
lenoid valve (determined by ECM according to the in-
put signals) is indicated.
• The advance angle becomes larger as the value in-
creases.
AIR COND RLY ON/OFF • The air conditioner relay control condition (determined
by ECM according to the input signals) is indicated.
FUEL PUMP RLY ON/OFF • Indicates the fuel pump relay control condition deter-
mined by ECM according to the input signals.
VENT CONT/V ON/OFF • The control condition of the EVAP canister vent control
valve (determined by ECM according to the input sig-
nals) is indicated.
ON: Closed
OFF: Open
THRTL RELAY ON/OFF • Indicates the throttle contro
l motor relay control condi-
tion determined by the ECM according to the input sig-
nals.
COOLING FAN HI/LOW/
OFF• Indicates the condition of the cooling fan (determined
by ECM according to the input signals).
HI: High speed operation
LOW: Low speed operation
OFF: Stop
HO2S2 HTR (B1) ON/OFF • Indicates [ON/OFF] condition of heated oxygen sen-
sor 2 heater determined by ECM according to the in-
put signals.
I/P PULLY SPD rpm • Indicates the engine speed computed from the prima-
ry sped sensor signal.
VEHICLE SPEED km/h or
mph • The vehicle speed computed from the vehicle speed
signal sent from TCM is displayed.
IDL A/V LEARN YET/CM-
PLT • Display the condition of Idle Air Volume Learning
YET: Idle air volume learning has not been performed
yet.
CMPLT: Idle air volume learning has already been per-
formed successfully.
TRVL AFTER MIL km or
mile • Distance traveled while MIL is activated.
Monitored item Unit
DescriptionRemarks
Revision: May 2010 2011 Versa

DIAGNOSIS SYSTEM (ECM)EC-111
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
Any monitored item that does not match the vehicle
being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
A/F S1 HTR(B1) %• Air fuel ratio (A/F) sensor 1 heater control value com-
puted by ECM according to the input signals.
• The current flow to the heater becomes larger as the value increases.
AC PRESS SEN V • The signal voltage from the refrigerant pressure sen-
sor is displayed.
A/F ADJ-B1 —• Indicates the correction of factor stored in ECM. The
factor is calculated from the difference between the
target air-fuel ratio stored in ECM and the air-fuel ratio
calculated from A/F sensor 1 signal.
HO2 S2 DIAG2(B1) INCMP/
CMPLT NOTE:
The item is indicated, but not used.
A/F SEN1
DIAG2(B1) INCMP/
CMPLT NOTE:
The item is indicated, but not used.
Monitored item Unit
DescriptionRemarks
TEST ITEMCONDITION JUDGMENTCHECK ITEM (REMEDY)
FUEL INJECTION • Engine: Return to the original
trouble condition
• Change the amount of fuel injec-
tion using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Fuel injector
• Air fuel ratio (A/F) sensor 1
IGNITION TIMING • Engine: Return to the original
trouble condition
• Timing light: Set
• Retard the ignition timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Perform Idle Air Volume Learning.
POWER BALANCE • Engine: After warming up, idle
the engine.
• A/C switch OFF
• Selector lever: P or N position (A/ T), Neutral position (M/T)
• Cut off each fuel injector signal one at a time using CONSULT-
III. Engine runs rough or dies.
• Harness and connectors
• Compression
• Fuel injector
• Power transistor
• Spark plug
• Ignition coil
COOLING FAN* • Ignition switch: ON
• Turn the cooling fan “LOW”, “HI”
and “OFF” using CONSULT-III. Cooling fan moves and stops.
• Harness and connectors
• IPDM E/R (Cooling fan relay)
• Cooling fan motor
ENG COOLANT
TEMP • Engine: Return to the original
trouble condition
• Change the engine coolant tem-
perature using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM. • Harness and connectors
• Engine coolant temperature sen-
sor
• Fuel injector
FUEL PUMP RELAY • Ignition switch: ON (Engine
stopped)
• Turn the fuel pump relay “ON”
and “OFF” using CONSULT-III
and listen to operating sound. Fuel pump relay makes the operat-
ing sound.
• Harness and connectors
•Fuel pump relay
PURG VOL CONT/V • Engine: After warming up, run
engine at 1,500 rpm.
• Change the EVAP canister purge volume control solenoid
valve opening percent using
CONSULT-III. Engine speed changes according
to the opening percent.
• Harness and connectors
• Solenoid valve
FUEL/T TEMP SEN • Change the fuel tank temperature using CONSULT-III.
Revision: May 2010 2011 Versa

EC-112
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
*: Leaving cooling fan OFF with CONSULT-III whil
e engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
• For items whose SRT codes are set, “CMPLT” is displayed on the CONSULT-III screen; for items whose
SRT codes are not set, “INCMP” is displayed.
• “SRT STATUS” provides the presence or absence of permanent DTCs stored in ECM memory.
PERMANENT DTC STATUS Mode
How to display permanent DTC status
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC ST ATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
NOTE:
Permanent DTCs stored in ECM memory are displayed on the CONSULT-III screen to show if a driving
pattern required for erasing permanent DTCs is complete (CMPLT) or incomplete (INCMP).
CAUTION:
Since the “PERMANENT DTC STATUS” screen displ ays the previous trip information, repeat the
following twice to update the in formation: “Ignition switch OFF” , “Wait for more than 10 seconds”
and “Ignition switch ON”.
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
PERMANENT DTC WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to comp lete the driving pattern that is required for erasing
permanent DTC.
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
VENT CONTROL/V• Ignition switch: ON (Engine
stopped)
• Turn solenoid valve “ON” and “OFF” using the CONSULT-III
and listen to operating sound. Solenoid valve makes an operating
sound.
• Harness and connectors
• Solenoid valve
V/T ASSIGN ANGLE • Engine: Return to the original
trouble condition
• Change intake valve timing us- ing CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Intake valve timing control sole-
noid valve
TEST ITEM
CONDITION JUDGMENT CHECK ITEM (REMEDY)
JSBIA0062GB
Revision: May 2010 2011 Versa

DIAGNOSIS SYSTEM (ECM)EC-113
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC WORK SUPPORT Mode
*: DTC P1442 and P1456 does not apply to C11 model
s but appears in DTC Work Support Mode screens.
Test modeTest itemCorresponding DTC No. Reference page
EVAPORATIVE SYSTEM EVP SML LEAK P044
2/P1442* P0455EC-333
EVP V/S LEAK P0456/P1456* P0442
EC-288P0456EC-339
A/F SEN1 A/F SEN1 (B1) P1278/P1279 P0133
EC-201A/F SEN1 (B1) P1276P0130EC-185
HO2S2 HO2S2 (B1) P1146
P0138EC-215HO2S2 (B1) P1147 P0137EC-207
HO2S2 (B1) P139 P0139EC-224
Revision: May 2010 2011 Versa

EC-114
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
COMPONENT DIAGNOSIS
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000005929795
The specification (SP) value indicates the tolerance of
the value that is displayed in “SPEC” of “DATA MONI-
TOR” mode of CONSULT-III during normal operation of the Engine Control System. When the value in “SPEC”
of “DATA MONITOR” mode is within the SP value, the Engine Control System is confirmed OK. When the
value in “SPEC” of “DATA MONITOR” mode is NOT withi n the SP value, the Engine Control System may have
one or more malfunctions.
The SP value is used to detect malfunctions that may af fect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
• B/FUEL SCHDL (The fuel injection pulse width progr ammed into ECM prior to any learned on board correc-
tion)
• A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)
• MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Component Function CheckINFOID:0000000005929796
1.START
Make sure that all of the following conditions are satisfied.
• Vehicle driven distance: More than 5,000 km (3,107 miles)
• Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm
2, 14.25 - 15.12 psi)
• Atmospheric temperature: 20 - 30 °C (68 - 86° F)
• Engine coolant temperature: 75 - 95 °C (167 - 203° F)
• Transmission: Warmed-up
- A/T models: After the engine is warmed up to norma l operating temperature, drive vehicle until “FLUID
TEMP SE” (A/T fluid te mperature sensor signal) indicates more than 60 °C (140 °F).
- M/T models: After the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
• Electrical load: Not applied
- Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
• Engine speed: Idle
>> GO TO 2.
2.PERFORM “SPEC” OF “DATA MONITOR” MODE
With CONSULT-III
NOTE:
Perform “SPEC” in “DATA MONITOR” mode in maximum scale display.
1. Perform EC-20, "
BASIC INSPECTION : Special Repair Requirement".
2. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode
with CONSULT-III.
3. Make sure that monitor items are within the SP value.
Is the inspection result normal?
YES >> END
NO >> Go to EC-115, "
Diagnosis Procedure".
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-115
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000005929797

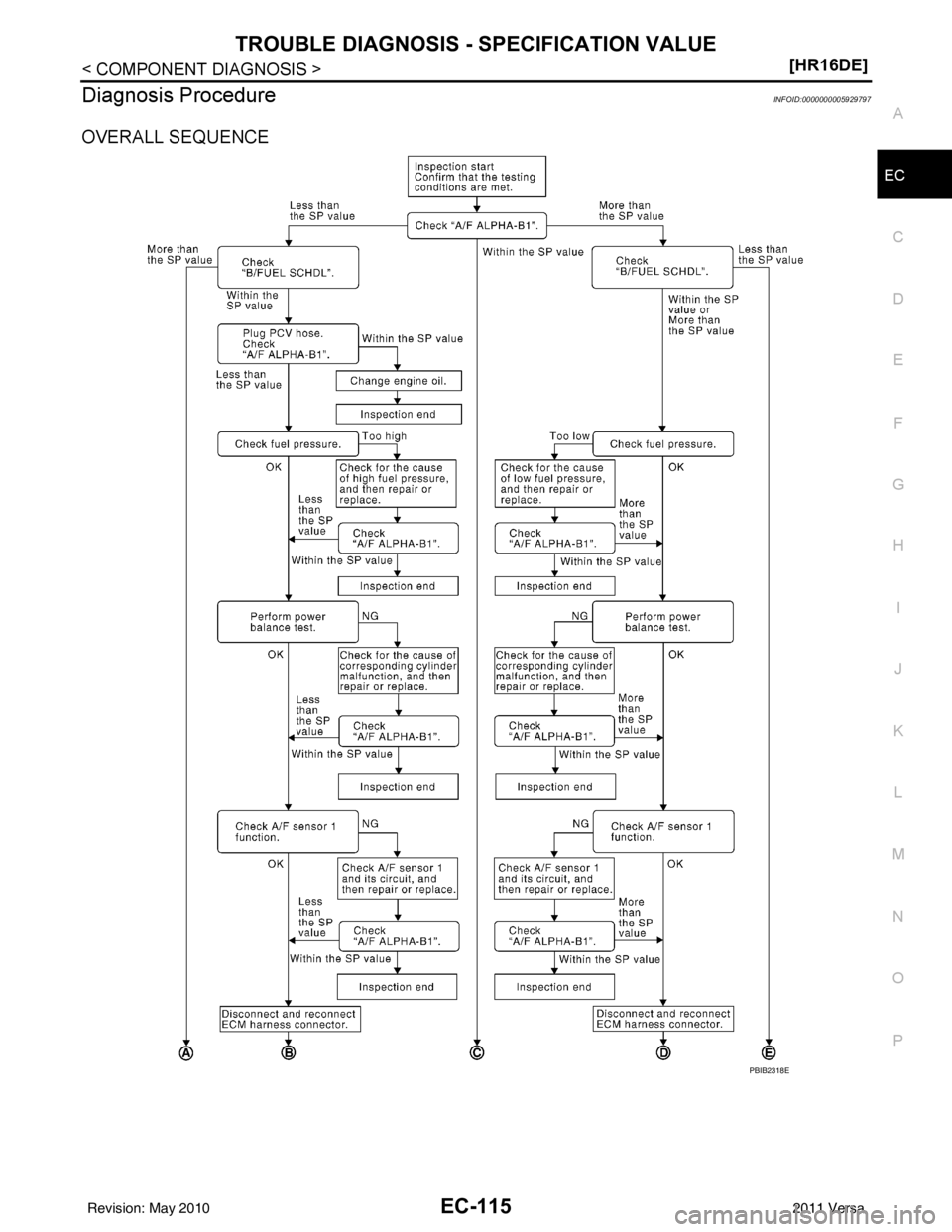

OVERALL SEQUENCE
PBIB2318E
Revision: May 2010
2011 Versa

EC-116
< COMPONENT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

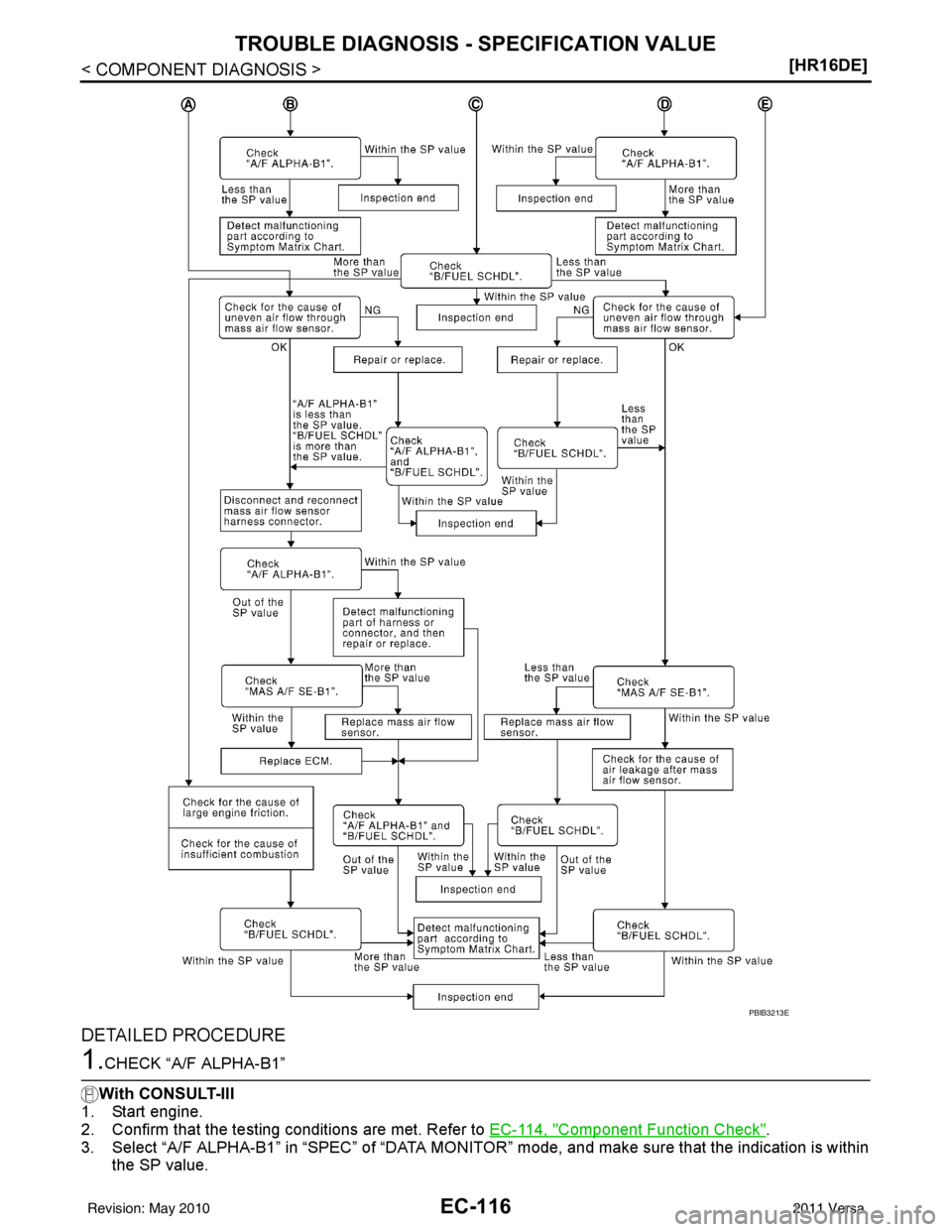

DETAILED PROCEDURE
1.CHECK “A/F ALPHA-B1”
With CONSULT-III
1. Start engine.
2. Confirm that the testing conditions are met. Refer to EC-114, "
Component Function Check".
3. Select “A/F ALPHA-B1” in “SPEC” of “DATA MONITO R” mode, and make sure that the indication is within
the SP value.
PBIB3213E
Revision: May 2010 2011 Versa
