NISSAN TIIDA 2011 Service Repair Manual

DIAGNOSIS SYSTEM (ECM)EC-97
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Only one set of freeze frame data (either 1st trip freez
e frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM me mory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
For example, the EGR malfunction (Priority: 2) was detected and the freeze frame data was saved in the 2nd
trip. After that when the misfire (Priority: 1) is detected in another trip, the freeze frame data will be updated
from the EGR malfunction to the misfire. The 1st trip freeze frame data is updated each time a different mal-
function is detected. There is no priority for 1st tr ip freeze frame data. However, once freeze frame data is
stored in the ECM memory, 1st trip freeze data is no longer stored (because only one freeze frame data or 1st
trip freeze frame data can be stored in the ECM). If freeze frame data is stored in the ECM memory and freeze
frame data with the same priority occurs later, the first (original) freeze frame data remains unchanged in the
ECM memory.
Both 1st trip freeze frame data and freeze frame dat a (along with the DTCs) are cleared when the ECM mem-
ory is erased.
DIAGNOSIS DESCRIPTION : Counter SystemINFOID:0000000006314665
RELATIONSHIP BETWEEN MIL, 1ST TRIP DTC, DTC, AND DETECTABLE ITEMS
• When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
• When the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are stored in the ECM memory, and the MIL will come on.
• The MIL will turn OFF after the vehicle is driven 3 ti mes (driving pattern B) with no malfunction. The drive is
counted only when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs
while counting, the counter will reset.
• The DTC and the freeze frame data will be stored until the v ehicle is driven 40 times (driving pattern A) with-
out the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injec-
tion System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times (driving pattern
C) without the same malfunction recurring. The “TIM E” in “SELF-DIAGNOSTIC RESULTS” mode of CON-
SULT-III will count the number of times the vehicle is driven.
• The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.
COUNTER SYSTEM CHART
For details about patterns B and C under “Fuel Inject ion System” and “Misfire”, see “EXPLANATION FOR
DRIVING PATTERNS FOR “MISFIRE ”, “FUEL INJECTION SYS-
TEM”.
For details about patterns A and B under Other, see “EXPLANATION FOR DRIVING PATTERNS FOR “MIS-
FIRE ”, “FUEL INJECTION SYSTEM”.
• *1: Clear timing is at the moment OK is detected.
• *2: Clear timing is when the same malfunction is detected in the 2nd trip.
Relationship Between MIL, DTC, 1st Trip DTC and Dr iving Patterns for “Misfire terioration>”, “Fuel Injection System”
Priority Items
1 Freeze frame data Misfire — DTC: P0300 - P0304
Fuel Injection System Function — DTC: P0171, P0172
2 Except the above items
3 1st trip freeze frame data
Items Fuel Injection System MisfireOther
MIL (turns OFF) 3 (pattern B)3 (pattern B)3 (pattern B)
DTC, Freeze Frame Data (no display) 80 (pattern C) 80 (pattern C) 40 (pattern A)
1st Trip DTC (clear) 1 (pattern C), *11 (pattern C), *1 1 (pattern B)
1st Trip Freeze Frame Data (clear) *1, *2*1, *21 (pattern B)
Revision: May 2010 2011 Versa

EC-98
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)

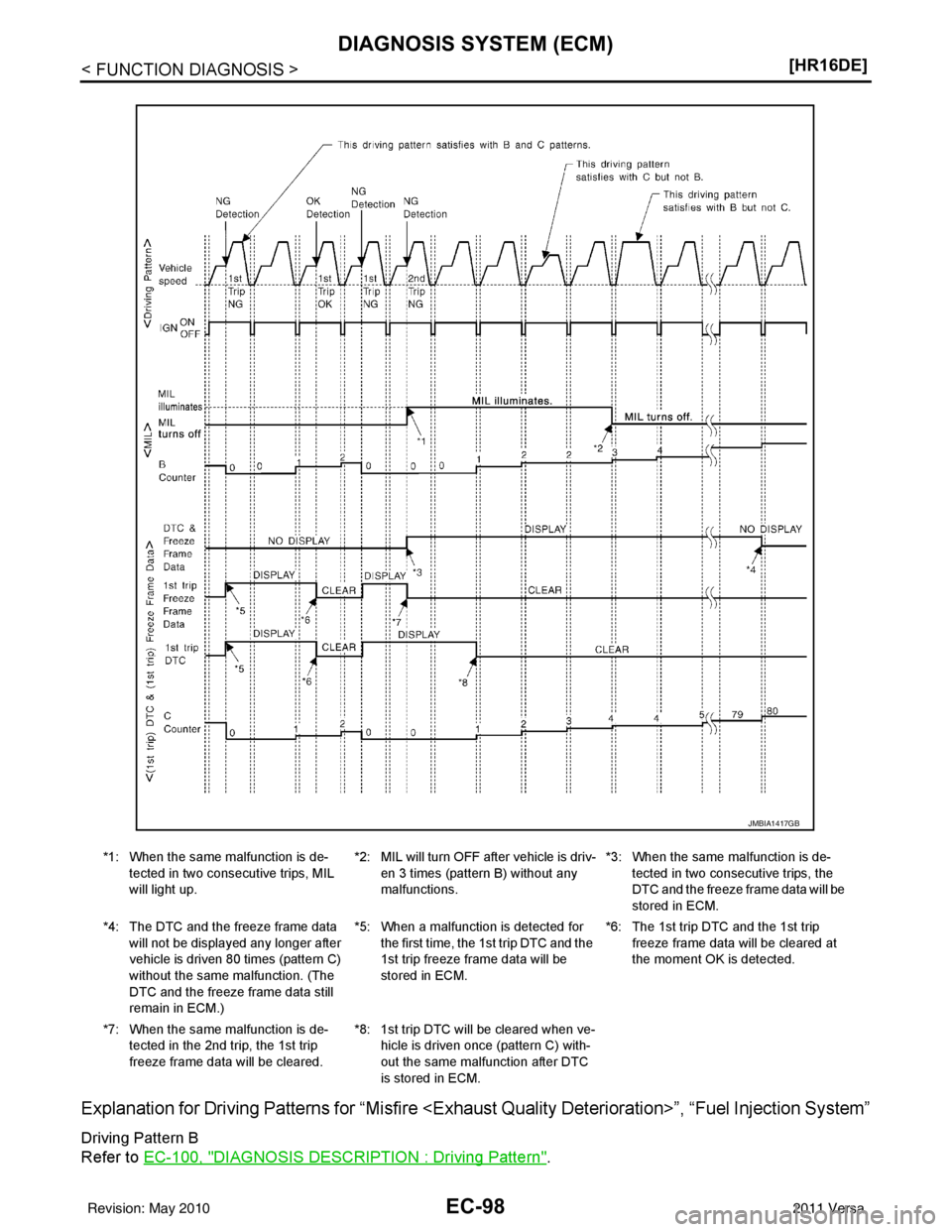

Explanation for Driving Patterns for “Misfire ”, “Fuel Injection System”
Driving Pattern B
Refer to
EC-100, "DIAGNOSIS DESCRIPTION : Driving Pattern".
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will turn OFF after vehicle is driv-
en 3 times (pattern B) without any
malfunctions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.) *5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: The 1st trip DTC and the 1st trip
freeze frame data will be cleared at
the moment OK is detected.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared. *8: 1st trip DTC will
be cleared when ve-
hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.
JMBIA1417GB
Revision: May 2010 2011 Versa

DIAGNOSIS SYSTEM (ECM)EC-99
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Driving Pattern C
Refer to
EC-100, "DIAGNOSIS DESCRIPTION : Driving Pattern".
Example:
If the stored freeze frame data is as per the following:
Engine speed: 850 rpm, Calculated load val ue: 30%, Engine coolant temperature: 80°C (176°F)
To be satisfied with driving pattern C, the v ehicle should run under the following conditions:
Engine speed: 475 – 1,225 rpm, Calculated load value: 27 – 33%, Engine coolant temperature: more than
70° C (158° F)

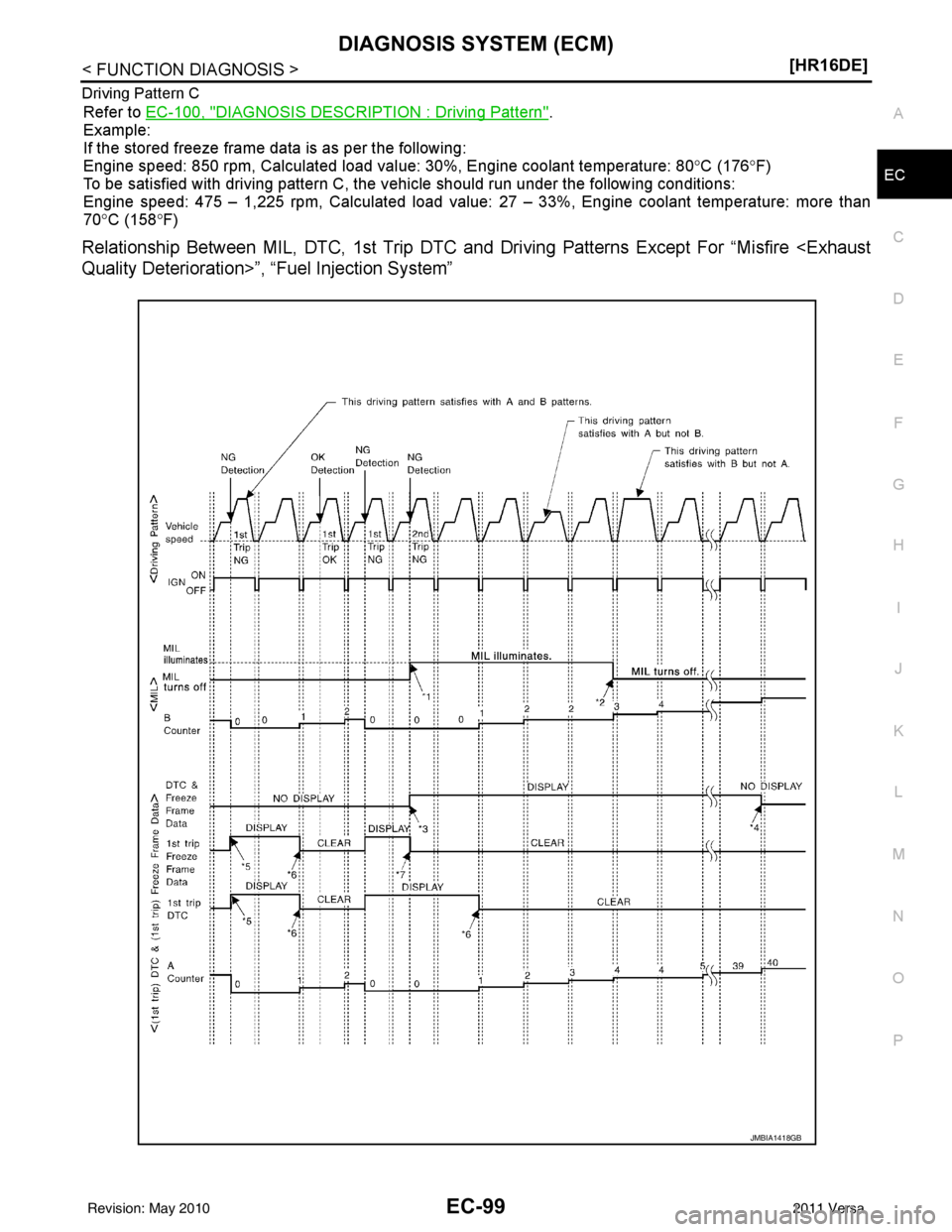

Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns Except For “Misfire Quality Deterioration>”, “Fuel Injection System”
JMBIA1418GB
Revision: May 2010 2011 Versa

EC-100
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
Explanation for Driving Patterns Except for “Misfire
”, “Fuel Injection
System”
Driving Pattern A
Refer to EC-100, "DIAGNOSIS DESCRIPTION : Driving Pattern".
Driving Pattern B
Refer to EC-100, "DIAGNOSIS DESCRIPTION : Driving Pattern".
DIAGNOSIS DESCRIPTION : Driving PatternINFOID:0000000006314666
CAUTION:
Always drive at a safe speed.
DRIVING PATTERN A
Driving pattern A means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature rises by 20 °C (68° F) or more after starting the engine.
• Engine coolant temperature reaches 70 °C (158° F) or more.
• The ignition switch is turned from ON to OFF.
NOTE:
• When the same malfunction is detected regardless of driving conditions, reset the counter of driving pattern A.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern A.
DRIVING PATTERN B
Driving pattern B means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature reaches 70 °C (158° F) or more.
• Vehicle speed of 70 – 120 km/h (44 – 75 MPH) is maintained for 60 seconds or more under the control of closed loop.
• Vehicle speed of 30 – 60 km/h (19 – 37 MPH) is maintained for 10 seconds or more under the control of closed loop.
• Under the closed loop control condition, the following st ate reaches 12 seconds or more in total: Vehicle
speed of 4 km/h (2 MPH) or less with idling condition.
• The state of driving at 10 km/h (7 MPH) or more reaches 10 minutes or more in total.
• A lapse of 22 minutes or more after engine start.
NOTE:
• Drive the vehicle at a constant velocity.
• When the same malfunction is detected regardless of driving conditions, reset the counter of driving pattern
B.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern B.
DRIVING PATTERN C
Driving pattern C means operating vehicle as per the following:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data) ±375 rpm
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will turn OFF after vehicle is driv-
en 3 times (pattern B) without any
malfunctions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.) *5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: 1st trip DTC will be cleared after vehi-
cle is driven once (pattern B) without
the same malfunction.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
Revision: May 2010 2011 Versa

DIAGNOSIS SYSTEM (ECM)EC-101
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Calculated load value: (Calculated load value in the freeze frame data) x (1
±0.1) [%]
Engine coolant temperature condition:
• When the freeze frame data shows lower than 70 °C (158° F), engine coolant temperature should be lower
than 70 °C (158 °F).
• When the freeze frame data shows higher than or equal to 70 °C (158° F), engine coolant temperature should
be higher than or equal to 70 °C (158° F).
NOTE:
• When the same malfunction is detected regardless of t he above vehicle conditions, reset the counter of driv-
ing pattern C.
• When the above conditions are satisfied without detecting t he same malfunction, reset the counter of driving
pattern C.
• The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is stored in ECM.
DRIVING PATTERN D
Driving pattern D means a trip satisfying the following conditions.
• The state of driving at 40 km/h (25 MPH) reaches 300 seconds or more in total.
• Idle speed lasts 30 seconds or more.
• A lapse of 600 seconds or more after engine start.
NOTE:
• When the same malfunction is detected regardless of driv ing conditions, reset the counter of driving pattern
D.
• When the above conditions are satisfied without detecting the same malfunction, reset the counter of driving
pattern D.
DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) CodeINFOID:0000000006314667
System Readiness Test (SRT) code is specified in Service $01 of SAE J1979/ISO 15031-5.
As part of an enhanced emissions test for Inspection & Ma intenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has comple ted self-diagnosis of major emission systems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspection due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system. Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indicates “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT i ndicates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:
If permanent DTC is stored or MIL illuminates during the state emissions inspection, the vehicle is also
returned to the customer untested even though the SRT indicates “CMPLT” for all test items. Therefore, it is
important to check SRT (“CMPLT”), DTC (No DTCs) and permanent DTC (NO permanent DTCs) before the
inspection.
SRT SET TIMING
SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. T he set timing is different between OK and NG results and
is shown in the table below.
Revision: May 2010 2011 Versa

EC-102
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.
When all SRT related self-diagnoses show OK result
s in a single cycle (Ignition OFF-ON-OFF), the SRT will
indicate “CMPLT”. → Case 1 above
When all SRT related self-diagnoses show OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective se lf-diagnoses have at least one OK result. → Case 2 above
If one or more SRT related self-diagnoses show NG resu lts in 2 consecutive cycles, the SRT will also indicate
“CMPLT”. → Case 3 above
The table above shows that the minimum number of cycl es for setting SRT as “INCMP” is the number one (1)
for each self-diagnosis (Case 1 & 2) or the number tw o (2) for one of self-diagnoses (Case 3). However, in
preparation for the state emissions inspection, it is unnecessary for each self-diagnosis to be executed twice
(Case 3) for the following reasons:
• The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
• The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
• During SRT driving pattern, the 1st trip DTC (NG) is detected prior to “CMPLT” of SRT and the self-diagnosis memory must be erased from the ECM after repair.
• If the 1st trip DTC is erased, all the SRT will indicate “INCMP”. NOTE:
SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.
DIAGNOSIS DESCRIPTION : Permanent Diagno stic Trouble Code (Permanent DTC)
INFOID:0000000006314668
Permanent DTC is defined in SAE J1979/ISO 15031-5 Service $0A.
ECM stores a DTC issuing a command of turning on MIL as a permanent DTC and keeps storing the DTC as
a permanent DTC until ECM judges that there is no presence of malfunction.
Permanent DTCs cannot be erased by using the Erase f unction of CONSULT-III or Generic Scan Tool (GST)
and by disconnecting the battery to shut off power to ECM. This prevents a vehicle from passing the state
emission inspection without repairing a malfunctioning part.
When not passing the state emission inspection due to more than one permanent DTC, permanent DTCs
should be erased, referring to this manual.
NOTE:
• The important items in state emission inspection are t hat MIL is not ON, SRT test items are set, and perma-
nent DTCs are not included.
• Permanent DTCs do not apply for regions that permanent DTCs are not regulated by law.
Self-diagnosis result Example
Diagnosis Ignition cycle
← ON →OFF ← ON →OFF ← ON → OFF← ON →
All OK Case 1 P0400OK (1) — (1)OK (2) — (2)
P0402 OK (1) — (1)— (1)OK (2)
P1402 OK (1) OK (2) — (2)— (2)
SRT of EGR “CMPLT” “CMPLT” “CMPLT” “CMPLT”
Case 2 P0400OK (1) — (1)— (1) — (1)
P0402 — (0)— (0)OK (1) — (1)
P1402 OK (1) OK (2) — (2)— (2)
SRT of EGR “INCMP” “INCMP” “CMPLT” “CMPLT”
NG exists Case 3 P0400OKOK ——
P0402 ——— —
P1402 NG—NG NG
(Consecutive
NG)
(1st trip) DTC 1st trip DTC
—1st trip DTC DTC
(= MIL ON)
SRT of EGR “INCMP” “INCMP” “INCMP” “CMPLT”
Revision: May 2010 2011 Versa

DIAGNOSIS SYSTEM (ECM)EC-103
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
PERMANENT DTC SET TIMING
The setting timing of permanent DTC is stored in ECM
with the lighting of MIL when a DTC is confirmed.
DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)INFOID:0000000006314669
DESCRIPTION
The MIL is located on the instrument panel.
1. The MIL will light up when the ignition switch is turned ON with-
out the engine running. This is a bulb check.
If the MIL does not light up, refer to EC-449, "
Component Func-
tion Check".
2. When the engine is start ed, the MIL should go off.
If the MIL remains on, the on board diagnostic system has
detected an engine system malfunction.
On Board Diagnosis FunctionINFOID:0000000006314670
ON BOARD DIAGNOSIS ITEM
The on board diagnostic system has the following functions.
BULB CHECK MODE
Description
This function allows damage inspection in the MIL bulb (blown, open circuit, etc.).
Operation Procedure
1. Turn ignition switch ON.
2. The MIL on the instrument panel should stay ON.
If it remains OFF, check MIL circuit. Refer to EC-451, "
Diagnosis Procedure".
SRT STATUS MODE
Description
This function allows to read if ECM has completed the self-diagnoses of major emission control systems and
components. For SRT, refer to EC-101, "
DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) Code".
Operation Procedure
1. Turn ignition switch ON and wait 20 seconds.
2. SRT status is indicated as shown blow.
• ECM continues to illuminate MIL if all SRT codes are set.
SEF217U
Diagnostic test mode Function
Bulb check MIL can be checked.
SRT status ECM can read if SRT codes are set.
Malfunction warning If ECM detects a malfunction, it illuminates or blinks MIL to inform the driver that a malfunction has
been detected.
Self-diagnostic results DTCs or 1st trip DTCs stored in ECM can be read.
Accelerator pedal released po-
sition learning ECM can learn the accelerator pedal released position. Refer to EC-25, "
ACCELERATOR PEDAL
RELEASED POSITION LEARNING : Description".
Throttle valve closed position
learning ECM can learn the throttle valve closed position. Refer to
EC-25, "
THROTTLE VALVE CLOSED PO-
SITION LEARNING : Description".
Idle air volume learning ECM can learn the idle air volume. Refer to EC-25, "
IDLE AIR VOLUME LEARNING : Description".
Mixture ratio self-learning value
clear Mixture ratio self-learning value can be erased. Refer to
EC-27, "
MIXTURE RATIO SELF-LEARNING
VALUE CLEAR : Description".
Revision: May 2010 2011 Versa

EC-104
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
• ECM blinks MIL for about 10 seconds if all SRT codes are not set.
MALFUNCTION WARNING MODE
Description
In this function ECM turns on or blinks MIL when it detects a malfunction in the emission control system com-
ponents and/or the powertrain control components (which affe
ct vehicle emissions) to inform the driver that a
malfunction has been detected.
Operation Procedure
1. Turn ignition switch ON.
2. Check that MIL illuminates.
If it remains OFF, check MIL circuit. Refer to EC-451, "
Diagnosis Procedure".
3. Start engine and let it idle. • For two trip detection logic diagnoses, ECM turns on MIL when it detects the same malfunction twice inthe two consecutive driving cycles.
• For 1st trip detection logic diagnoses, ECM turns on MIL when it detects a malfunction in one driving
cycle.
• ECM blinks MIL when it detects a malfunction t hat may damage the three way catalyst (misfire).
SELF-DIAGNOSTIC RESULTS MODE
Description
This function allows to indicate DTCs or 1st trip DT Cs stored in ECM according to the number of times MIL is
blinking.
How to Set Self-diagnostic Results Mode
NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a mal-
function.
• After ignition switch is turned off, ECM is always released from the “self-diagnostic results” mode.
1. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds. • Fully depress the accelerator pedal.
• Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it depressed for approx. 10 seconds until the MIL starts blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MIL starts blinking during this period. This blinking
is displaying SRT status and is continued for another 10 seconds.
4. Fully release the accelerator pedal. ECM has entered to “Self-diagnostic results” mode.
NOTE:
JMBIA1515GB
Revision: May 2010 2011 Versa

DIAGNOSIS SYSTEM (ECM)EC-105
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Wait until the same DTC (or 1st trip DTC) appears to completely confirm all DTCs.
How to Read Self-diagnostic Results
The DTC and 1st trip DTC are indicated by the
number of blinks of the MIL as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MIL does not illuminate in diagnostic test
mode I (Malfunction warning), all displayed items are 1st trip DTCs. If onl y one code is displayed when the MIL
illuminates in “malfunction warning” mode, it is a DTC; if two or more codes are displayed, they may be either
DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These unidentified codes can be identified by
using the CONSULT-III or GST. A DTC will be used as an example for how to read a code.
A particular trouble code can be identified by the number of four-digit numeral flashes per the following.
The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds consisting of an ON (0.6-sec-
onds) - OFF (0.6-seconds) cycle.
The 100th-digit numeral and lower digit numerals consis t of a 0.3-seconds ON and 0.3-seconds OFF cycle.
A change from one digit numeral to another occurs at an inte rval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-seconds OFF.
In this way, all the detected malfunctions are classi fied by their DTC numbers. The DTC 0000 refers to no mal-
function. Refer to EC-478, "
DTCIndex".
PBIB0092E
PBIB3005E
Number 0123456789ABCDEF
Flashes 10123456789111213141516
Revision: May 2010 2011 Versa

EC-106
< FUNCTION DIAGNOSIS >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
How to Erase Self-d
iagnostic Results
By performing this procedure, ECM memory is eras ed and the following diagnostic information is erased as
well.
• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test values
NOTE:
Also, if a battery terminal is disconnected, ECM memory is erased and the diagnostic information as listed
above is erased. (The amount of time required for eras ing may vary from a few seconds to several hours.)
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Set ECM in “self-diagnostic results” mode.
6. The diagnostic information has been erased from the backup memory in the ECM. Fully depress the accelerator pedal and keep it depressed for more than 10 seconds.
7. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
CONSULT-III FunctionINFOID:0000000006314671
FUNCTION
*: The following emission-related diagnostic information is cleared when the ECM memory is erased.
• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
•Test values
WORK SUPPORT MODE
Work Item
Diagnostic test mode Function
Work support This mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on the CONSULT-III unit.
Self-diagnostic results Self-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*
Data monitor Input/Output data in the ECM can be read.
Active test Diagnostic Test Mode in which CONSULT-III drives so
me actuators apart from the ECMs and also shifts
some parameters in a specified range.
DTC & SRT confirmation The status of system monitoring tests and the self-diagnosis status/results can be confirmed.
Function test This mode is used to inform customers when the vehicle requires periodic maintenance.
ECU part number ECM part number can be read.
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE • FUEL PUMP WILL STOP BY TOUCHING “START” DUR- ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS. When releasing fuel pressure from
fuel line
IDLE AIR VOL LEARN • THE IDLE AIR VOLUME THAT KEEPS THE ENGINE WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM. When learning the idle air volume
Revision: May 2010
2011 Versa
