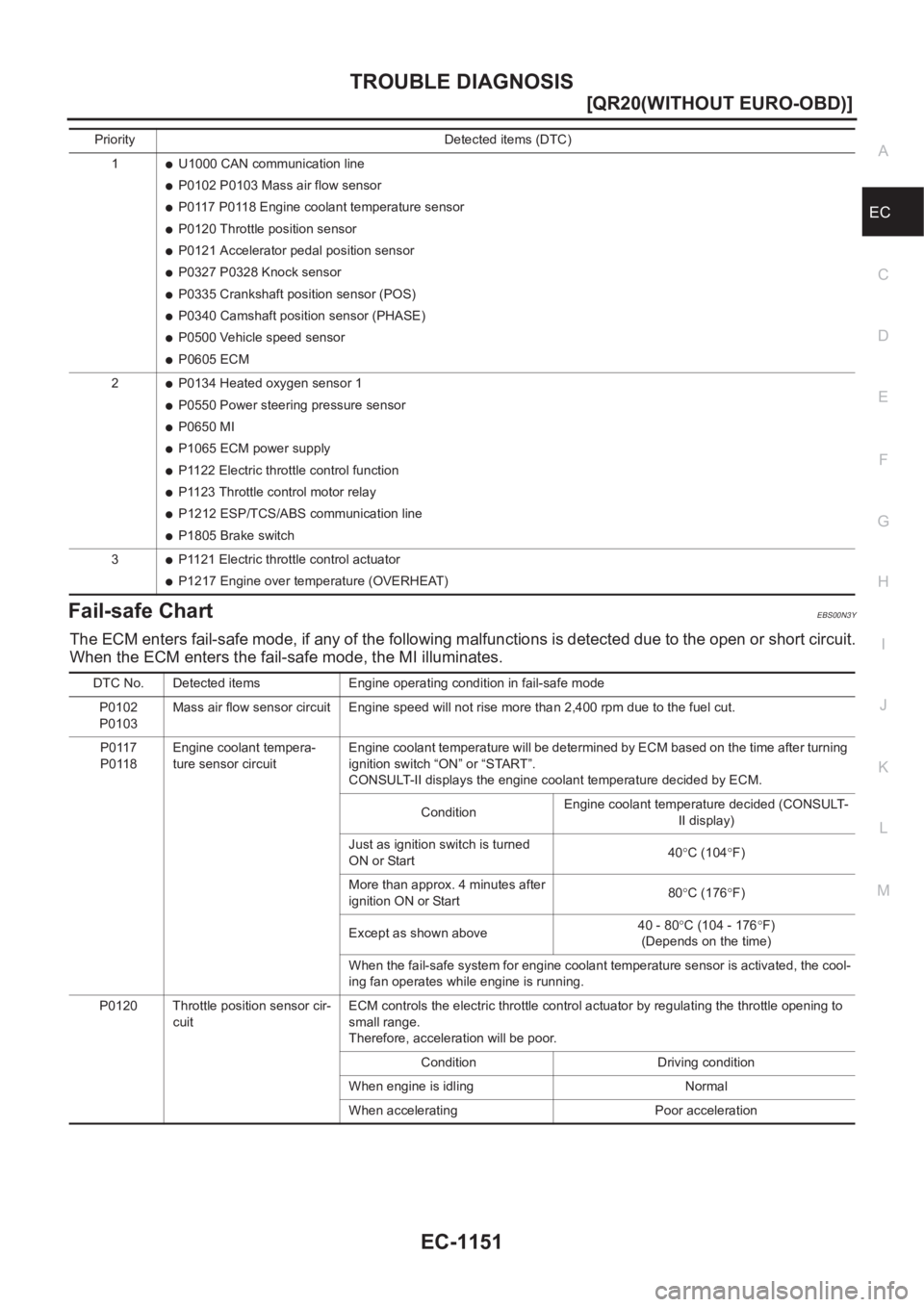

NISSAN X-TRAIL 2001 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2001, Model line: X-TRAIL, Model: NISSAN X-TRAIL 2001Pages: 3833, PDF Size: 39.49 MB
Page 1501 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1151
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00N3Y
The ECM enters fail-safe mode, if any of the following malfunctions is detected due to the open or NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1151
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00N3Y
The ECM enters fail-safe mode, if any of the following malfunctions is detected due to the open or](/img/5/57405/w960_57405-1500.png)
TROUBLE DIAGNOSIS
EC-1151
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00N3Y
The ECM enters fail-safe mode, if any of the following malfunctions is detected due to the open or short circuit.
When the ECM enters the fail-safe mode, the MI illuminates.
Priority Detected items (DTC)
1
●U1000 CAN communication line
●P0102 P0103 Mass air flow sensor
●P0117 P0118 Engine coolant temperature sensor
●P0120 Throttle position sensor
●P0121 Accelerator pedal position sensor
●P0327 P0328 Knock sensor
●P0335 Crankshaft position sensor (POS)
●P0340 Camshaft position sensor (PHASE)
●P0500 Vehicle speed sensor
●P0605 ECM
2
●P0134 Heated oxygen sensor 1
●P0550 Power steering pressure sensor
●P0650 MI
●P1065 ECM power supply
●P1122 Electric throttle control function
●P1123 Throttle control motor relay
●P1212 ESP/TCS/ABS communication line
●P1805 Brake switch
3
●P1121 Electric throttle control actuator
●P1217 Engine over temperature (OVERHEAT)
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition switch “ON” or “START”.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided (CONSULT-
II display)
Just as ignition switch is turned
ON or Start40°C (104°F)
More than approx. 4 minutes after
ignition ON or Start80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cool-
ing fan operates while engine is running.
P0120 Throttle position sensor cir-
cuitECM controls the electric throttle control actuator by regulating the throttle opening to
small range.
Therefore, acceleration will be poor.
Condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
Page 1502 of 3833

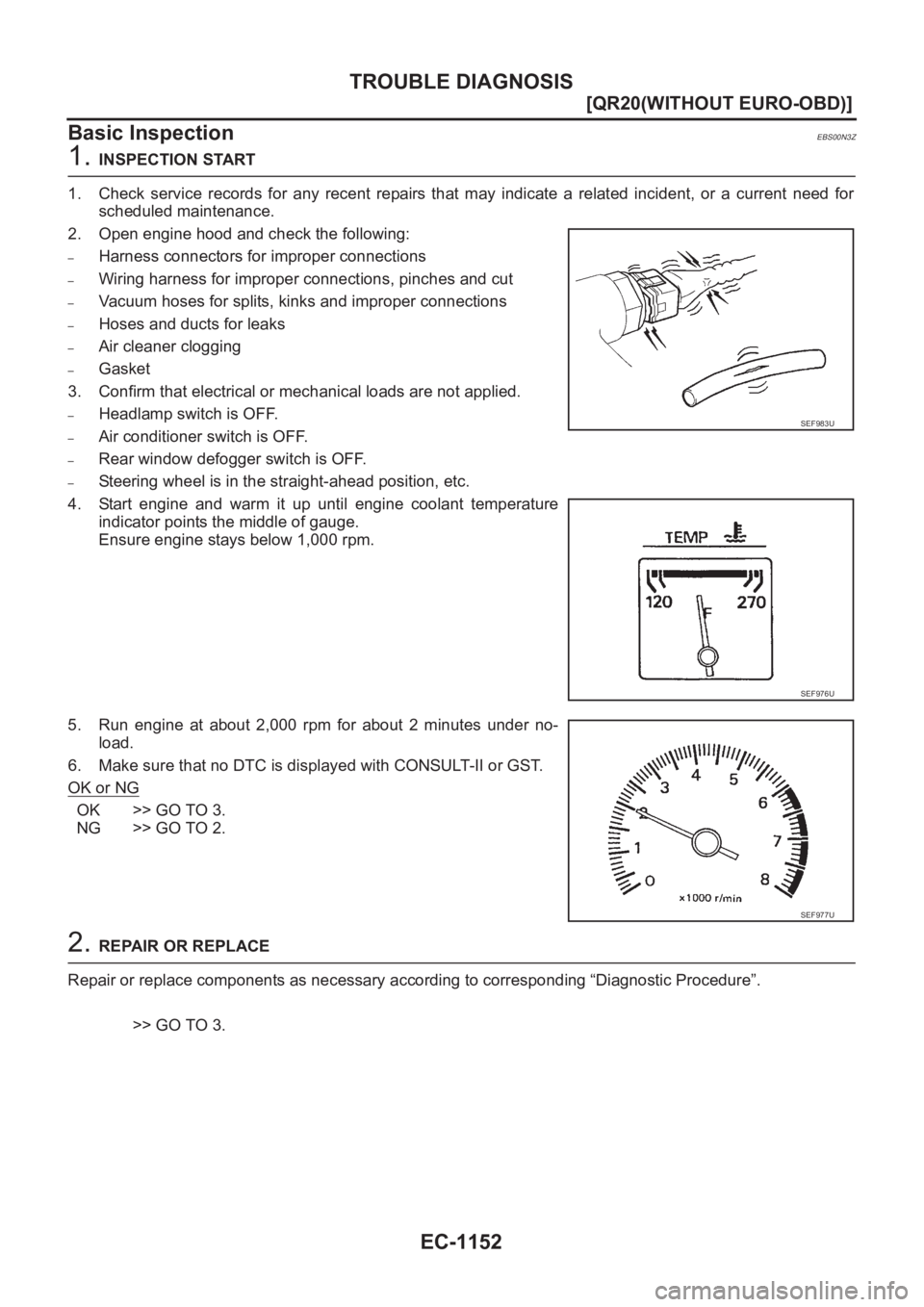

![NISSAN X-TRAIL 2001 Service Repair Manual EC-1152
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
Basic Inspection
EBS00N3Z
1. INSPECTION START
1. Check service records for any recent repairs that may indicate a related incident, or NISSAN X-TRAIL 2001 Service Repair Manual EC-1152
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
Basic Inspection
EBS00N3Z
1. INSPECTION START
1. Check service records for any recent repairs that may indicate a related incident, or](/img/5/57405/w960_57405-1501.png)
EC-1152
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
Basic Inspection
EBS00N3Z
1. INSPECTION START
1. Check service records for any recent repairs that may indicate a related incident, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
–Harness connectors for improper connections
–Wiring harness for improper connections, pinches and cut
–Vacuum hoses for splits, kinks and improper connections
–Hoses and ducts for leaks
–Air cleaner clogging
–Gasket
3. Confirm that electrical or mechanical loads are not applied.
–Headlamp switch is OFF.
–Air conditioner switch is OFF.
–Rear window defogger switch is OFF.
–Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no-
load.
6. Make sure that no DTC is displayed with CONSULT-II or GST.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding “Diagnostic Procedure”.
>> GO TO 3.
SEF983U
SEF976U
SEF977U
Page 1503 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1153
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engin NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1153
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engin](/img/5/57405/w960_57405-1502.png)

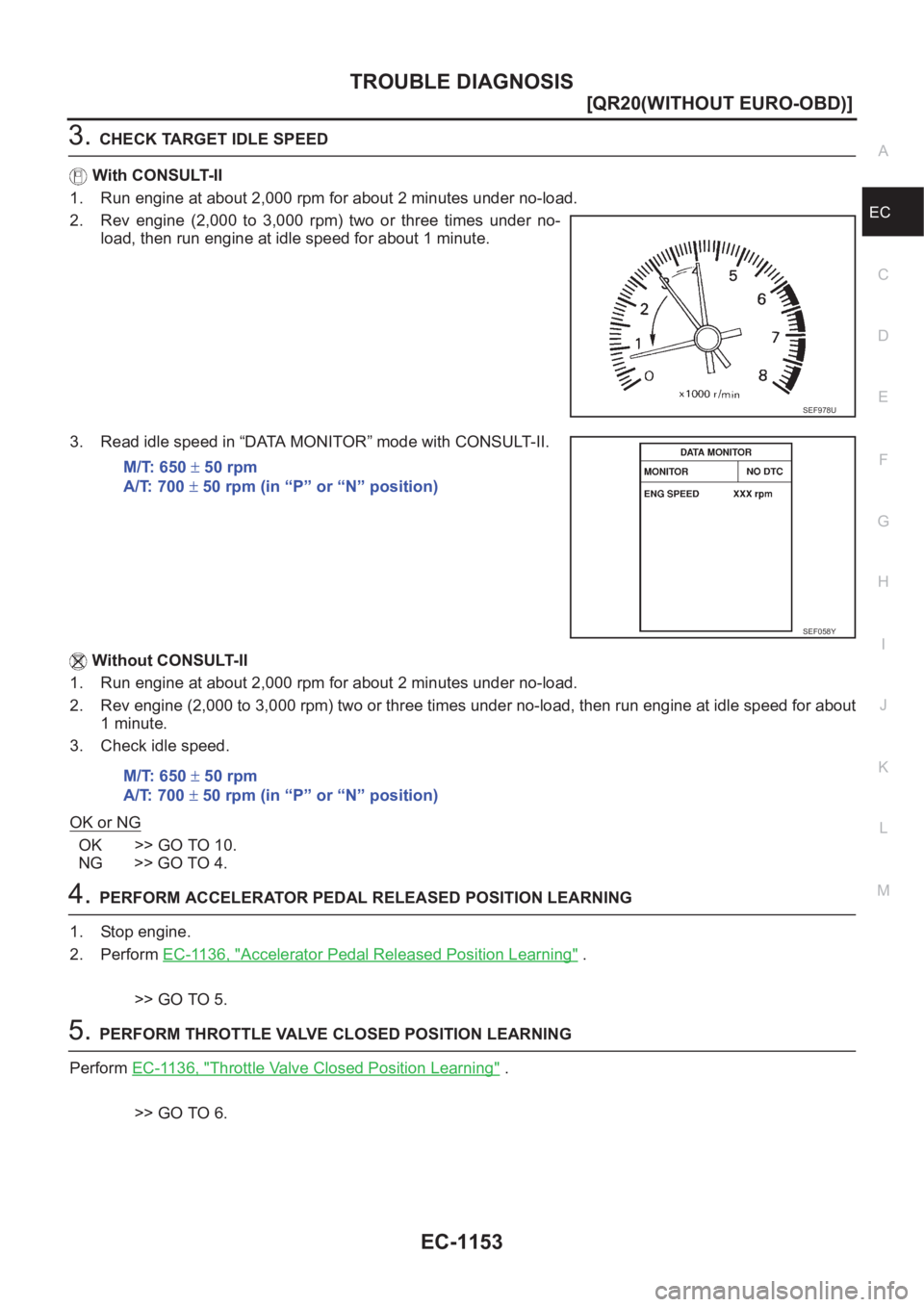

TROUBLE DIAGNOSIS
EC-1153
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) two or three times under no-
load, then run engine at idle speed for about 1 minute.
3. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) two or three times under no-load, then run engine at idle speed for about
1 minute.
3. Check idle speed.
OK or NG
OK >> GO TO 10.
NG >> GO TO 4.
4.PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-1136, "
Accelerator Pedal Released Position Learning" .
>> GO TO 5.
5.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-1136, "
Throttle Valve Closed Position Learning" .
>> GO TO 6.
SEF978U
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
SEF058Y
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
Page 1504 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1154
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
6. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-1137, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye NISSAN X-TRAIL 2001 Service Repair Manual EC-1154
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
6. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-1137, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye](/img/5/57405/w960_57405-1503.png)
EC-1154
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
6. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-1137, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes >> GO TO 7.
No >> 1. Follow the instruction of “Idle Air Volume Learning”.
2. GO TO 4.
7. CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
OK or NG
OK >> GO TO 10.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the Following.
●Check camshaft position sensor (PHASE) and circuit. Refer to EC-1246 .
●Check crankshaft position sensor (POS) and circuit. Refer to EC-1240 .
OK or NG
OK >> GO TO 9.
NG >> 1. Repair or replace.
2. GO TO 4.
9. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is the rarely the case.)
2. Perform initialization of NATS system and registration of NATS ignition key IDs. Refer to EC-1143, "
NATS
(Nissan Anti-theft System)" .
>> GO TO 4.
10. CHECK IGNITION TIMING
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 11.M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 14 ± 5° BTDC
A/T: 16 ± 5° BTDC (in “P” or “N” position)
Page 1505 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1155
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
11 . ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-1136, "
Accelerator Pedal Released Pos NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1155
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
11 . ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-1136, "
Accelerator Pedal Released Pos](/img/5/57405/w960_57405-1504.png)

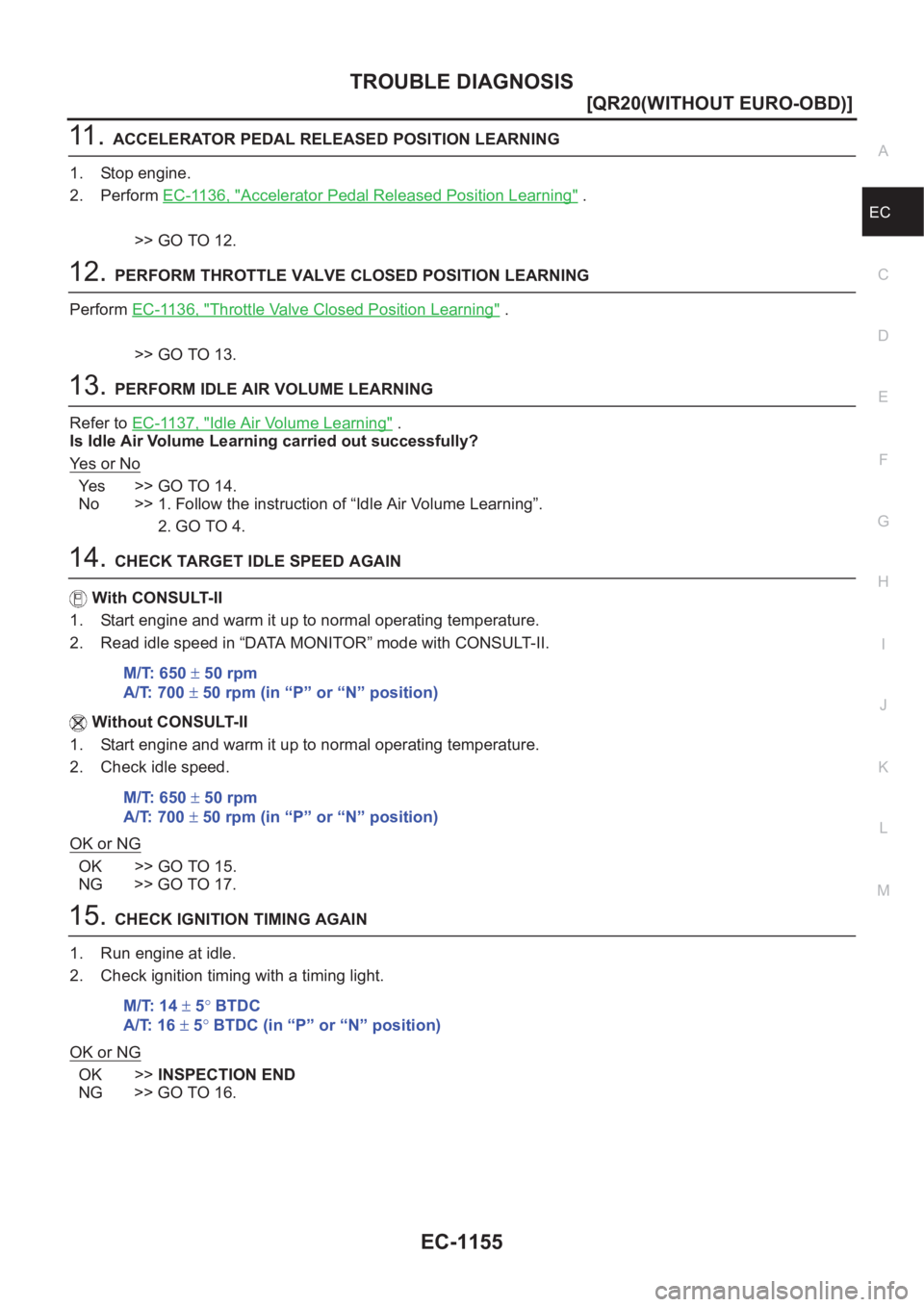

TROUBLE DIAGNOSIS
EC-1155
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
11 . ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-1136, "
Accelerator Pedal Released Position Learning" .
>> GO TO 12.
12.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-1136, "
Throttle Valve Closed Position Learning" .
>> GO TO 13.
13.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-1137, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Ye s > > G O T O 1 4 .
No >> 1. Follow the instruction of “Idle Air Volume Learning”.
2. GO TO 4.
14.CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
OK or NG
OK >> GO TO 15.
NG >> GO TO 17.
15.CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 14 ± 5° BTDC
A/T: 16 ± 5° BTDC (in “P” or “N” position)
Page 1506 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1156
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
16. CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-37, "
TIMING CHAIN" .
OK or NG
OK >> GO TO 17.
NG >> 1. Repa NISSAN X-TRAIL 2001 Service Repair Manual EC-1156
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
16. CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-37, "
TIMING CHAIN" .
OK or NG
OK >> GO TO 17.
NG >> 1. Repa](/img/5/57405/w960_57405-1505.png)

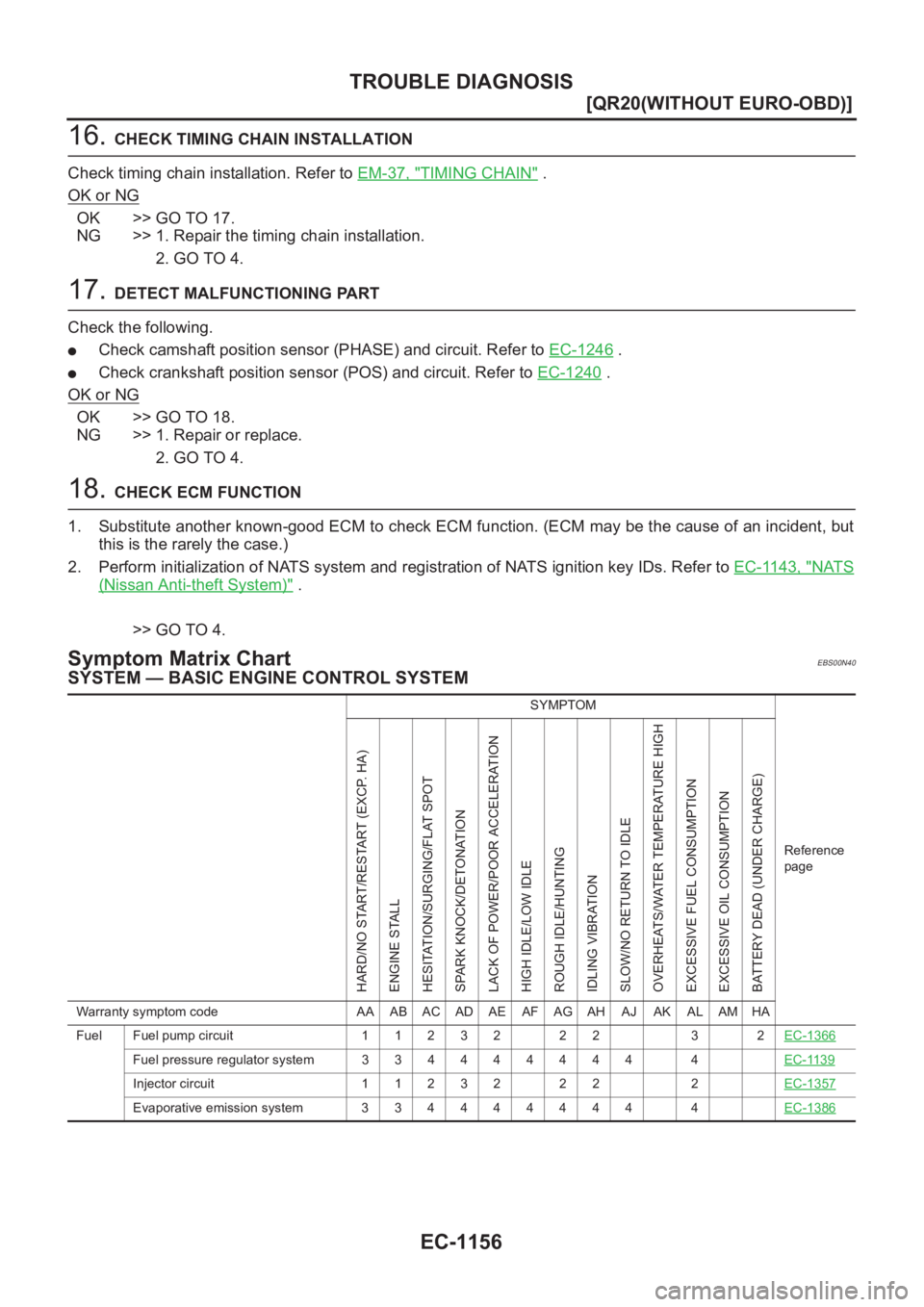

EC-1156
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
16. CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-37, "
TIMING CHAIN" .
OK or NG
OK >> GO TO 17.
NG >> 1. Repair the timing chain installation.
2. GO TO 4.
17. DETECT MALFUNCTIONING PART
Check the following.
●Check camshaft position sensor (PHASE) and circuit. Refer to EC-1246 .
●Check crankshaft position sensor (POS) and circuit. Refer to EC-1240 .
OK or NG
OK >> GO TO 18.
NG >> 1. Repair or replace.
2. GO TO 4.
18. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is the rarely the case.)
2. Perform initialization of NATS system and registration of NATS ignition key IDs. Refer to EC-1143, "
NATS
(Nissan Anti-theft System)" .
>> GO TO 4.
Symptom Matrix ChartEBS00N40
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-1366
Fuel pressure regulator system334444444 4EC-1139
Injector circuit 11232 22 2EC-1357
Evaporative emission system 334444444 4EC-1386
Page 1507 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1157
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Air Positive crankcase ventilation sys-
tem334 NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1157
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Air Positive crankcase ventilation sys-
tem334](/img/5/57405/w960_57405-1506.png)

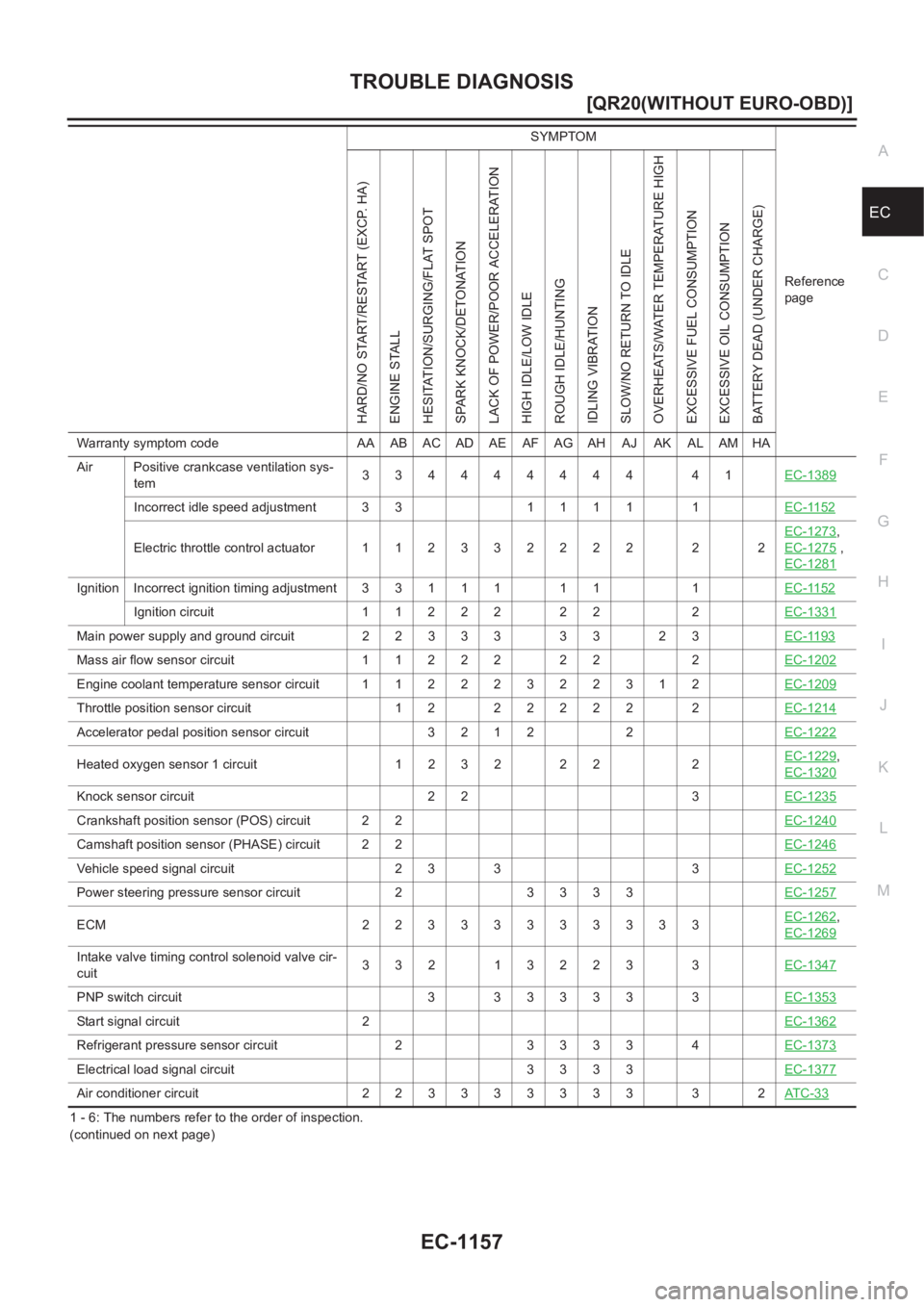

TROUBLE DIAGNOSIS
EC-1157
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Air Positive crankcase ventilation sys-
tem334444444 41EC-1389
Incorrect idle speed adjustment 3 3 1 1 1 1 1EC-1152
Electric throttle control actuator 112332222 2 2EC-1273
,
EC-1275
,
EC-1281
IgnitionIncorrect ignition timing adjustment33111 11 1EC-1152
Ignition circuit 11222 22 2EC-1331
Main power supply and ground circuit22333 33 23EC-1193
Mass air flow sensor circuit 11222 22 2EC-1202
Engine coolant temperature sensor circuit 11222322312EC-1209
Throttle position sensor circuit 12 22222 2EC-1214
Accelerator pedal position sensor circuit 3 2 1 2 2EC-1222
Heated oxygen sensor 1 circuit1232 22 2EC-1229,
EC-1320
Knock sensor circuit 2 2 3EC-1235
Crankshaft position sensor (POS) circuit 2 2EC-1240
Camshaft position sensor (PHASE) circuit 2 2EC-1246
Vehicle speed signal circuit 2 3 3 3EC-1252
Power steering pressure sensor circuit 2 3 3 3 3EC-1257
ECM 22333333333EC-1262,
EC-1269
Intake valve timing control solenoid valve cir-
cuit332 13223 3EC-1347
PNP switch circuit 3 33333 3EC-1353
Start signal circuit 2EC-1362
Refrigerant pressure sensor circuit 2 3 3 3 3 4EC-1373
Electrical load signal circuit 3 3 3 3EC-1377
Air conditioner circuit223333333 3 2AT C - 3 3
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Page 1508 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1158
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/D NISSAN X-TRAIL 2001 Service Repair Manual EC-1158
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/D](/img/5/57405/w960_57405-1507.png)
EC-1158
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-9
Fuel piping 555 55 5FL-3,EM-
32
Vapor lock—
Valve deposit
555555 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—
Air Air duct
55555 5EM-14
Air cleanerEM-14
Air leakage from air duct
(Mass air flow sensor —electric
throttle control actuator)
5555EM-14
Electric throttle control actuatorEM-16
Air leakage from intake manifold/
Collector/GasketEM-16
Cranking Battery
111111 11SC-3
Alternator circuitSC-12
Starter circuit 3SC-20
Signal plate 6EM-73
PNP switch
4MT-12 or
AT- 3 4 9
Engine Cylinder head
55555 55 5EM-59
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-73
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTimin g c hain
55555 55 5EM-37
CamshaftEM-46
Intake valve
3EM-59
Exhaust valve
Page 1509 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1159
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Exhaust Exhaust manifold/Tube/Muffler/
Gasket
NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1159
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Exhaust Exhaust manifold/Tube/Muffler/
Gasket](/img/5/57405/w960_57405-1508.png)

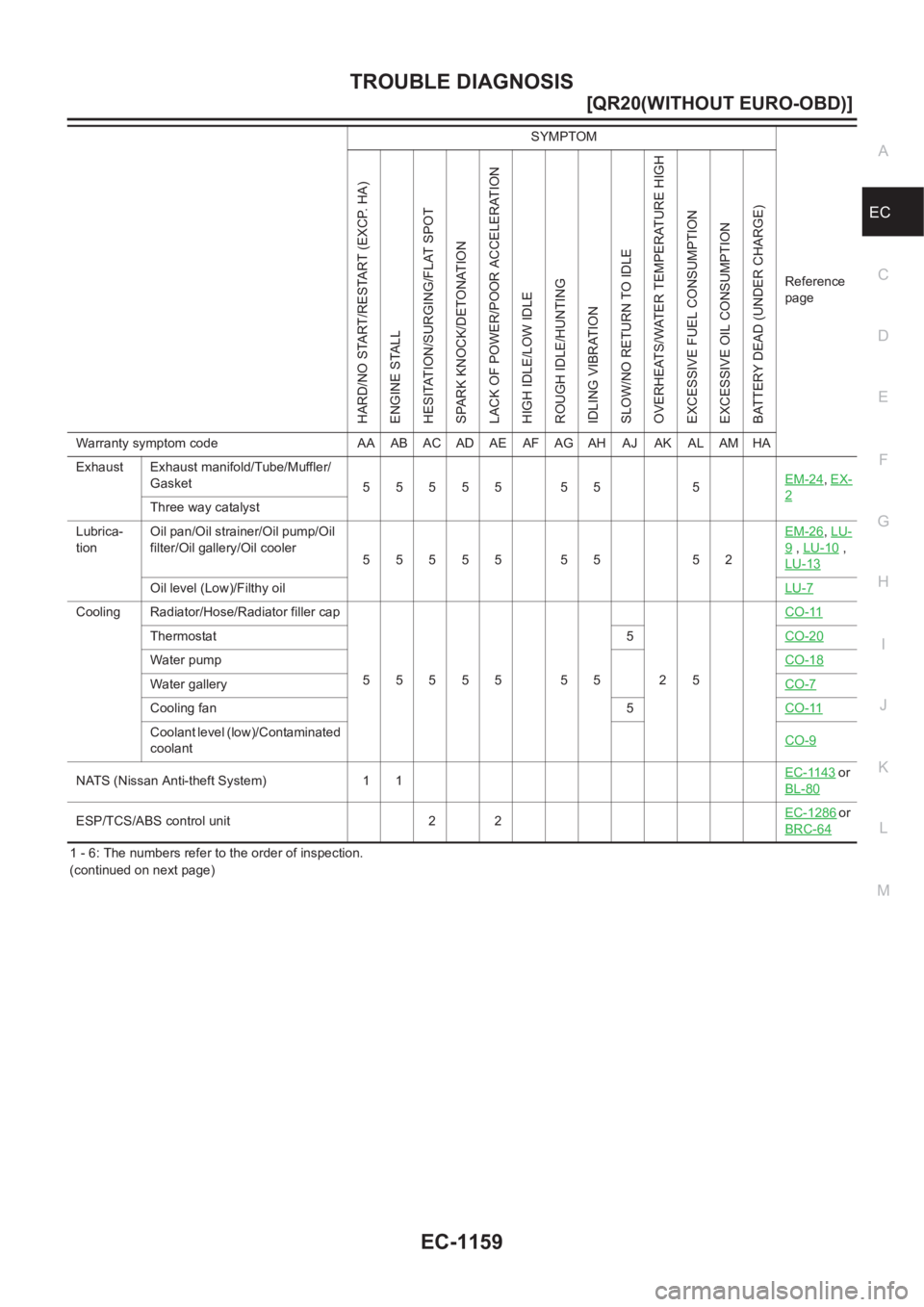

TROUBLE DIAGNOSIS
EC-1159
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EM-24
,EX-
2Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler
55555 55 52EM-26
,LU-
9 , LU-10 ,
LU-13
Oil level (Low)/Filthy oilLU-7
Cooling Radiator/Hose/Radiator filler cap
55555 55 25CO-11
Thermostat 5CO-20
Water pumpCO-18
Water galleryCO-7
Cooling fan 5CO-11
Coolant level (low)/Contaminated
coolantCO-9
NATS (Nissan Anti-theft System) 1 1EC-1143 o r
BL-80
ESP/TCS/ABS control unit 2 2EC-1286 o r
BRC-64
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Page 1510 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1160
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
Engine Control Component Parts Location
EBS00N41
PBIB0484E NISSAN X-TRAIL 2001 Service Repair Manual EC-1160
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
Engine Control Component Parts Location
EBS00N41
PBIB0484E](/img/5/57405/w960_57405-1509.png)

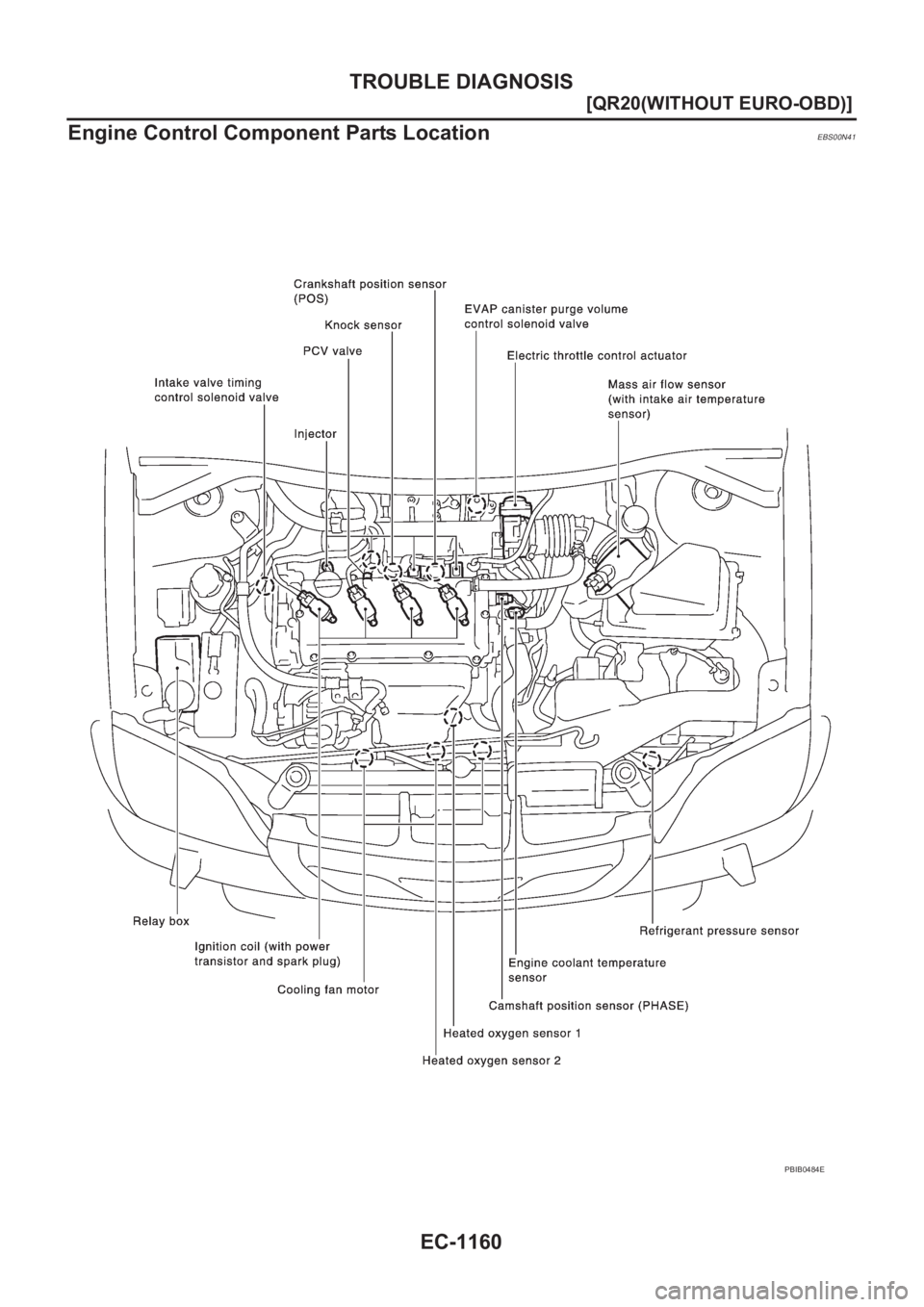

EC-1160
[QR20(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
Engine Control Component Parts Location
EBS00N41
PBIB0484E
