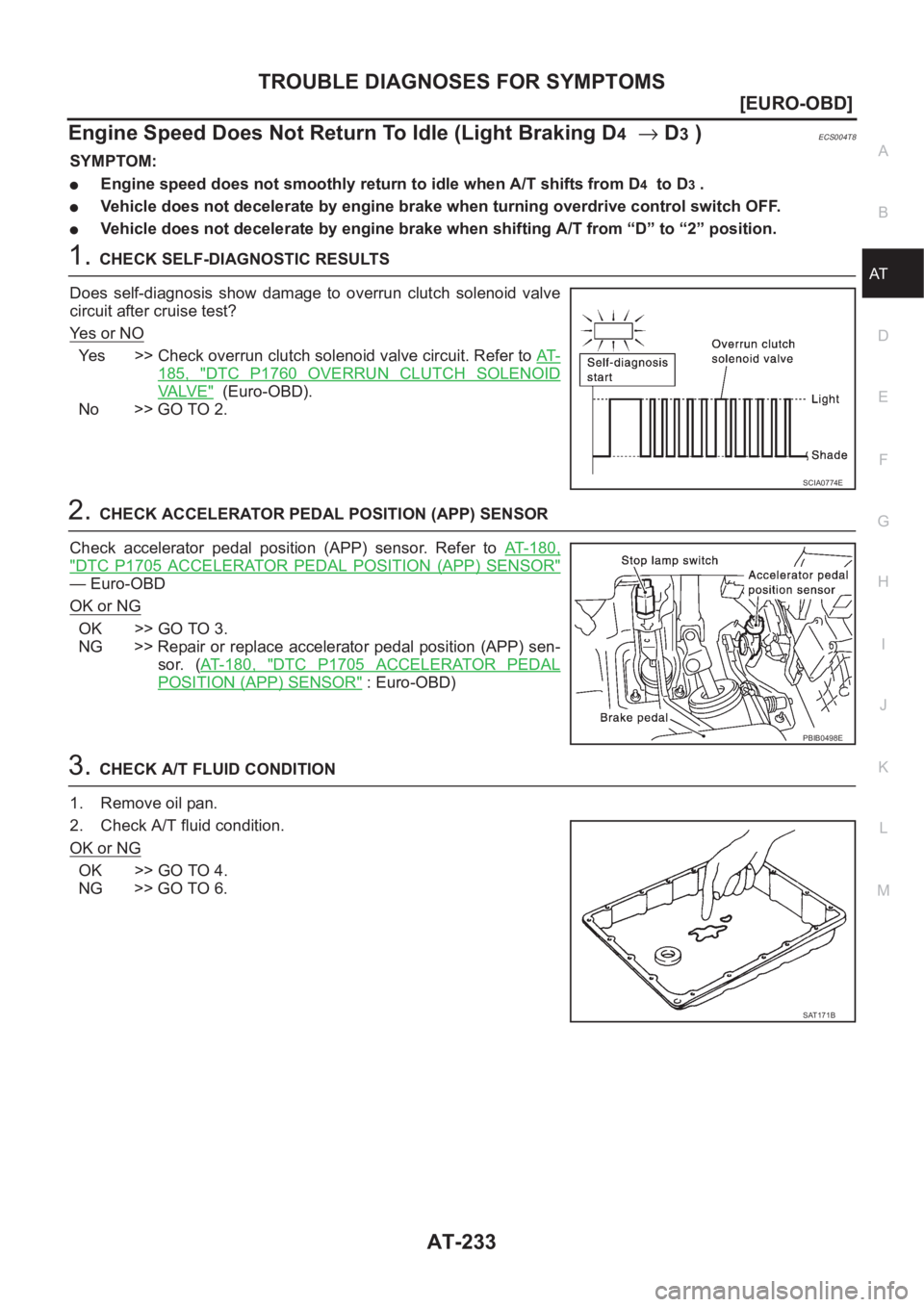

NISSAN X-TRAIL 2001 Service Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-233
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )ECS004T8
SYMPTOM:
●Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 .
●Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
●Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer to AT-
185, "DTC P1760 OVERRUN CLUTCH SOLENOID
VA LV E" (Euro-OBD).
No >> GO TO 2.
2.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor. (AT- 1 8 0 , "
DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" : Euro-OBD)
3.CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
SCIA0774E
PBIB0498E
SAT171B

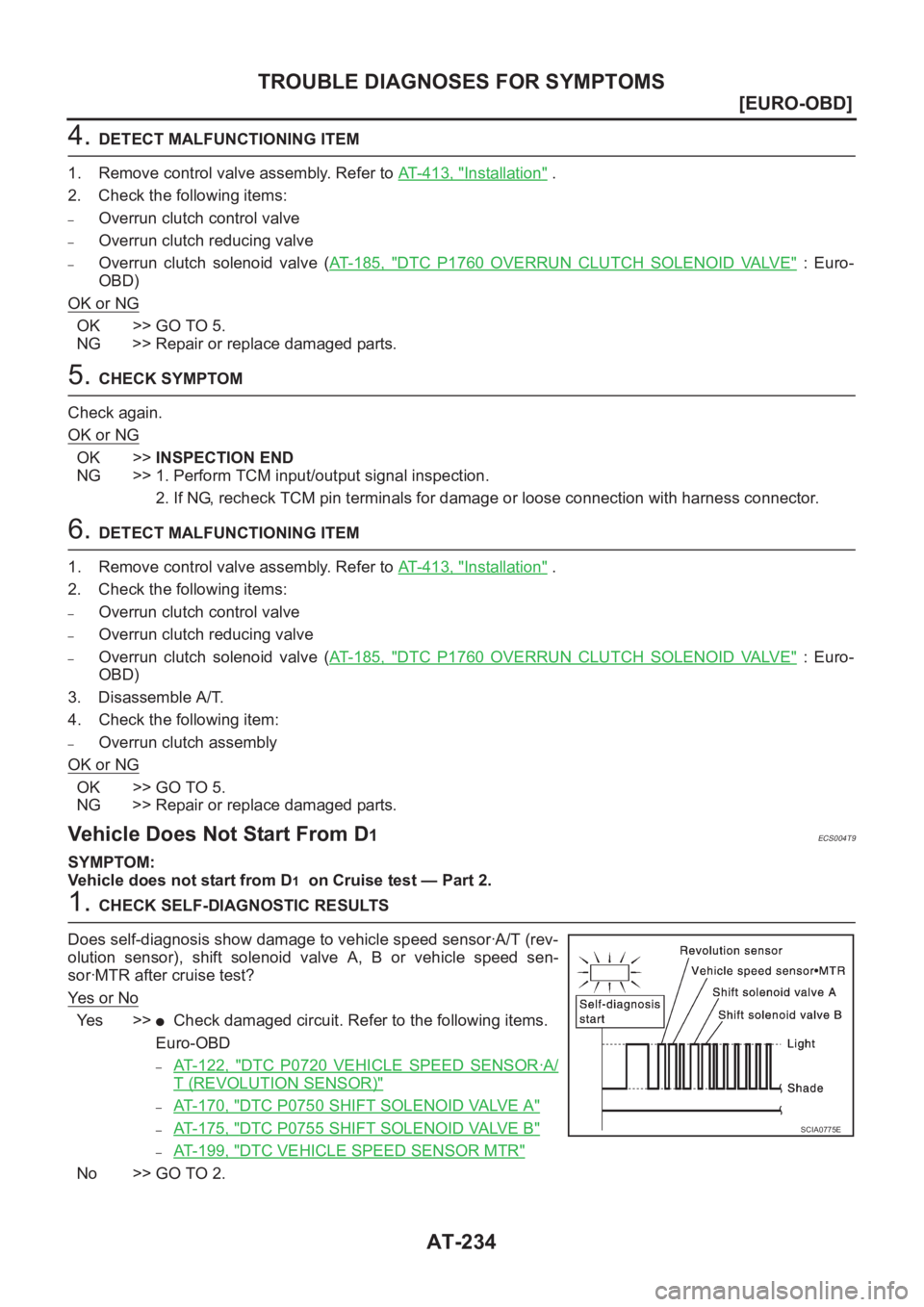

AT-234
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT- 1 8 5 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE" : Euro-
OBD)
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT- 1 8 5 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE" : Euro-
OBD)
3. Disassemble A/T.
4. Check the following item:
–Overrun clutch assembly
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
Vehicle Does Not Start From D1ECS004T9
SYMPTOM:
Vehicle does not start from D
1 on Cruise test — Part 2.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (rev-
olution sensor), shift solenoid valve A, B or vehicle speed sen-
sor·MTR after cruise test?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Euro-OBD
–AT- 1 2 2 , "DTC P0720 VEHICLE SPEED SENSOR·A/
T (REVOLUTION SENSOR)"
–AT- 1 7 0 , "DTC P0750 SHIFT SOLENOID VALVE A"
–AT- 1 7 5 , "DTC P0755 SHIFT SOLENOID VALVE B"
–AT- 1 9 9 , "DTC VEHICLE SPEED SENSOR MTR"
No >> GO TO 2.
SCIA0775E

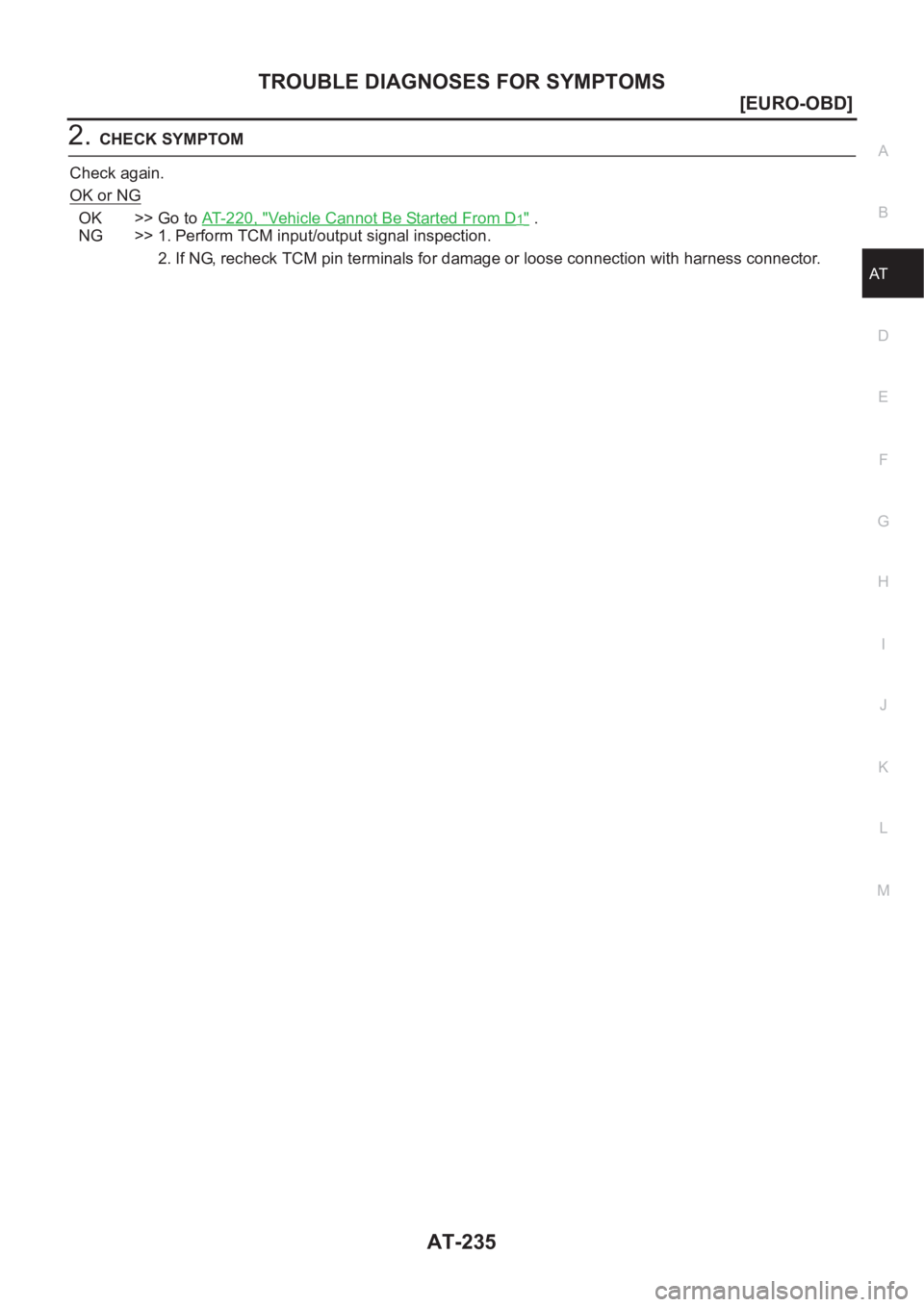

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-235
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to AT-220, "Vehicle Cannot Be Started From D1" .
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

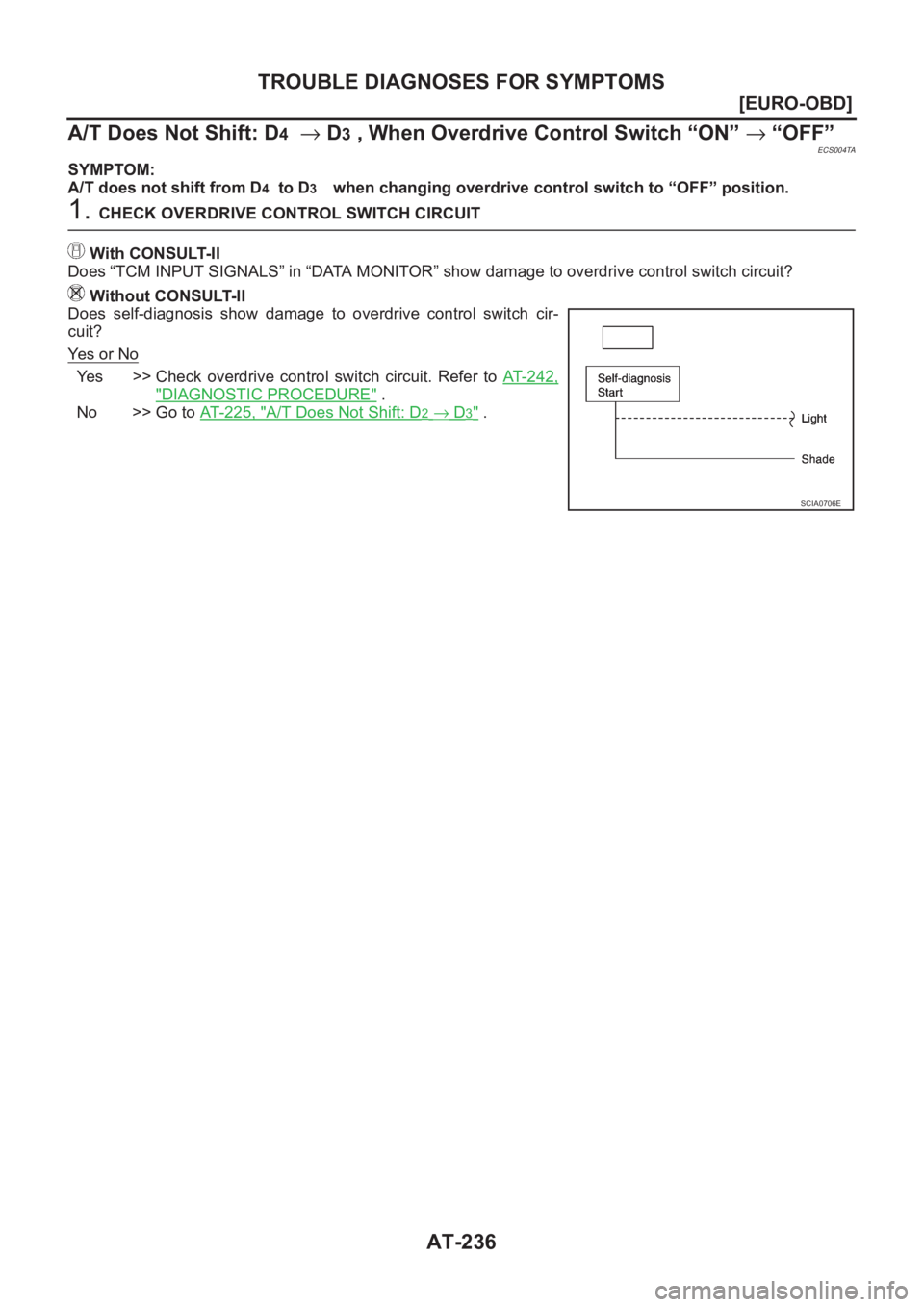

AT-236
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: D
4→ D3 , When Overdrive Control Switch “ON” → “OFF”ECS004TA
SYMPTOM:
A/T does not shift from D
4 to D3 when changing overdrive control switch to “OFF” position.
1. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to overdrive control switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to overdrive control switch cir-
cuit?
Ye s o r N o
Yes >> Check overdrive control switch circuit. Refer to AT- 2 4 2 ,
"DIAGNOSTIC PROCEDURE" .
No >> Go to AT- 2 2 5 , "
A/T Does Not Shift: D2→ D3" .
SCIA0706E

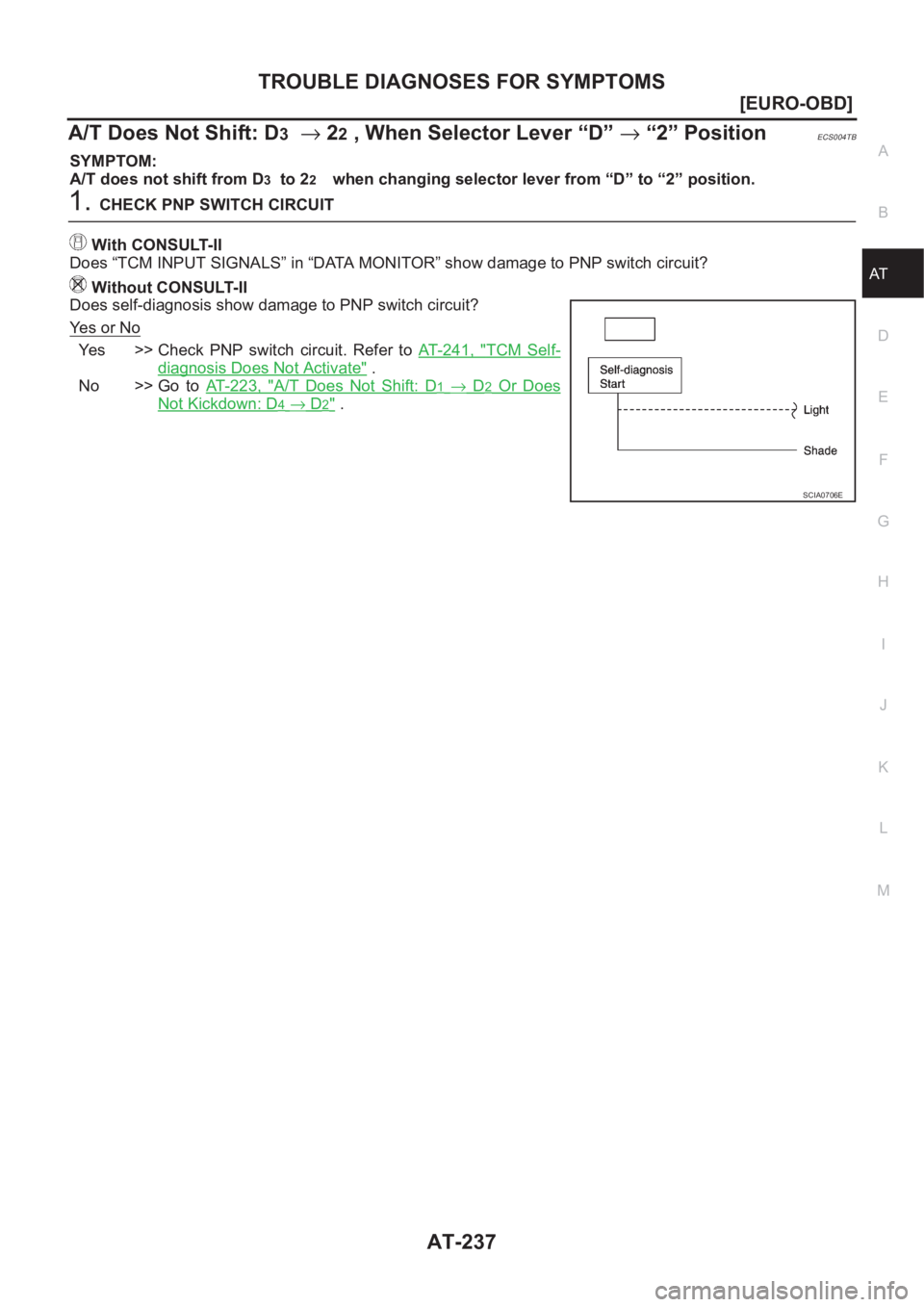

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-237
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: D3→ 22 , When Selector Lever “D” → “2” PositionECS004TB
SYMPTOM:
A/T does not shift from D
3 to 22 when changing selector lever from “D” to “2” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 2 4 1 , "TCM Self-
diagnosis Does Not Activate" .
No >> Go to AT- 2 2 3 , "
A/T Does Not Shift: D1→ D2 Or Does
Not Kickdown: D4→ D2" .
SCIA0706E

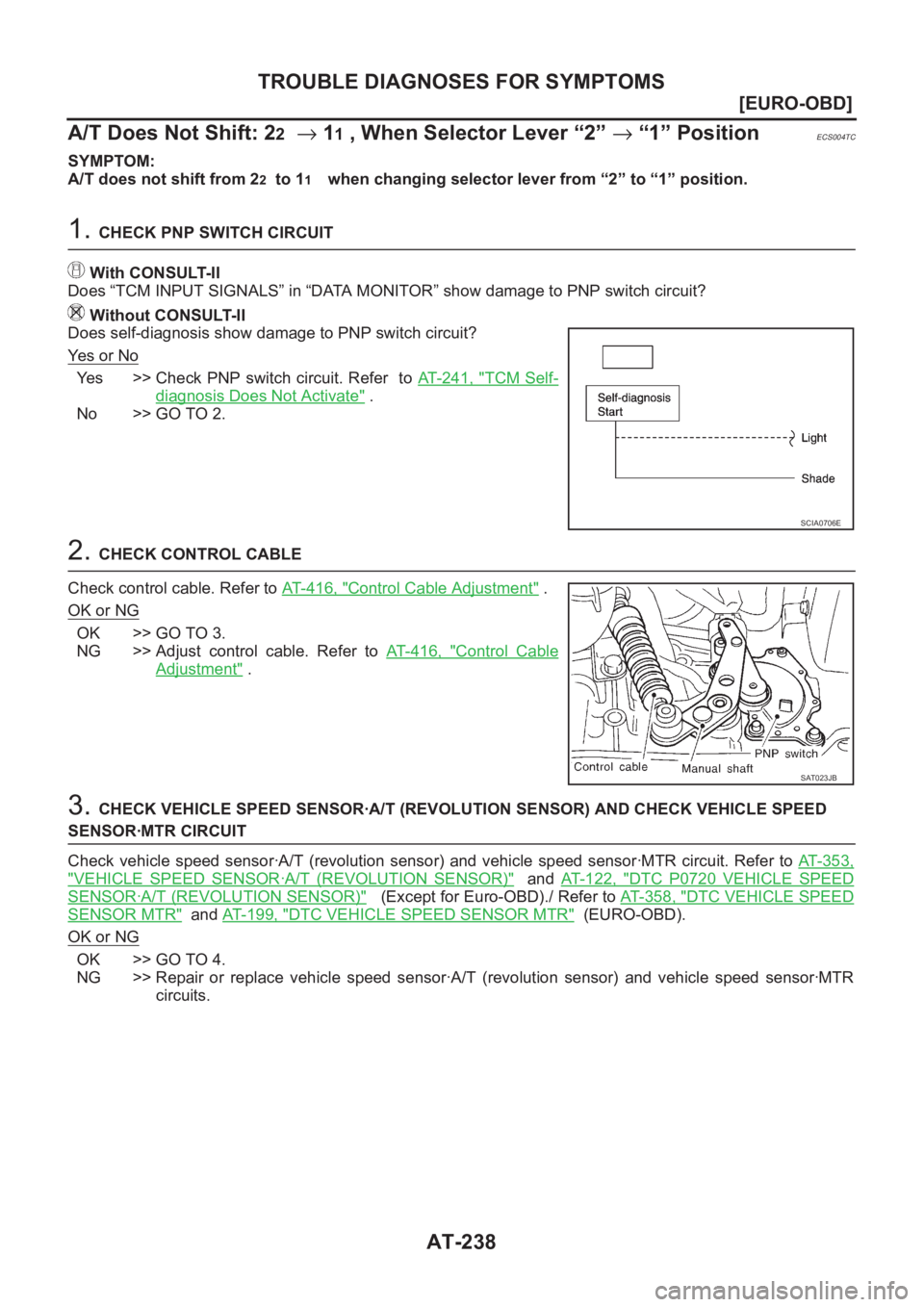

AT-238
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” PositionECS004TC
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT-241, "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2.
2. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB

TROUBLE DIAGNOSES FOR SYMPTOMS

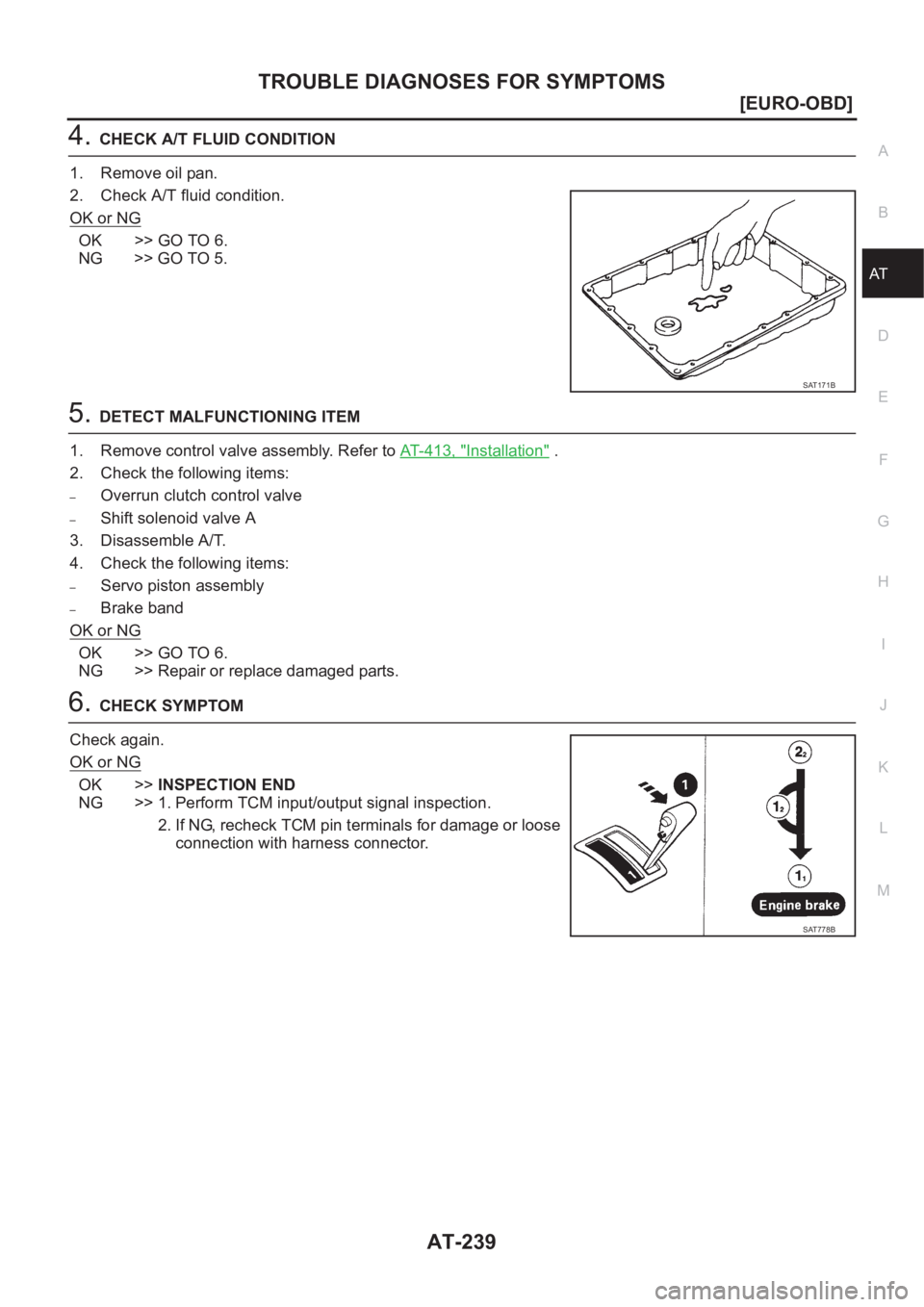

AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Overrun clutch control valve
–Shift solenoid valve A
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
SAT171B
SAT778B

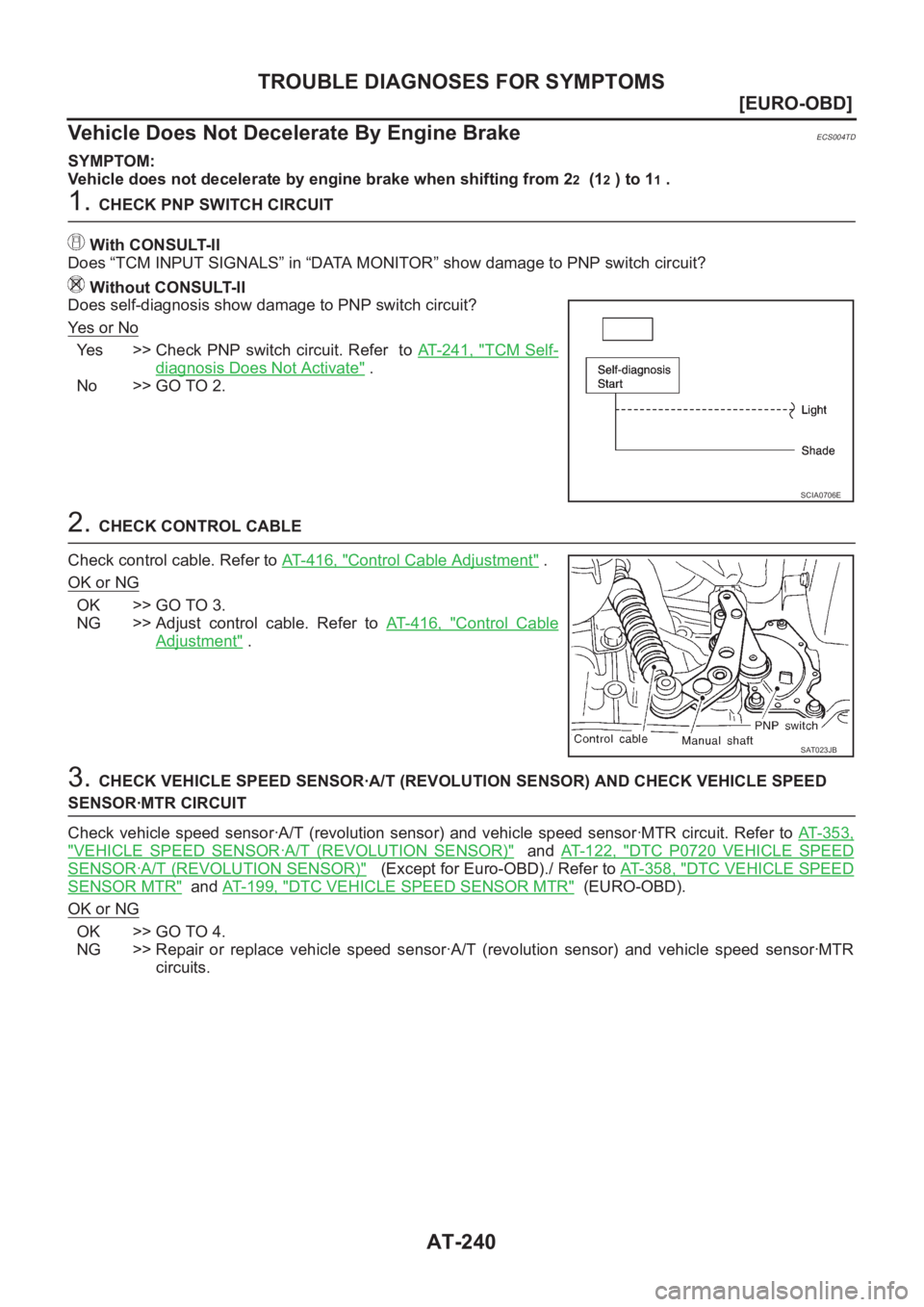

AT-240
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Vehicle Does Not Decelerate By Engine Brake
ECS004TD
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12 ) to 11 .
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT-241, "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2.
2. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB

TROUBLE DIAGNOSES FOR SYMPTOMS

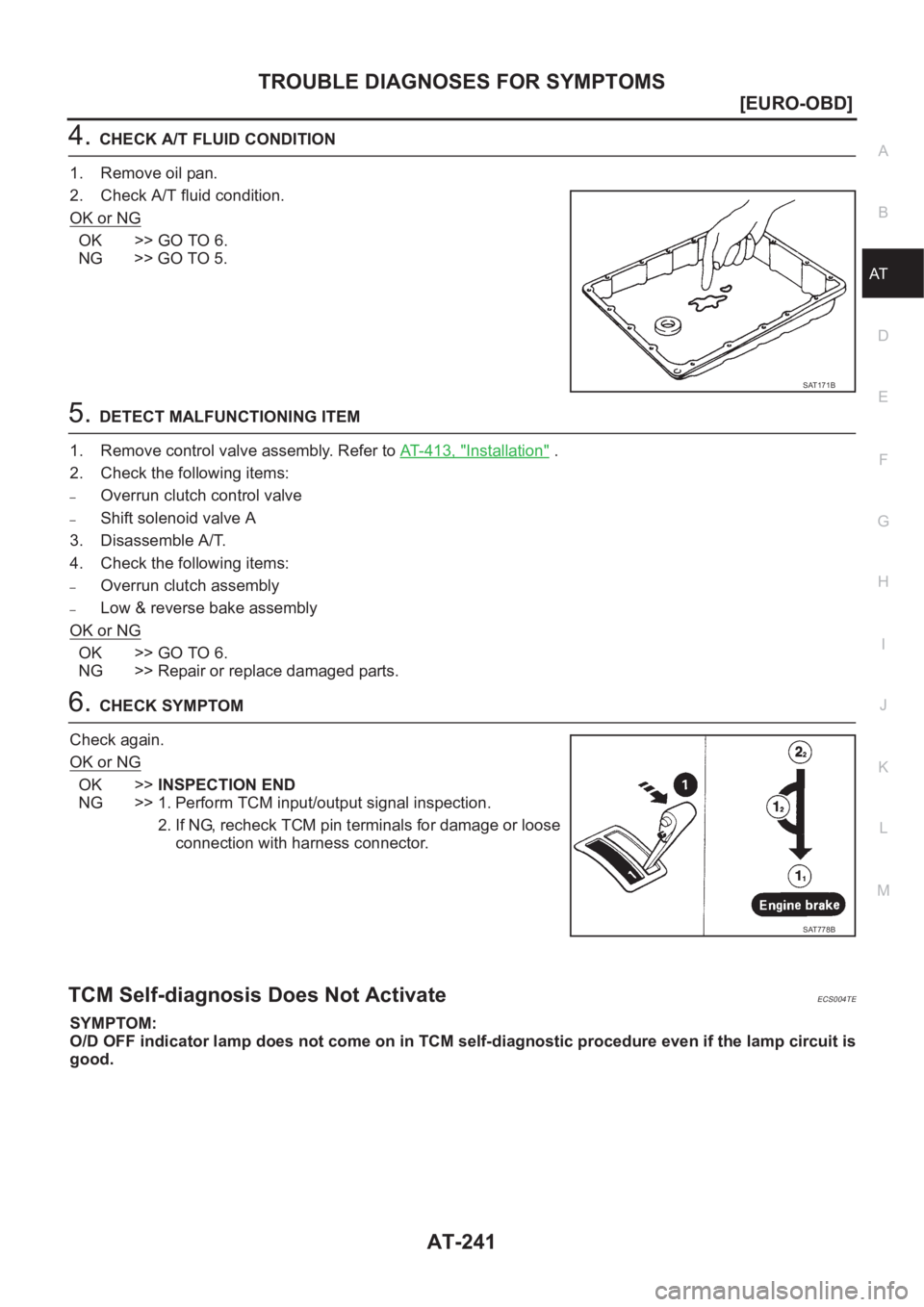

AT-241
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Overrun clutch control valve
–Shift solenoid valve A
3. Disassemble A/T.
4. Check the following items:
–Overrun clutch assembly
–Low & reverse bake assembly
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
TCM Self-diagnosis Does Not ActivateECS004TE
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
SAT171B
SAT778B

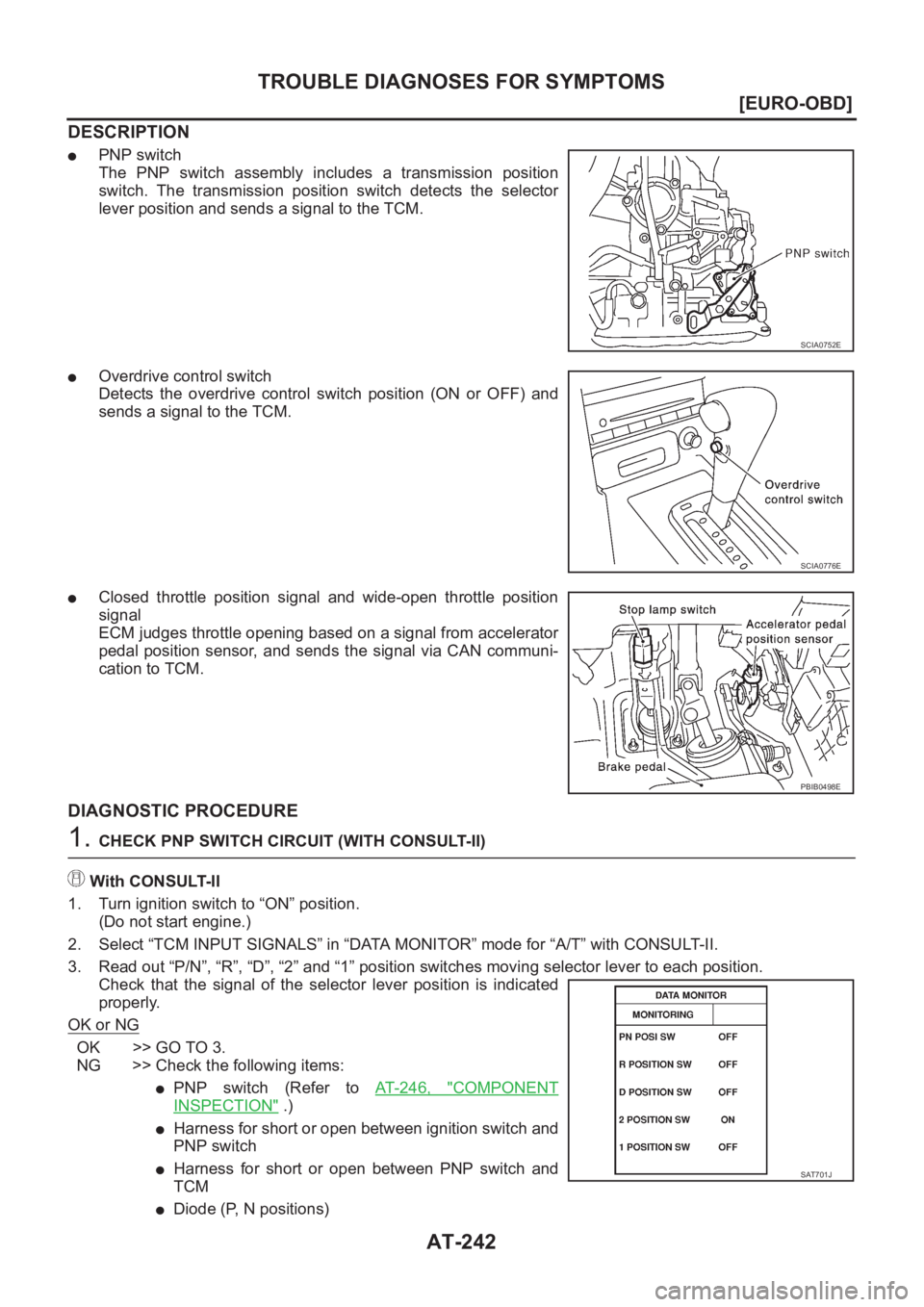

AT-242
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position
switch. The transmission position switch detects the selector
lever position and sends a signal to the TCM.
●Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and
sends a signal to the TCM.
●Closed throttle position signal and wide-open throttle position
signal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communi-
cation to TCM.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:
●PNP switch (Refer to AT- 2 4 6 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and
TCM
●Diode (P, N positions)
SCIA0752E
SCIA0776E
PBIB0498E
SAT701J
