NISSAN X-TRAIL 2001 Service Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-223
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: D1→ D2 Or Does Not Kickdown: D4→ D2ECS004T2
SYMPTOM:
A/T does not shift from D
1 to D2 at the specified speed.
A/T does not shift from D
4 to D2 when depressing accelerator pedal fully at the specified speed.
1.CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Go to AT- 2 1 8 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 0 , "Ve h i c l e
Cannot Be Started From D1" .
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer AT- 1 8 0 , "
DTC
P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR" —
Euro-OBD
OK or NG
OK >> GO TO 5
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

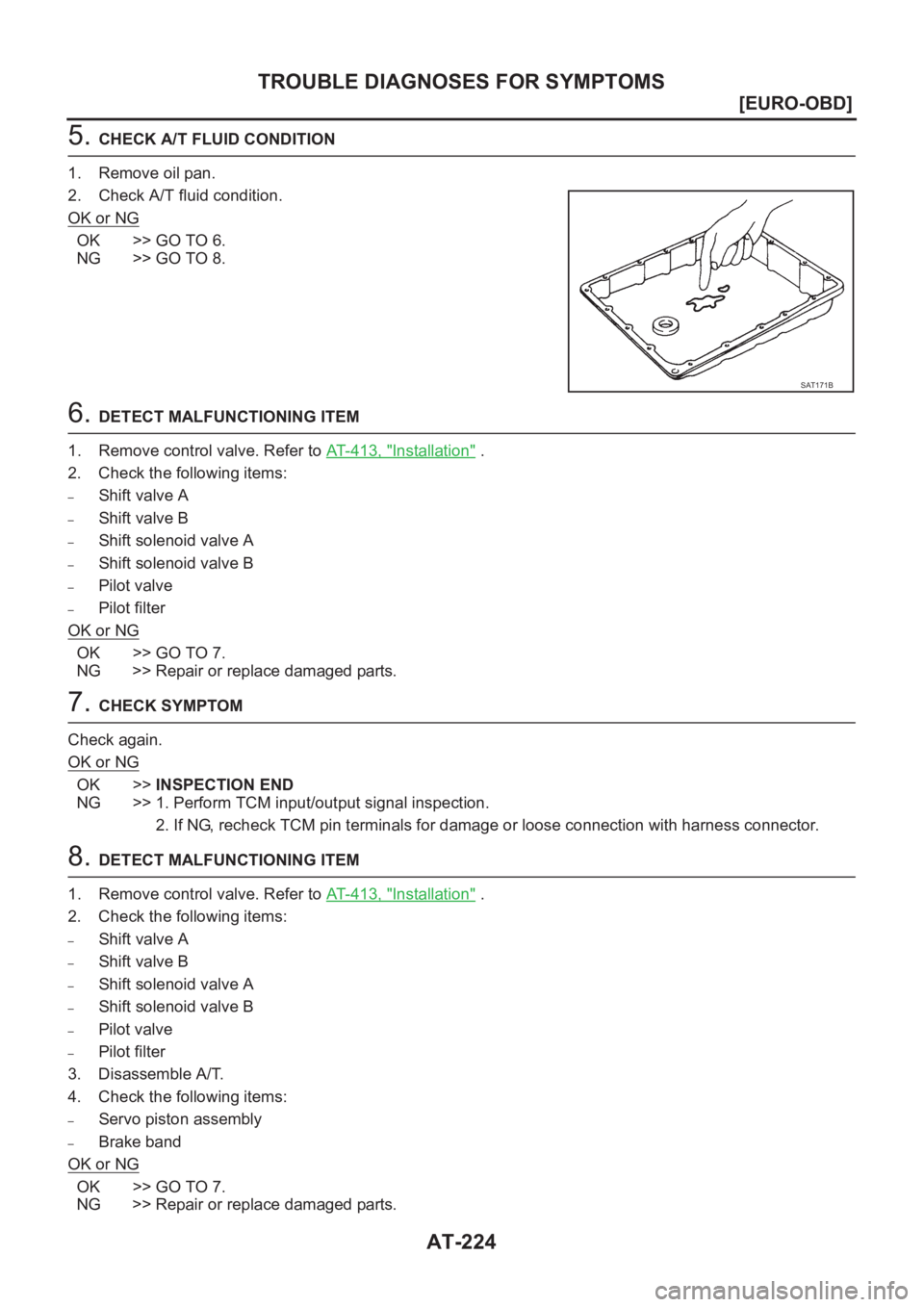

AT-224
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
8. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-225
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

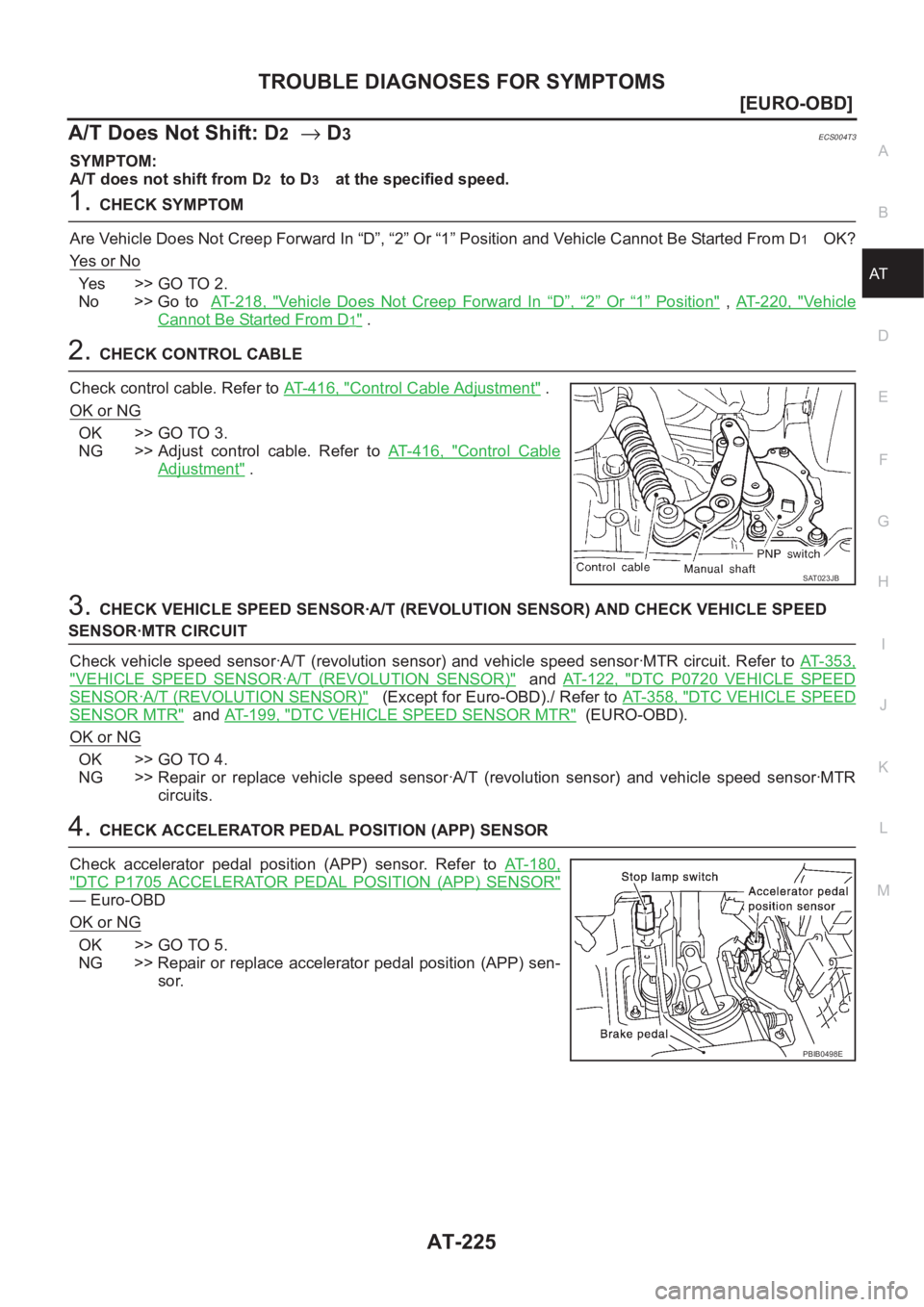

A/T Does Not Shift: D2→ D3ECS004T3
SYMPTOM:
A/T does not shift from D
2 to D3 at the specified speed.
1.CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Go to AT- 2 1 8 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 0 , "Ve h i c l e
Cannot Be Started From D1" .
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 2 2 , "DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)" (Except for Euro-OBD)./ Refer to AT- 3 5 8 , "DTC VEHICLE SPEED
SENSOR MTR" and AT-199, "DTC VEHICLE SPEED SENSOR MTR" (EURO-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

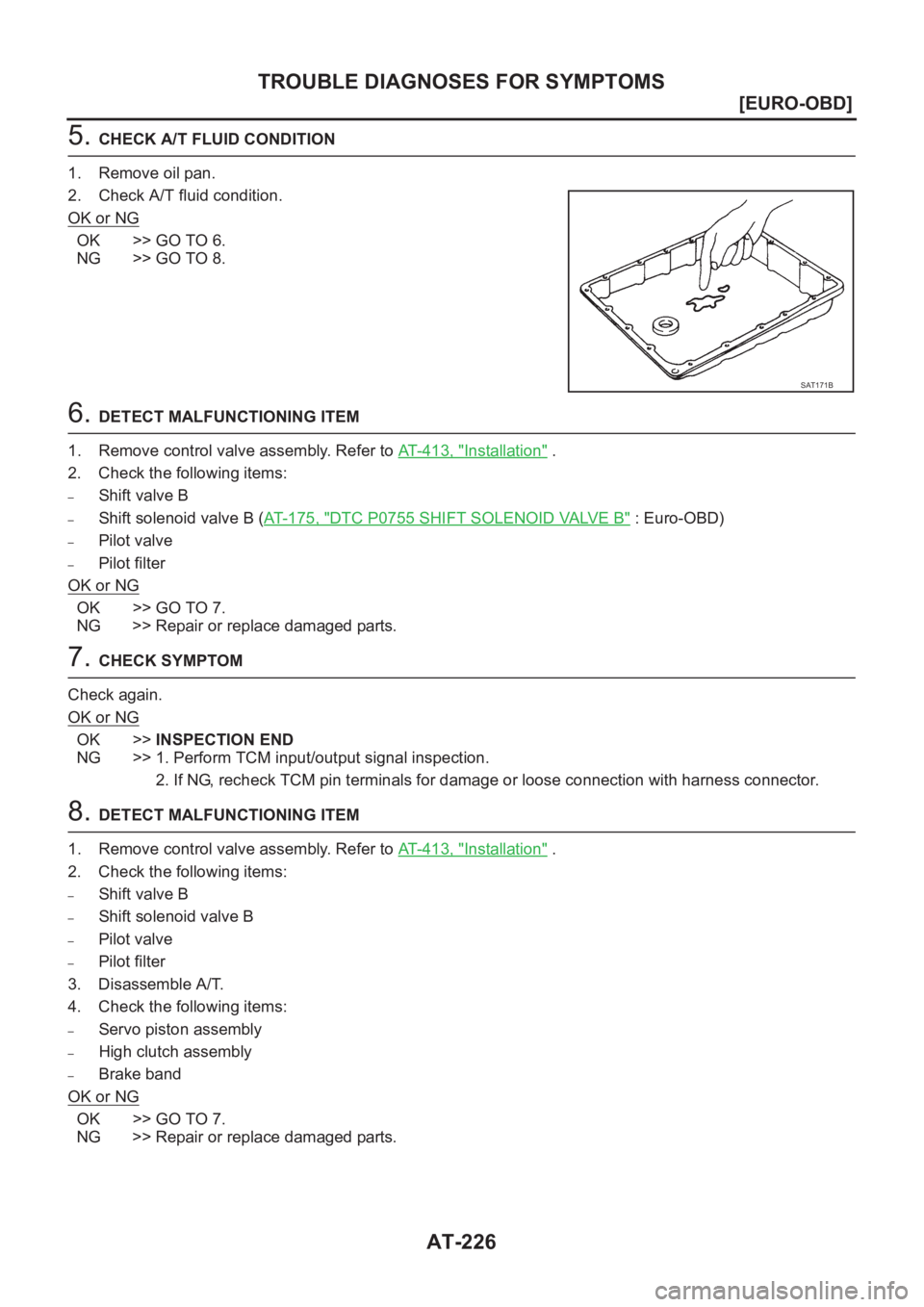

AT-226
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve B
–Shift solenoid valve B (AT-175, "DTC P0755 SHIFT SOLENOID VALVE B" : Euro-OBD)
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
8. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve B
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–High clutch assembly
–Brake band
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SAT171B

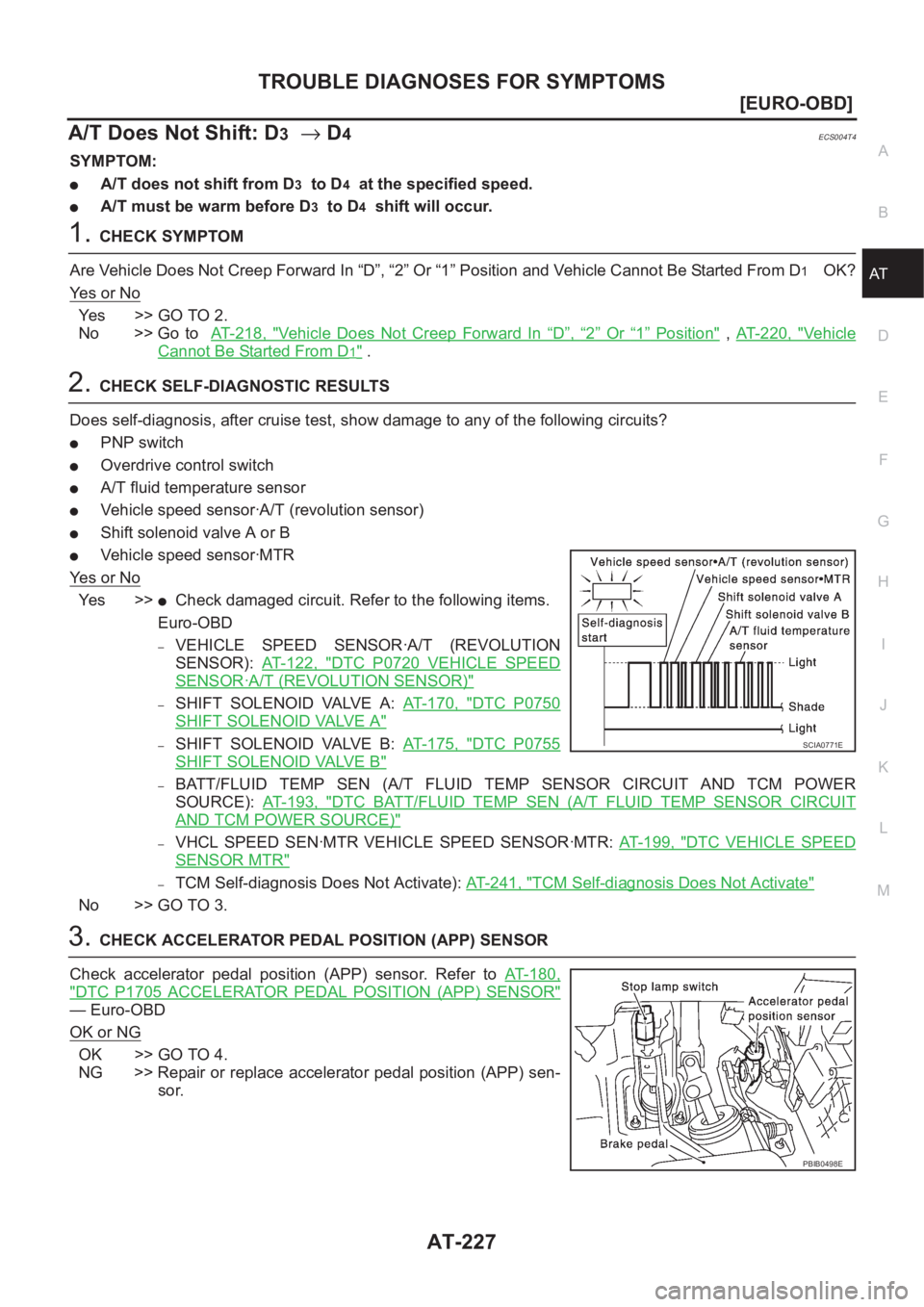

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-227
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: D3→ D4ECS004T4
SYMPTOM:
●A/T does not shift from D3 to D4 at the specified speed.
●A/T must be warm before D3 to D4 shift will occur.
1.CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Go to AT- 2 1 8 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 0 , "Ve h i c l e
Cannot Be Started From D1" .
2.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
●PNP switch
●Overdrive control switch
●A/T fluid temperature sensor
●Vehicle speed sensor·A/T (revolution sensor)
●Shift solenoid valve A or B
●Vehicle speed sensor·MTR
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR): AT- 1 2 2 , "
DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A: AT- 1 7 0 , "DTC P0750
SHIFT SOLENOID VALVE A"
–SHIFT SOLENOID VALVE B: AT- 1 7 5 , "DTC P0755
SHIFT SOLENOID VALVE B"
–BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE): AT-193, "
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT
AND TCM POWER SOURCE)"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR: AT- 1 9 9 , "DTC VEHICLE SPEED
SENSOR MTR"
–TCM Self-diagnosis Does Not Activate): AT-241, "TCM Self-diagnosis Does Not Activate"
No >> GO TO 3.
3.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SCIA0771E
PBIB0498E

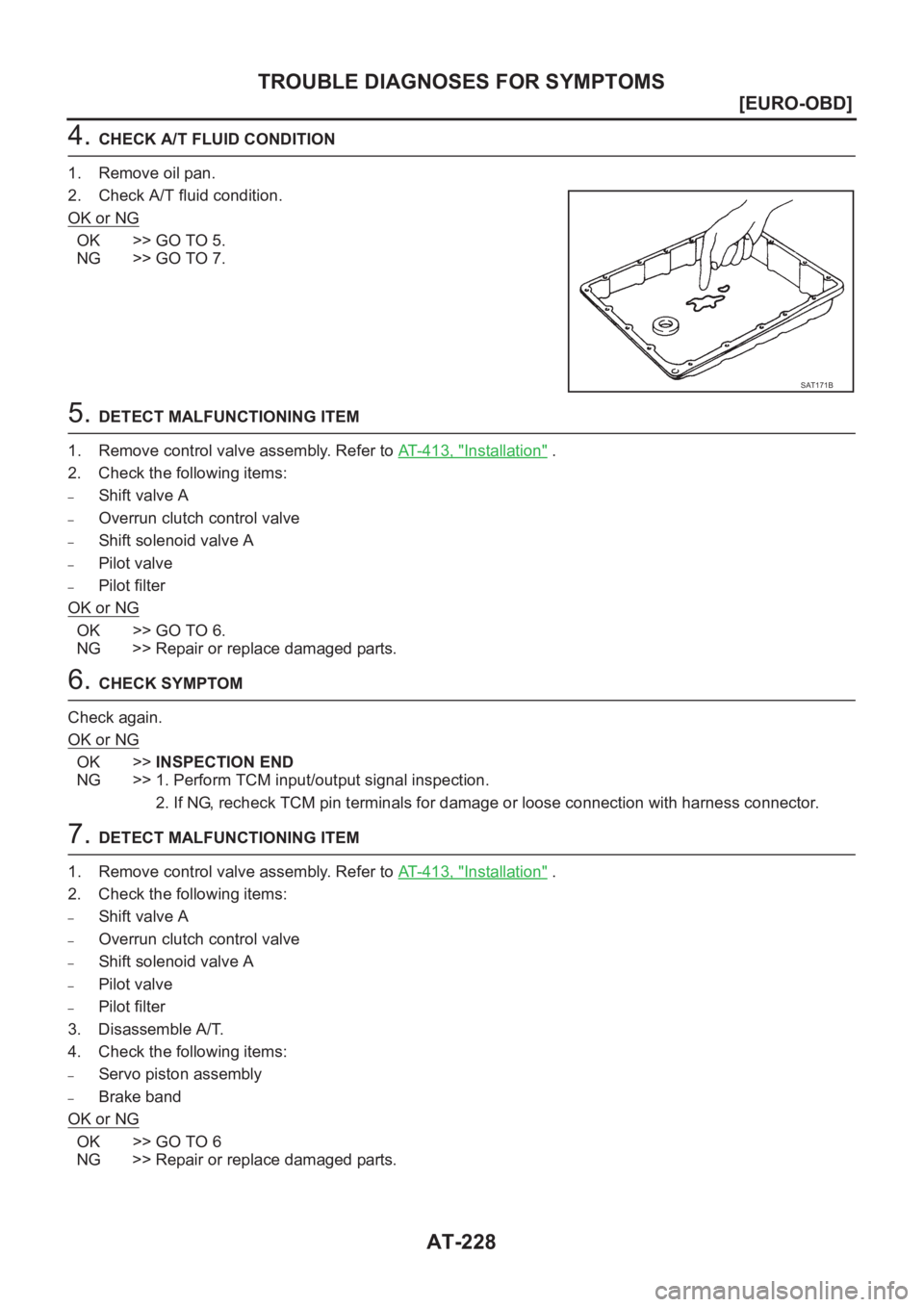

AT-228
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5.
NG >> GO TO 7.
5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
7. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
OK or NG
OK >> GO TO 6
NG >> Repair or replace damaged parts.
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-229
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

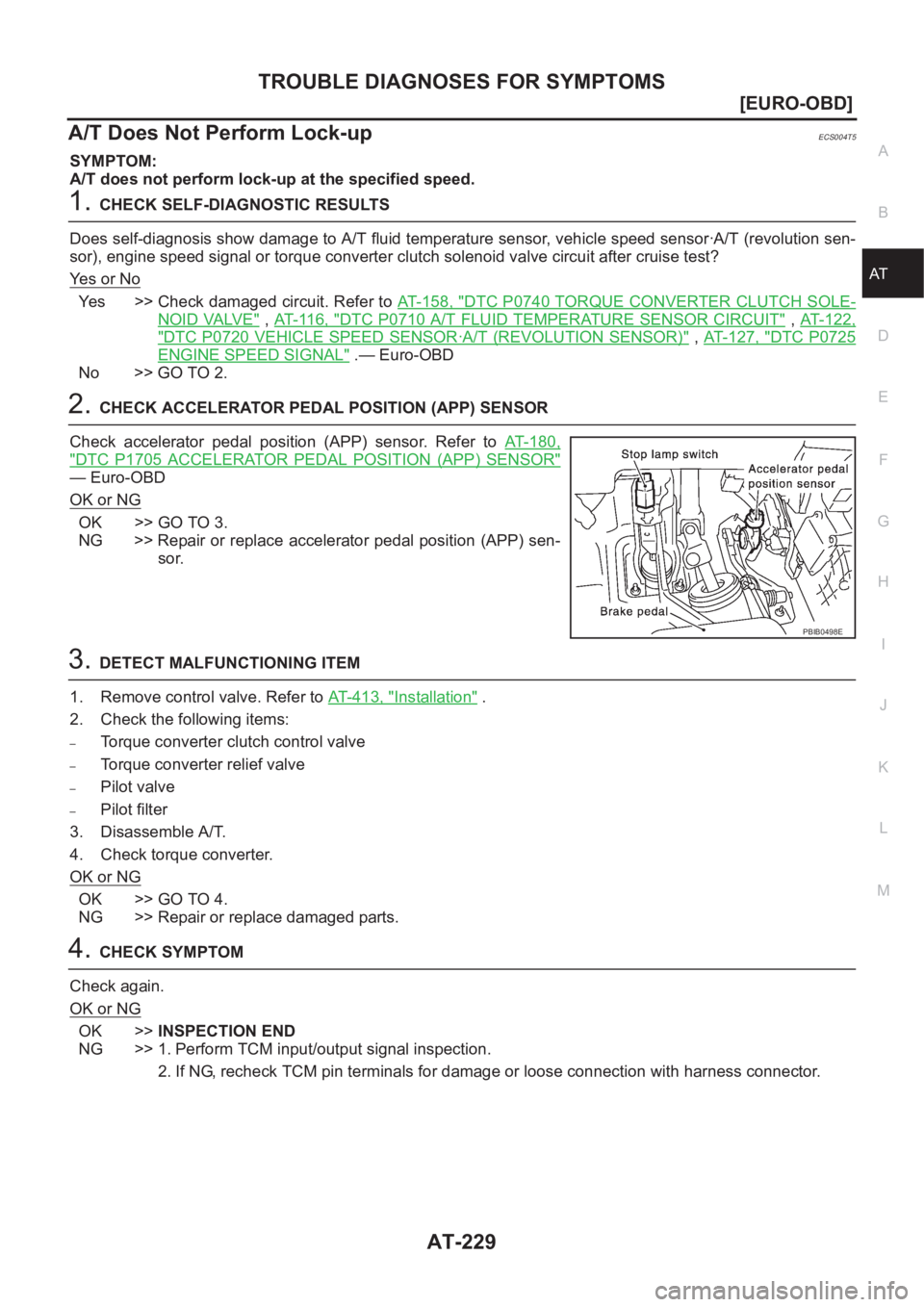

A/T Does Not Perform Lock-upECS004T5
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, vehicle speed sensor·A/T (revolution sen-
sor), engine speed signal or torque converter clutch solenoid valve circuit after cruise test?
Ye s o r N o
Yes >> Check damaged circuit. Refer to AT- 1 5 8 , "DTC P0740 TORQUE CONVERTER CLUTCH SOLE-
NOID VALVE" , AT- 11 6 , "DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT" , AT- 1 2 2 ,
"DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" , AT- 1 2 7 , "DTC P0725
ENGINE SPEED SIGNAL" .— Euro-OBD
No >> GO TO 2.
2.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT-413, "
Installation" .
2. Check the following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
PBIB0498E

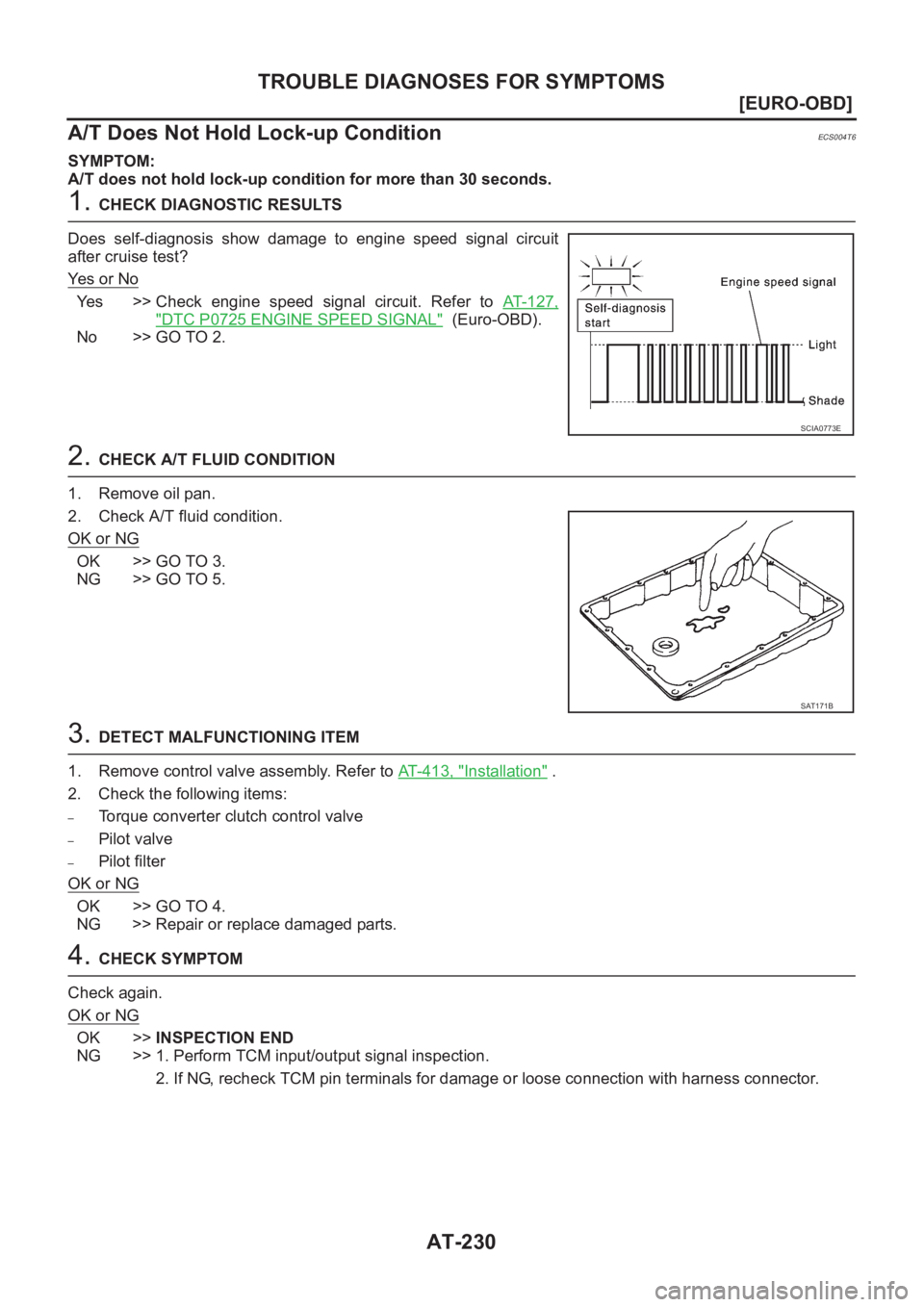

AT-230
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Hold Lock-up Condition
ECS004T6
SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
1. CHECK DIAGNOSTIC RESULTS
Does self-diagnosis show damage to engine speed signal circuit
after cruise test?
Ye s o r N o
Yes >> Check engine speed signal circuit. Refer to AT- 1 2 7 ,
"DTC P0725 ENGINE SPEED SIGNAL" (Euro-OBD).
No >> GO TO 2.
2. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0773E
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-231
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

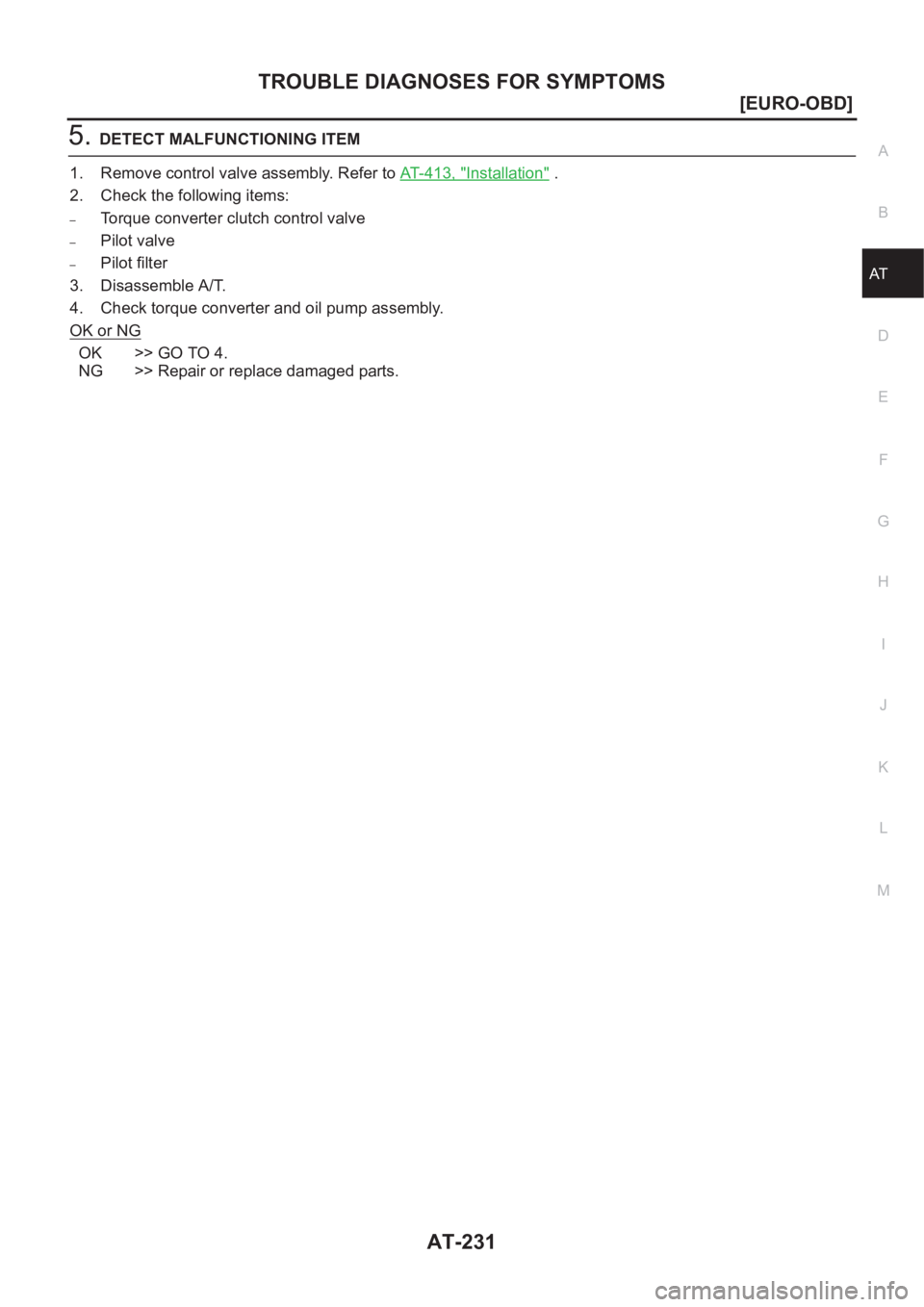

5.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter and oil pump assembly.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.

AT-232
[EURO-OBD]

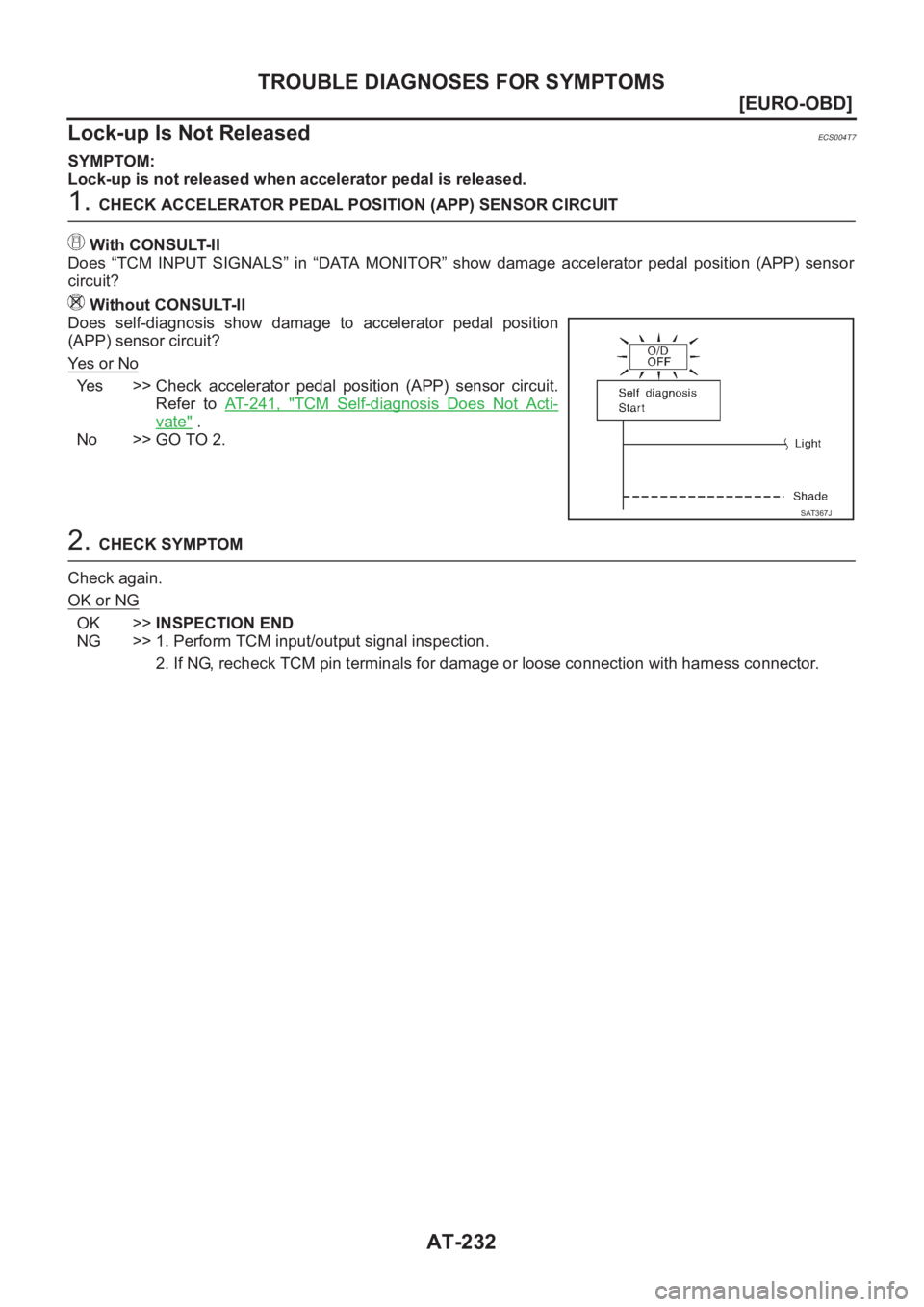

TROUBLE DIAGNOSES FOR SYMPTOMS
Lock-up Is Not Released
ECS004T7
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage accelerator pedal position (APP) sensor
circuit?
Without CONSULT-II
Does self-diagnosis show damage to accelerator pedal position
(APP) sensor circuit?
Ye s o r N o
Yes >> Check accelerator pedal position (APP) sensor circuit.
Refer to AT- 2 4 1 , "
TCM Self-diagnosis Does Not Acti-
vate" .
No >> GO TO 2.
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT367J
