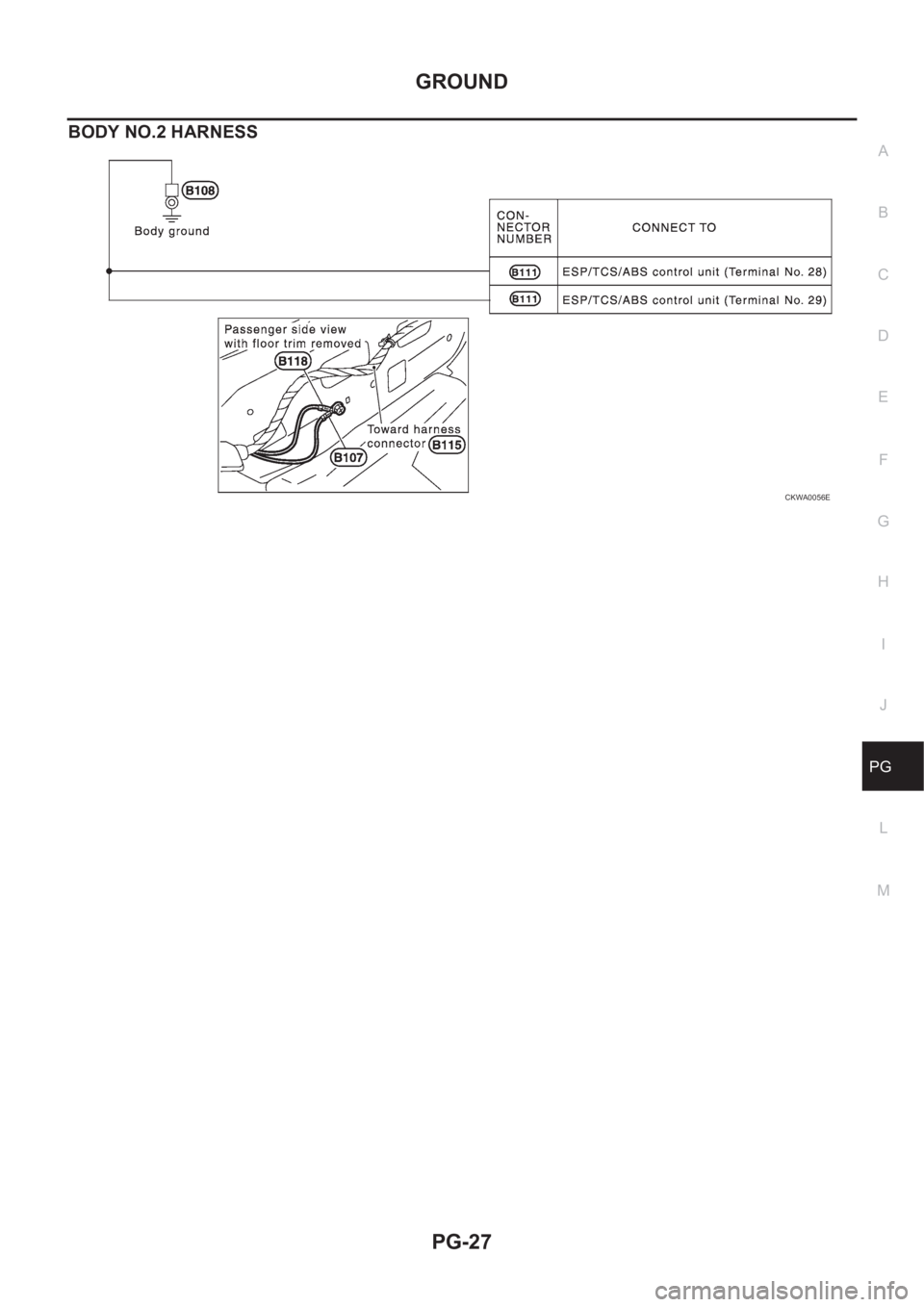

BODY NO.2 HARNESS
CKWA0056E

PG-28
GROUND

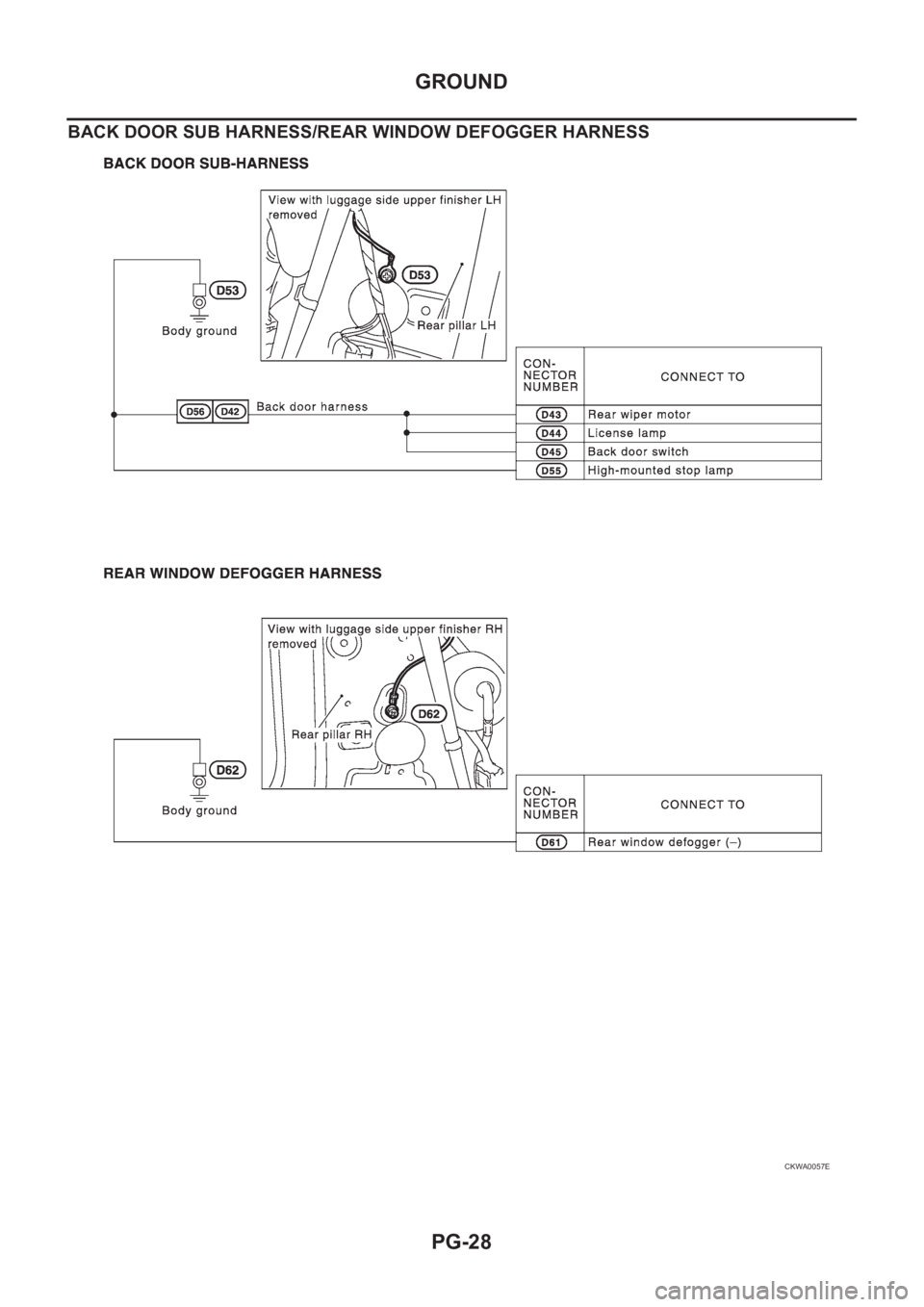

BACK DOOR SUB HARNESS/REAR WINDOW DEFOGGER HARNESS
CKWA0057E

HARNESS
PG-29
C
D
E
F
G
H
I
J
L
MA
B
PG
HARNESS PFP:00011
Harness Layout EKS0032I

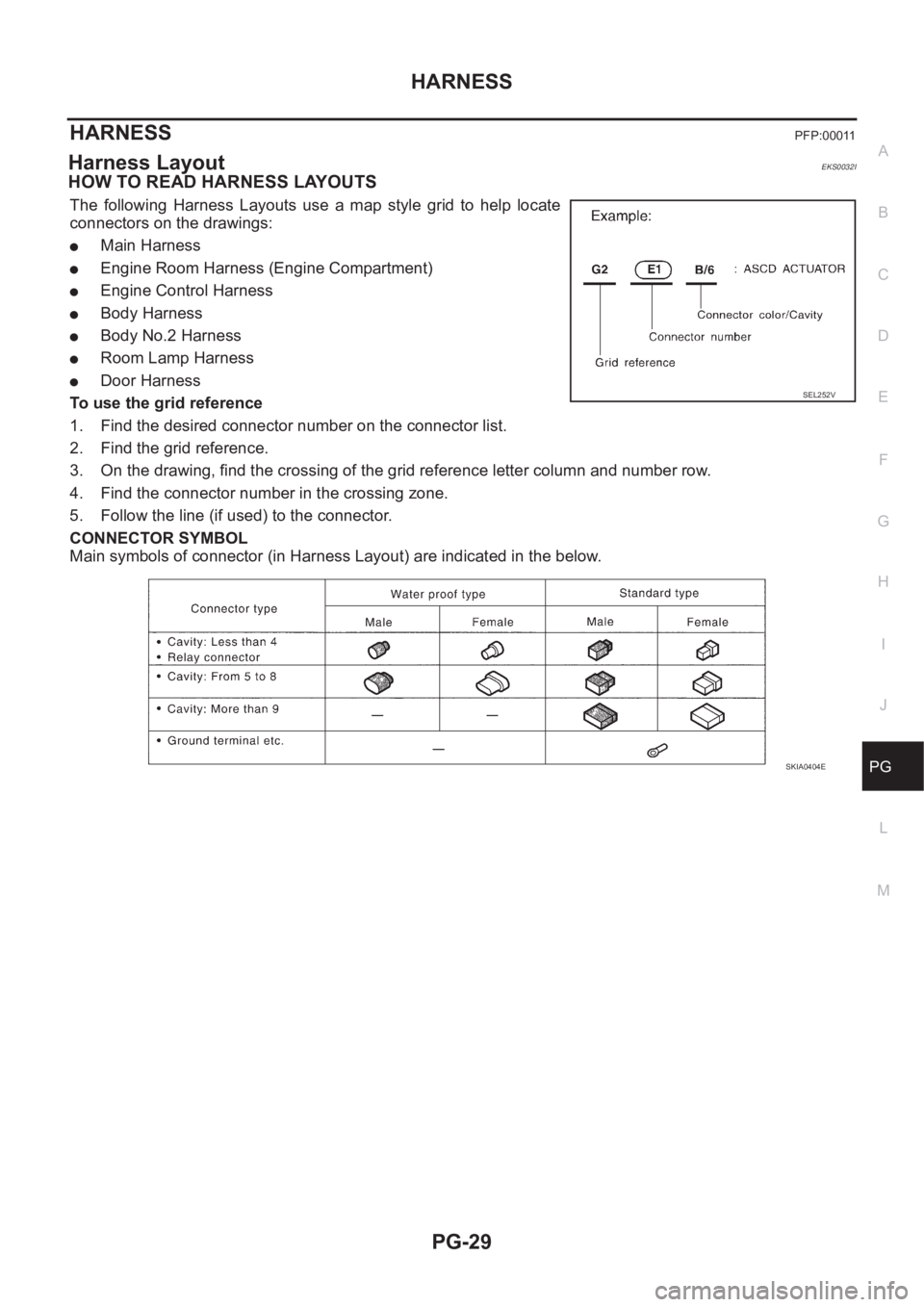

HOW TO READ HARNESS LAYOUTS
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
●Main Harness
●Engine Room Harness (Engine Compartment)
●Engine Control Harness
●Body Harness
●Body No.2 Harness
●Room Lamp Harness
●Door Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.SEL252V
SKIA0404E

PG-30
HARNESS

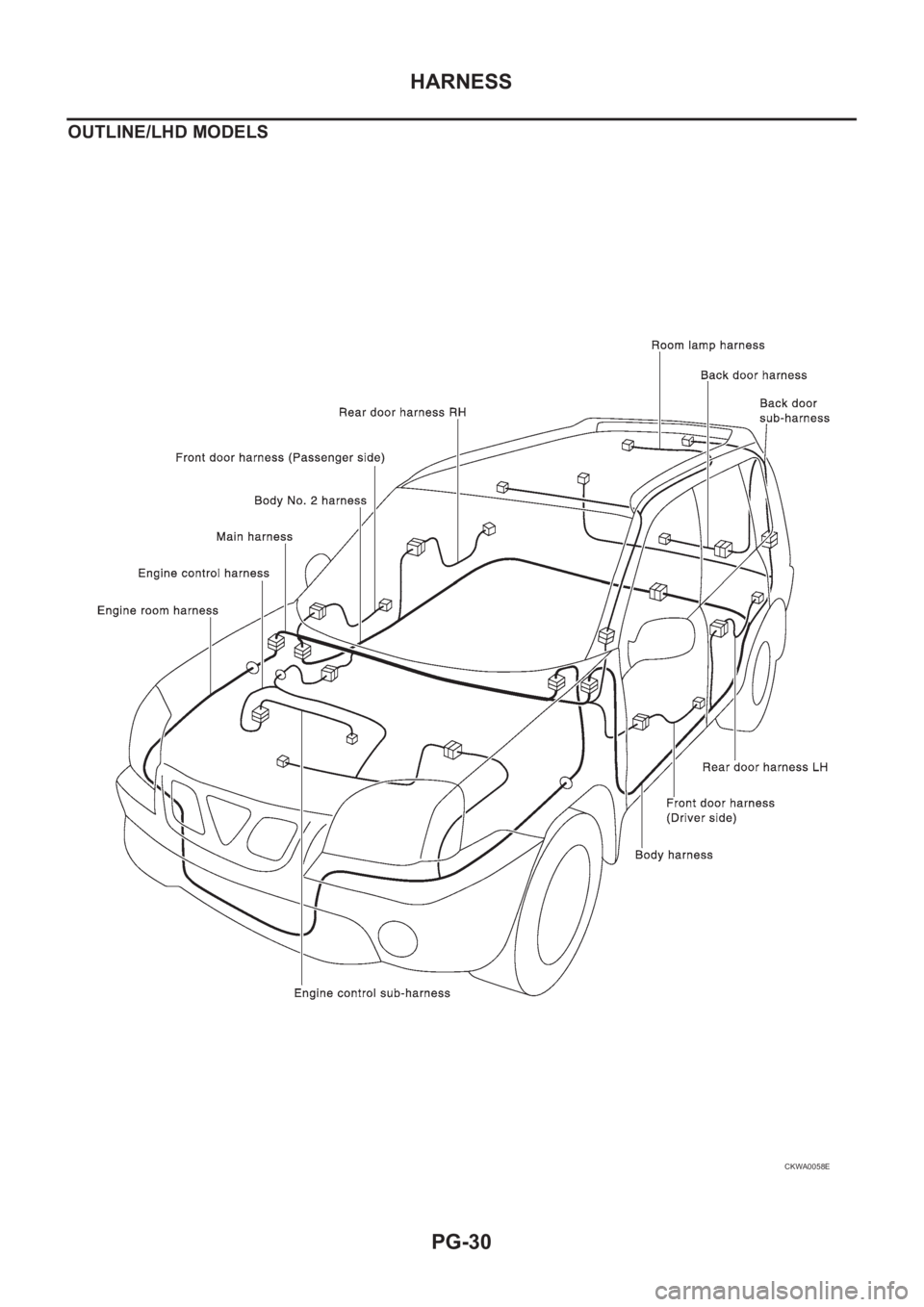

OUTLINE/LHD MODELS
CKWA0058E

HARNESS
PG-31
C
D
E
F
G
H
I
J
L
MA
B
PG

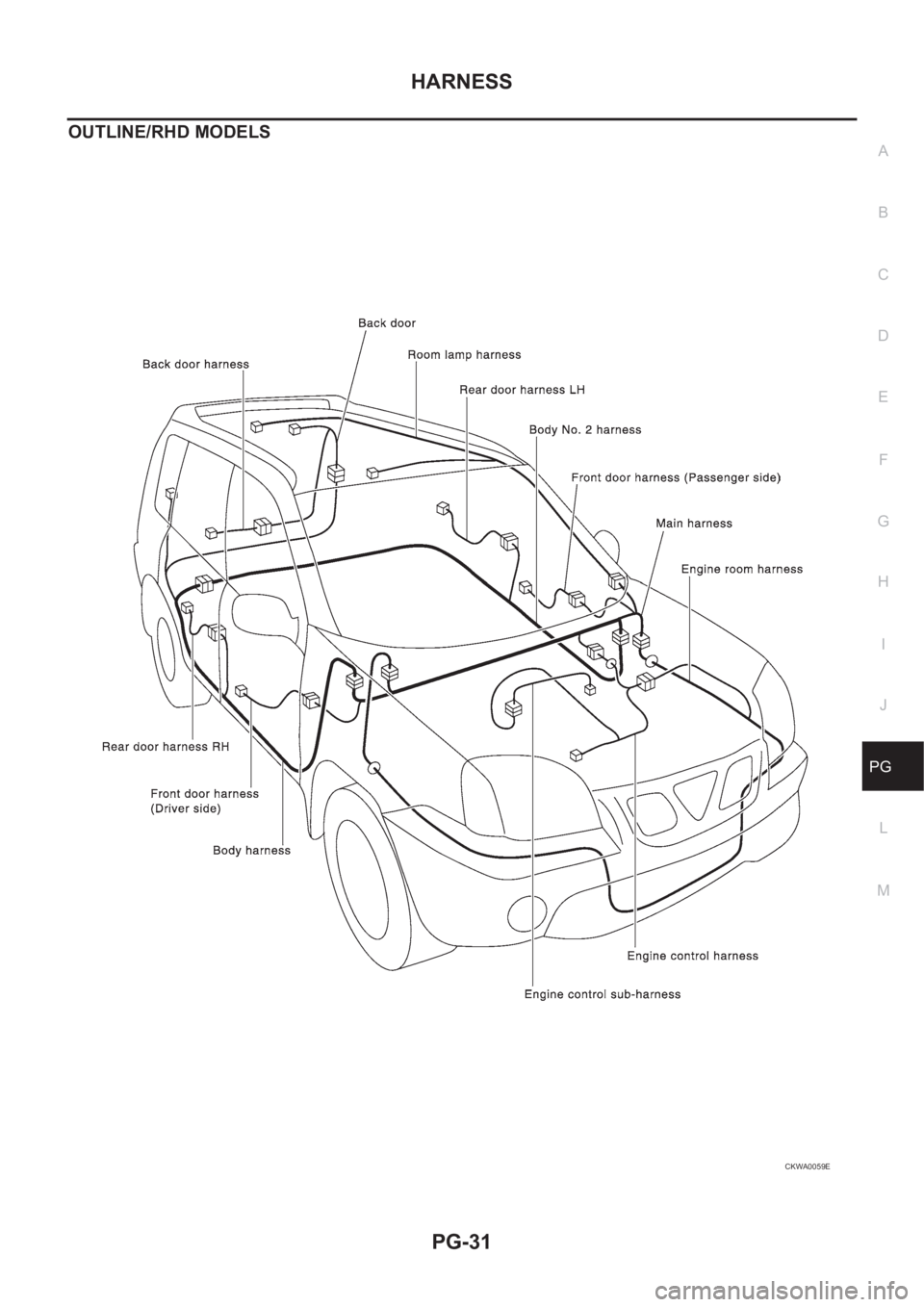

OUTLINE/RHD MODELS
CKWA0059E

PG-32
HARNESS

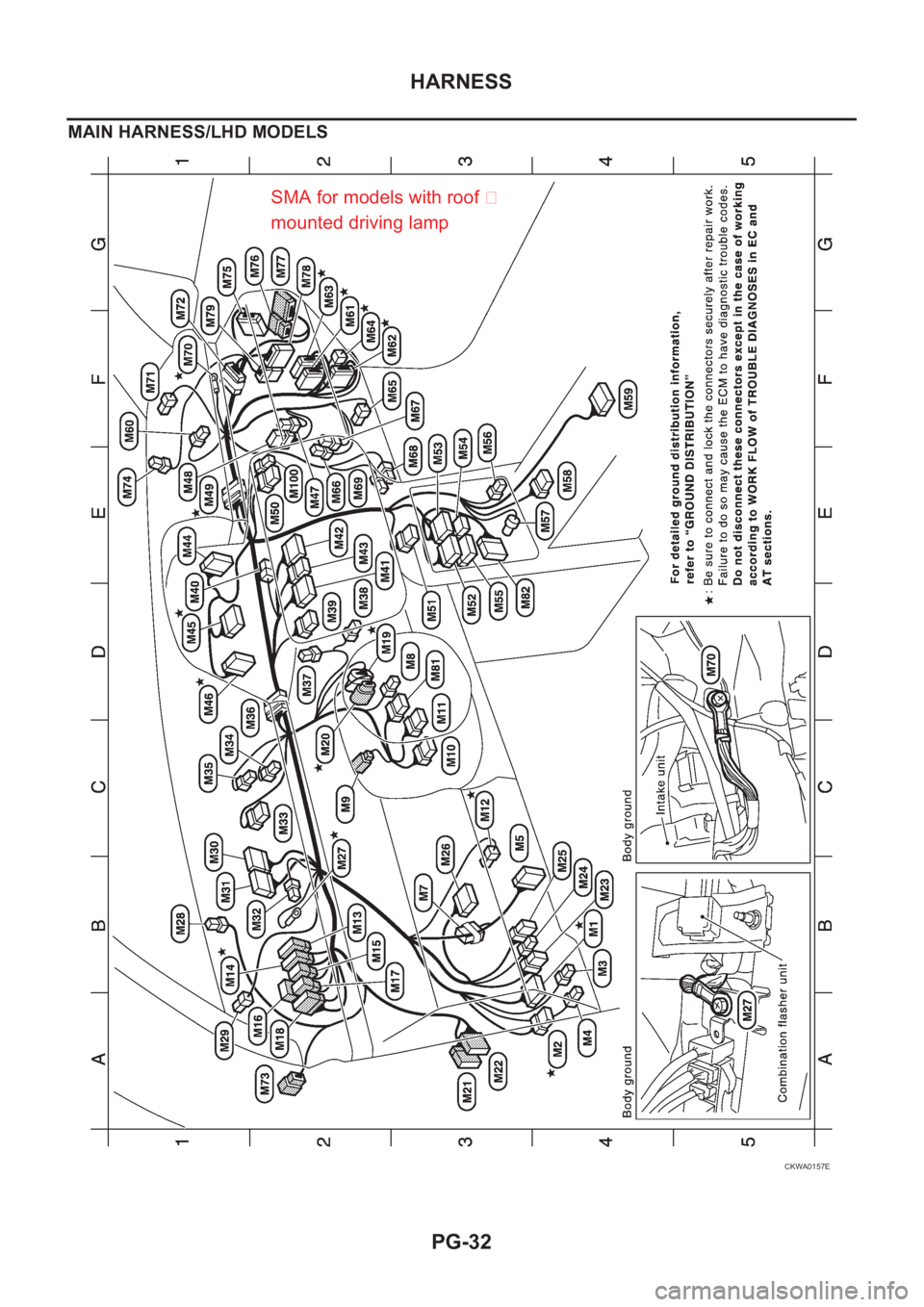

MAIN HARNESS/LHD MODELS
CKWA0157E
SMA for models with roof
mounted driving lamp

HARNESS
PG-33
C
D
E
F
G
H
I
J
L
MA
B
PG

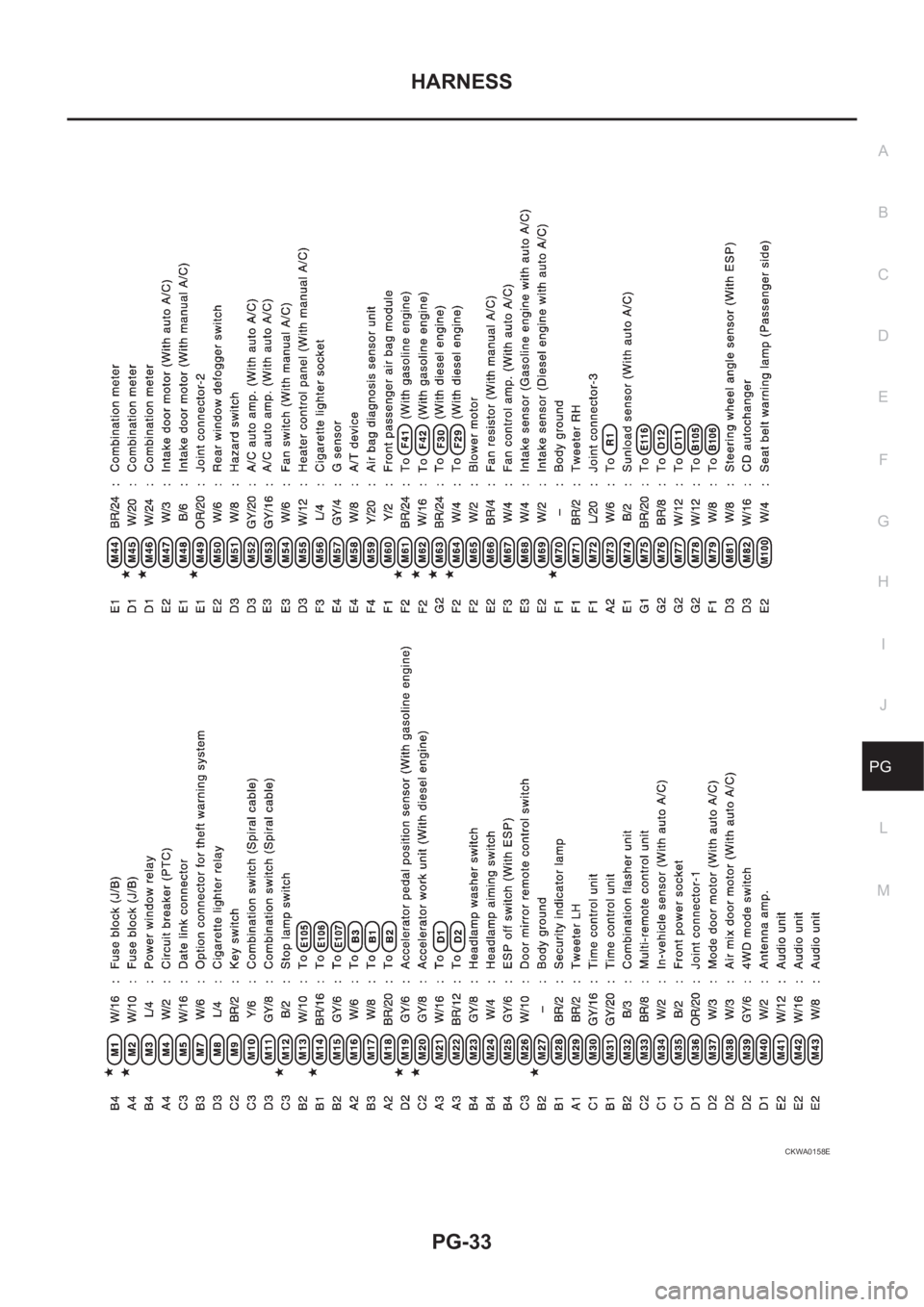

CKWA0158E

PG-34
HARNESS

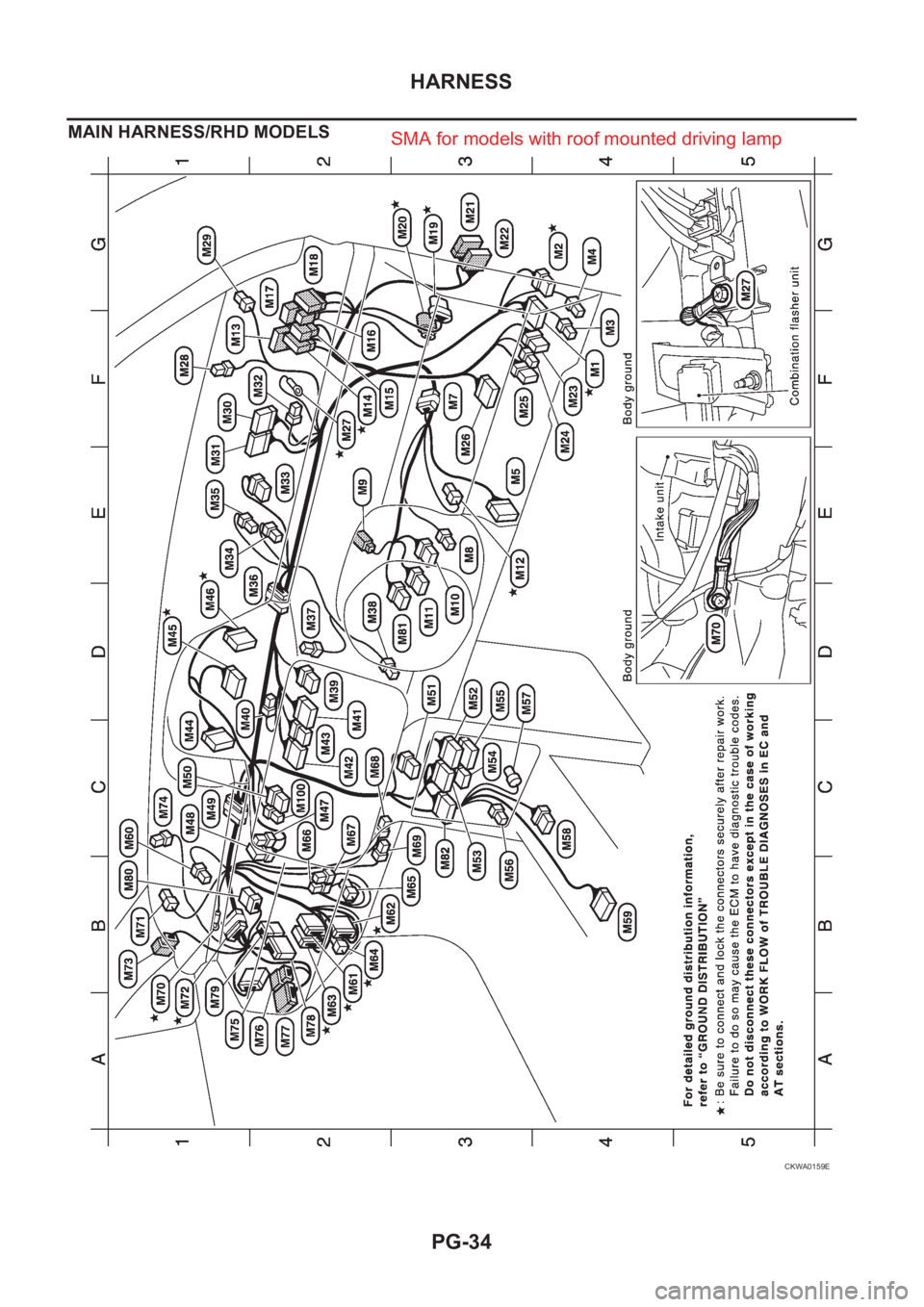

MAIN HARNESS/RHD MODELS
CKWA0159E
SMA for models with roof mounted driving lamp

HARNESS
PG-35
C
D
E
F
G
H
I
J
L
MA
B
PG

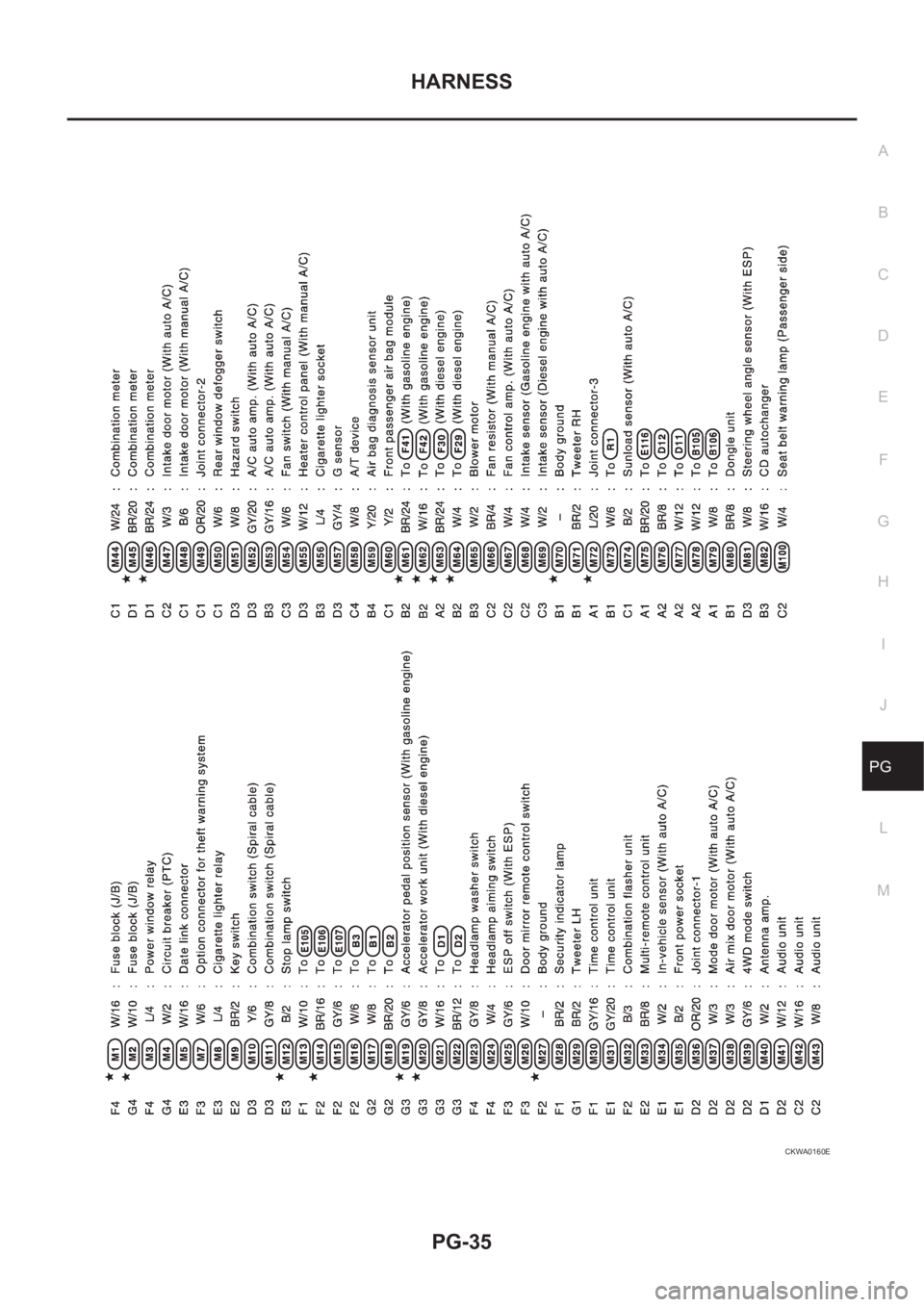

CKWA0160E

PG-36
HARNESS

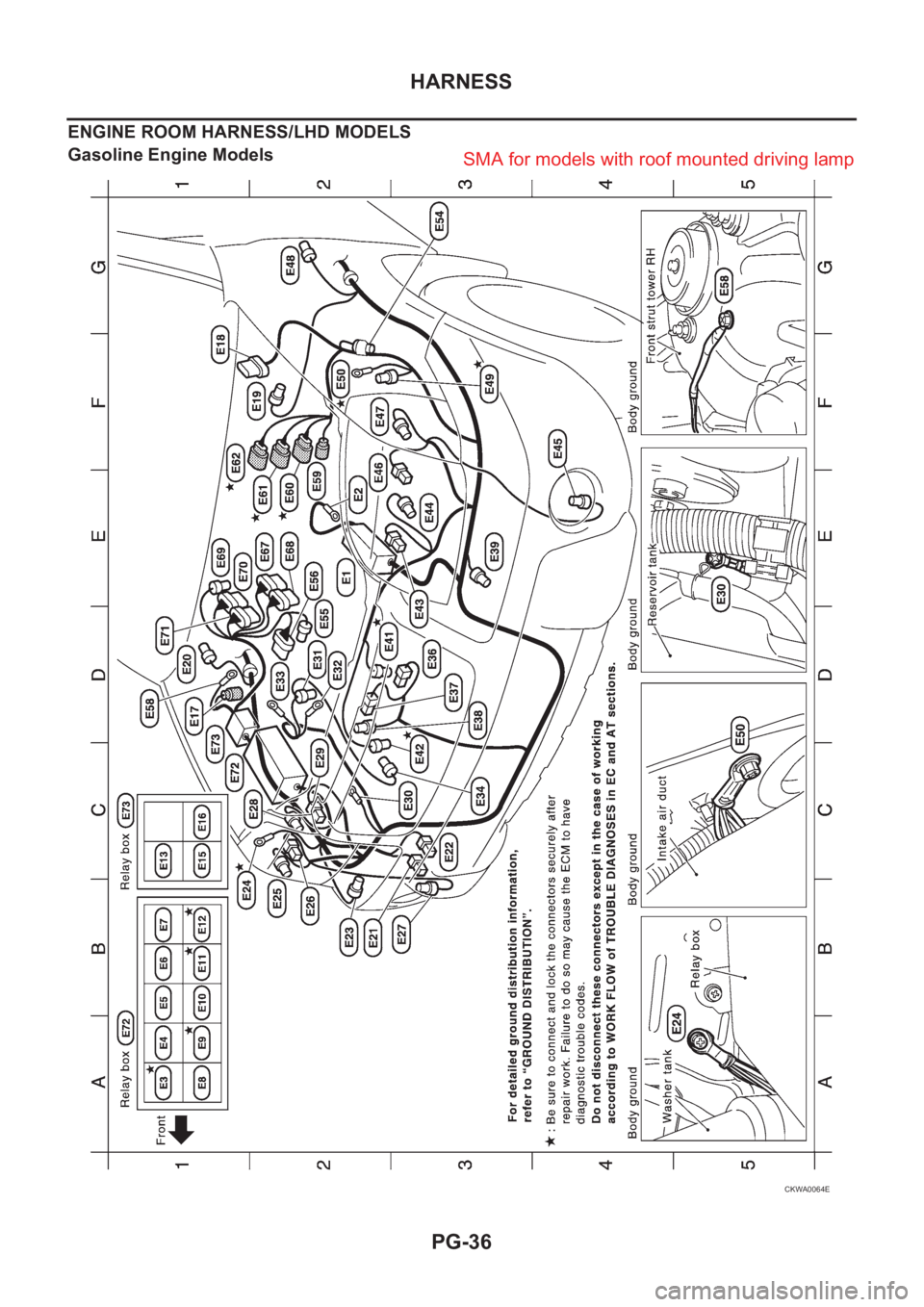

ENGINE ROOM HARNESS/LHD MODELS
Gasoline Engine Models
CKWA0064E
SMA for models with roof mounted driving lamp
