NISSAN X-TRAIL 2001  Service Repair Manual AUDIO
AV-3
C
D
E
F
G
H
I
J
L
MA
B
AV

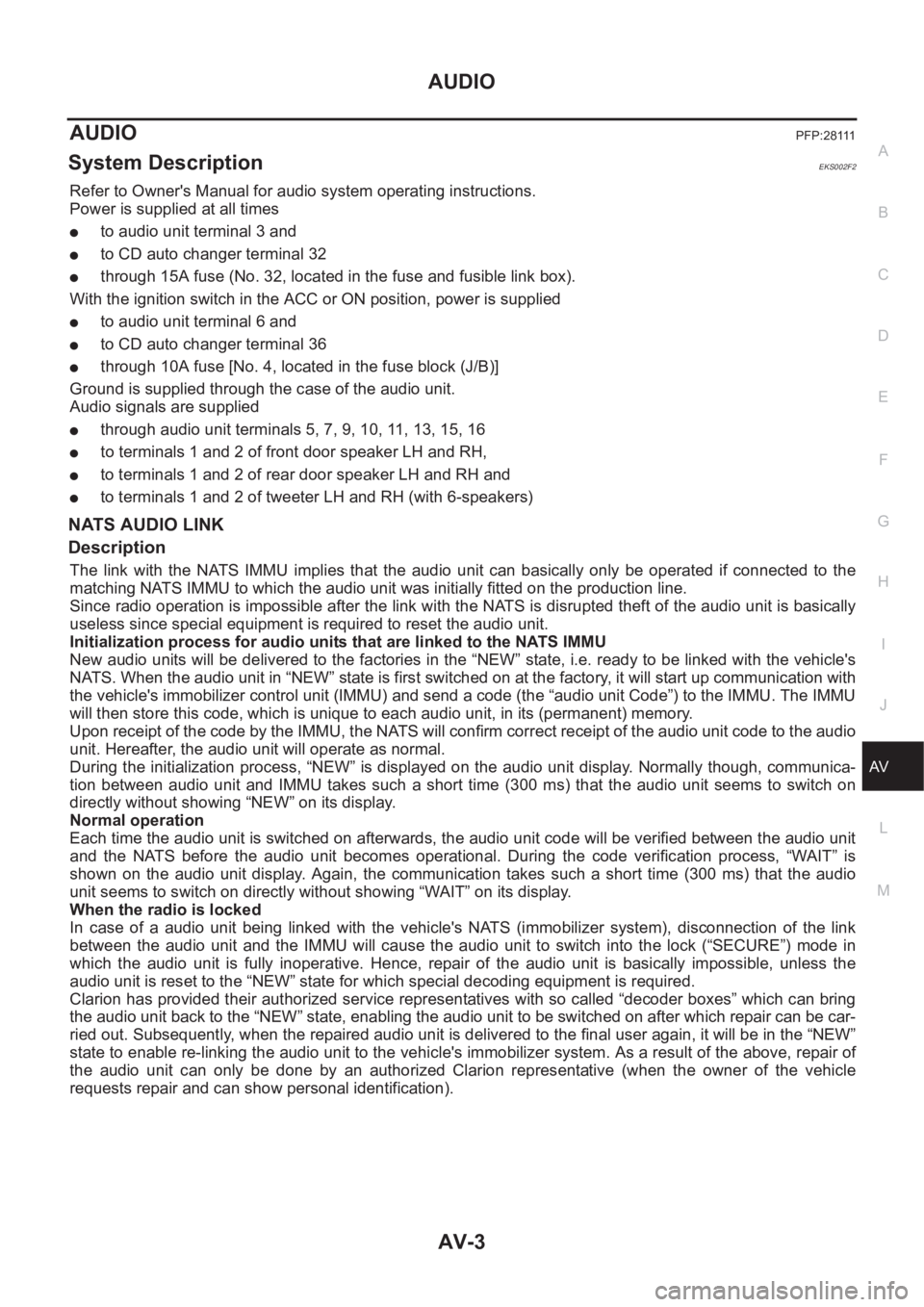

AUDIOPFP:28111
System DescriptionEKS002F2
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times
●to audio unit term

Page 3692 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AV-4
AUDIO

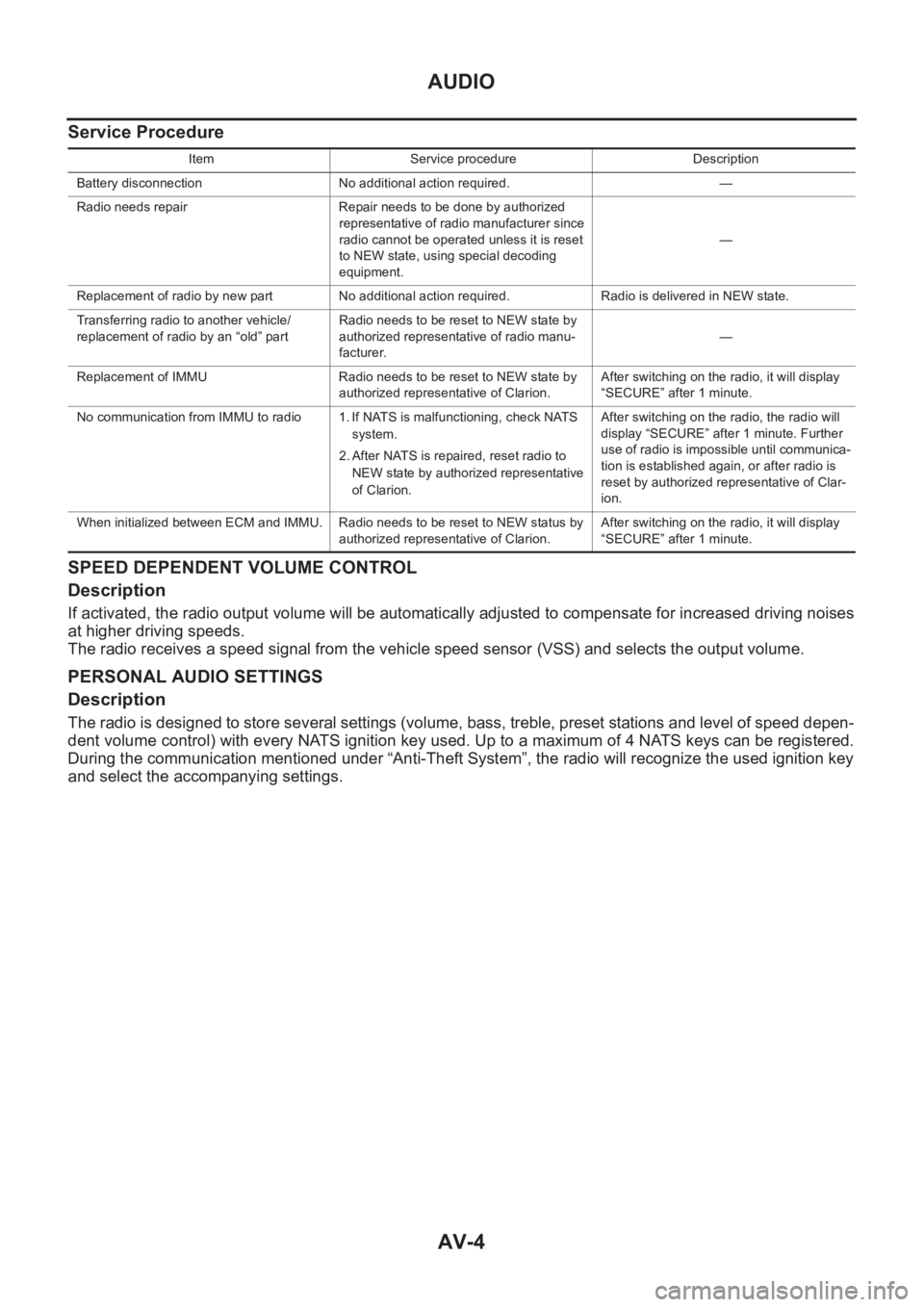

Service Procedure
SPEED DEPENDENT VOLUME CONTROL
Description
If activated, the radio output volume will be automatically adjusted to compensate for increased driving noises
at higher drivin

Page 3693 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AUDIO
AV-5
C
D
E
F
G
H
I
J
L
MA
B
AV

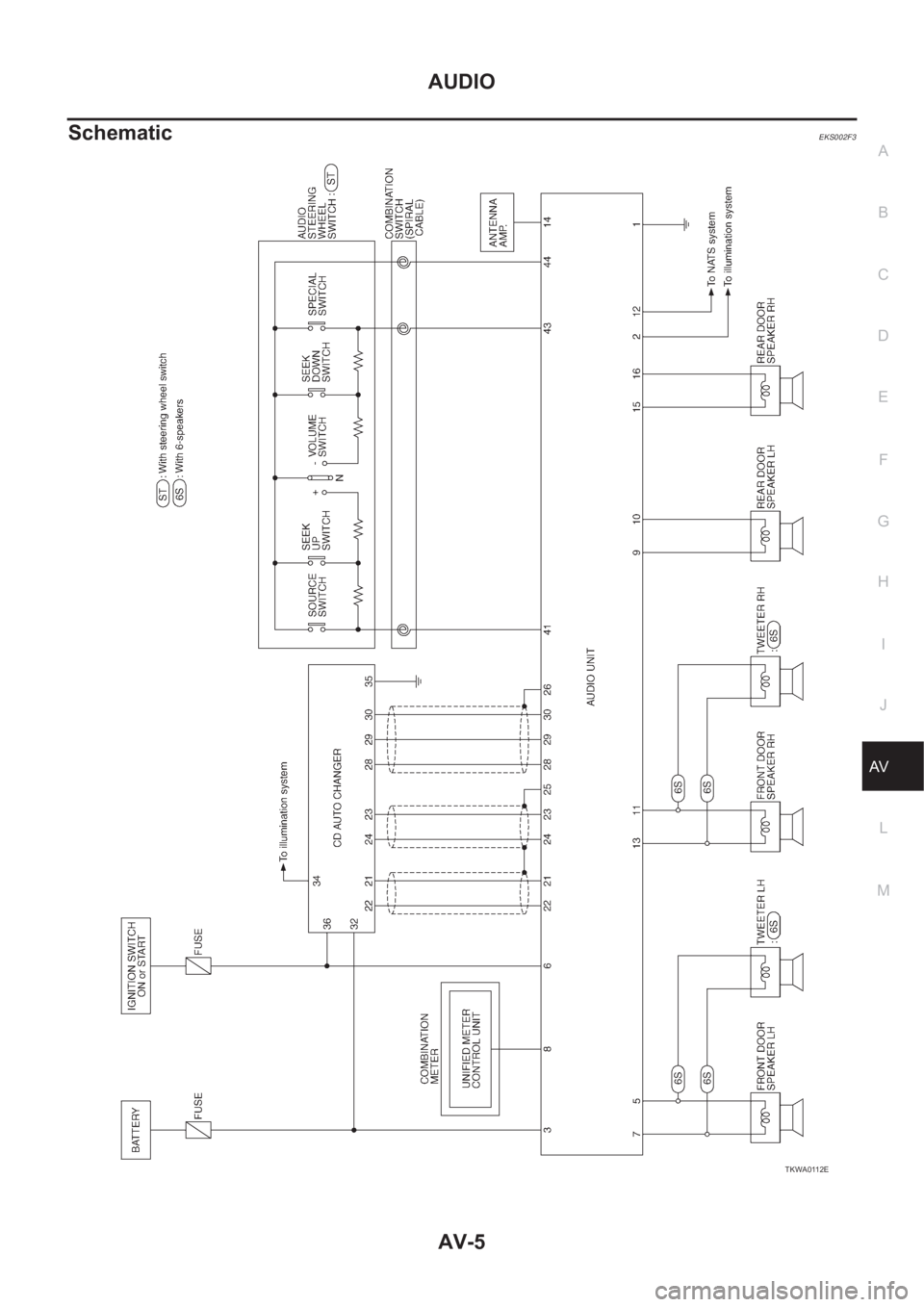

SchematicEKS002F3
TKWA0112E

Page 3694 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AV-6
AUDIO

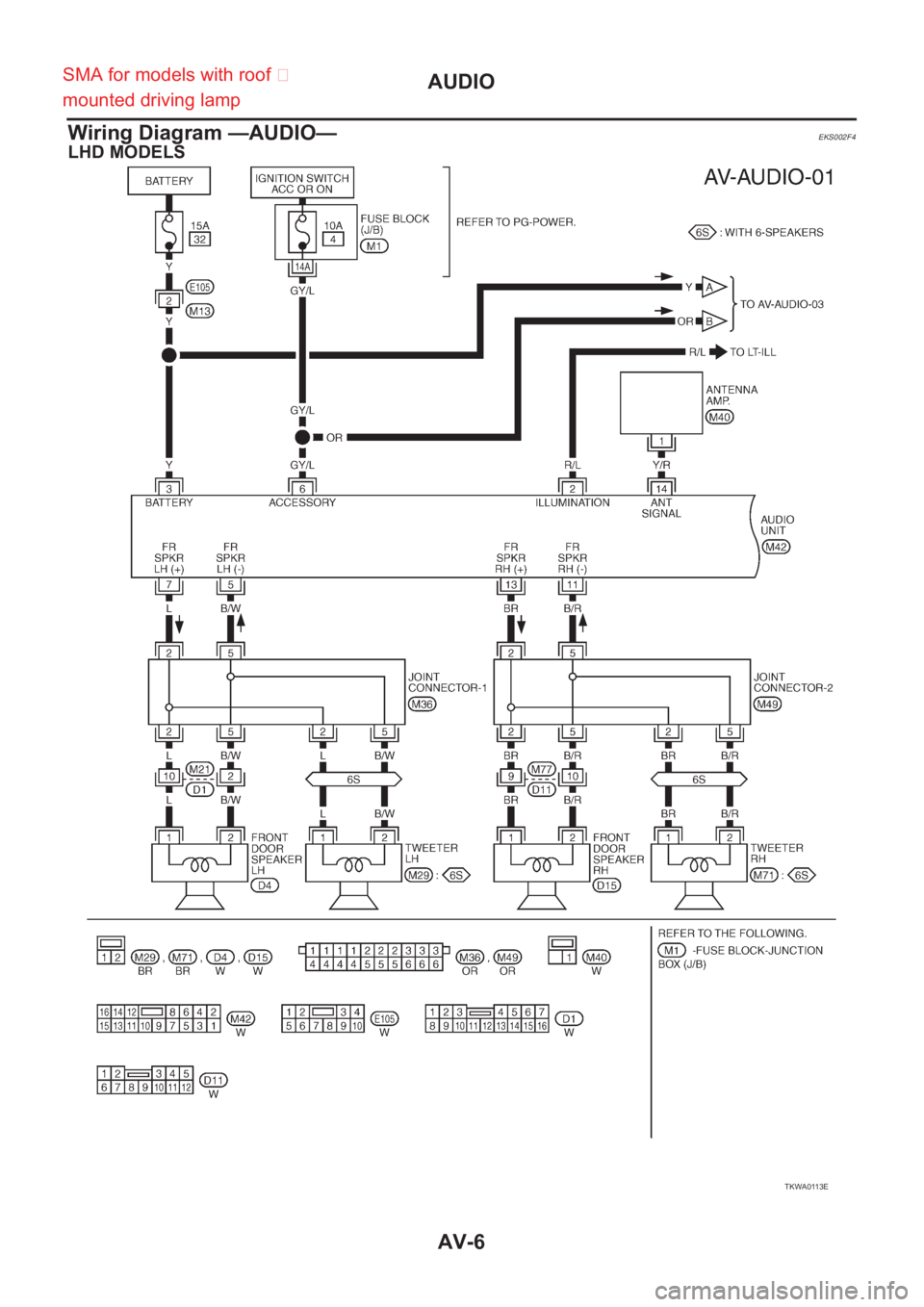

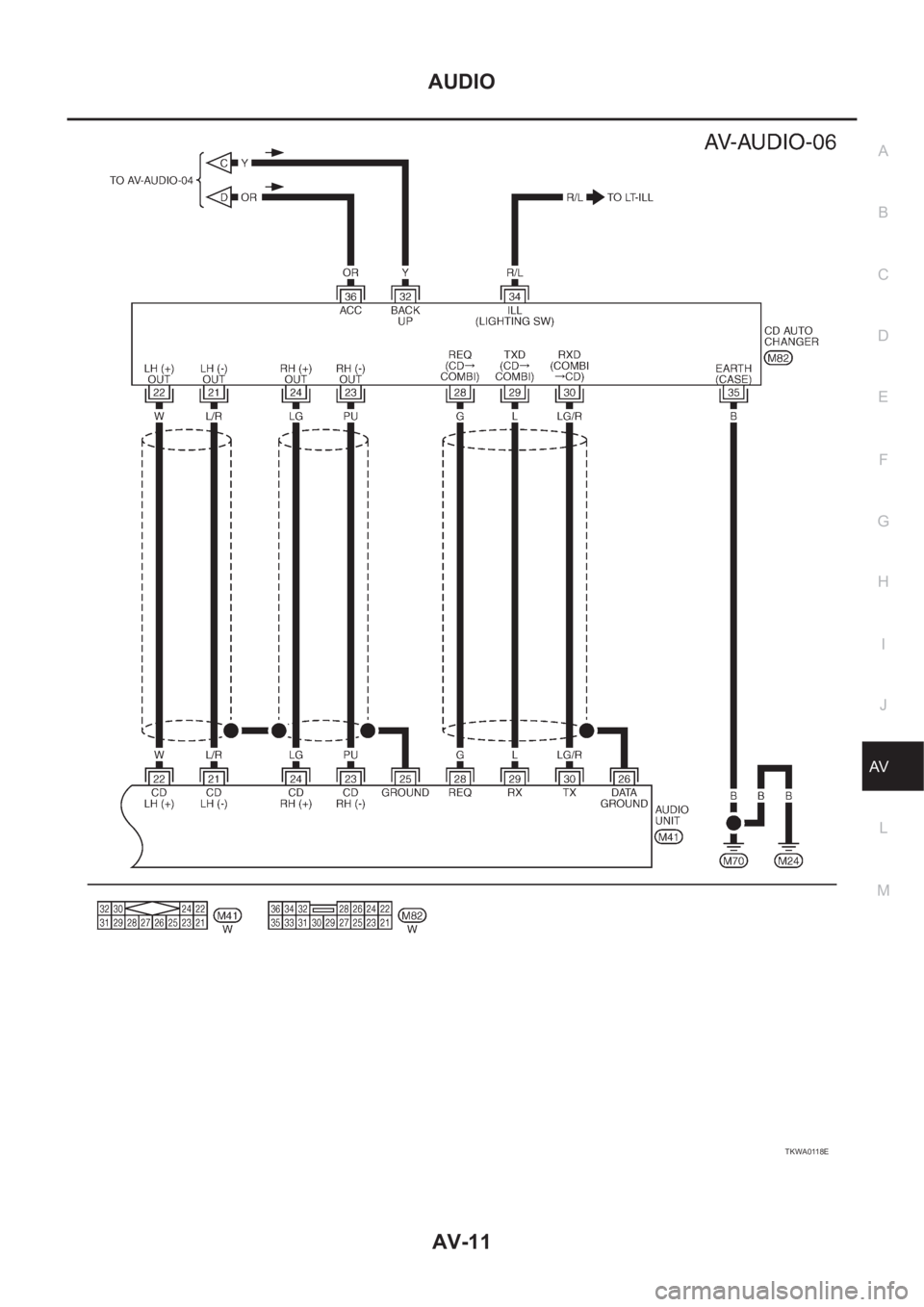

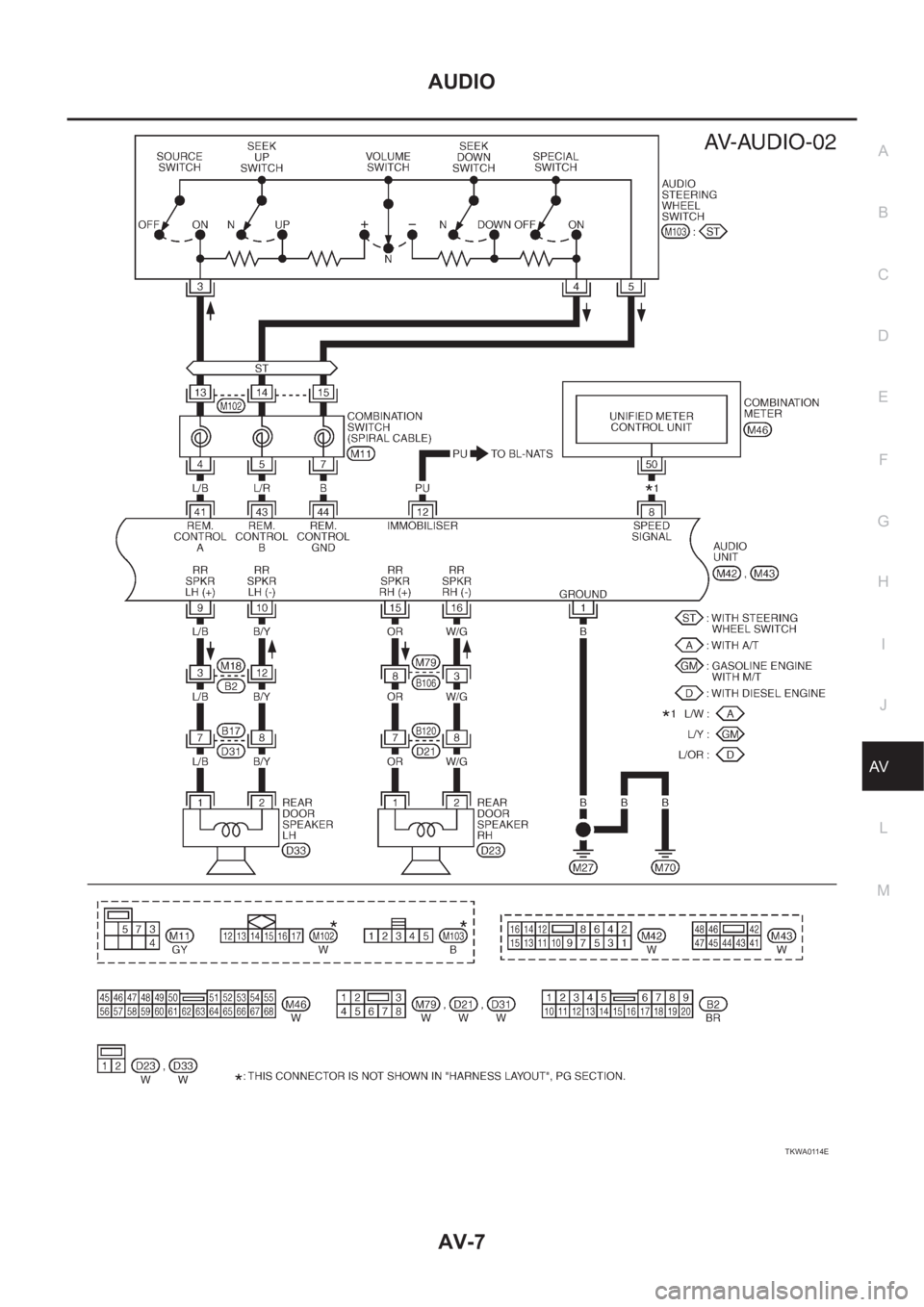

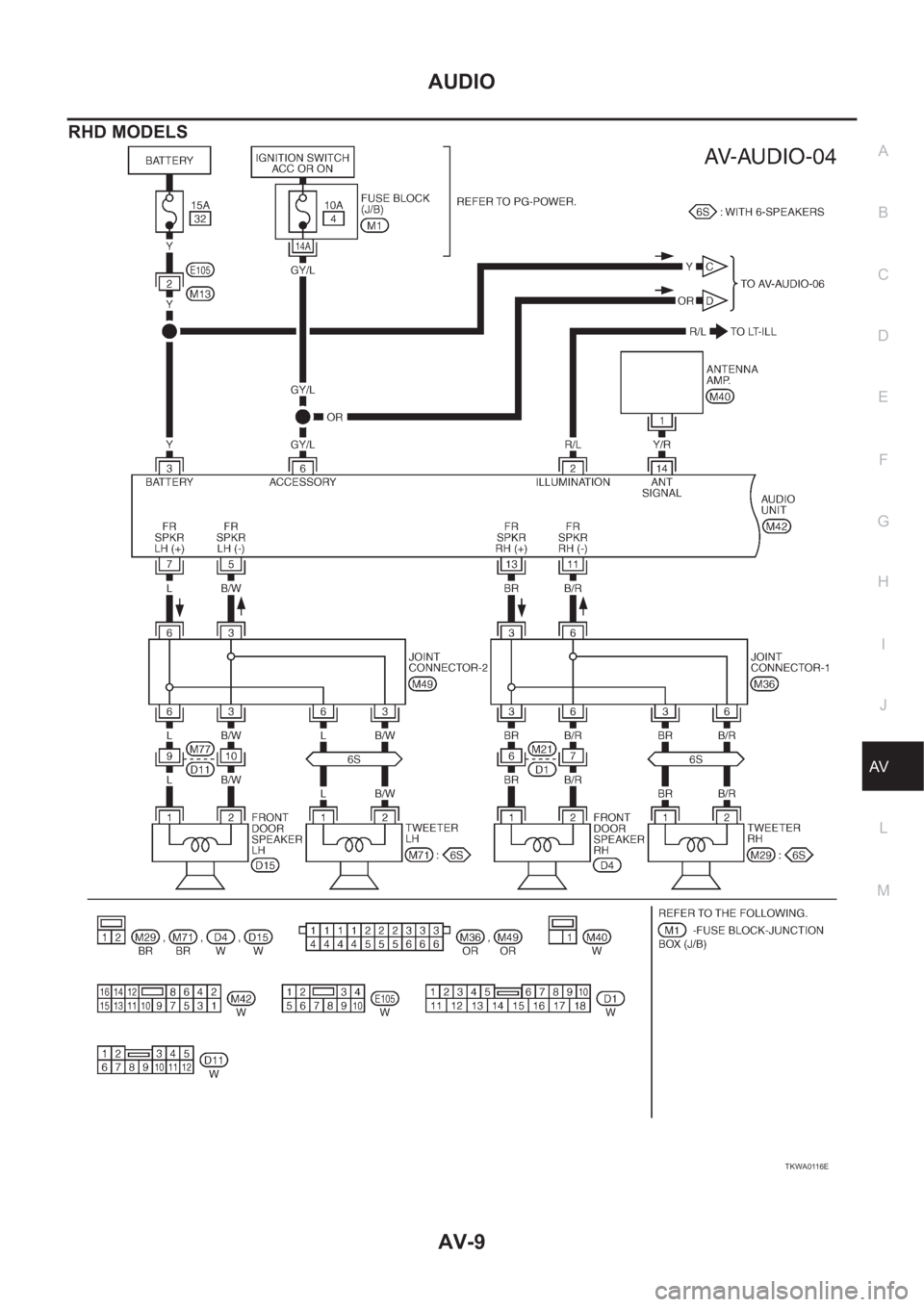

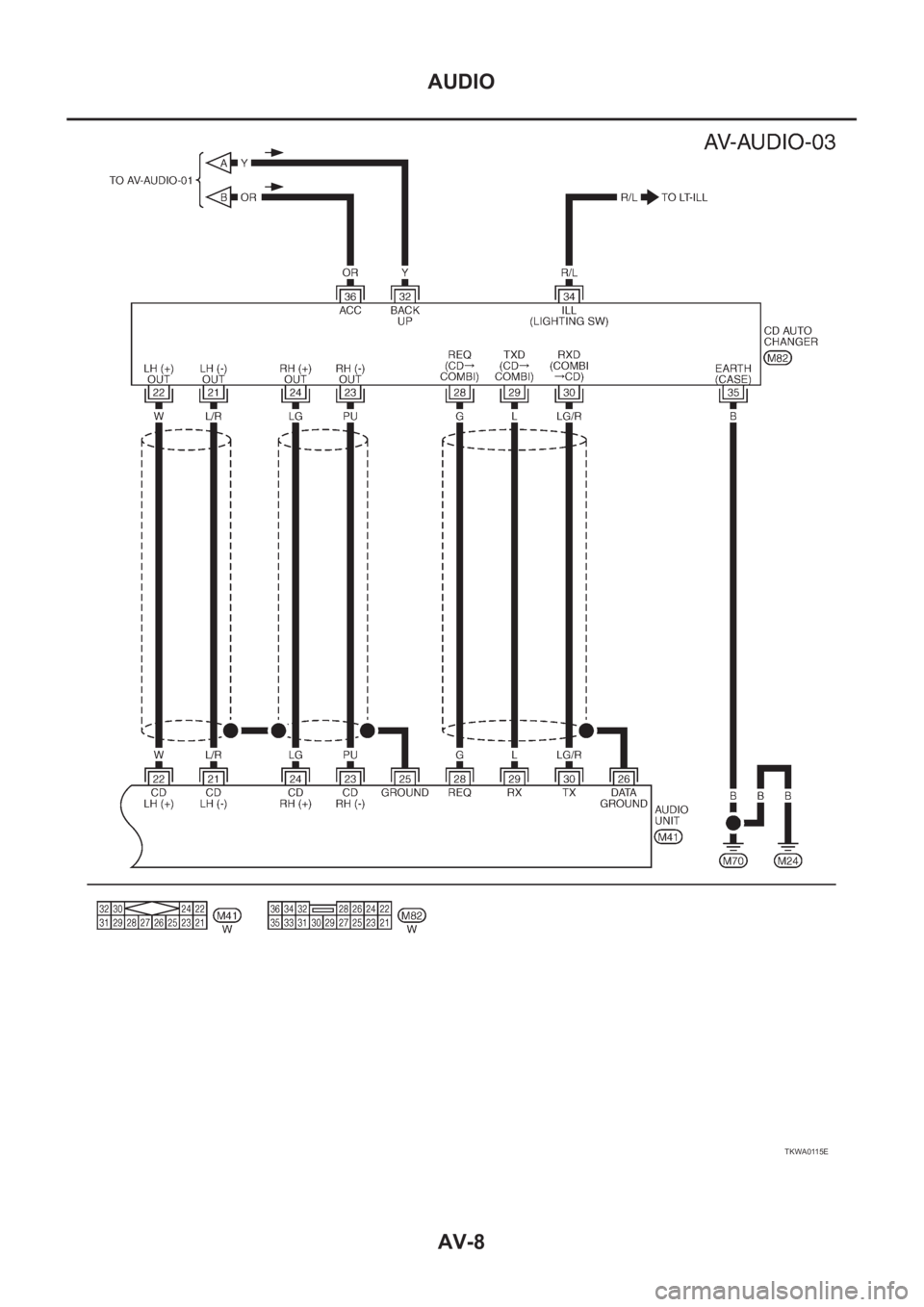

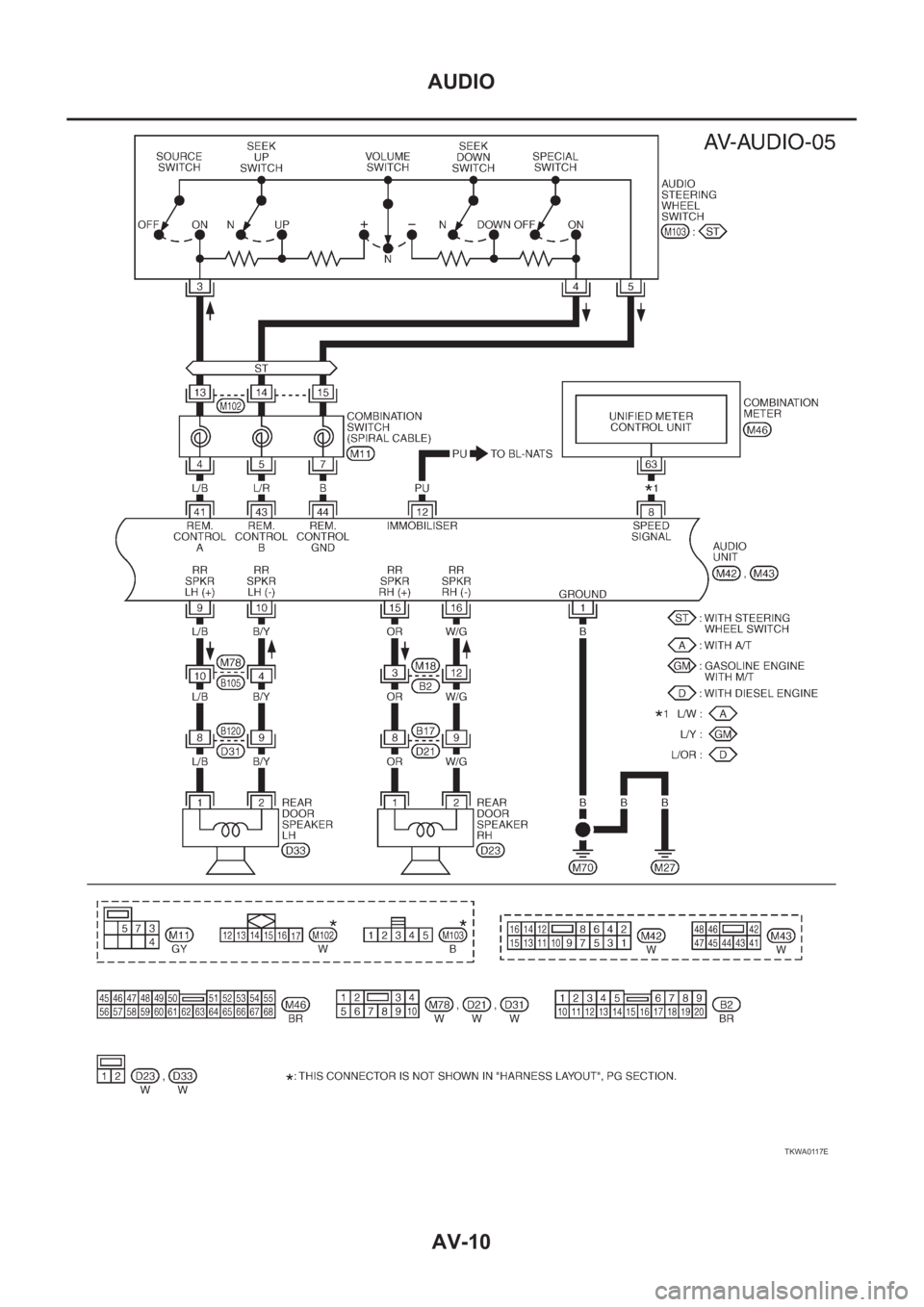

Wiring Diagram —AUDIO—
EKS002F4
LHD MODELS
TKWA0113E
SMA for models with roof
mounted driving lamp

Page 3695 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AUDIO
AV-7
C
D
E
F
G
H
I
J
L
MA
B
AV
TKWA0114E

Page 3696 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AV-8
AUDIO
TKWA0115E

Page 3697 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AUDIO
AV-9
C
D
E
F
G
H
I
J
L
MA
B
AV
RHD MODELS
TKWA0116E

Page 3698 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AV-10
AUDIO
TKWA0117E

Page 3699 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AUDIO
AV-11
C
D
E
F
G
H
I
J
L
MA
B
AV
TKWA0118E

Page 3700 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AV-12
AUDIO
Trouble Diagnoses
EKS002F5
AUDIO UNIT
Symptom Possible causes Repair order
Audio unit inoperative (no digital display
and no sound from speakers).1. 10A fuse
