NISSAN X-TRAIL 2001 Service Repair Manual

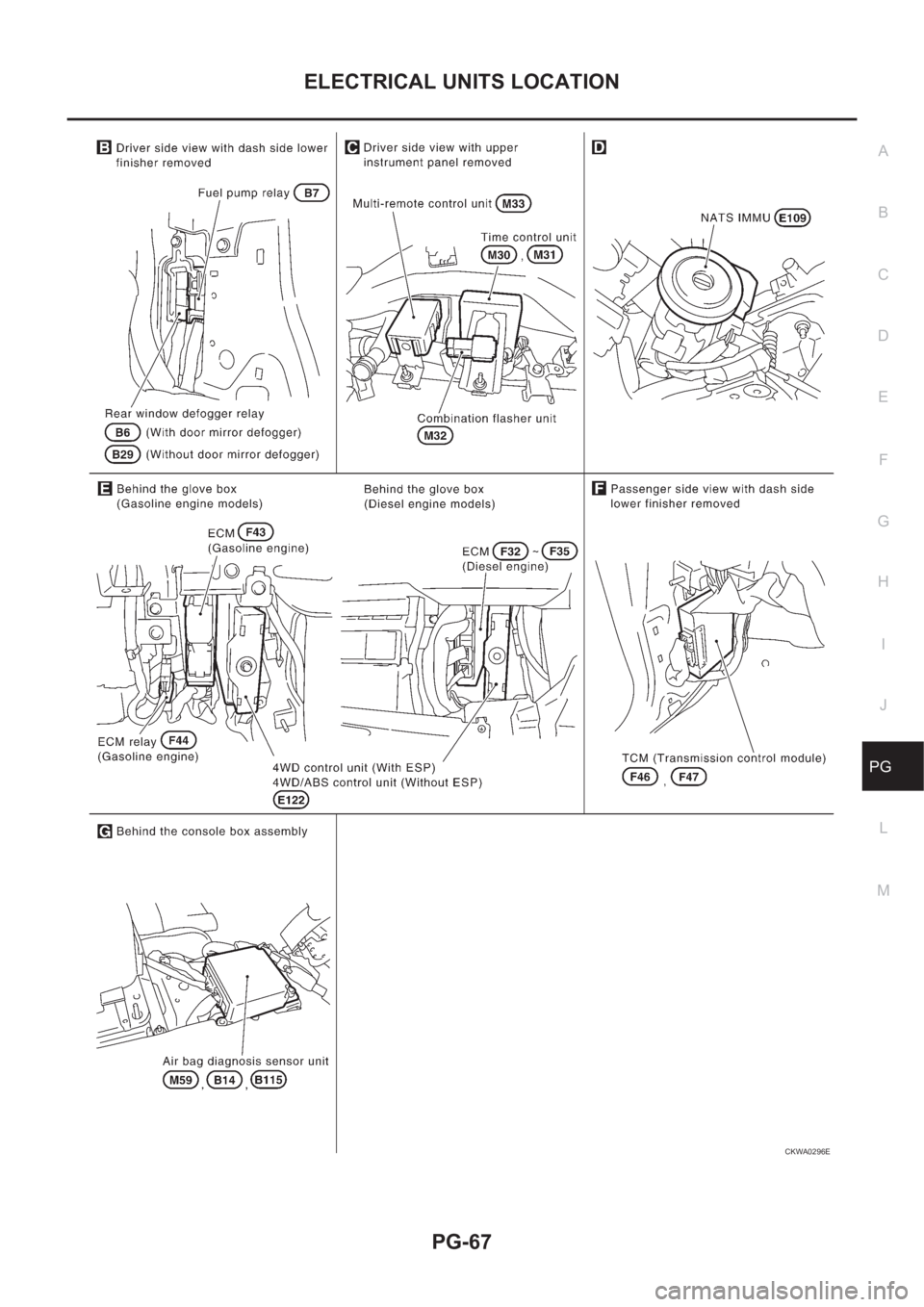

ELECTRICAL UNITS LOCATION
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG
CKWA0296E

PG-68
HARNESS CONNECTOR
HARNESS CONNECTOR
PFP:00011
Description EKS0032B

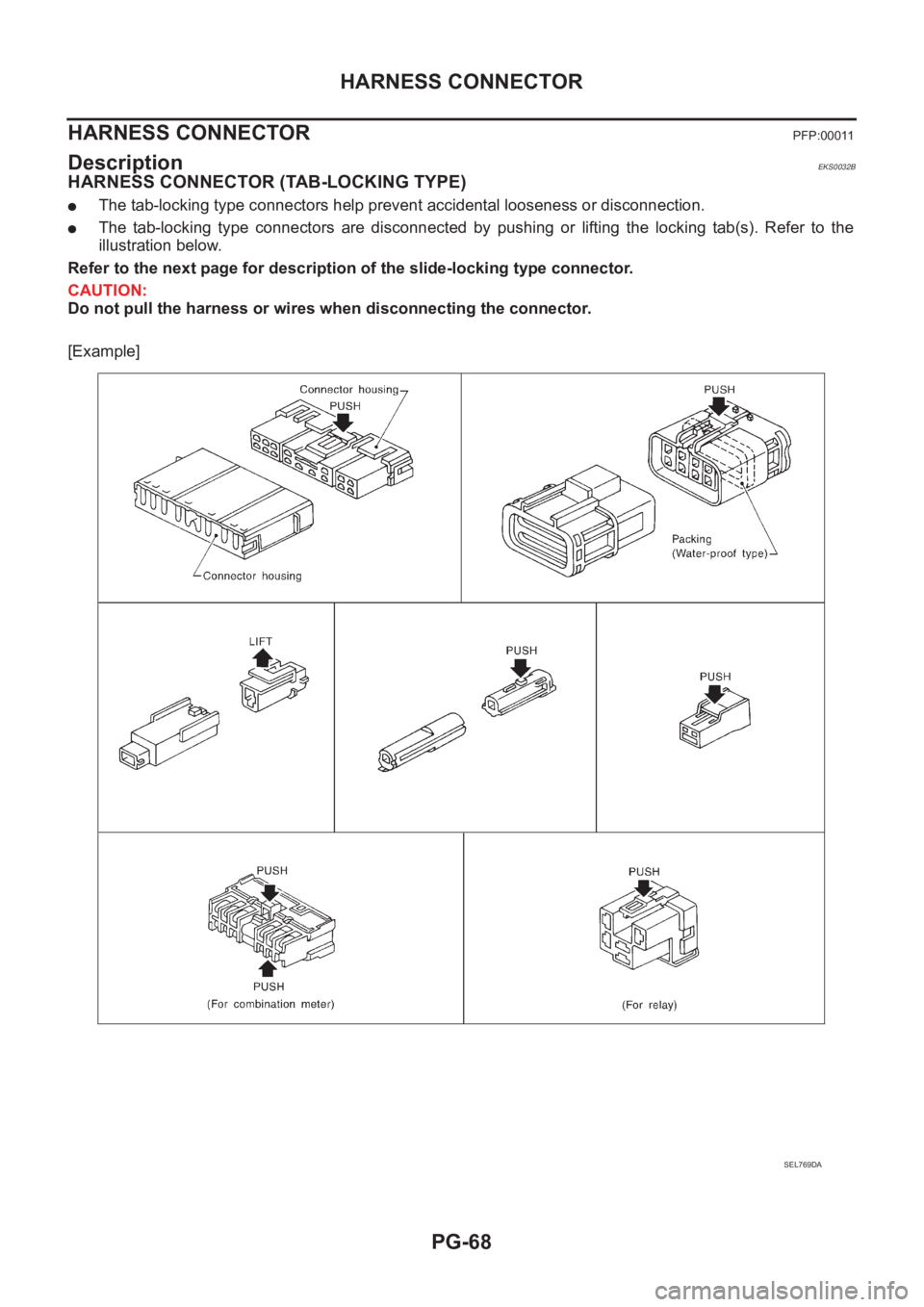

HARNESS CONNECTOR (TAB-LOCKING TYPE)
●The tab-locking type connectors help prevent accidental looseness or disconnection.
●The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
SEL769DA

HARNESS CONNECTOR
PG-69
C
D
E
F
G
H
I
J
L
MA
B
PG

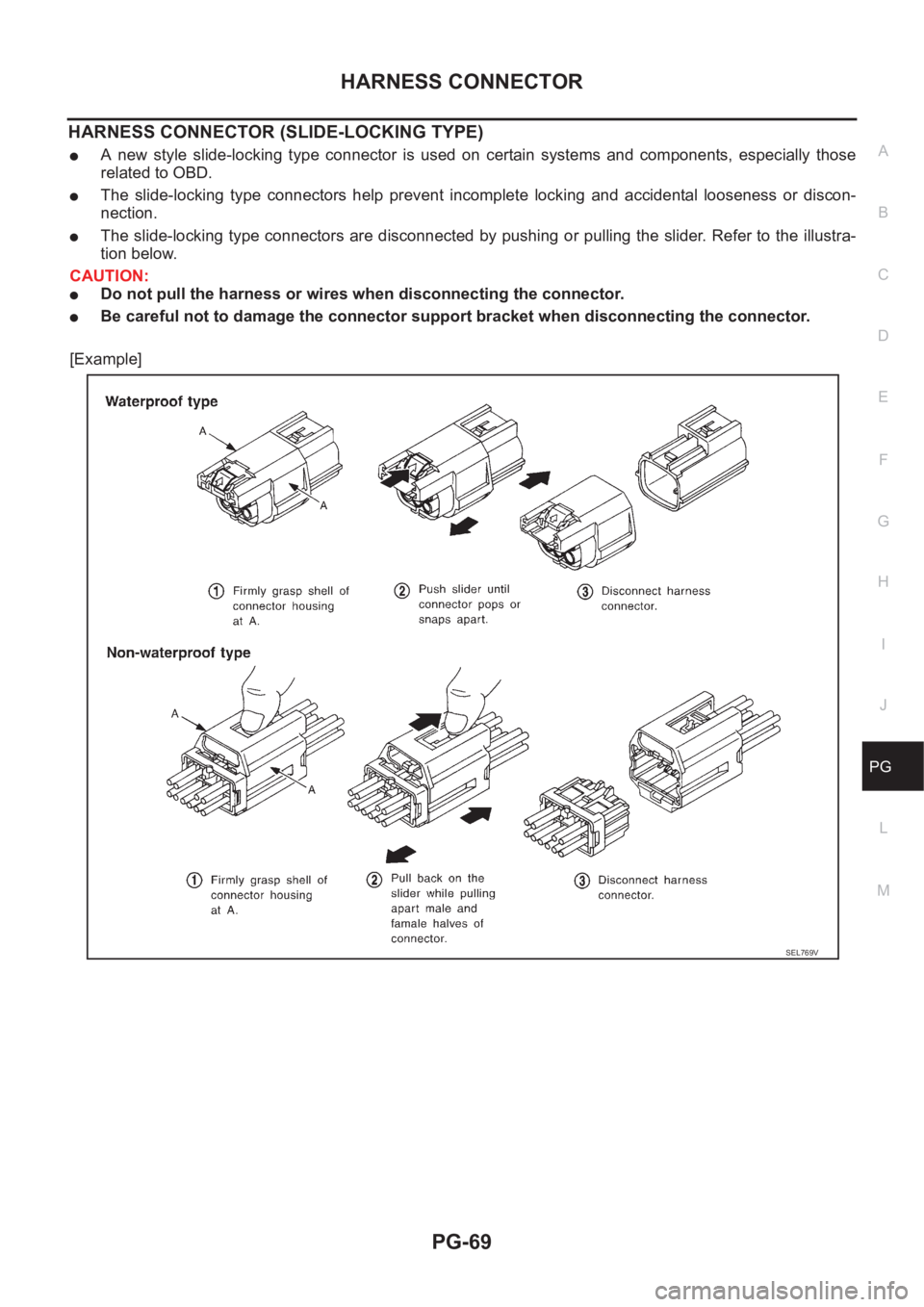

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
●A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
●The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.
●The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.
CAUTION:
●Do not pull the harness or wires when disconnecting the connector.
●Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V

PG-70

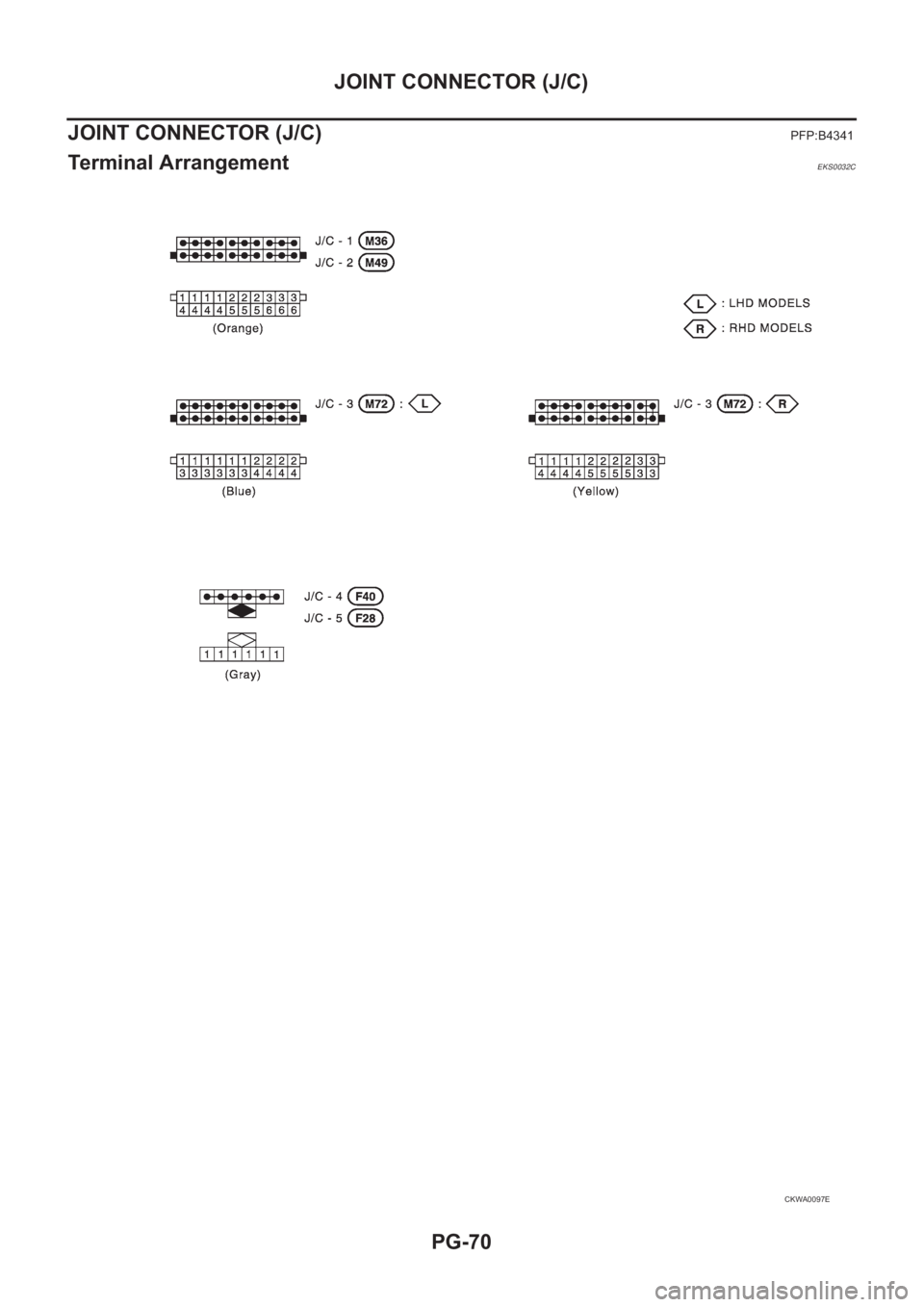

JOINT CONNECTOR (J/C)
JOINT CONNECTOR (J/C)
PFP:B4341
Terminal ArrangementEKS0032C
CKWA0097E

ELECTRICAL UNITS
PG-71
C
D
E
F
G
H
I
J
L
MA
B
PG

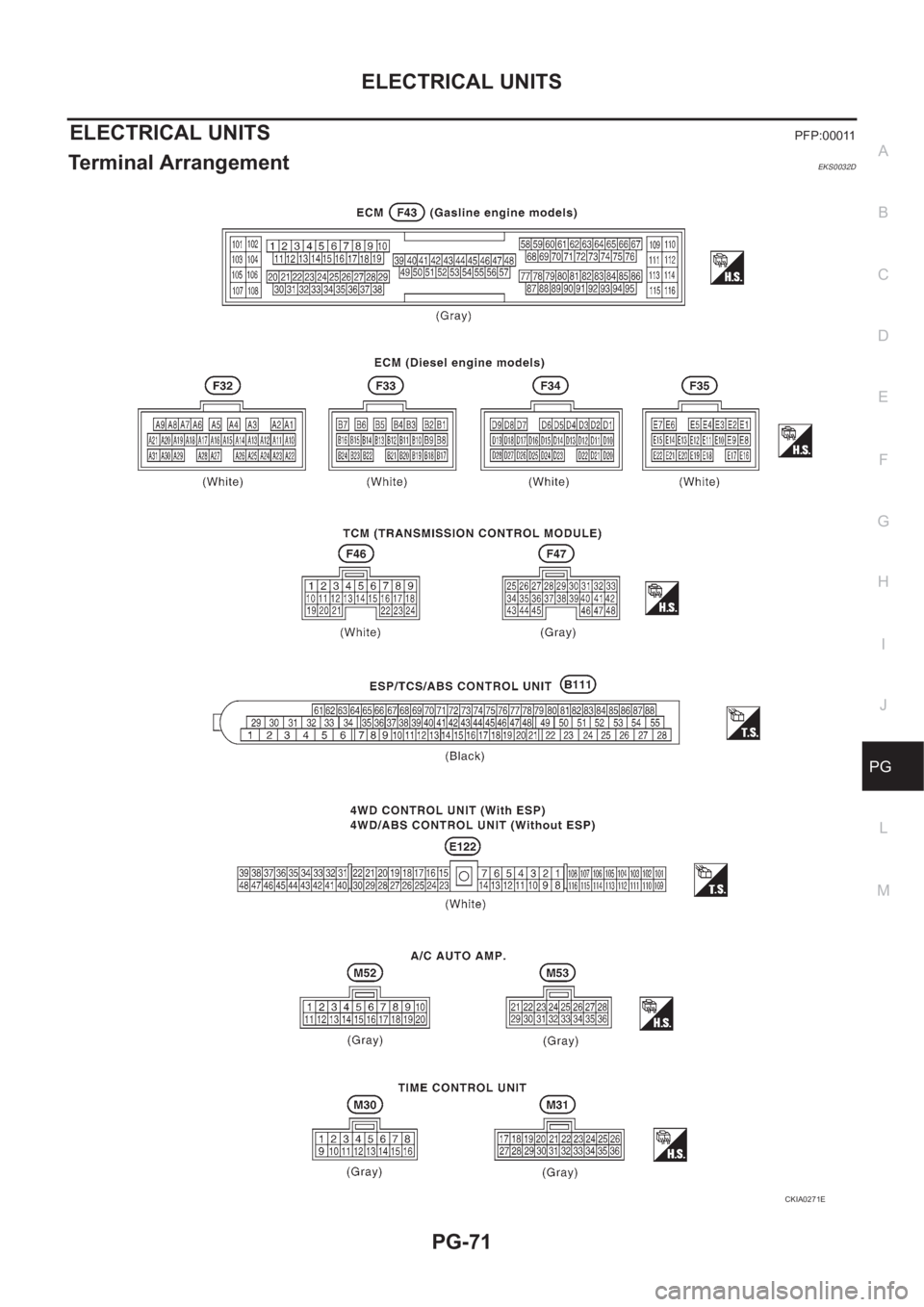

ELECTRICAL UNITS PFP:00011
Terminal Arrangement EKS0032D
CKIA0271E

PG-72
STANDARDIZED RELAY
STANDARDIZED RELAY
PFP:00011
Description EKS0032E

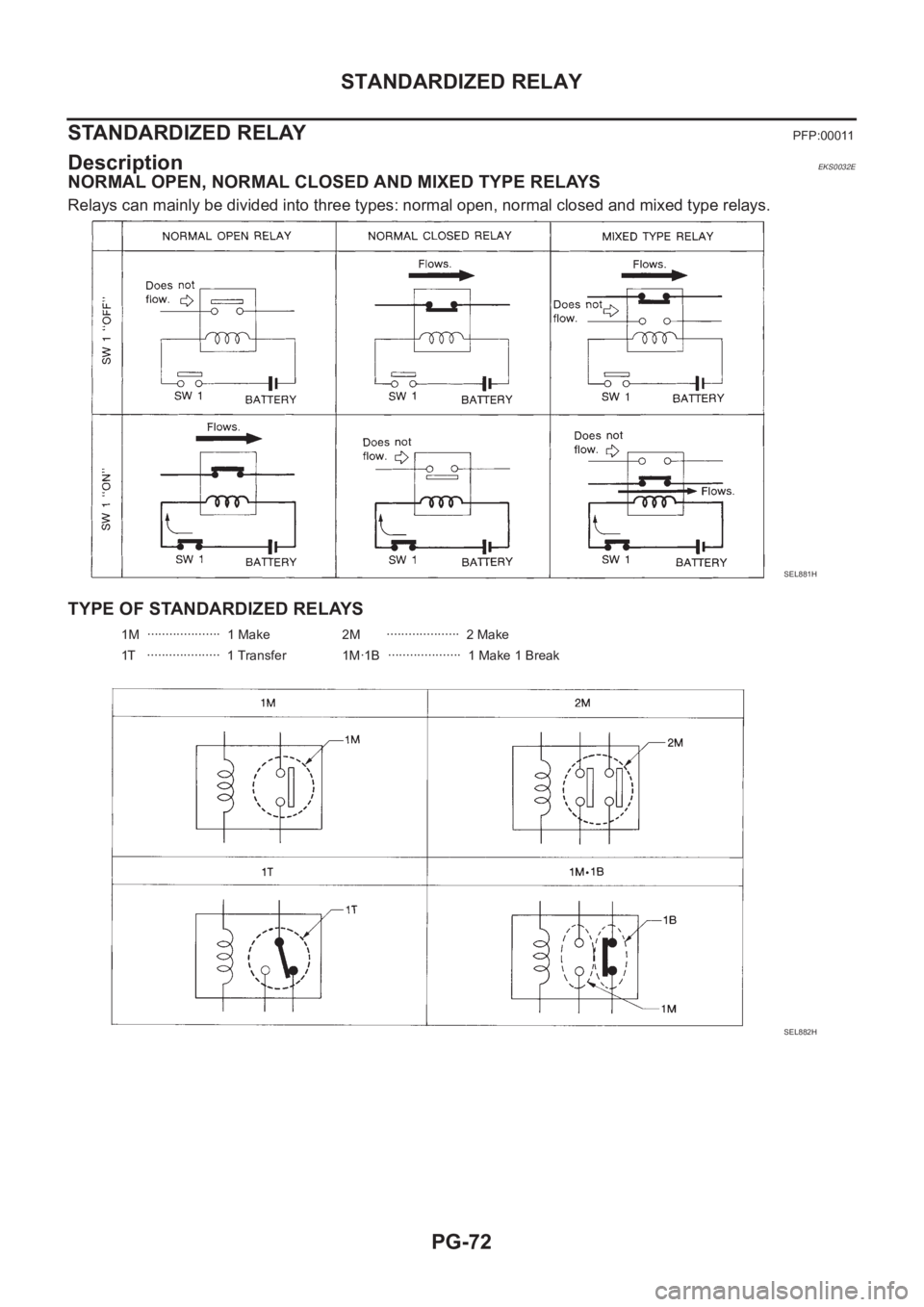

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Ma ke 2M ···················· 2 Make
1T ···················· 1 Tra nsf er 1M ·1B ···················· 1 Make 1 Break
SEL882H

STANDARDIZED RELAY
PG-73
C
D
E
F
G
H
I
J
L
MA
B
PG

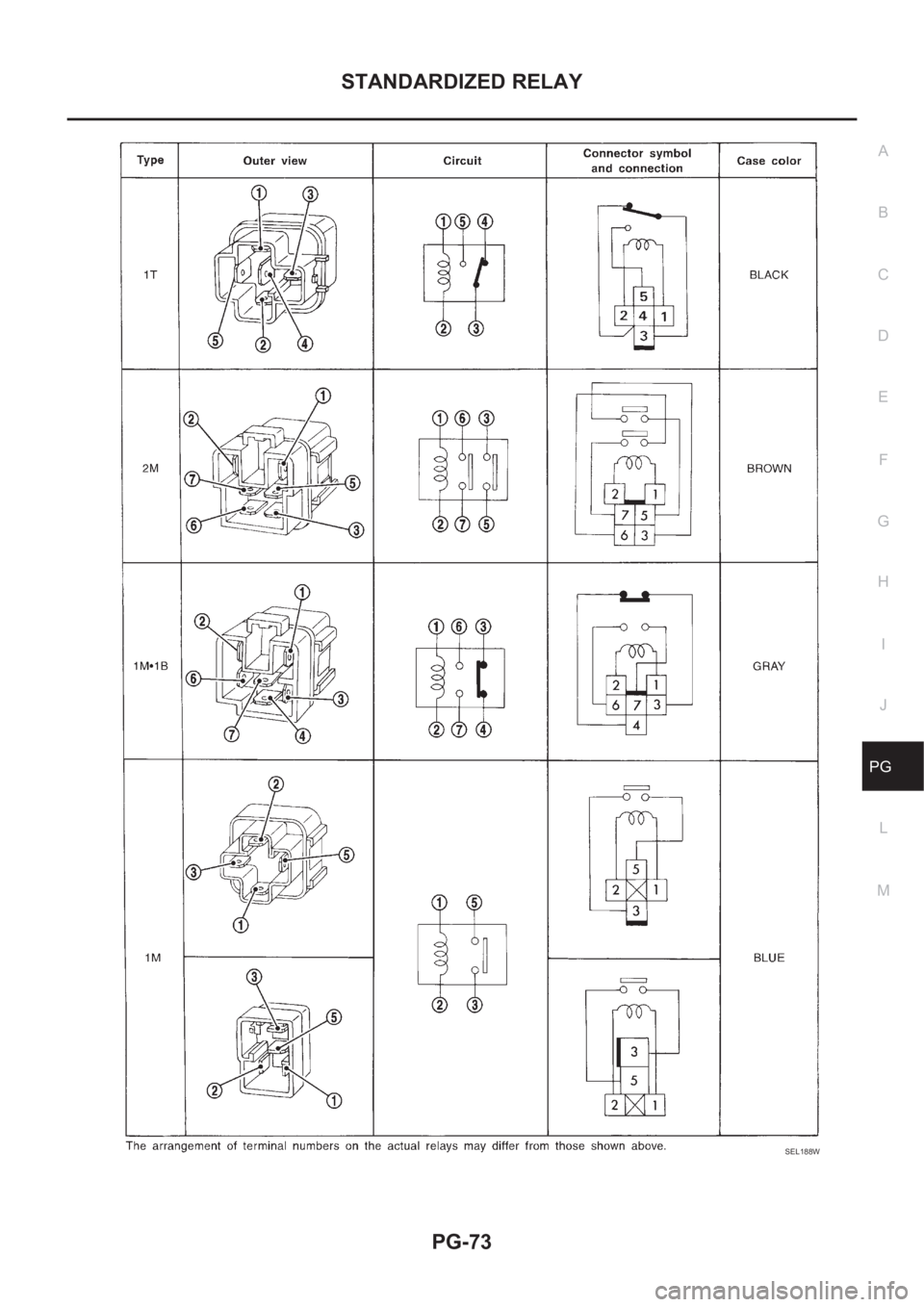

SEL188W

PG-74

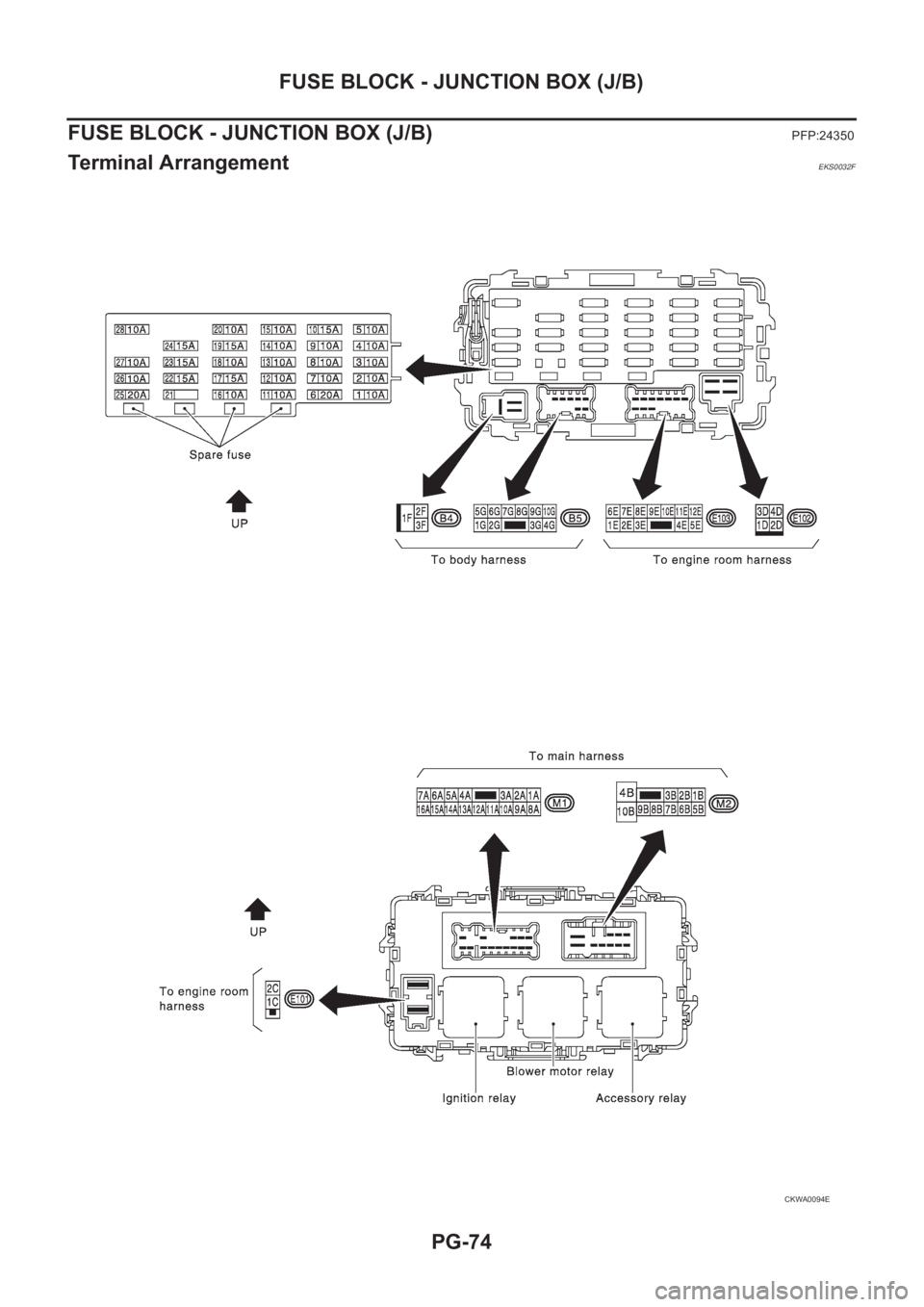

FUSE BLOCK - JUNCTION BOX (J/B)
FUSE BLOCK - JUNCTION BOX (J/B)
PFP:24350
Terminal ArrangementEKS0032F
CKWA0094E

FUSE AND FUSIBLE LINK BOX
PG-75
C
D
E
F
G
H
I
J
L
MA
B
PG

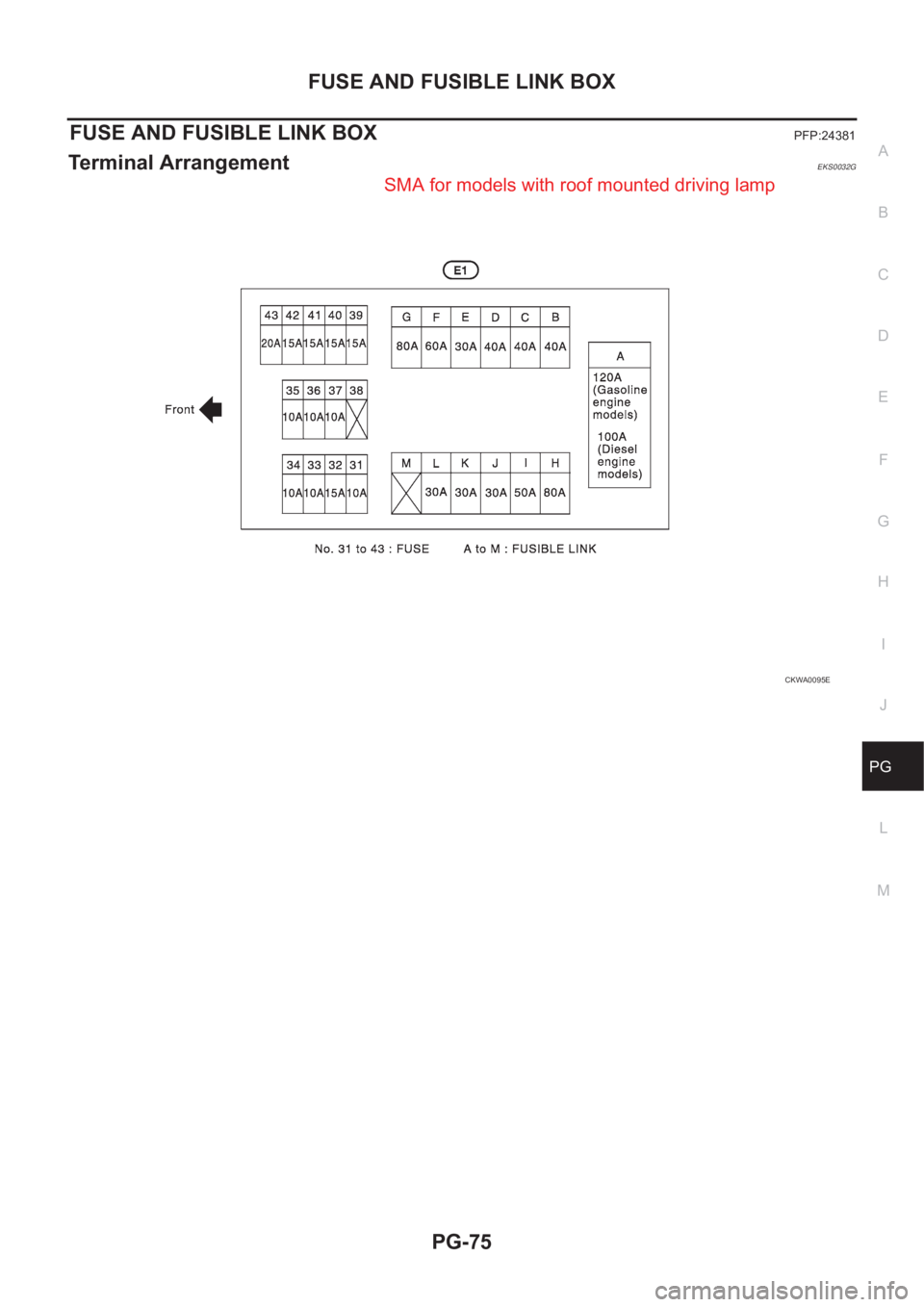

FUSE AND FUSIBLE LINK BOXPFP:24381
Terminal ArrangementEKS0032G
CKWA0095E
SMA for models with roof mounted driving lamp

PG-76
FUSE AND FUSIBLE LINK BOX
