DTC P1212 ESP/TCS/ABS COMMUNICATION LINE
EC-547
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1212 ESP/TCS/ABS COMMUNICATION LINEPFP:47850
DescriptionEBS00D2A
NOTE:
If DTC P1212 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
EC-460
.
This CAN communication line is used to control the smooth engine operation during ESP/TCS/ABS operation.
Pulse signals are exchanged between ECM and ESP/ABS/TCS control unit.
Be sure to erase the malfunction information such as DTC not only in ESP/TCS/ABS control unit but
also ECM after the ESP/TCS/ABS related repair.
On Board Diagnosis LogicEBS00D2B
Freeze frame data is not stored in the ECM for this self-diagnosis. The MI will not light up for this self-
diagnosis.
DTC Confirmation ProcedureEBS00D2C
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 10 seconds.
4. If a 1st trip DTC is detected, go toEC-547, "
Diagnostic Proce-
dure".
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 10 seconds.
2. Turn ignition switch "OFF", wait at least 10 seconds and then turn "ON".
3. Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
4. If 1st trip DTC is detected, go toEC-547, "
Diagnostic Procedure".
Diagnostic ProcedureEBS00D90
1.CHECK ESP/TCS/ABS CONTROL UNIT FUNCTION
Refer toBRC-60, "
TROUBLE DIAGNOSIS".
>>INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212ESP/TCS/ABS commu-
nication lineECM can not receive the information from
ESP/TCS/ABS control unit continuously.
lHarness or connectors
(The CAN communication line between
ECM and ESP/TCS/ABS control unit is
open or shorted.)
lESP/TCS/ABS control unit
lDead (Weak) battery
SEF058Y

EC-548
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
DTC P1217 ENGINE OVER TEMPERATURE
PFP:00000
System DescriptionEBS00BJ9

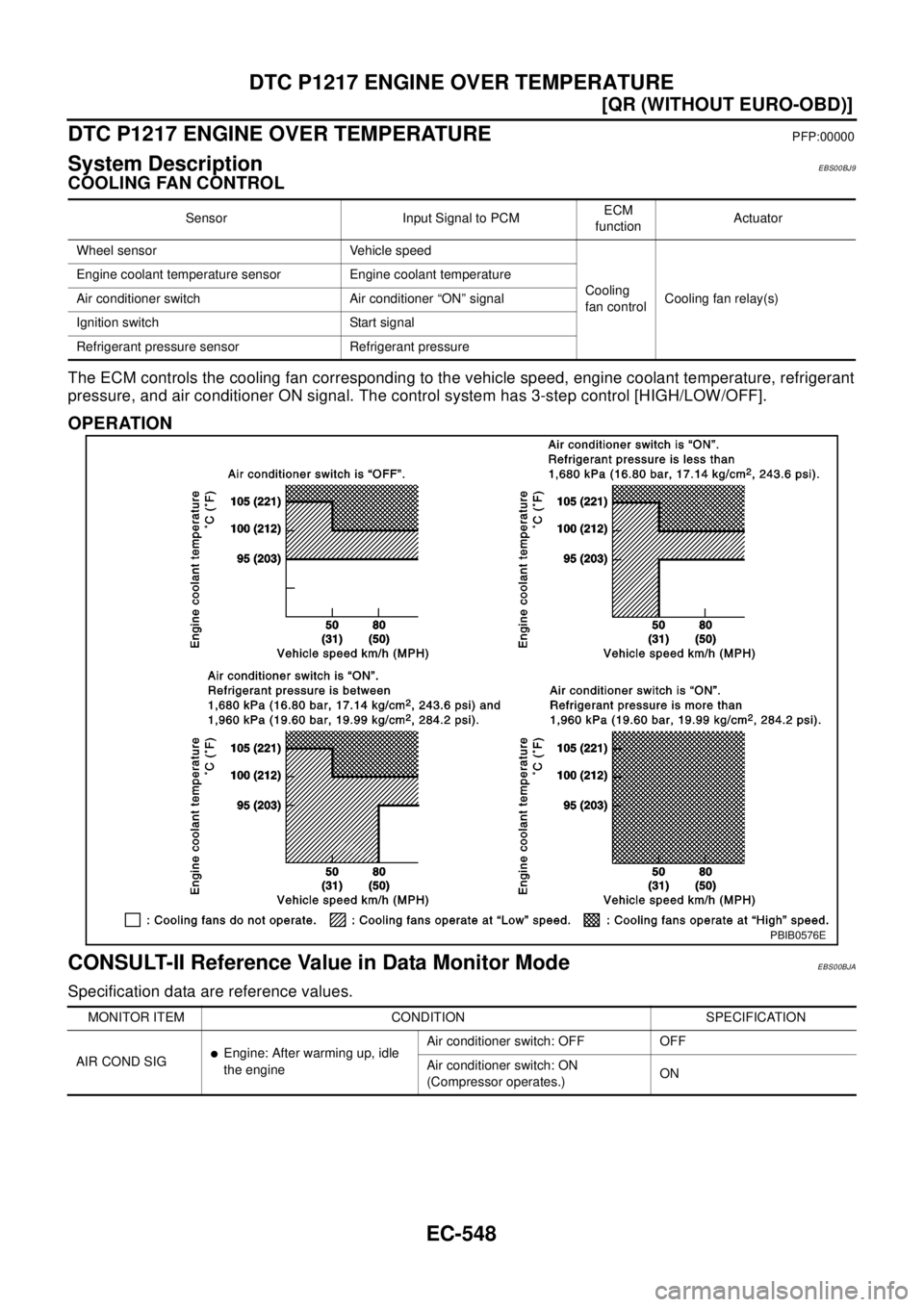

COOLING FAN CONTROL
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00BJA
Specification data are reference values.
Sensor Input Signal to PCMECM
functionActuator
Wheel sensor Vehicle speed
Cooling
fan controlCooling fan relay(s) Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch Air conditioner “ON” signal
Ignition switch Start signal
Refrigerant pressure sensor Refrigerant pressure
PBIB0576E
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
lEngine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON

DTC P1217 ENGINE OVER TEMPERATURE
EC-549
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Terminals and Reference ValueEBS00BJB
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00BJC
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer toCO-9, "
Changing Engine
Coolant". Also, replace the engine oil. Refer toLU-8, "Changing Engine Oil".
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer toMA-19, "
Engine Coolant Mixture Ratio".
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckEBS00BJD
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
COOLING FAN
lEngine: After warming up, idle
the engine
lAir conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 104°C
(219°F)LOW
Engine coolant temperature is 105°C
(221°F) or moreHIGH MONITOR ITEM CONDITION SPECIFICATION
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
27 LG/BCooling fan relay
(High)[Engineisrunning]
lCooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engineisrunning]
lCooling fan is high speed operating0-1.0V
37 LGCooling fan relay
(Low)[Engineisrunning]
lCooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engineisrunning]
lCooling fan is operating0-1.0V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
lCooling fan does not operate properly (Over-
heat).
lCooling fan system does not operate prop-
erly (Overheat).
lEngine coolant was not added to the system
using the proper filling method.
lHarness or connectors
(The cooling fan circuit is open or
shorted.)
lCooling fan
lRadiator hose
lRadiator
lRadiator cap
lWater pump
lThermostat
For more information, refer toEC-560,
"Main 12 Causes of Overheating".

EC-550
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

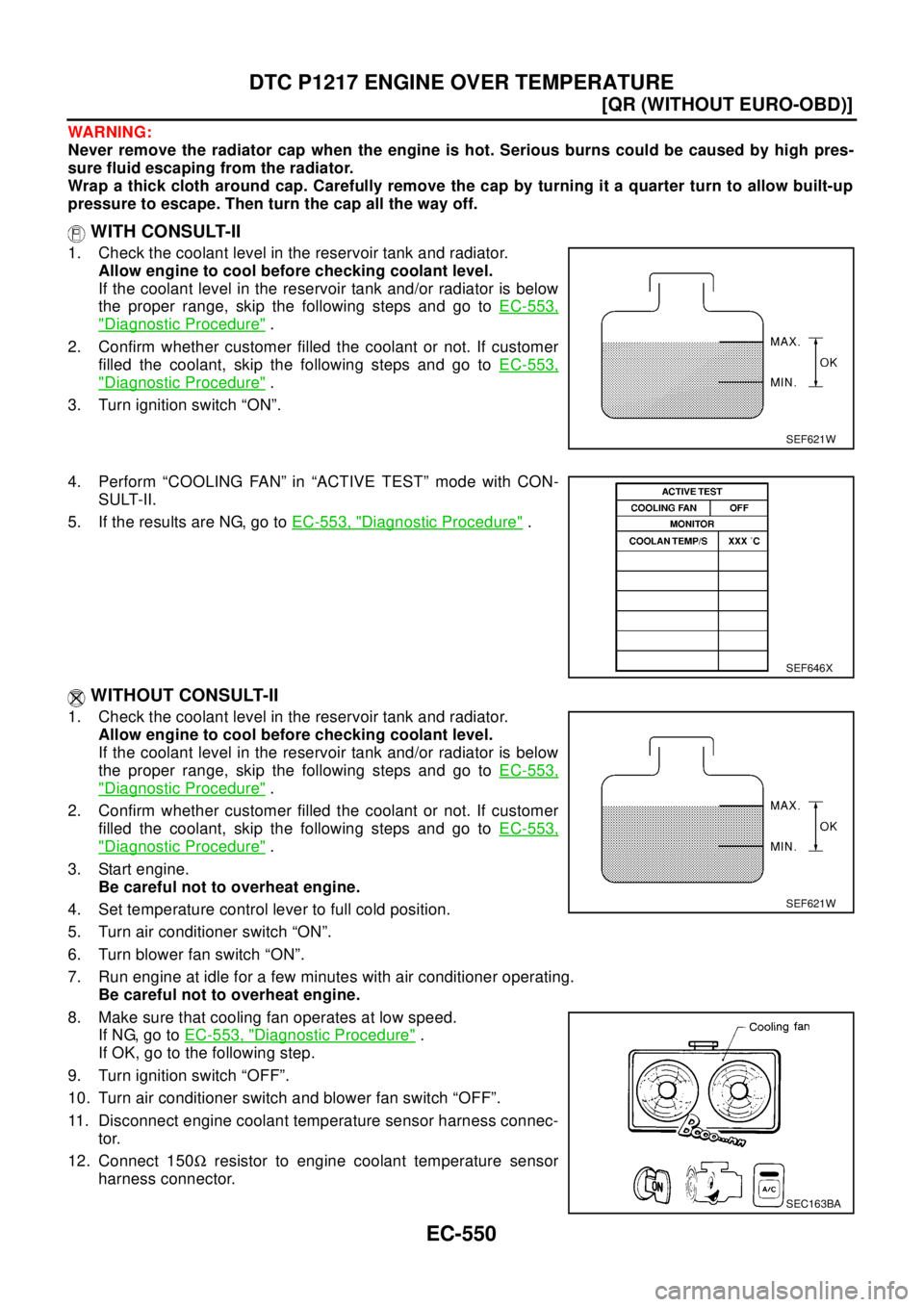

WAR NIN G:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go toEC-553,
"Diagnostic Procedure".
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go toEC-553,
"Diagnostic Procedure".
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go toEC-553, "
Diagnostic Procedure".
WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go toEC-553,
"Diagnostic Procedure".
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go toEC-553,
"Diagnostic Procedure".
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch “ON”.
6. Turn blower fan switch “ON”.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
8. Make sure that cooling fan operates at low speed.
If NG, go toEC-553, "
Diagnostic Procedure".
If OK, go to the following step.
9. Turn ignition switch “OFF”.
10. Turn air conditioner switch and blower fan switch “OFF”.
11. Disconnect engine coolant temperature sensor harness connec-
tor.
12. Connect 150Wresistor to engine coolant temperature sensor
harness connector.
SEF621W
SEF646X
SEF621W
SEC163BA

DTC P1217 ENGINE OVER TEMPERATURE
EC-551
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
Be careful not to overheat engine.
14. If NG, go toEC-553, "
Diagnostic Procedure".
MEC475B

EC-552
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

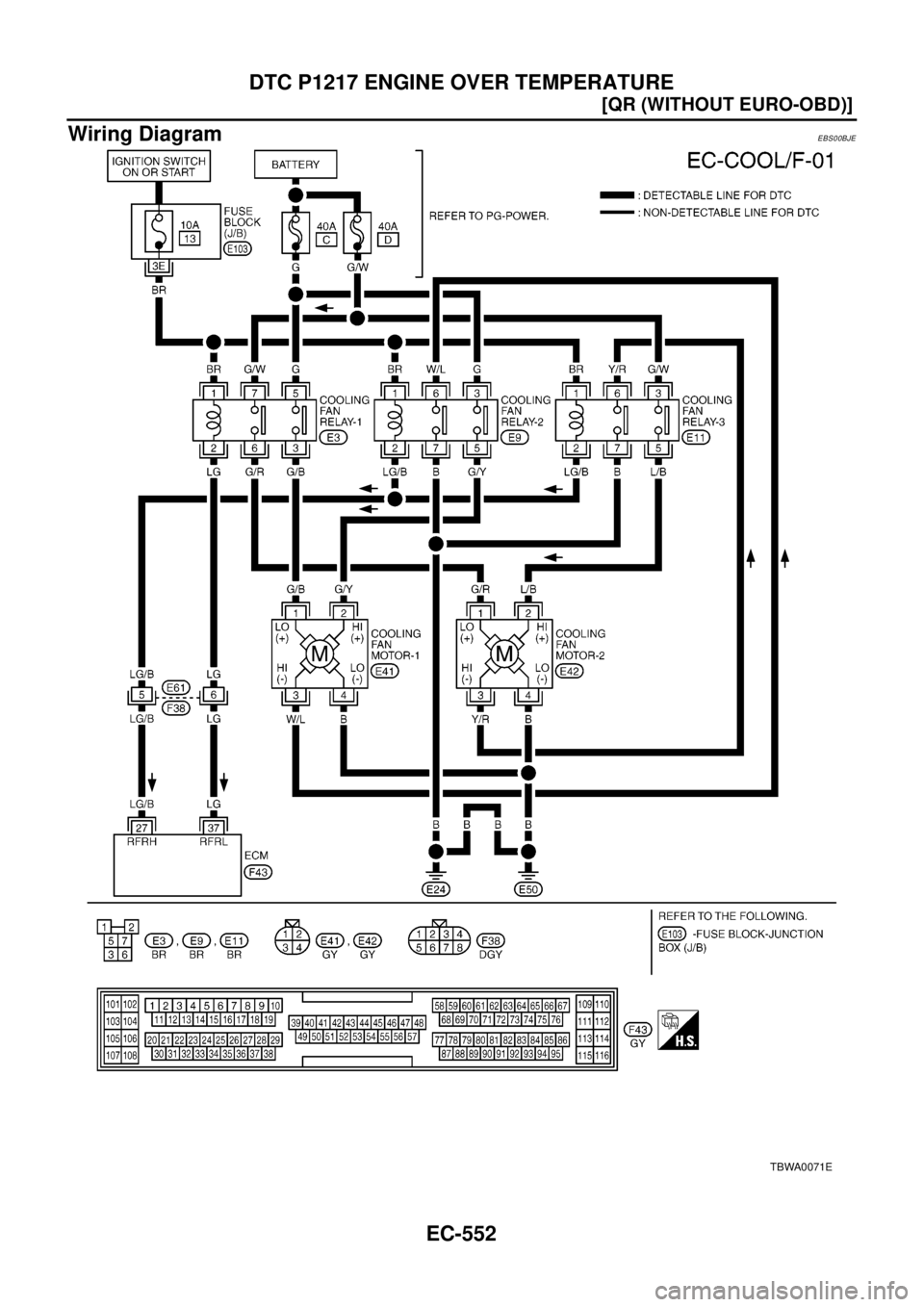

Wiring Diagram
EBS00BJE
TBWA0071E

DTC P1217 ENGINE OVER TEMPERATURE
EC-553
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

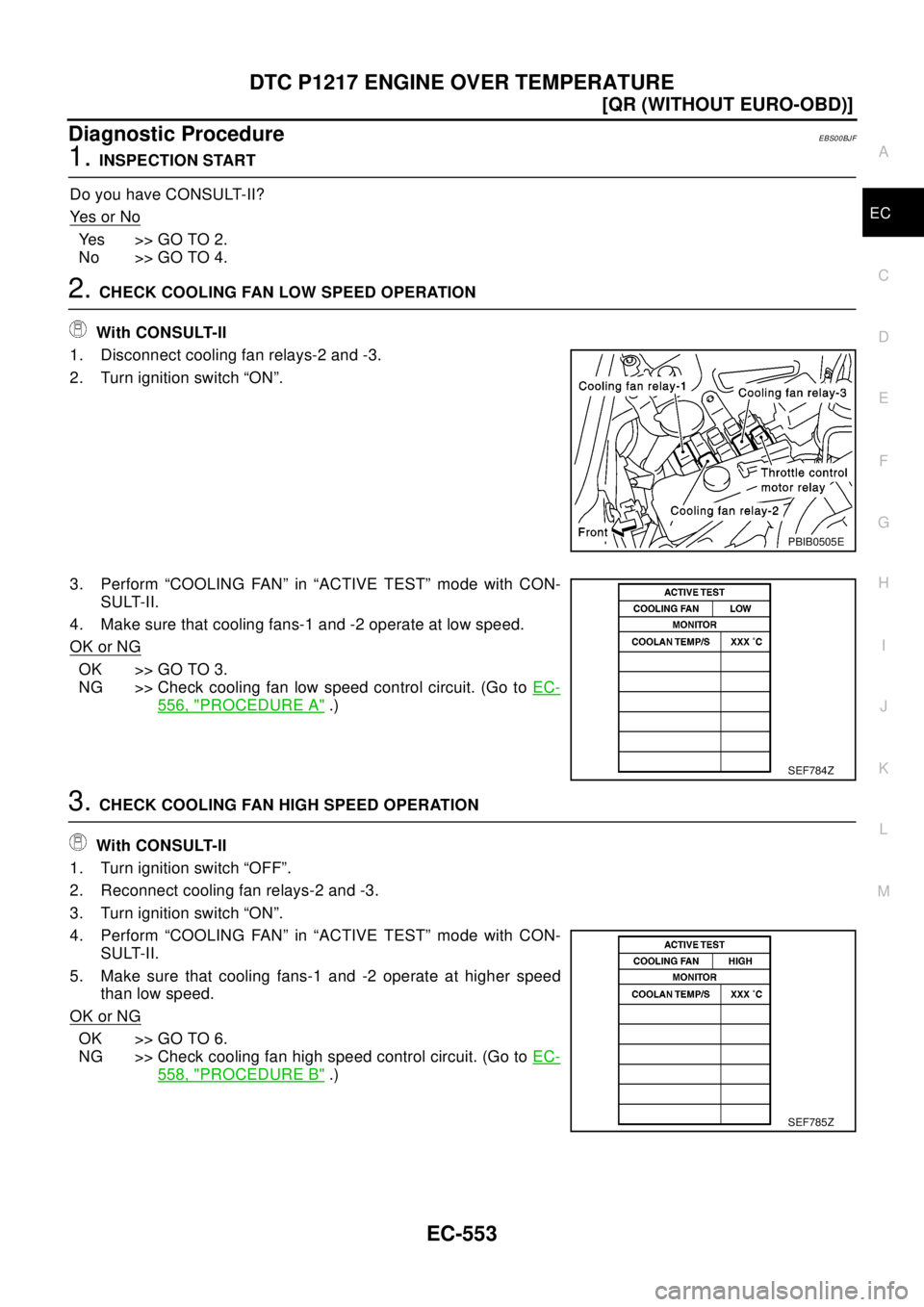

Diagnostic ProcedureEBS00BJF
1.INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >>GOTO2.
No >> GO TO 4.
2.CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Turn ignition switch “ON”.
3. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
4. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 3.
NG >> Check cooling fan low speed control circuit. (Go toEC-
556, "PROCEDURE A".)
3.CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. Make sure that cooling fans-1 and -2 operate at higher speed
than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go toEC-
558, "PROCEDURE B".)
PBIB0505E
SEF784Z
SEF785Z

EC-554
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

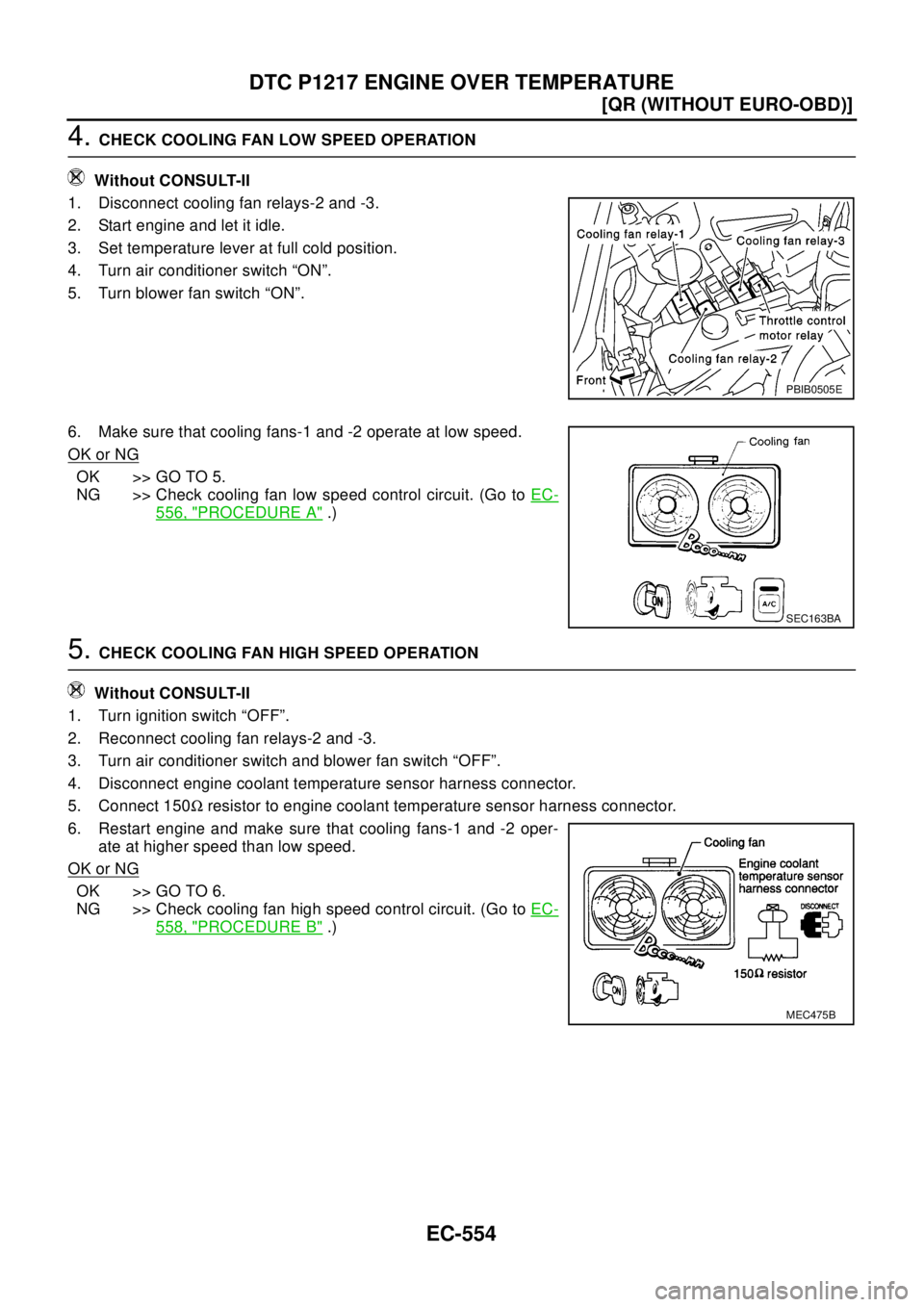

4.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go toEC-
556, "PROCEDURE A".)
5.CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Wresistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go toEC-
558, "PROCEDURE B".)
PBIB0505E
SEC163BA
MEC475B

DTC P1217 ENGINE OVER TEMPERATURE
EC-555
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

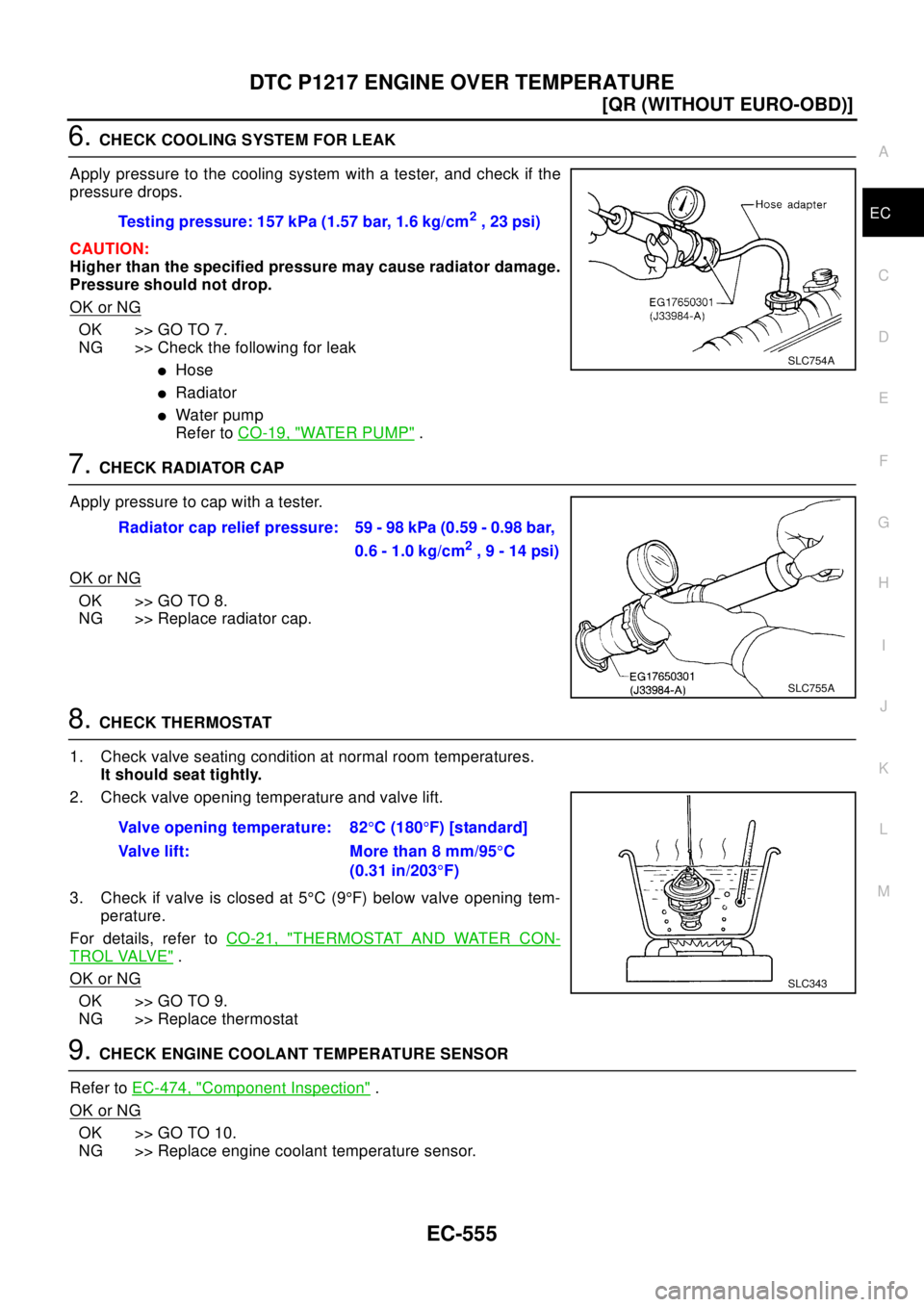

6.CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak
lHose
lRadiator
lWater pump
Refer toCO-19, "
WATER PUMP".
7.CHECKRADIATORCAP
Applypressuretocapwithatester.
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
8.CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C(9°F) below valve opening tem-
perature.
For details, refer toCO-21, "
THERMOSTAT AND WATER CON-
TROL VALVE".
OK or NG
OK >> GO TO 9.
NG >> Replace thermostat
9.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer toEC-474, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace engine coolant temperature sensor.Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm
2,23psi)
SLC754A
Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar,
0.6-1.0kg/cm
2,9-14psi)
SLC755A
Valve opening temperature: 82°C(180°F) [standard]
Valve lift: More than 8 mm/95°C
(0.31 in/203°F)
SLC343

EC-556
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
10.CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go toEC-560, "
Main 12 Causes of Overheating".
>>INSPECTION END

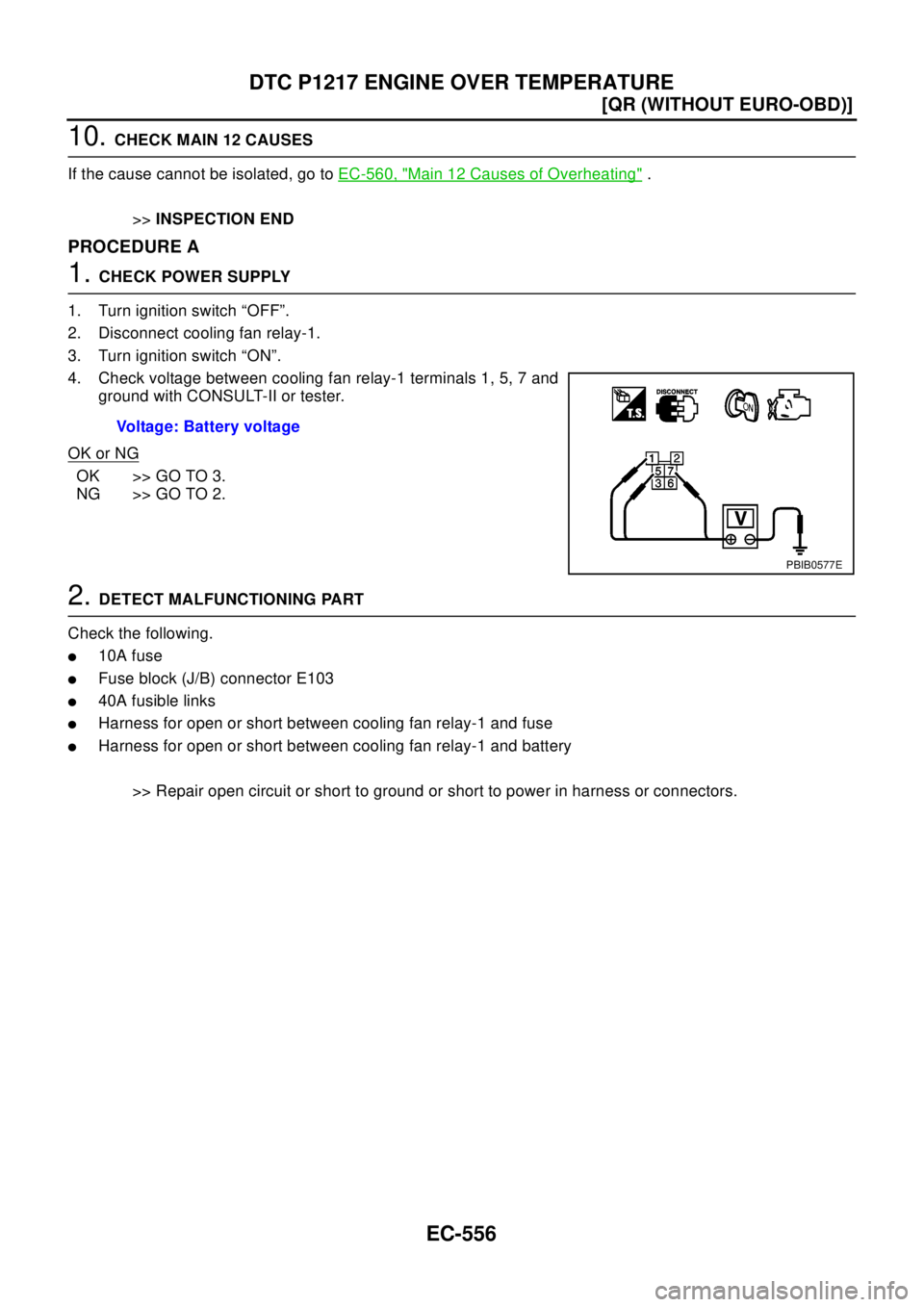

PROCEDURE A
1.CHECK POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relay-1 terminals 1, 5, 7 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
l10A fuse
lFuse block (J/B) connector E103
l40A fusible links
lHarness for open or short between cooling fan relay-1 and fuse
lHarness for open or short between cooling fan relay-1 and battery
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB0577E
