HORN
WW-23
C
D
E
F
G
H
I
J
L
MA
B
WW
HORNPFP:25610

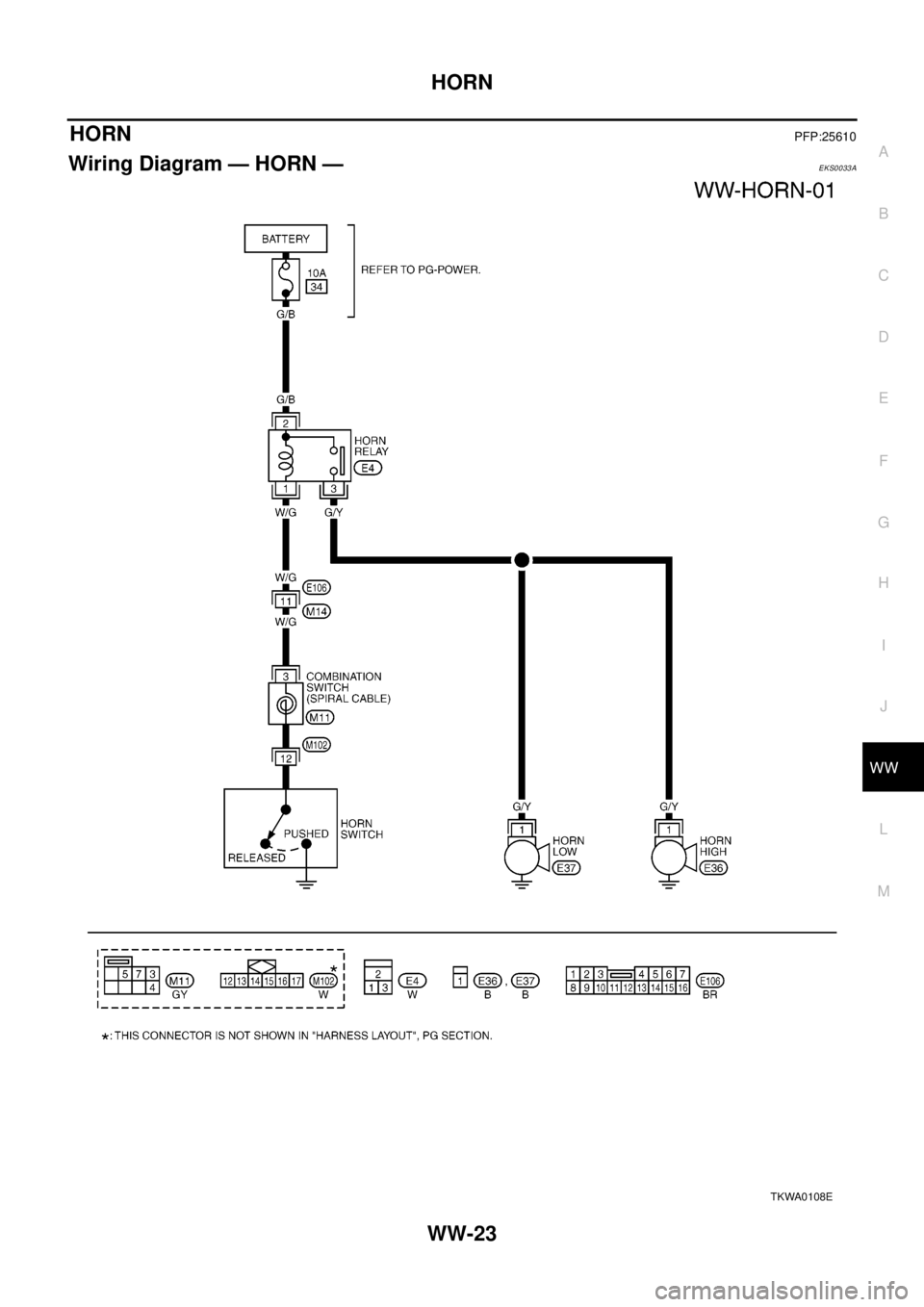

Wiring Diagram — HORN —EKS0033A
TKWA0108E

WW-24
HORN
Removal and Installation
EKS0033B
REMOVAL
1. Remove the front grille.refer toEI-11, "FRONT GRILL"
2. Disconnect horn connector.
3. Remove horn.
INSTALLATION
Tighten horn bolt to specified torque.
SKIA0027E
Horn bolt : 16-18 N·m(1.6-1.8 kg-m, 12-13 ft-lb)

CIGARETTE LIGHTER
WW-25
C
D
E
F
G
H
I
J
L
MA
B
WW
CIGARETTE LIGHTERPFP:35330

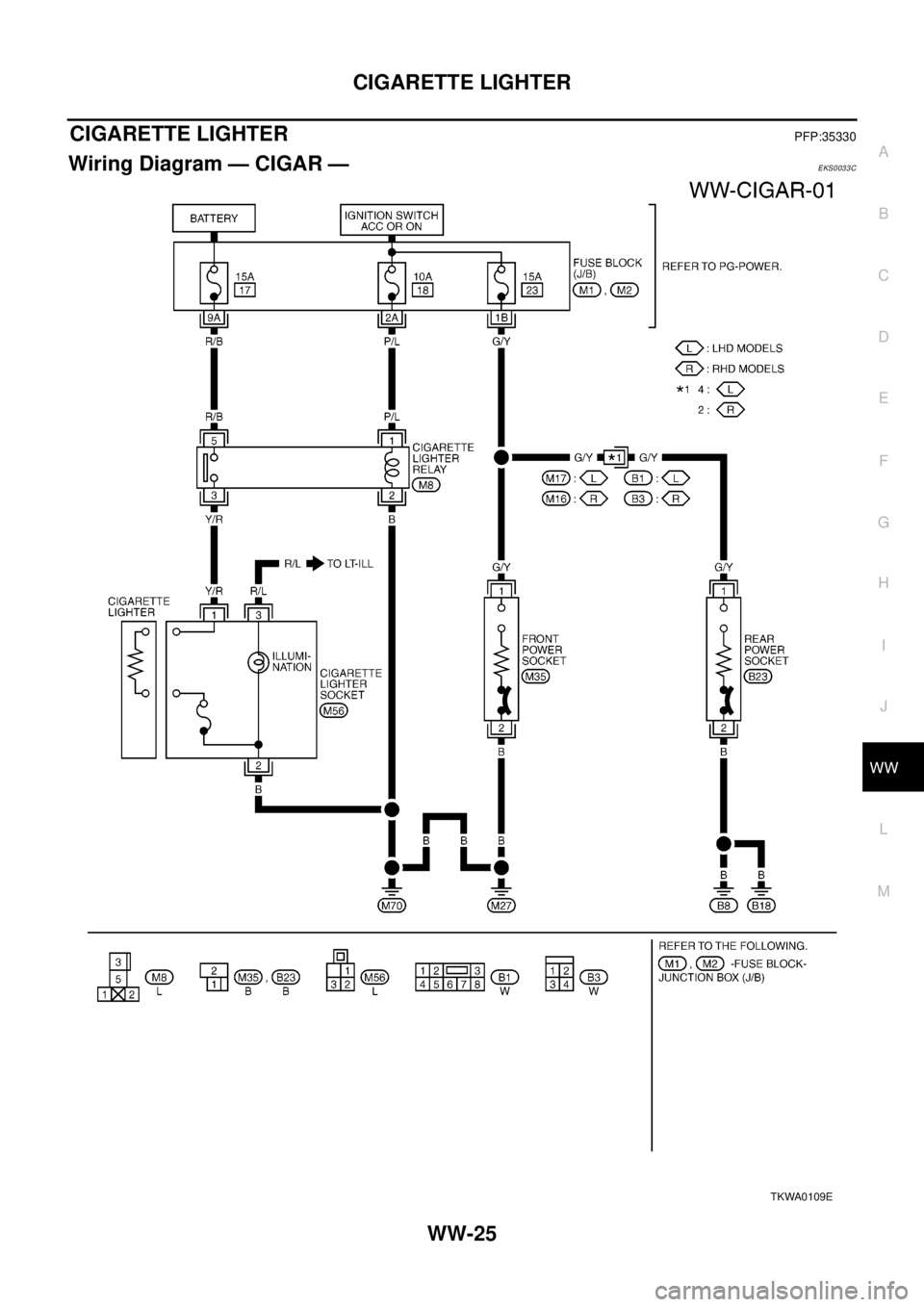

Wiring Diagram — CIGAR —EKS0033C
TKWA0109E

WW-26
CIGARETTE LIGHTER
Removal and Installation
EKS0033D
REMOVAL
1. Remove ashtray from instrument lower center panel, refer toIP-
7, "AUDIO UNIT AND POCKET"
2. Remove the cigarette lighter assembly.
3. Disconnect cigarette lighter connector, and remove cigarette
lighter ring and socket.
INSTALLATION
Install in the reverse order of removal aligning notches of cigarette lighter ring and instrument lower center
panel.
PKIA0492E
PKIA0493E

POWER SOCKET
WW-27
C
D
E
F
G
H
I
J
L
MA
B
WW
POWER SOCKETPFP:253A2
Wiring Diagram –POWER SOCKET–EKS0036E
TKWA0109E

WW-28
POWER SOCKET
Removal and Installation for Front Power Socket
EKS0036F
REMOVAL
1. Remove the Pocket, refer toIP-3, "INSTRUMENT PANEL
ASSEMBLY"
2. Disconnect power socket connector.
3. Pull out inner socket from inner case.
INSTALLATION
Install in the reverse order of removal aligning notches of power socket and inner case.
Removal and Installation for Rear Power SocketEKS0036G
REMOVAL
1. Remove luggage side lower finisher, refer toEI-27, "LUGGAGE
SIDE LOWER FINISHER"
2. Disconnect power socket connector.
3. Pull out inner socket from luggage side lower finisher.
INSTALLATION
Install in the reverse order of removal aligning notches of power socket and installation hole.
SKIA0080E
SKIA0081E
