fuse NISSAN X-TRAIL 2003 Electronic Repair Manual

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-133
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

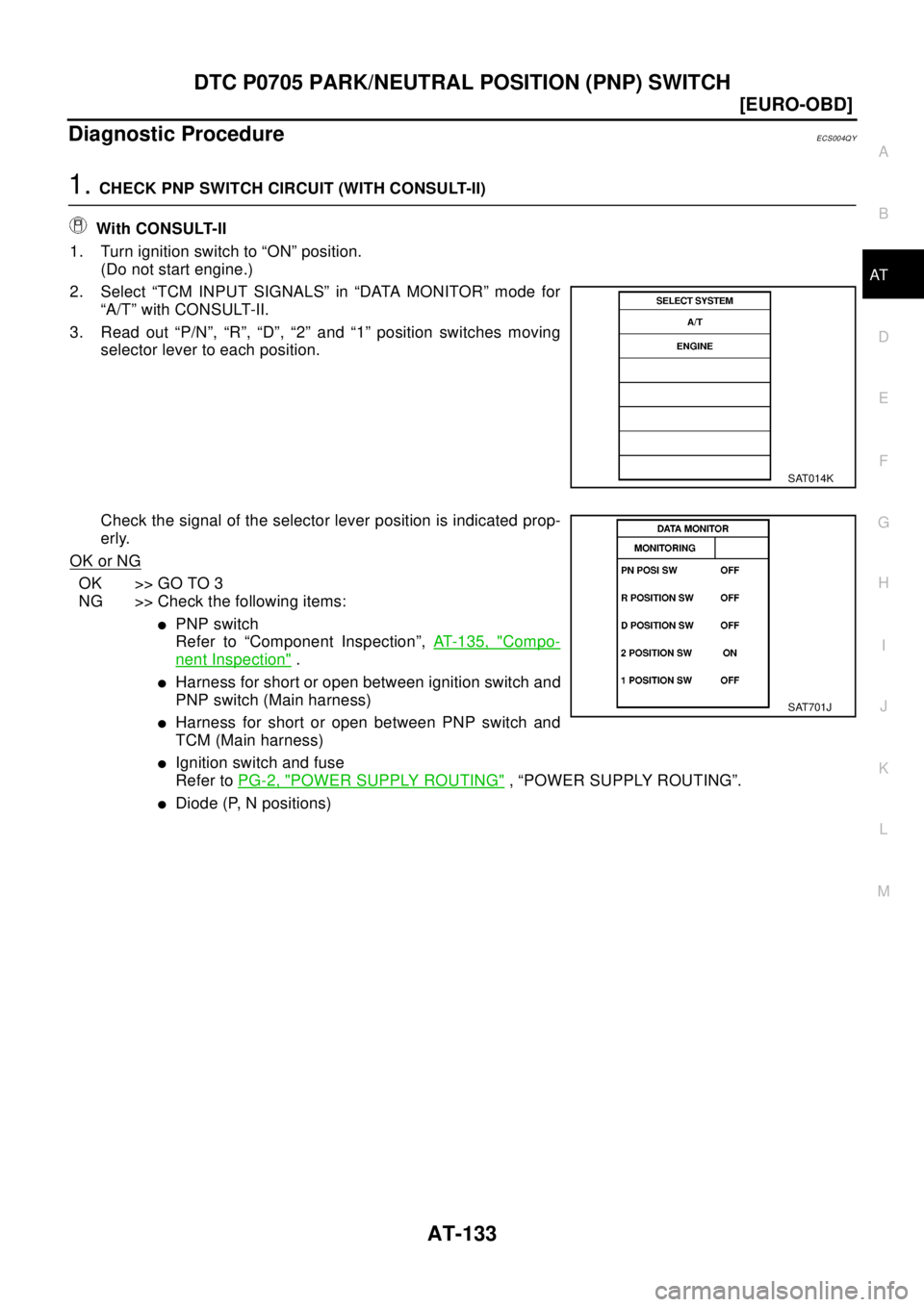

Diagnostic ProcedureECS004QY
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
Check the signal of the selector lever position is indicated prop-
erly.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
lPNP switch
Refer to “Component Inspection”,AT-135, "
Compo-
nent Inspection".
lHarness for short or open between ignition switch and
PNP switch (Main harness)
lHarness for short or open between PNP switch and
TCM (Main harness)
lIgnition switch and fuse
Refer toPG-2, "
POWER SUPPLY ROUTING", “POWER SUPPLY ROUTING”.
lDiode (P, N positions)
SAT014K
SAT701J

AT-134
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

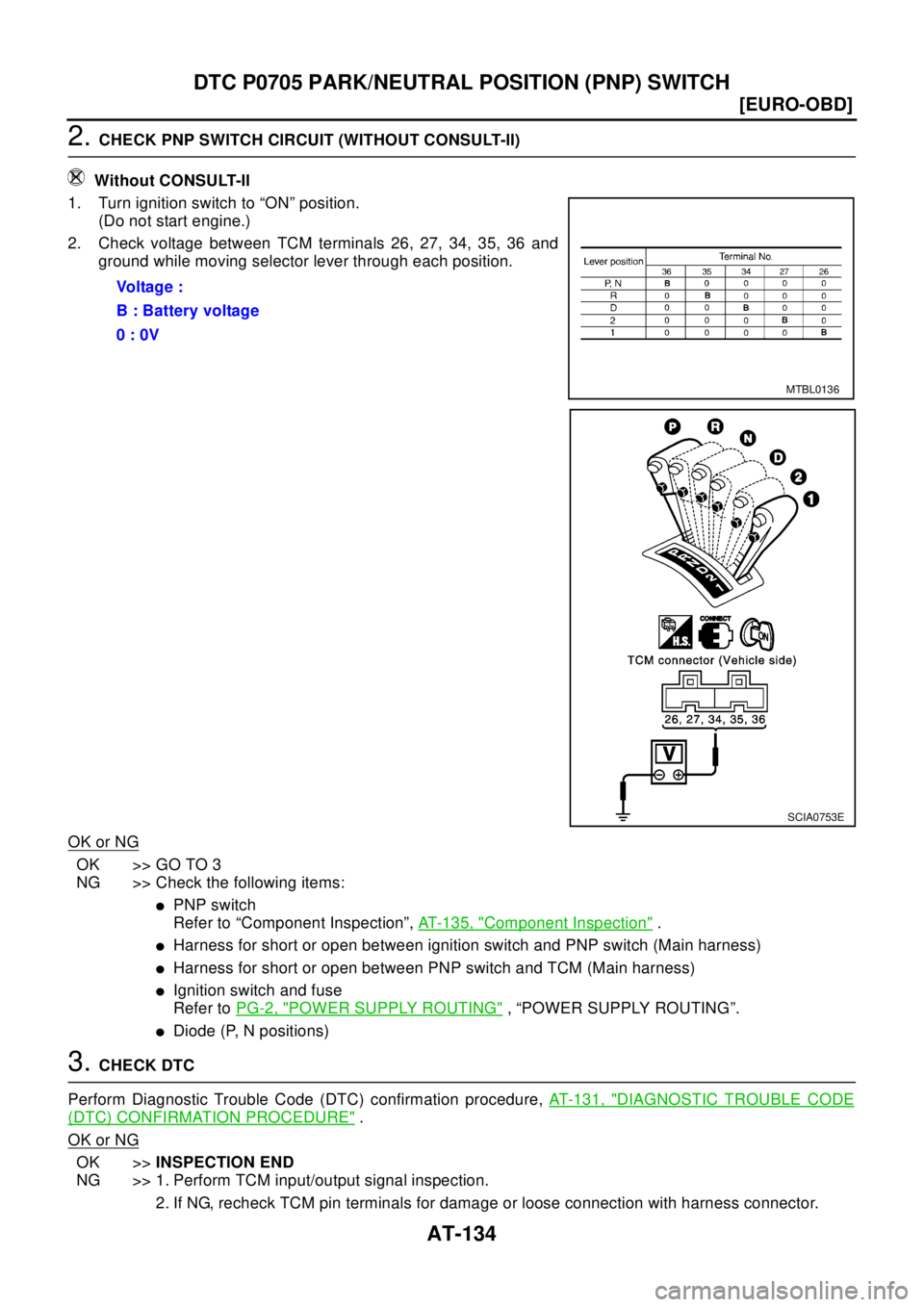

2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
lPNP switch
Refer to “Component Inspection”,AT - 1 3 5 , "
Component Inspection".
lHarness for short or open between ignition switch and PNP switch (Main harness)
lHarness for short or open between PNP switch and TCM (Main harness)
lIgnition switch and fuse
Refer toPG-2, "
POWER SUPPLY ROUTING", “POWER SUPPLY ROUTING”.
lDiode (P, N positions)
3.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure,AT- 1 3 1 , "
DIAGNOSTIC TROUBLE CODE
(DTC) CONFIRMATION PROCEDURE".
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Vo l ta g e :
B : Battery voltage
0:0V
MTBL0136
SCIA0753E

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-219
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

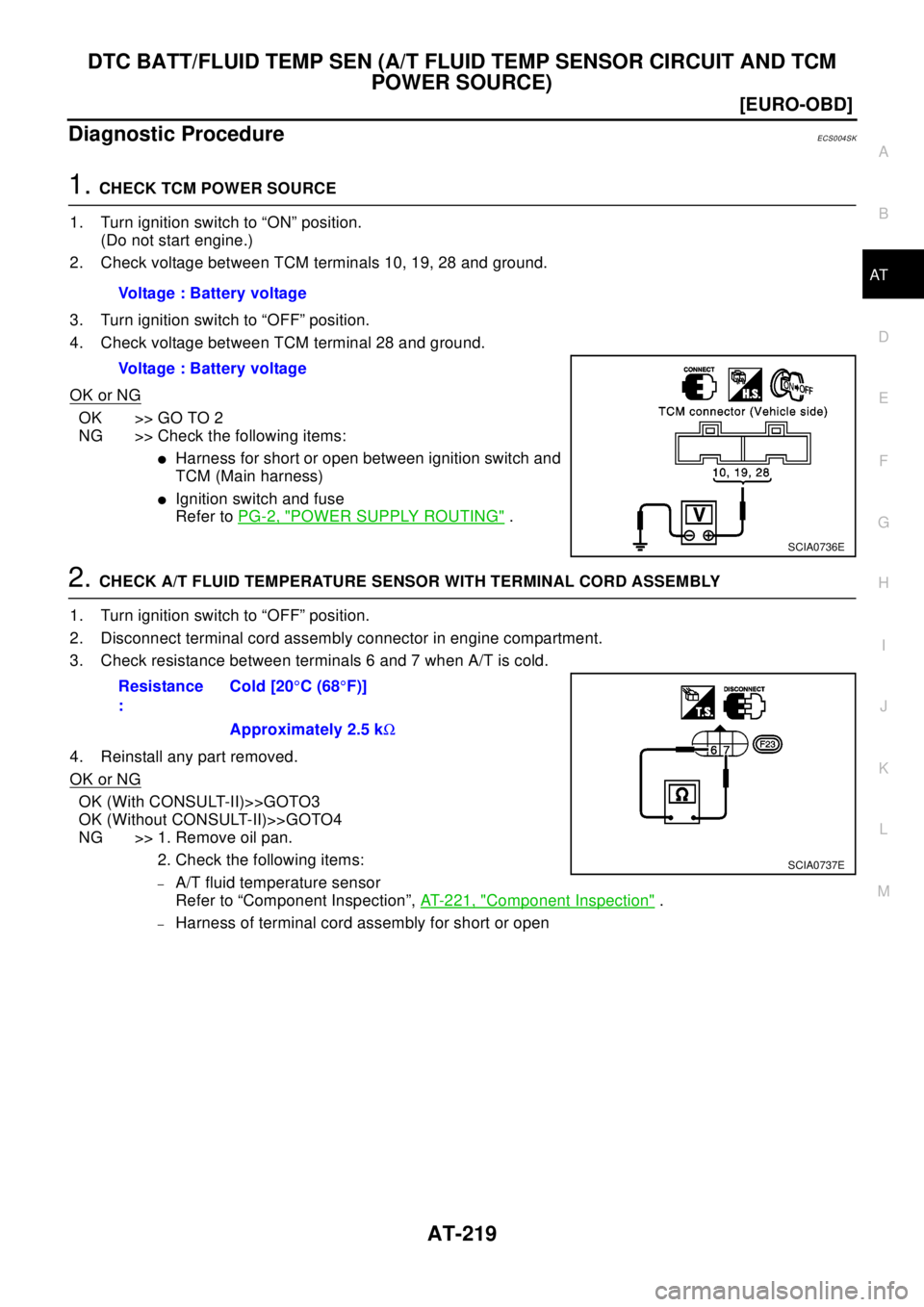

Diagnostic ProcedureECS004SK

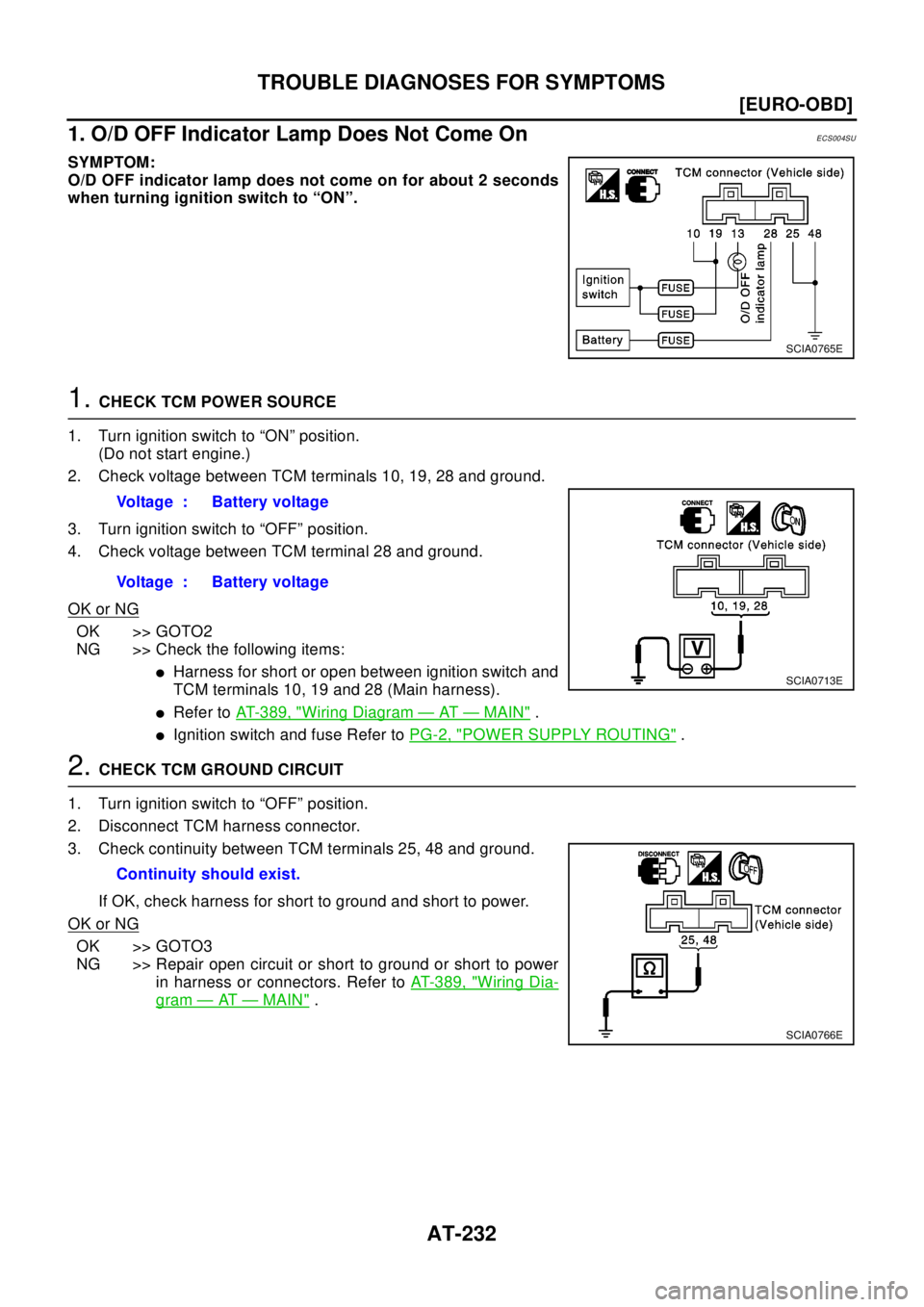

1.CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to “OFF” position.
4. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GO TO 2
NG >> Check the following items:
lHarness for short or open between ignition switch and
TCM (Main harness)
lIgnition switch and fuse
Refer toPG-2, "
POWER SUPPLY ROUTING".
2.CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when A/T is cold.
4. Reinstall any part removed.
OK or NG
OK (With CONSULT-II)>>GOTO3
OK (Without CONSULT-II)>>GOTO4
NG >> 1. Remove oil pan.
2. Check the following items:
–A/T fluid temperature sensor
Refer to “Component Inspection”,AT-221, "
Component Inspection".
–Harness of terminal cord assembly for short or open Voltage:Batteryvoltage
Voltage:Batteryvoltage
SCIA0736E
Resistance
:Cold [20°C(68°F)]
Approximately 2.5 kW
SCIA0737E

AT-232
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On
ECS004SU
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
whenturningignitionswitchto“ON”.
1.CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to “OFF” position.
4. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GOTO2
NG >> Check the following items:
lHarness for short or open between ignition switch and
TCM terminals 10, 19 and 28 (Main harness).
lRefer toAT-389, "Wiring Diagram—AT—MAIN".
lIgnition switch and fuse Refer toPG-2, "POWER SUPPLY ROUTING".
2.CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GOTO3
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Refer toAT-389, "
Wiring Dia-
gram—AT—MAIN".
SCIA0765E
Voltage : Battery voltage
Voltage : Battery voltage
SCIA0713E
Continuity should exist.
SCIA0766E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-233
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK LAMP CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Check resistance between TCM terminals 13 and 10, 19.
3. Reinstall any part removed.
OK or NG
OK >> GOTO4
NG >> Check the following items:
lO/D OFF indicator lamp.
Refer toDI-10, "
Meter/Gauge Operation and Odo/Trip
Meter Segment Check in Diagnosis Mode",
“METERS AND GAUGES”.
lHarness and fuse for short or open between ignition
switch and O/D OFF indicator lamp (Main harness)
Refer toPG-2, "
POWER SUPPLY ROUTING".
lHarness for short or open between O/D OFF indicator lamp and TCM.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
2. Engine Cannot Be Started In “P” and “N” PositionECS004SV
SYMPTOM:
lEngine cannot be started with selector lever in “P” or “N” position.
lEngine can be started with selector lever in “D”, “2”, “1” or “R” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Wi th ou t C O N S U LT-I I
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to “21. TCM Self-diag-
nosis Does Not Activate (PNP& Overdrive Control
switches, and Throttle Position sensor Circuit Checks)”,
AT-260, "
21. TCM Self-diagnosis Does Not Activate
(PNP & Overdrive Control Switches, and Throttle Posi-
tion Sensor Circuit Checks)".

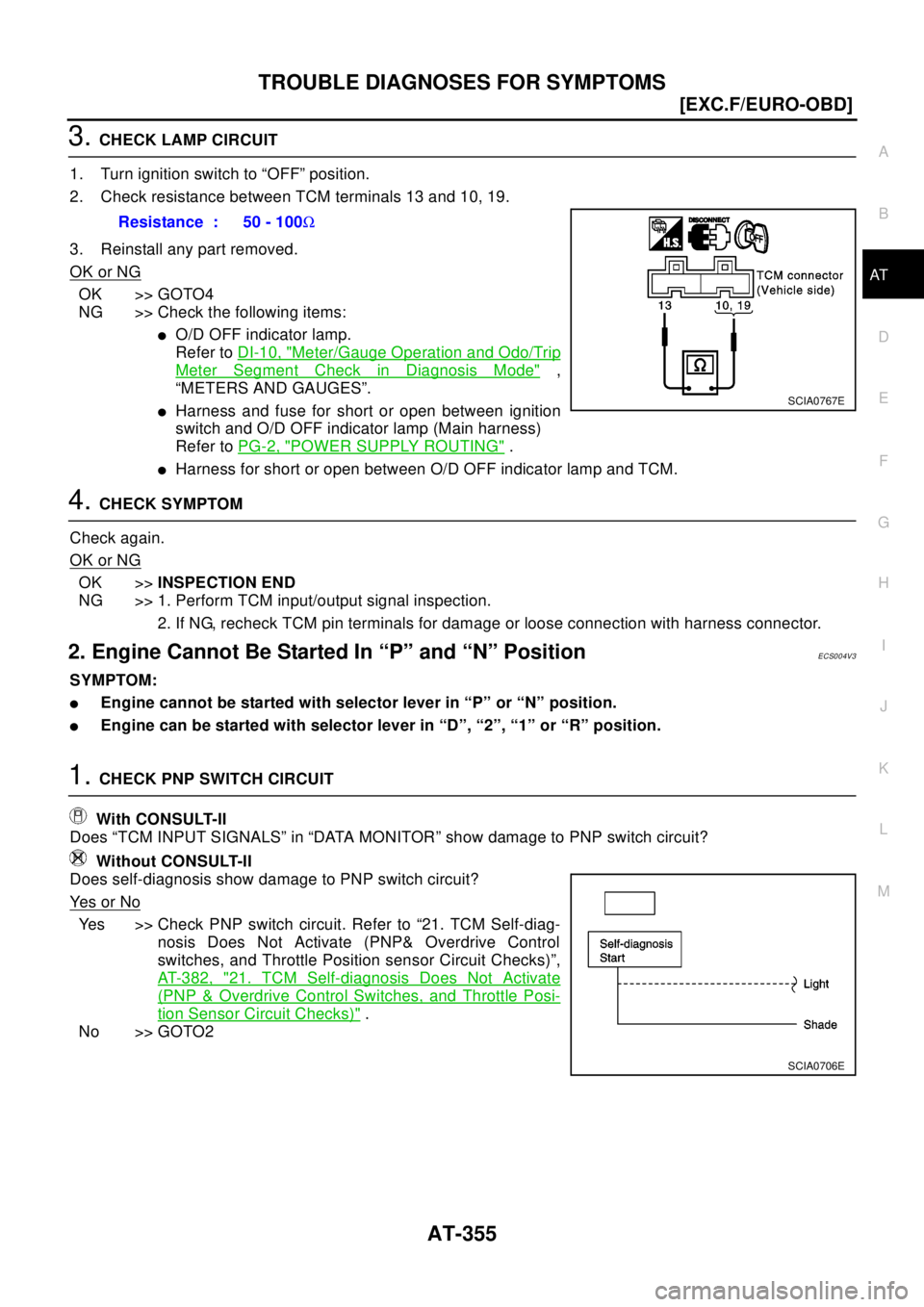

No >> GOTO2Resistance : 50 - 100W
SCIA0767E
SCIA0706E

AT-354
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On
ECS004V2
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
whenturningignitionswitchto“ON”.
1.CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to “OFF” position.
4. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GOTO2
NG >> Check the following items:
lHarness for short or open between ignition switch and
TCM terminals 10, 19 and 28 (Main harness).
lRefer toAT-389, "Wiring Diagram—AT—MAIN".
lIgnition switch and fuse Refer toPG-2, "POWER SUPPLY ROUTING".
2.CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GOTO3
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Refer toAT-389, "
Wiring Dia-
gram—AT—MAIN".
SCIA0765E
Voltage : Battery voltage
Voltage : Battery voltage
SCIA0713E
Continuity should exist.
SCIA0766E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-355
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK LAMP CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Check resistance between TCM terminals 13 and 10, 19.
3. Reinstall any part removed.
OK or NG
OK >> GOTO4
NG >> Check the following items:
lO/D OFF indicator lamp.
Refer toDI-10, "
Meter/Gauge Operation and Odo/Trip
Meter Segment Check in Diagnosis Mode",
“METERS AND GAUGES”.
lHarness and fuse for short or open between ignition
switch and O/D OFF indicator lamp (Main harness)
Refer toPG-2, "
POWER SUPPLY ROUTING".
lHarness for short or open between O/D OFF indicator lamp and TCM.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
2. Engine Cannot Be Started In “P” and “N” PositionECS004V3
SYMPTOM:
lEngine cannot be started with selector lever in “P” or “N” position.
lEngine can be started with selector lever in “D”, “2”, “1” or “R” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Wi th ou t C O N S U LT-I I
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to “21. TCM Self-diag-
nosis Does Not Activate (PNP& Overdrive Control
switches, and Throttle Position sensor Circuit Checks)”,
AT-382, "
21. TCM Self-diagnosis Does Not Activate
(PNP & Overdrive Control Switches, and Throttle Posi-
tion Sensor Circuit Checks)".
No >> GOTO2Resistance : 50 - 100W
SCIA0767E
SCIA0706E

MAIN POWER SUPPLY AND GROUND CIRCUIT
AT-391
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.DETECT MALFUNCTIONING ITEM
Check the following items:
lHarness for short or open between ignition switch and TCM terminals 10, 19 and 28 (Main harness)
lFuse
lIgnition switch
Refer to "PG-2, "
POWER SUPPLY ROUTING"", “POWER SUPPLY ROUTING”.
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4.CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground. Refer to wiring diagram — AT — MAIN.
If OK, check harness for short to ground and short to power.
OK or NG
OK >>INSPECTION END
NG >> Repair open circuit or short to ground or short to power in harness or connectors.Continuity should exist.

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-429
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

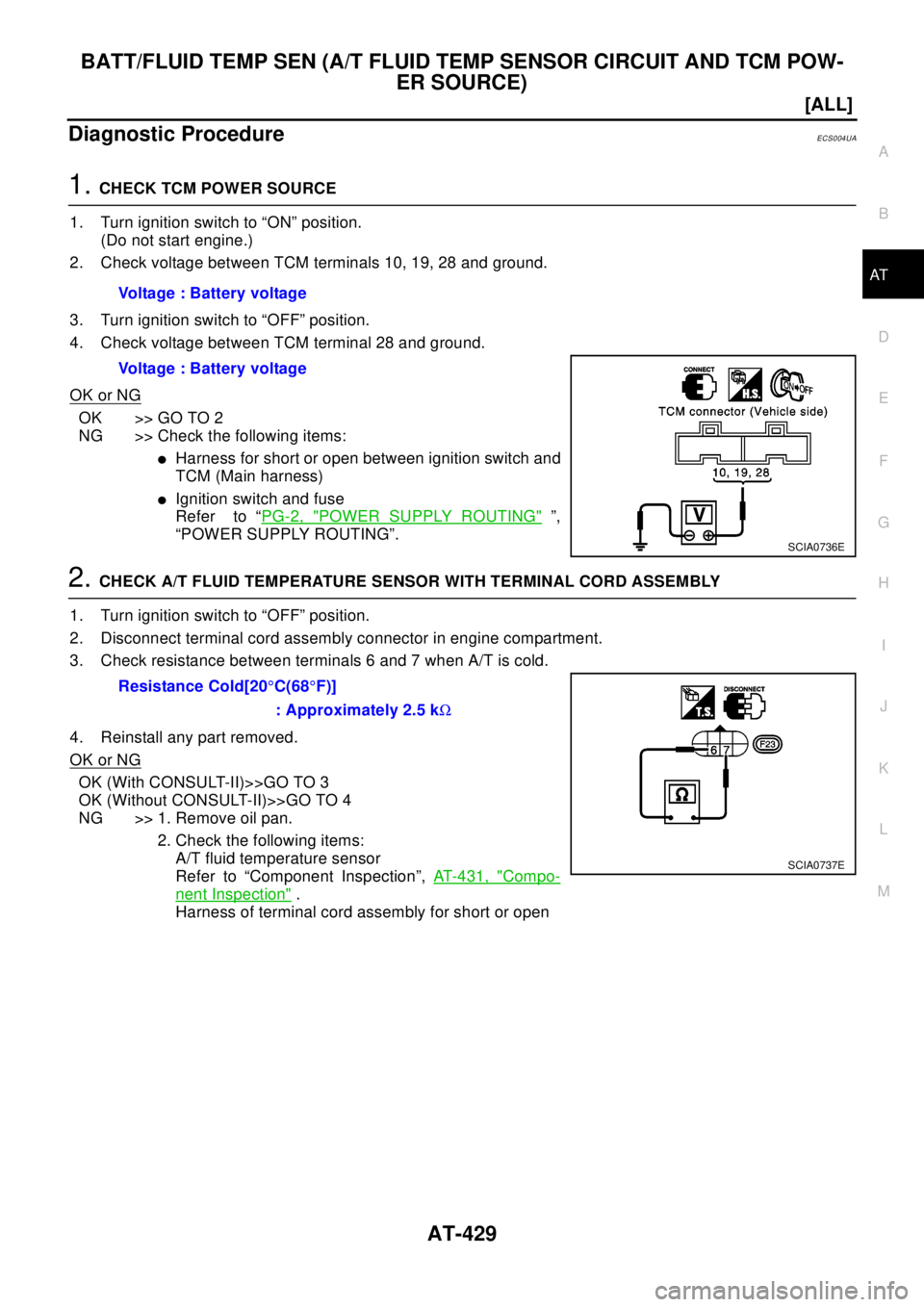

Diagnostic ProcedureECS004UA
1.CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to “OFF” position.
4. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GO TO 2
NG >> Check the following items:
lHarness for short or open between ignition switch and
TCM (Main harness)
lIgnition switch and fuse
Refer to “PG-2, "
POWER SUPPLY ROUTING"”,
“POWER SUPPLY ROUTING”.
2.CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when A/T is cold.
4. Reinstall any part removed.
OK or NG
OK (With CONSULT-II)>>GO TO 3
OK (Without CONSULT-II)>>GO TO 4
NG >> 1. Remove oil pan.
2. Check the following items:
A/T fluid temperature sensor
Refer to “Component Inspection”,AT-431, "
Compo-
nent Inspection".
Harness of terminal cord assembly for short or open Voltage:Batteryvoltage
Voltage:Batteryvoltage
SCIA0736E
Resistance Cold[20°C(68°F)]
: Approximately 2.5 kW
SCIA0737E

AT-448
[ALL]
A/T SHIFT LOCK SYSTEM
Diagnostic Procedure
ECS00408
SYMPTOM 1:
lSelector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.
lSelector lever can be moved from “P” position with key in ON position and brake pedal released.
lSelector lever can be moved from “P” position when key is removed from key cylinder.
SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to “P” position. It can be removed when
selector lever is set to any position except “P”.
1.CHECKKEYINTERLOCKCABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2
NG >> Repair key interlock cable. Refer toAT - 4 5 2 , "
KEY INTERLOCK CABLE".
2.CHECK SELECTOR LEVER POSITION
Check selector lever position for damage.
OK or NG
OK >> GO TO 3
NG >> Check selector lever. Refer toAT - 4 5 6 , "
Park/Neutral Position (PNP) Switch Adjustment".
3.CHECK POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between stop lamp switch harness terminal 1 and ground.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
1. Harness for short or open between battery and stop
lamp switch harness terminal 1
2. Fuse
3. Ignition switch (Refer toPG-2, "
POWER SUPPLY
ROUTING".) Voltage : Battery voltageSCIA0782E
