: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS0122F
DTC Confirmation ProcedureEBS0122G
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II

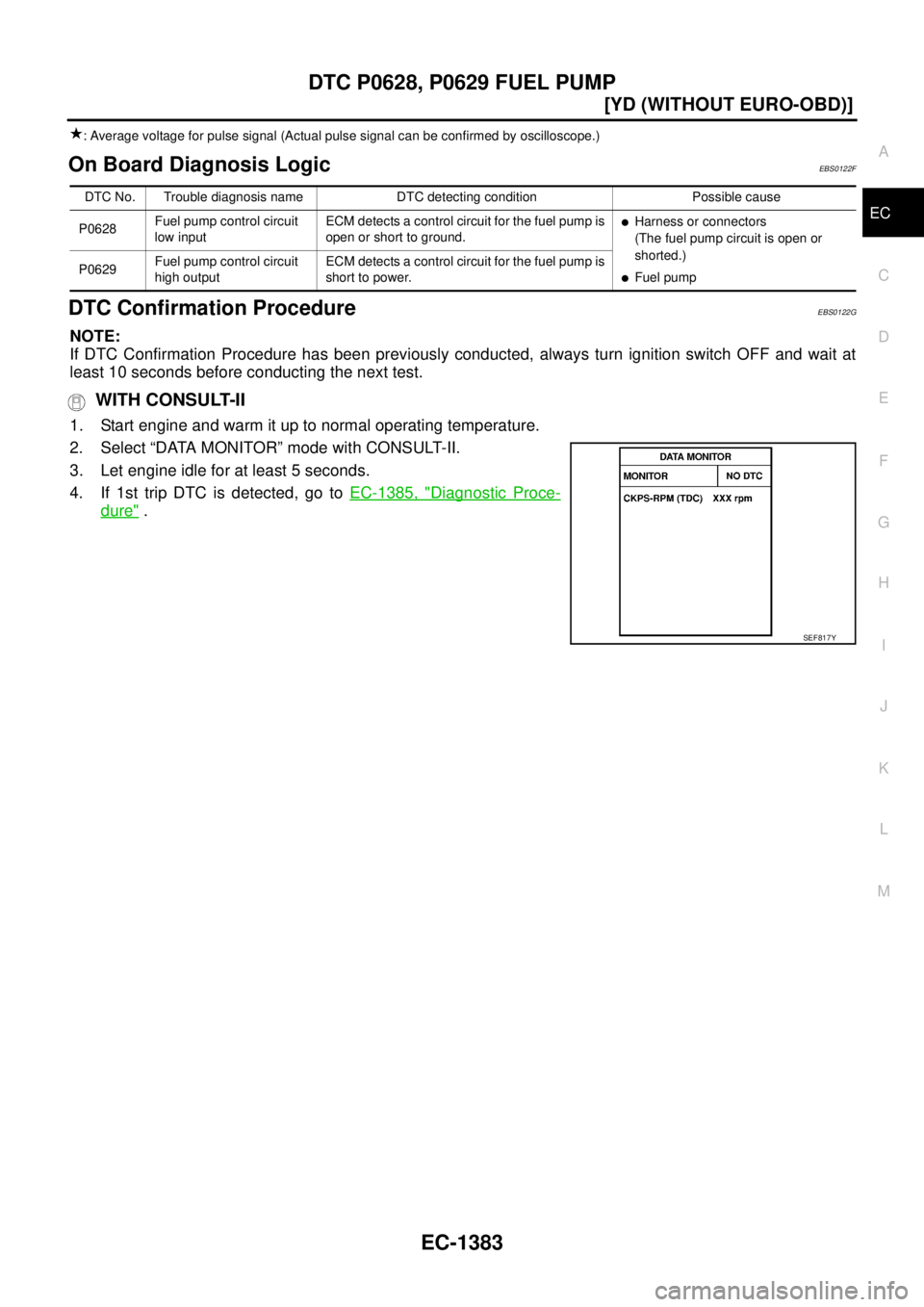

1. Start engine and warm it up to normal operating temperature.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Let engine idle for at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1385, "
Diagnostic Proce-
dure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0628Fuel pump control circuit
low inputECM detects a control circuit for the fuel pump is
open or short to ground.

Harness or connectors
(The fuel pump circuit is open or
shorted.)

Fuel pump P0629Fuel pump control circuit
high outputECM detects a control circuit for the fuel pump is
short to power.
SEF817Y

EC-1384
[YD (WITHOUT EURO-OBD)]
DTC P0628, P0629 FUEL PUMP

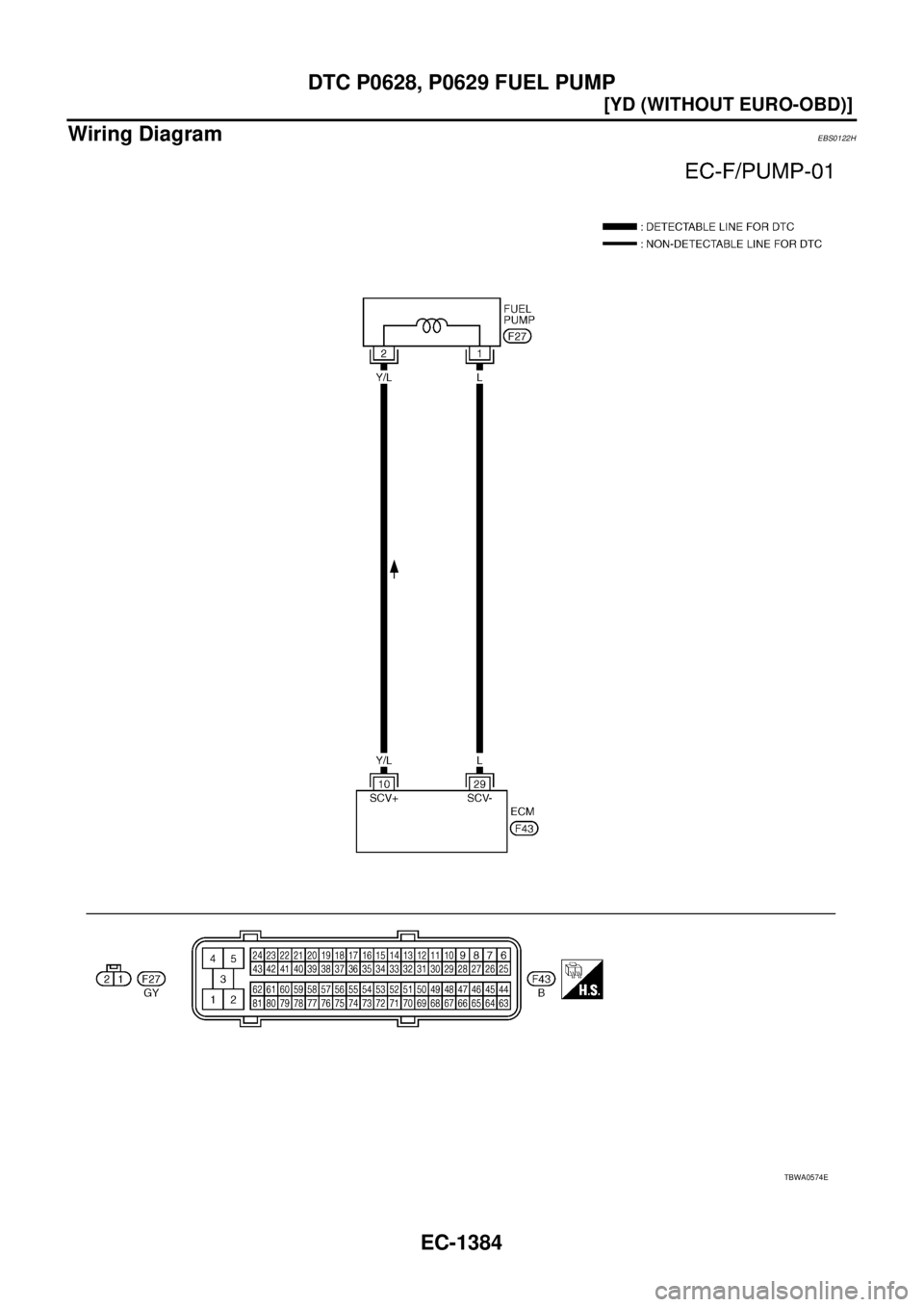

Wiring DiagramEBS0122H
TBWA0574E

DTC P0628, P0629 FUEL PUMP
EC-1385
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS0122I
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connector.
3. Check harness continuity between ECM terminal 10 and fuel pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL PUMP
Refer to EC-1386, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1221, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB1943E
Continuity should exist.
Continuity should exist.

EC-1386
[YD (WITHOUT EURO-OBD)]
DTC P0628, P0629 FUEL PUMP

Component InspectionEBS0122J
FUEL PUMP

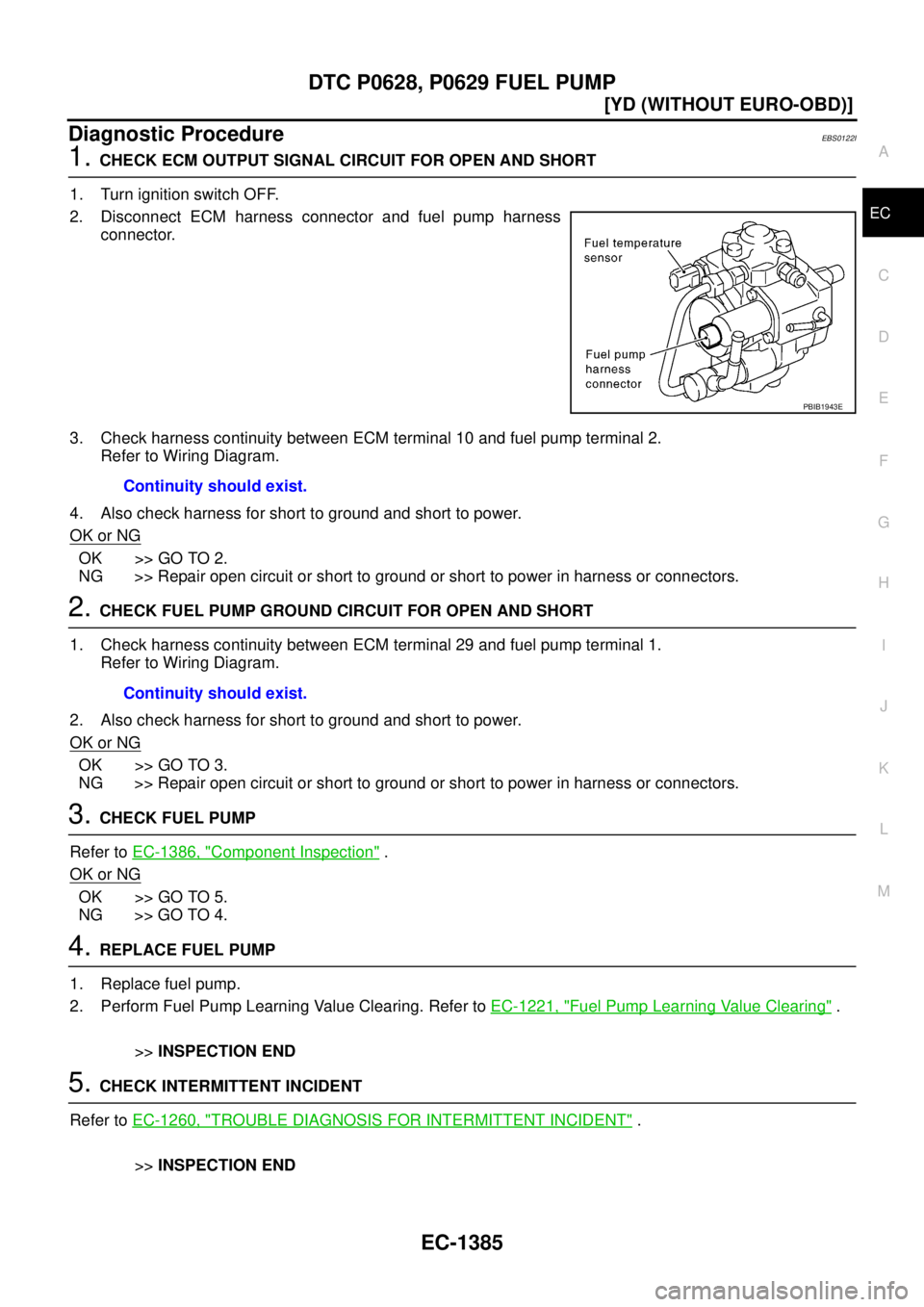

1. Check continuity between fuel supply pump terminals 1 and 2.
2. If NG, replace fuel pump.
Removal and InstallationEBS0122K
FUEL PUMP
Refer to EM-161, "FUEL PUMP" . Continuity should exist.
SEF807Z

DTC P0642, P0643 SENSOR POWER SUPPLY
EC-1387
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0642, P0643 SENSOR POWER SUPPLYPFP:18002
DescriptionEBS0122L
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.
CONSULT-II Reference Value in Data Monitor ModeEBS0122M
Specification data are reference values.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.
ECM Terminals and Reference ValueEBS0122N
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
83 WAccelerator pedal position
sensor 1[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed4.2 - 5.2V
84 RAccelerator pedal position
sensor 1 ground[Ignition switch ON]Approximately 0.3V
85 —Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)[Ignition switch ON]Approximately 0.3V
90 LAccelerator pedal position
sensor 2 power supply[Ignition switch ON]Approximately 5.3V

EC-1388
[YD (WITHOUT EURO-OBD)]
DTC P0642, P0643 SENSOR POWER SUPPLY

On Board Diagnosis LogicEBS0122O
The MI will not light up for these self-diagnoses.
DTC Confirmation ProcedureEBS0122P
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1390, "
Diagnostic Proce-
dure" .
91 GAccelerator pedal position
sensor 2[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 0.7V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed2.2 - 2.7V
92 YAccelerator pedal position
sensor 2 ground[Ignition switch ON]Approximately 0.3V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0642Accelerator pedal position
sensor 1 power supply cir-
cuit lowECM detects a voltage of power source for the
APP sensor 1 is excessively low.

Harness or connectors
(The APP sensor 1 power supply cir-
cuit is open or shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 1) P0643Accelerator pedal position
sensor 1 power supply cir-
cuit highECM detects a voltage of power source for the
APP sensor 1 is excessively high.
SEF817Y

DTC P0642, P0643 SENSOR POWER SUPPLY
EC-1389
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

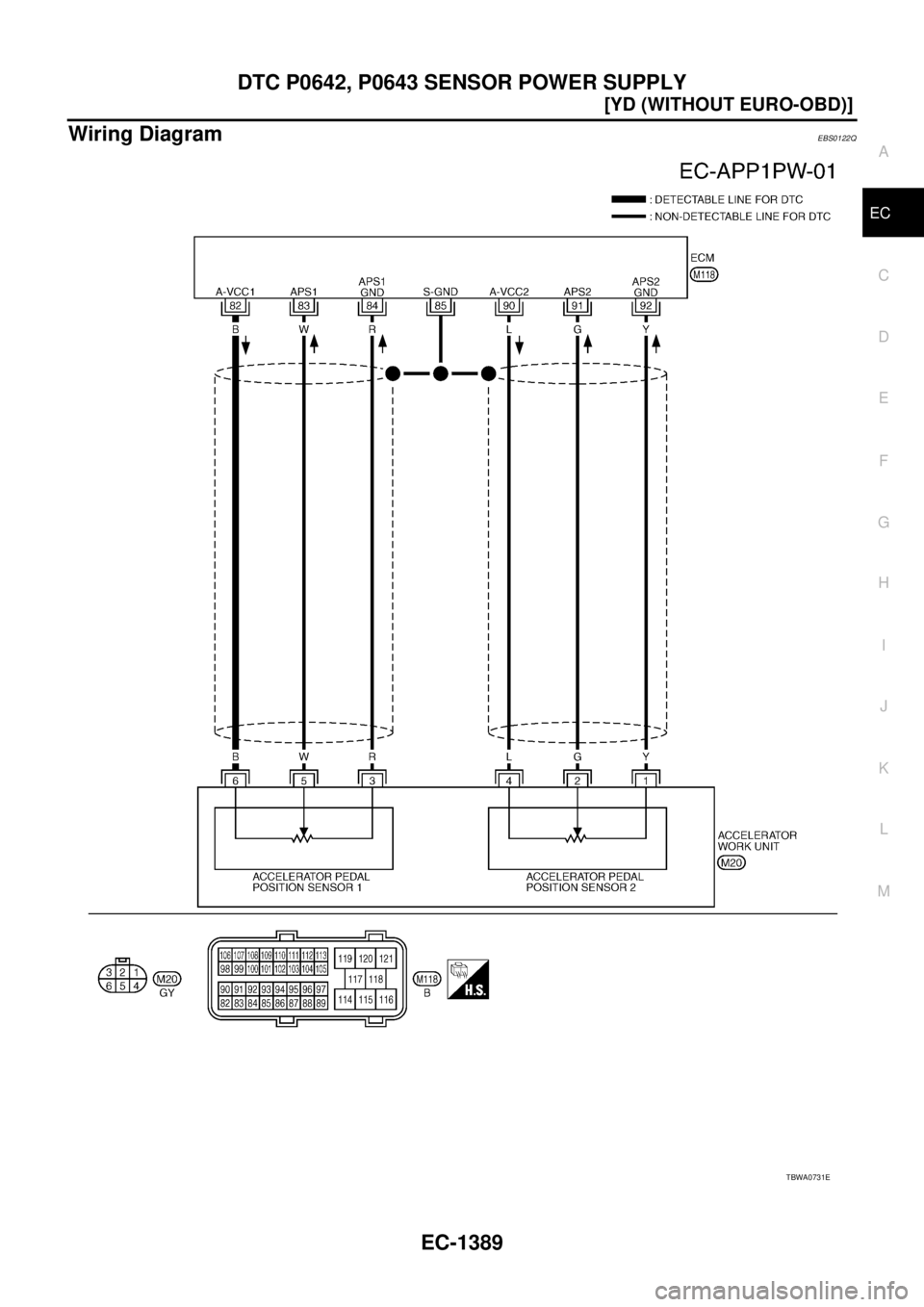

Wiring DiagramEBS0122Q
TBWA0731E

EC-1390
[YD (WITHOUT EURO-OBD)]
DTC P0642, P0643 SENSOR POWER SUPPLY

Diagnostic ProcedureEBS0122R
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-1267, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

DTC P0642, P0643 SENSOR POWER SUPPLY
EC-1391
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

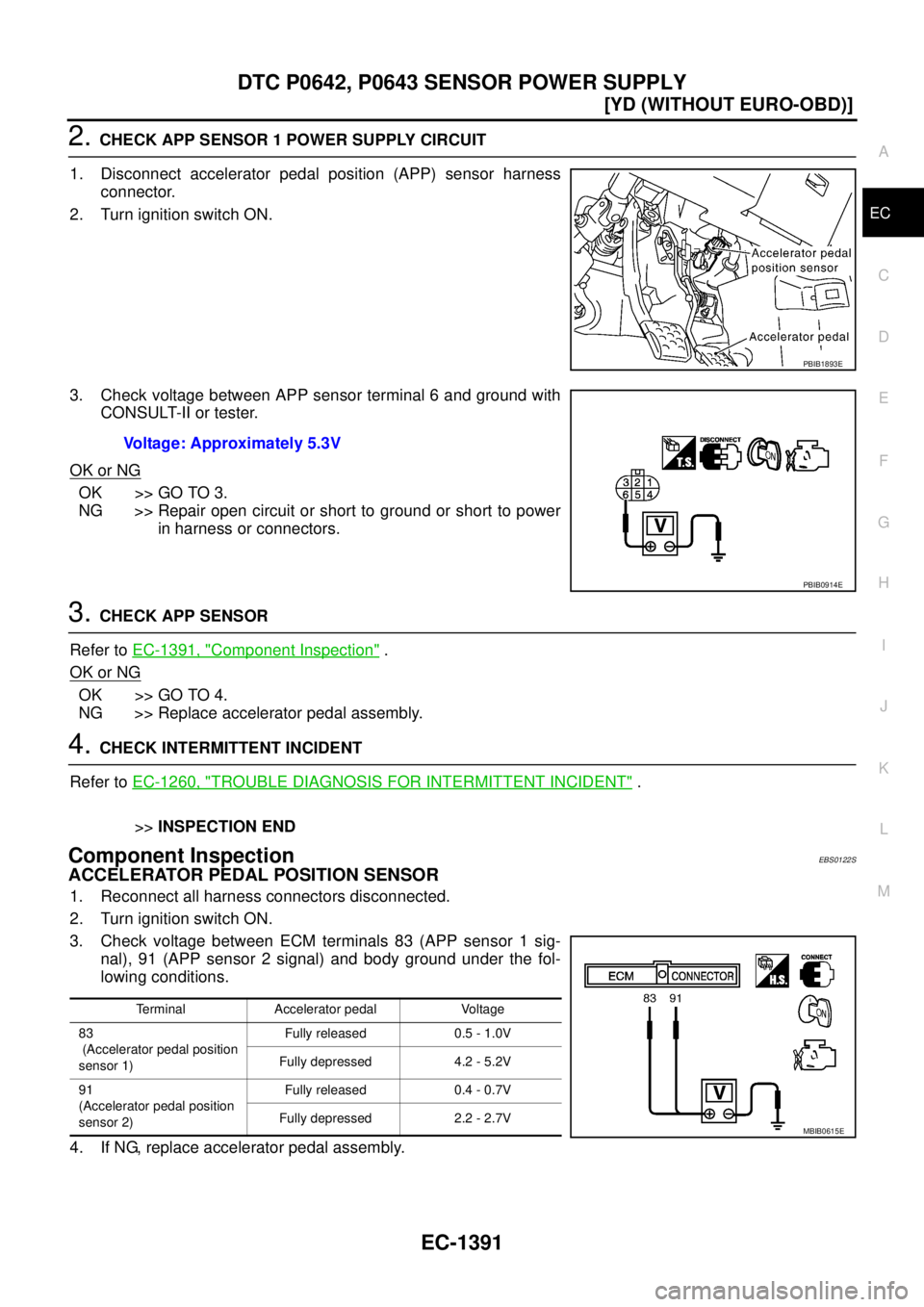

1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR
Refer to EC-1391, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace accelerator pedal assembly.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS0122S
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.
4. If NG, replace accelerator pedal assembly.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0914E
Terminal Accelerator pedal Voltage
83
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 4.2 - 5.2V
91
(Accelerator pedal position
sensor 2)Fully released 0.4 - 0.7V
Fully depressed 2.2 - 2.7V
MBIB0615E

EC-1392
[YD (WITHOUT EURO-OBD)]
DTC P0642, P0643 SENSOR POWER SUPPLY

Removal and InstallationEBS0122T
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
