DTC P1268 - P1271 FUEL INJECTOR
EC-1413
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

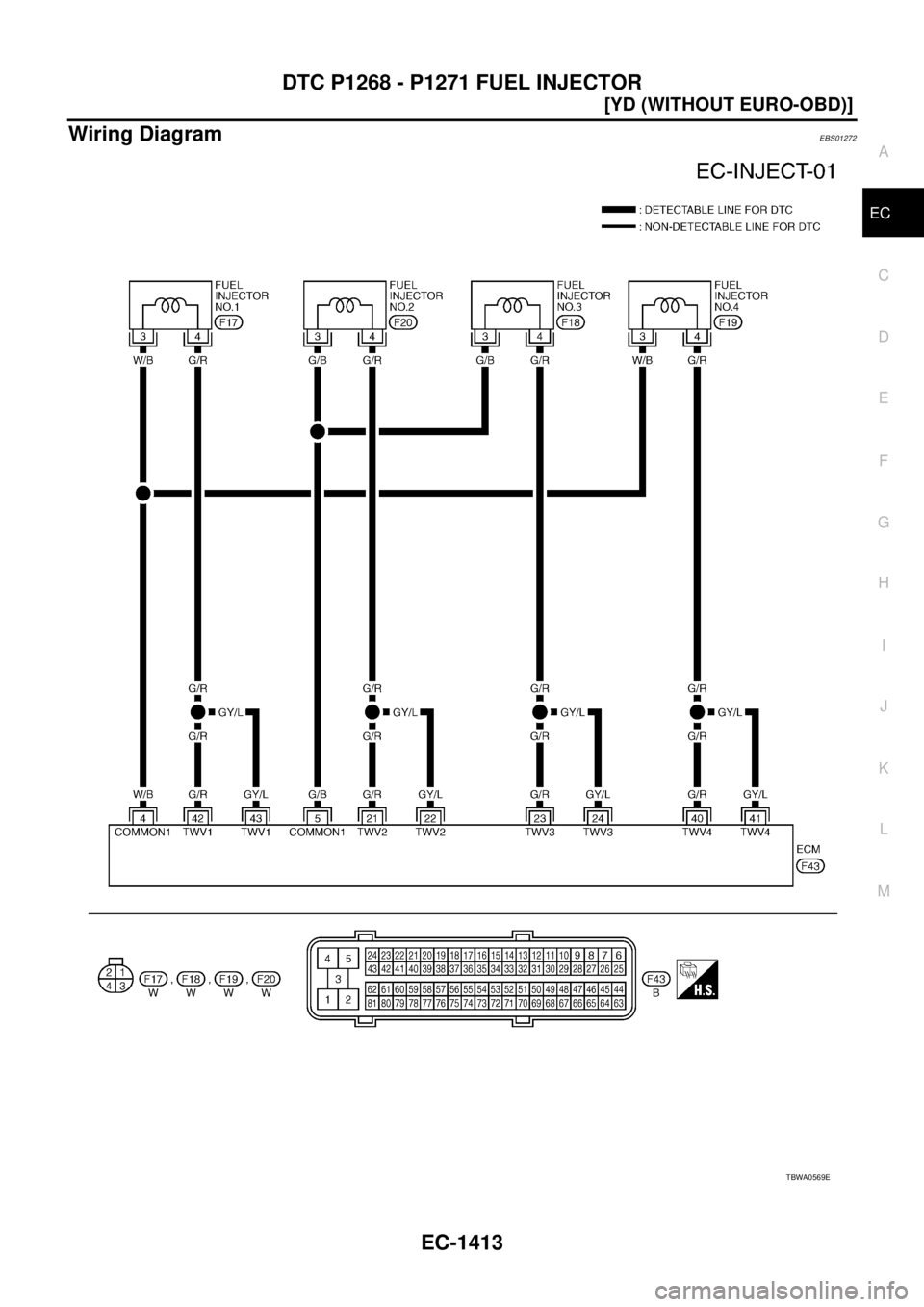

Wiring DiagramEBS01272
TBWA0569E

EC-1414
[YD (WITHOUT EURO-OBD)]
DTC P1268 - P1271 FUEL INJECTOR

Diagnostic ProcedureEBS01273
1. CHECK FUEL INJECOR POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect fuel injector harness connector.
4. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between the following terminals corresponding to the malfunctioning cylinder.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL INJECTOR-I
Refer to EC-1415, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel injector.
DTCTerminal
Cylinder
ECM Fuel injector
P1268 4 3 No.1
P1269 5 3 No.2
P1270 5 3 No.3
P1271 4 3 No.4
Continuity should exist.
PBIB1896E
DTCTerminal
Cylinder
ECM Fuel injector
P1268 42, 43 4 No.1
P1269 21, 22 4 No.2
P1270 23, 24 4 No.3
P1271 40, 41 4 No.4
Continuity should exist.

DTC P1268 - P1271 FUEL INJECTOR
EC-1415
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK FUEL INJECTOR-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select “SELF DIAG RESULTS” mode with CONSULT-II.
6. Touch “ERASE”.
7. Perform EC-1412, "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
Ye s o r N o
>> If DTC is not detected, go to next step.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01274
FUEL INJECTOR
1. Disconnect fuel injector.
2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS01275
FUEL INJECTOR
Refer to EM-157, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
PBIB0406E

EC-1416
[YD (WITHOUT EURO-OBD)]
DTC P1272 FUEL PUMP

DTC P1272 FUEL PUMPPFP:16700
DescriptionEBS0123R
When the fuel pressure in fuel rail increases to excessively high, fuel
pressure relief valve opens to carry excess fuel to the return hose.
CONSULT-II Reference Value in Data Monitor ModeEBS012AN
Specification data are reference values.
ECM Terminals and Reference ValueEBS012AO
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1900E
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
10 Y/L Fuel pump power supply[Engine is running]

Warm-up condition

Idle speed0 - 12.5V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 12.5V
MBIB0885E
MBIB0886E

DTC P1272 FUEL PUMP
EC-1417
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS0123S
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS0123T
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and keep engine speed more than 4,000 rpm for at
least 5 seconds, then release the accelerator pedal.
4. If 1st trip DTC is detected, go to EC-1419, "
Diagnostic Proce-
dure" .
29 L Fuel pump[Engine is running]

Warm-up condition

Idle speed0.5 - 1.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0.5 - 1.0V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0887E
MBIB0888E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1272Fuel rail pressure relief
valve openFuel rail pressure relief valve is open
because of fuel pressure control system mal-
function.

Harness or connectors
(Fuel pump circuit is open or shorted.)

Fuel pump

Fuel rail pressure sensor

Air mixed with fuel

Lack of fuel

Fuel transport pump operation
SEF817Y

EC-1418
[YD (WITHOUT EURO-OBD)]
DTC P1272 FUEL PUMP

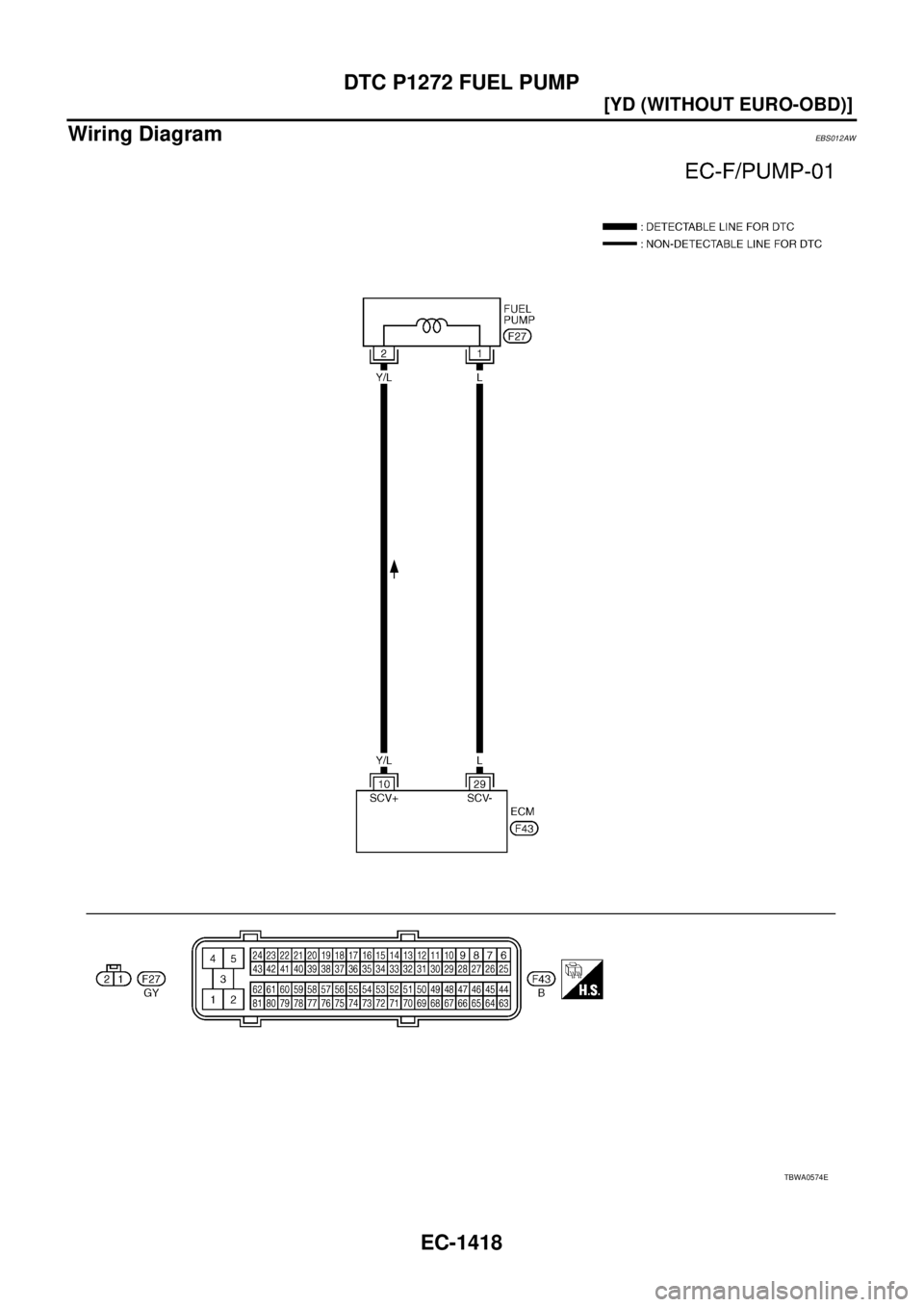

Wiring DiagramEBS012AW
TBWA0574E

DTC P1272 FUEL PUMP
EC-1419
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS0123U
1. CHECK FUEL TRANSPORT PUMP OPERATION
Perform Diagnostic Procedure for fuel transport pump. Refer to EC-1491
.
OK or NG
OK >> GO TO 2.
NG >> Follow the instruction of Diagnostic Procedure for fuel transport pump.
2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-1221, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1417, "
DTC Confirmation Procedure" , again.
7. Is DTC detected again?
Ye s o r N o
Ye s > > G O T O 3 .
No >>INSPECTION END
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1943E
Continuity should exist.

EC-1420
[YD (WITHOUT EURO-OBD)]
DTC P1272 FUEL PUMP

4. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK FUEL PUMP
Refer to EC-1420, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. CHECK FUEL RAIL PRESSURE SENSOR
Refer to EC-1312, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace fuel rail.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1221, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
Component InspectionEBS012AP
FUEL PUMP
1. Check continuity between fuel supply pump terminals 1 and 2.
2. If NG, replace fuel pump.
Removal and InstallationEBS0123W
FUEL RAIL
Refer to EM-157, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
Continuity should exist.
SEF807Z

DTC P1272 FUEL PUMP
EC-1421
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

FUEL PUMP
Refer to EM-161, "FUEL PUMP" .
