ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-45
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “ENGINE” for EURO-OBD
detected items or touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" . If
result is NG, refer to PG-2, "
POWER SUPPLY ROUTING" .
2. Touch “SELF DIAGNOSIS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “real time diagnosis”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SELF-DIAGNOSTIC RESULT TEST MODE
SAT014K
SAT987J
Items (CONSULT-II screen terms) Malfunction is detected when... EURO-OBD (DTC)
CAN COMM CIRCUIT

Malfunction is detected in CAN communication line. U1000
VHCL SPEED SEN·A/T

TCM does not receive the proper voltage signal from the sensor.P0720
VHCL SPEED SEN·MTR—
THROTTLE POSI SEN

TCM receives an excessively low or high voltage from this sensor P1705
SHIFT SOLENOID/V A

TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.P0750
SHIFT SOLENOID/V B

TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.P0755
OVERRUN CLUTCH S/V

TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.P1760
T/C CLUTCH SOL/V

TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.P0740
ATF TEMP SEN/CIRC

TCM receives an excessively low or high voltage from the sensor.P0710
BATT/FLUID TEMP SEN—
ENGINE SPEED SIG

TCM does not receive the proper voltage signal from the ECM. P0725
A/T 1ST GR FNCTN

A/T cannot be shifted to the 1st gear position even if electrical circuit is
good.P0731*1
A/T 2ND GR FNCTN

A/T cannot be shifted to the 2nd gear position even if electrical circuit is
good.P0732*1
A/T 3RD GR FNCTN

A/T cannot be shifted to the 3rd gear position even if electrical circuit is
good.P0733*1
A/T 4TH GR FNCTN

A/T cannot be shifted to the 4th gear position even if electrical circuit is
good.P0734*1
LINE PRESSURE S/V

TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.P0745
CONTROL UNIT (RAM)

TCM memory (RAM) is malfunctioning —
CONTROL UNIT (ROM)

TCM memory (ROM) is malfunctioning —

AT-46
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*1: These malfunctions cannot be displayed by MIL if another malfunction is assigned to lamp MIL.
DATA MONITOR MODE (A/T)
X: Standard, —: Not applicable, : Option CONT UNIT(EEP ROM)

TCM memory (EEP ROM) is malfunctioning. —
PNP SW/CIRC

TCM does not receive the correct voltage signal (based on the gear
position) from the switch.P0705
INITIAL START

This is not a malfunction message (Whenever shutting off a power sup-
ply to the TCM, this message appears on the screen).—
No failure
(NO SELF DIAGNOSTIC FAILURE
INDICATED FURTHER TESTING
MAY BE REQUIRED)

No failure has been detected. — Items (CONSULT-II screen terms) Malfunction is detected when... EURO-OBD (DTC)
Monitor item (Unit)SELECT MONITOR ITEM
Remarks
TCM INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION FROM
MENU
VHCL/S SE·A/T (km/h) X — Revolution sensor
VHCL/S SE·MTR (km/h) X —Vehicle speed display may not be accu-
rate under approx. 10 km/h (6 mph). It
may not indicate 0 km/h (0 mph) when
vehicle is stationary.
THRTL POS SEN (V) X —
FLUID TEMP SE (V) X —
BATTERY VOLT (V) X —
ENGINE SPEED (rpm) X X
TURBINE REV (rpm) X —
OVERDRIVE SW (ON/OFF) X —
PN POSI SW (ON/OFF) X —
R POSITION SW (ON/OFF) X —
D POSITION SW (ON/OFF) X —
2 POSITION SW (ON/OFF) X —
1 POSITION SW (ON/OFF) X —
ASCD·CRUISE (ON/OFF) X —
Signal input with CAN communication.
ACC OD CUT (ON/OFF) X —
KICKDOWN SW (ON/OFF) X —
Not mounted but displayed.
POWERSHIFT SW (ON/OFF) X —
CLOSED THL/SW (ON/OFF) X —
Signal input with CAN communication.
W/O THRL/P-SW (ON/OFF) X —
*SHIFT S/V A (ON/OFF) — —
Displays status of check signal (reinput
signal) for TCM control signal output.
Remains unchanged when solenoid
valves are open or shorted. *SHIFT S/V B (ON/OFF) — —
*OVERRUN/C S/V (ON/OFF) — —
HOLD SW (ON/OFF) X — Not mounted but displayed.
BRAKE SW (ON/OFF) X — Stop lamp switch

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-47
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC WORK SUPPORT MODE WITH CONSULT-II

For details, refer to the separate “CONSULT-II Operations Manual”.
CONSULT-II Setting Procedure
1. Turn ignition switch “OFF”.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, which is located in instrument lower panel on
driver side.
GEAR — XGear position recognized by the TCM
updated after gear-shifting
SLCT LVR POSI — XSelector lever position is recognized by
the TCM.
For fail-safe operation, the specific value
used for control is displayed.
VEHICLE SPEED (km/h) — X Vehicle speed recognized by the TCM.
THROTTLE POSI (0.0/8) — XDegree of opening for accelerator recog-
nized by the TCM
For fail-safe operation, the specific value
used for control is displayed.
LINE PRES DTY (%) — X
TCC S/V DUTY (%) — X
SHIFT S/V A (ON/OFF) — X
SHIFT S/V B (ON/OFF) — X
OVERRUN/C S/V (ON/OFF) — X
SELF-D DP LMP (ON/OFF) — X
TC SLIP RATIO (0.000) — —
TC SLIP SPEED (rpm) — —Difference between engine speed and
torque converter input shaft speed
Voltage (V) — —Displays the value measured by the volt-
age probe.
Frequency (Hz) — —
The value measured by the pulse probe
is displayed. DUTY·HI (high) (%) — —
DUTY·LOW (low) (%) — —
PLS WIDTH·HI (ms) — —
PLS WIDTH·LOW (ms) — —Monitor item (Unit)SELECT MONITOR ITEM
Remarks
TCM INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION FROM
MENU
SCIA0691E

AT-48
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

3. Turn ignition switch “ON”. (Do not start engine.)
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “A/T”.
If “A/T” is not indicated, go to GI-35, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
6. Touch “DTC WORK SUPPORT”.
7. Touch select item menu (1ST, 2ND, etc.).
SCIA0692E
SAIA0450E
SAT014K
SCIA5358E
SAT018K

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-49
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

8. Touch “START”.
9. Perform driving test according to “DTC Confirmation Procedure”
in “TROUBLE DIAGNOSIS FOR DTC”.

When testing conditions are satisfied, CONSULT-II screen
changes from “OUT OF CONDITION” to “TESTING”.
10. Stop vehicle.
SAT589J
SAT019K
SAT591J
SAT592J

AT-50
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION


If “NG” appears on the screen, malfunction may exist. Go
to “Diagnostic Procedure”.
11. Perform test drive to check gear shift feeling in accordance with
instructions displayed.
12. Touch “YES” or “NO”.
13. CONSULT-II procedure ended.
If “NG” appears on the screen, a malfunction may exist. Go to
“Diagnostic Procedure”.

If “NG” appears on the screen, a malfunction may exist.
Go to “Diagnostic Procedure”.
SAT593J
SAT594J
SAT595J
SAT596J
SAT593J

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-51
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC WORK SUPPORT MODE
DTC work support item Description Check items (Possible cause)
1ST GR FNCTN P0731Following items for “A/T 1st gear function (P0731)” can be con-
firmed.

Self-diagnosis status (whether the diagnosis is being conducted
or not)

Self-diagnosis result (OK or NG)

Shift solenoid valve A

Shift solenoid valve B

Each clutch

Hydraulic control circuit
2ND GR FNCTN P0732Following items for “A/T 2nd gear function (P0732)” can be con-
firmed.

Self-diagnosis status (whether the diagnosis is being conducted
or not)

Self-diagnosis result (OK or NG)

Shift solenoid valve B

Each clutch

Hydraulic control circuit
3RD GR FNCTN P0733Following items for “A/T 3rd gear function (P0733)” can be con-
firmed.

Self-diagnosis status (whether the diagnosis is being conducted
or not)

Self-diagnosis result (OK or NG)

Shift solenoid valve A

Each clutch

Hydraulic control circuit
4TH GR FNCTN P0734Following items for “A/T 4th gear function (P0734)” can be con-
firmed.

Self-diagnosis status (whether the diagnosis is being conducted
or not)

Self-diagnosis result (OK or NG)

Shift solenoid valve A

Shift solenoid valve B

Overrun clutch solenoid valve

Line pressure solenoid valve

Each clutch

Hydraulic control circuit

AT-52
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure Without CONSULT-IIECS004QN
EURO-OBD SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-112, "Generic Scan Tool (GST) Function" (WITH EURO-OBD).
EURO-OBD SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Refer toEC-64, "Malfunction Indicator (MI)" (WITH EURO-OBD) or EC-516, "Malfunction Indicator (MI)"
(WITHOUT EURO-OBD).
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
1. CHECK O/D OFF INDICATOR LAMP
1. Selector lever in P position.
2. Turn ignition switch to OFF position.
3. Wait 5 seconds.
4. Set overdrive control switch to ON position.
5. Turn ignition switch to ON position. (Do not start engine.)
Does O/D OFF indicator lamp come on for about 2 seconds?
YES >> GO TO 2.
NO >> Go to AT- 2 0 4 , "
O/D OFF Indicator Lamp Does Not
Come On" .
2. JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch to OFF position.
2. Move selector lever to D position.
3. Set overdrive control switch to OFF position.
4. Turn ignition switch to ON position. (Do not start engine.)
–Wait more than 2 seconds after turning ignition switch ON.
>> GO TO 3.
SAT774B
SCIA5468E
SAT653E

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

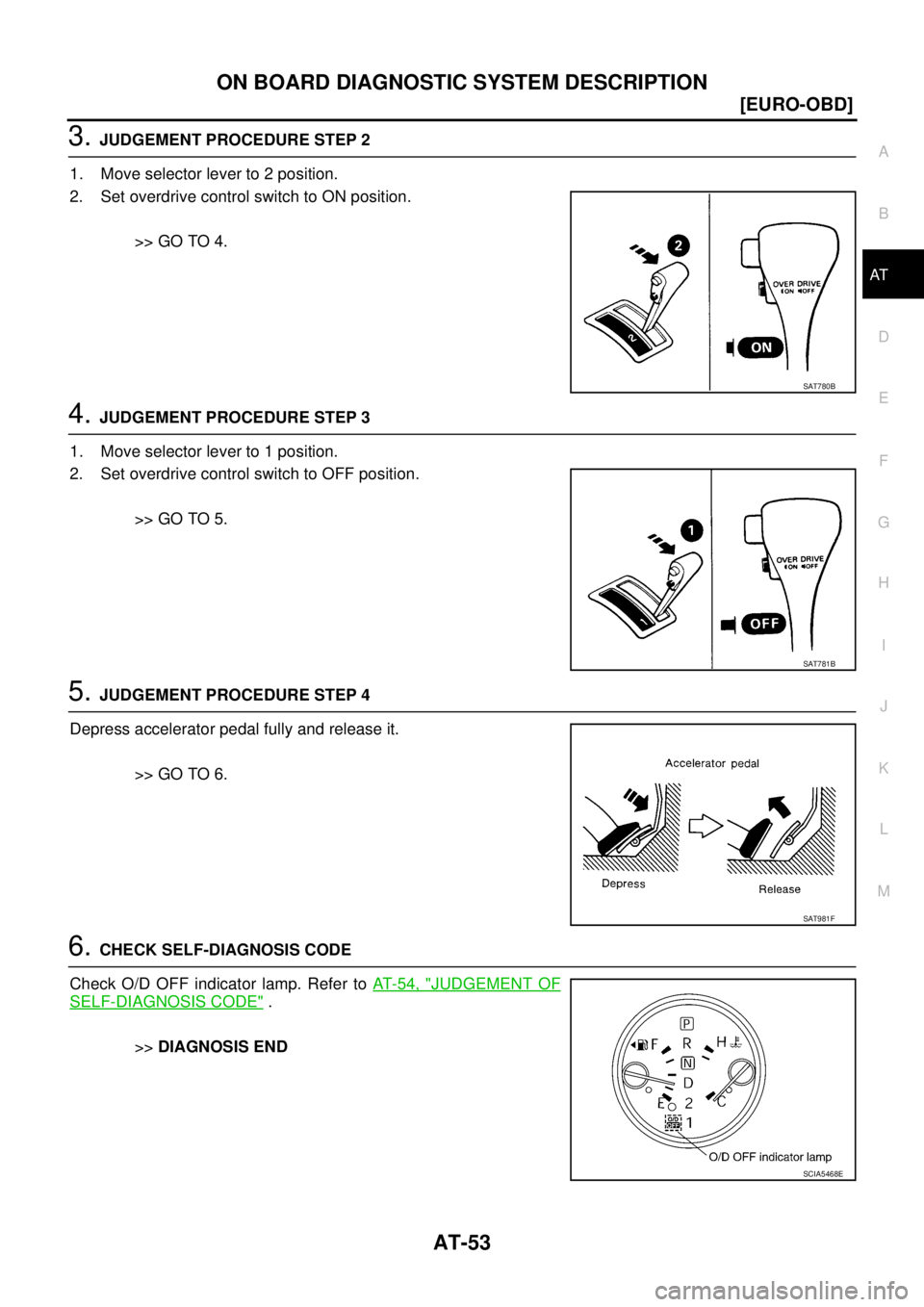

3. JUDGEMENT PROCEDURE STEP 2
1. Move selector lever to 2 position.
2. Set overdrive control switch to ON position.
>> GO TO 4.
4. JUDGEMENT PROCEDURE STEP 3
1. Move selector lever to 1 position.
2. Set overdrive control switch to OFF position.
>> GO TO 5.
5. JUDGEMENT PROCEDURE STEP 4
Depress accelerator pedal fully and release it.
>> GO TO 6.
6. CHECK SELF-DIAGNOSIS CODE
Check O/D OFF indicator lamp. Refer to AT- 5 4 , "
JUDGEMENT OF
SELF-DIAGNOSIS CODE" .
>>DIAGNOSIS END
SAT780B
SAT781B
SAT981F
SCIA5468E

AT-54
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

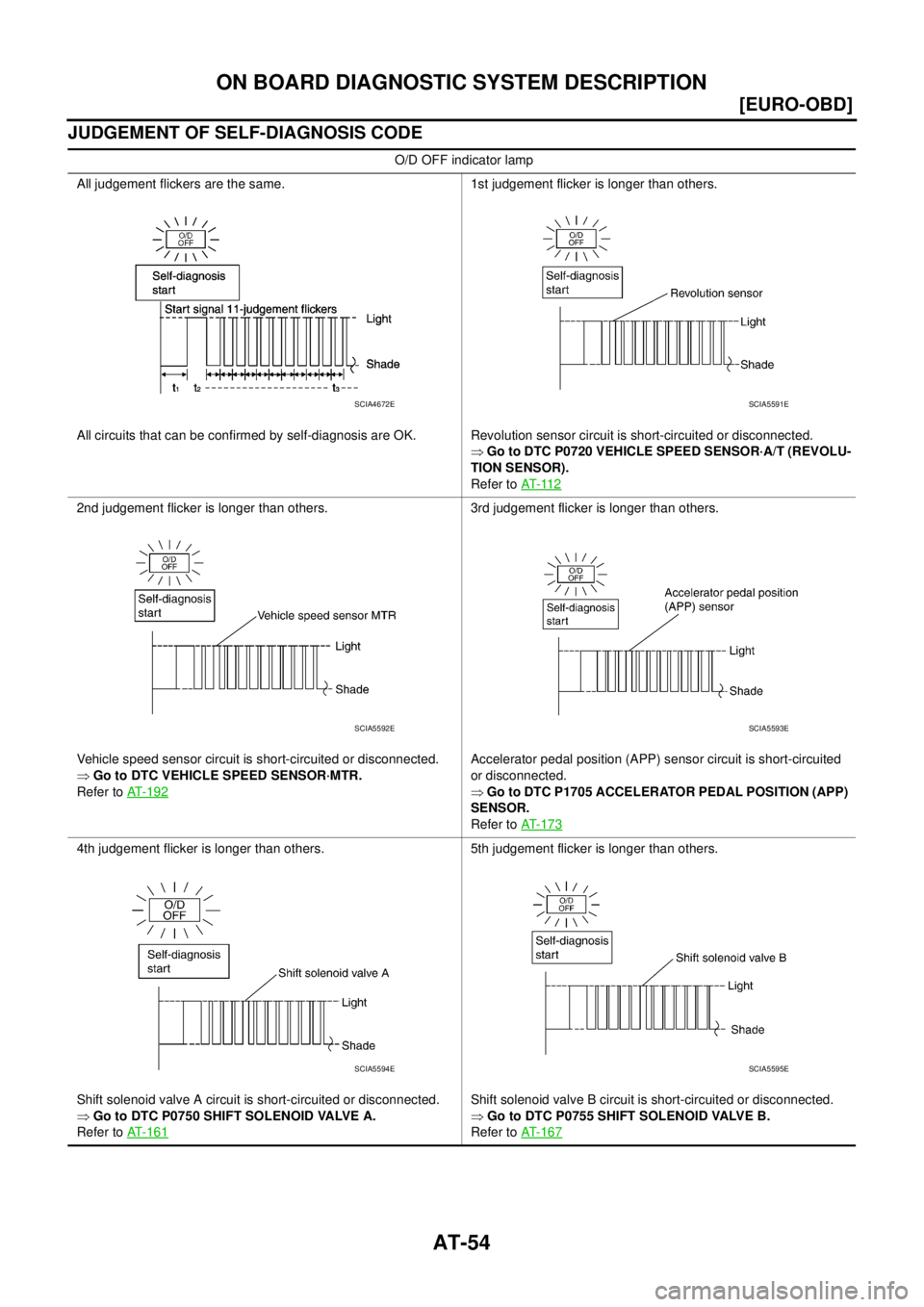

JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp
All judgement flickers are the same.
All circuits that can be confirmed by self-diagnosis are OK.1st judgement flicker is longer than others.
Revolution sensor circuit is short-circuited or disconnected.

Go to DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLU-
TION SENSOR).
Refer to AT- 11 2
2nd judgement flicker is longer than others.
Vehicle speed sensor circuit is short-circuited or disconnected.

Go to DTC VEHICLE SPEED SENSOR·MTR.
Refer to AT-1923rd judgement flicker is longer than others.
Accelerator pedal position (APP) sensor circuit is short-circuited
or disconnected.

Go to DTC P1705 ACCELERATOR PEDAL POSITION (APP)
SENSOR.
Refer to AT- 1 7 3
4th judgement flicker is longer than others.
Shift solenoid valve A circuit is short-circuited or disconnected.

Go to DTC P0750 SHIFT SOLENOID VALVE A.
Refer to AT-1615th judgement flicker is longer than others.
Shift solenoid valve B circuit is short-circuited or disconnected.

Go to DTC P0755 SHIFT SOLENOID VALVE B.
Refer to AT- 1 6 7
SCIA4672ESCIA5591E
SCIA5592ESCIA5593E
SCIA5594ESCIA5595E
