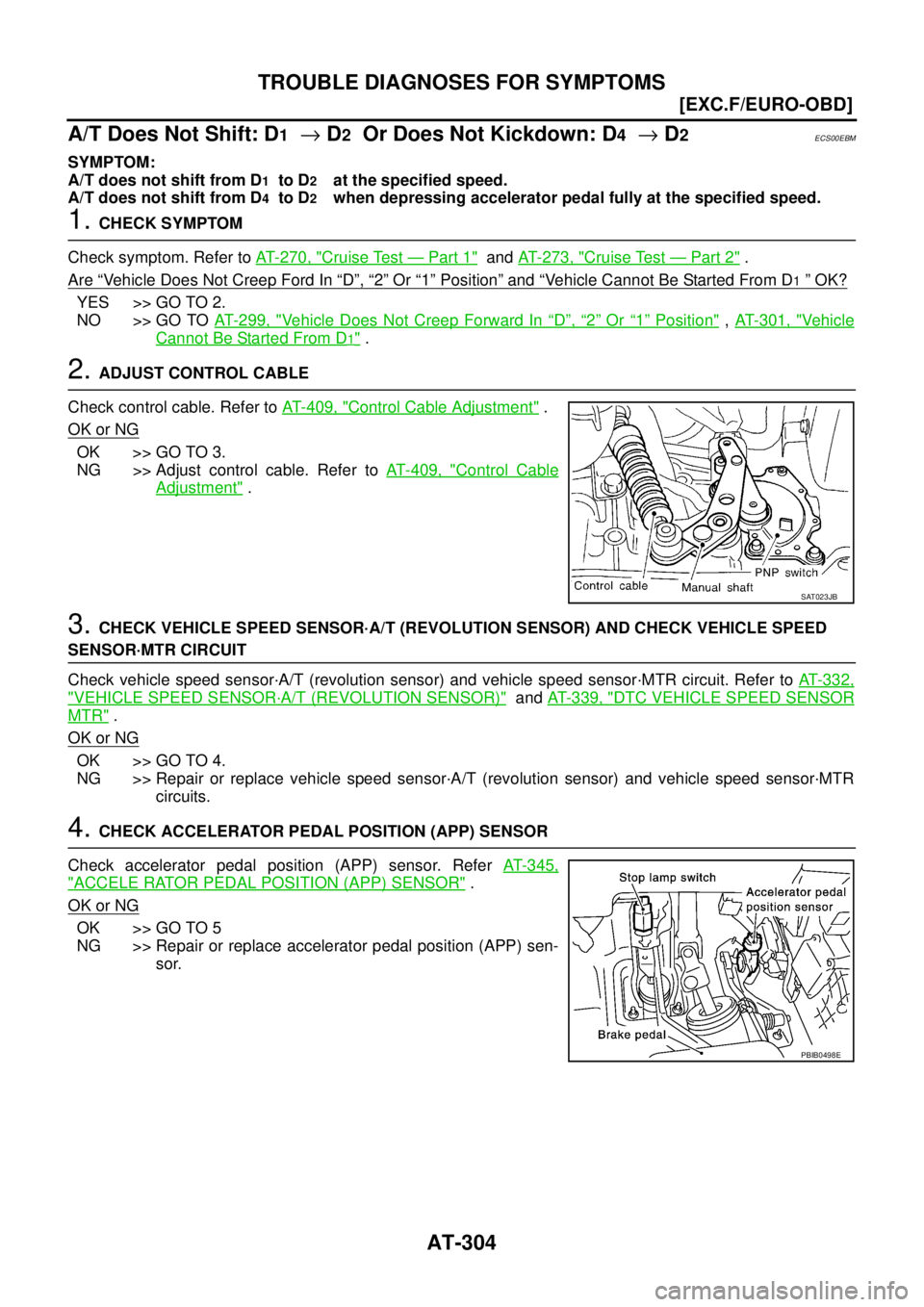

NISSAN X-TRAIL 2003 Service Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-295
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

In “N” Position, Vehicle MovesECS00EBH
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
1. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 2.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
Control Cable
Adjustment" .
2. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 6 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 4.
NG >> 1. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
2. Check the following items:
–Forward clutch assembly. Refer to AT- 4 7 5 , "Forward
and Overrun Clutches" .
–Overrun clutch assembly. Refer to AT- 4 7 5 , "Forward
and Overrun Clutches" .
–Reverse clutch assembly. Refer to AT- 4 6 4 , "Reverse
Clutch" .
4. CHECK SYMPTOM
Check again. Refer to AT- 2 6 4 , "
2. CHECK AT IDLE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT023JB
SAT638A
SAT171B

AT-296
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

Large Shock. “N” → “R” PositionECS00EBI
SYMPTOM:
There is large shock when changing from “N” to “R” position.
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Do the self-diagnosis results indicate A/T fluid temperature sensor, line pressure solenoid valve, accelerator
pedal position (APP) sensor circuit?
YES >>
Check damaged circuit. Refer to the following items.
–AT- 3 8 7 , "LINE PRESSURE SOLENOID VALVE"
–AT- 3 4 5 , "ACCELE RATOR PEDAL POSITION (APP) SENSOR"
–AT- 3 7 4 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)"
NO >> GO TO 2
2. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in D position. Refer to
AT- 2 6 0 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >> 1. Remove control valve assembly. Refer to AT- 4 0 4 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve
–Oil pump assembly. Refer to AT- 4 4 3 , "Oil Pump" .
3. CHECK SYMPTOM
Check again. Refer to AT- 2 6 4 , "
2. CHECK AT IDLE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT494G

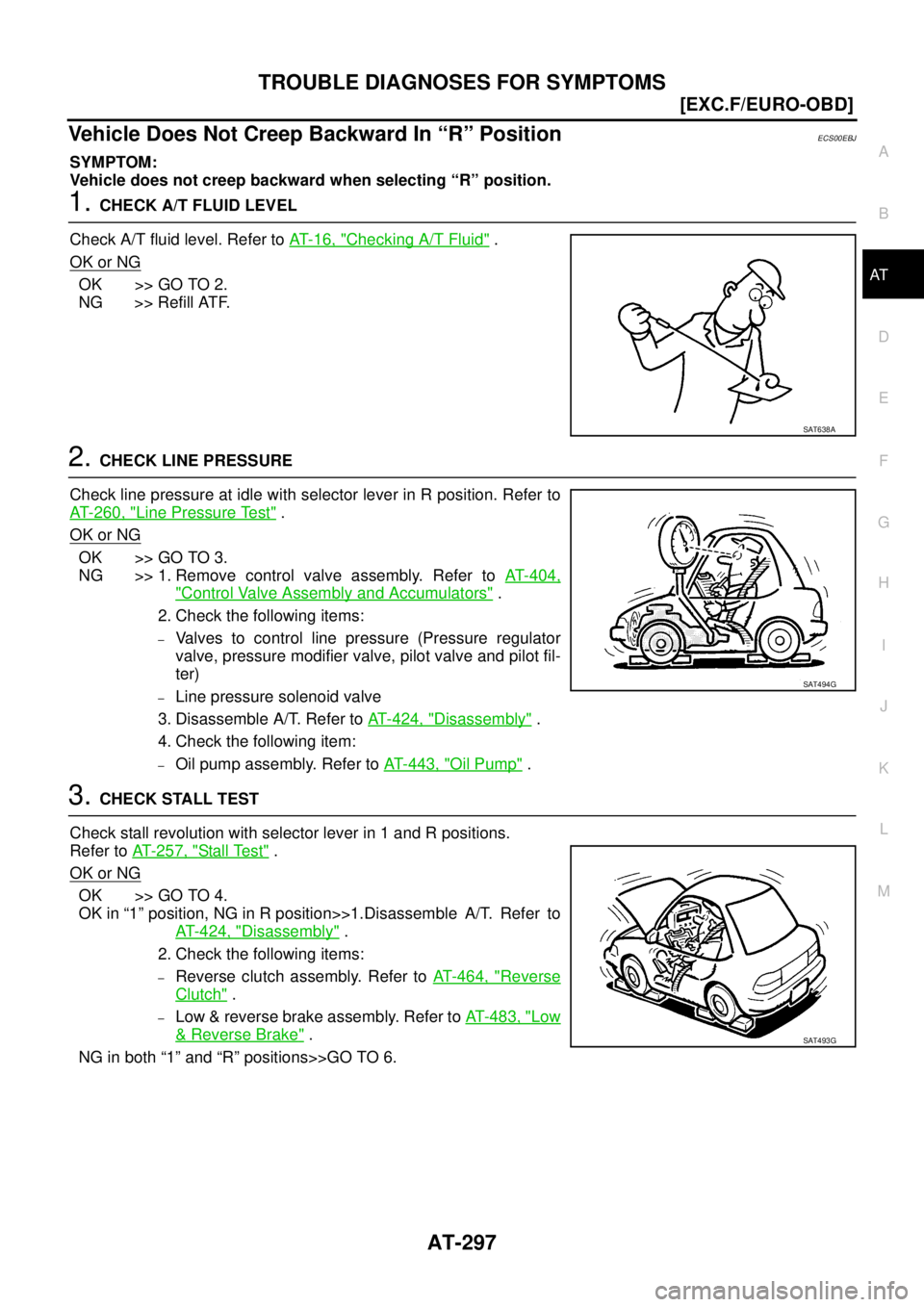

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-297
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Vehicle Does Not Creep Backward In “R” PositionECS00EBJ
SYMPTOM:
Vehicle does not creep backward when selecting “R” position.
1. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 6 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 2.
NG >> Refill ATF.
2. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in R position. Refer to
AT- 2 6 0 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >> 1. Remove control valve assembly. Refer to AT- 4 0 4 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following item:
–Oil pump assembly. Refer to AT- 4 4 3 , "Oil Pump" .
3. CHECK STALL TEST
Check stall revolution with selector lever in 1 and R positions.
Refer to AT- 2 5 7 , "
Stal l Te st" .
OK or NG
OK >> GO TO 4.
OK in “1” position, NG in R position>>1.Disassemble A/T. Refer to
AT- 4 2 4 , "
Disassembly" .
2. Check the following items:
–Reverse clutch assembly. Refer to AT- 4 6 4 , "Reverse
Clutch" .
–Low & reverse brake assembly. Refer to AT- 4 8 3 , "Low
& Reverse Brake" .
NG in both “1” and “R” positions>>GO TO 6.
SAT638A
SAT494G
SAT493G

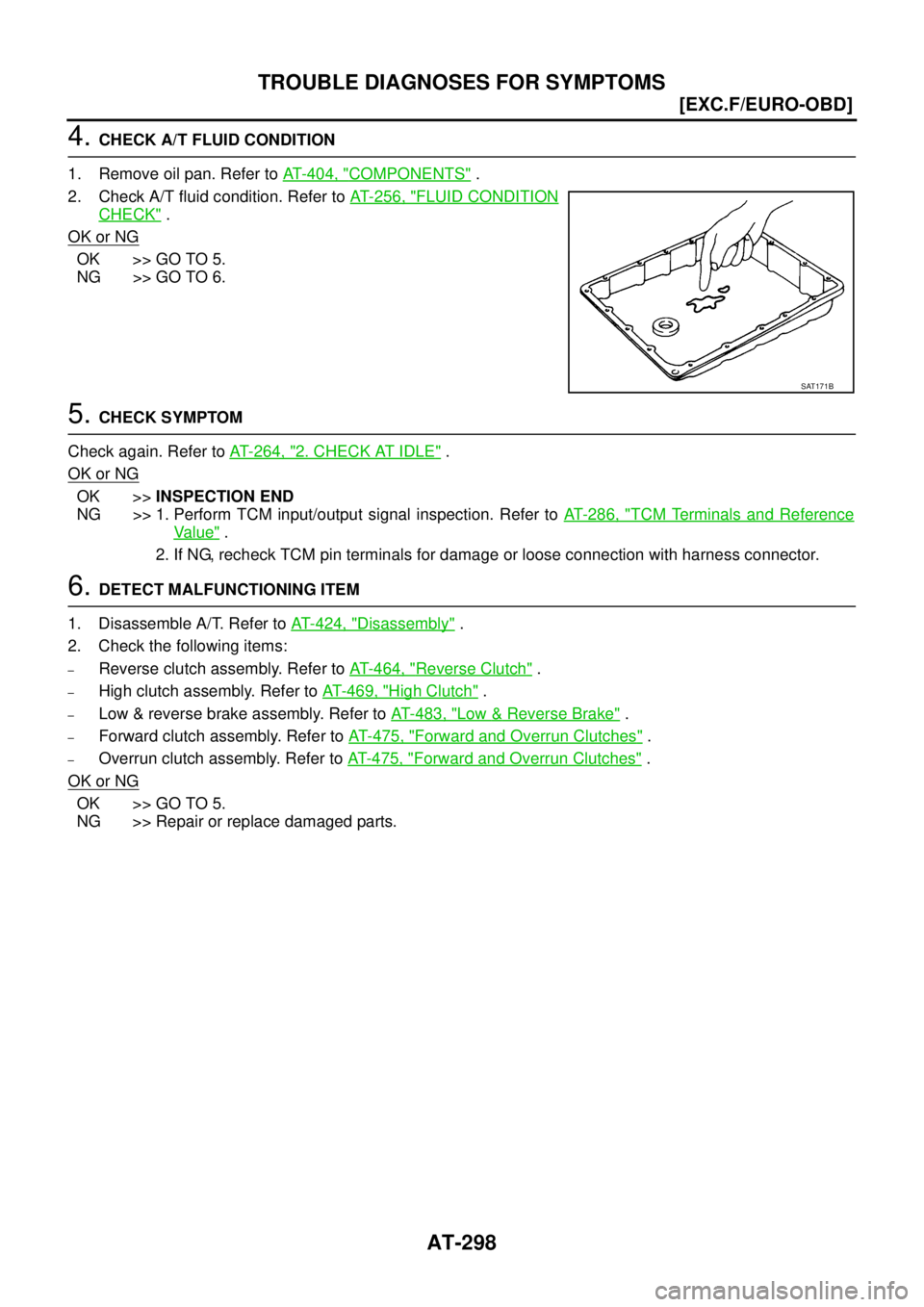

AT-298
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5. CHECK SYMPTOM
Check again. Refer to AT- 2 6 4 , "
2. CHECK AT IDLE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
2. Check the following items:
–Reverse clutch assembly. Refer to AT- 4 6 4 , "Reverse Clutch" .
–High clutch assembly. Refer to AT- 4 6 9 , "High Clutch" .
–Low & reverse brake assembly. Refer to AT- 4 8 3 , "Low & Reverse Brake" .
–Forward clutch assembly. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
–Overrun clutch assembly. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SAT171B

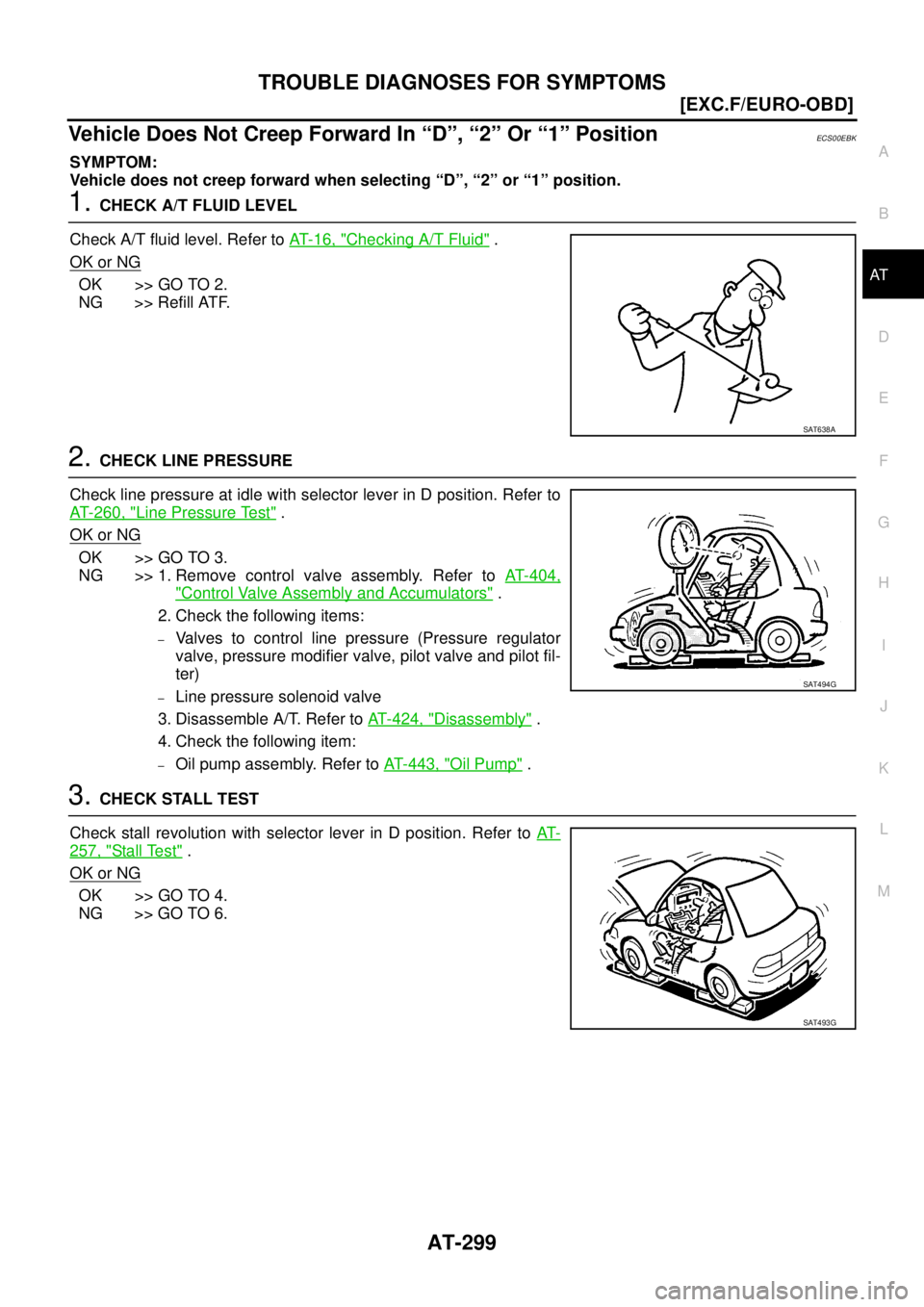

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-299
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Vehicle Does Not Creep Forward In “D”, “2” Or “1” PositionECS00EBK
SYMPTOM:
Vehicle does not creep forward when selecting “D”, “2” or “1” position.
1. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 6 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 2.
NG >> Refill ATF.
2. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in D position. Refer to
AT- 2 6 0 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >> 1. Remove control valve assembly. Refer to AT- 4 0 4 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following item:
–Oil pump assembly. Refer to AT- 4 4 3 , "Oil Pump" .
3. CHECK STALL TEST
Check stall revolution with selector lever in D position. Refer to AT-
257, "Stall Test" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
SAT638A
SAT494G
SAT493G

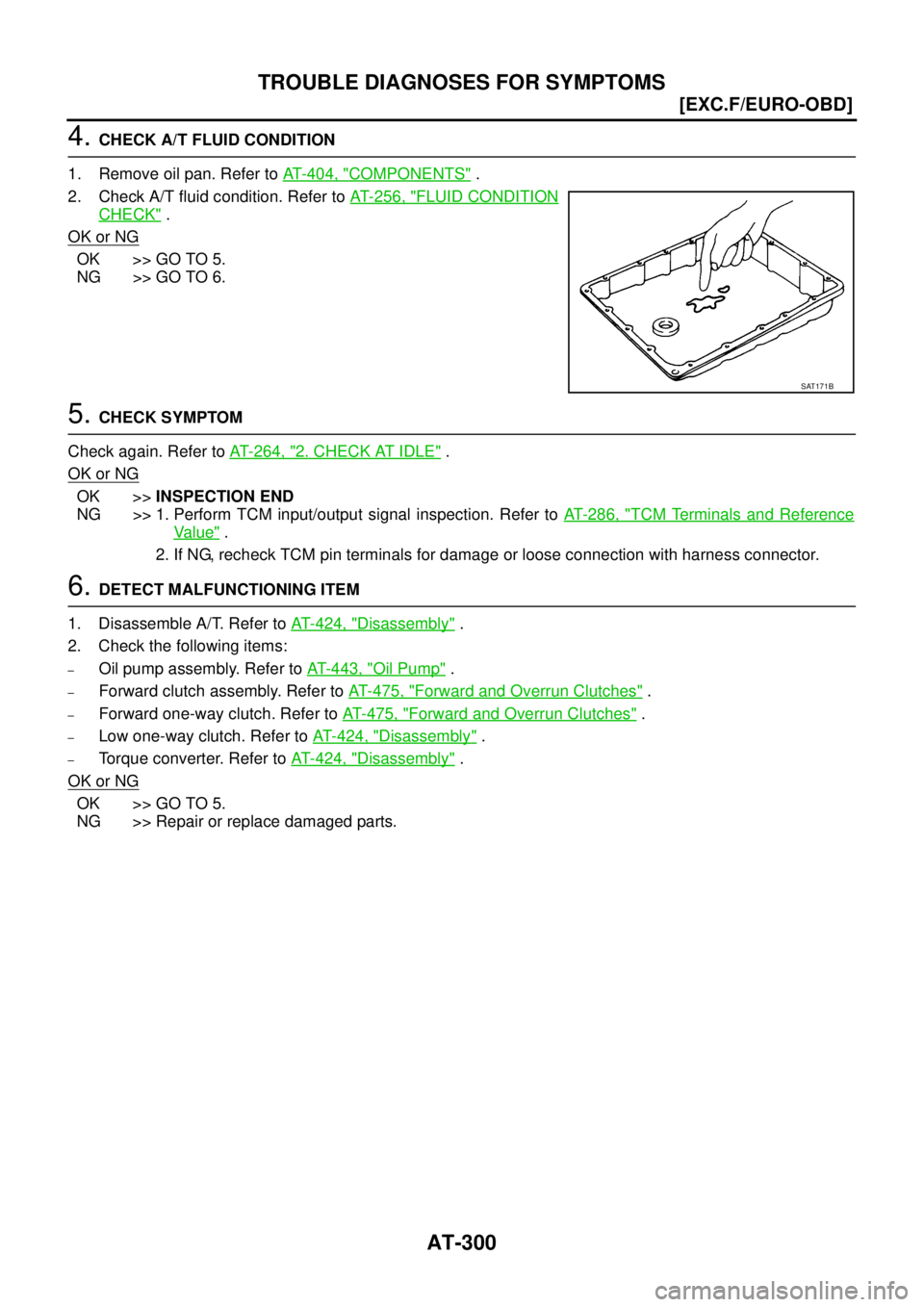

AT-300
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5. CHECK SYMPTOM
Check again. Refer to AT- 2 6 4 , "
2. CHECK AT IDLE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
2. Check the following items:
–Oil pump assembly. Refer to AT- 4 4 3 , "Oil Pump" .
–Forward clutch assembly. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
–Forward one-way clutch. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
–Low one-way clutch. Refer to AT- 4 2 4 , "Disassembly" .
–Torque converter. Refer to AT- 4 2 4 , "Disassembly" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SAT171B

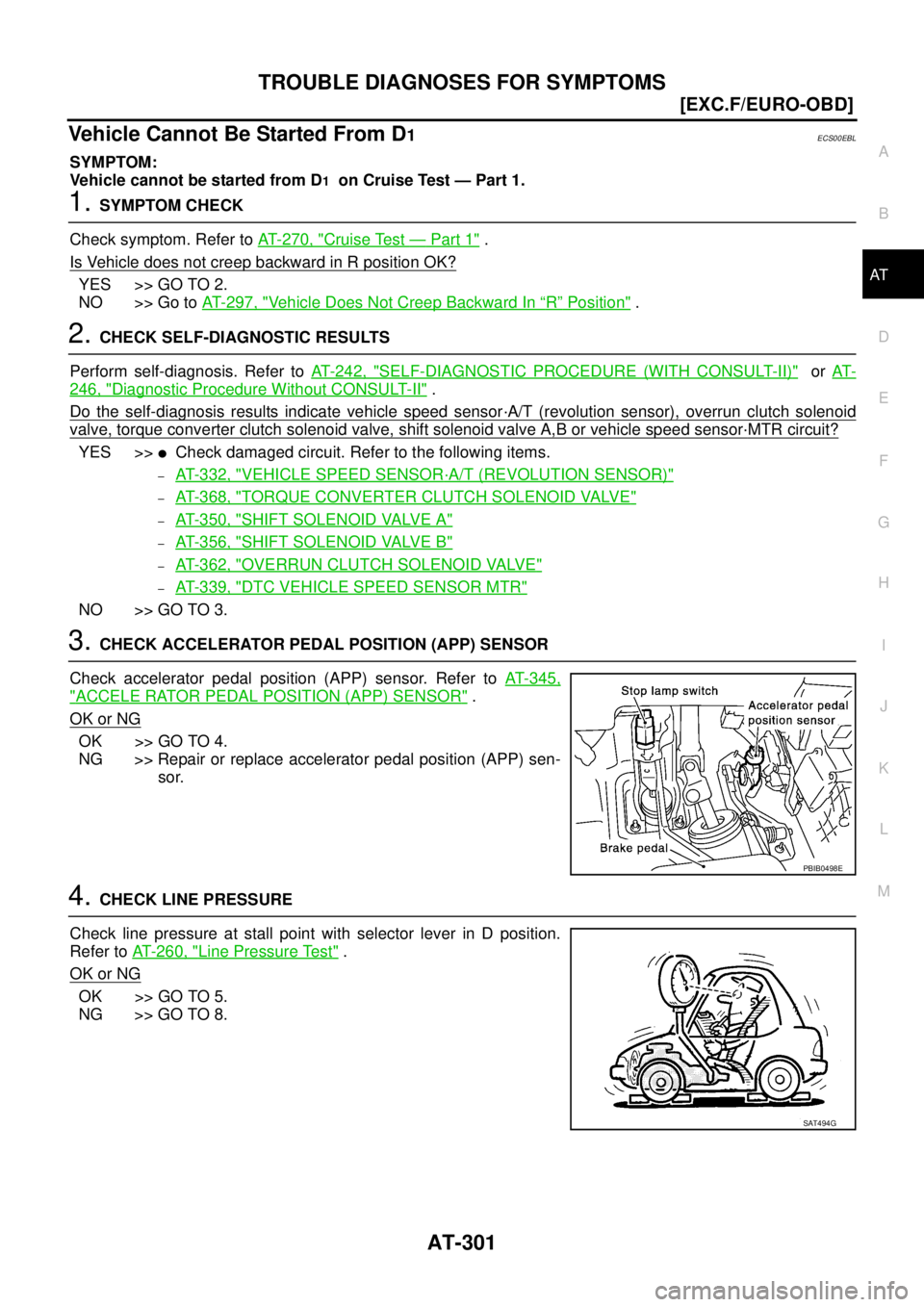

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-301
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Vehicle Cannot Be Started From D1ECS00EBL
SYMPTOM:
Vehicle cannot be started from D
1 on Cruise Test — Part 1.
1. SYMPTOM CHECK
Check symptom. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" .
Is Vehicle does not creep backward in R position OK?
YES >> GO TO 2.
NO >> Go to AT- 2 9 7 , "
Vehicle Does Not Creep Backward In “R” Position" .
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Do the self-diagnosis results indicate vehicle speed sensor
·A/T (revolution sensor), overrun clutch solenoid
valve, torque converter clutch solenoid valve, shift solenoid valve A,B or vehicle speed sensor·MTR circuit?
YES >>
Check damaged circuit. Refer to the following items.
–AT- 3 3 2 , "VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)"
–AT- 3 6 8 , "TORQUE CONVERTER CLUTCH SOLENOID VALVE"
–AT- 3 5 0 , "SHIFT SOLENOID VALVE A"
–AT- 3 5 6 , "SHIFT SOLENOID VALVE B"
–AT- 3 6 2 , "OVERRUN CLUTCH SOLENOID VALVE"
–AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR MTR"
NO >> GO TO 3.
3. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 4 5 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
4. CHECK LINE PRESSURE
Check line pressure at stall point with selector lever in D position.
Refer to AT- 2 6 0 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 8.
PBIB0498E
SAT494G

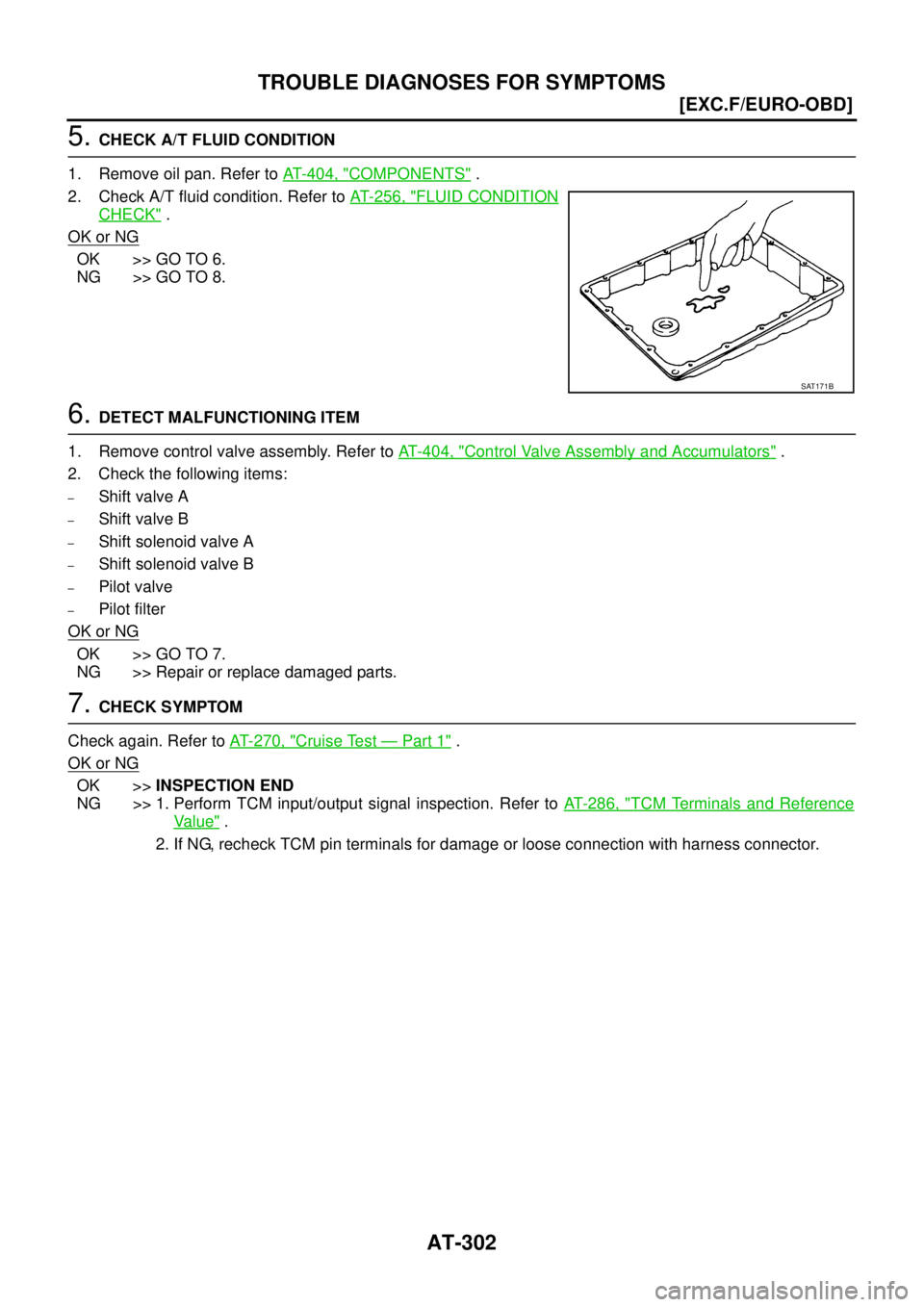

AT-302
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-303
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

8. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following items:
–Forward clutch. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
–Forward one-way clutch assembly. Refer to AT- 4 2 4 , "Disassembly" .
–High clutch assembly. Refer to AT- 4 6 9 , "High Clutch" .
–Torque converter. Refer to AT-424, "Disassembly" .
–Oil pump assembly. Refer to AT- 4 4 3 , "Oil Pump" .
–Reverse clutch assembly. Refer to AT- 4 6 4 , "Reverse Clutch" .
–Low & reverse clutch assembly
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.

AT-304
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

A/T Does Not Shift: D1 → D2 Or Does Not Kickdown: D4 → D2ECS00EBM
SYMPTOM:
A/T does not shift from D
1 to D2 at the specified speed.
A/T does not shift from D
4 to D2 when depressing accelerator pedal fully at the specified speed.
1. CHECK SYMPTOM
Check symptom. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" and AT- 2 7 3 , "Cruise Test — Part 2" .
Are
“Vehicle Does Not Creep Ford In “D”, “2” Or “1” Position” and “Vehicle Cannot Be Started From D1 ” OK?
YES >> GO TO 2.
NO >> GO TO AT- 2 9 9 , "
Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position" , AT- 3 0 1 , "Veh ic le
Cannot Be Started From D1" .
2. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 3 2 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR
MTR" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer AT- 3 4 5 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" .
OK or NG
OK >> GO TO 5
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E
