NISSAN X-TRAIL 2003 Service Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-315
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Engine Speed Does Not Return To Idle (Light Braking D4 → D3 )ECS00EBS
SYMPTOM:
Engine speed does not smoothly return to idle when A/T shifts from D
4 to D3 .
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Does self-diagnosis show damage to overrun clutch solenoid valve circuit after cruise test?
YES >> Check overrun clutch solenoid valve circuit. Refer to AT- 3 6 2 , "OVERRUN CLUTCH SOLENOID
VA LV E" .
NO >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 4 5 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR"
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
4. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
PBIB0498E
SAT171B

AT-316
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following item:
–Overrun clutch assembly. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-317
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Vehicle Does Not Start From D1ECS00EBT
SYMPTOM:
Vehicle does not start from D
1 on Cruise test — Part 2.
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Does self-diagnosis show damage to vehicle speed sensor
·A/T (revolution sensor), shift solenoid valve A, B or
vehicle speed sensor·MTR after cruise test?
YES >>
Check damaged circuit. Refer to the following items.
–AT- 3 3 2 , "VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)"
–AT- 3 5 0 , "SHIFT SOLENOID VALVE A"
–AT- 3 5 6 , "SHIFT SOLENOID VALVE B"
–AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR MTR"
NO >> GO TO 2.
2. CHECK SYMPTOM
Check again. Refer to AT- 2 7 3 , "
Cruise Test — Part 2" .
OK or NG
OK >> GO TO AT- 3 0 1 , "Vehicle Cannot Be Started From D1" .
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

AT-318
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

A/T Does Not Shift: D4 → D3 , When Overdrive Control Switch “ON” → “OFF”ECS00EBU
SYMPTOM:
A/T does not shift from D
4 to D3 when changing overdrive control switch to “OFF” position.
1. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
Check overdrive control switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .
OK or NG
OK >> GO TO AT- 3 0 7 , "A/T Does Not Shift: D2 → D3" .
NG >> Check overdrive control switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-319
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T Does Not Shift: D3 → 22 , When Selector Lever “D” → “2” PositionECS00EBV
SYMPTOM:
A/T does not shift from D
3 to 22 when changing selector lever from “D” to “2” position.
1. CHECK PNP SWITCH CIRCUIT
Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .
OK or NG
OK >> GO TO AT- 3 0 4 , "A/T Does Not Shift: D1 → D2 Or Does Not Kickdown: D4 → D2" .
NG >> Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .

AT-320
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

A/T Does Not Shift: 22 → 11 , When Selector Lever “2” → “1” PositionECS00EBW
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1. CHECK PNP SWITCH CIRCUIT
Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .
OK or NG
OK >> GO TO 2.
NG >> Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .
2. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 3 2 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR
MTR" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
SAT023JB
SAT171B

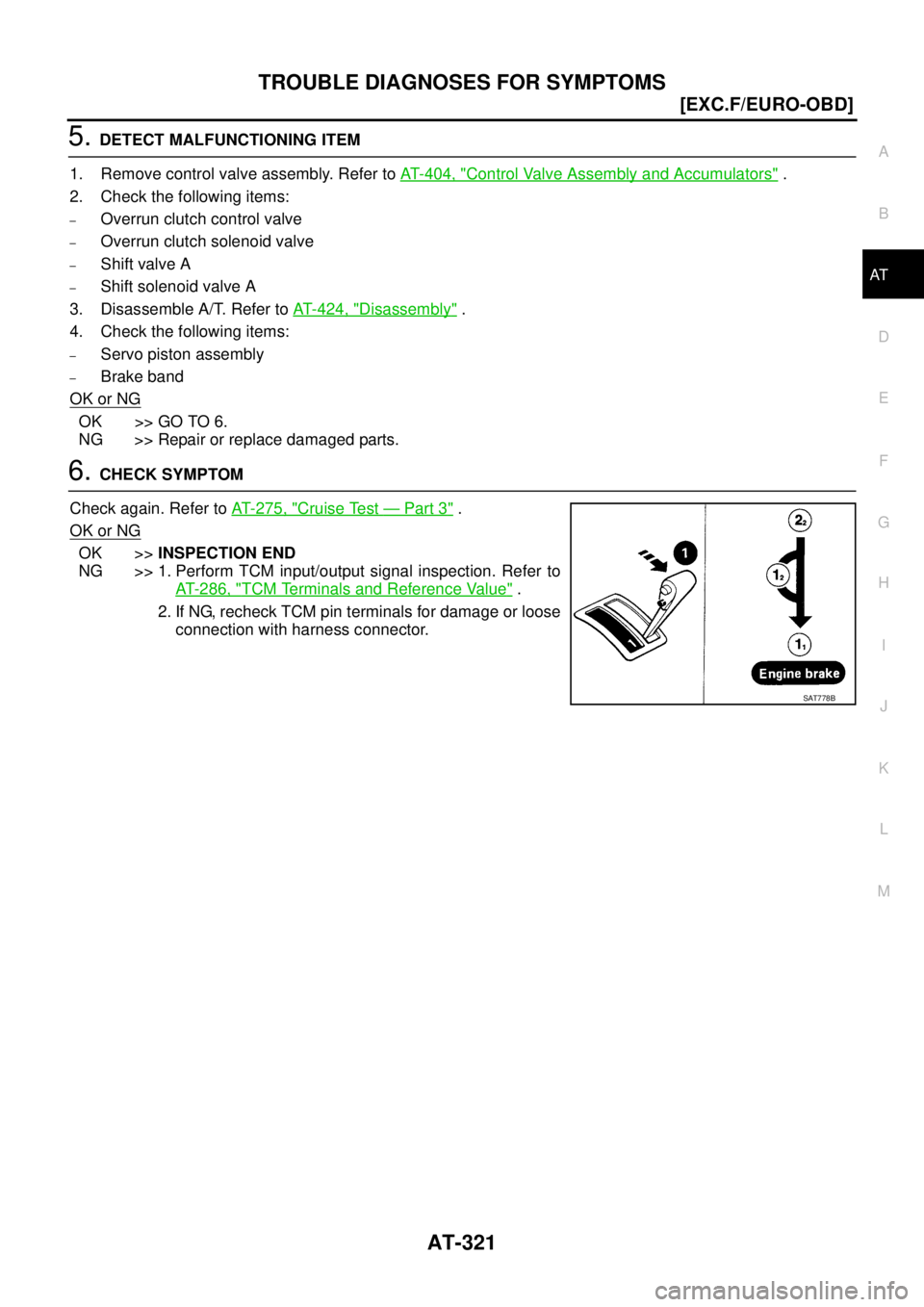

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-321
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch solenoid valve
–Shift valve A
–Shift solenoid valve A
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–Brake band
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again. Refer to AT- 2 7 5 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to
AT- 2 8 6 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
SAT778B

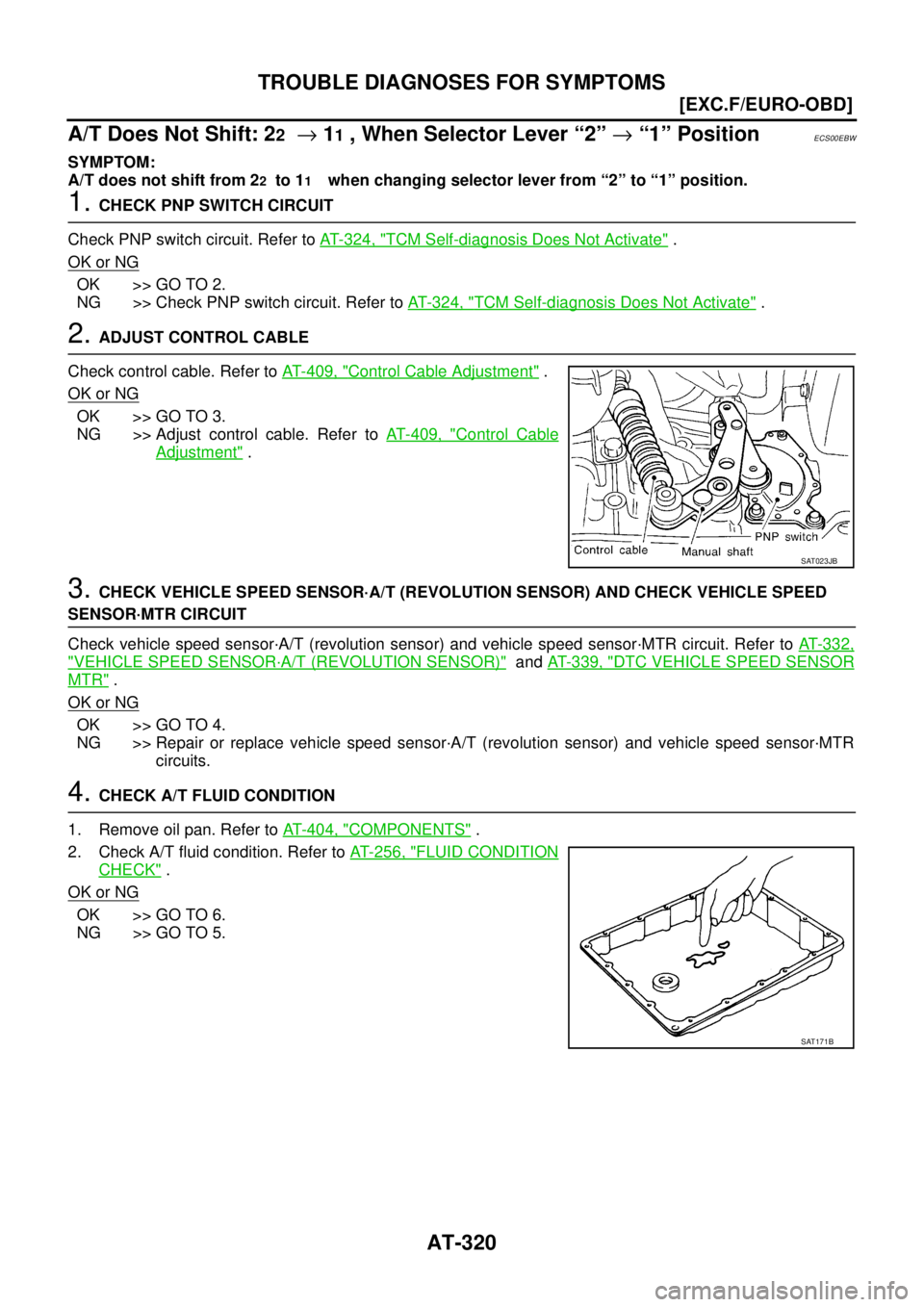

AT-322
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

Vehicle Does Not Decelerate By Engine BrakeECS00EBX
SYMPTOM:

Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.

Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.

Vehicle does not decelerate by engine brake when shifting from 22 (12 ) to 11 .
1. CHECK PNP SWITCH CIRCUIT
Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .
OK or NG
OK >> GO TO 2.
NG >> Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-diagnosis Does Not Activate" .
2. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 3 2 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR
MTR" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
SAT023JB
SAT171B

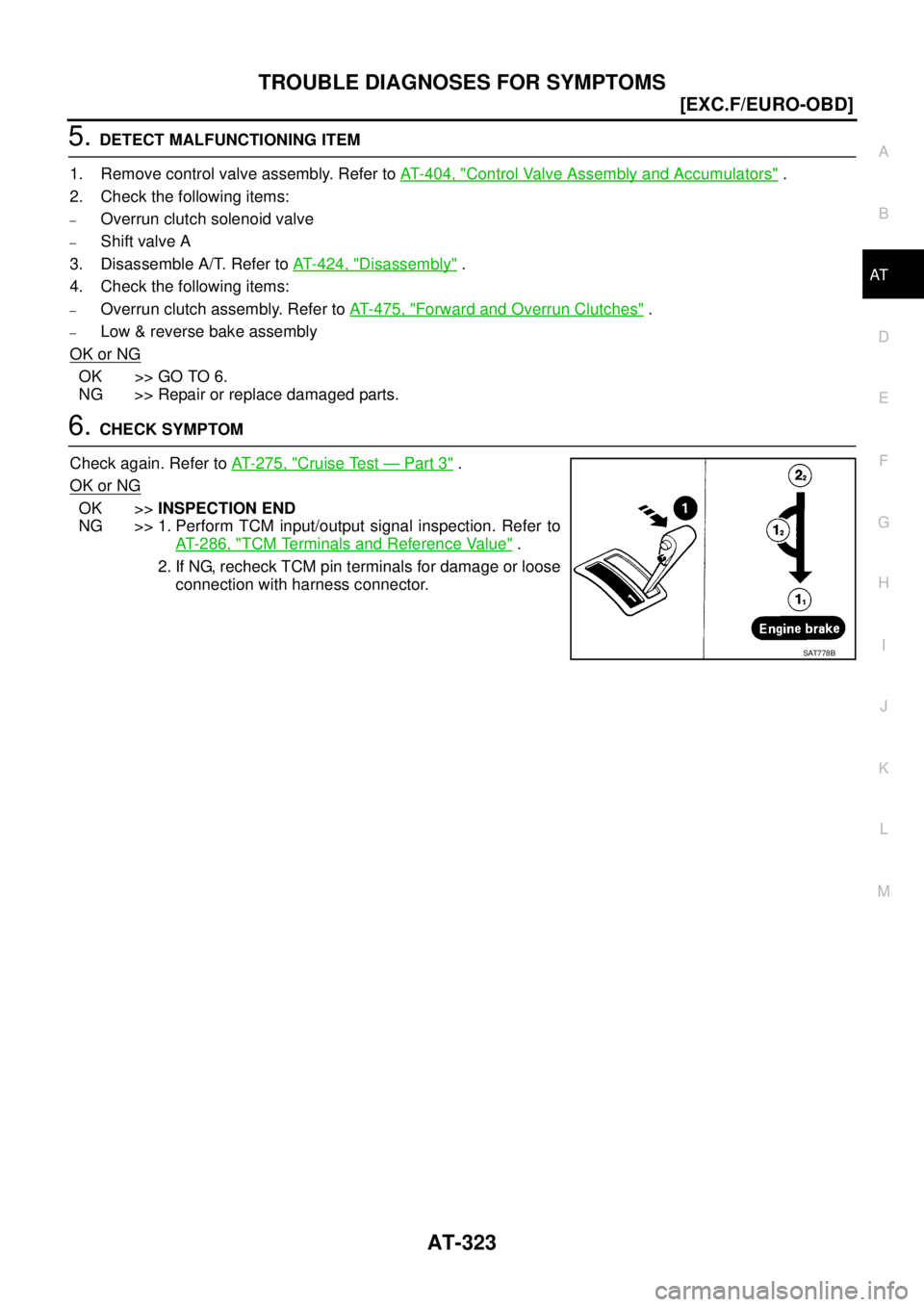

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-323
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch solenoid valve
–Shift valve A
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following items:
–Overrun clutch assembly. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
–Low & reverse bake assembly
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again. Refer to AT- 2 7 5 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to
AT- 2 8 6 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
SAT778B

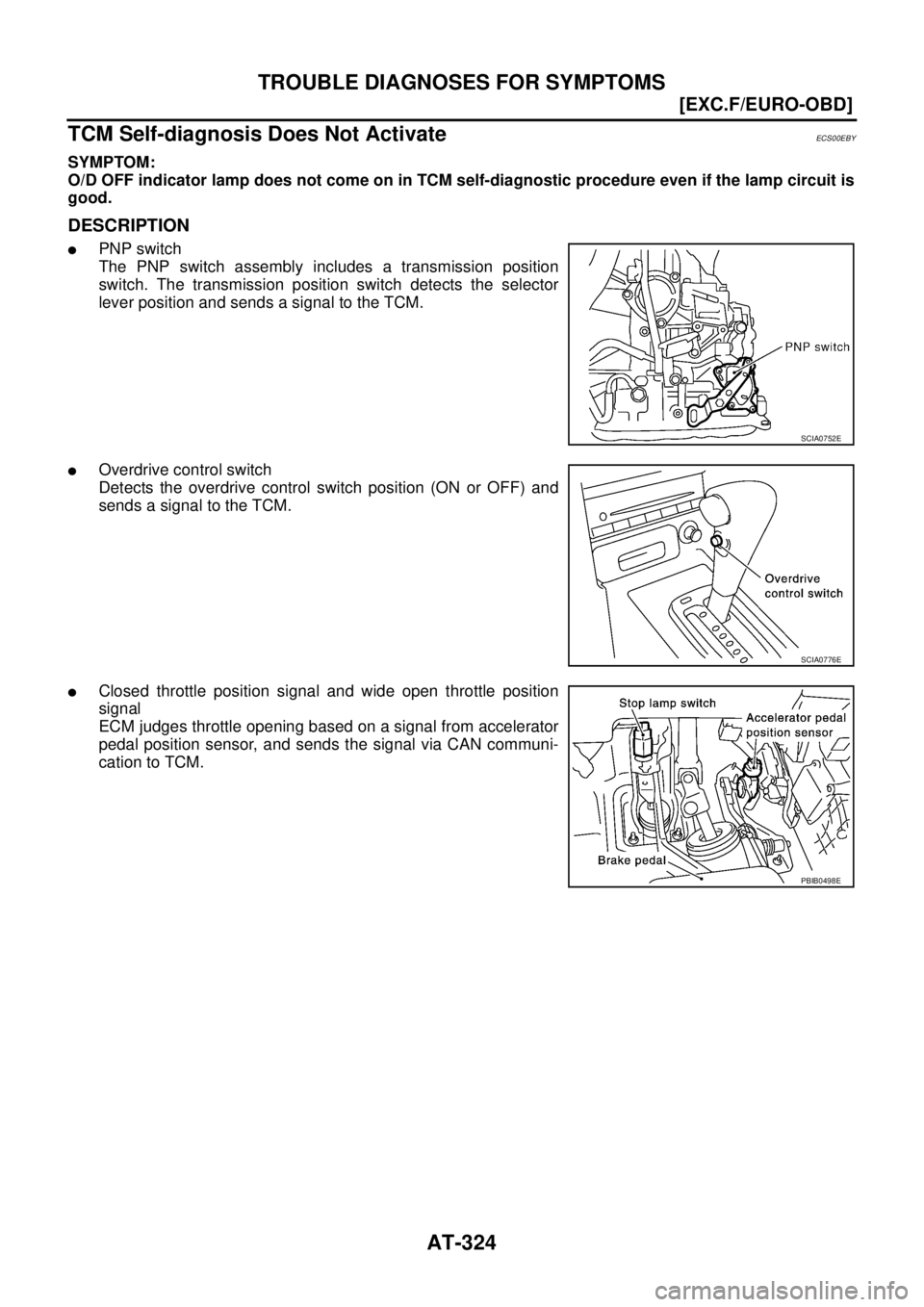

AT-324
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

TCM Self-diagnosis Does Not ActivateECS00EBY
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION

PNP switch
The PNP switch assembly includes a transmission position
switch. The transmission position switch detects the selector
lever position and sends a signal to the TCM.

Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and
sends a signal to the TCM.

Closed throttle position signal and wide open throttle position
signal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communi-
cation to TCM.
SCIA0752E
SCIA0776E
PBIB0498E
