NISSAN X-TRAIL 2003 Service Repair Manual

TROUBLE DIAGNOSIS
BRC-67
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

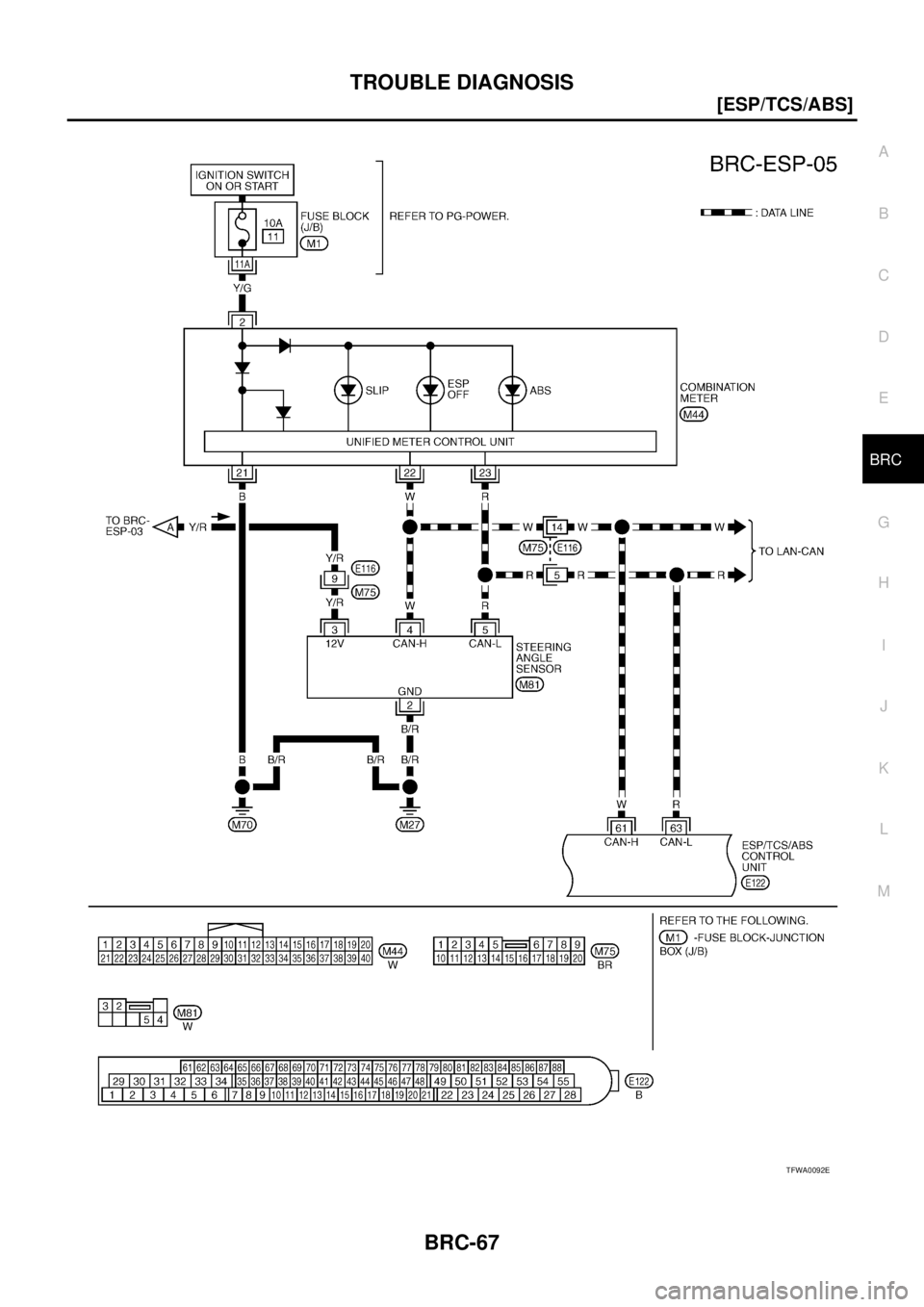

TFWA0092E

BRC-68
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

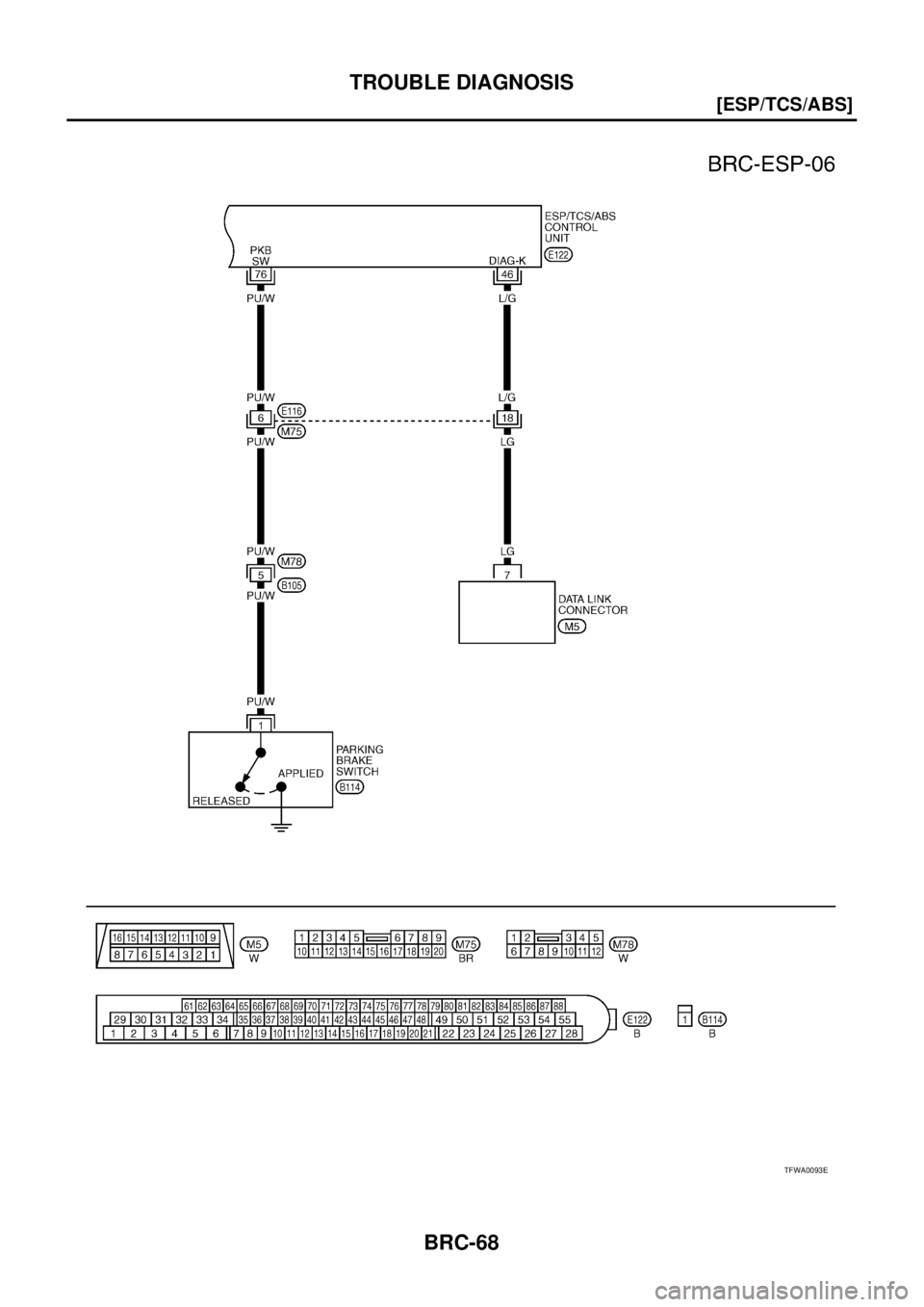

TFWA0093E

TROUBLE DIAGNOSIS
BRC-69
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

RHD MODEL

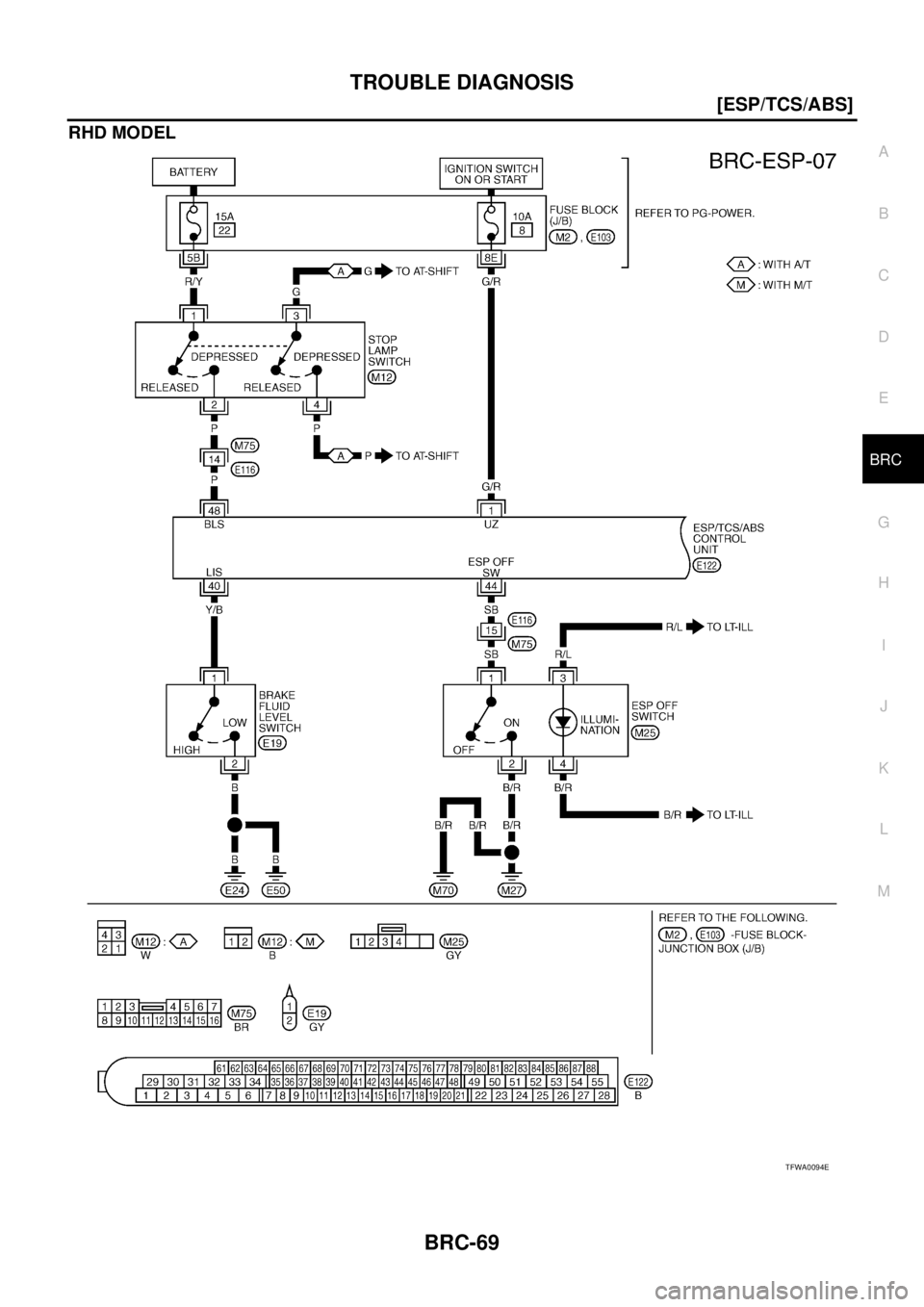

TFWA0094E

BRC-70
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

TFWA0095E

TROUBLE DIAGNOSIS
BRC-71
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

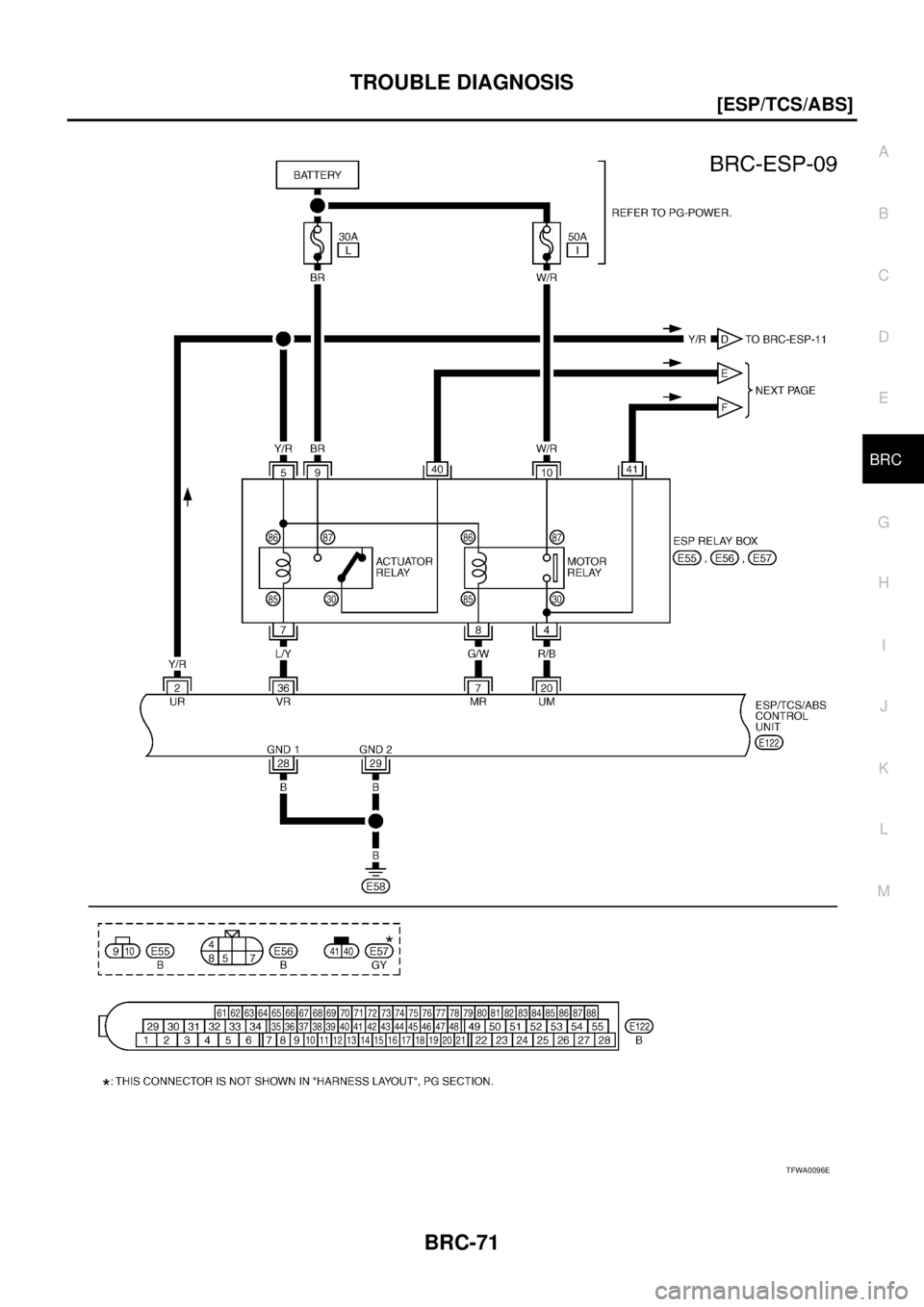

TFWA0096E

BRC-72
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

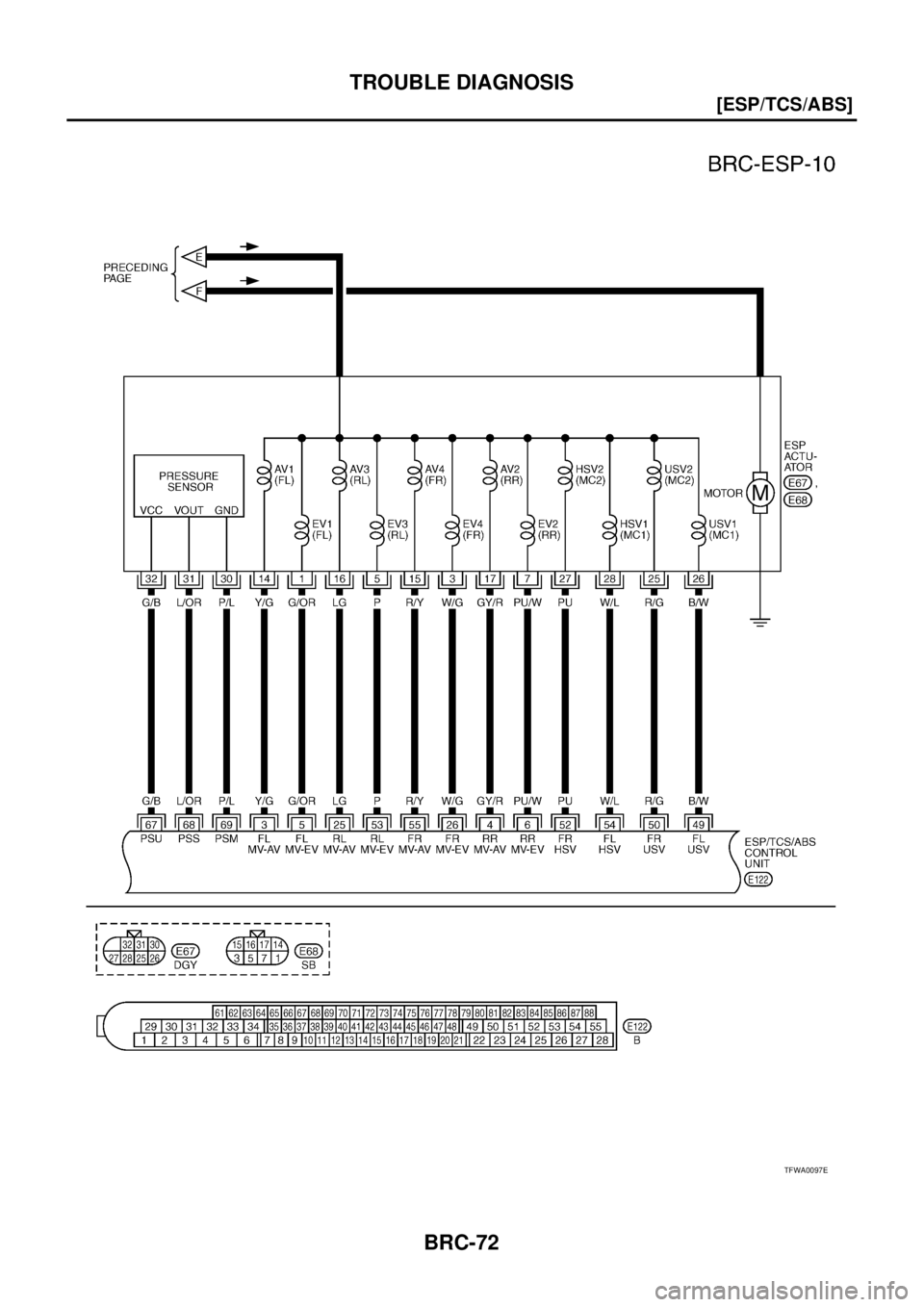

TFWA0097E

TROUBLE DIAGNOSIS
BRC-73
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

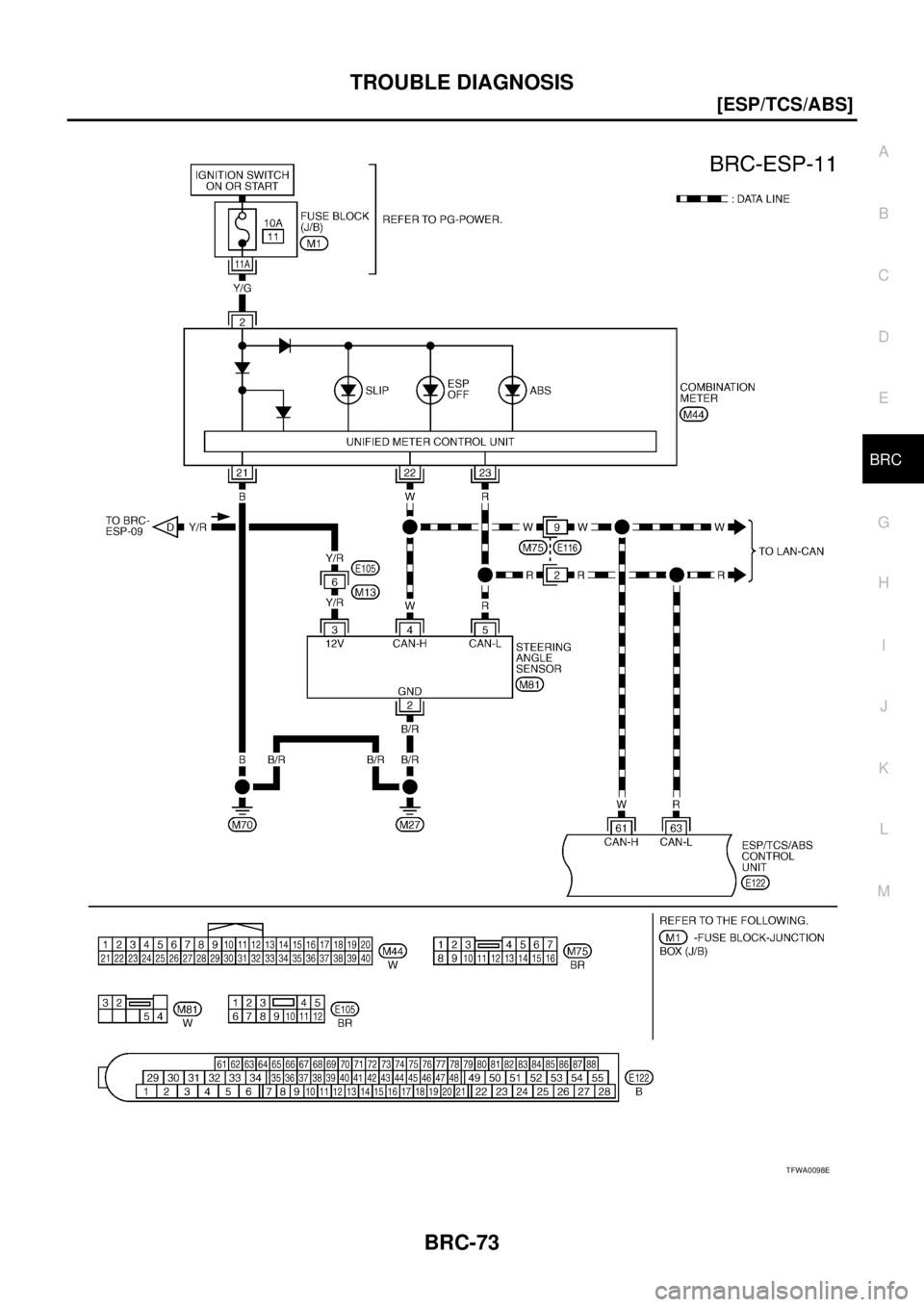

TFWA0098E

BRC-74
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

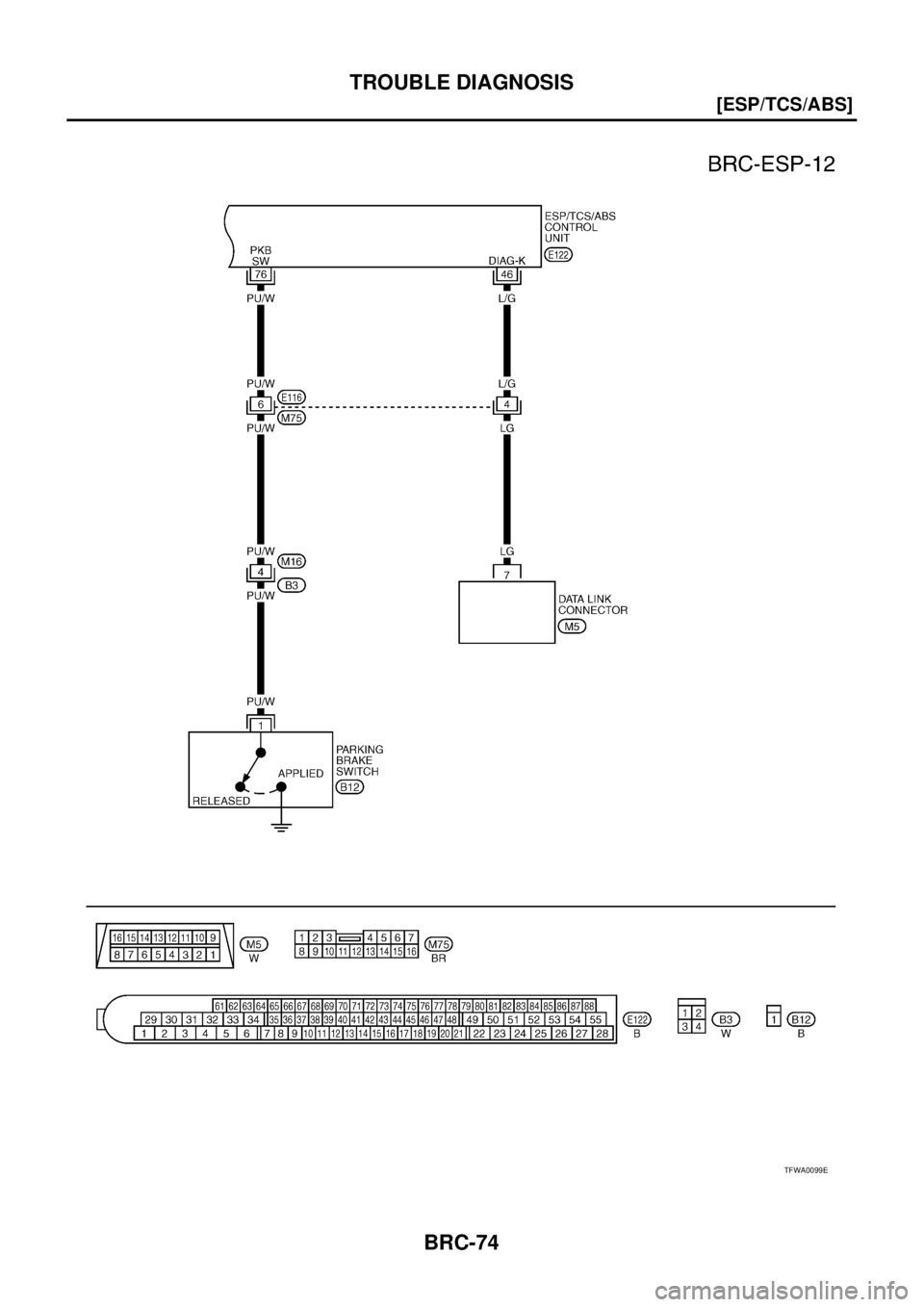

TFWA0099E

TROUBLE DIAGNOSIS
BRC-75
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Control Unit Input/Output Signal StandardEFS001A6
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The displayed item is the data calculated by the control unit, so it may indicate a normal value even if
an output circuit (harness) is open or shorted.
Data monitor item ContentsData monitor
(Reference) Check items
for malfunction
ConditionReference value in
normal operation
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSORWheel speed Vehicle stopped 0 [km/h]
Wheel sensor circuit
During driving (Note 1)Almost in accor-
dance with the
speedometer dis-
play (within ±10%)
ACCEL POS SIGOpen/close condition
of throttle valve (linked
with accelerator pedal)Accelerator pedal not
depressed (ignition switch is
ON)0%Control unit communica-
tion circuit between the
ESP/TCS/ABS control
unit and ECM Accelerator pedal depressed
(ignition switch is ON)0 – 100%
ENG RPMWith the engine run-
ningWith the engine stopped 0rpm
Engine speed signal cir-
cuit
Engine runningAlmost in accor-
dance with
tachometer display
STR ANGLE SIGSteering wheel angle
detected by steering
angle sensorStraight-ahead condition Approx. 0 °
Steering angle sensor
and circuit
Steering – 720 to 720°
YAW RATE SENYaw rate detected by
yaw rate sensorVehicle stopped Approx. 0 d/s
Yaw rate sensor and cir-
cuit
During driving – 70 to 70d/s
SIDE G-SENSORTransverse accelera-
tion detected by side G
sensorVehicle stopped
Approx. 0 m/s
2
Side G sensor and circuit
During driving
– 24.3 to 24.1m/s2
PRESS SENSORBrake fluid pressure
detected by pressure
sensorWith the ignition switch
turned ON and brake pedal
released.Approx. 0 bar
Pressure sensor and cir-
cuit
With the ignition switch
turned ON and brake pedal
depressed.– 40 to 300bar
BATTERY VOLTBattery voltage sup-
plied to the ESP/TCS/
ABS control unitIgnition switch ON 10 – 16VESP/TCS/ABS control
unit power supply circuit
and ground circuit
MOTOR RELAYMotor relay
ON/OFF conditionABS not activated. OFF
Motor relay and circuit
ABS activated. ON
ACTUATOR RLYActuator relay
ON/OFF conditionIgnition ON and Vehicle
stopped.OFF
Actuator relay and circuit
Engine running and Vehicle
stopped.ON
STOP LAMP SWOperating status of
brake pedalDepress brake pedal. ON
Stop lamp switch circuit
Release the brake pedal. OFF
PARK BRAKE SW Parking brake statusParking brake activated ON
Parking brake switch cir-
cuit
Parking brake not activated OFF

BRC-76
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

OFF SWESP OFF SW
ON/OFF conditionESP OFF switch ON
(When ESP OFF indicator
lamp is ON.)ON
ESP OFF switch circuit
ESP OFF switch OFF
(When ESP OFF indicator
lamp is OFF.)OFF
ABS WARN LAMPABS warning lamp sta-
tus (Note 2)When ABS warning lamp is
ON.ON
ABS warning lamp circuit
When ABS warning lamp is
OFF.OFF
OFF LAMPESP OFF indicator
lamp status (Note 3)When ESP OFF indicator
lamp is ON.ON
ESP OFF indicator lamp
circuit
When ESP OFF indicator
lamp is OFF.OFF
SLIP LAMPSLIP indicator lamp
status (Note 4)When SLIP indicator lamp is
ONON
SLIP indicator lamp cir-
cuit
When SLIP indicator lamp is
OFF.OFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL
RR RH IN SOL
RR RH OUT SOLSolenoid valve opera-
tionActuator (solenoid valve) is
active (“Active Test ”with CON-
SULT-II) or actuator relay is
inactive (in fail-safe mode).ON
Solenoid valve and cir-
cuit
When the actuator (solenoid
valve) is not active and actua-
tor relay is active (ignition
switch ON).OFF
USV [FR-RL]
USV [FL-RR]
HSV [FR-RL]
HSV [FL-RR]ESP switch-over sole-
noid valve statusWhen the actuator (switch-
over solenoid valve) is active
(“Active test” with CONSULT-
II) or the actuator relay is inac-
tive (when fail-safe mode).ON
Switch-over solenoid
valve and circuit
When the actuator (switch-
over solenoid valve) is inactive
or the actuator relay is active
(ignition switch ON).OFF
V/R OUTPUTActuator relay acti-
vated
(ON/OFF)When the actuator relay is
active (the engine is running).ON
Actuator relay and circuit When the actuator relay is not
active (before the engine get
started and in the fail-safe
mode).OFF
M/R OUTPUTActuator motor and
motor relay status (ON/
OFF)When the actuator motor and
motor relay are active (“Active
test” with CONSULT-II).ON
Actuator motor, motor
relay, and circuit
When the actuator motor and
motor relay are inactive.OFF
FLUID LEV SWBrake fluid level warn-
ing switch status.When brake fluid level warning
switch is ON.ON
Brake fluid level warning
switch, brake warning
lamp and circuit. When brake fluid lever warning
switch is OFF.OFF
EBD FAIL SIG
ABS FAIL SIG
TCS FAIL SIG
ESP FAIL SIGSystem fail signal sta-
tusMalfunctions condition
(When system failed)OFFEBD system
ABS system
TCS system
ESP system Data monitor item ContentsData monitor
(Reference) Check items
for malfunction
ConditionReference value in
normal operation
