POWER DOOR LOCK SYSTEM
BL-37
C
D
E
F
G
H
J
K
L
MA
B
BL

Rear Door Lock Actuator RH CheckEIS004DL
1. CHECK DOOR LOCK SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear door lock actuator RH connector.
3. Check voltage between door lock actuator connector and ground.
OK or NG
OK >> Replace rear door lock actuator RH.
NG >> GO TO 2.

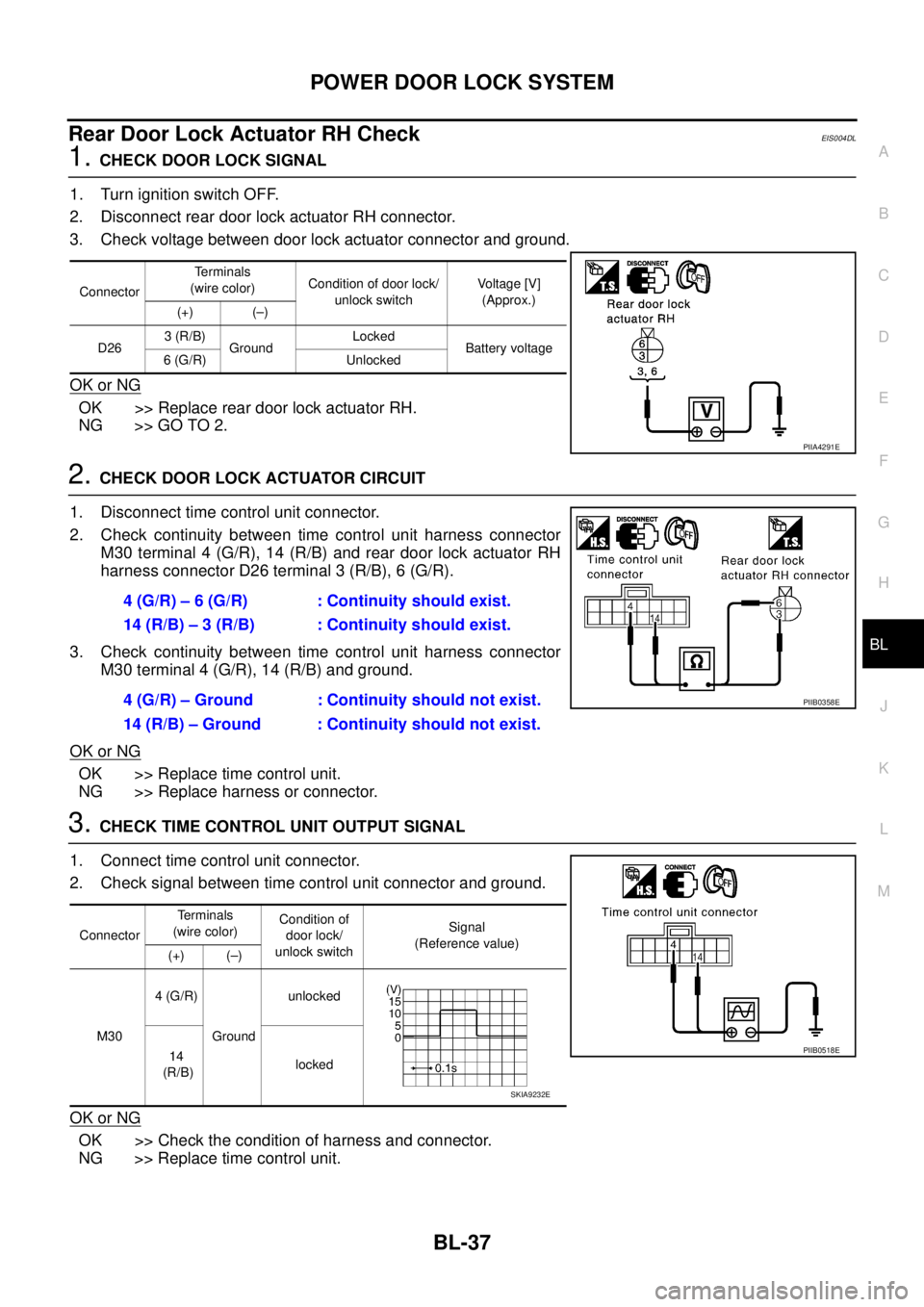

2. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M30 terminal 4 (G/R), 14 (R/B) and rear door lock actuator RH
harness connector D26 terminal 3 (R/B), 6 (G/R).
3. Check continuity between time control unit harness connector
M30 terminal 4 (G/R), 14 (R/B) and ground.
OK or NG
OK >> Replace time control unit.
NG >> Replace harness or connector.
3. CHECK TIME CONTROL UNIT OUTPUT SIGNAL
1. Connect time control unit connector.
2. Check signal between time control unit connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace time control unit.
ConnectorTerminals
(wire color)Condition of door lock/
unlock switchVoltage [V]
(Approx.)
(+) (–)
D263 (R/B)
GroundLocked
Battery voltage
6 (G/R) Unlocked
PIIA4291E
4 (G/R) – 6 (G/R) : Continuity should exist.
14 (R/B) – 3 (R/B) : Continuity should exist.
4 (G/R) – Ground : Continuity should not exist.
14 (R/B) – Ground : Continuity should not exist.
PIIB0358E
ConnectorTerminals
(wire color)Condition of
door lock/
unlock switchSignal
(Reference value)
(+) (–)
M304 (G/R)
Groundunlocked
14
(R/B)locked
PIIB0518E
SKIA9232E

BL-38
POWER DOOR LOCK SYSTEM

Back Door Lock Actuator CheckEIS004DM
1. CHECK DOOR LOCK SIGNAL
1. Turn ignition switch OFF.
2. Disconnect back door lock actuator connector.
3. Check voltage between door lock actuator connector and
ground.
OK or NG
OK >> Replace back door lock actuator.
NG >> GO TO 2.
2. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M30 terminal 4 (G/R), 14(R/B) and back door lock actuator har-
ness connector D46 terminal 2(R/B), 4(G/R).
3. Check continuity between time control unit harness connector
M30 terminal 4 (G/R), 14 (R/B) and ground.
OK or NG
OK >> Replace time control unit.
NG >> Replace harness or connector.
3. CHECK TIME CONTROL UNIT OUTPUT SIGNAL
1. Connect time control unit connector.
2. Check signal between time control unit connector and ground.
OK or NG
OK >> Check the condition of harness and connector.
NG >> Replace time control unit.
Connec-
torTerminals
(wire color)Condition of door lock/
unlock switchVoltage [V]
(Approx.)
(+) (–)
D462 (R/B)
GroundLocked
Battery voltage
4 (G/R) Unlocked
PIIB0360E
4 (G/R) – 4 (G/R) : Continuity should exist.
14 (R/B) – 2 (R/B) : Continuity should exist.
4 (G/R) – Ground : Continuity should not exist.
14 (R/B) – Ground : Continuity should not exist.
PIIB0359E
Con-
nectorTerminals
(wire color)Condition of door
lock/unlock
switchSignal
(Reference value)
(+) (–)
M304 (G/R)
Groundunlocked
14
(R/B)locked
PIIB0518E
SKIA9232E

POWER DOOR LOCK SYSTEM
BL-39
C
D
E
F
G
H
J
K
L
MA
B
BL

Door Switch CheckEIS004DN
1. CHECK FRONT DOOR SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between time control unit connector and ground.
OK or NG
OK >> Door switch is OK.
NG >> GO TO 2.

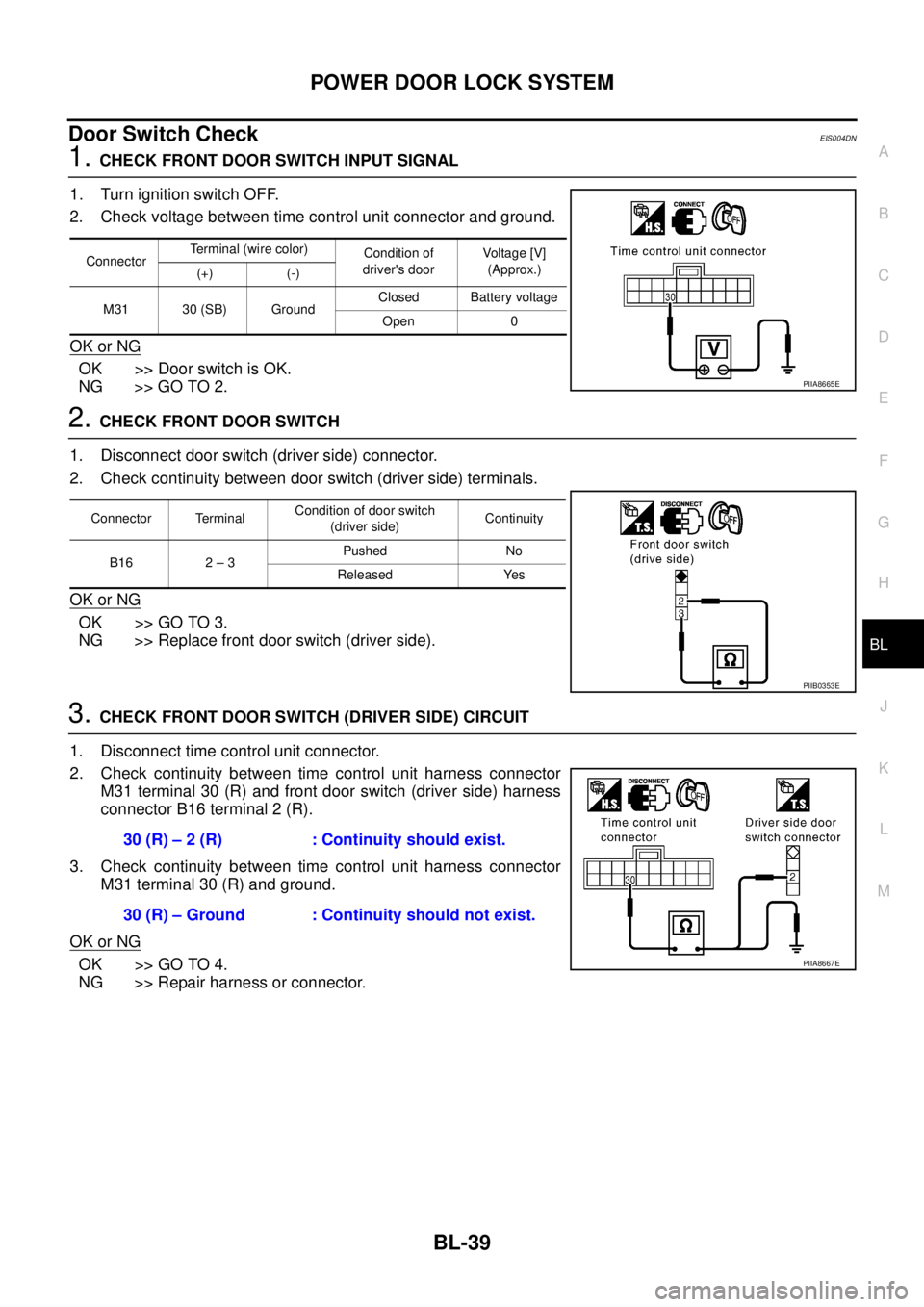

2. CHECK FRONT DOOR SWITCH
1. Disconnect door switch (driver side) connector.
2. Check continuity between door switch (driver side) terminals.
OK or NG
OK >> GO TO 3.
NG >> Replace front door switch (driver side).
3. CHECK FRONT DOOR SWITCH (DRIVER SIDE) CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M31 terminal 30 (R) and front door switch (driver side) harness
connector B16 terminal 2 (R).
3. Check continuity between time control unit harness connector
M31 terminal 30 (R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
ConnectorTerminal (wire color)
Condition of
driver's doorVoltage [V]
(Approx.)
(+) (-)
M31 30 (SB) GroundClosed Battery voltage
Open 0
PIIA8665E
Connector TerminalCondition of door switch
(driver side)Continuity
B16 2 – 3Pushed No
Released Yes
PIIB0353E
30 (R) – 2 (R) : Continuity should exist.
30 (R) – Ground : Continuity should not exist.
PIIA8667E

BL-40
POWER DOOR LOCK SYSTEM

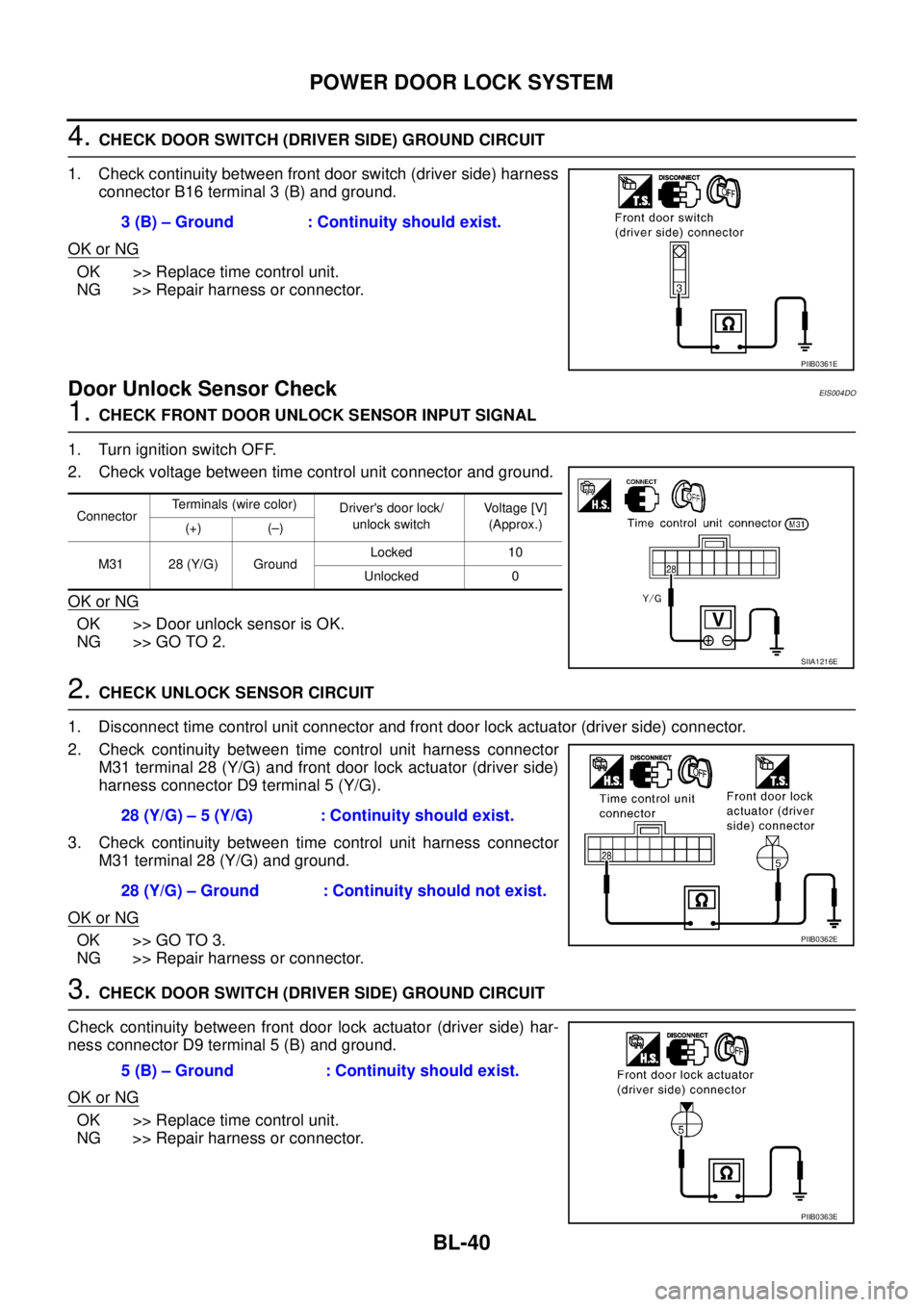

4. CHECK DOOR SWITCH (DRIVER SIDE) GROUND CIRCUIT
1. Check continuity between front door switch (driver side) harness
connector B16 terminal 3 (B) and ground.
OK or NG
OK >> Replace time control unit.
NG >> Repair harness or connector.
Door Unlock Sensor CheckEIS004DO
1. CHECK FRONT DOOR UNLOCK SENSOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between time control unit connector and ground.
OK or NG
OK >> Door unlock sensor is OK.
NG >> GO TO 2.
2. CHECK UNLOCK SENSOR CIRCUIT
1. Disconnect time control unit connector and front door lock actuator (driver side) connector.
2. Check continuity between time control unit harness connector
M31 terminal 28 (Y/G) and front door lock actuator (driver side)
harness connector D9 terminal 5 (Y/G).
3. Check continuity between time control unit harness connector
M31 terminal 28 (Y/G) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK DOOR SWITCH (DRIVER SIDE) GROUND CIRCUIT
Check continuity between front door lock actuator (driver side) har-
ness connector D9 terminal 5 (B) and ground.
OK or NG
OK >> Replace time control unit.
NG >> Repair harness or connector.3 (B) – Ground : Continuity should exist.
PIIB0361E
ConnectorTerminals (wire color)
Driver's door lock/
unlock switchVoltage [V]
(Approx.)
(+) (–)
M31 28 (Y/G) GroundLocked 10
Unlocked 0
SIIA1216E
28 (Y/G) – 5 (Y/G) : Continuity should exist.
28 (Y/G) – Ground : Continuity should not exist.
PIIB0362E
5 (B) – Ground : Continuity should exist.
PIIB0363E

POWER DOOR LOCK SYSTEM
BL-41
C
D
E
F
G
H
J
K
L
MA
B
BL

Key Switch CheckEIS004DP
1. CHECK KEY SWITCH INPUT SIGNAL
Check voltage between time control unit connector and ground.
OK or NG
OK >> Key switch is OK.
NG >> GO TO 2.

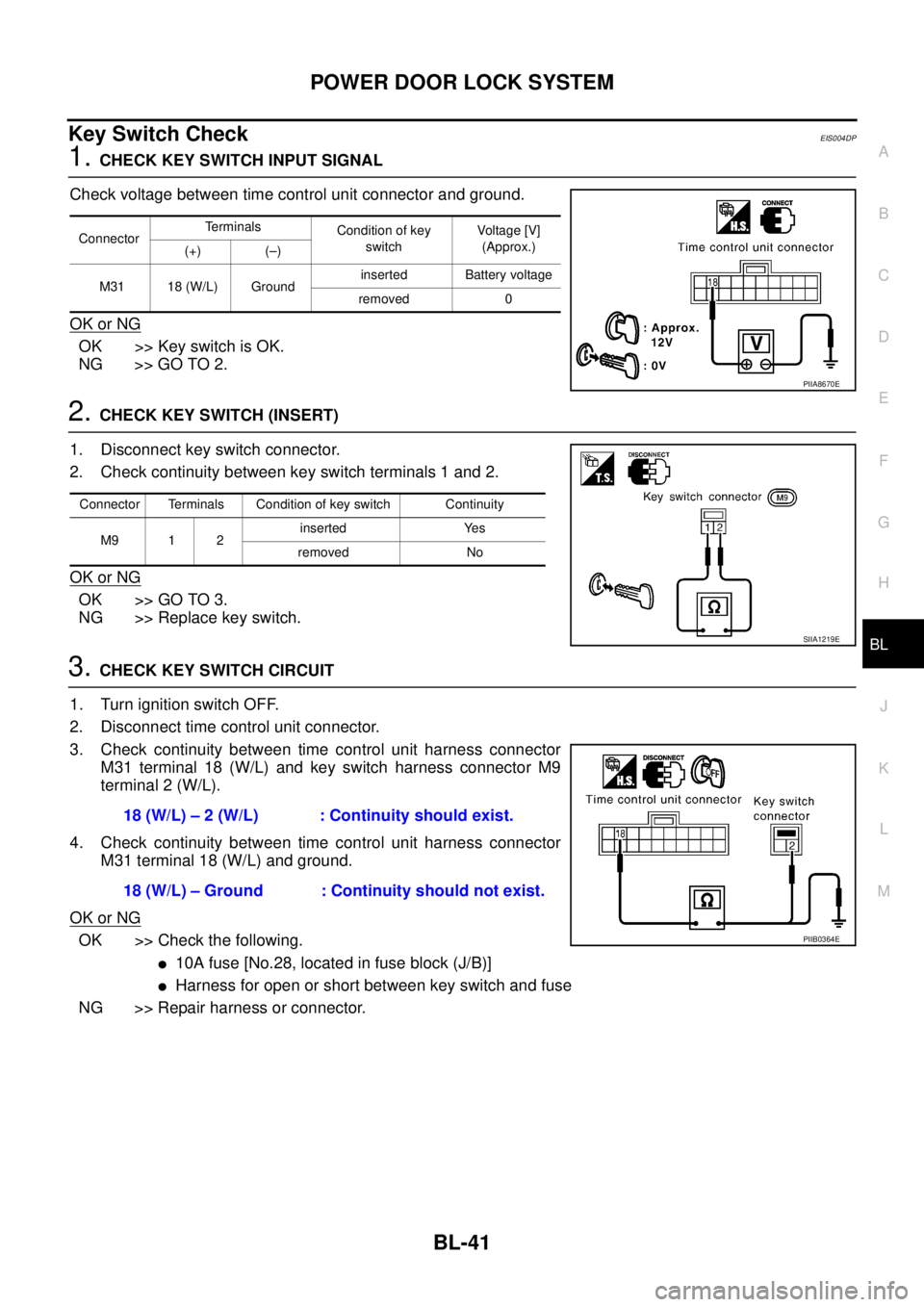

2. CHECK KEY SWITCH (INSERT)
1. Disconnect key switch connector.
2. Check continuity between key switch terminals 1 and 2.
OK or NG
OK >> GO TO 3.
NG >> Replace key switch.
3. CHECK KEY SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect time control unit connector.
3. Check continuity between time control unit harness connector
M31 terminal 18 (W/L) and key switch harness connector M9
terminal 2 (W/L).
4. Check continuity between time control unit harness connector
M31 terminal 18 (W/L) and ground.
OK or NG
OK >> Check the following.

10A fuse [No.28, located in fuse block (J/B)]

Harness for open or short between key switch and fuse
NG >> Repair harness or connector.
ConnectorTe r m i n a l s
Condition of key
switchVoltage [V]
(Approx.)
(+) (–)
M31 18 (W/L) Groundinserted Battery voltage
removed 0
PIIA8670E
Connector Terminals Condition of key switch Continuity
M9 1 2inserted Yes
removed No
SIIA1219E
18 (W/L) – 2 (W/L) : Continuity should exist.
18 (W/L) – Ground : Continuity should not exist.
PIIB0364E

BL-42
POWER DOOR LOCK — SUPER LOCK —

POWER DOOR LOCK — SUPER LOCK —PFP:24814
System DescriptionEIS001R6
OUTLINE
Power door lock system with super lock and key reminder is controlled by time control unit. Super lock has a
higher anti-theft performance than conventional power door lock systems.

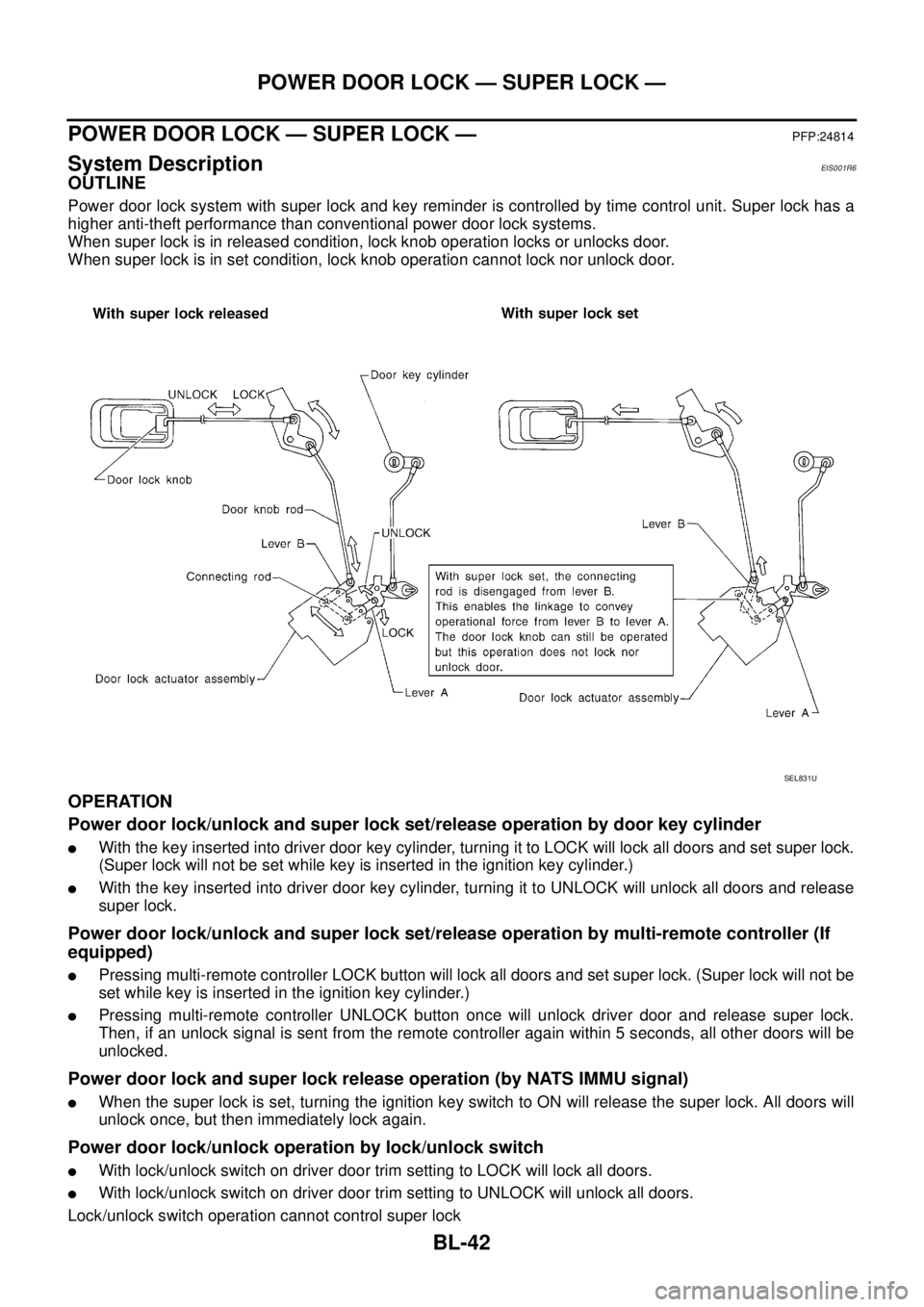

When super lock is in released condition, lock knob operation locks or unlocks door.
When super lock is in set condition, lock knob operation cannot lock nor unlock door.
OPERATION
Power door lock/unlock and super lock set/release operation by door key cylinder

With the key inserted into driver door key cylinder, turning it to LOCK will lock all doors and set super lock.
(Super lock will not be set while key is inserted in the ignition key cylinder.)

With the key inserted into driver door key cylinder, turning it to UNLOCK will unlock all doors and release
super lock.
Power door lock/unlock and super lock set/release operation by multi-remote controller (If
equipped)

Pressing multi-remote controller LOCK button will lock all doors and set super lock. (Super lock will not be
set while key is inserted in the ignition key cylinder.)

Pressing multi-remote controller UNLOCK button once will unlock driver door and release super lock.
Then, if an unlock signal is sent from the remote controller again within 5 seconds, all other doors will be
unlocked.
Power door lock and super lock release operation (by NATS IMMU signal)

When the super lock is set, turning the ignition key switch to ON will release the super lock. All doors will
unlock once, but then immediately lock again.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch on driver door trim setting to LOCK will lock all doors.

With lock/unlock switch on driver door trim setting to UNLOCK will unlock all doors.
Lock/unlock switch operation cannot control super lock
SEL831U

POWER DOOR LOCK — SUPER LOCK —
BL-43
C
D
E
F
G
H
J
K
L
MA
B
BL

Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
System initialization

System initialization is required when battery cables are reconnected. Conduct the following to release
super lock once;
– insert the key into the ignition key cylinder and turn it to ON.
– LOCK/UNLOCK operation using door key cylinder or multi-remote controller.

BL-44
POWER DOOR LOCK — SUPER LOCK —

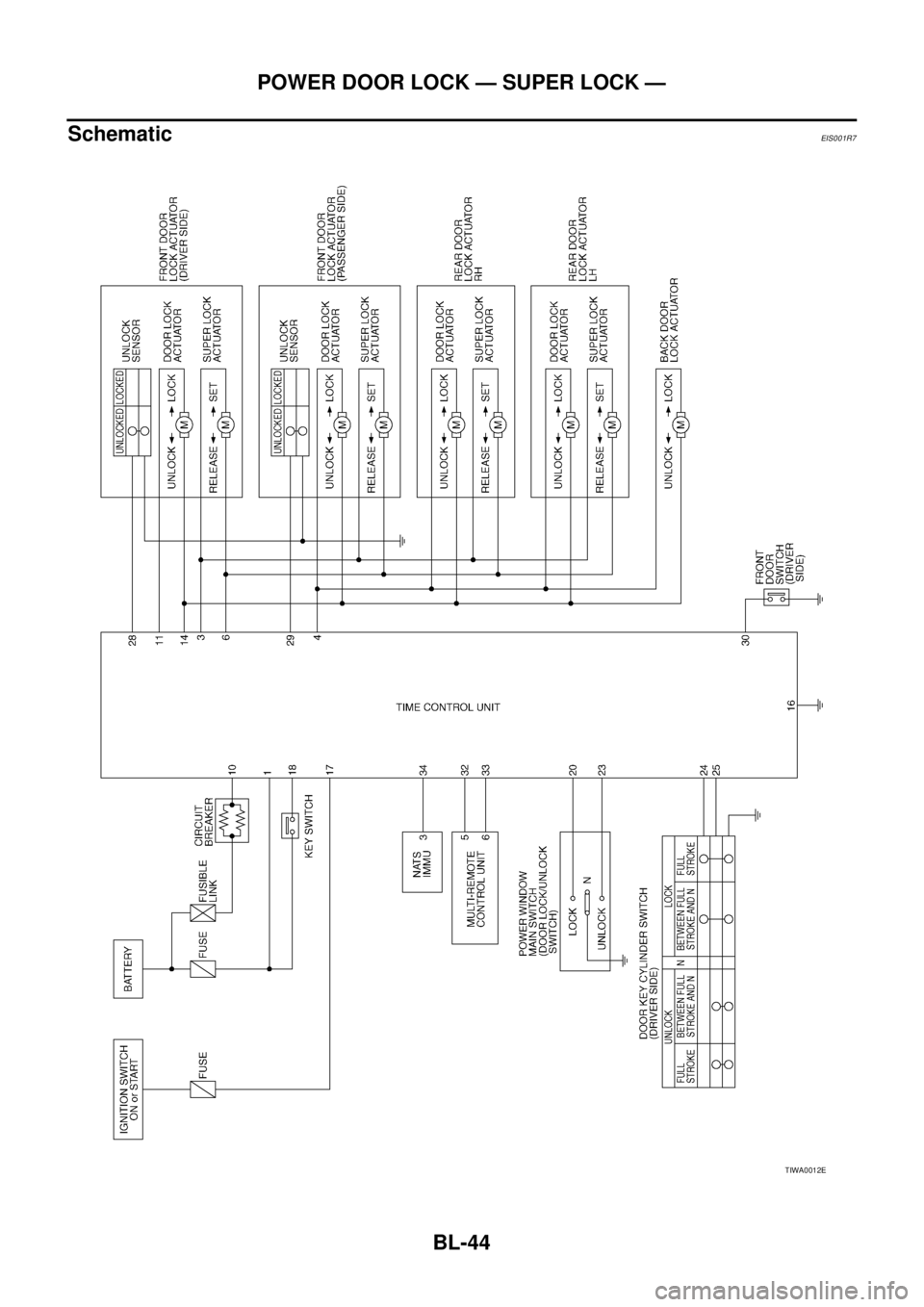

SchematicEIS001R7
TIWA0012E

POWER DOOR LOCK — SUPER LOCK —
BL-45
C
D
E
F
G
H
J
K
L
MA
B
BL

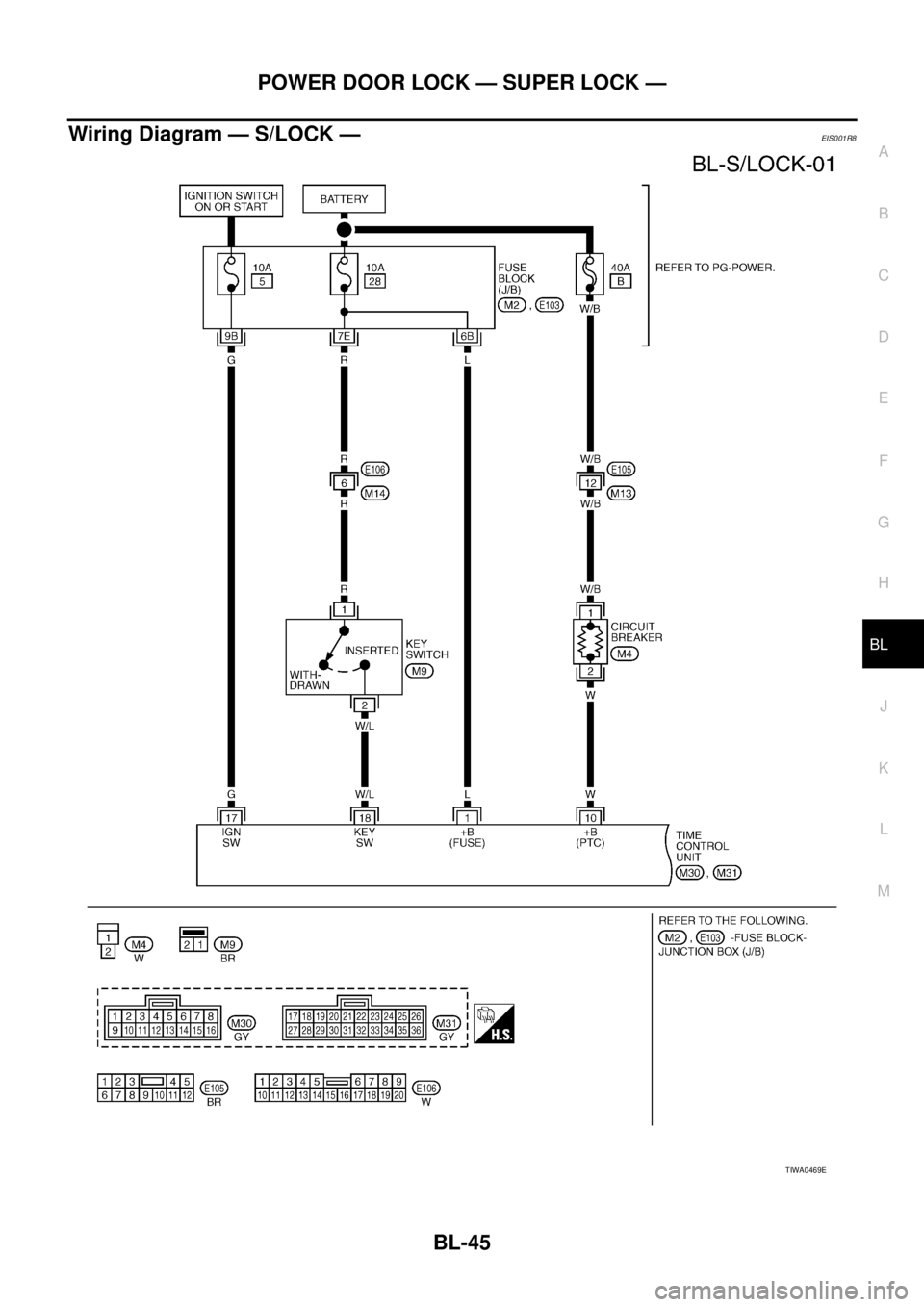

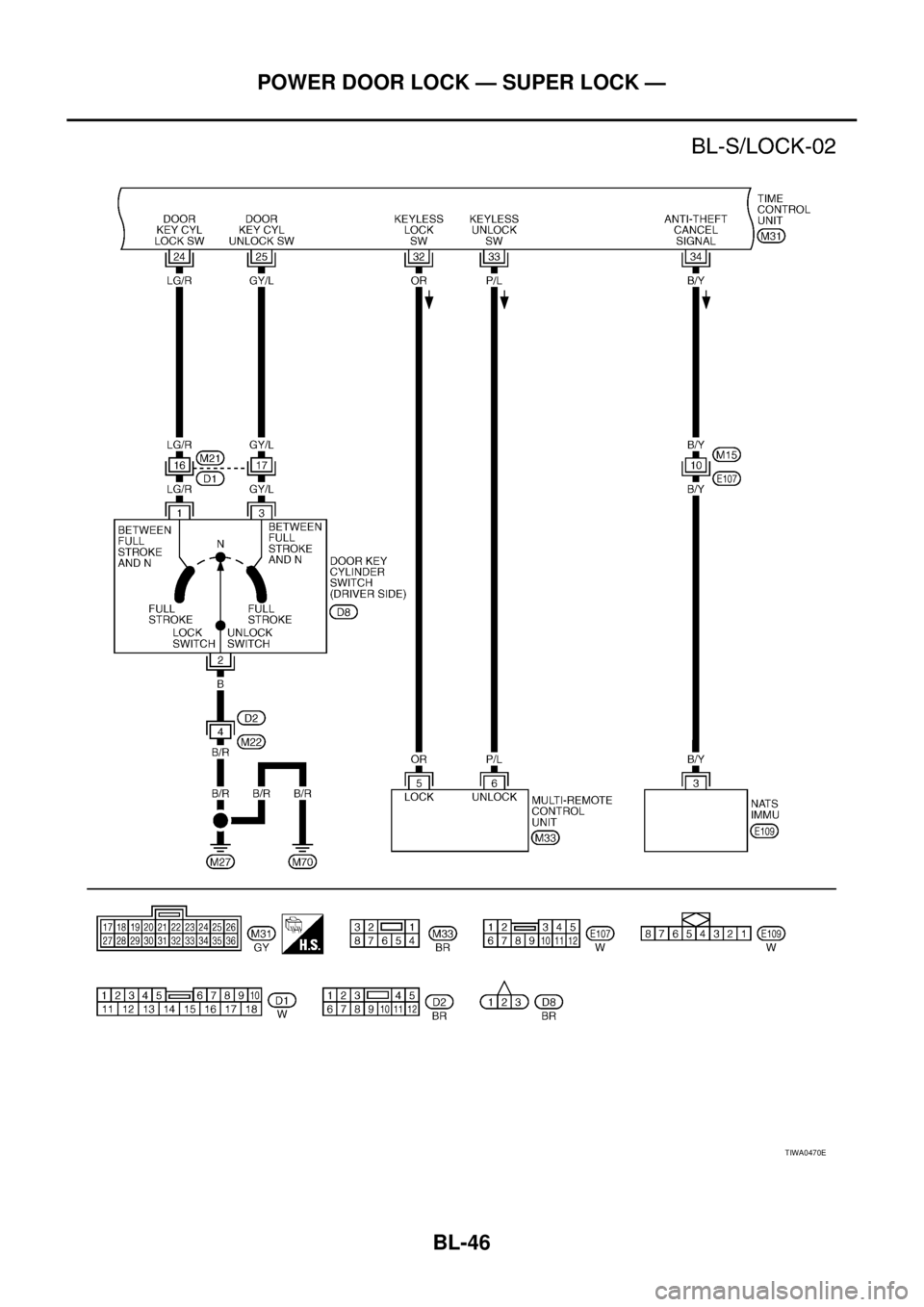

Wiring Diagram — S/LOCK —EIS001R8
TIWA0469E

BL-46
POWER DOOR LOCK — SUPER LOCK —

TIWA0470E
