4. Connect cable securely to the lock.
5. After connection, confirm proper adjustment and operation for
both hood lock and hood opener.
Hood Lock Control InspectionEIS009QK
CAUTION:
If the hood lock cable is bent or deformed, replace it.
1. Make sure that the hood lock secondary latch is securely
engaged with the secondary striker with hood's own weight.
2. Make sure that the hood lock primary latch is securely engaged
with the hood striker with hood's own weight by dropping it from
approx 200 mm (7.87 in) height.
CAUTION:
Do not drop hood from a height of 300 mm (11.81 in) or
more.
3. When pulling hood opener lever gently, make sure that front end of the hood rises by approximately 20
mm (0.79 in) and that hood striker and hood lock primary latch are disengaged. Also make sure that hood
opener returns to the original position.

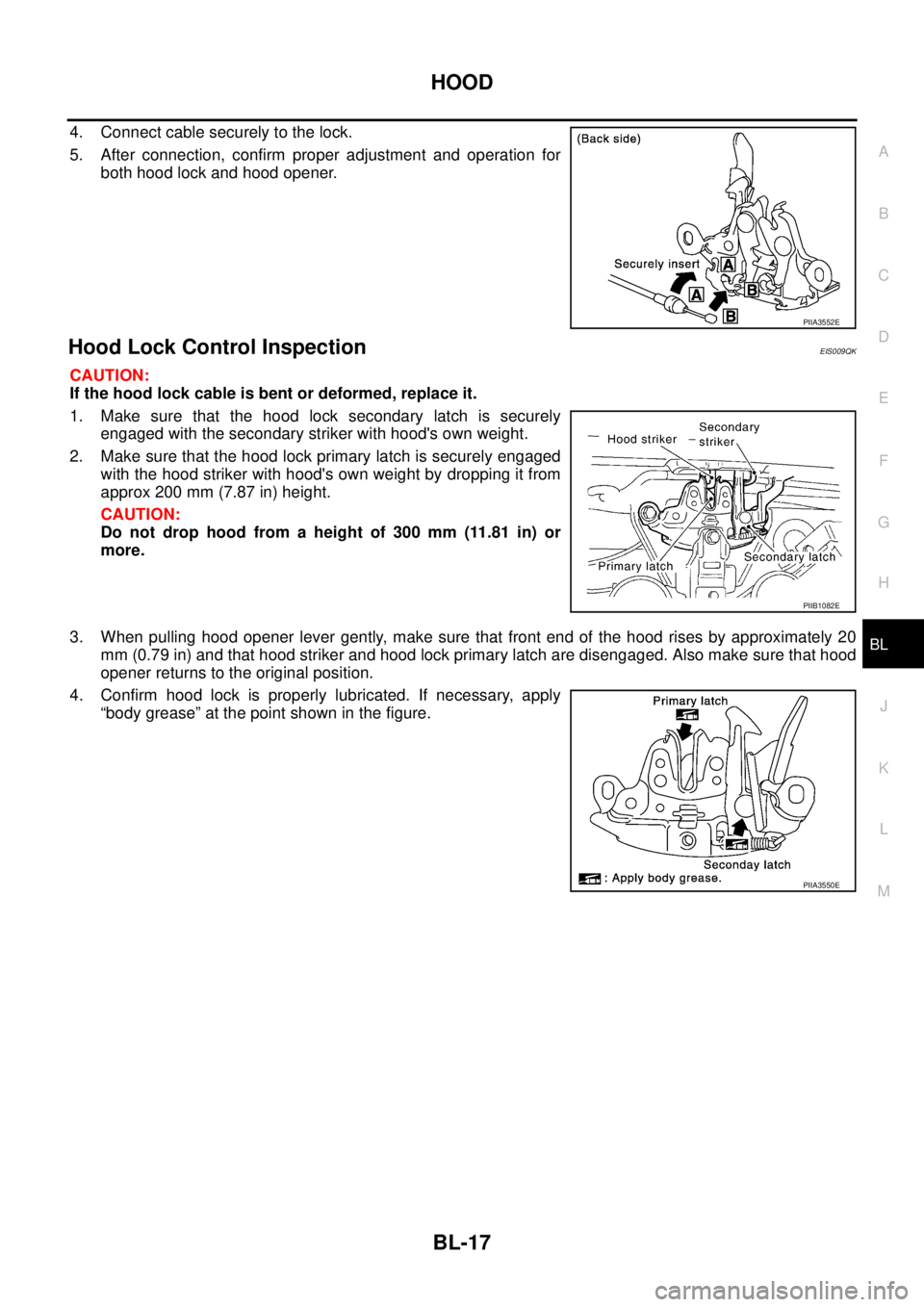

4. Confirm hood lock is properly lubricated. If necessary, apply
“body grease” at the point shown in the figure.
PIIA3552E
PIIB1082E
PIIA3550E

BL-18
DOOR

DOORPFP:80100
Fitting AdjustmentEIS00A67
FRONT DOOR
Longitudinal clearance and surface height adjustment at front end
1. Remove fender protector. Refer to EI-21, "FENDER PROTECTOR" .
2. Working from the inside the fender, loosen hinge mount bolts on the body. Lift rear end of the front door to
adjust clearance and surface difference properly.
REAR DOOR
Longitudinal clearance and surface height adjustment at front end
1. Remove upper and lower garnishes on the center pillar. Refer to EI-35, "BODY SIDE TRIM" .
2. Loosen mounting bolts from outside of vehicle, mounting nuts from inside of vehicle. Open rear door.
Raise rear end of it to adjust.
STRIKER ADJUSTMENT
Adjust striker until it is parallel to the lock engagement direction.
PIIA3652E
PIIA0555E

DOOR
BL-19
C
D
E
F
G
H
J
K
L
MA
B
BL

Removal and Installation of Front DoorEIS00A68
CAUTION:

When removing and installing the front door assembly, support the door with a jack and cloth to
protect the door and body.

When removing and installing front door assembly, be sure to carry out the fitting adjustment.

Operate with two workers, because of its heavy weight.

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

Check front door open/close operation after installation.
REMOVAL

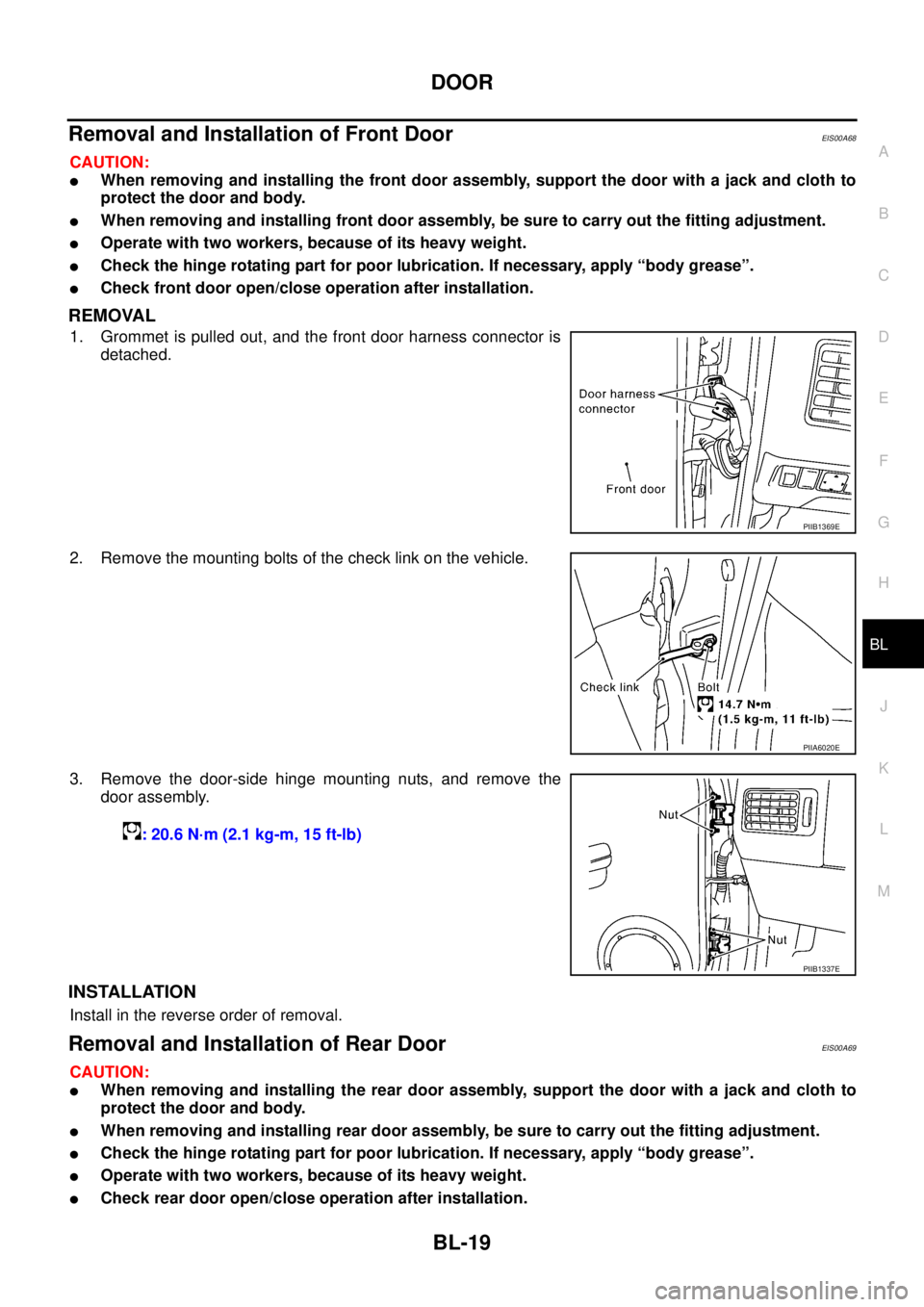

1. Grommet is pulled out, and the front door harness connector is
detached.
2. Remove the mounting bolts of the check link on the vehicle.
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Rear DoorEIS00A69
CAUTION:

When removing and installing the rear door assembly, support the door with a jack and cloth to
protect the door and body.

When removing and installing rear door assembly, be sure to carry out the fitting adjustment.

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

Operate with two workers, because of its heavy weight.

Check rear door open/close operation after installation.
PIIB1369E
PIIA6020E
: 20.6 N·m (2.1 kg-m, 15 ft-lb)
PIIB1337E

BL-20
DOOR

REMOVAL

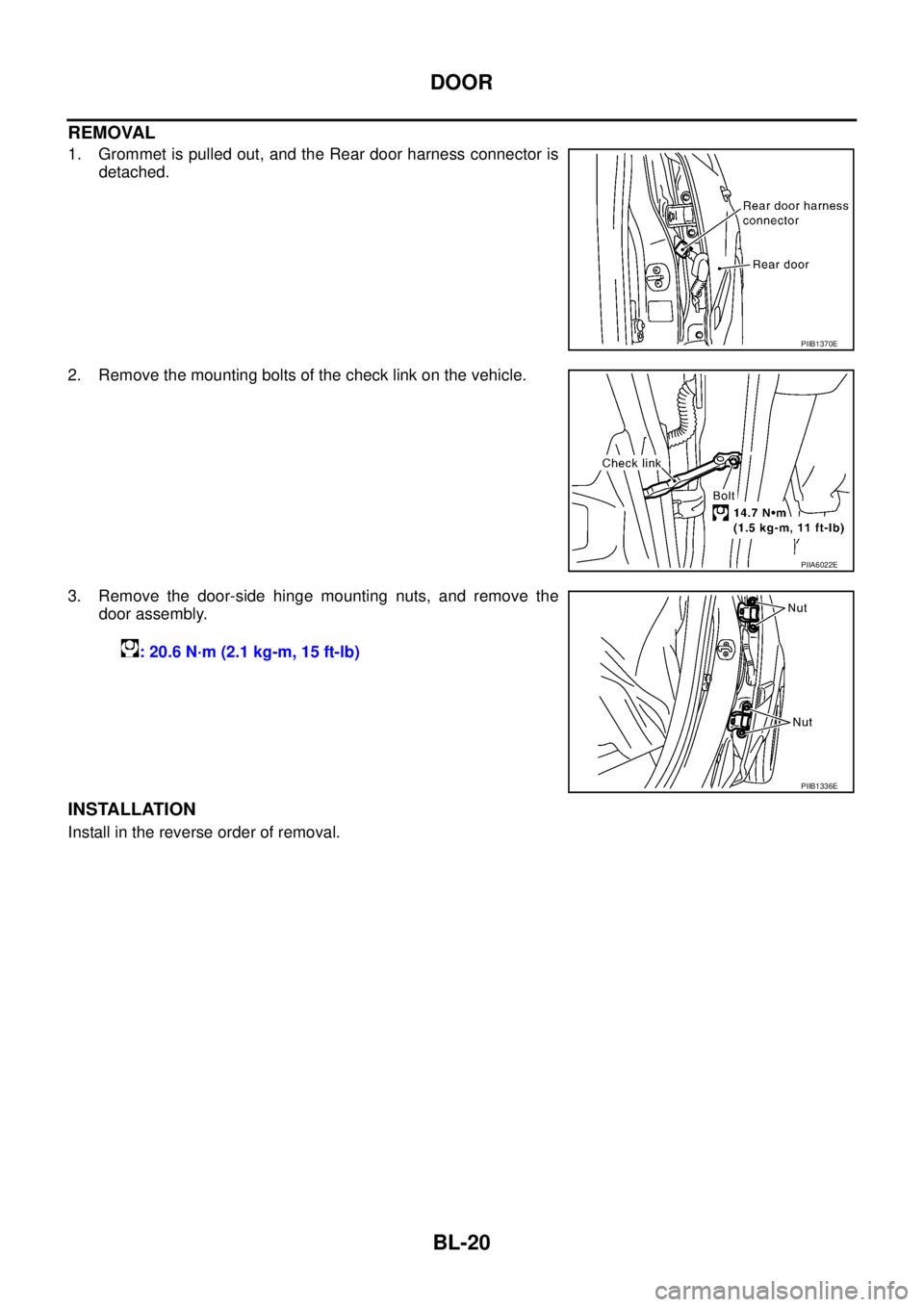

1. Grommet is pulled out, and the Rear door harness connector is
detached.
2. Remove the mounting bolts of the check link on the vehicle.
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
PIIB1370E
PIIA6022E
: 20.6 N·m (2.1 kg-m, 15 ft-lb)
PIIB1336E

DOOR
BL-21
C
D
E
F
G
H
J
K
L
MA
B
BL

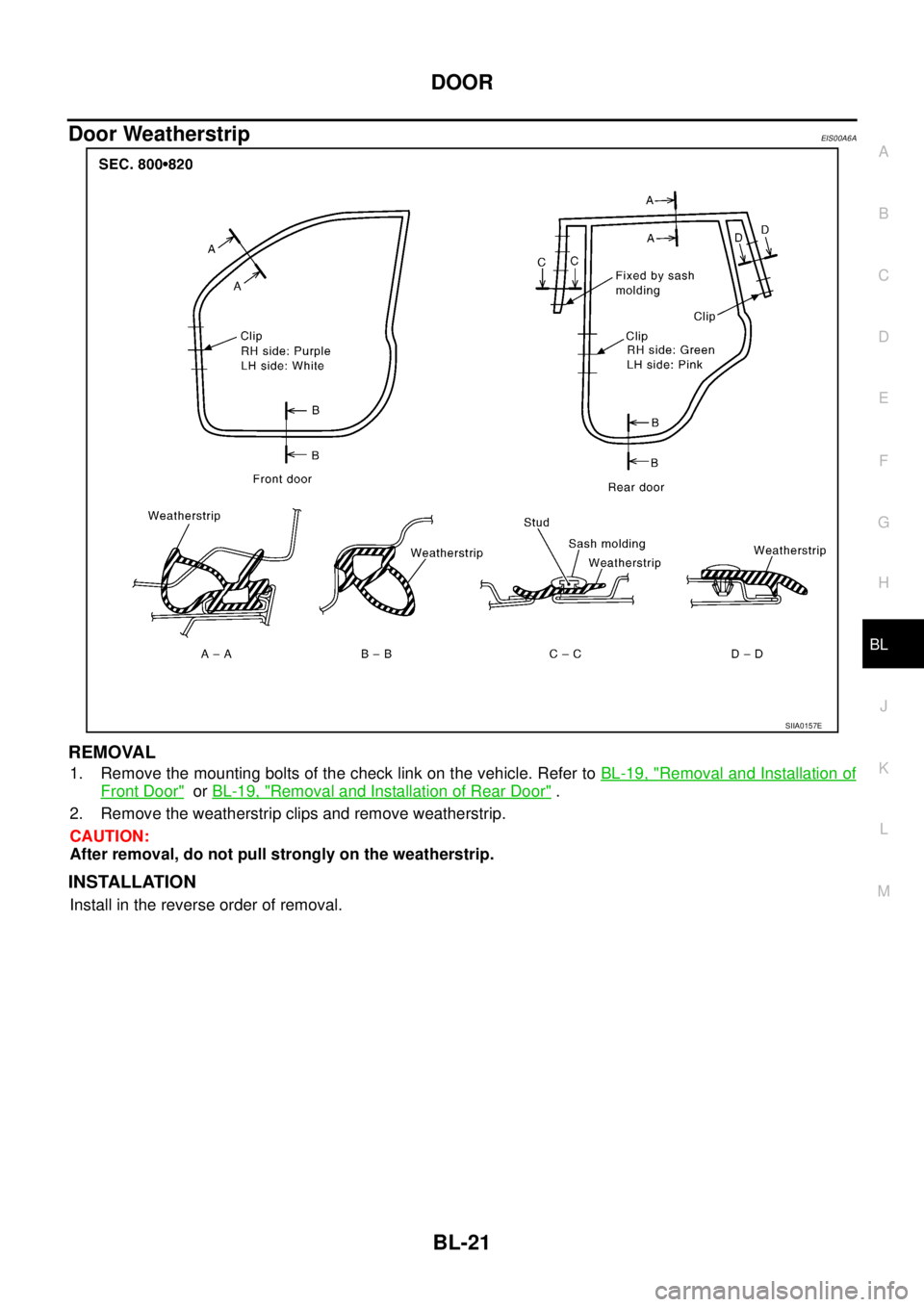

Door WeatherstripEIS00A6A
REMOVAL
1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-19, "Removal and Installation of
Front Door" or BL-19, "Removal and Installation of Rear Door" .
2. Remove the weatherstrip clips and remove weatherstrip.
CAUTION:
After removal, do not pull strongly on the weatherstrip.
INSTALLATION
Install in the reverse order of removal.
SIIA0157E

BL-22
POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEMPFP:24814
System DescriptionEIS001SE
OPERATION
Power door lock/unlock operation by door key cylinder

With the key inserted into driver's door key cylinder, turning it to LOCK will lock all doors.

With the key inserted into driver's door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch setting to LOCK will lock all doors.

With lock/unlock switch setting to UNLOCK will unlock all doors.
Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
Component Parts and Harness Connector LocationEIS004DC
PIIA0584E

POWER DOOR LOCK SYSTEM
BL-23
C
D
E
F
G
H
J
K
L
MA
B
BL

SchematicEIS004DD
TIWA0003E

BL-24
POWER DOOR LOCK SYSTEM

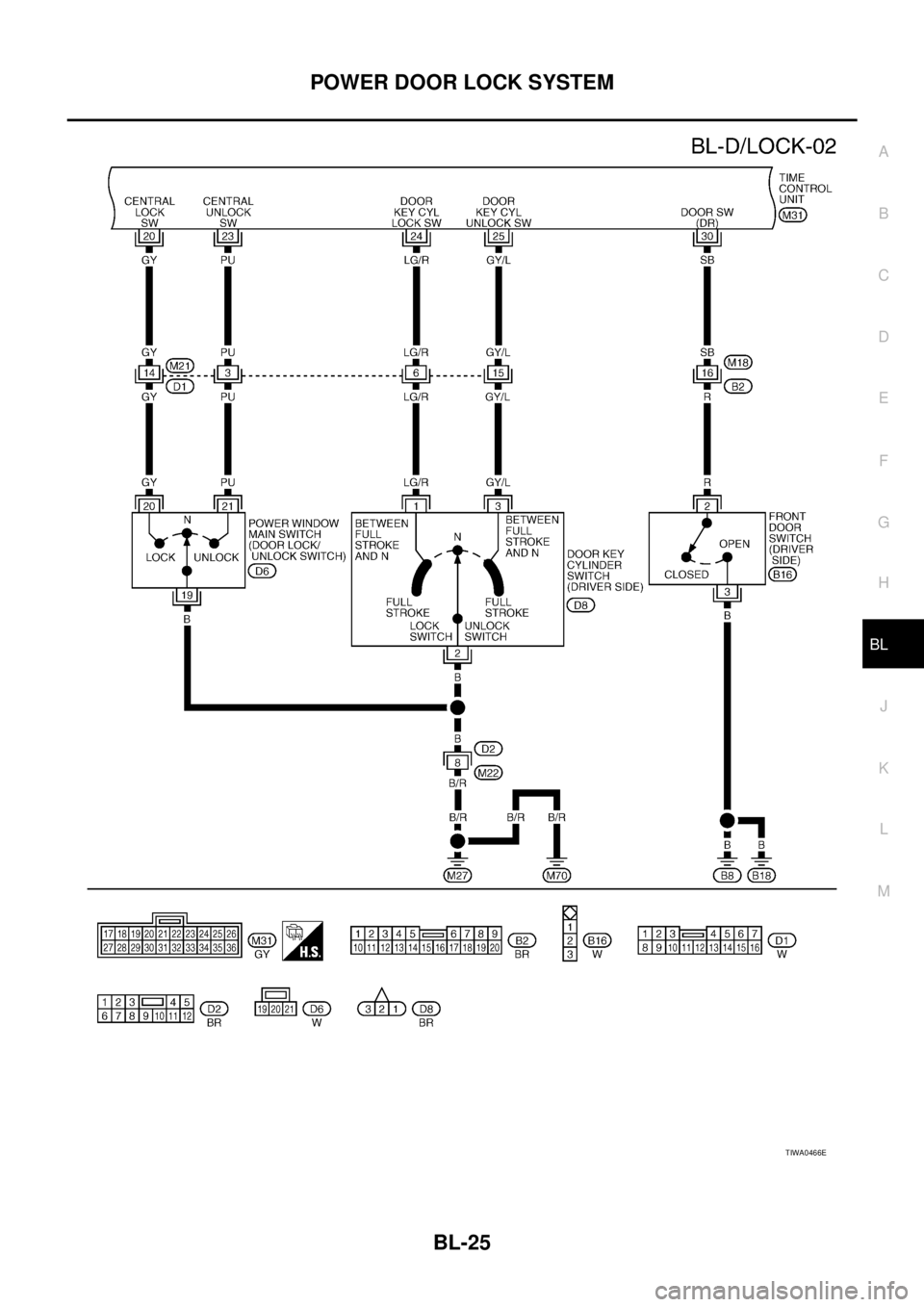

Wiring Diagram — D/LOCK —EIS004DE

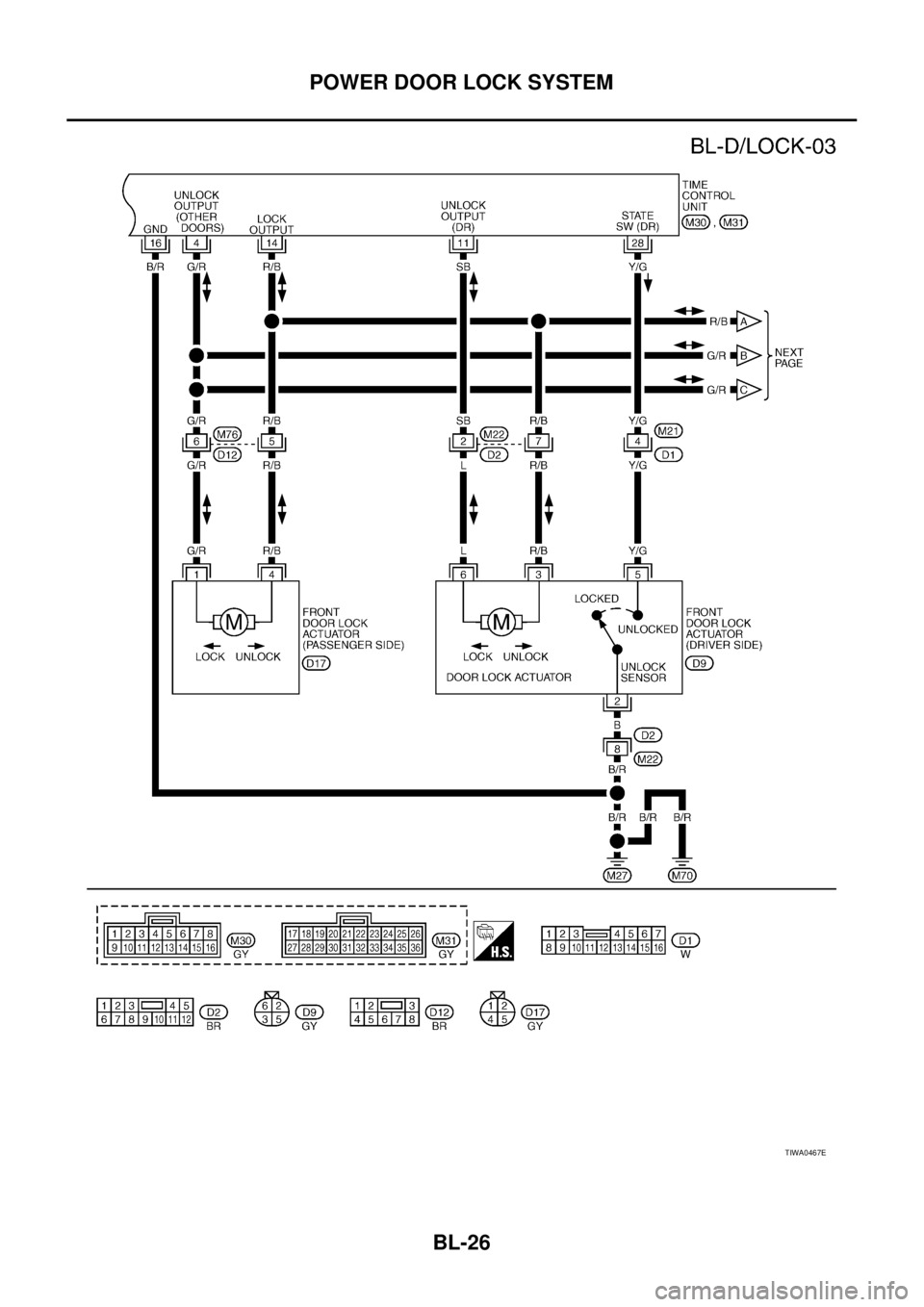

TIWA0465E

POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL

TIWA0466E

BL-26
POWER DOOR LOCK SYSTEM

TIWA0467E
