DescriptionEKS002ZU
OUTLINE
The time control unit totally controls the following body electrical system operations.

Power door lock

Warning chime

Rear window defogger

Interior lamp

Seat belt warning
INPUT/OUTPUT
System Input Output
Power door lockDoor lock and unlock switch
Door switches
Door unlock sensor
Door key cylinder switch (driver side)Door lock actuators
Warning chimeKey switch (Insert)
Ignition switch (ON)
Lighting switch (1st)
Front door switch (driver side)
Door unlock sensorWarning chime (located in time control unit)
Rear window defoggerIgnition switch (ON)
Rear window defogger switchRear window defogger relay
Interior lampDoor switches
Door unlock sensor
Ignition switch (ON)
Key switch (Insert)Interior lamp
Seat belt warningSeat belt buckle switch (driver side)
Seat belt buckle switch (passenger side)
Combination meter (vehicle speed signal)Warning chime (located in time control unit)
Combination meter (Seat belt warning lamp)

BCS-4
TIME CONTROL UNIT

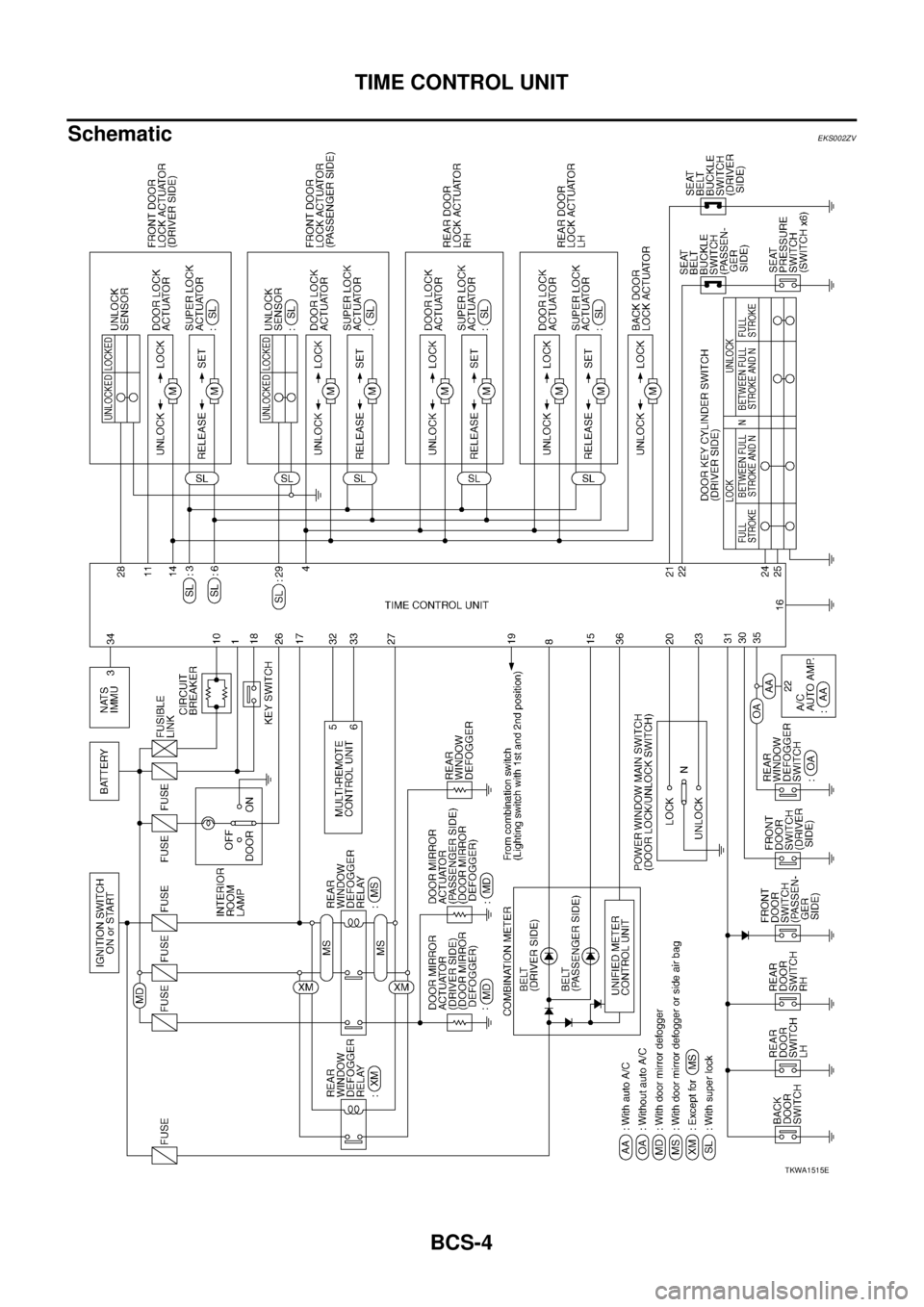

SchematicEKS002ZV
TKWA1515E

TIME CONTROL UNIT
BCS-5
C
D
E
F
G
H
I
J
L
MA
B
BCS

Time Control Unit Inspection TableEKS002ZW
Terminal
No.Wire
colorConnections Operation condition Voltage (Approximate values)
1 L Power source (Fuse) — 12V
3 *1 L/Y Super lock actuator Door key cylinder switchFree 0V
Released
4 G/RPassenger and rear doors lock
actuatorDoor lock/unlock switchFree 0V
Unlocked
6 *1 Y/R Super lock actuator Door key cylinder switchFree 0V
Set
8RCombination meter
[seat belt (driver side)]Seat belt warning lamp (driver side) is
illuminated (seat belt is unfastened).12V
Seat belt warning lamp (driver side) is
not illuminated (seat belt is fastened).0V
10 W Power source (C/B) — 12V
11 S BFront door lock actuator
(driver side)Door lock/unlock switchFree 0V
Unlocked
14 R/B Door lock actuator Door lock/unlock switchFree 0V
Locked
SKIA9232E
SKIA9232E
SKIA9232E
SKIA9232E
SKIA9232E

BCS-6
TIME CONTROL UNIT

15 W/GSeat belt warning lamp
(passenger side)Seat belt warning lamp (passenger
side) is illuminated (seat belt is unfas-
tened).12V
Seat belt warning lamp (passenger
side) is not illuminated (seat belt is
unfastened).0V
16 B/R Ground — 0V
17 G Ignition switch (ON) — 12V
18 W/L Ignition key switch (Insert)Key inserted → key removed from Igni-
tion key cylinder12V → 0V
19 R/L Lighting switch 1ST, 2ND position: ON → OFF 12V → 0V
20 GY Door lock/unlock switch Neutral → Locked 5V → 0V
21 BR/WSeat belt buckle switch
(driver side)Seat belt buckle switch (driver side) is
unfastened.*20V
Seat belt buckle switch (driver side) is
fastened.*212V
22 G/ORSeat belt buckle switch
(passenger side)Seat belt buckle switch (passenger
side) is unfastened.0V
Seat belt buckle switch (passenger
side) is fastened.12V
23 PU Door lock/unlock switchNeutral → Door lock/Unlock switch is
pushed.5V → 0V
24 LG/RDoor key cylinder switch
(driver side)OFF (neutral) → ON (locked) 5V → 0V
25 GY/LDoor key cylinder switch
(driver side)OFF (neutral) → ON (unlocked) 5V → 0V
26 R/Y Interior room lampWhen interior room lamp is operated
using remote controller
(Lamp switch is “DOOR” position.)12V → 0V
27 G/W Rear window defogger relayOFF → ON
(Ignition key is “ON” position.)12V → 0V
28 Y/G Door unlock sensor (driver side) Driver door: Locked → Unlocked 10V → 0V
29*1 Y/LDoor unlock sensor
(passenger side)Passenger door: Locked → Unlocked 5V → 0V
30 SB Front door switch (driver side) OFF (closed) → ON (open) 5V → 0V
31 R/W Passenger and rear doors switch OFF (closed) → ON (open) 5V → 0V
32 OR Multi-remote control unitRemote controller lock button is pushed.
(Ignition switch is not “ON” position.)0V → 5V
33 P/L Multi-remote control unitRemote controller unlock button is
pushed.
(Ignition switch is not “ON” position.)0V → 5V
34 B/Y NATS release signal Ignition switch ON→OFF 0V → 5V Terminal
No.Wire
colorConnections Operation condition Voltage (Approximate values)

TIME CONTROL UNIT
BCS-7
C
D
E
F
G
H
I
J
L
MA
B
BCS

NOTE:
*1: With super lock system.
*2: When seat pressure switch is ON.
*3: Wire color is different depending on vehicle. Each wire color is as follows:
35 LG/B Rear window defogger switchRear window defogger switch is
pushed.0V
Rear window defogger switch is not
pushed.5V
36 *3 Combination meterWhen the vehicle speed is approx. 40
km (25 MPH). Terminal
No.Wire
colorConnections Operation condition Voltage (Approximate values)
ELF1080D
Vehicle Wire color
A/T models L/B
M/T models L/Y
