PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
FRONT WIPER AND WASHER SYSTEM .................. 4
System Description .................................................. 4
WIPER OPERATION ............................................ 4
WASHER OPERATION ......................................... 4
Wiring Diagram — WIPER — .................................. 6
Wiring Diagram — WIPER —/LHD models .............. 7
Terminal and Reference Values for Combination
Switch ....................................................................... 8
Removal and Installation for Front Wiper Arms,
Adjustment for Wiper Arms Stop Location ............... 8
Removal and Installation for Wiper Motor and Link-
age ........................................................................... 9
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
Washer Nozzle Adjustment ..................................... 11
Washer Tube Layout ............................................... 11
Removal and Installation for Washer Nozzle ......... 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Inspection for Washer Nozzle ................................ 12
CHECK VALVE ................................................... 12
Removal and Installation for Wiper and Washer
Switch ..................................................................... 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Removal and Installation for Washer Tank ............. 13
Removal and Installation for Washer Pump ........... 13
REAR WIPER AND WASHER SYSTEM .................. 14
Wiring Diagram — WIP/R — .................................. 14
Terminal and Reference Values for Combination
Switch ..................................................................... 16
Removal and Installation for Rear Wiper Arms ...... 16
WIPER ARMS ..................................................... 16
Removal and Installation for Wiper Motor and Link-
age ......................................................................... 17REMOVAL ........................................................... 17
INSTALLATION ................................................... 17
Washer Nozzle Adjustment .................................... 18
Removal and Installation for Rear Washer Nozzle ... 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18
Inspection for Washer Nozzle ................................. 18
CHECK VALVE .................................................... 18
Removal and Installation for Wiper and Washer
Switch ..................................................................... 19
Removal and Installation for Washer Tank ............. 19
Removal and Installation for Washer Pump ........... 19
Washer Tube Layout .............................................. 19
HEADLAMP WASHER ............................................. 20
System Description ................................................. 20
Wiring Diagram —HLC— ....................................... 21
Wiring Diagram —HLC—/RHD models .................. 22
Removal and Installation for Washer Nozzle .......... 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
Inspection for Washer Nozzle ................................. 23
CHECK VALVE .................................................... 23
Removal and Installation for Washer Tank ............. 23
Removal and Installation for Washer Pump ........... 23
Washer Tube Layout .............................................. 24
HORN ........................................................................ 25
Wiring Diagram — HORN — .................................. 25
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
CIGARETTE LIGHTER ............................................. 27
Wiring Diagram — CIGAR — ................................. 27
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28
POWER SOCKET ..................................................... 29
Wiring Diagram —POWER SOCKET— ................. 29
Removal and Installation for Front Power Socket ... 30
REMOVAL ........................................................... 30

WW-2 INSTALLATION .................................................... 30
Removal and Installation for Rear Power Socket ... 30
REMOVAL ........................................................... 30
INSTALLATION .................................................... 30

PRECAUTIONS
WW-3
C
D
E
F
G
H
I
J
L
MA
B
WW

PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0079K
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Wiring Diagrams and Trouble Diagnosis EKS0079L
When you read wiring diagrams, refer to the followings:

Refer to GI-14, "How to Read Wiring Diagrams" in GI section

Refer to PG-2, "POWER SUPPLY ROUTING" for power distribution circuit in PG section
When you perform trouble diagnosis, refer to the followings:

Refer to GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section

Refer to GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section

WW-4
FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEMPFP:28810
System DescriptionEKS0032N
WIPER OPERATION
The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:

LO speed

HI speed

INT (Intermittent)
With the ignition switch in the ON or START position, power is supplied

through 20A fuse [No. 6, located in the fuse block (J/B)]

to front wiper motor terminal 2.
Low and High Speed Wiper Operation
Ground is supplied to front wiper and washer switch terminal 17 through body grounds E24 and E50.
When the wiper switch is placed in the LO position, ground is supplied

through front wiper and washer switch terminal 14

to front wiper motor terminal 3.
With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied

through front wiper and washer switch terminal 16

to front wiper motor terminal 5.
With power and ground supplied, the wiper motor operates at high speed.
Auto Stop Operation
With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided

from front wiper and washer switch terminal 14

to front wiper motor terminal 3, in order to continue wiper motor operation at low speed.
Ground is also supplied

through front wiper and washer switch terminal 13

to front wiper motor terminal 4

through terminal 1 of the front wiper motor terminal 1 and

through grounds E24 and E50.
When wiper arms reach base of windshield, front wiper motor terminals 2 and 4 are connected instead of ter-
minals 1 and 4. Wiper motor will then stop wiper arms at the STOP position.
Intermittent Operation
The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to 13
seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper and washer
switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier.
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied

through wiper amplifier (OUTPUT) and

through front wiper and washer switch terminal 14

to front wiper motor terminal 3
The wiper motor operates at low speed at the desired interval.
WASHER OPERATION
With the ignition switch in the ON or START position, power is supplied

through 20A fuse [No. 6, located in the fuse block (J/B)]

to front washer motor terminal 1.
When the lever is pulled to the WASH position, ground is supplied

FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW


from grounds E24 and E50

through front wiper and washer switch terminal 17, and

through front wiper and washer switch terminal 18

to front washer motor terminal 2.
With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the same
manner as the intermittent operation.

WW-6
FRONT WIPER AND WASHER SYSTEM

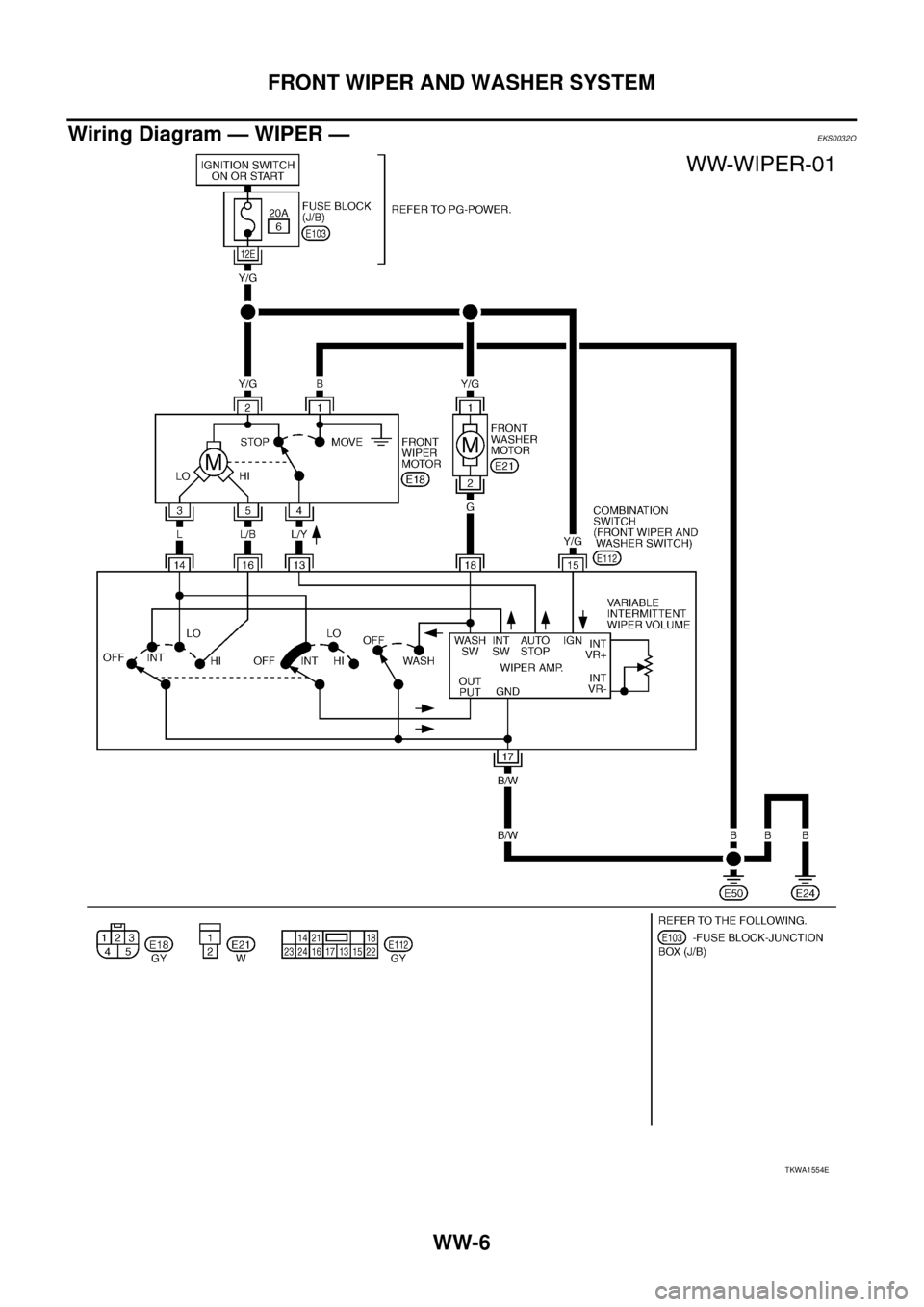

Wiring Diagram — WIPER —EKS0032O
TKWA1554E

FRONT WIPER AND WASHER SYSTEM
WW-7
C
D
E
F
G
H
I
J
L
MA
B
WW

Wiring Diagram — WIPER —/LHD modelsEKS00ES7
TKWA1555E

WW-8
FRONT WIPER AND WASHER SYSTEM

Terminal and Reference Values for Combination SwitchEKS0032P
Removal and Installation for Front Wiper Arms, Adjustment for Wiper Arms
Stop Location
EKS0032Q
1. Prior to front wiper arm installation, turn on wiper switch to oper-
ate front wiper motor and then turn it “OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” & “L2” immediately before
tightening nut.
3. Eject washer fluid. Turn on front wiper switch to operate front
wiper motor and then turn it “OFF”.
4. Ensure that front wiper blades stop within clearance “L1” & “L2”.

Tighten front wiper arm nuts to specified torque.

Before reinstalling front wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of front wiper arm loose-
ness.
TERMINAL
NO.WIRE
COLORITEM CONDITION
DATA (DC Voltage)
IGNITION
SWITCHCONDITION OR OPERATION
13 L/YWiper auto
Stop signalONWiper is moving Approx. 0V
Wiper while the vehicle is stopped Battery voltage
14 LWiper motor
Operation signal (LO)ON Wiper switchOFF Battery voltage
LO Approx. 0V
15 Y/G Ignition ON signal ON — Battery voltage
16 L/BWiper motor
Operation signal (HI)ON Wiper switchOFF Battery voltage
HI Approx. 0V
17 B/W Ground OFF — —
18 G Washer switch signal ON Wiper switchWASH Approx. 0V
OFF Battery voltage
PKIA5548E
Clearance “L1”: 49.2 - 64.2 mm (1.937 - 2.528 in)
Clearance “L2”: 39.3 - 54.3 mm (1.547 - 2.138 in)
Front wiper:
23.6 N-m (2.4 kg-m, 17 ft-lb)
PKIA5763E
SEL024J

FRONT WIPER AND WASHER SYSTEM
WW-9
C
D
E
F
G
H
I
J
L
MA
B
WW

Removal and Installation for Wiper Motor and Linkage EKS0032R
1. Rubber 2. Wiper frame 3. Wiper link
4. Motor arm 5. Wiper Motor 6. Rubber
7. Wiper link . .
PKIA5549E
1. Rubber 2. Wiper frame 3. Wiper link
4. Motor arm 5. Wiper Motor 6. Rubber
7. Wiper link . .
PKIA5550E

WW-10
FRONT WIPER AND WASHER SYSTEM

REMOVAL
1. Operate the front wiper motor, and stop it at the auto stop posi-
tion.
2. Remove front wiper arm from the vehicle.
3. Remove the cowl top cover. Refer to EI-20, "
COWL TOP" .
4. Remove 4 screws and remove front wiper motor assembly from
the vehicle.
5. Disconnect front wiper motor connector.
6. Remove wiper link from wiper frame.
7. Remove front wiper motor from wiper frame.
INSTALLATION
1. Connect front wiper motor to connector. Turn the wiper switch
ON to operate front wiper motor, then turn the front wiper switch
OFF (auto stop).
2. Disconnect wiper motor connector.
3. Install front wiper motor to the wiper frame.
4. Install front wiper motor assembly to the vehicle.
5. Install wiper link to the wiper motor arm.
6. Connect front wiper motor connector. Turn the front wiper switch
ON to operate the front wiper motor, then turn wiper switch OFF
(auto stop)
7. Rotate motor arm to the upper limit position.
8. Install wiper motor assembly to the vehicle.
9. Turn the wiper switch ON to operate the Wiper motor, then turn
wiper switch OFF (auto stop)
10. Install cowl top cover. Refer to EI-20, "
COWL TOP" .
11. Install wiper arm to the vehicle.
CAUTION:

Do not drop the wiper motor or cause it to contact other
parts.

Check the grease conditions of the motor arm and wiper
link joint (at retainer). Apply grease if necessary.
SKIA0016E
PKIA0475E
SKIA0092E
PKIA0476E
