NISSAN X-TRAIL 2003 Service Repair Manual

CAN SYSTEM (TYPE 3)
LAN-53
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

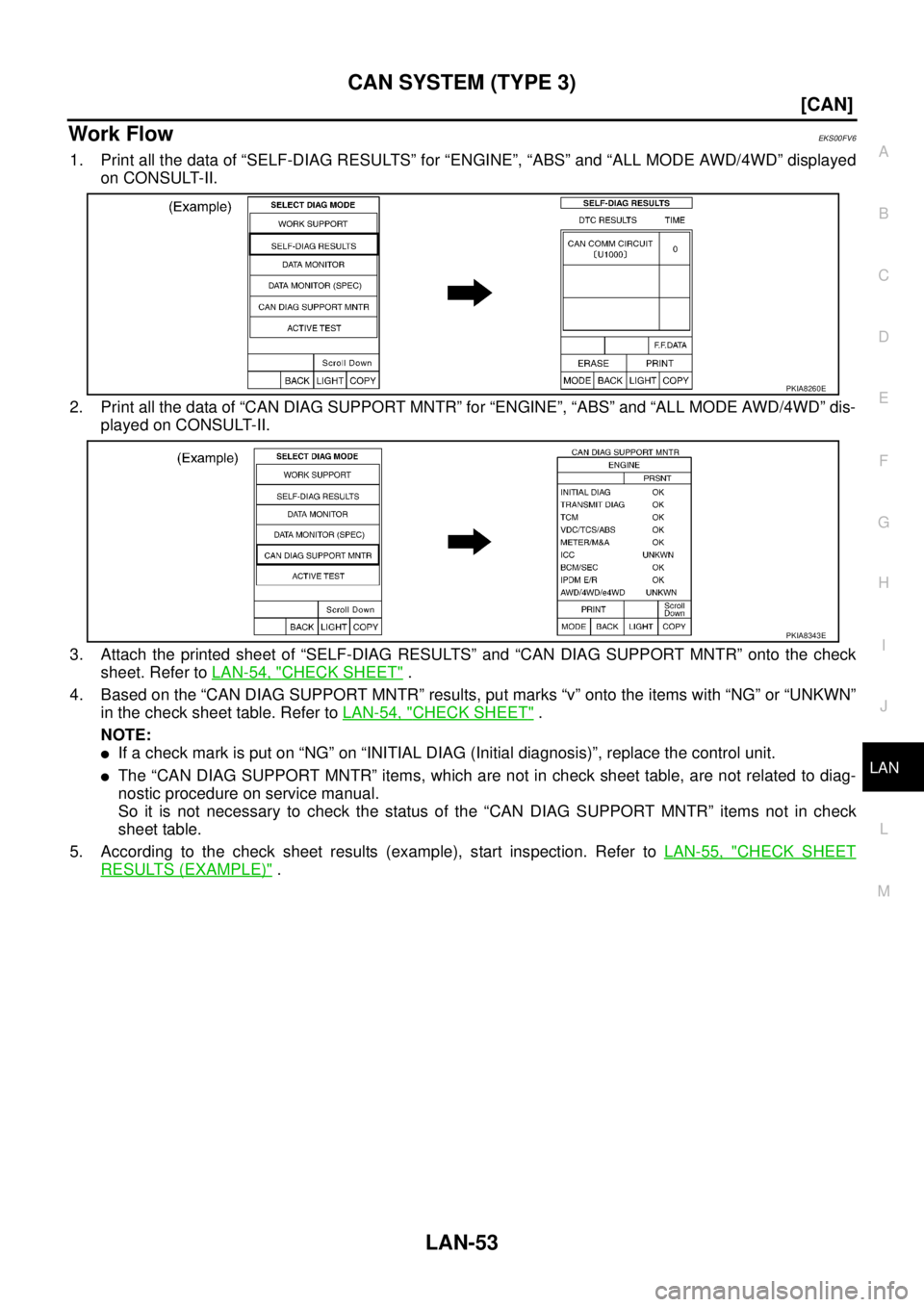

Work FlowEKS00FV6
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-54, "
CHECK SHEET" .
4. Based on the “CAN DIAG SUPPORT MNTR” results, put marks “v” onto the items with “NG” or “UNKWN”
in the check sheet table. Refer to LAN-54, "
CHECK SHEET" .
NOTE:

If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-55, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E

LAN-54
[CAN]
CAN SYSTEM (TYPE 3)

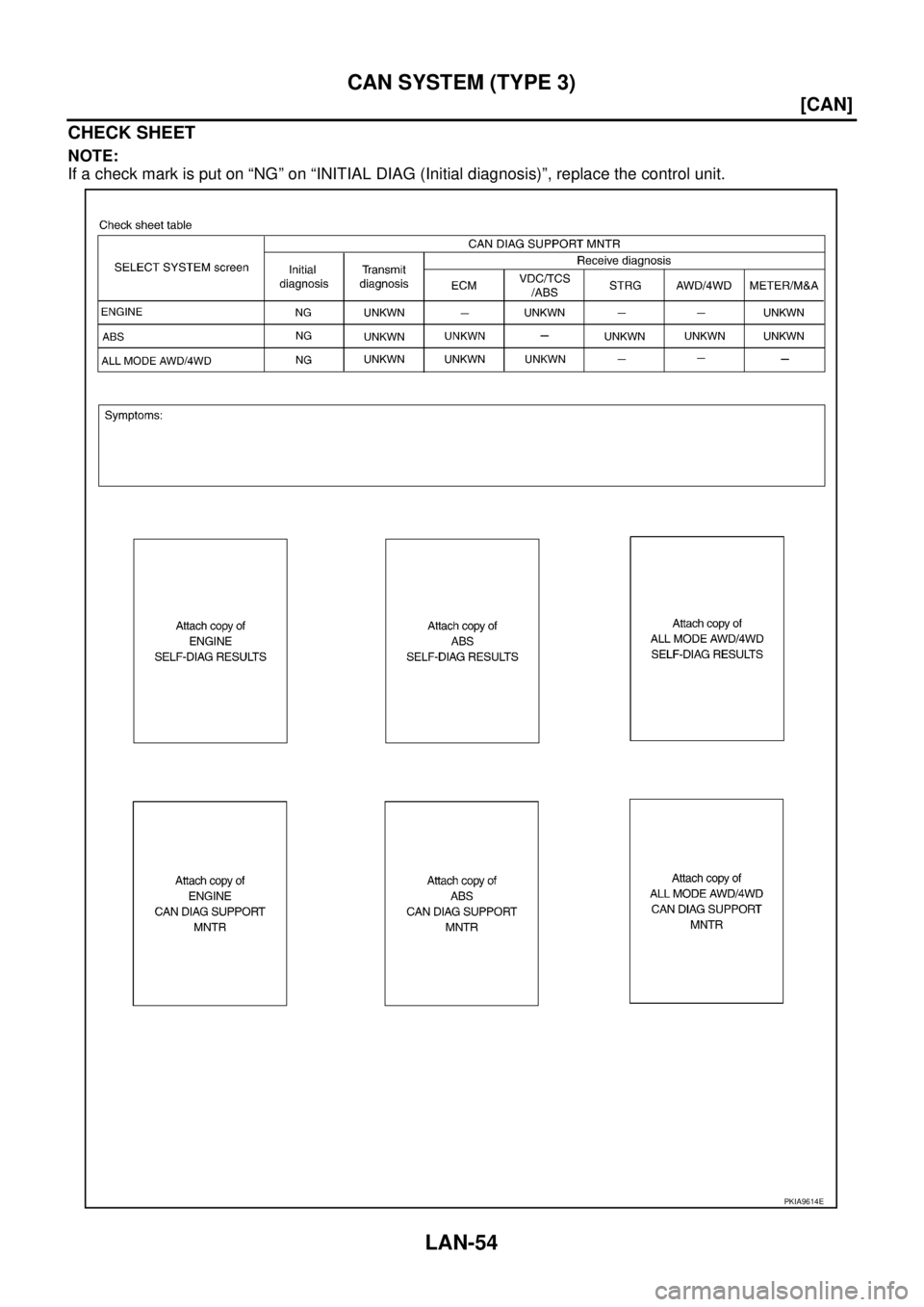

CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIA9614E

CAN SYSTEM (TYPE 3)
LAN-55
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

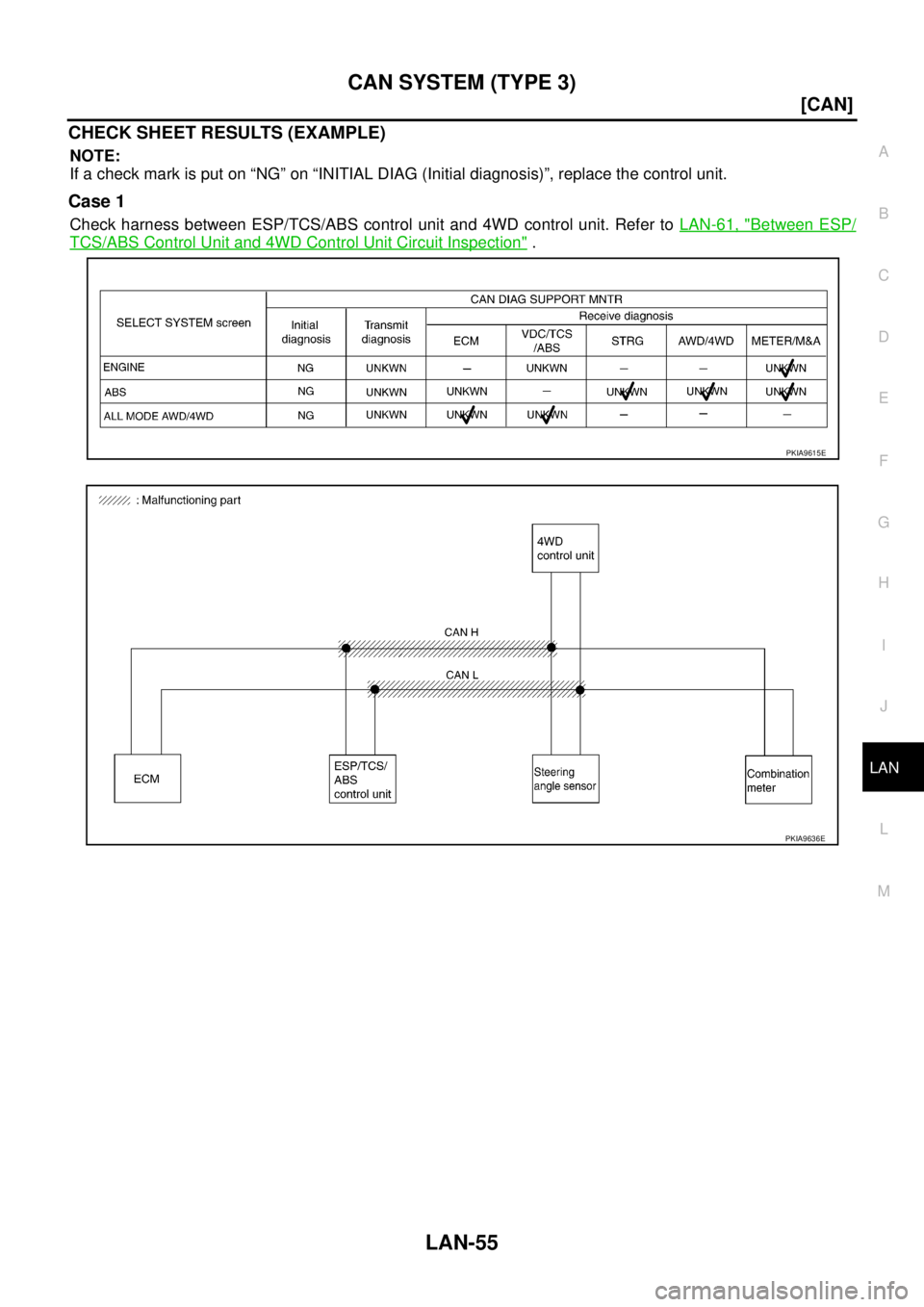

Case 1
Check harness between ESP/TCS/ABS control unit and 4WD control unit. Refer to LAN-61, "Between ESP/
TCS/ABS Control Unit and 4WD Control Unit Circuit Inspection" .
PKIA9615E
PKIA9636E

LAN-56
[CAN]
CAN SYSTEM (TYPE 3)

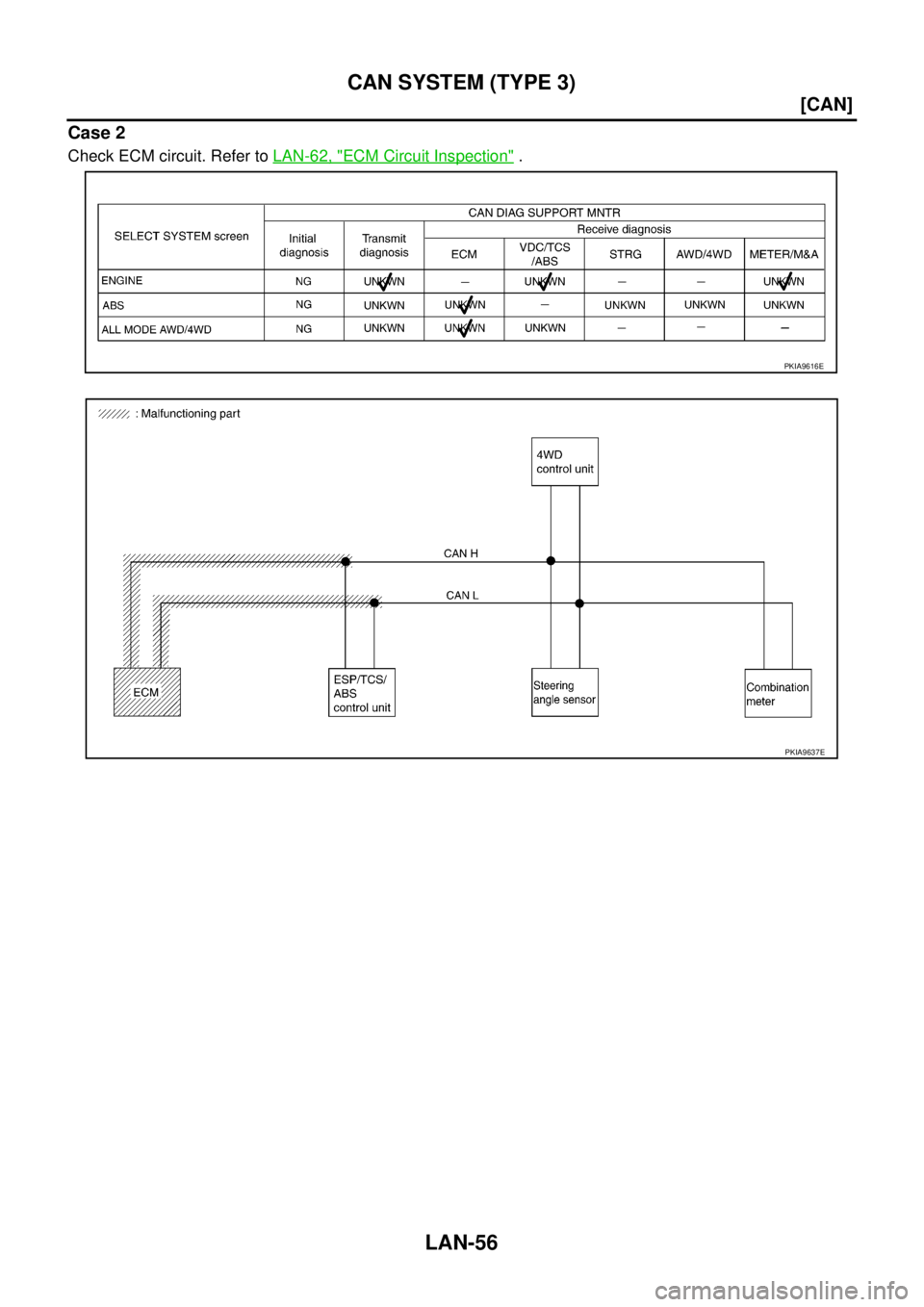

Case 2
Check ECM circuit. Refer to LAN-62, "ECM Circuit Inspection" .
PKIA9616E
PKIA9637E

CAN SYSTEM (TYPE 3)
LAN-57
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

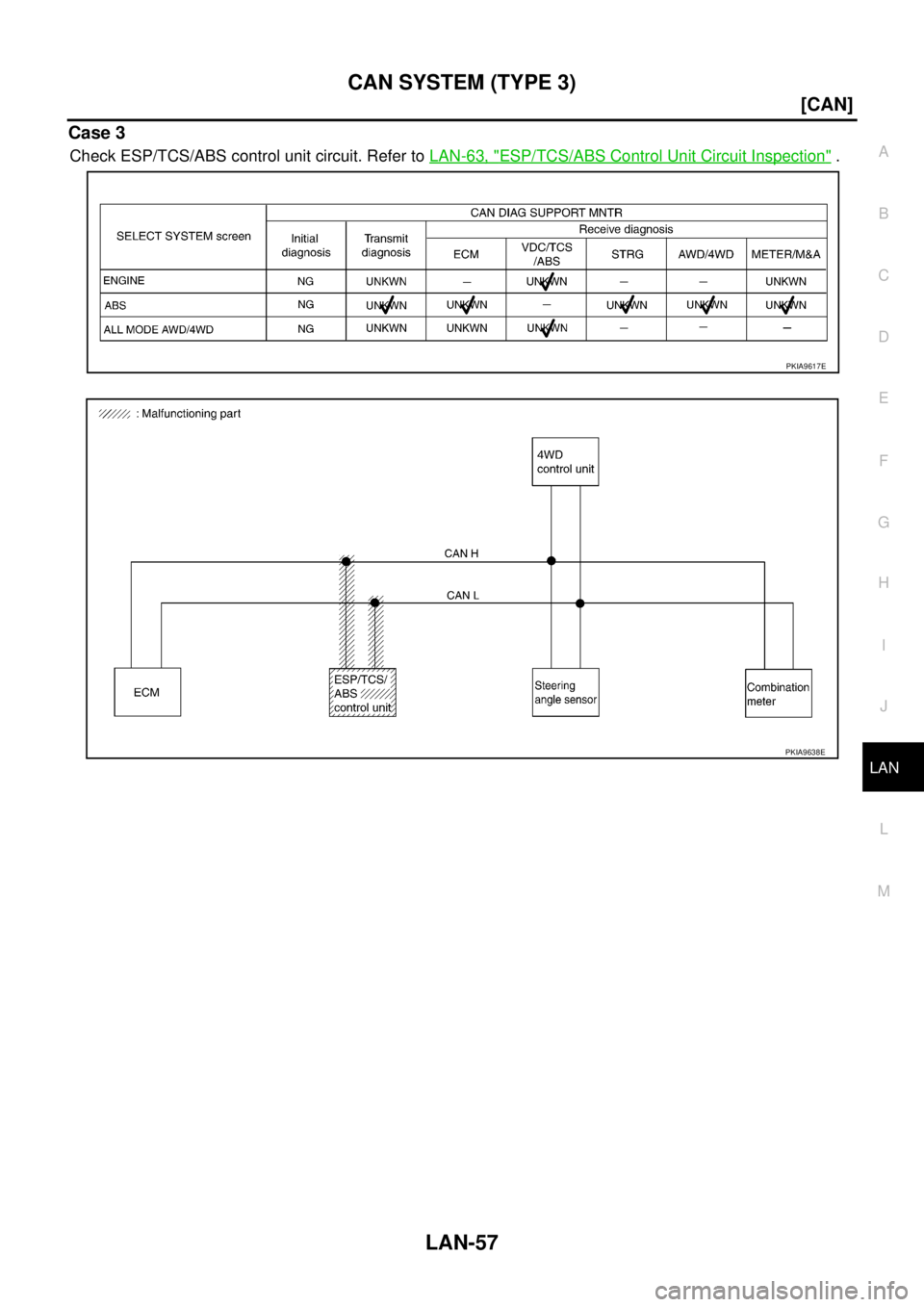

Case 3
Check ESP/TCS/ABS control unit circuit. Refer to LAN-63, "ESP/TCS/ABS Control Unit Circuit Inspection" .
PKIA9617E
PKIA9638E

LAN-58
[CAN]
CAN SYSTEM (TYPE 3)

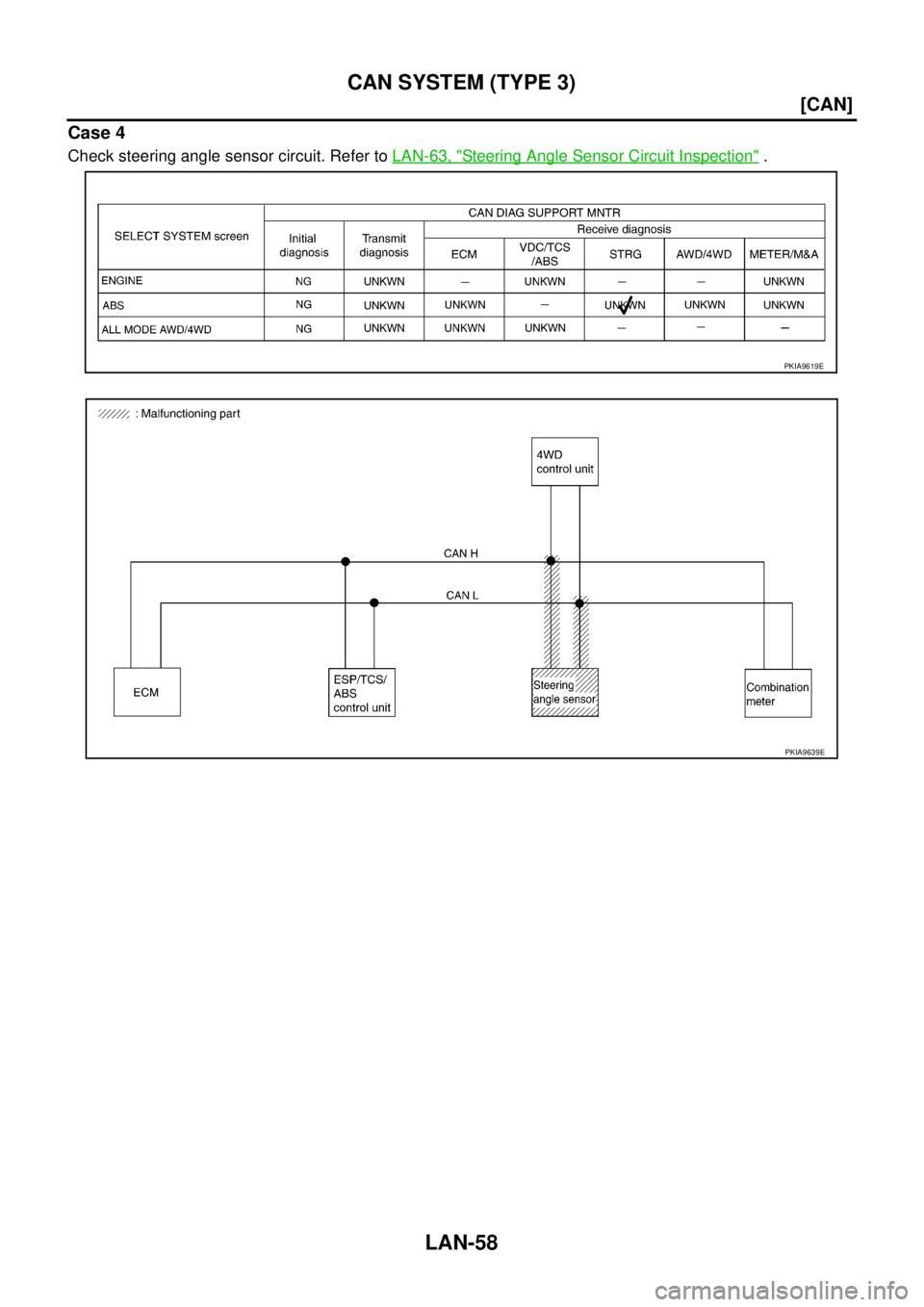

Case 4
Check steering angle sensor circuit. Refer to LAN-63, "Steering Angle Sensor Circuit Inspection" .
PKIA9619E
PKIA9639E

CAN SYSTEM (TYPE 3)
LAN-59
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

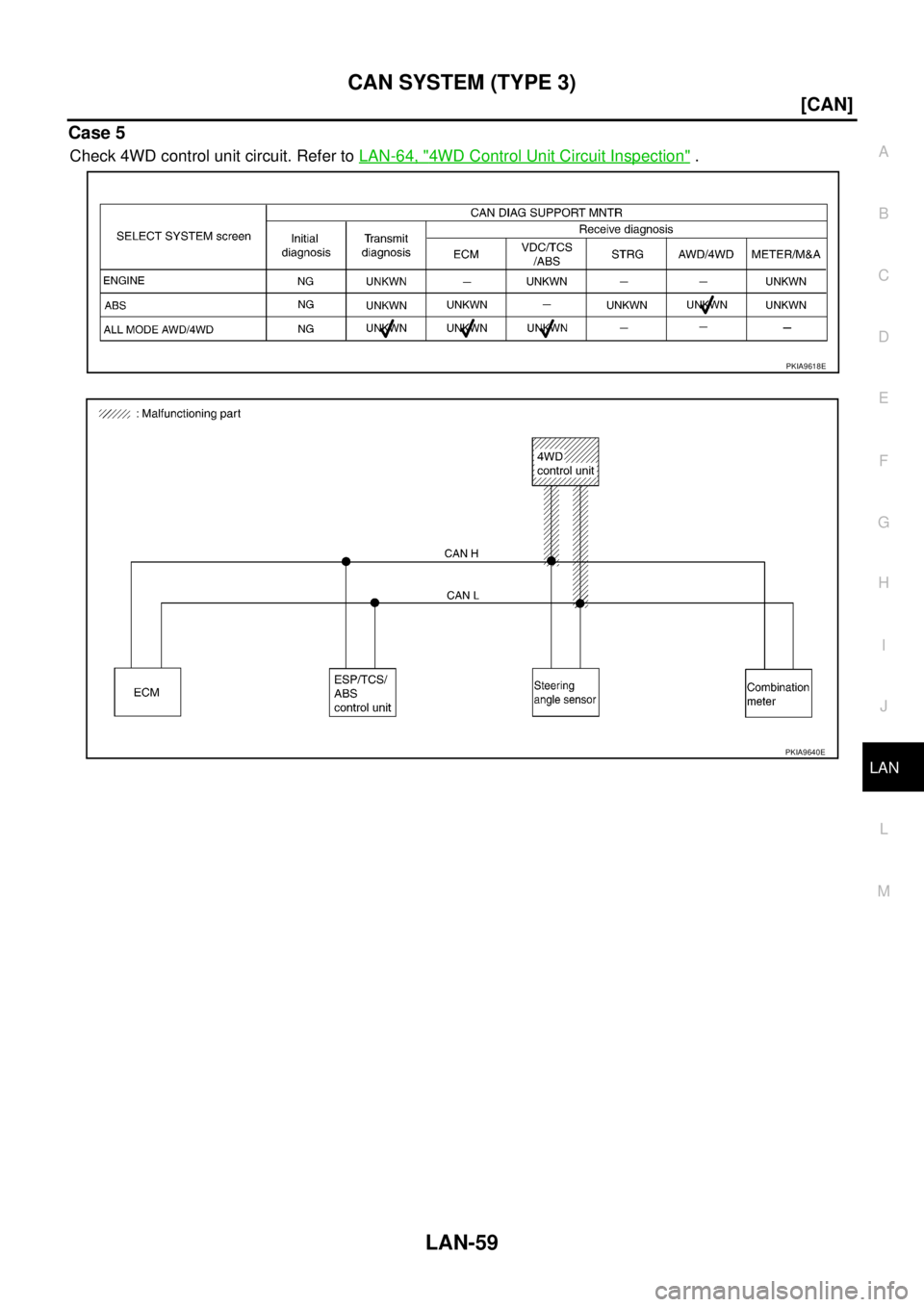

Case 5
Check 4WD control unit circuit. Refer to LAN-64, "4WD Control Unit Circuit Inspection" .
PKIA9618E
PKIA9640E

LAN-60
[CAN]
CAN SYSTEM (TYPE 3)

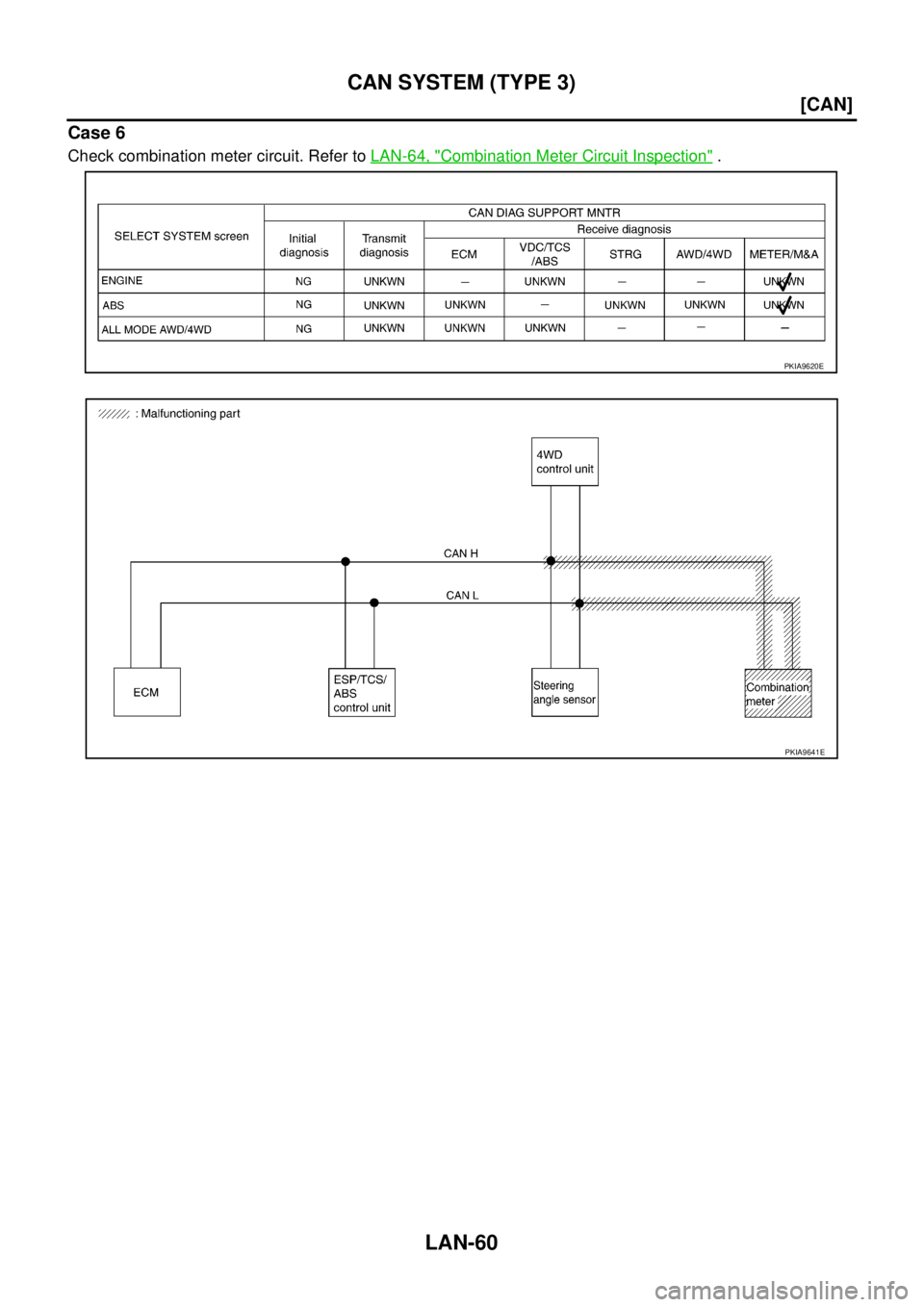

Case 6
Check combination meter circuit. Refer to LAN-64, "Combination Meter Circuit Inspection" .
PKIA9620E
PKIA9641E

CAN SYSTEM (TYPE 3)
LAN-61
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

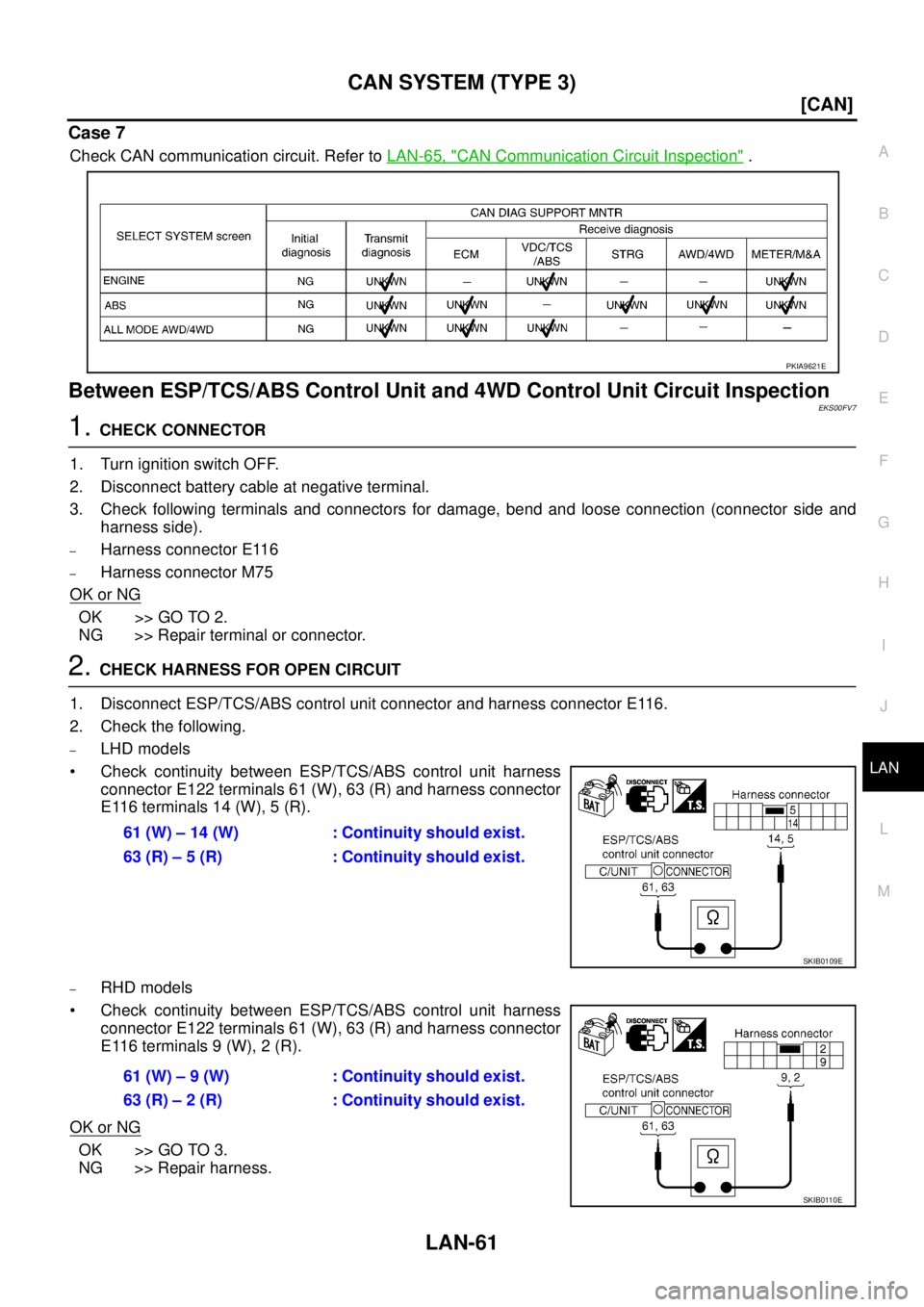

Case 7
Check CAN communication circuit. Refer to LAN-65, "CAN Communication Circuit Inspection" .
Between ESP/TCS/ABS Control Unit and 4WD Control Unit Circuit InspectionEKS00FV7
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect battery cable at negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector E116
–Harness connector M75
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check the following.
–LHD models
 Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 14 (W), 5 (R).
–RHD models
 Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 9 (W), 2 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
PKIA9621E
61 (W) – 14 (W) : Continuity should exist.
63 (R) – 5 (R) : Continuity should exist.
SKIB0109E
61 (W) – 9 (W) : Continuity should exist.
63 (R) – 2 (R) : Continuity should exist.
SKIB0110E

LAN-62
[CAN]
CAN SYSTEM (TYPE 3)

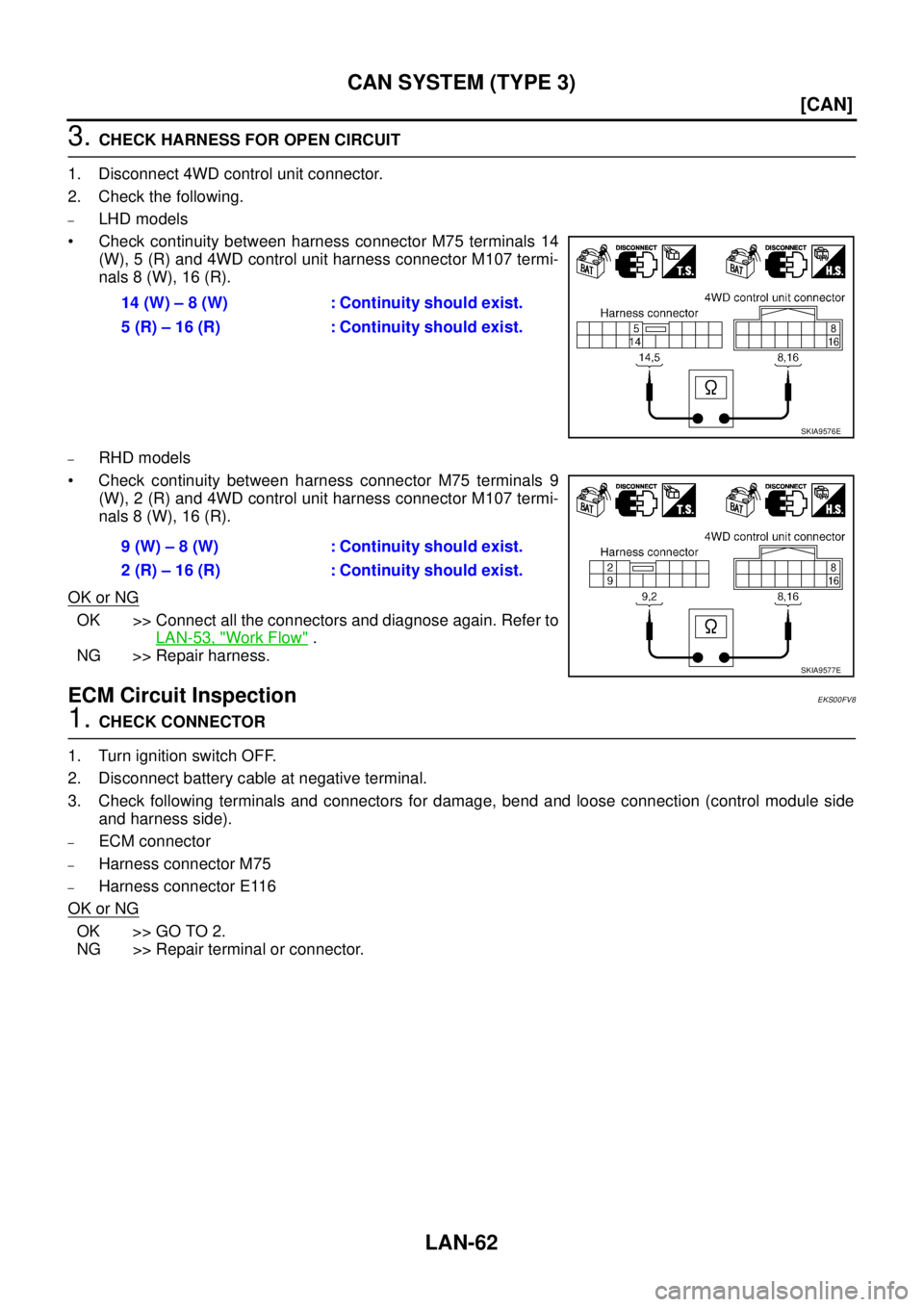

3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check the following.
–LHD models
 Check continuity between harness connector M75 terminals 14
(W), 5 (R) and 4WD control unit harness connector M107 termi-
nals 8 (W), 16 (R).
–RHD models
 Check continuity between harness connector M75 terminals 9
(W), 2 (R) and 4WD control unit harness connector M107 termi-
nals 8 (W), 16 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-53, "
Work Flow" .
NG >> Repair harness.
ECM Circuit InspectionEKS00FV8
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect battery cable at negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–ECM connector
–Harness connector M75
–Harness connector E116
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.14 (W) – 8 (W) : Continuity should exist.
5 (R) – 16 (R) : Continuity should exist.
SKIA9576E
9 (W) – 8 (W) : Continuity should exist.
2 (R) – 16 (R) : Continuity should exist.
SKIA9577E
