NISSAN X-TRAIL 2003 Service Repair Manual

AUDIO
AV-21
C
D
E
F
G
H
I
J
L
MA
B
AV

TKWA1587E

AV-22
AUDIO

TKWA1588E

AUDIO
AV-23
C
D
E
F
G
H
I
J
L
MA
B
AV

RHD MODELS WITH NAVIGATION
TKWA1590E

AV-24
AUDIO

TKWA1591E

AUDIO
AV-25
C
D
E
F
G
H
I
J
L
MA
B
AV

TKWA1592E

AV-26
AUDIO

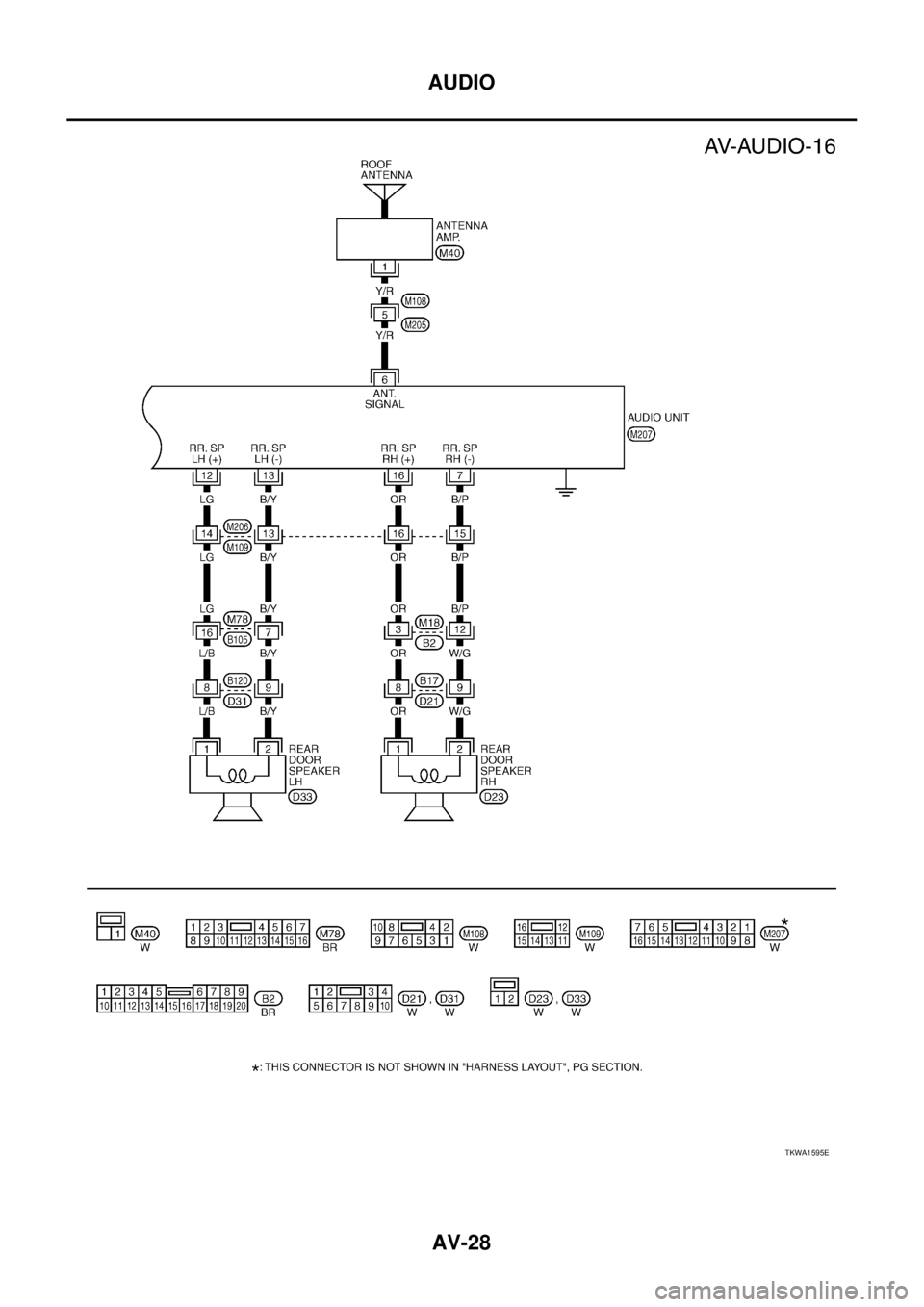

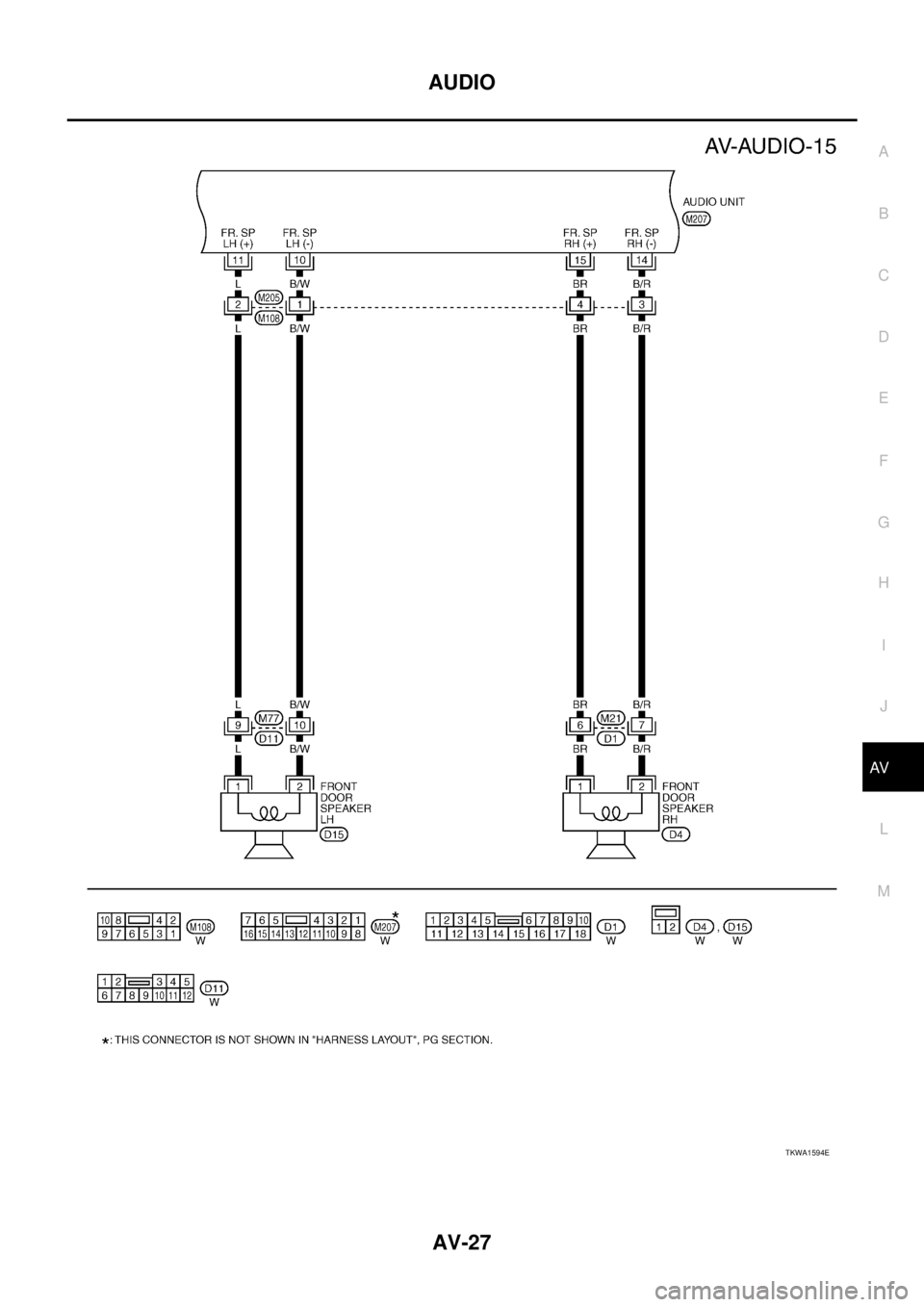

RHD MODELS WITHOUT NAVIGATION
TKWA1593E

AUDIO
AV-27
C
D
E
F
G
H
I
J
L
MA
B
AV

TKWA1594E

AV-28
AUDIO

TKWA1595E

AUDIO
AV-29
C
D
E
F
G
H
I
J
L
MA
B
AV

Terminals and Reference Value for Audio Unit With Casette Deck EKS00EHS
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of symp-
tom
(+) (–)Igni-
tion
switchOperation
2
(L)1
(B/W)Audio sound
signal front
LHOutput ONReceive audio
signalNo sound from
front door speaker
and tweeter LH.
4
(BR) 3
(B/R)Audio sound
signal front
RH Output ONReceive audio
signalNo sound from
front door speaker
and tweeter RH.
5
(Y/R) GroundAntenna
signalOutput ACC – More than approx.10VReceiving status
of radio broadcast
becomes bad.
6
(Y/G)GroundBattery
power Input – – Battery voltageSystem does not
work properly.
8
(R/L)GroundLighting
switch signalInput ONLighting switch
ON (1st position)Battery voltageAudio unit illumi-
nation does not
function when
lighting switch is
ON (position 1). Lighting switch
OFFApprox.0V
10
(GY/L)Ground ACC power Input ACC – Battery voltageSystem does not
work properly.
14
(LG)13
(B/Y)Audio sound
signal rear
LH Output ONReceive audio
signalNo sound from
rear speaker LH.
16
(OR)15
(B/P)Audio sound
signal rear
RH Output ONReceive audio
signalNo sound from
rear speaker RH.
22
(L/W)GroundVehicle
speed sig-
nal (2-pulse)Input ONWhen vehicle
speed is
approx.40km/h
(25MPH)Speed sensitive
volume system
does not work
properly.
24
(PU)– Immobilizer – – – – –
SKIA0177E
SKIA0177E
SKIA0177E
SKIA0177E
SKIA0168E

AV-30
AUDIO

26
(L/B)GroundRemote con-
trol AInput ONPress SOURCE
switchApprox.0V
Steering wheel
audio controls
donot function Press SEEK UP
switchApprox.1.7V
Press VOL UP
switchApprox.3.3V
Except for adove Approx.5V
27
(L/R)GroundRemote con-
trol BInput ONPress SPECIAL
switchApprox.0V
Steering wheel
audio controls
donot function Press SEEK
DOWN switchApprox.1.7V
Press VOL UP
switchApprox.3.3V
Except for adove Approx.5V
29
(B)GroundRemote con-
trol ground– ON – Approx.0V – Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of symp-
tom
(+) (–)Igni-
tion
switchOperation
