NISSAN X-TRAIL 2003 Service Repair Manual

NAVIGATION SYSTEM
AV-51
C
D
E
F
G
H
I
J
L
MA
B
AV

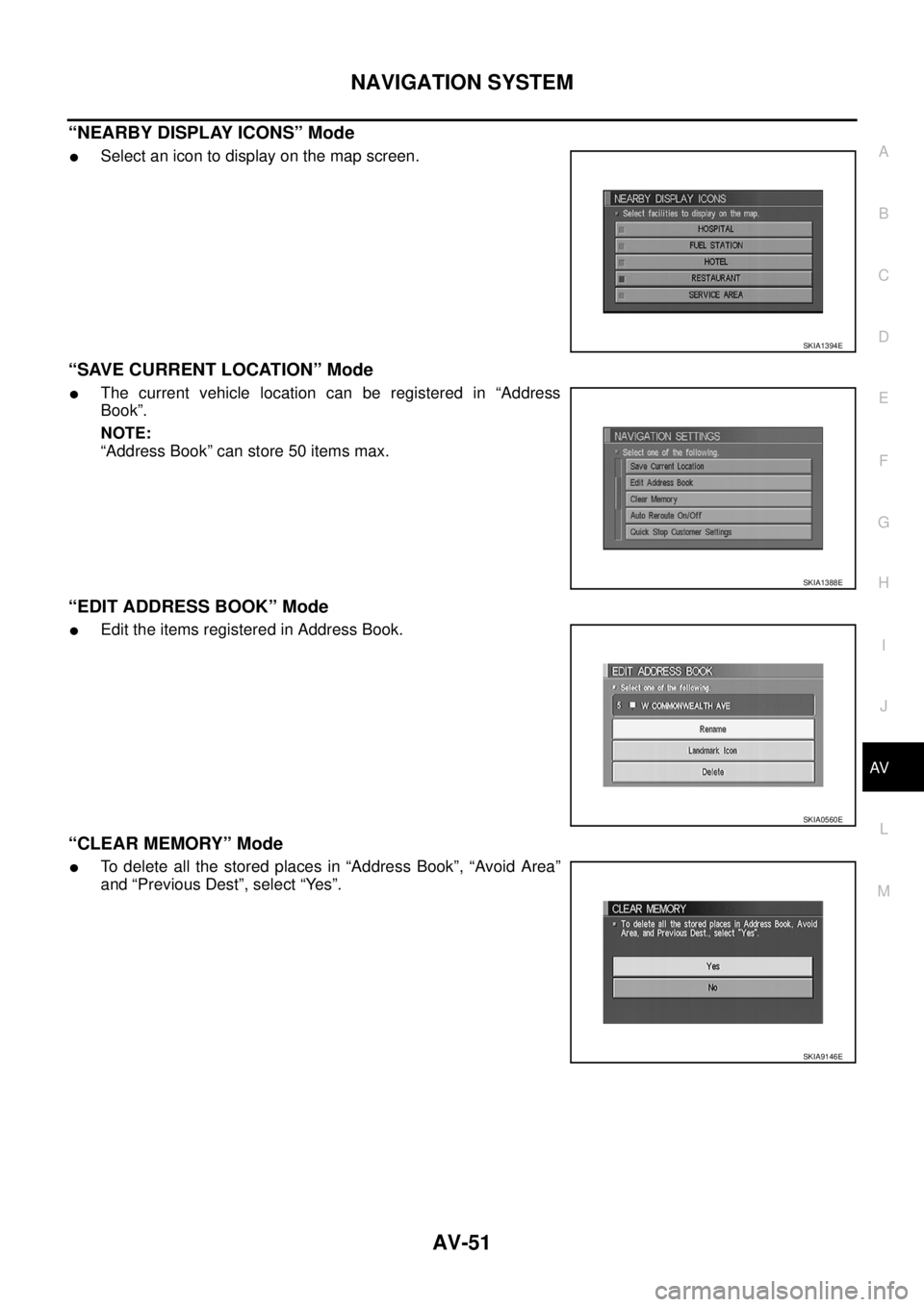

“NEARBY DISPLAY ICONS” Mode

Select an icon to display on the map screen.
“SAVE CURRENT LOCATION” Mode

The current vehicle location can be registered in “Address
Book”.
NOTE:
“Address Book” can store 50 items max.
“EDIT ADDRESS BOOK” Mode

Edit the items registered in Address Book.
“CLEAR MEMORY” Mode

To delete all the stored places in “Address Book”, “Avoid Area”
and “Previous Dest”, select “Yes”.
SKIA1394E
SKIA1388E
SKIA0560E
SKIA9146E

AV-52
NAVIGATION SYSTEM

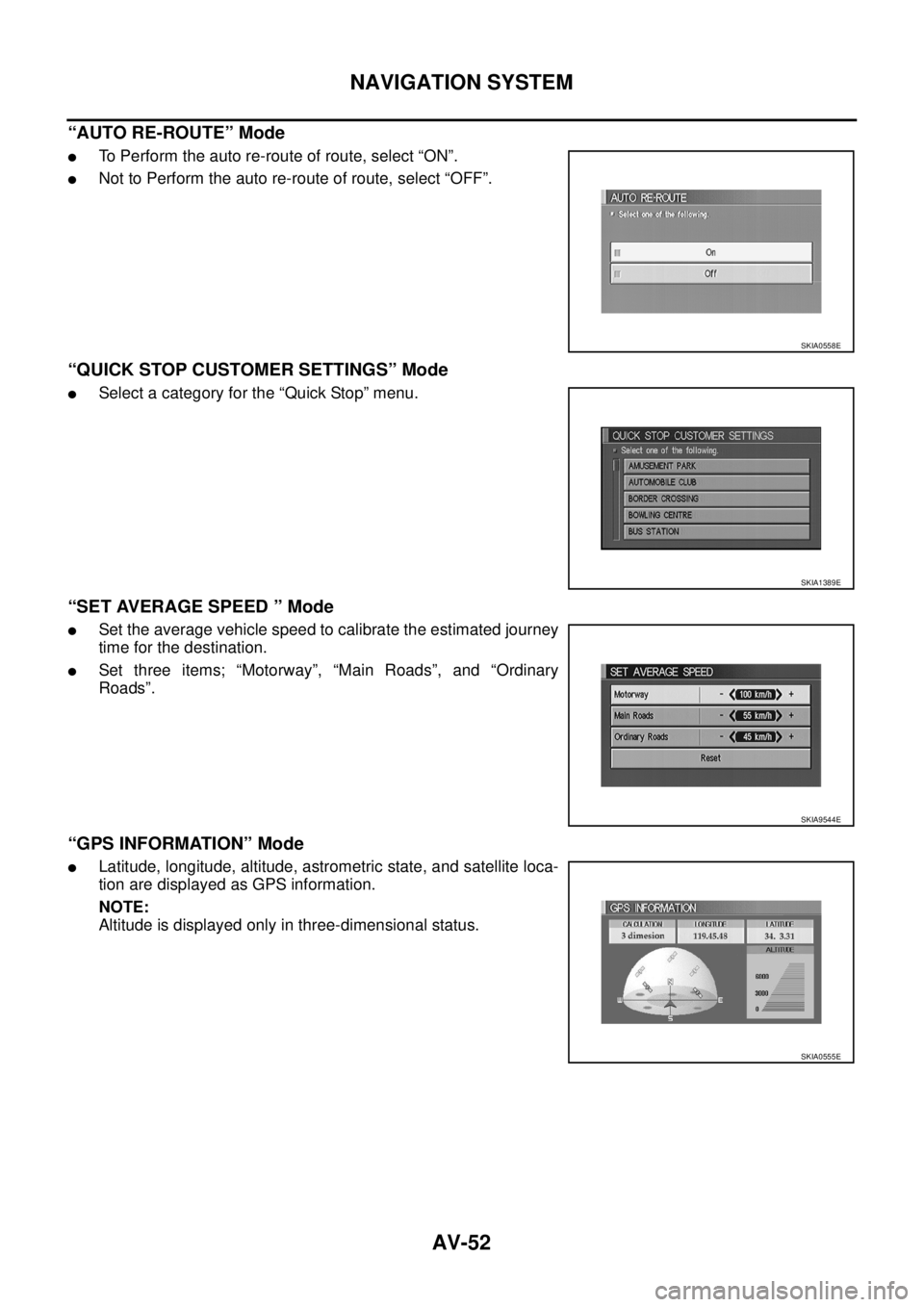

“AUTO RE-ROUTE” Mode

To Perform the auto re-route of route, select “ON”.

Not to Perform the auto re-route of route, select “OFF”.
“QUICK STOP CUSTOMER SETTINGS” Mode

Select a category for the “Quick Stop” menu.
“SET AVERAGE SPEED ” Mode

Set the average vehicle speed to calibrate the estimated journey
time for the destination.

Set three items; “Motorway”, “Main Roads”, and “Ordinary
Roads”.
“GPS INFORMATION” Mode

Latitude, longitude, altitude, astrometric state, and satellite loca-
tion are displayed as GPS information.
NOTE:
Altitude is displayed only in three-dimensional status.
SKIA0558E
SKIA1389E
SKIA9544E
SKIA0555E

NAVIGATION SYSTEM
AV-53
C
D
E
F
G
H
I
J
L
MA
B
AV

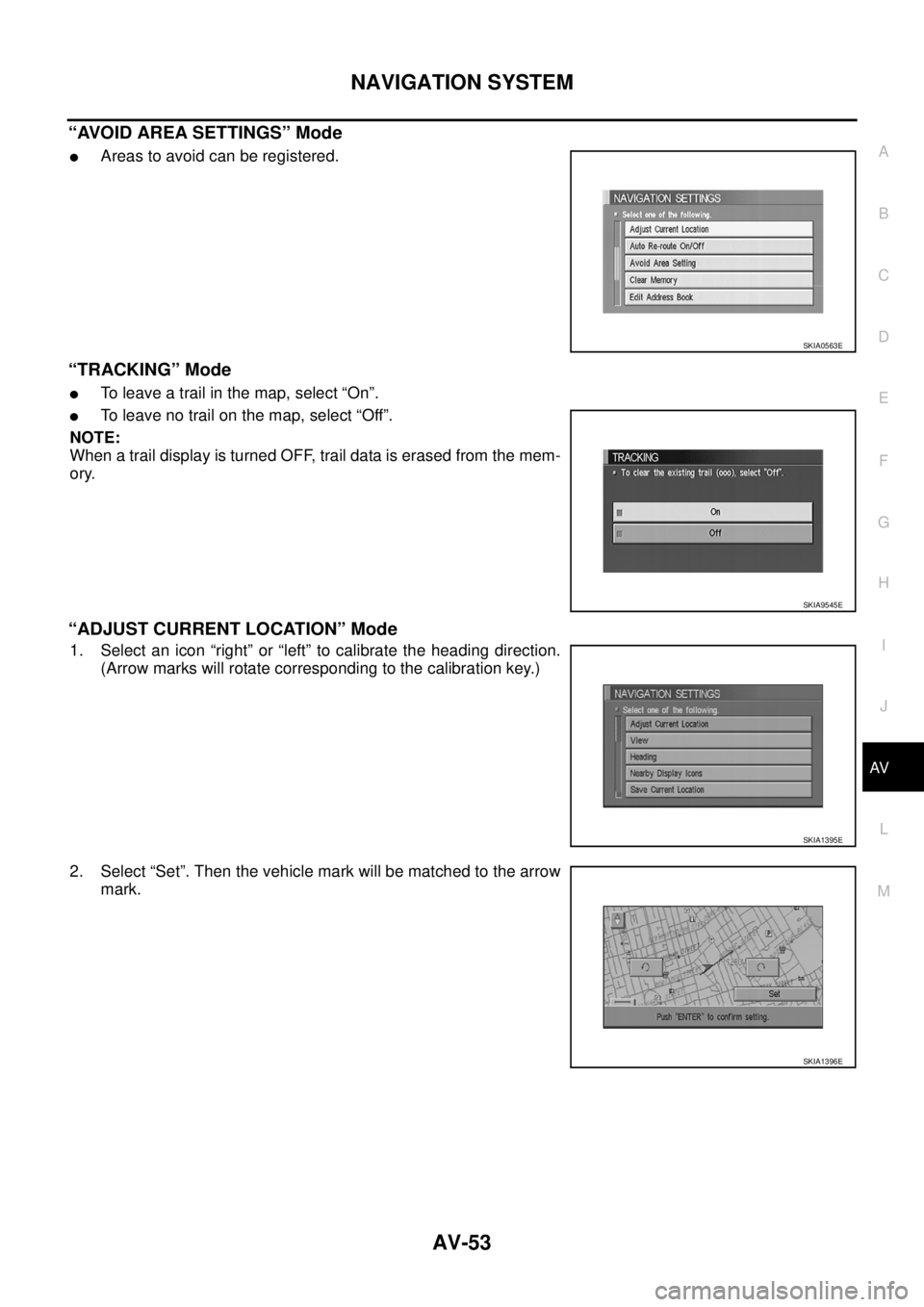

“AVOID AREA SETTINGS” Mode

Areas to avoid can be registered.
“TRACKING” Mode

To leave a trail in the map, select “On”.

To leave no trail on the map, select “Off”.
NOTE:
When a trail display is turned OFF, trail data is erased from the mem-
ory.
“ADJUST CURRENT LOCATION” Mode
1. Select an icon “right” or “left” to calibrate the heading direction.
(Arrow marks will rotate corresponding to the calibration key.)
2. Select “Set”. Then the vehicle mark will be matched to the arrow
mark.
SKIA0563E
SKIA9545E
SKIA1395E
SKIA1396E

AV-54
NAVIGATION SYSTEM

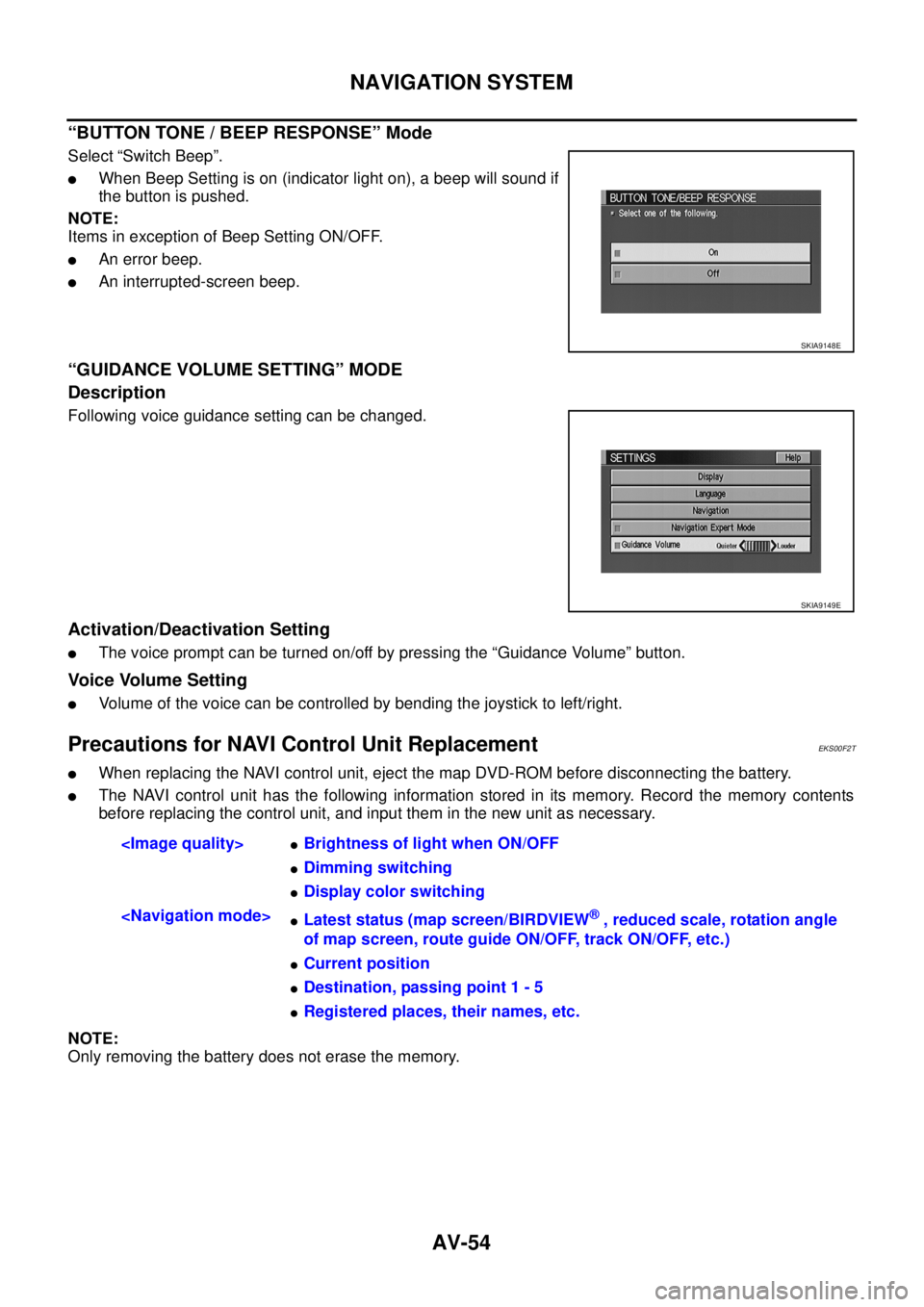

“BUTTON TONE / BEEP RESPONSE” Mode
Select “Switch Beep”.

When Beep Setting is on (indicator light on), a beep will sound if
the button is pushed.
NOTE:
Items in exception of Beep Setting ON/OFF.

An error beep.

An interrupted-screen beep.
“GUIDANCE VOLUME SETTING” MODE
Description
Following voice guidance setting can be changed.
Activation/Deactivation Setting

The voice prompt can be turned on/off by pressing the “Guidance Volume” button.
Vo i c e Vo l u m e S e t t i n g

Volume of the voice can be controlled by bending the joystick to left/right.
Precautions for NAVI Control Unit ReplacementEKS00F2T

When replacing the NAVI control unit, eject the map DVD-ROM before disconnecting the battery.

The NAVI control unit has the following information stored in its memory. Record the memory contents
before replacing the control unit, and input them in the new unit as necessary.
NOTE:
Only removing the battery does not erase the memory.
SKIA9148E
SKIA9149E

Brightness of light when ON/OFF

Dimming switching

Display color switching


Latest status (map screen/BIRDVIEW® , reduced scale, rotation angle
of map screen, route guide ON/OFF, track ON/OFF, etc.)

Current position

Destination, passing point 1 - 5

Registered places, their names, etc.

NAVIGATION SYSTEM
AV-55
C
D
E
F
G
H
I
J
L
MA
B
AV

Component Parts And Harness Connector LocationEKS00F2U
SKIA9199E

AV-56
NAVIGATION SYSTEM

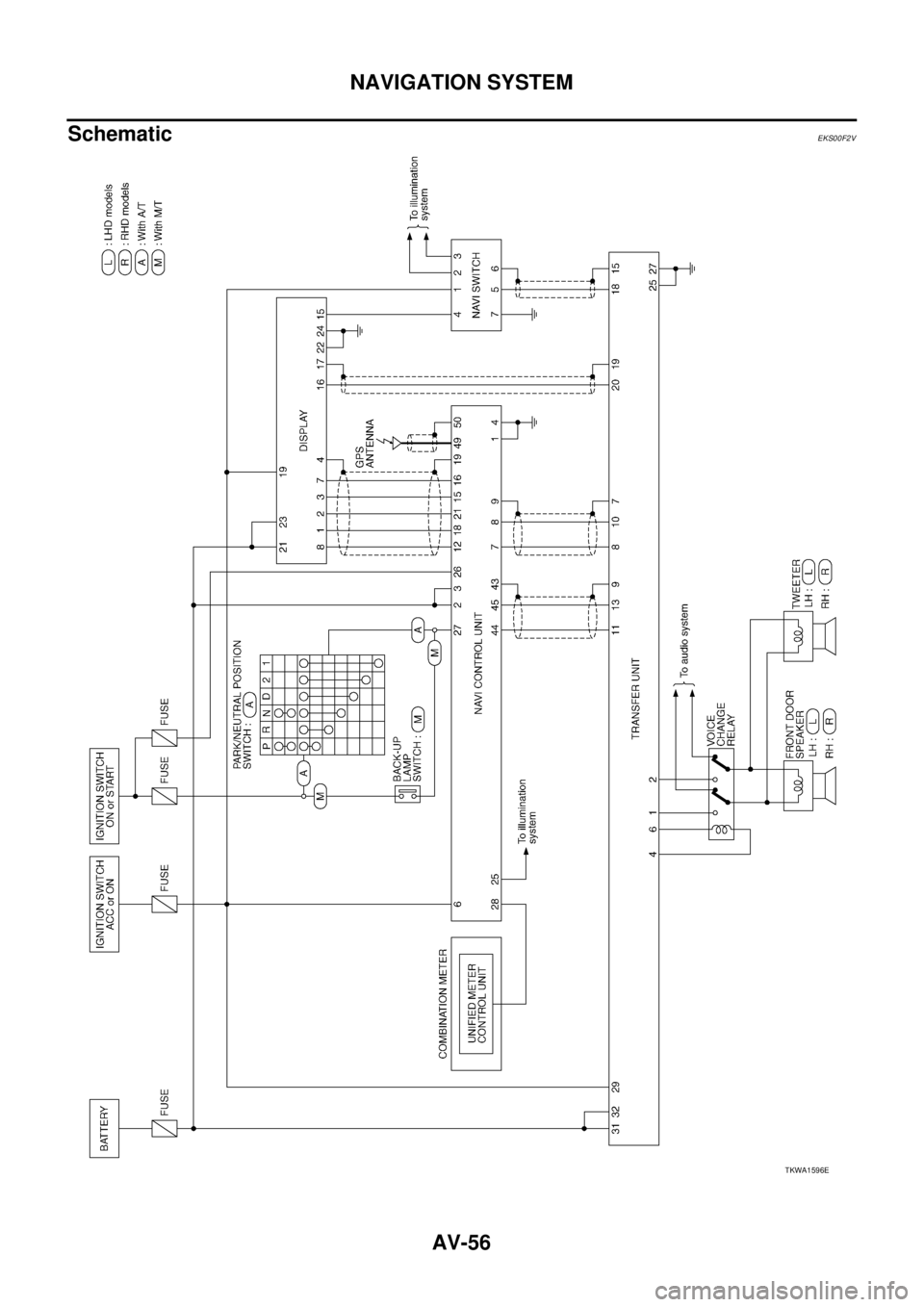

SchematicEKS00F2V
TKWA1596E

NAVIGATION SYSTEM
AV-57
C
D
E
F
G
H
I
J
L
MA
B
AV

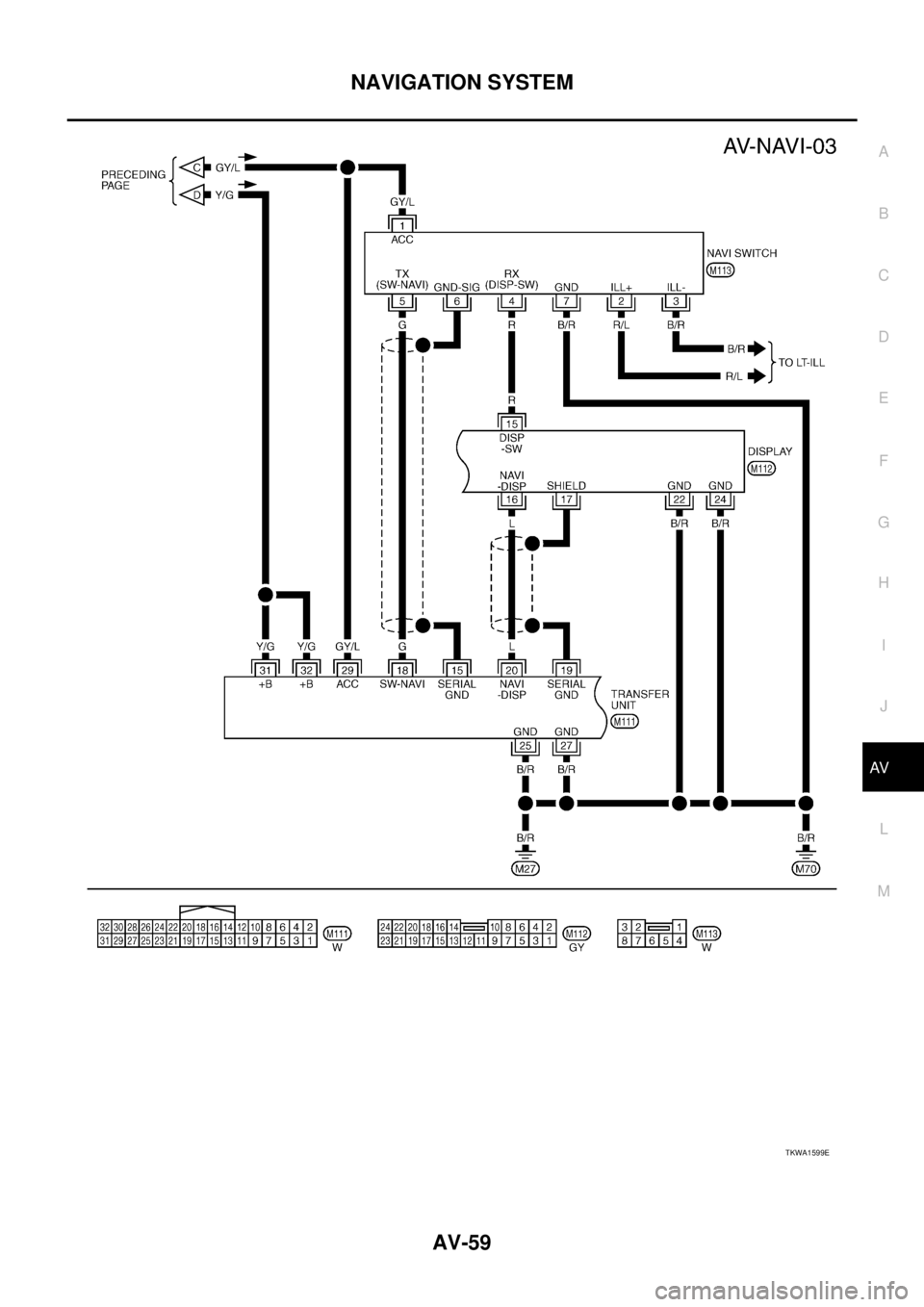

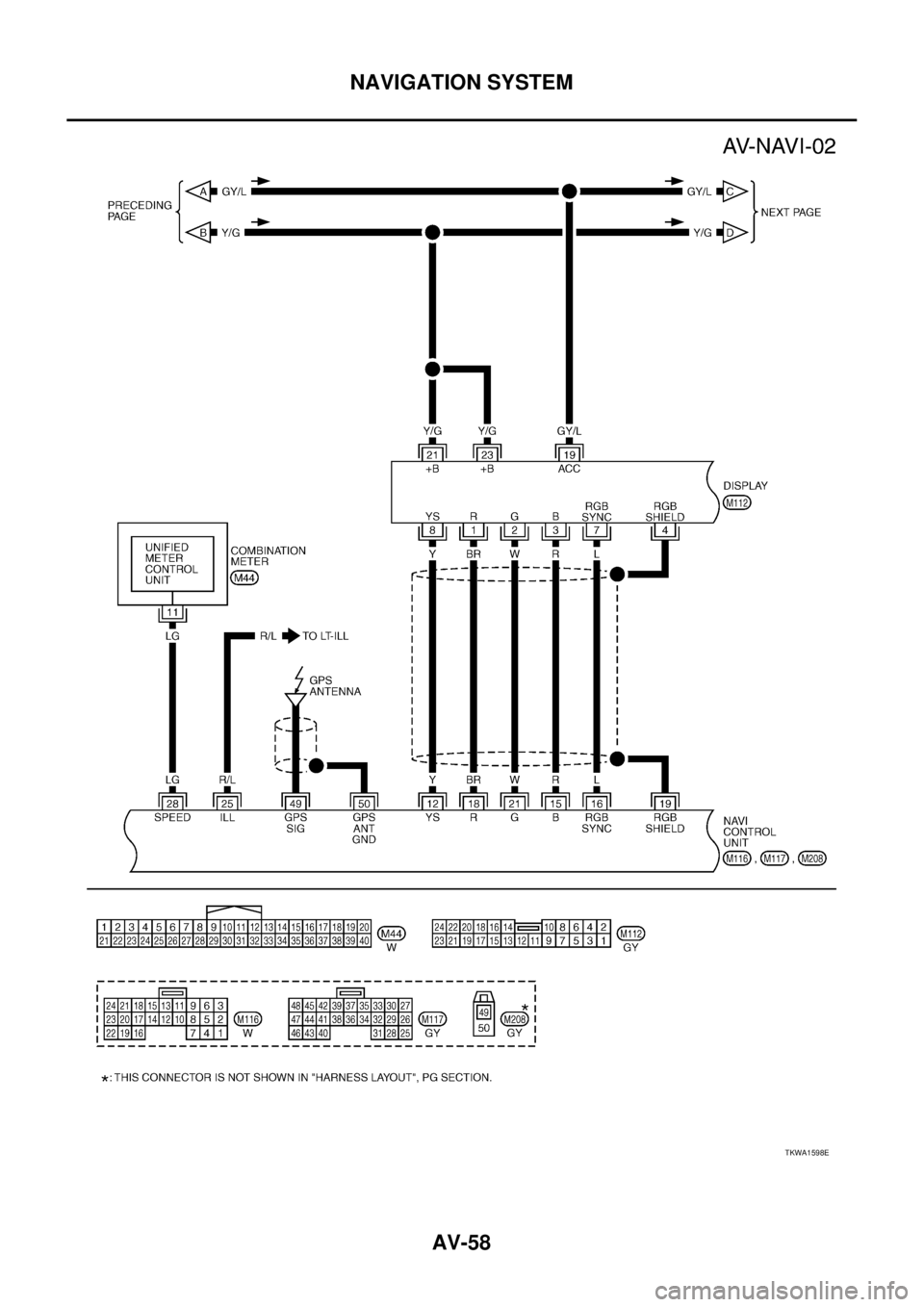

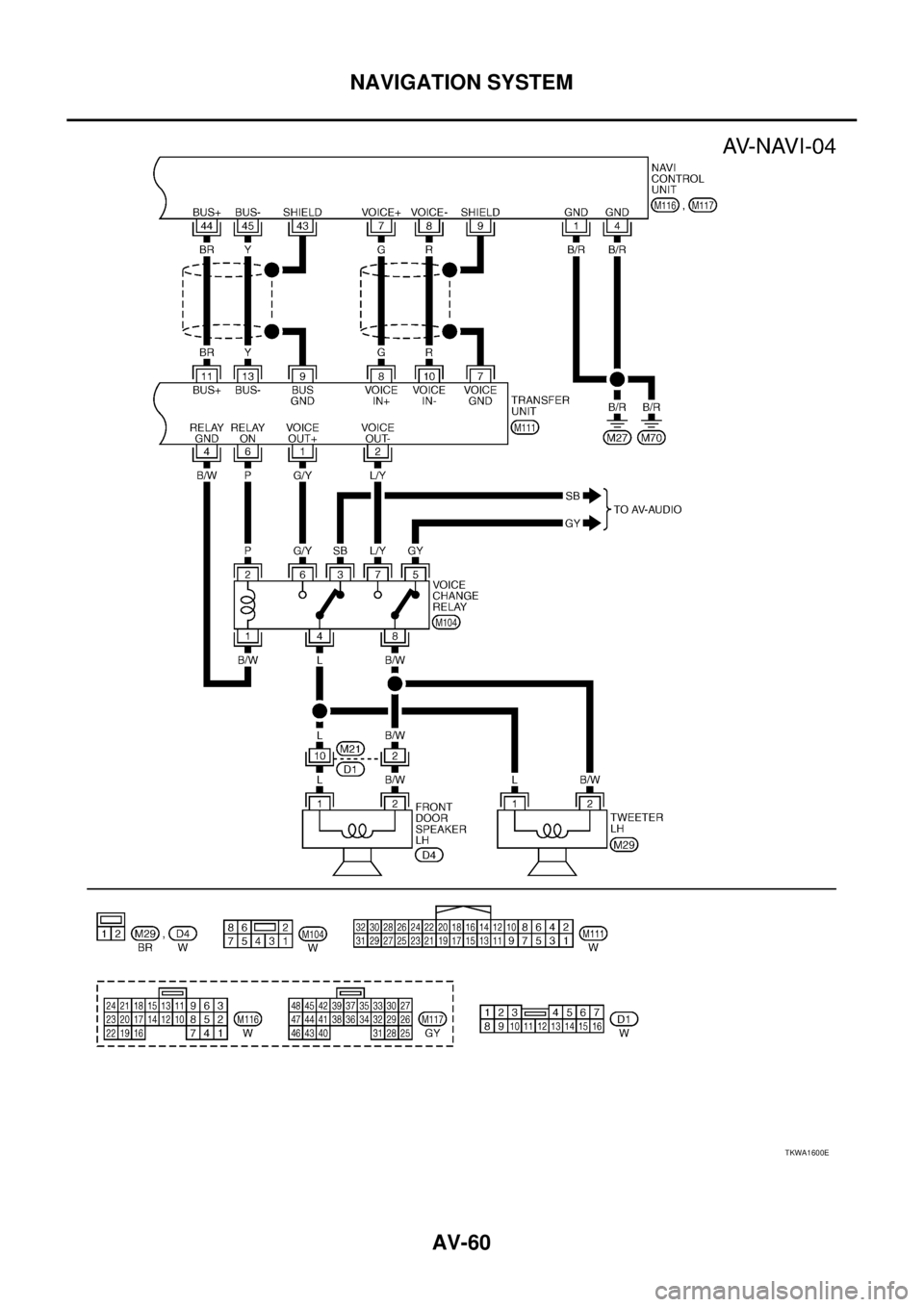

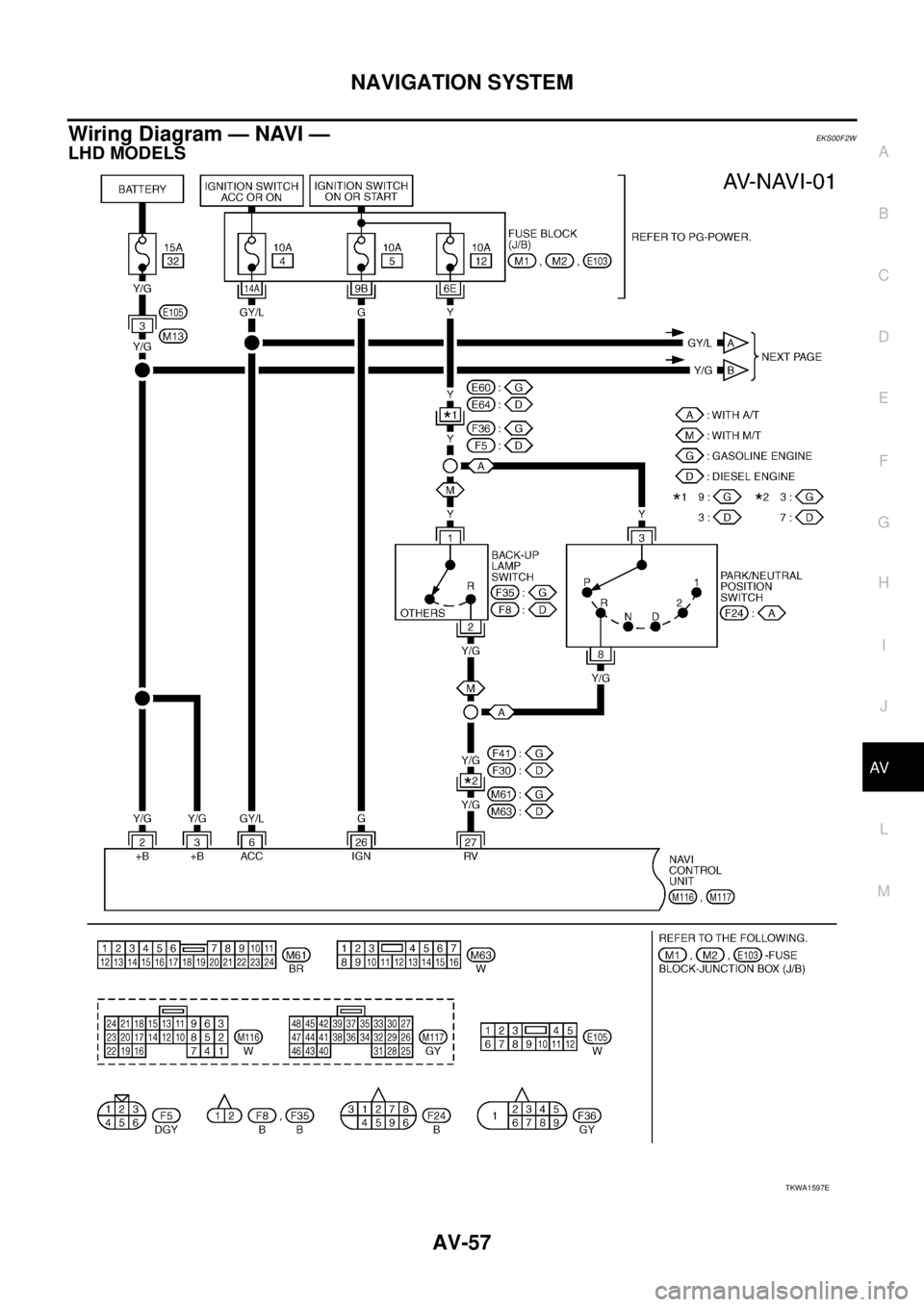

Wiring Diagram — NAVI —EKS00F2W
LHD MODELS
TKWA1597E

AV-58
NAVIGATION SYSTEM

TKWA1598E

NAVIGATION SYSTEM
AV-59
C
D
E
F
G
H
I
J
L
MA
B
AV

TKWA1599E

AV-60
NAVIGATION SYSTEM

TKWA1600E
