NISSAN X-TRAIL 2003 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2003, Model line: X-TRAIL, Model: NISSAN X-TRAIL 2003Pages: 4179, PDF Size: 87.27 MB
Page 3951 of 4179

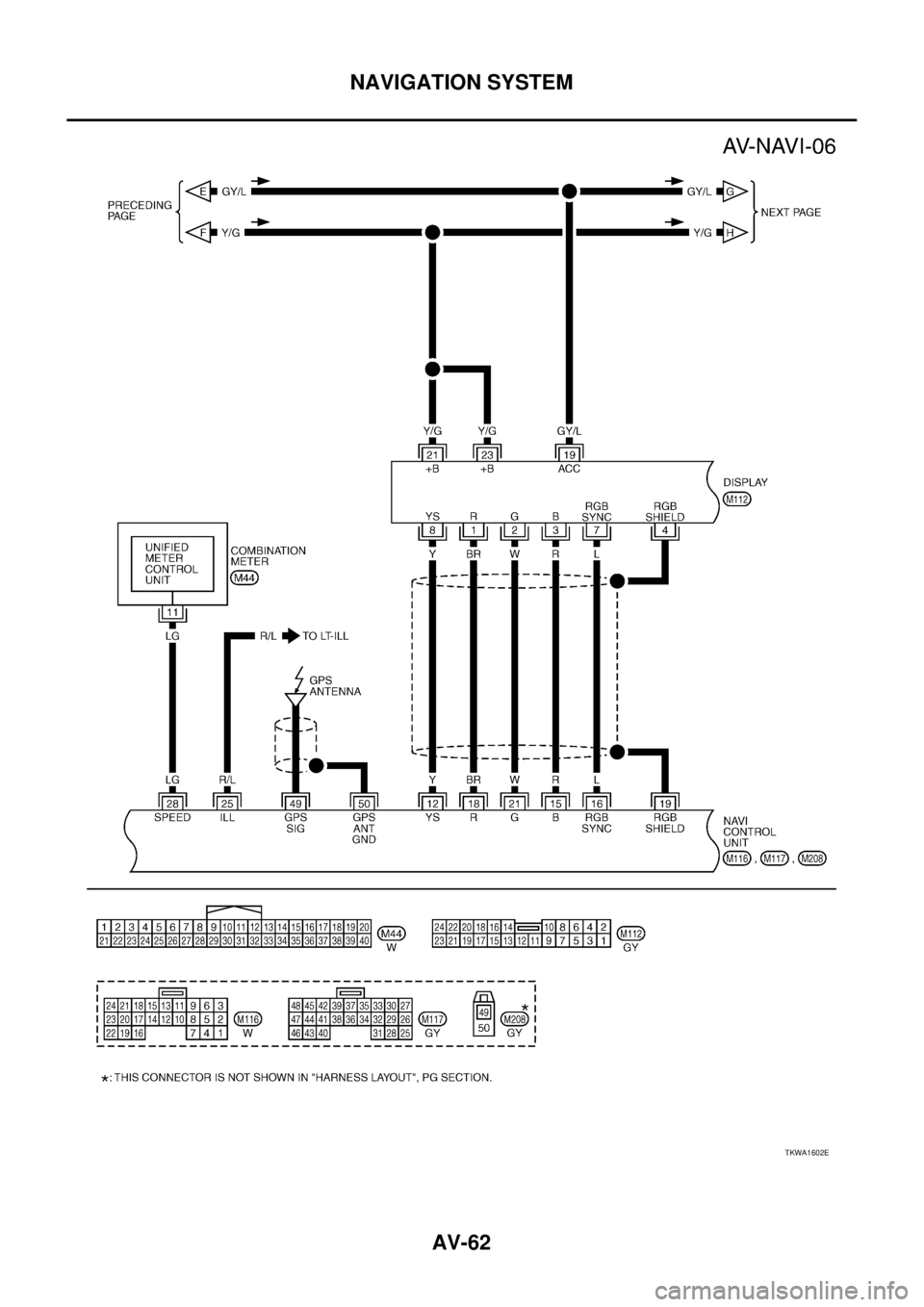

NAVIGATION SYSTEM
AV-61
C
D
E
F
G
H
I
J
L
MA
B
AV
RHD MODELS
TKWA1601E

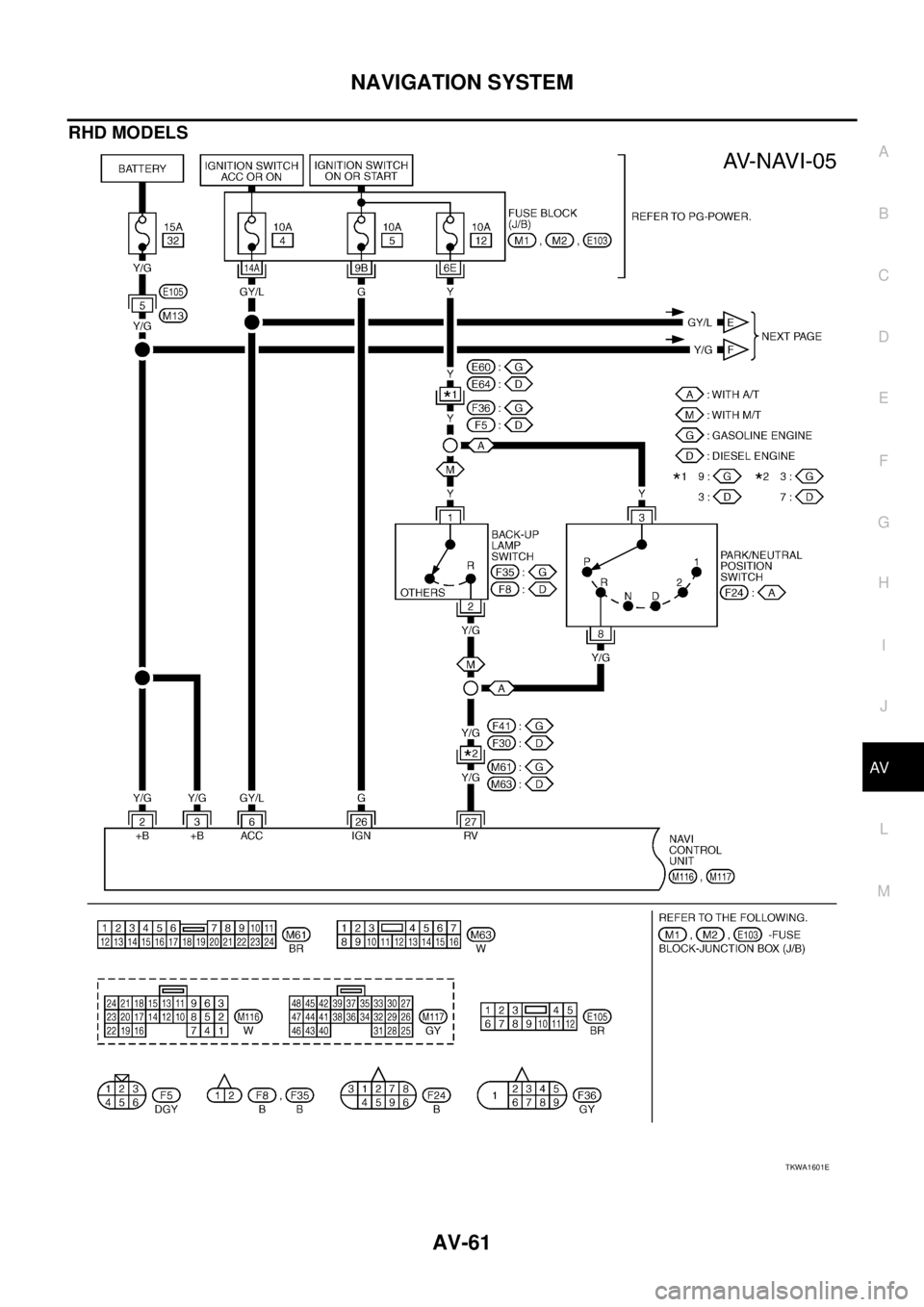

Page 3952 of 4179
AV-62
NAVIGATION SYSTEM
TKWA1602E
Page 3953 of 4179
NAVIGATION SYSTEM
AV-63
C
D
E
F
G
H
I
J
L
MA
B
AV
TKWA1603E

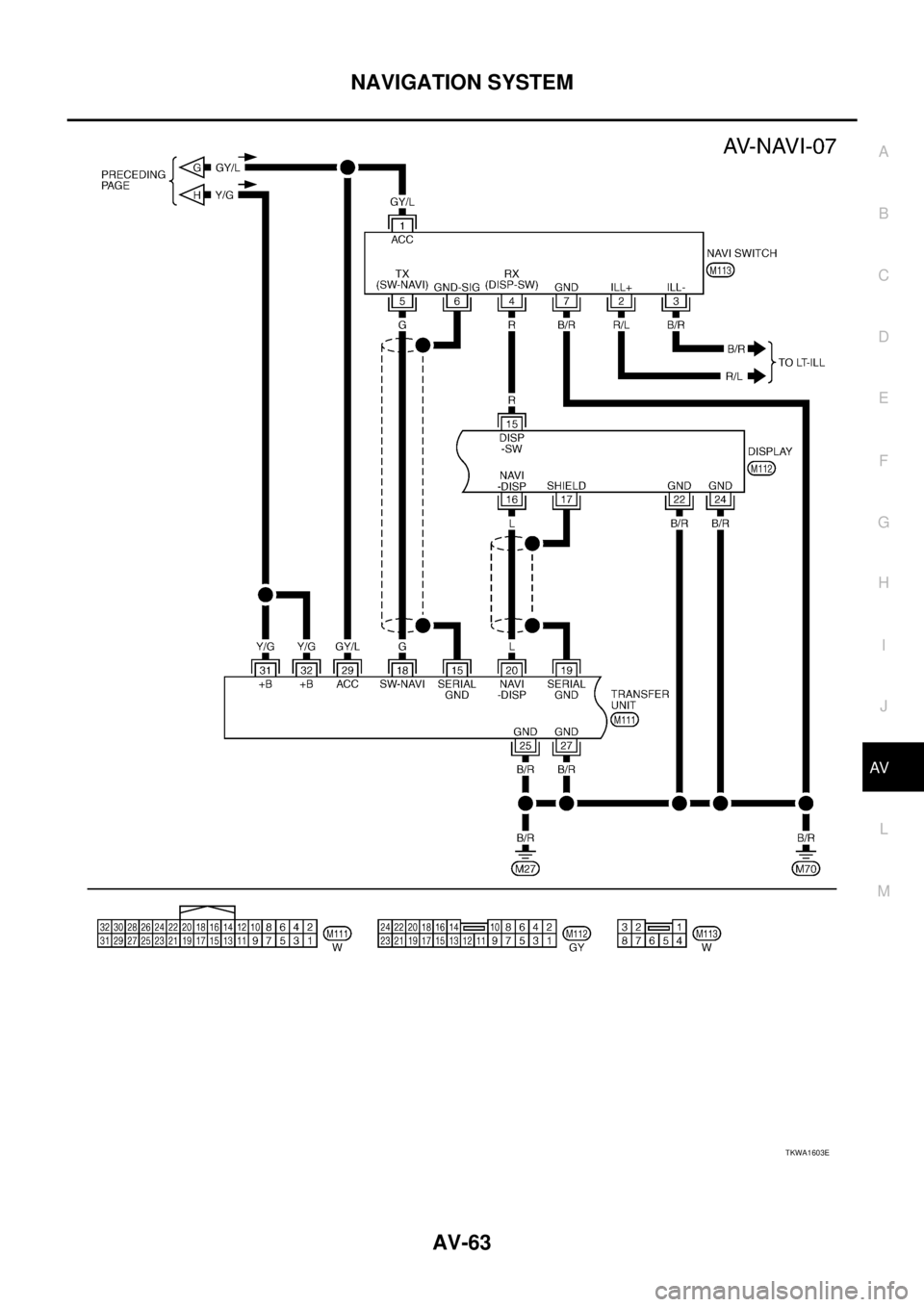

Page 3954 of 4179
AV-64
NAVIGATION SYSTEM
TKWA1604E

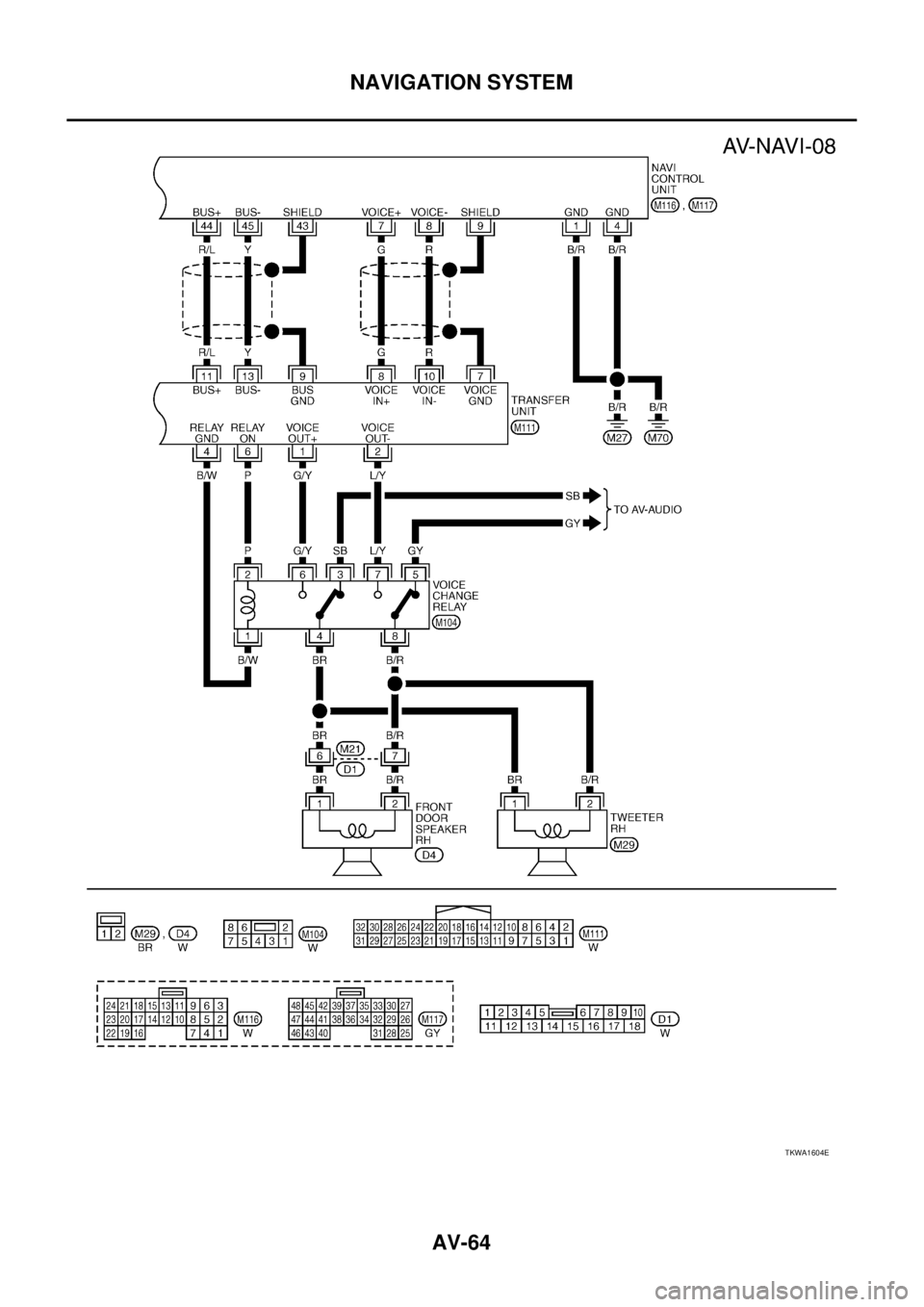

Page 3955 of 4179
NAVIGATION SYSTEM
AV-65
C
D
E
F
G
H
I
J
L
MA
B
AV
Terminals and Reference Value for NAVI Control unitEKS00F2X
Measure using circuit tester and oscilloscope.
Measure with connector connected unless otherwise specified.
CAUTION:
Confirm voltage between negative terminal on each unit and ground is approximately 0V.
If ignition switch ON is required in measurement condition, measure with engine running to prevent bat-
tery discharge.
Terminal No.
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
1 (B/R) Ground Ground – ON – Approx. 0V –
2 (Y/G)
Ground Battery Input – – Battery voltageSystem does not
work properly.
3 (Y/G)
4 (B/R) Ground Ground – ON – Approx. 0V –
6 (GY/L) Ground ACC power Input ACC – Battery voltageSystem does not
work properly.
7 (G) 8 (R)Voice guide
signalOutput ONPush the “VOICE”
switchOnly route guide
and operation
guide are not
heard.
9 – Shield – – – – –
12 (Y) 19RGB area
signaloutput ONPush the “D/N”
switch.RGB screen is
not shown.
15 (R) 19RGB signal
(B: blue)Output ONSelect “Color bar”
of
CONFIRMATION/
ADJUSTMENT
function.RGB screen
looks yellowish.
16 (L) 19RGB
synchronizing
signalOutput ONPush the “MAP”
switch.RGB screen is
rolling.
18 (BR) 19RGB signal
(R: red)Output ONSelect “Color bar”
of
CONFIRMATION/
ADJUSTMENT
function.RGB screen
looks bluish.
SKIA0171J
SKIA0162E
SKIA0167E
SKIA0164E
SKIA0165E
Page 3956 of 4179
AV-66
NAVIGATION SYSTEM
*1 : LHD models.
*2 : RHD models.19 – Shield – – – – –
21 (W) 19RGB signal
(G: green)Output ONSelect “Color bar”
of
CONFIRMATION/
ADJUSTMENT
function.RGB screen
looks reddish.
25 (R/L) GroundIllumination
signalInput ONLighting switch
position 1st or 2ndBattery voltageNight
illumination for
switches does
not illuminate. Lighting switch
position OFFApprox. 0V
26 (G) Ground IGN signal Input ON – Battery voltageVehicle
information
setting is not
possible.
27 (Y/G) GroundReverse
signal Input ONSelect R-position Battery voltage The navigation
current-location
mark moves
strangely when
the vehicle is
moving
backwards. Other position Approx. 0V
28 (LG) GroundVehicle speed
signal (8-
pulse)Input ONWhen vehicle
speed is approx. 40
km/h (25 MPH)Navigation
current-location
mark does not
indicate the
correct position.
43 – shield – – – – –
44
(BR)
*1
(R/L)*243 Communica-
tion signal (+) Input/
OutputON –System does not
work properly.
45 (Y) 43Communica-
tion signal (–)Input/
OutputON –System does not
work properly
49 GroundGPS antenna
signalInput ONConnector is not
connected.Approx. 5VGPS correction
is not possible.
50 – Shield – – – – –Terminal No.
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
SKIA0166E
ELF1084D
SKIA0175E
SKIA0176E
Page 3957 of 4179
NAVIGATION SYSTEM
AV-67
C
D
E
F
G
H
I
J
L
MA
B
AV
Terminals and Reference Value for DisplayEKS00F2Y
Terminal No.
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
1 (BR) 4RGB signal
(R: red)Input ONSelect “Color bar”
of
CONFIRMATION/
ADJUSTMENT
function.RGB screen
looks bluish.
2 (W) 4RGB signal
(G: green)Input ONSelect “Color bar”
of
CONFIRMATION/
ADJUSTMENT
function.RGB screen
looks reddish.
3 (R) 4RGB signal
(B: blue)Input ONSelect “Color bar”
of
CONFIRMATION/
ADJUSTMENT
function.RGB screen
looks yellowish.
4–Shield –– – – –
7 (L) 4RGB
synchronizing
signalInput ONPush the “MAP”
switch.RGB screen is
rolling.
8 (Y) GroundRGB area
signalInput ONPush the “D/N”
switch.RGB screen is
not shown.
15 (R) GroundCommunica-
tion signal
(DISP-SW)Output ONPush the “INFO”
switch.System does
not work prop-
erly.
16 (L) 17Communica-
tion signal
(NAVI-DISP)Input ONPush the “INFO”
switch.System does
not work prop-
erly.
SKIA0165E
SKIA0166E
SKIA0167E
SKIA0164E
SKIA0162E
SKIA0835E
SKIA0832E
Page 3958 of 4179
AV-68
NAVIGATION SYSTEM
Terminals and Reference Value for NAVI SwitchEKS00F2Z
17 – Shield – – – – –
19
(GY/L)Ground ACC power Input ACC – Battery voltageSystem does
not work
properly.
21 (Y/G) Ground Battery power Input – – Battery voltageSystem does
not work
properly.
22 (B/R) Ground Ground – ON – Approx. 0V –
23 (Y/G) Ground Battery power Input – – Battery voltageSystem does
not work
properly.
24 (B/R) Ground Ground – ON – Approx. 0V –Terminal No.
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
Te r m i n a l N o .
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
1
(GY/L)Ground ACC power Input ACC – Battery voltageAll operations do
not work.
2 (R/L) 3 (B/R)Illumination
signalInput ONLighting switch posi-
tion 1st or 2ndBattery voltage Night illumination
for switches does
not illuminate.
Lighting switch psi-
tion OFFApprox. 0V
4 (R) GroundCommuni-
cation signal
(DISP-SW)Input ONPush the “INFO”
switchSystem does not
work properly.
5 (G) 6Communi-
cation signal
(SW-NAVI)Output ONPush the “INFO”
switchSystem does not
work properly.
6–Shield –– – – –
7 (B/R) Ground Ground – ON – Approx. 0VAll operations do
not work.
SKIA0835E
SKIA0832E
Page 3959 of 4179
NAVIGATION SYSTEM
AV-69
C
D
E
F
G
H
I
J
L
MA
B
AV
Terminals and Reference Value for Transfer UnitEKS00F30
Terminal No.
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
1 (G/Y) 2 (L/Y)Voice guide
signal Output ONPush the “VOICE”
switchOnly route guide
and operation
guide are not
heard.
6 (P) 4 (B/W)Voice change
relay ON sig-
nal Output ONPush the “VOICE”
switchApprox.5VOnly route guide
and operation
guide are not
heard.
7 – Shield – – – – –
8 (G) 10 (R)Voice guide
signalInput ONPush the “VOICE”
switchOnly route guide
and operation
guide are not
heard.
9 – Shield – – – – –
11
(BR)
*1
(R/L)*29Communica-
tion signal (+)Input/
OutputON –System does not
work properly.
13 (Y) 9Communica-
tion signal (–)Input/
OutputON –.System does not
work properly.
15 – Shield – – – – –
18 (G) 15Communica-
tion signal
(SW-NAVI)Input ON –System does not
work properly.
19 – Shield – – – – –
ELL0234D
SKIA0171E
SKIA0175E
SKIA0176E
SKIA0832E
Page 3960 of 4179
AV-70
NAVIGATION SYSTEM
*1 : LHD models.
*2 : RHD models.
Terminals and Reference Value for Voice Change Relay EKS00F31
*1 : LHD models.
*2 : RHD models.20 (L) 19Communica-
tion signal
(NAVI-DISP)Input ON –System does not
work properly.
25 (B/R) Ground Ground – ON – Approx. 0V –
27 (B/R) Ground Ground – ON – Approx. 0V –
29
(GY/L)Ground ACC power Input ACC – Battery voltageSystem does not
work properly.
31 (Y/G) Ground Battery Input OFF – Battery voltageSystem does not
work properly.
32 (Y/G) Ground Battery Input OFF – Battery voltageSystem does not
work properly. Terminal No.
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
SKIA0832E
Terminal No.
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
2 (P) 1 (B/W)Voice change
relay ON sig-
nal Intput ONPush the “VOICE”
switchApprox.5VOnly route guide
and operation
guide are not
heard.
3 (SB) 5 (GY)Audio sound
signal front LHInput ONReceive audio sig-
nalNo sound from
door speaker
and tweeter LH
4
(L)
*1
(BR)*2
8
(B/W)*1
(B/R)*2
Voice guide
signal Output ONPush the “VOICE”
switchOnly route guide
and operation
guide are not
heard.
6 (G/Y) 7 (L/Y)Voice guide
signal Intput ONPush the “VOICE”
switchOnly route guide
and operation
guide are not
heard.
SKIA0177E
ELL0234D
ELL0234D
