NISSAN X-TRAIL 2003 Service Repair Manual

STOP LAMP
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT

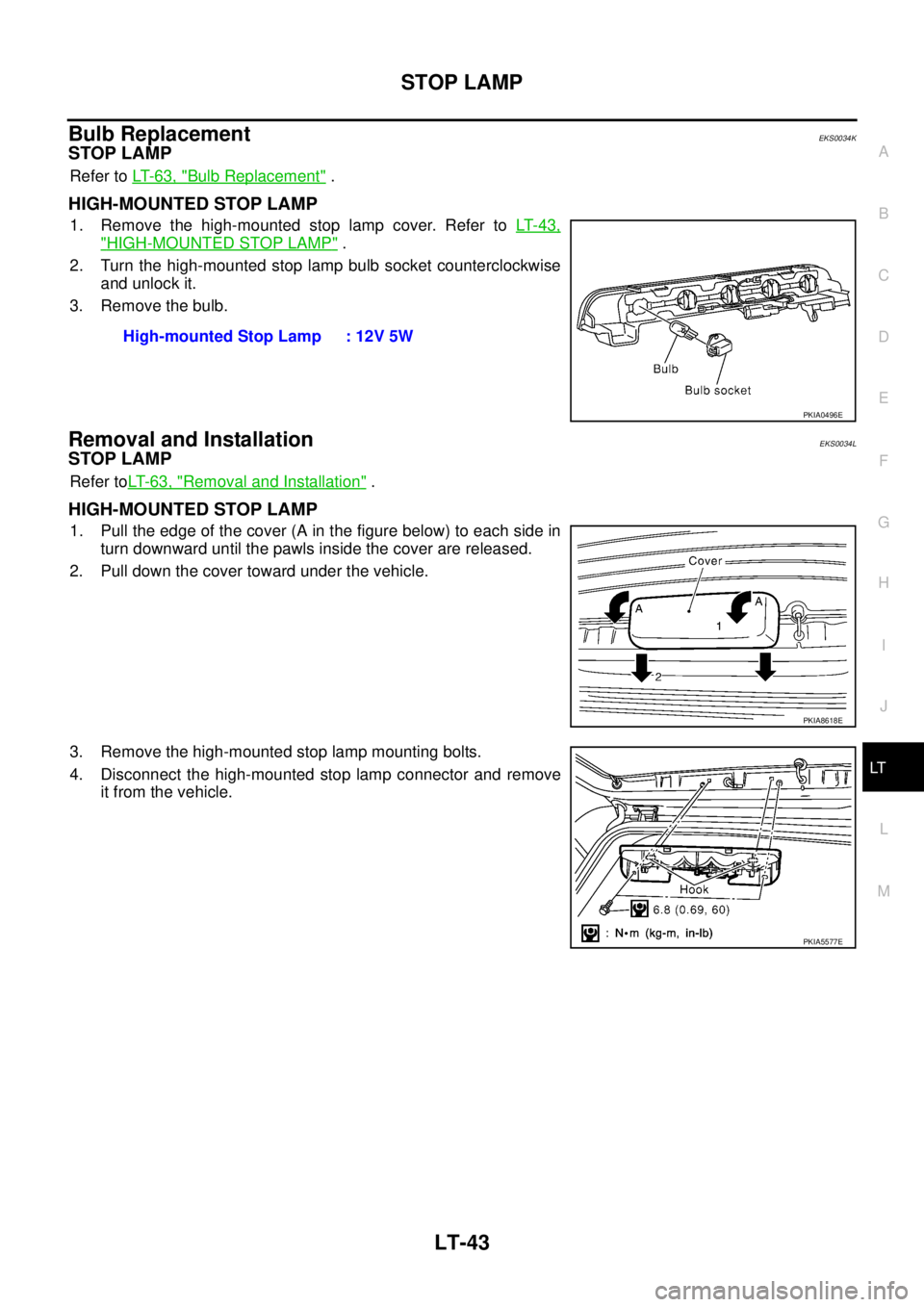

Bulb ReplacementEKS0034K
STOP LAMP
Refer to LT- 6 3 , "Bulb Replacement" .
HIGH-MOUNTED STOP LAMP
1. Remove the high-mounted stop lamp cover. Refer to LT- 4 3 ,
"HIGH-MOUNTED STOP LAMP" .
2. Turn the high-mounted stop lamp bulb socket counterclockwise
and unlock it.
3. Remove the bulb.
Removal and InstallationEKS0034L
STOP LAMP
Refer toLT- 6 3 , "Removal and Installation" .
HIGH-MOUNTED STOP LAMP
1. Pull the edge of the cover (A in the figure below) to each side in
turn downward until the pawls inside the cover are released.
2. Pull down the cover toward under the vehicle.
3. Remove the high-mounted stop lamp mounting bolts.
4. Disconnect the high-mounted stop lamp connector and remove
it from the vehicle.High-mounted Stop Lamp : 12V 5W
PKIA0496E
PKIA8618E
PKIA5577E

LT-44
BACK-UP LAMP

BACK-UP LAMPPFP:26550

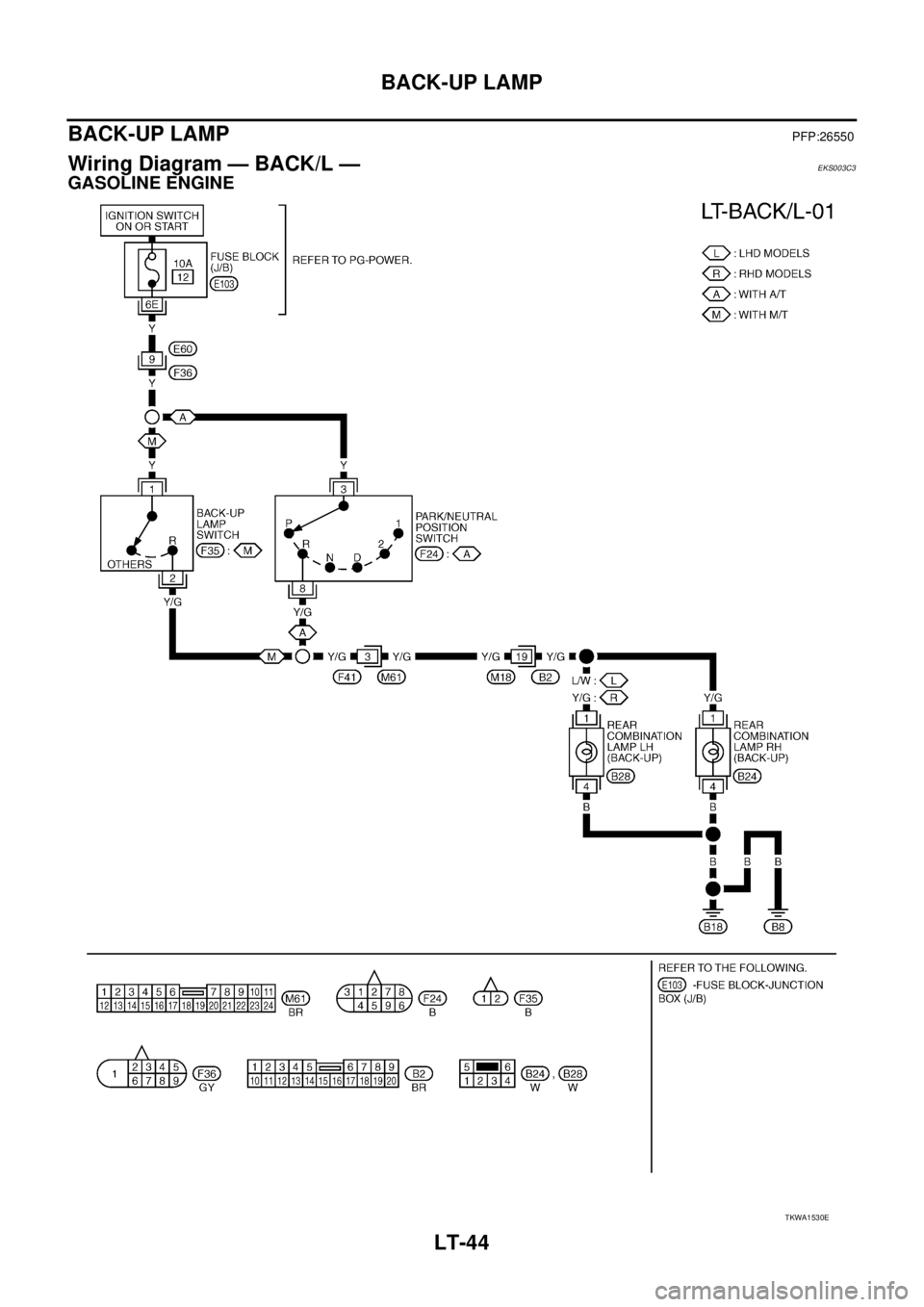

Wiring Diagram — BACK/L — EKS003C3
GASOLINE ENGINE
TKWA1530E

BACK-UP LAMP
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT

DIESEL ENGINE
TKWA1531E

LT-46
BACK-UP LAMP

Bulb Replacement EKS003C4
Refer to LT- 6 3 , "Bulb Replacement" .
Removal and Installation EKS003C5
Refer to LT- 6 3 , "Removal and Installation" .

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT

PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550

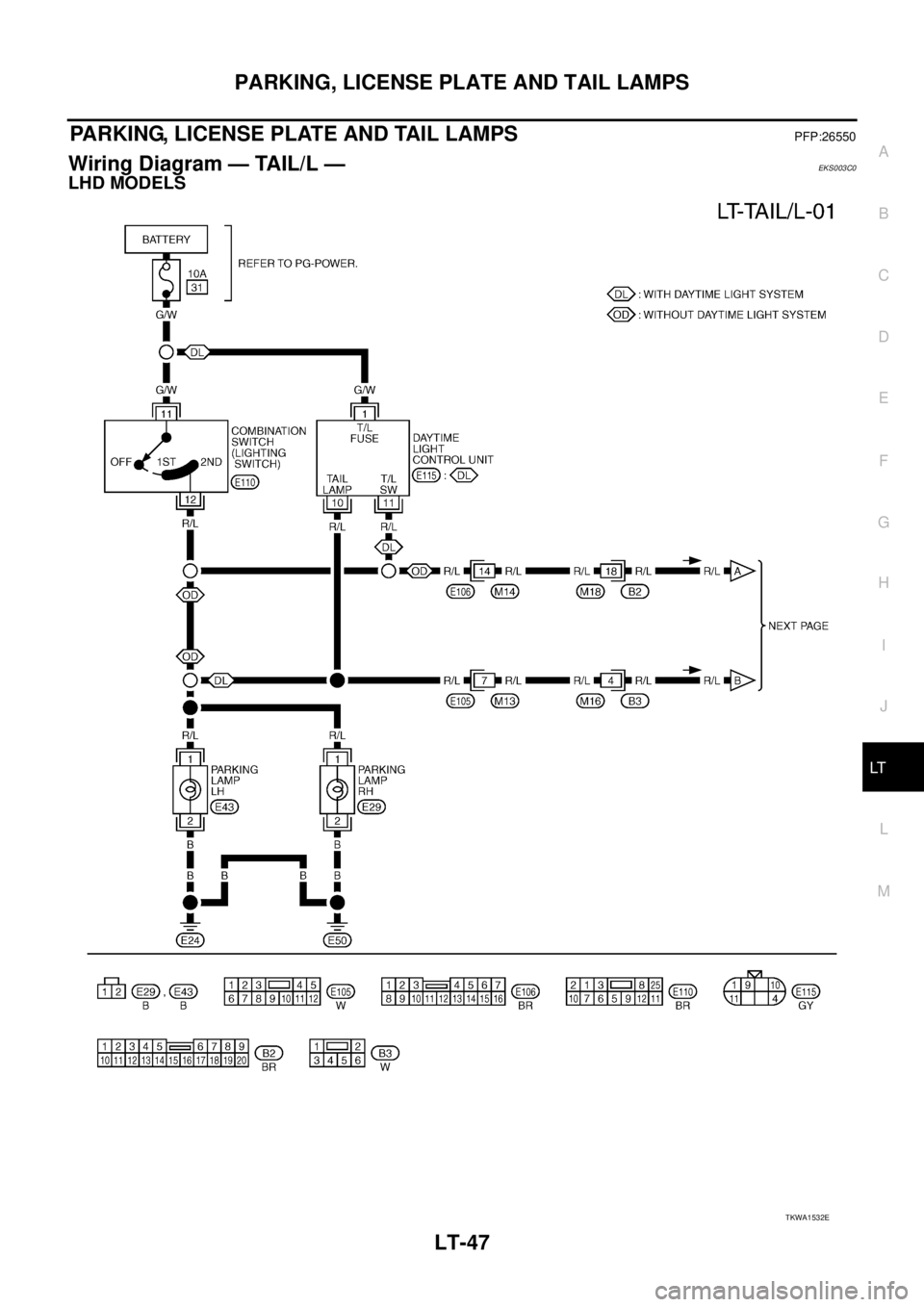

Wiring Diagram — TAIL/L — EKS003C0
LHD MODELS
TKWA1532E

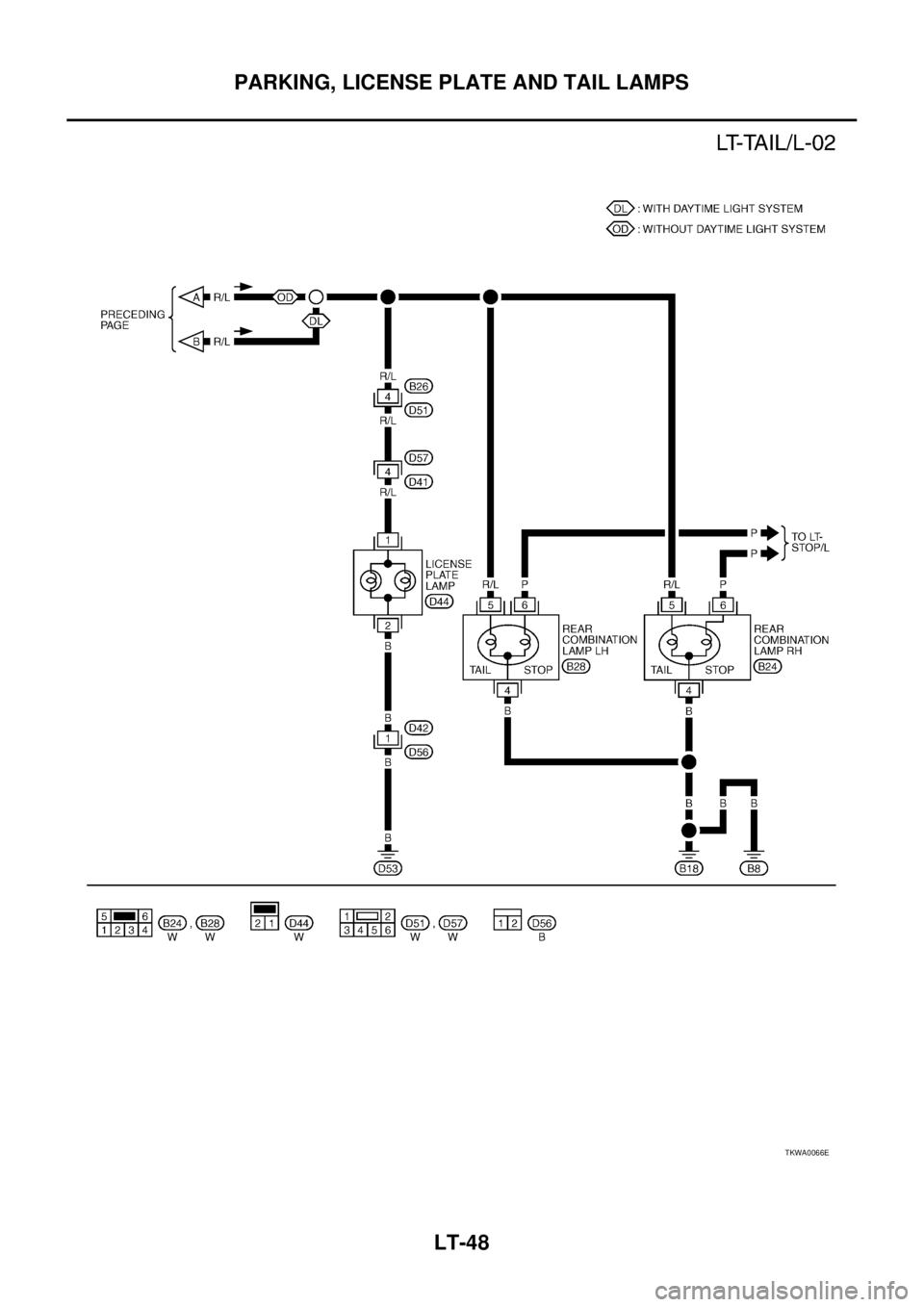

LT-48
PARKING, LICENSE PLATE AND TAIL LAMPS

TKWA0066E

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-49
C
D
E
F
G
H
I
J
L
MA
B
LT

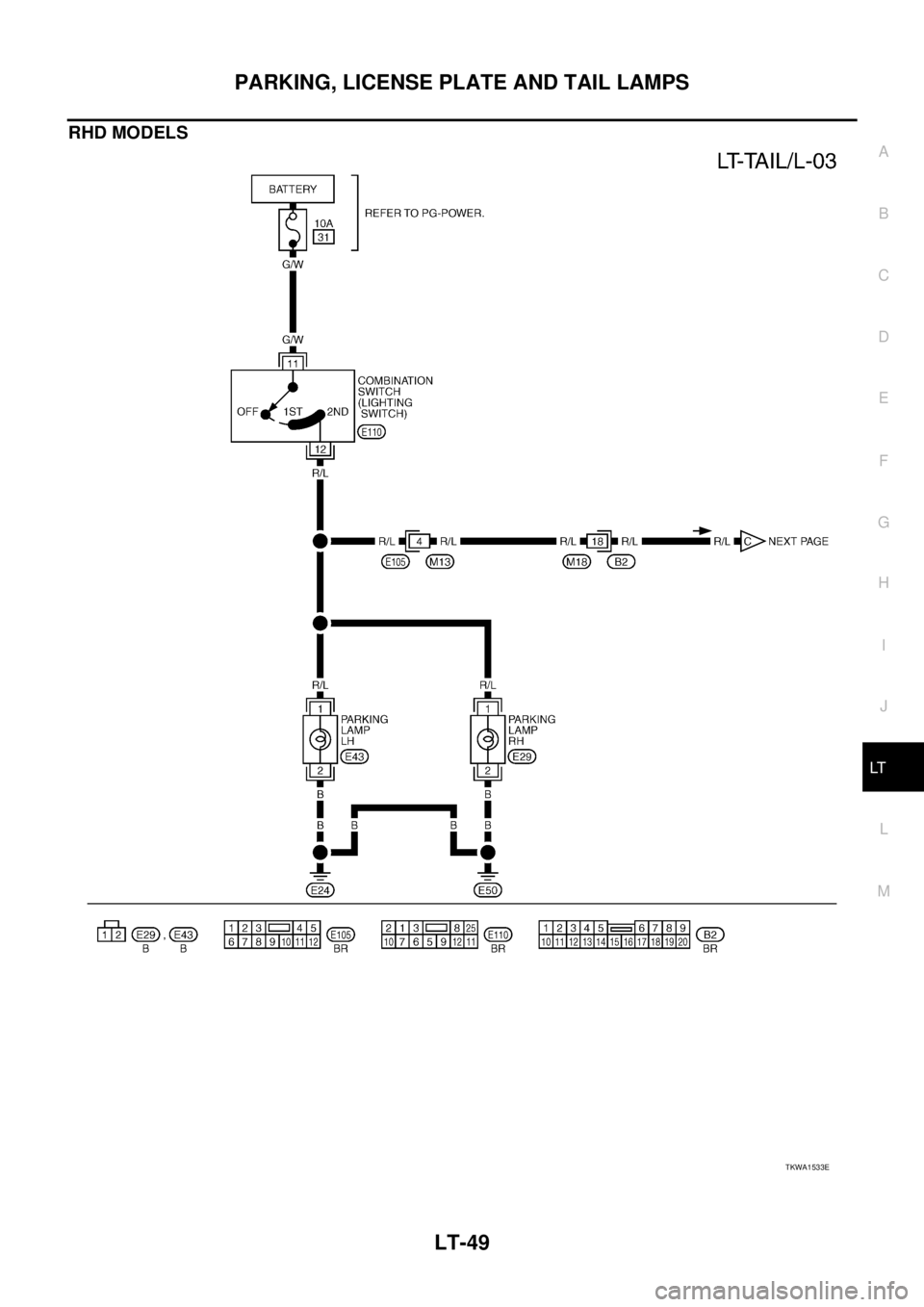

RHD MODELS
TKWA1533E

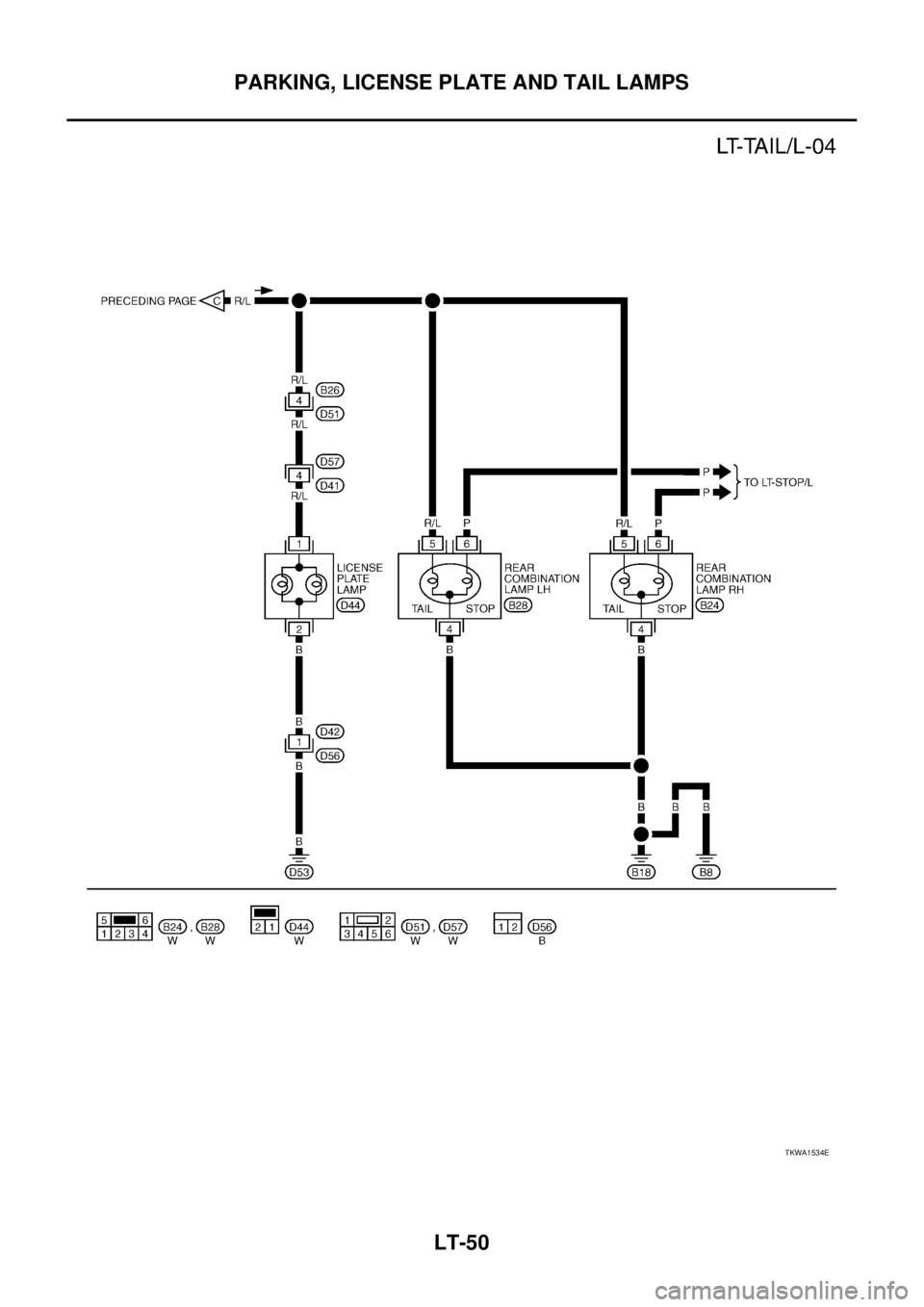

LT-50
PARKING, LICENSE PLATE AND TAIL LAMPS

TKWA1534E

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-51
C
D
E
F
G
H
I
J
L
MA
B
LT

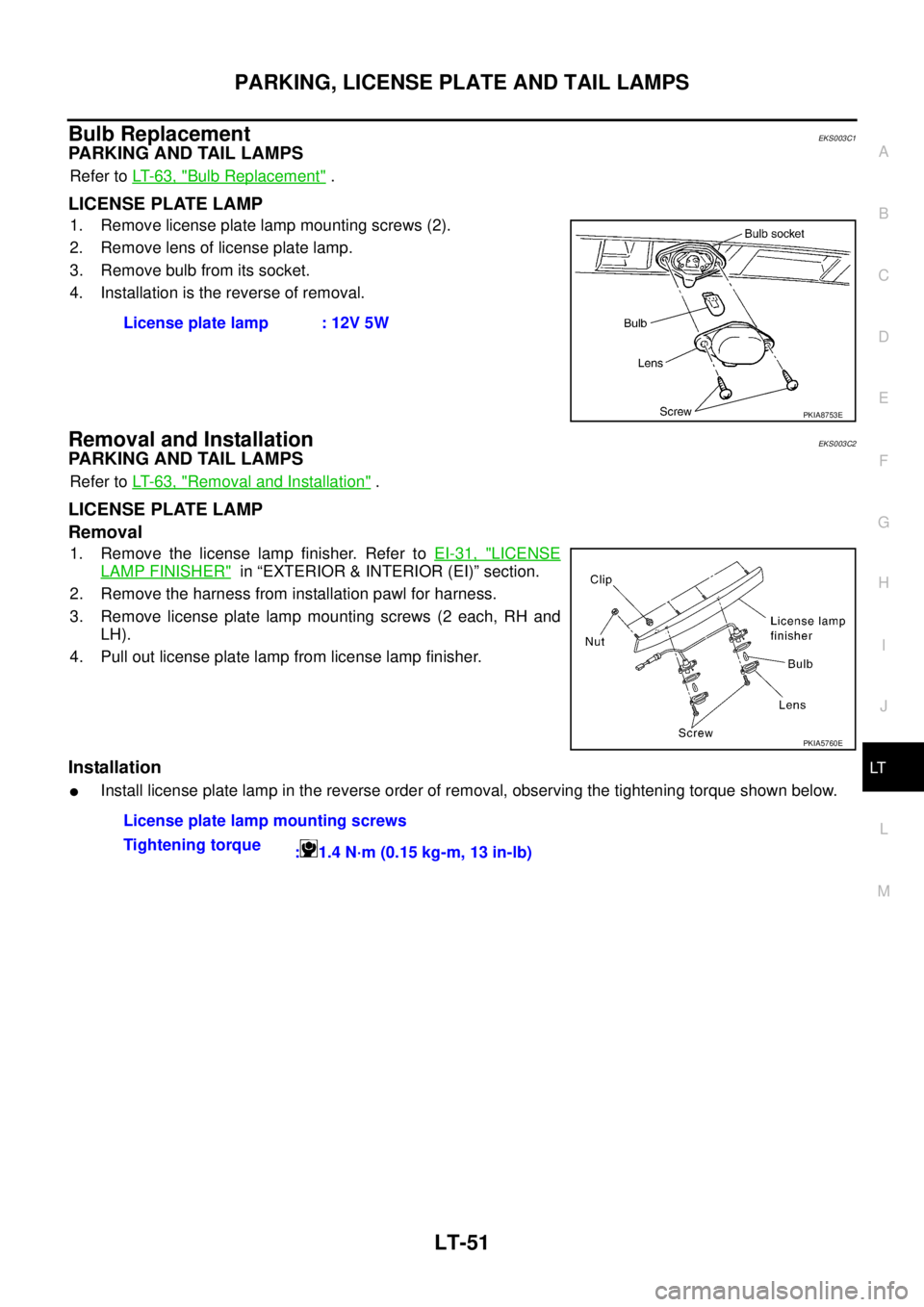

Bulb Replacement EKS003C1
PARKING AND TAIL LAMPS
Refer to LT- 6 3 , "Bulb Replacement" .
LICENSE PLATE LAMP
1. Remove license plate lamp mounting screws (2).
2. Remove lens of license plate lamp.
3. Remove bulb from its socket.
4. Installation is the reverse of removal.
Removal and Installation EKS003C2
PARKING AND TAIL LAMPS
Refer to LT- 6 3 , "Removal and Installation" .
LICENSE PLATE LAMP
Removal
1. Remove the license lamp finisher. Refer to EI-31, "LICENSE
LAMP FINISHER" in “EXTERIOR & INTERIOR (EI)” section.
2. Remove the harness from installation pawl for harness.
3. Remove license plate lamp mounting screws (2 each, RH and
LH).
4. Pull out license plate lamp from license lamp finisher.
Installation

Install license plate lamp in the reverse order of removal, observing the tightening torque shown below.License plate lamp : 12V 5W
PKIA8753E
PKIA5760E
License plate lamp mounting screws
Tightening torque
: 1.4 N·m (0.15 kg-m, 13 in-lb)

LT-52
FRONT FOG LAMP

FRONT FOG LAMP PFP:00011
System Description EKS003DF
DESCRIPTION
Power is supplied at all times to front fog lamp relay terminal 3

through 15A fuse (No. 42, located in the fuse and fusible link box).
With the lighting switch in the 2ND position and LOW position, power is supplied

through 10A fuse (No. 31, located in the fuse and fusible link box)

to lighting switch terminal 11

through lighting switch terminal 12

to fog lamp switch terminal 32

through fog lamp switch terminal 31

to front fog lamp relay terminal 2.
FOG LAMP OPERATION
The front and rear fog lamp switch is built into the combination switch. The lighting switch must be in the 1st or
2nd position for front fog lamp operation.
With the fog lamp switch in the ON position, ground is supplied

to front fog lamp relay terminal 1

through the fog lamp switch and grounds E24 and E50.
The front fog lamp relay is energized and power is supplied

from front fog lamp relay terminal 5

to each fog lamp terminal 1

to combination meter terminal 15.
Ground is supplied

to each fog lamp terminal 2 through grounds E24 and E50.
With power and ground supplied, the front fog lamps illuminate.
Ground is supplied

to combination meter terminal 64 through grounds M27 and M70.
